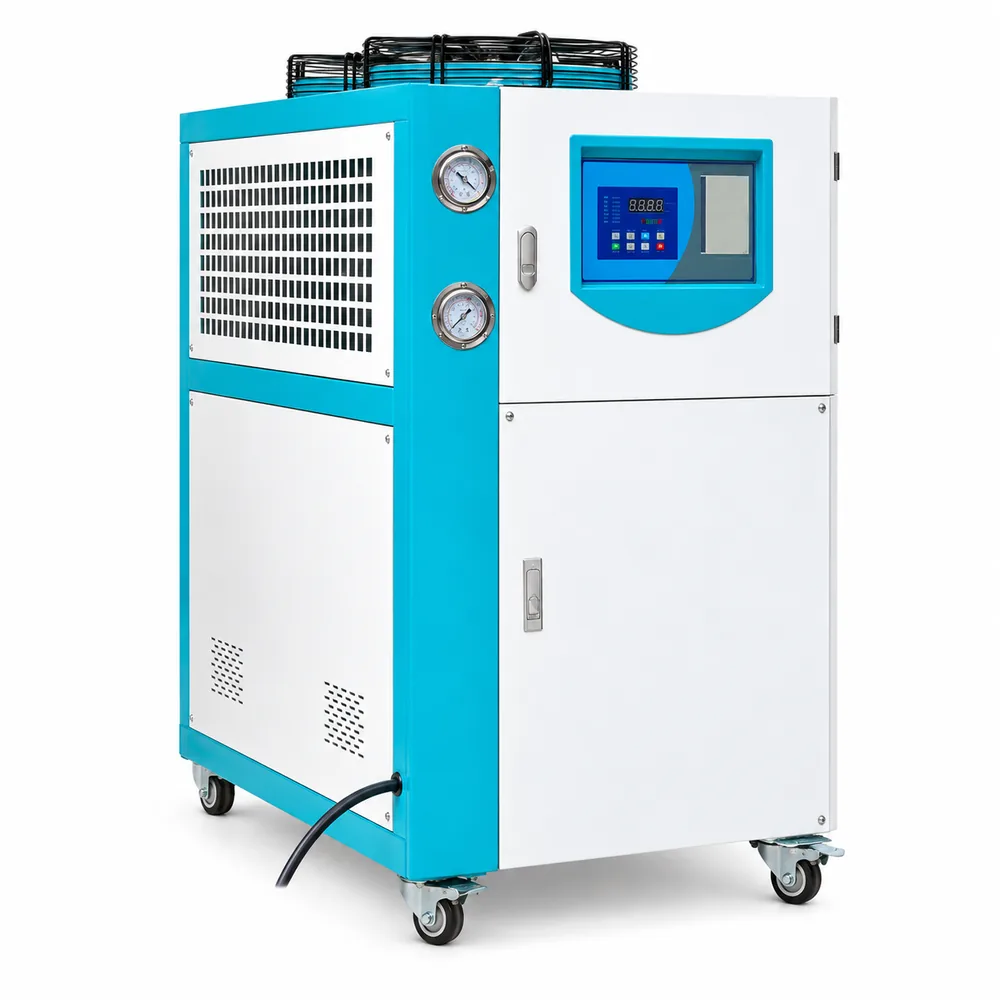

Air-Cooled Industrial
Chiller
Designed for reliable process cooling and precise temperature control without the need for an external cooling tower. Compact and easy to install, it is suitable for food, pharmaceutical, chemical and various industrial processing applications.
Configuration Overview
Configure the chiller to match your cooling capacity, temperature and process requirements.
2.94–181.68 kW
Cooling Capacity
1–60 HP
Compressor Power Range
5–50°C
Temperature Range
Air-Cooled
Condensing System
Available Chiller Options
Standard Air-Cooled Chiller
Self-contained air-cooled design for reliable process cooling without an external cooling tower.
Standard Water-Cooled Chiller
Compact water-cooled design for stable and efficient industrial process cooling.
Water-Cooled Screw Chiller
High-capacity water-cooled screw chiller for continuous industrial cooling applications.
Air-Cooled Screw Chiller
High-capacity air-cooled screw chiller for demanding industrial cooling requirements.

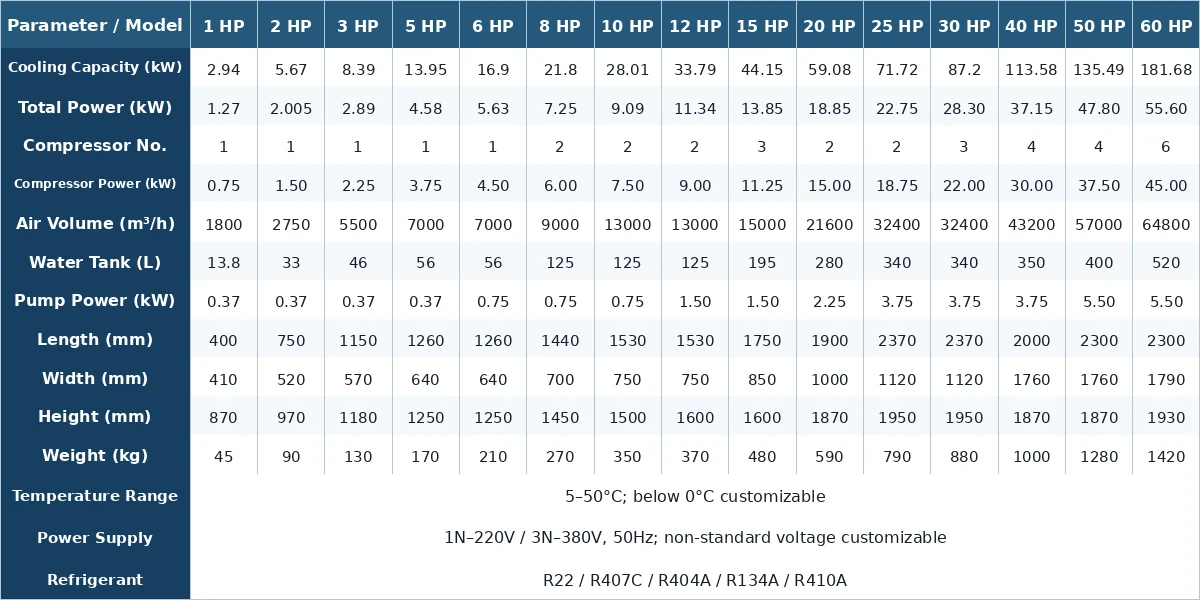

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Parameter / Model |
1 HP | 2 HP | 3 HP | 5 HP | 6 HP | 8 HP | 10 HP | 12 HP | 15 HP | 20 HP | 25 HP | 30 HP | 40 HP | 50 HP | 60 HP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling Capacity (kW) |
2.94 | 5.67 | 8.39 | 13.95 | 16.9 | 21.8 | 28.01 | 33.79 | 44.15 | 59.08 | 71.72 | 87.2 | 113.58 | 135.49 | 181.68 |
| Total Power (kW) |
1.27 | 2.005 | 2.89 | 4.58 | 5.63 | 7.25 | 9.09 | 11.34 | 13.85 | 18.85 | 22.75 | 28.30 | 37.15 | 47.80 | 55.60 |
| Compressor No. | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 2 | 2 | 3 | 4 | 4 | 6 |
| Compressor Power (kW) |
0.75 | 1.50 | 2.25 | 3.75 | 4.50 | 6.00 | 7.50 | 9.00 | 11.25 | 15.00 | 18.75 | 22.00 | 30.00 | 37.50 | 45.00 |
| Air Volume (m³/h) |
1800 | 2750 | 5500 | 7000 | 7000 | 9000 | 13000 | 13000 | 15000 | 21600 | 32400 | 32400 | 43200 | 57000 | 64800 |
| Water Tank (L) |
13.8 | 33 | 46 | 56 | 56 | 125 | 125 | 125 | 195 | 280 | 340 | 340 | 350 | 400 | 520 |
| Pump Power (kW) |
0.37 | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | 1.50 | 1.50 | 2.25 | 3.75 | 3.75 | 3.75 | 5.50 | 5.50 |
| Length (mm) |
400 | 750 | 1150 | 1260 | 1260 | 1440 | 1530 | 1530 | 1750 | 1900 | 2370 | 2370 | 2000 | 2300 | 2300 |
| Width (mm) |
410 | 520 | 570 | 640 | 640 | 700 | 750 | 750 | 850 | 1000 | 1120 | 1120 | 1760 | 1760 | 1790 |
| Height (mm) |
870 | 970 | 1180 | 1250 | 1250 | 1450 | 1500 | 1600 | 1600 | 1870 | 1950 | 1950 | 1870 | 1870 | 1930 |
| Weight (kg) |
45 | 90 | 130 | 170 | 210 | 270 | 350 | 370 | 480 | 590 | 790 | 880 | 1000 | 1280 | 1420 |
| Temperature Range | 5–50°C; below 0°C customizable | ||||||||||||||
| Power Supply | 1N–220V / 3N–380V, 50Hz; non-standard voltage customizable | ||||||||||||||
| Refrigerant | R22 / R407C / R404A / R134A / R410A | ||||||||||||||
Typical Applications
Reliable process cooling and temperature control for a wide range of industrial applications.
Plastics Processing
Stable process cooling for plastics processing and temperature control applications.
Food & Beverage
Reliable cooling for food and beverage processing and production systems.
Pharma & Chemical
Consistent temperature control for pharmaceutical and chemical processes.
Industrial Equipment
Process cooling for machinery, production equipment and other industrial applications.
Optional Configurations
Designed for reliable cooling, convenient operation and flexible installation.
Control Options
Controller and monitoring options can be selected to suit different operating requirements.
Cooling Components
Refrigeration components can be configured according to cooling capacity and operating conditions.
Mobile Caster Base
Heavy-duty casters are available for easier movement, positioning and flexible installation.
Water Connections
Connection sizes and arrangements can be customized for piping and system integration.
Need an Air-Cooled Industrial Chiller for Your Process?
Tell us your required cooling capacity, operating temperature and installation requirements. Our team will help you select a suitable Air-Cooled Industrial Chiller configuration.
Request a Quote
