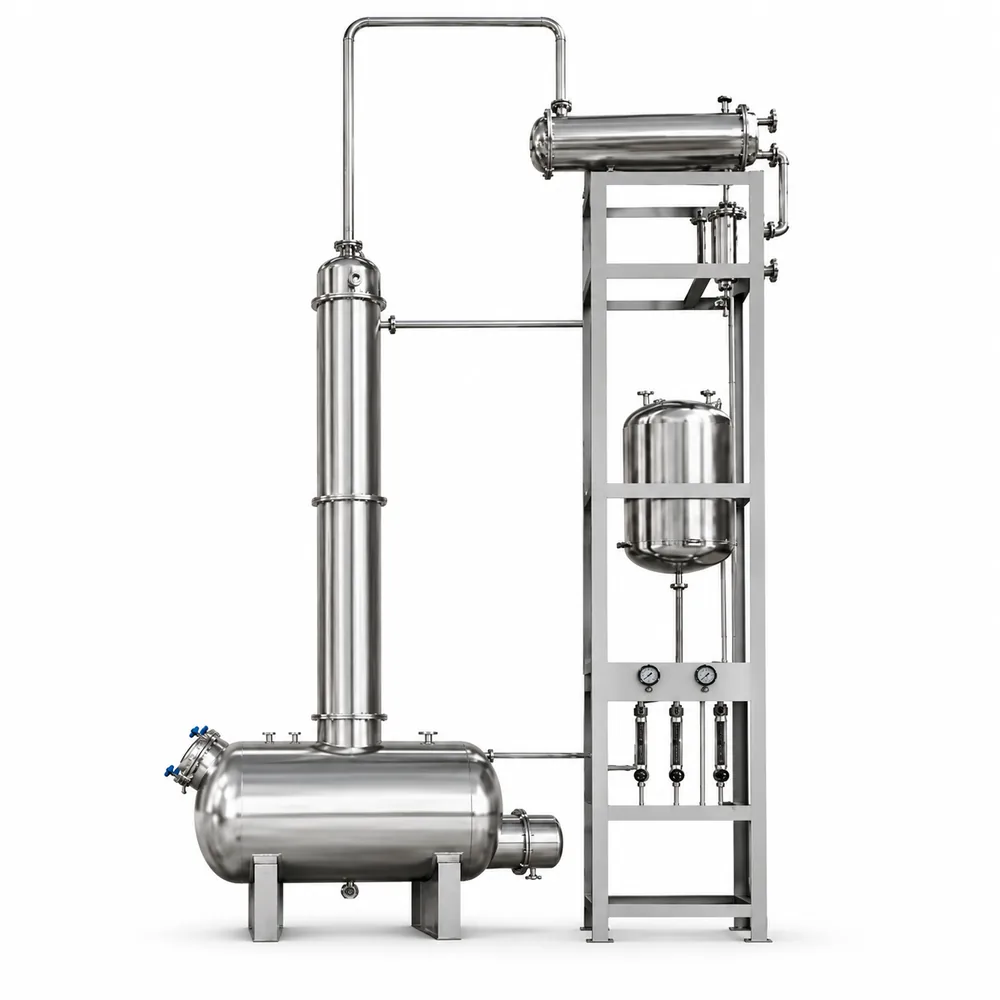

Alcohol Recovery Tower
Stainless steel distillation and recovery system designed for efficient recovery of dilute alcohol in pharmaceutical, food, chemical and related processing applications.
Configuration Overview
Configure the alcohol recovery tower to match your recovery capacity and process requirements.
200–800 mm
Column Diameter
45–620 kg/h
Recovery Capacity
>90%
Recovery Concentration
Ceramic / SS Mesh
Packing Options
Available Configurations

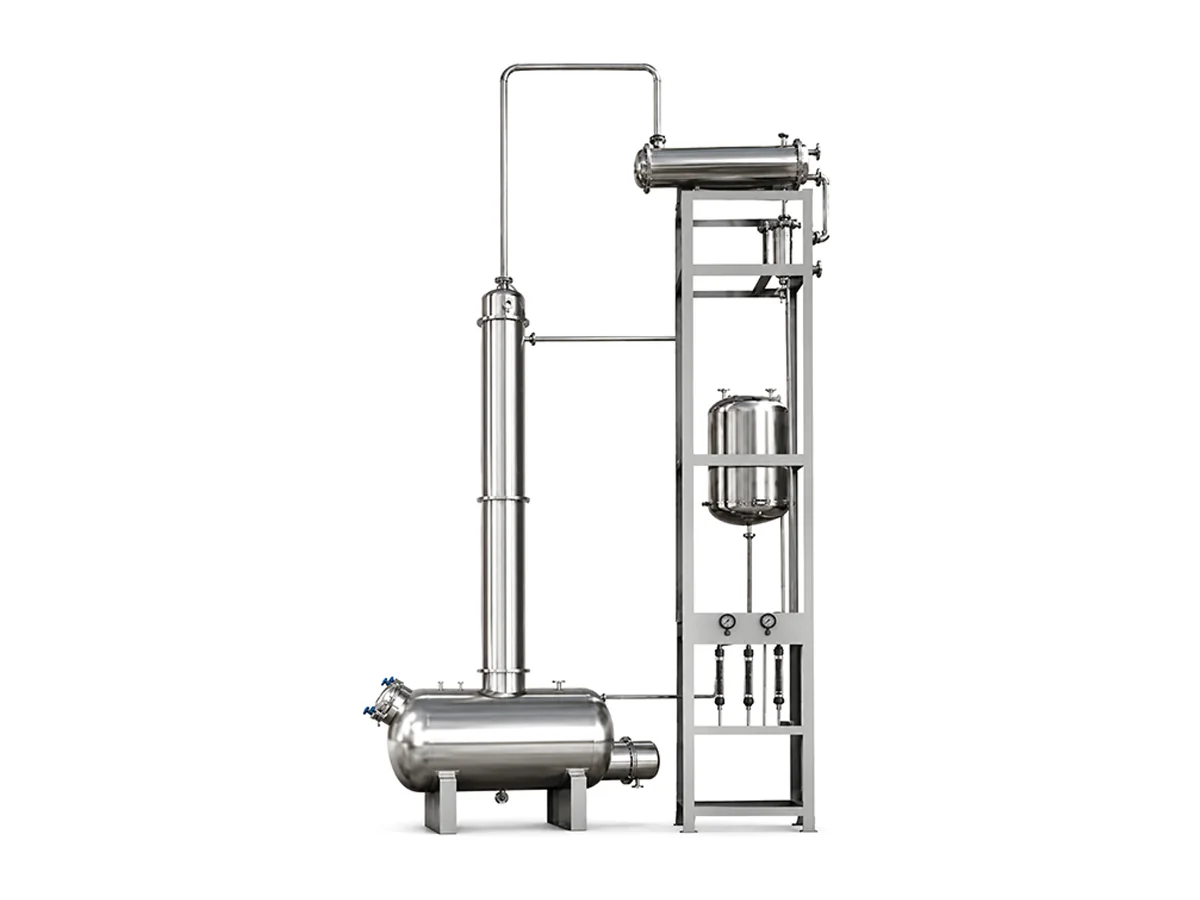

Standard Alcohol Recovery Tower
Standard distillation and recovery configuration for dilute alcohol processing.
Compact Alcohol Recovery Tower
Slim vertical configuration designed for installations with limited floor space.

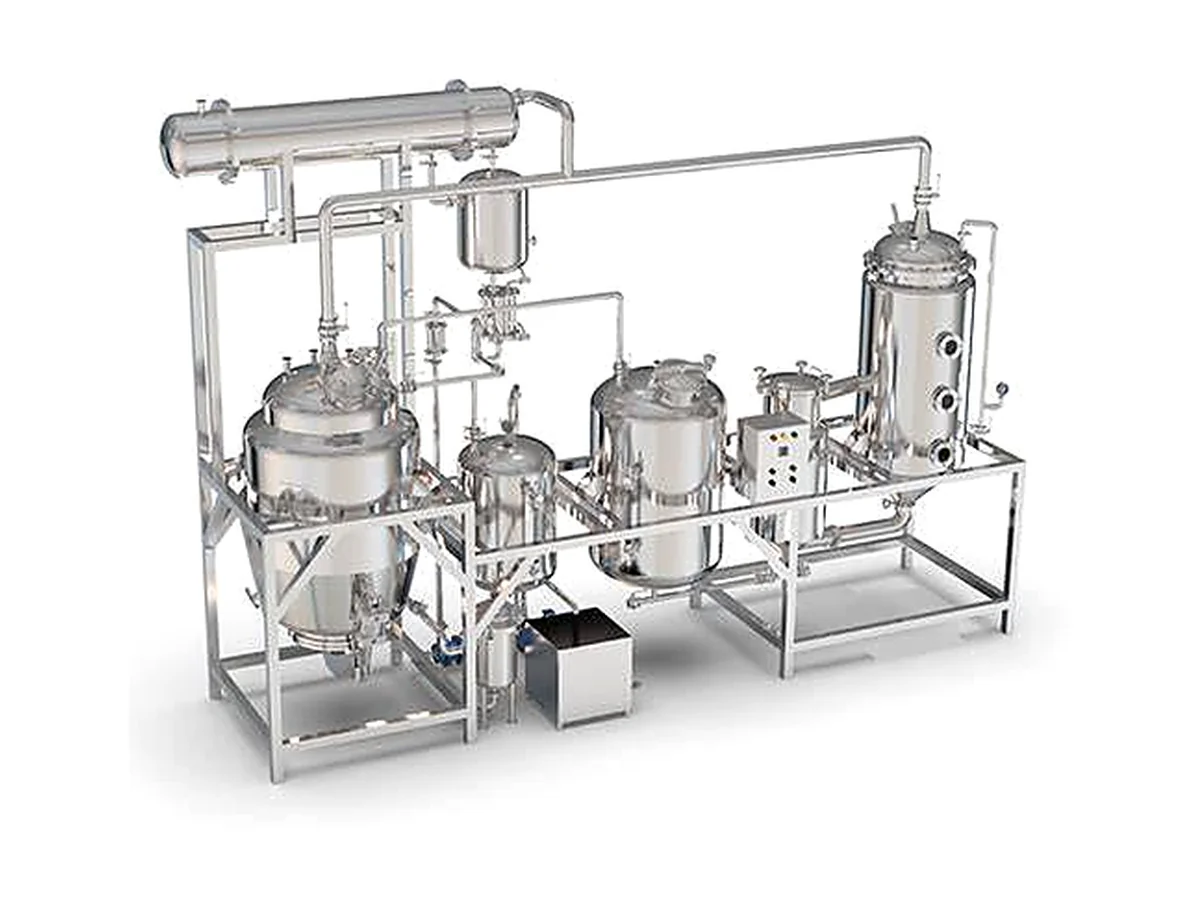

Integrated Alcohol Recovery System
Integrated configuration combining distillation, condensation and collection sections.

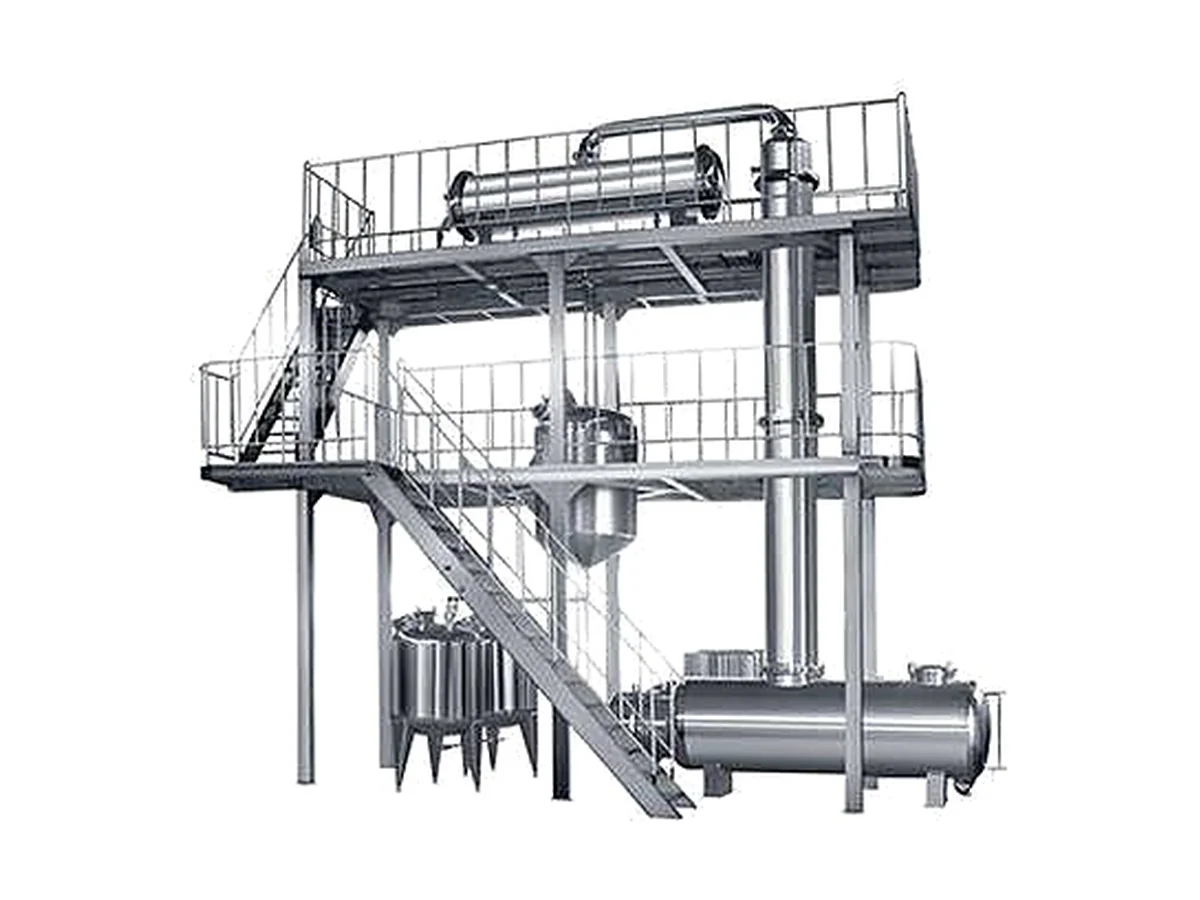

Platform-Mounted Recovery System
Platform-mounted configuration with integrated piping and access structure.

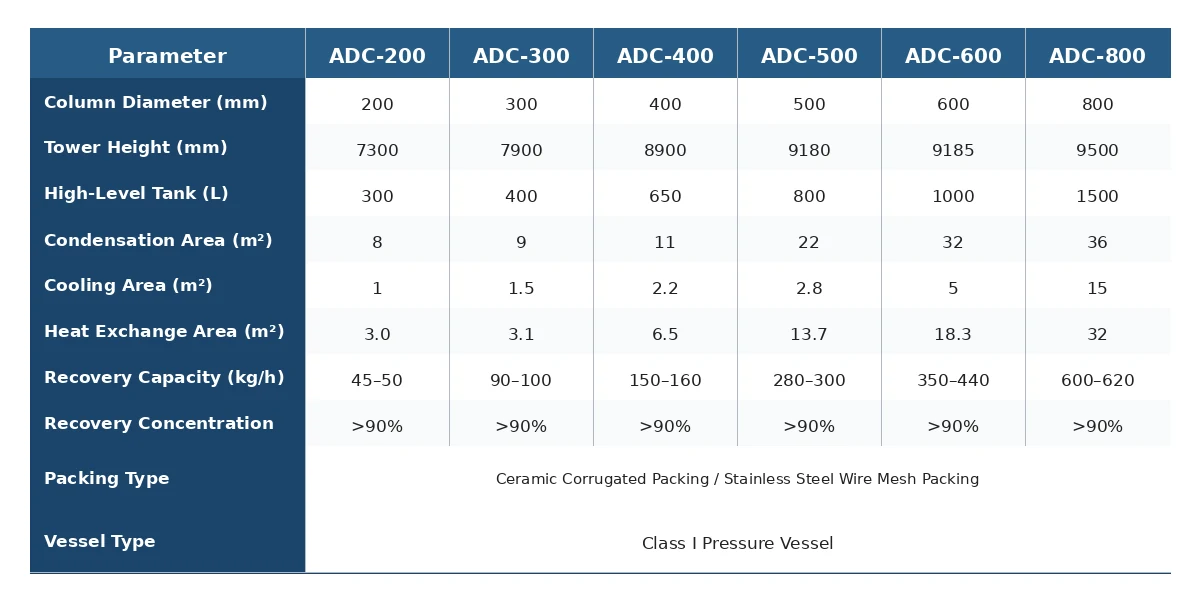

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Parameter | ADC-200 | ADC-300 | ADC-400 | ADC-500 | ADC-600 | ADC-800 |
|---|---|---|---|---|---|---|
| Column Diameter (mm) | 200 | 300 | 400 | 500 | 600 | 800 |
| Tower Height (mm) | 7300 | 7900 | 8900 | 9180 | 9185 | 9500 |
| High-Level Tank (L) | 300 | 400 | 650 | 800 | 1000 | 1500 |
| Condensation Area (m²) | 8 | 9 | 11 | 22 | 32 | 36 |
| Cooling Area (m²) | 1 | 1.5 | 2.2 | 2.8 | 5 | 15 |
| Heat Exchange Area (m²) | 3.0 | 3.1 | 6.5 | 13.7 | 18.3 | 32 |
| Recovery Capacity (kg/h) | 45–50 | 90–100 | 150–160 | 280–300 | 350–440 | 600–620 |
| Recovery Concentration | >90% | >90% | >90% | >90% | >90% | >90% |
| Packing Type | Ceramic Corrugated Packing / Stainless Steel Wire Mesh Packing | |||||
| Vessel Type | Class I Pressure Vessel | |||||
Typical Applications
Designed for recovery and concentration of dilute alcohol across pharmaceutical, food and chemical processing applications.
Pharmaceutical Processing
Recovery of dilute alcohol from pharmaceutical extraction and production processes.
Food & Beverage Processing
Alcohol recovery from food and beverage extraction and concentration processes.
Chemical Processing
Recovery and reuse of dilute alcohol in chemical process applications.
Dilute Alcohol Recovery
Distillation and concentration of dilute alcohol for reuse or further processing.
Optional Configurations
Packing, condensation, cooling and recovery sections can be configured to suit different process requirements.

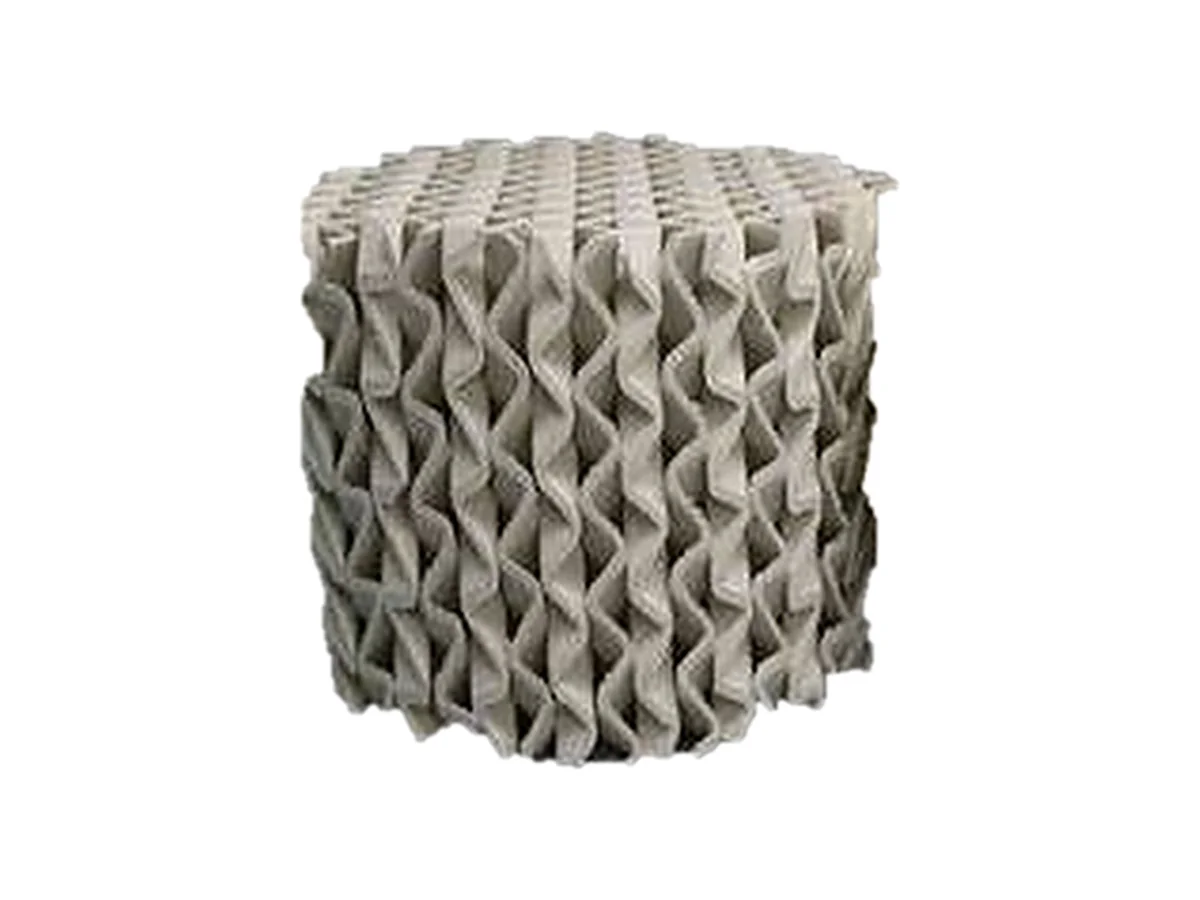

Ceramic Corrugated
Packing
Efficient ceramic packing for vapor-liquid contact in alcohol recovery.

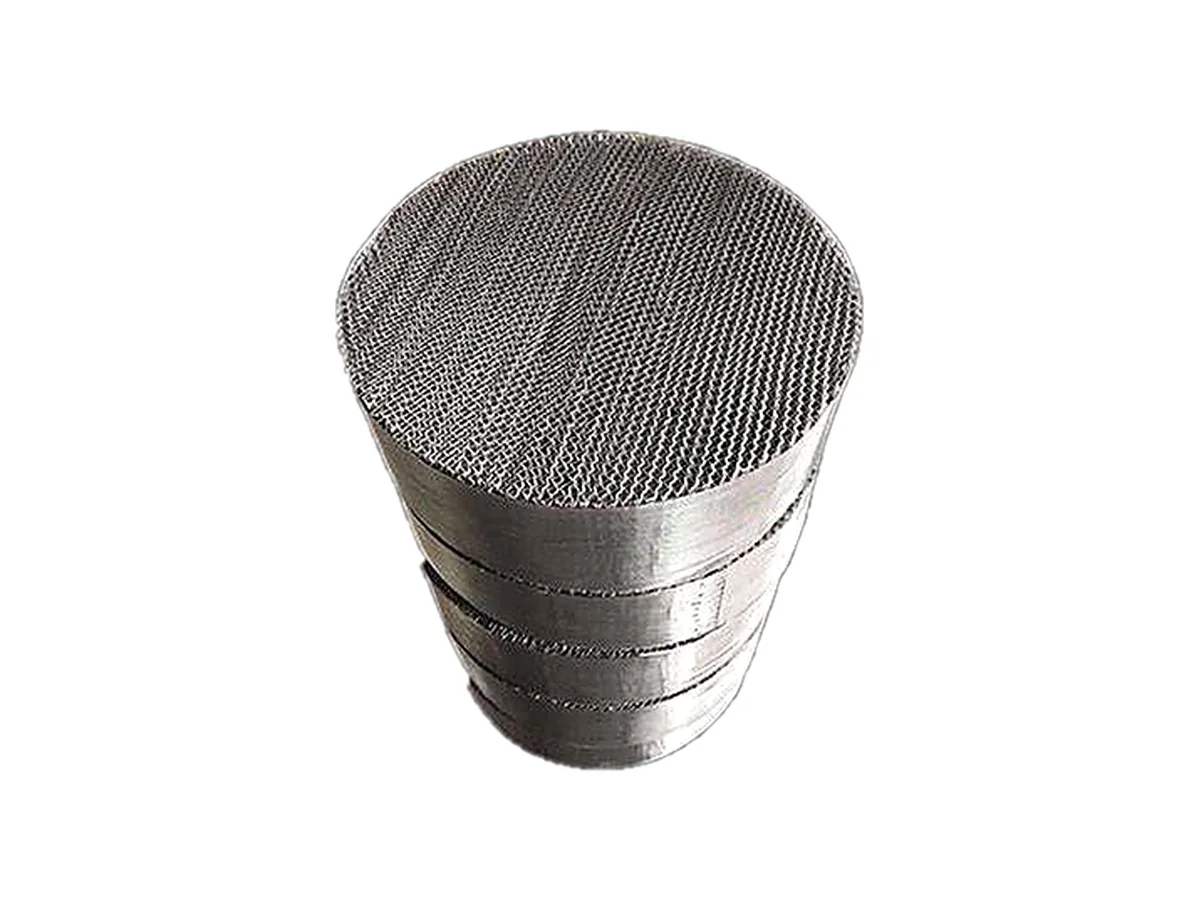

Stainless Steel Wire Mesh
Packing
Durable wire mesh packing for efficient alcohol vapor separation.

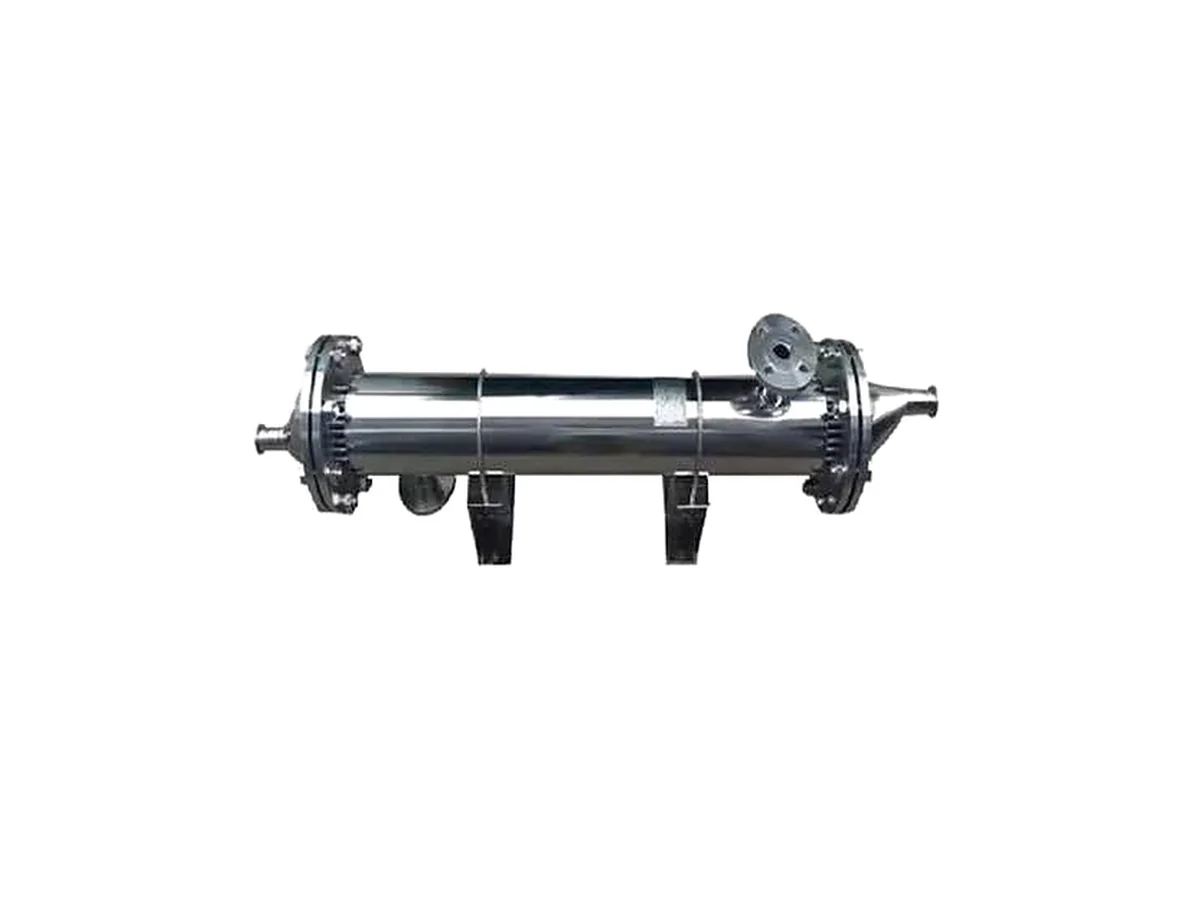

Condenser & Cooler
Configuration
Configurable condenser and cooler for efficient alcohol vapor recovery.

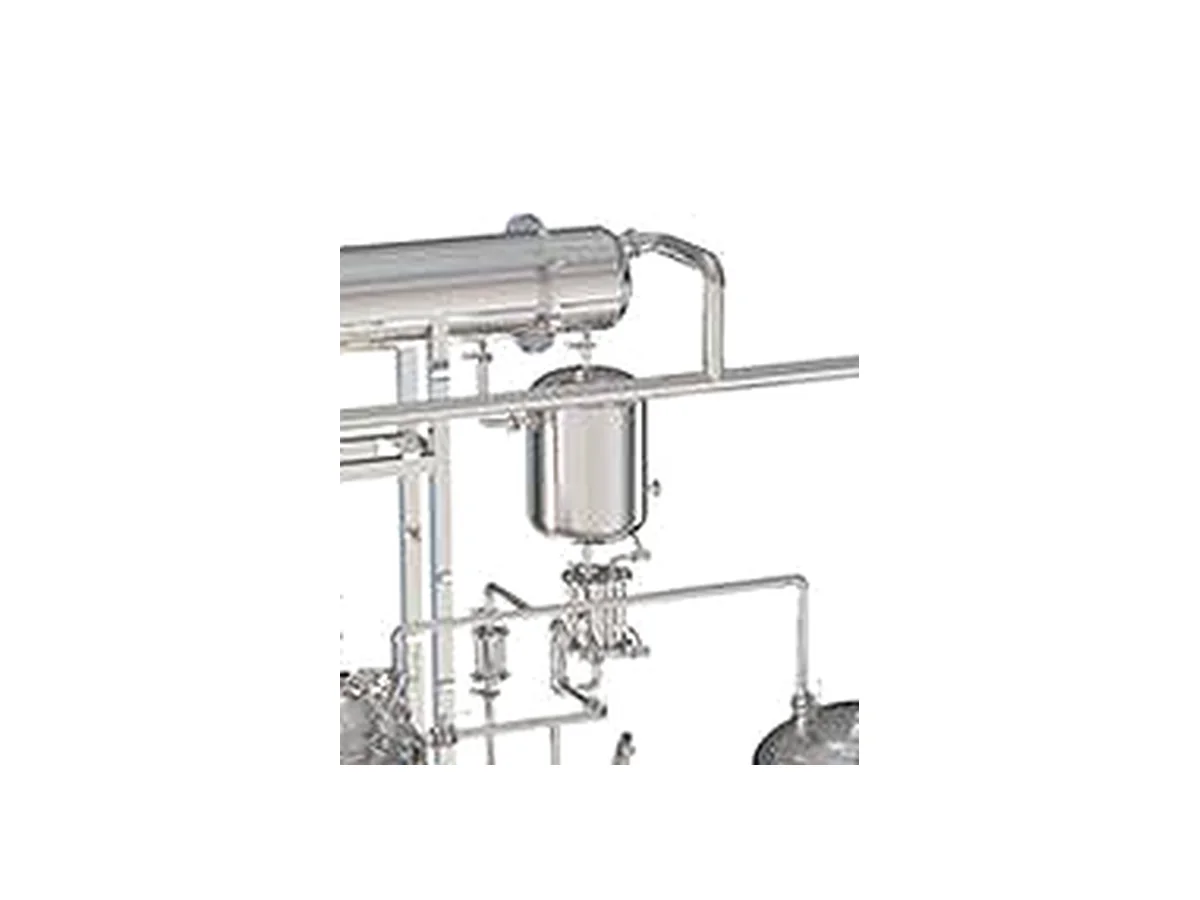

High-Level Recovery
Tank
Recovery tank for stable collection and temporary alcohol storage.
Need an Alcohol Recovery Tower for Your Process?
Tell us your required recovery capacity, alcohol concentration, process conditions and installation requirements. Our team will help you select a suitable Alcohol Recovery Tower configuration.
Request a Quote
