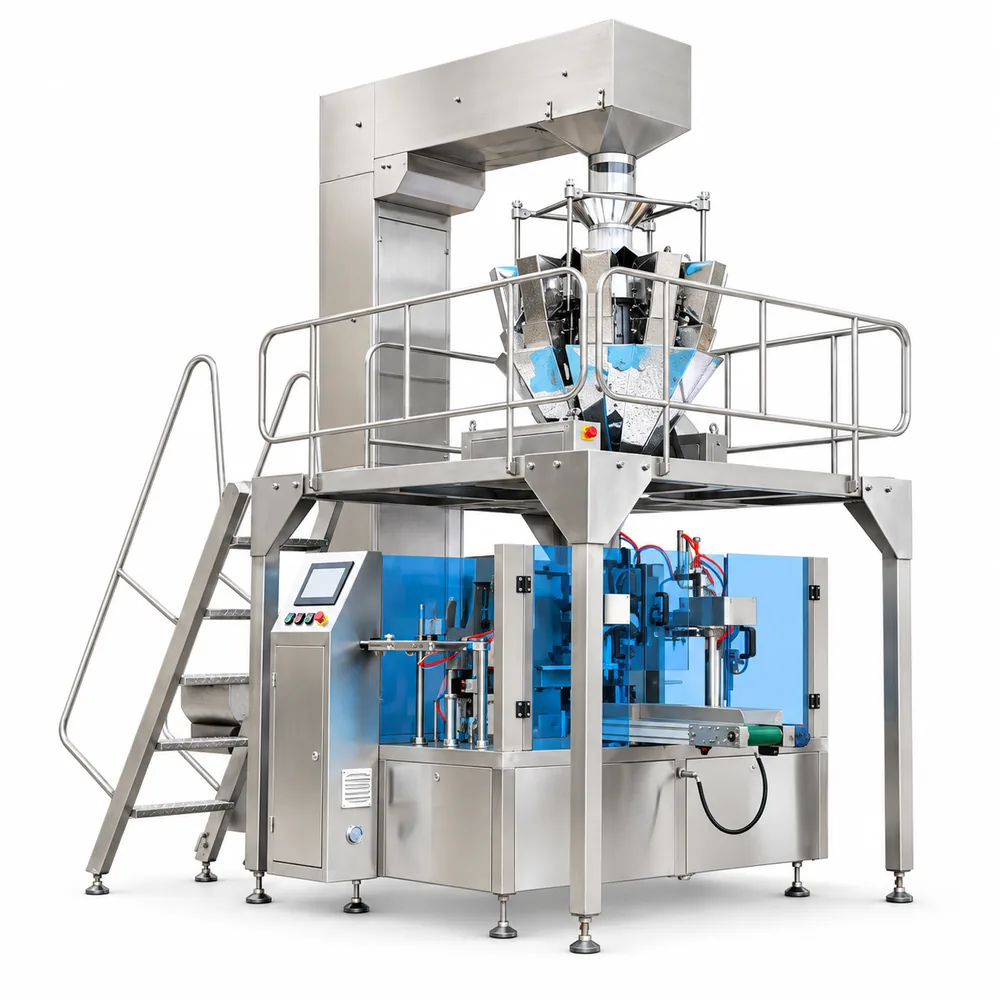

Automatic Premade Pouch Packaging Machine
Automatic premade pouch packaging machine for granules, powders, liquids and pastes. Integrates pouch feeding, opening, filling and sealing with a suitable dosing system.
Configuration Overview
Choose the dosing and feeding system to match your product and packaging requirements.

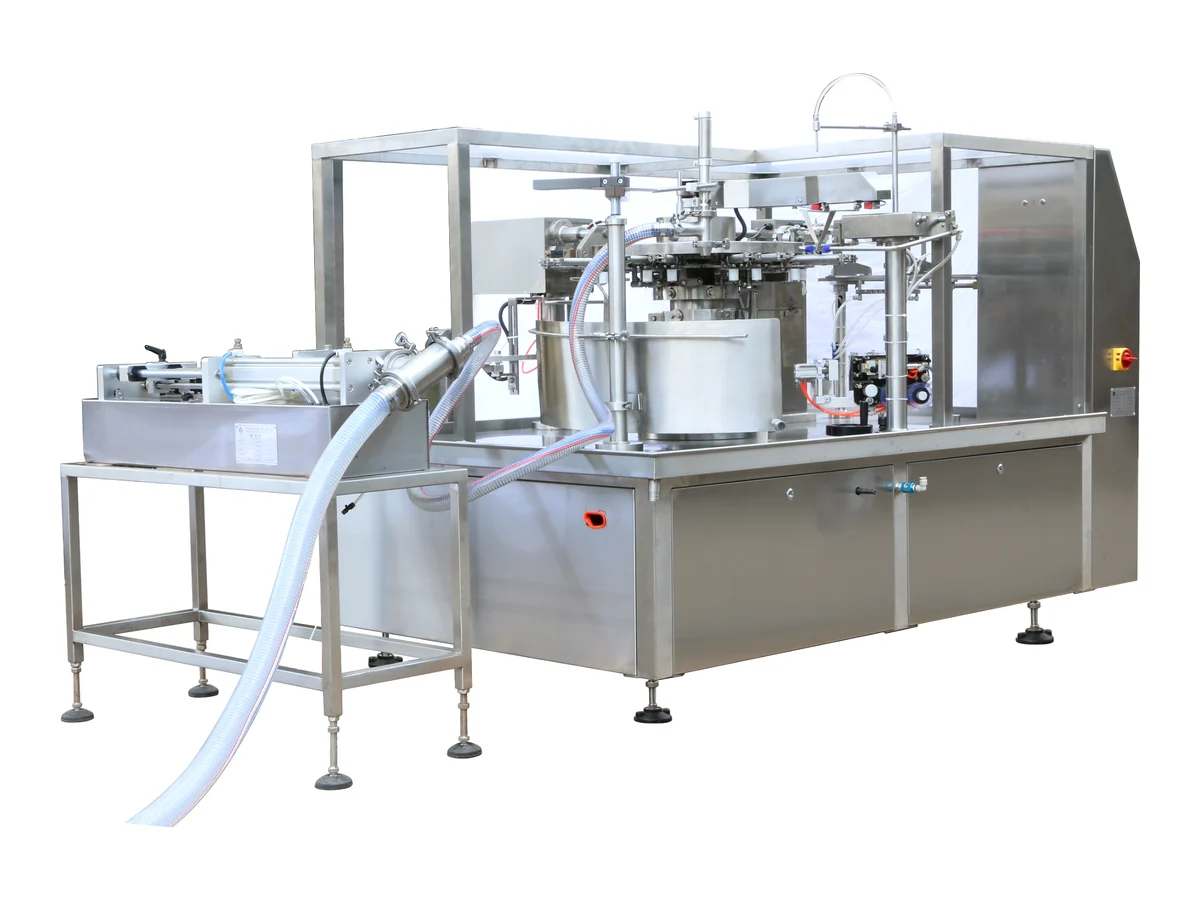

Liquid & Paste
Pump Filling System

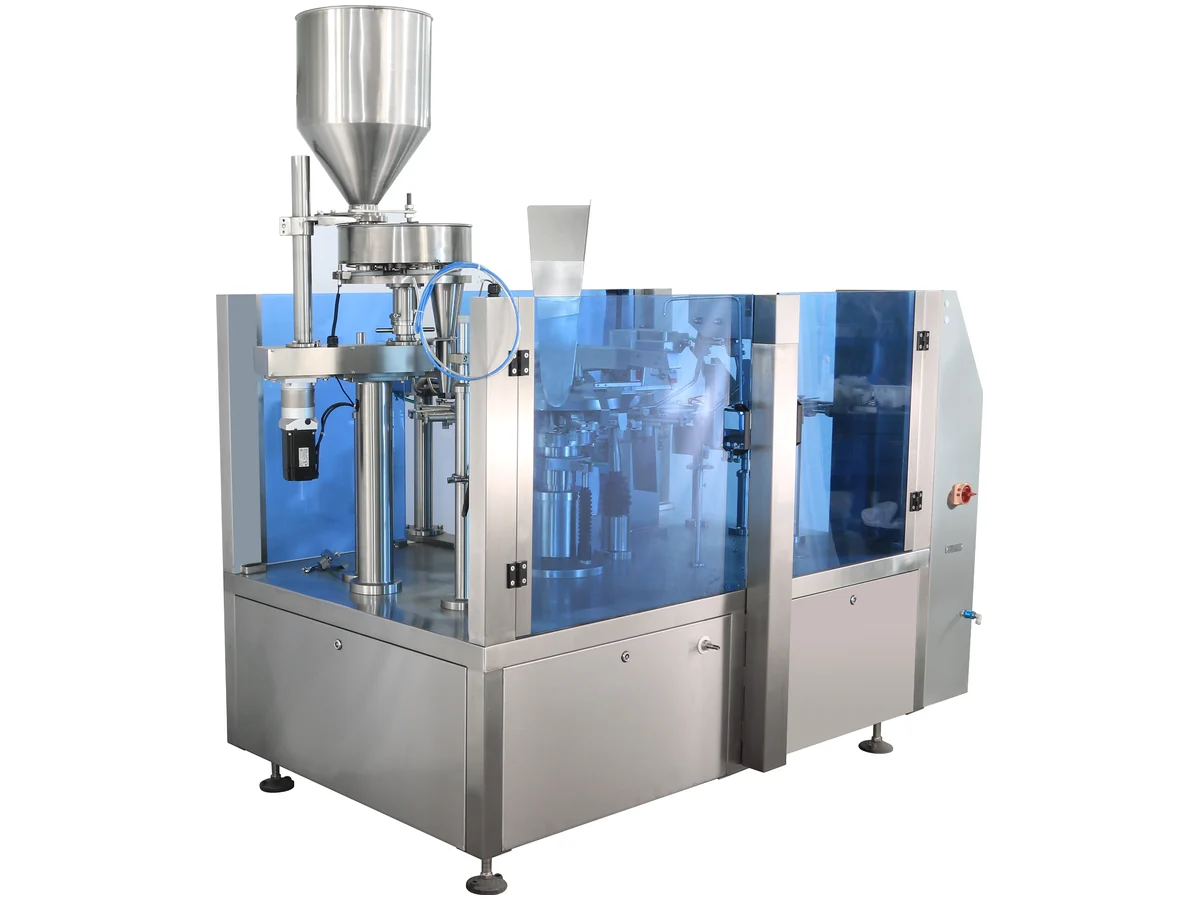

Granules
Volumetric Cup Filler
Solid Products
Multihead Weigher

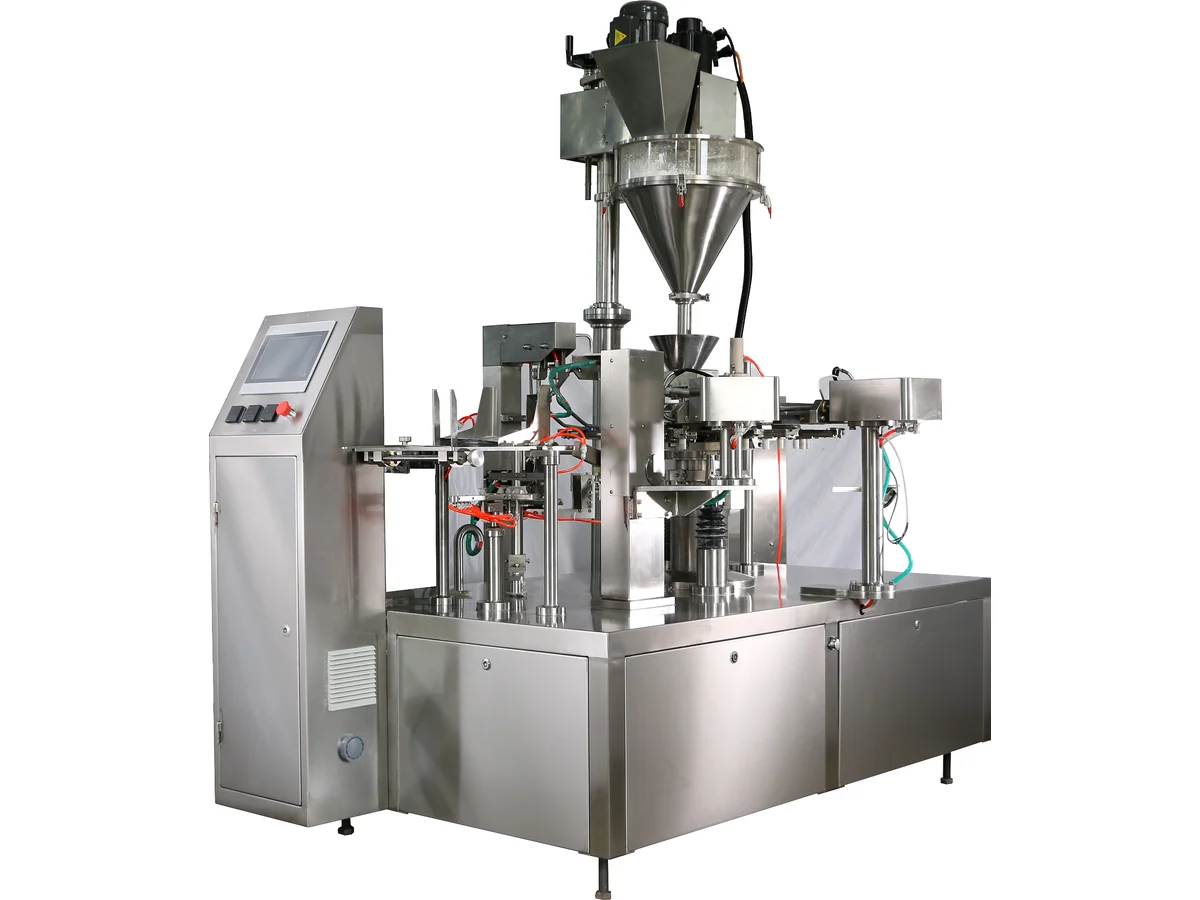

Powder
Auger Filler
Available Configurations
Liquid & Paste
Pump Filling System
Granules
Volumetric Cup Filler

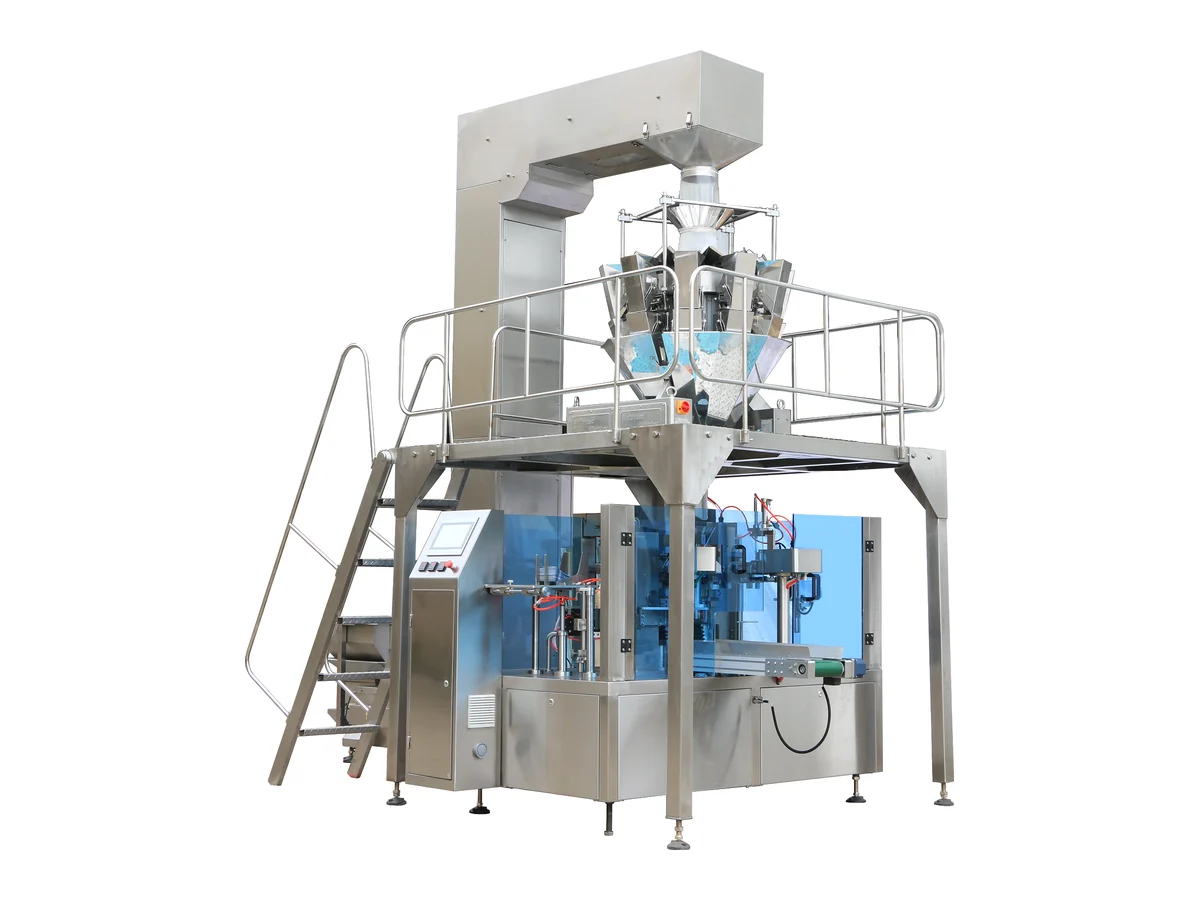

Solid Products
Multihead Weigher
Powder
Auger Filler
Technical Specifications
Specifications vary by product type, dosing system and pouch size. Configurations can be customized to meet different packaging requirements.
| Specification | HL8-250C Liquid & Paste |
HL8-250 Granules |
|---|---|---|
| Dosing System | Liquid / Paste Filling | Volumetric Cup Filler |
| Stations | 8 | 8 |
| Pouch Width | 70–250 mm | 70–250 mm |
| Pouch Length | 80–350 mm | 70–350 mm |
| Filling Range | 200–1000 mL | 100–500 g |
| Packaging Speed | 25–35 bags/min | 20–40 bags/min |
| Average Accuracy | ±1.5%–2.0% | ±1.5%–2.5% |
| Rated Power | 3.2 kW | 3.2 kW |
| Voltage | 380 V | 380 V |
| Frequency | 50 Hz | To Be Confirmed |
| Control System | Touchscreen | Touchscreen |
| Pouch Type | Premade Pouches | Premade Pouches |
| Sealing Method | Heat Sealing | Heat Sealing |
| Air Requirement | To Be Confirmed | To Be Confirmed |
| Machine Dimensions | To Be Confirmed | To Be Confirmed |
| Machine Weight | 1500 kg | 1500 kg |
Typical Applications
Suitable for premade pouch packaging of powders, granules, liquids and pastes, depending on the dosing system and material characteristics.
Food & Seasonings
Snacks, grains, seasonings and suitable liquid food products.
Pharmaceutical
Selected powders and granules, subject to hygiene and compliance review.
Household Products
Detergents and other compatible liquid or powdered products.
Agricultural Products
Fertilizers and other compatible granules or powders, subject to material testing.
Optional Configurations
Optional auxiliary equipment can be configured to match different products, packaging processes and production requirements.

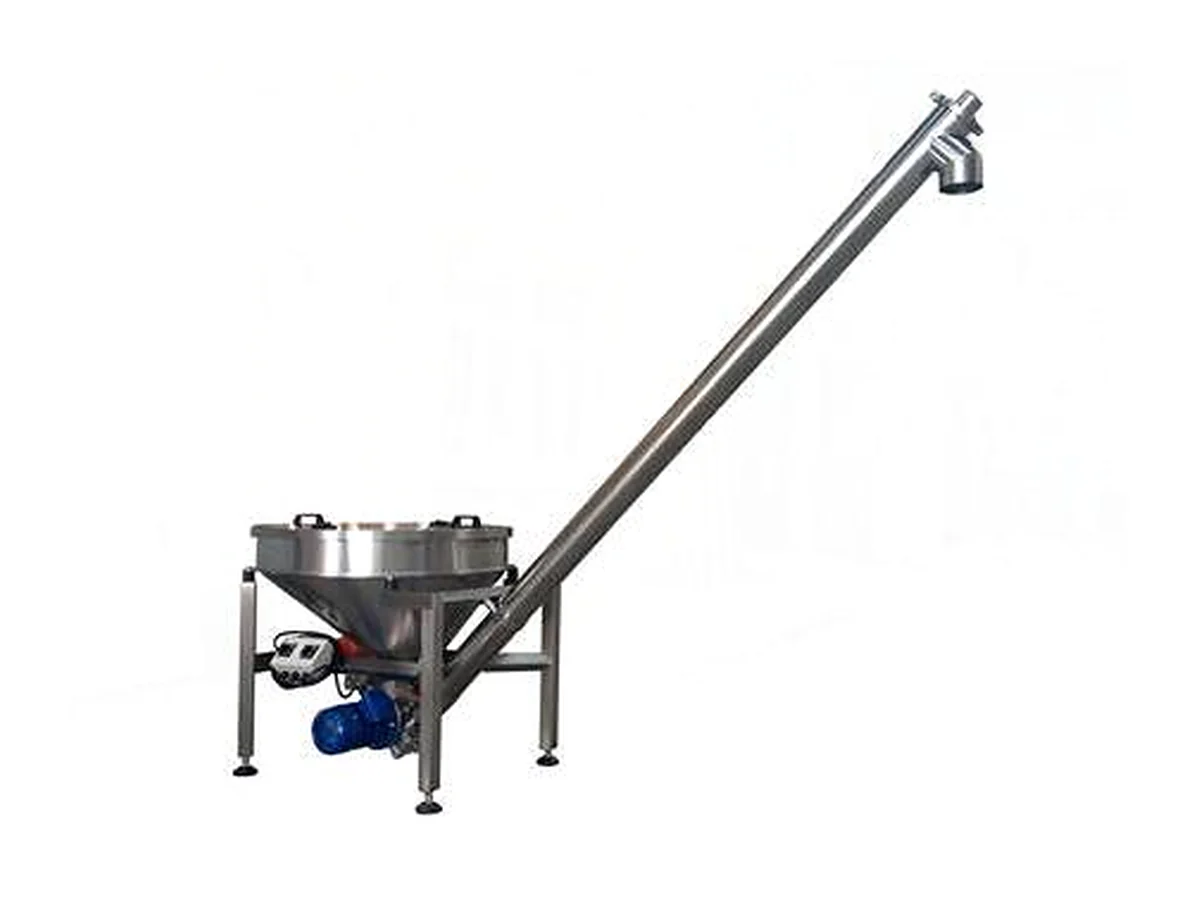

Feeding System
Stable material feeding to the dosing and packaging system.

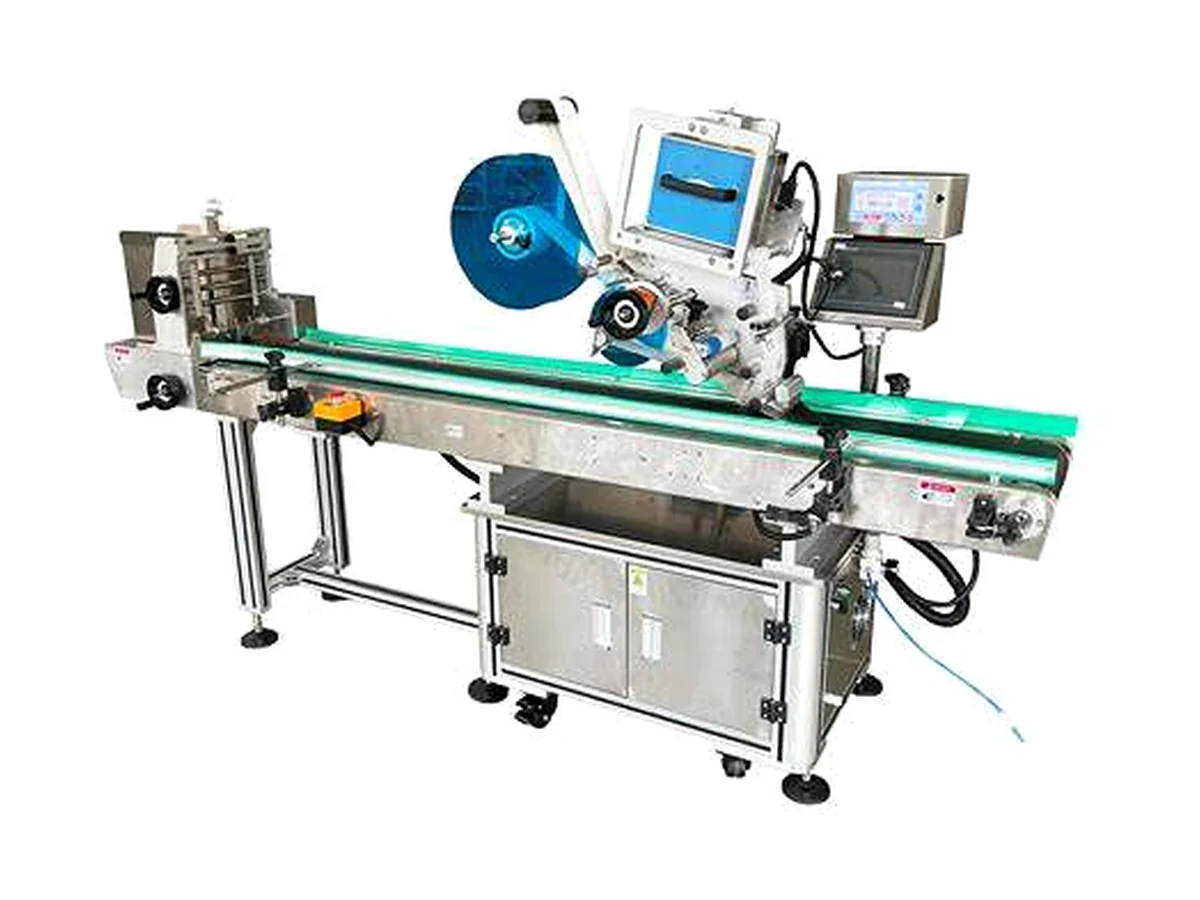

Coding & Labeling
Coding and labeling for date, batch and product identification.

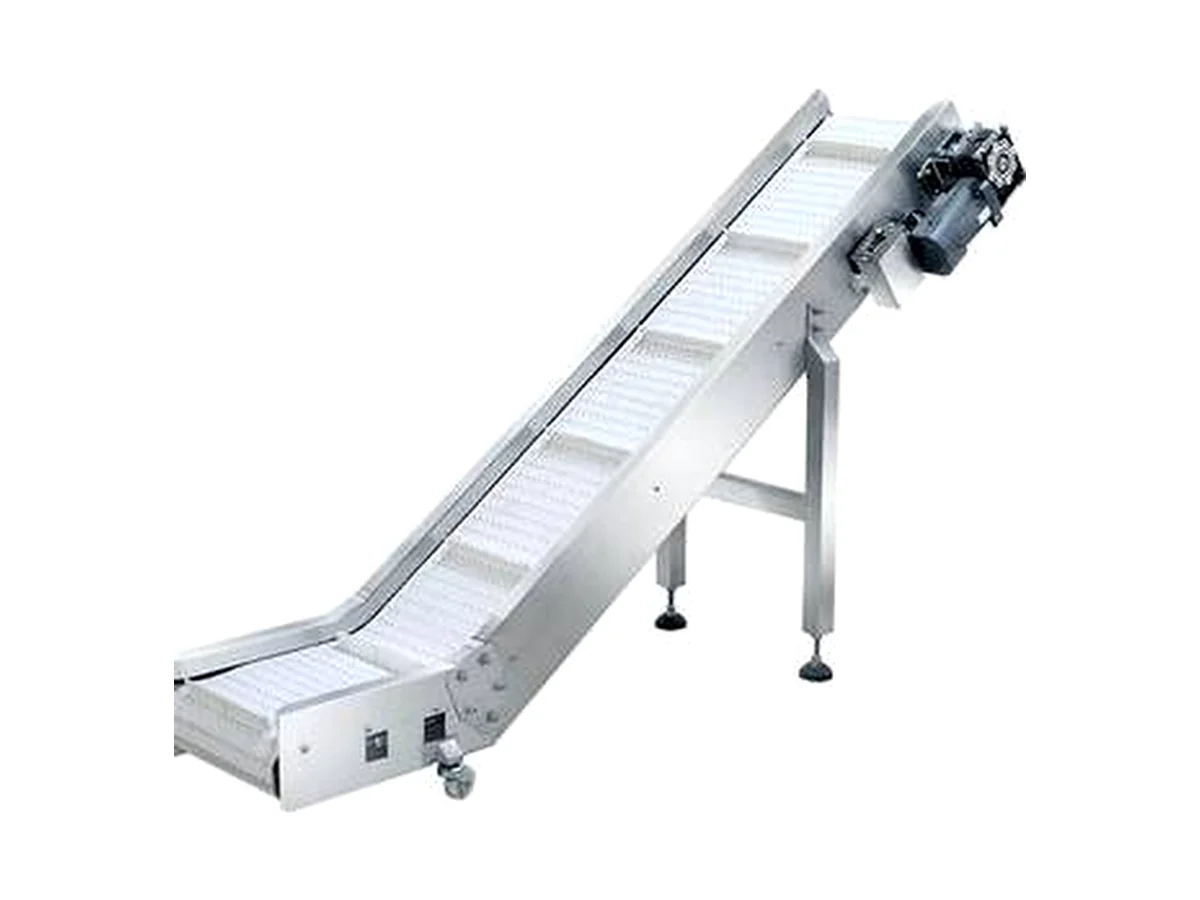

Take-Away Conveyor
Moves finished pouches to inspection or collection.

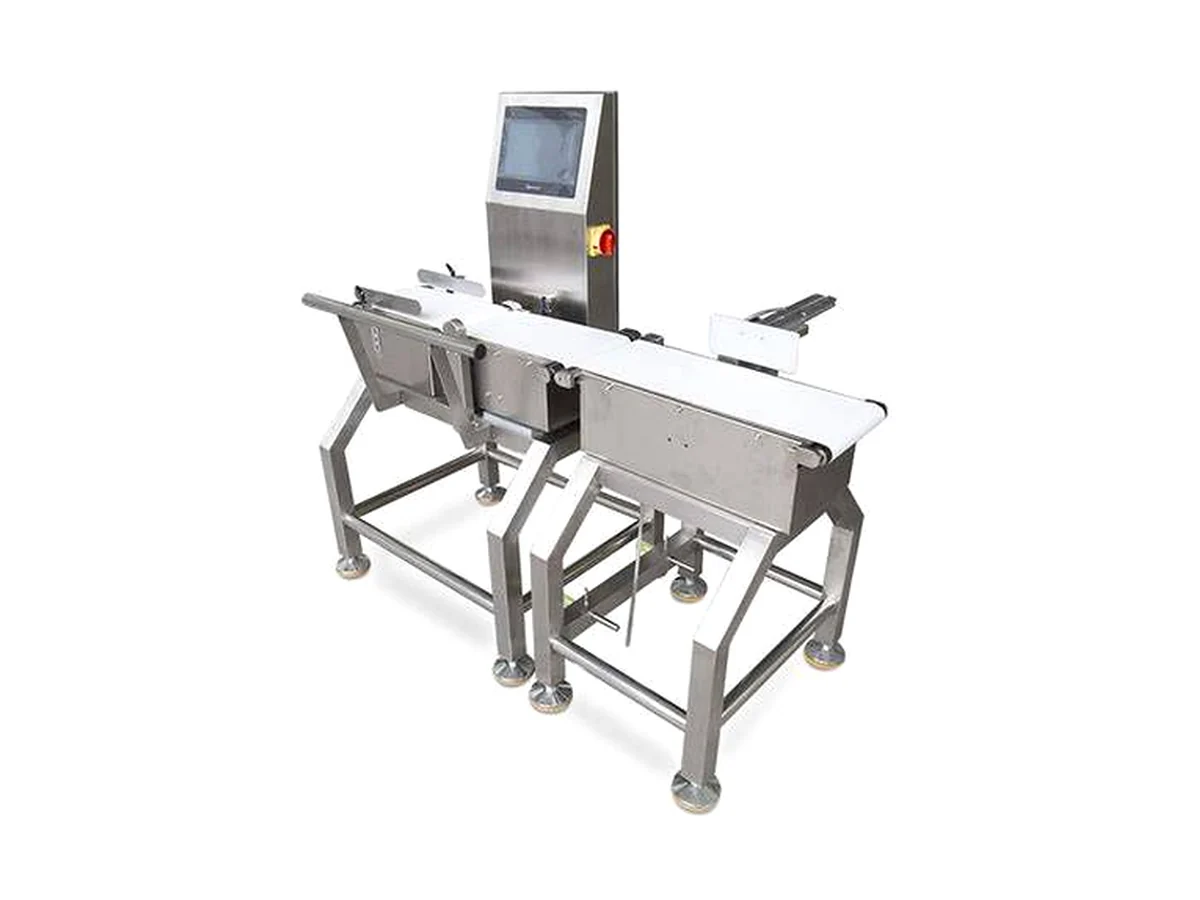

Checkweigher
Online weight inspection for finished pouch quality control.
Need an Automatic Premade Pouch Packaging Machine?
Tell us your product, filling range, and bag requirements. We will recommend a suitable configuration and provide a quotation.
Request a Quote
