Stainless Steel Bag Filter
Designed for liquid filtration using replaceable filter bags inside a stainless steel housing. The quick-opening top cover supports convenient cleaning, inspection, and filter bag replacement for a wide range of industrial processing applications.
Configuration Overview
Select the bag filter configuration according to filtration requirements, liquid properties, processing capacity, and process connection conditions.
Replaceable
Filter Bag
Stainless Steel
Filter Housing
Quick-Opening
Top Cover
Process-Matched
Connections
Available Configurations

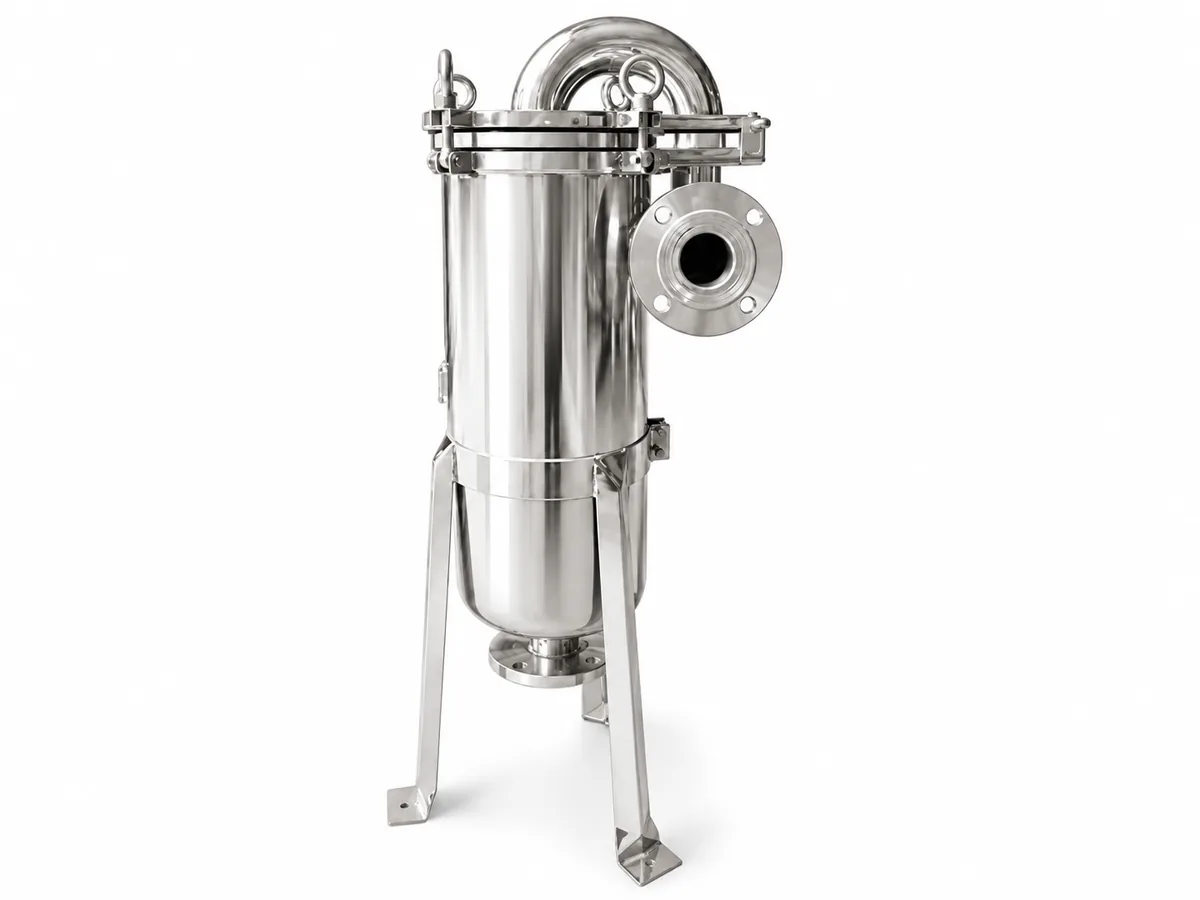

Standard Bag Filter
Compact vertical design for reliable liquid filtration.
Mobile Bag Filter System
Integrated bag filter, pump, and mobile frame for flexible liquid filtration.
Technical Specifications
Specifications can be customized according to filtration requirements, liquid properties, processing capacity, and installation conditions.
| Parameter | Specification |
|---|---|
| Housing Material | Stainless Steel |
| Filter Element | Replaceable Filter Bag |
| Cover Type | Quick-Opening |
| Available Configurations | Standard / Mobile System |
| Process Connection | Customizable |
| Filtration Rating | Selected According to Process Requirements |
| Processing Capacity | Selected According to Application Requirements |
Typical Applications
Suitable for efficient liquid filtration and particle removal across a wide range of process industries.
Food & Beverage
Filtration of beverages, syrups, oils and liquid ingredients.
Pharmaceutical
Filtration of process liquids and intermediate products.
Chemical Processing
Particle removal from chemical process liquids.
Water & Utilities
Pre-filtration for process water and utility systems.
Optional Configurations
Configurations can be selected according to filtration, piping, maintenance, and process requirements.
Quick-Opening Cover
Quick-opening design provides convenient access for filter bag replacement and cleaning.
Process Connection
Connection configuration can be matched to piping and installation requirements.
Filter Bag Selection
Filter bags can be selected according to filtration and process requirements.
Support Basket
Stainless steel support basket provides stable support for the filter bag.
Need a Bag Filter for Your Process?
Tell us your filtration requirements, liquid properties, processing capacity, and connection needs. Our team will help you select a suitable bag filter configuration.
