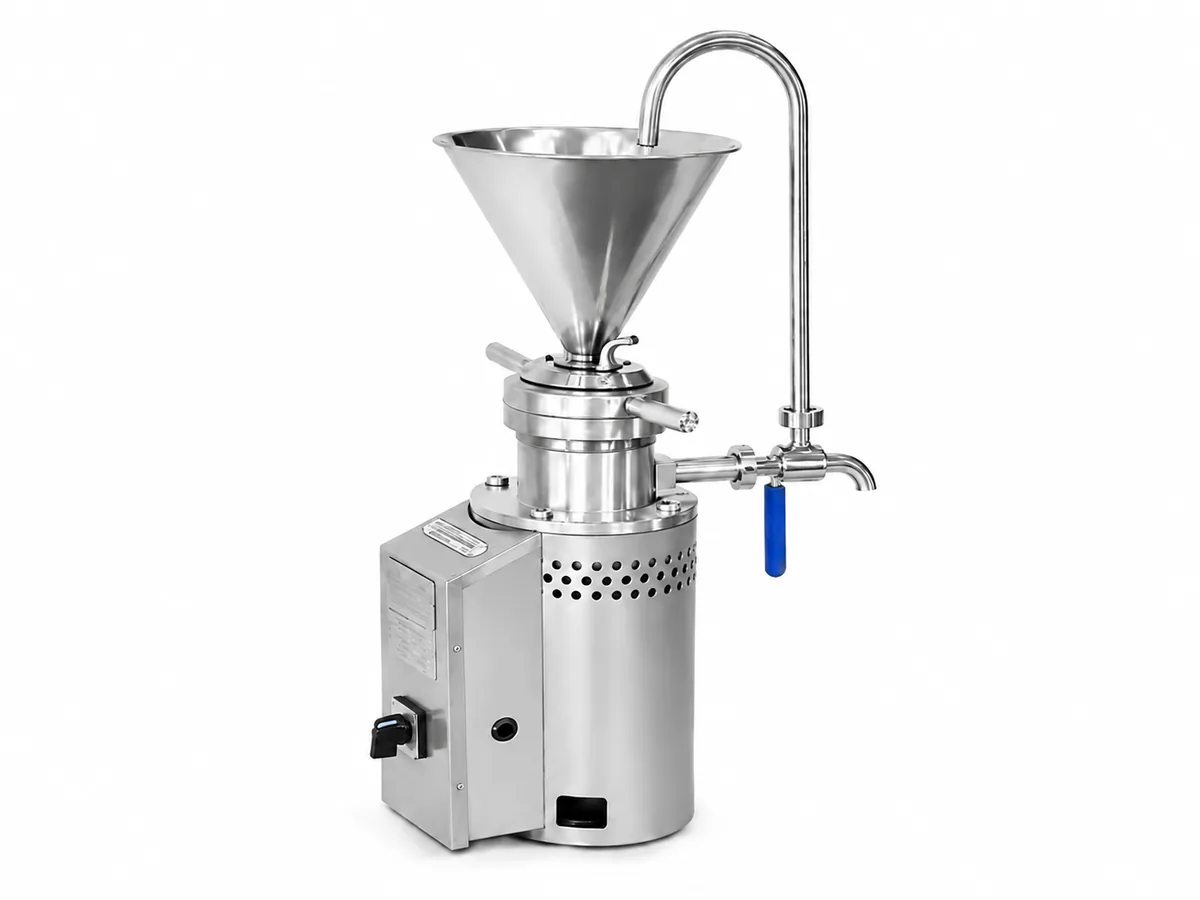

Colloid Mill
Designed for fine grinding, emulsifying, homogenizing and dispersing liquid and semi-liquid materials. The high-speed rotor and stator generate strong shear and friction forces for efficient particle size reduction and uniform processing.
Configuration Overview
Select the configuration to match your processing capacity, fineness and production requirements.
0.01–10 T/H
Processing Capacity
2–40 μm
Fineness
2800 rpm
Speed
50–200 mm
Millstone Diameter
Available Colloid Mill Types

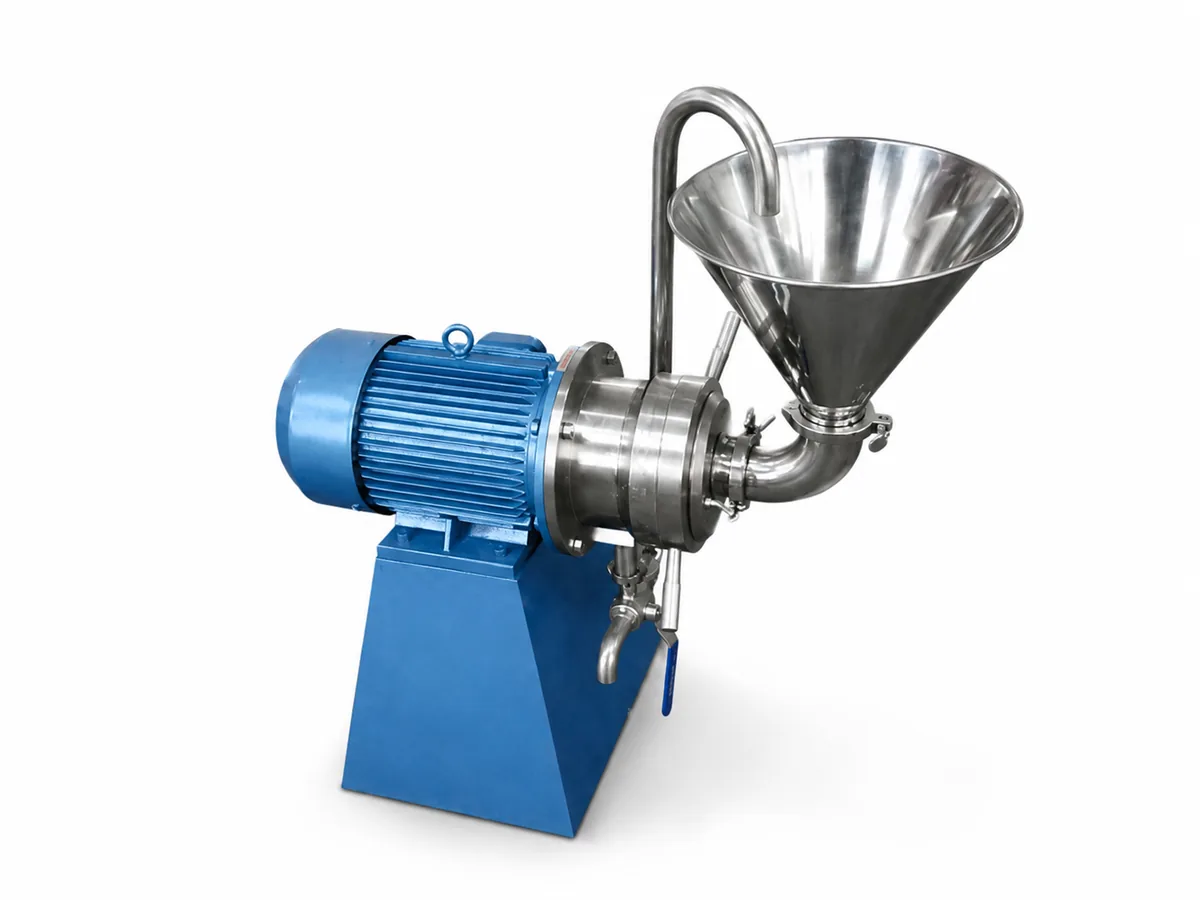

Horizontal Colloid Mill
Horizontal drive configuration for efficient grinding and continuous processing.

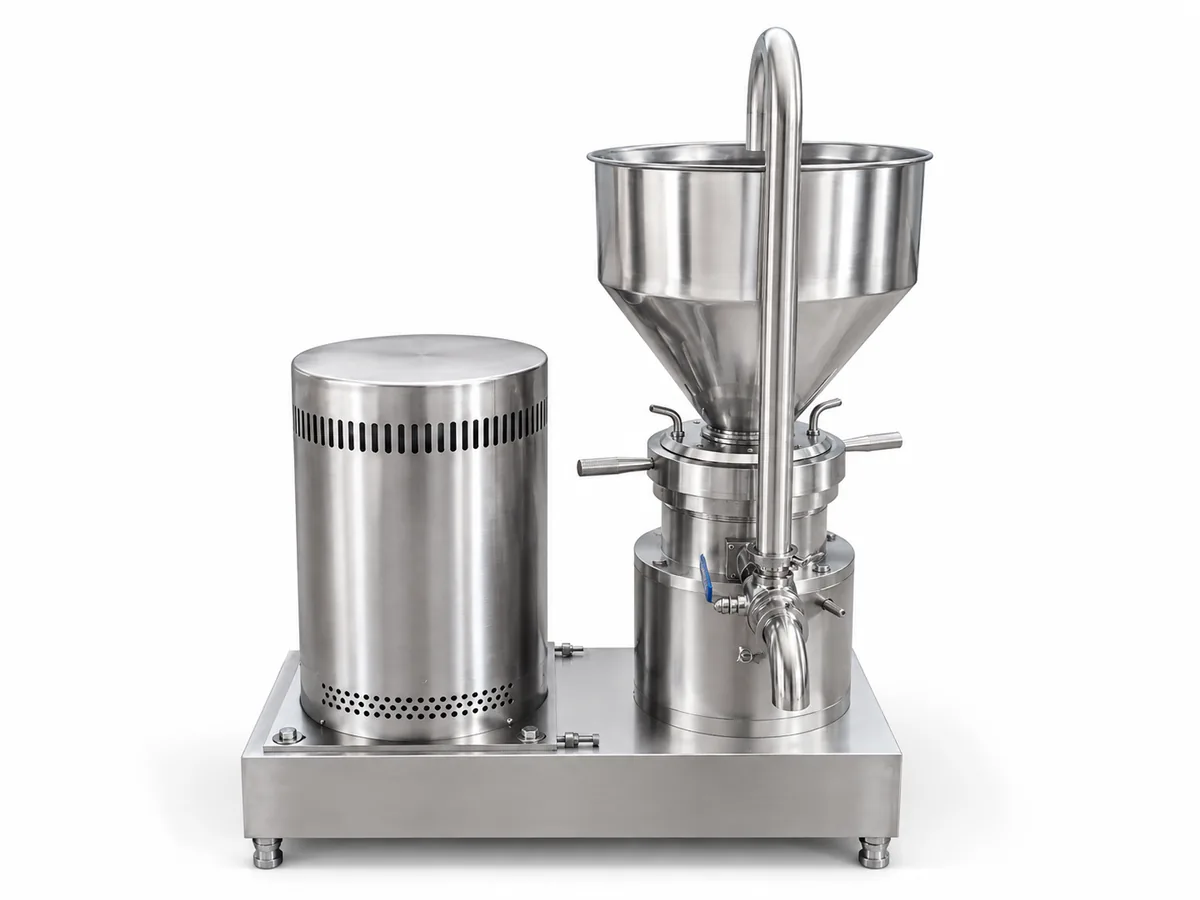

Split Type Colloid Mill
Integrated base design with separate drive and grinding unit for stable processing.

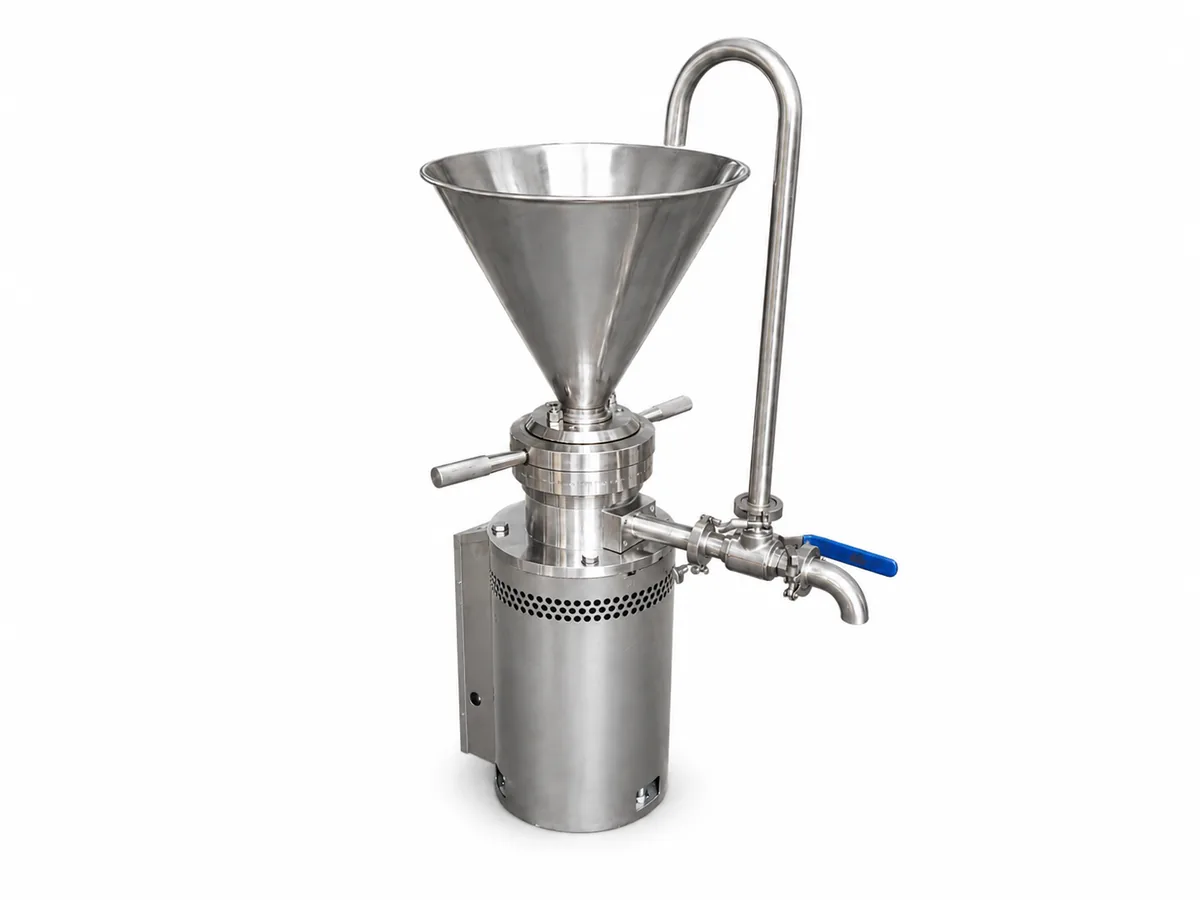

Vertical Colloid Mill
Compact vertical design for fine grinding, emulsifying and homogenizing.

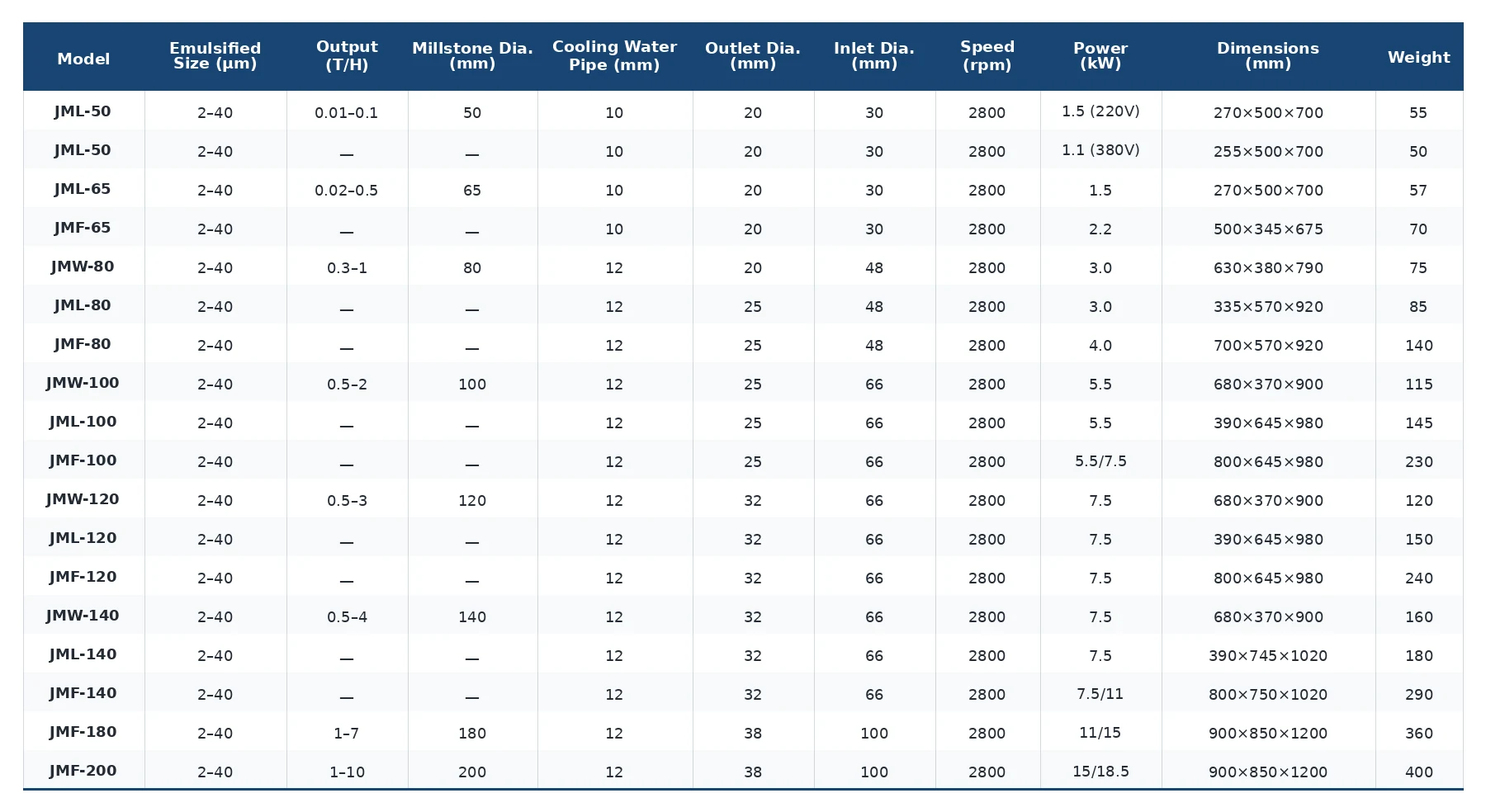

Technical Specifications
Standard specifications for different colloid mill models. Final configuration can be customized according to material and processing requirements.
| Model | Emulsified Size (μm) |
Output (T/H) |
Millstone Dia. (mm) |
Cooling Water Pipe (mm) |
Outlet Dia. (mm) |
Inlet Dia. (mm) |
Speed (rpm) |
Power (kW) |
Dimensions (mm) |
Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| JML-50 | 2–40 | 0.01–0.1 | 50 | 10 | 20 | 30 | 2800 | 1.5 (220V) | 270×500×700 | 55 |
| JML-50 | 2–40 | — | — | 10 | 20 | 30 | 2800 | 1.1 (380V) | 255×500×700 | 50 |
| JML-65 | 2–40 | 0.02–0.5 | 65 | 10 | 20 | 30 | 2800 | 1.5 | 270×500×700 | 57 |
| JMF-65 | 2–40 | — | — | 10 | 20 | 30 | 2800 | 2.2 | 500×345×675 | 70 |
| JMW-80 | 2–40 | 0.3–1 | 80 | 12 | 20 | 48 | 2800 | 3.0 | 630×380×790 | 75 |
| JML-80 | 2–40 | — | — | 12 | 25 | 48 | 2800 | 3.0 | 335×570×920 | 85 |
| JMF-80 | 2–40 | — | — | 12 | 25 | 48 | 2800 | 4.0 | 700×570×920 | 140 |
| JMW-100 | 2–40 | 0.5–2 | 100 | 12 | 25 | 66 | 2800 | 5.5 | 680×370×900 | 115 |
| JML-100 | 2–40 | — | — | 12 | 25 | 66 | 2800 | 5.5 | 390×645×980 | 145 |
| JMF-100 | 2–40 | — | — | 12 | 25 | 66 | 2800 | 5.5/7.5 | 800×645×980 | 230 |
| JMW-120 | 2–40 | 0.5–3 | 120 | 12 | 32 | 66 | 2800 | 7.5 | 680×370×900 | 120 |
| JML-120 | 2–40 | — | — | 12 | 32 | 66 | 2800 | 7.5 | 390×645×980 | 150 |
| JMF-120 | 2–40 | — | — | 12 | 32 | 66 | 2800 | 7.5 | 800×645×980 | 240 |
| JMW-140 | 2–40 | 0.5–4 | 140 | 12 | 32 | 66 | 2800 | 7.5 | 680×370×900 | 160 |
| JML-140 | 2–40 | — | — | 12 | 32 | 66 | 2800 | 7.5 | 390×745×1020 | 180 |
| JMF-140 | 2–40 | — | — | 12 | 32 | 66 | 2800 | 7.5/11 | 800×750×1020 | 290 |
| JMF-180 | 2–40 | 1–7 | 180 | 12 | 38 | 100 | 2800 | 11/15 | 900×850×1200 | 360 |
| JMF-200 | 2–40 | 1–10 | 200 | 12 | 38 | 100 | 2800 | 15/18.5 | 900×850×1200 | 400 |
Typical Applications
Suitable for fine grinding, emulsifying and homogenizing liquid and semi-liquid materials across various industries.
Food & Beverage
Fine grinding and emulsifying for sauces, dressings, pastes and beverage products.
Pharmaceutical & Cosmetics
Homogenizing creams, lotions and liquid or semi-liquid formulations.
Chemical Processing
Fine dispersion and emulsification of process liquids, suspensions and mixtures.
Emulsions & Pastes
Uniform processing of viscous pastes and semi-liquid materials.
Optional Configurations
Configurations can be tailored to suit different materials, piping layout, installation and operating requirements.

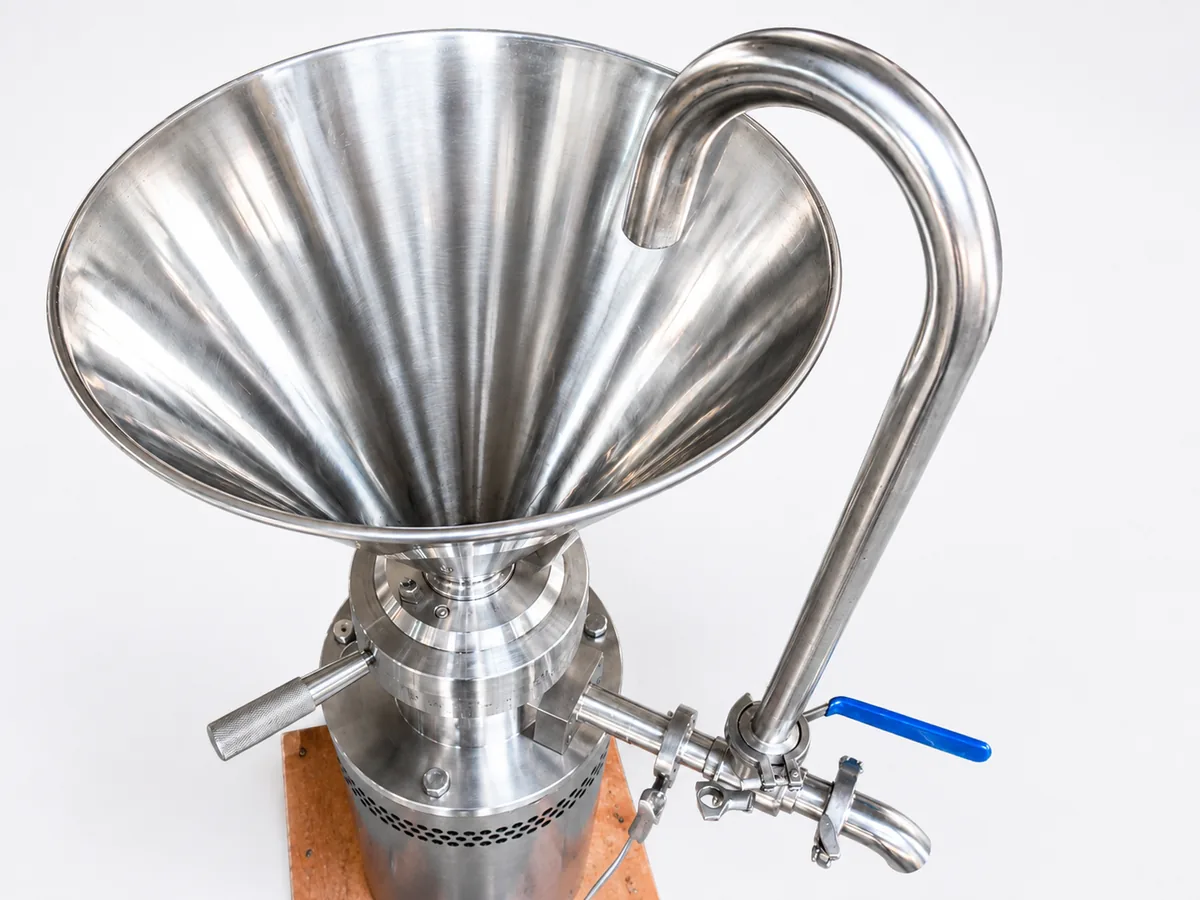

Feed Hopper Configuration
Feed hopper configuration can be selected according to feeding method, material characteristics and operating needs.

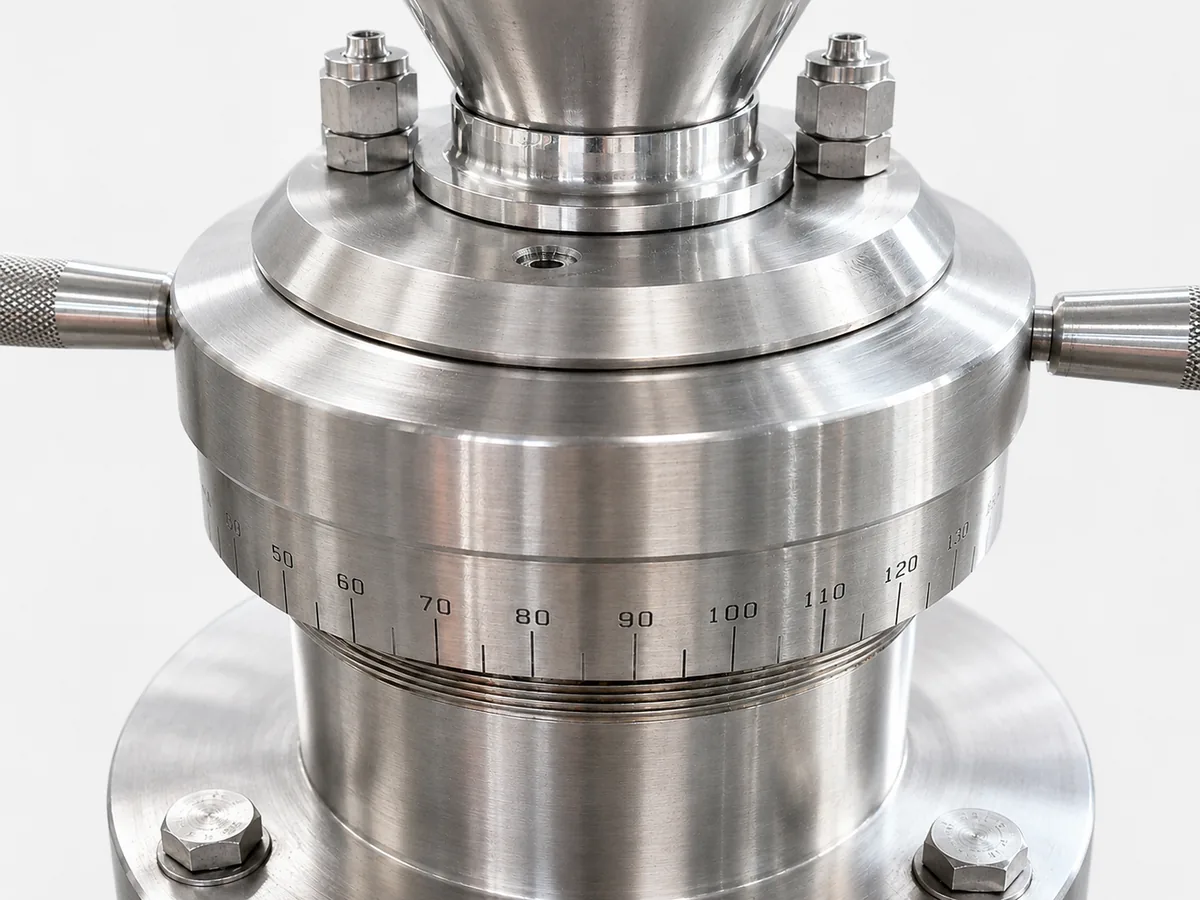

Fineness Adjustment
Adjustable grinding clearance allows flexible control of processing fineness for different materials.

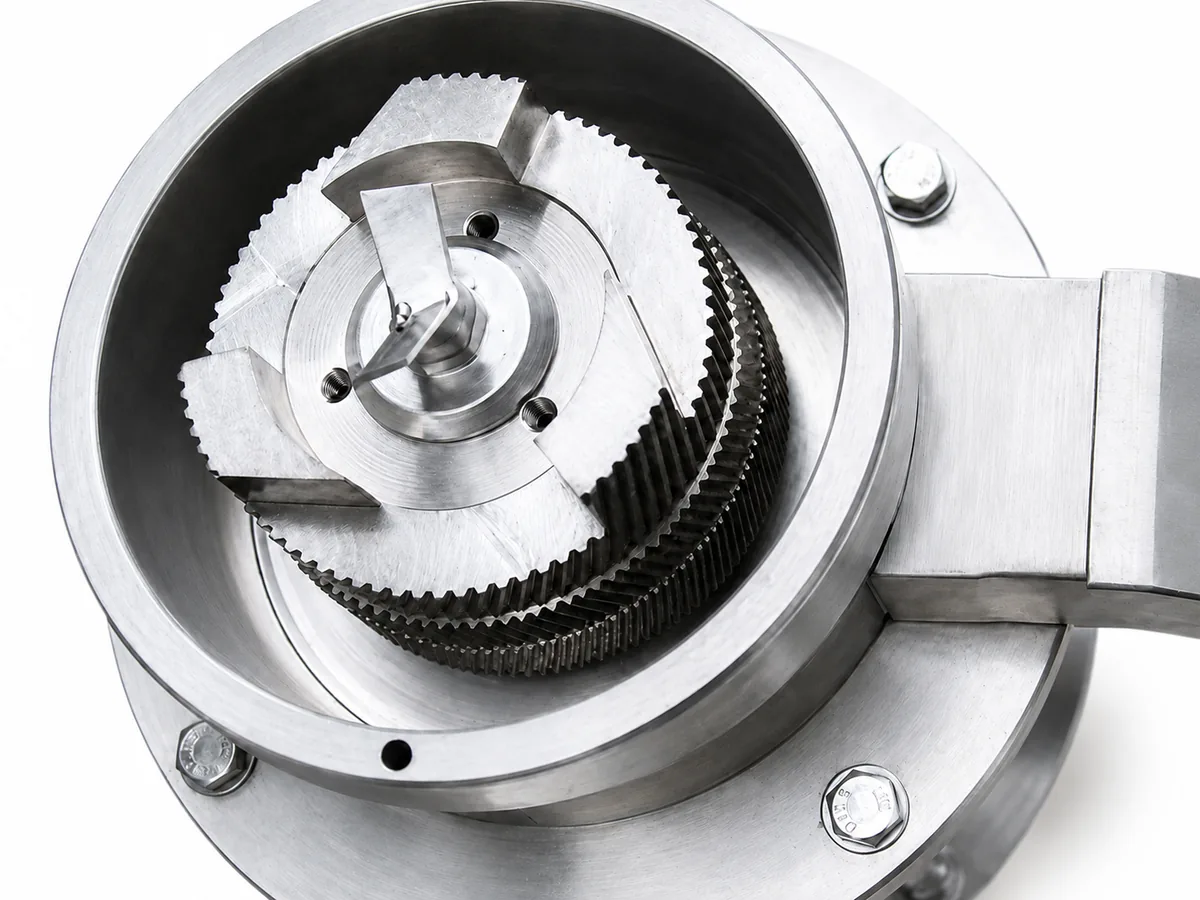

Grinding Rotor & Stator
Different rotor and stator configurations can be selected to suit material characteristics and processing requirements.

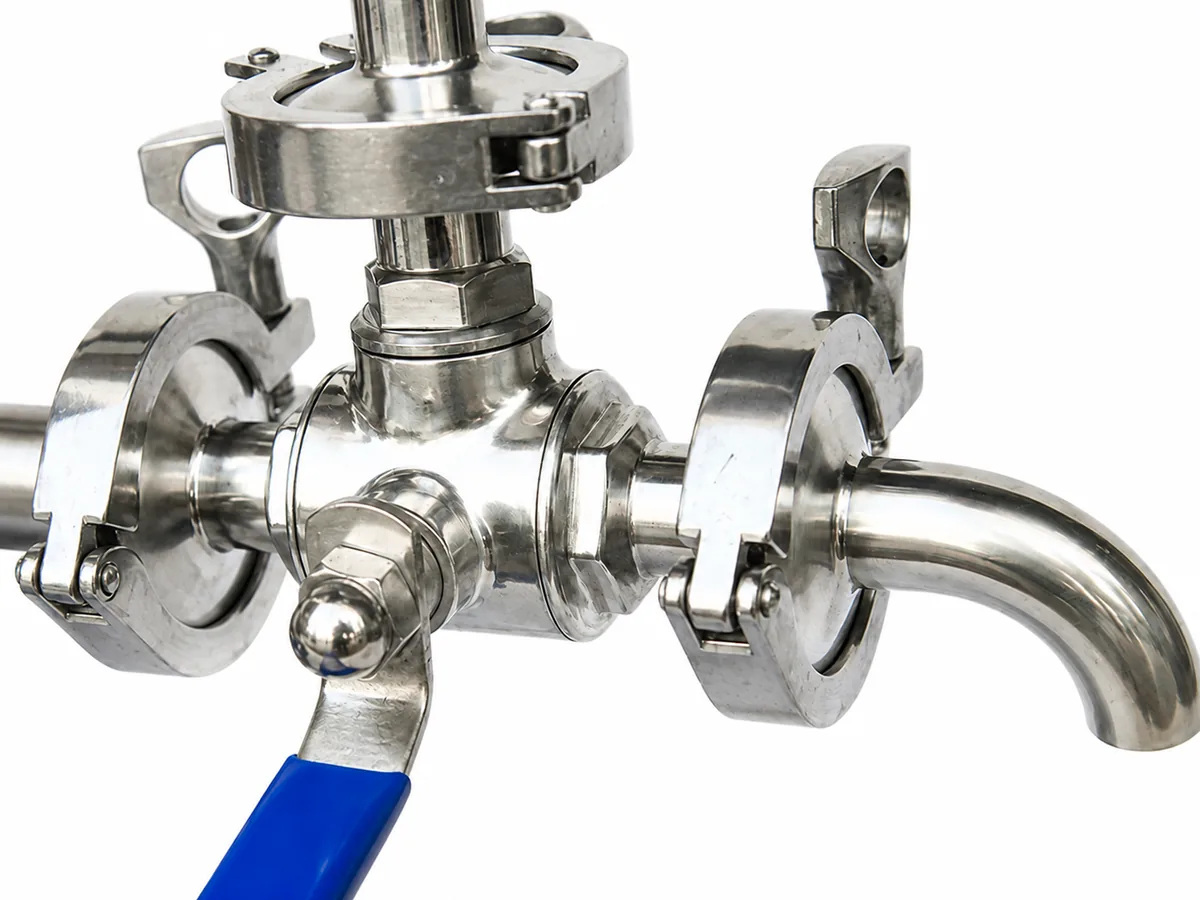

Sanitary Valve & Outlet
Sanitary valve and outlet connections can be configured to match different piping and process layouts.
Need a Colloid Mill for Your Process?
Tell us your required capacity, material characteristics, target fineness, installation method and operating conditions. Our team will help you select a suitable colloid mill configuration.
