Cooling Storage Tank
Designed for cooling and temporary storage of liquid materials, combining an insulated stainless steel tank with a refrigeration unit, agitator and electric control system. Suitable for dairy, beverage and other liquid-processing applications where cooling and storage are required.
Configuration Overview
Configure the tank to match your capacity, cooling and installation requirements.
500–10,000 L
Capacity
Vertical / Horizontal
Tank Type
SUS304 / SUS316L
Material
Cooling · Insulation · Agitation · Control
Key Functions
Available Tank Structures

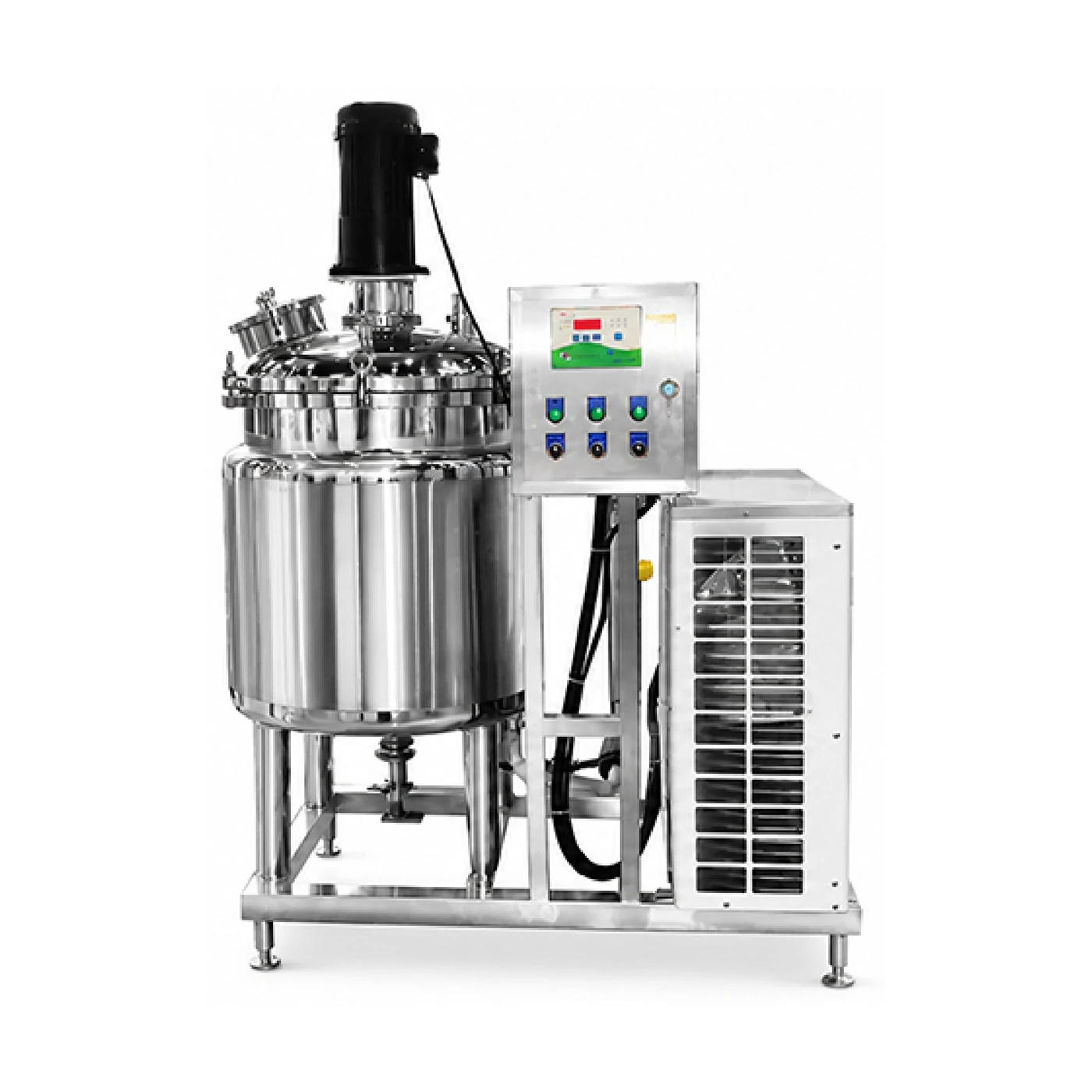

Vertical Cooling Storage Tank
Compact vertical configuration with integrated cooling, agitation and control functions.

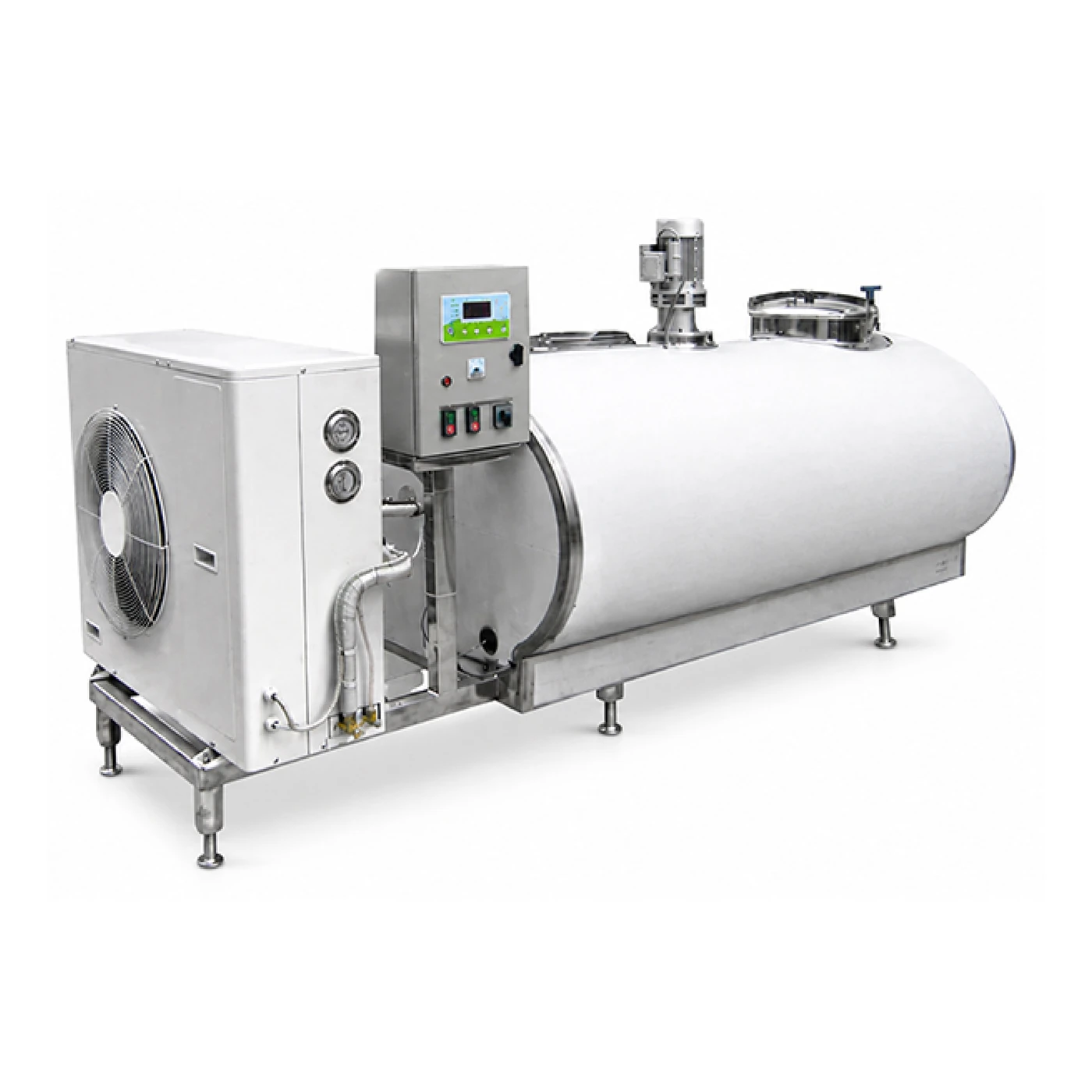

Horizontal Cooling Storage Tank
Horizontal insulated tank with refrigeration system for efficient cooling and liquid storage.

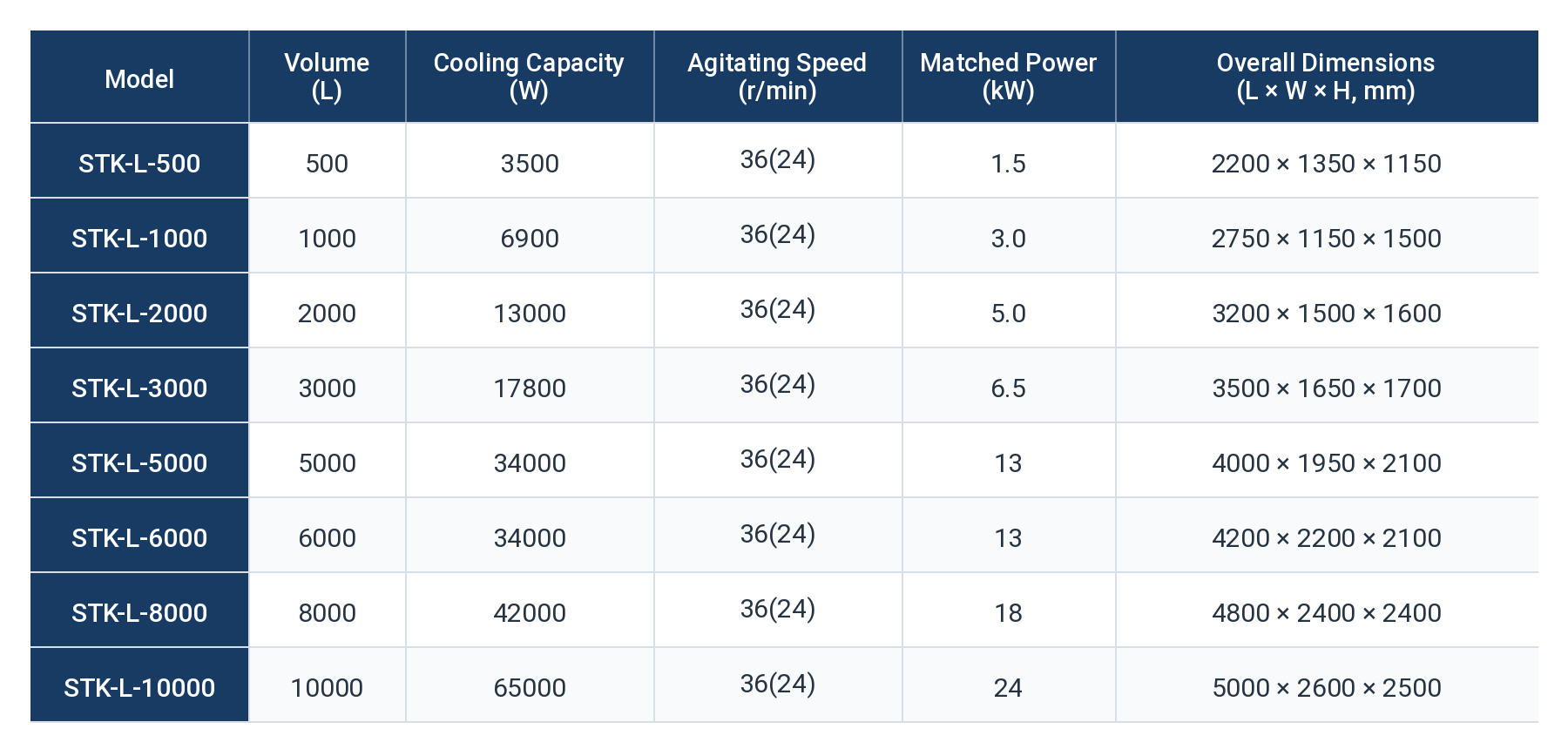

Technical Specifications
Technical parameters vary according to tank capacity, cooling requirements and configuration.
| Model | Volume (L) |
Cooling Capacity (W) |
Agitating Speed (r/min) |
Matched Power (kW) |
Overall Dimensions (L × W × H, mm) |
|---|---|---|---|---|---|
| STK-L-500 | 500 | 3500 | 36(24) | 1.5 | 2200 × 1350 × 1150 |
| STK-L-1000 | 1000 | 6900 | 36(24) | 3.0 | 2750 × 1150 × 1500 |
| STK-L-2000 | 2000 | 13000 | 36(24) | 5.0 | 3200 × 1500 × 1600 |
| STK-L-3000 | 3000 | 17800 | 36(24) | 6.5 | 3500 × 1650 × 1700 |
| STK-L-5000 | 5000 | 34000 | 36(24) | 13 | 4000 × 1950 × 2100 |
| STK-L-6000 | 6000 | 34000 | 36(24) | 13 | 4200 × 2200 × 2100 |
| STK-L-8000 | 8000 | 42000 | 36(24) | 18 | 4800 × 2400 × 2400 |
| STK-L-10000 | 10000 | 65000 | 36(24) | 24 | 5000 × 2600 × 2500 |
Typical Applications
Suitable for cooling and temporary storage of liquid materials across dairy, food, pharmaceutical and chemical processing applications.
Dairy Processing
Cooling and storage of fresh milk and dairy liquids.
Food & Beverage
Cooling and temporary storage of beverages and liquid food products.
Pharmaceutical Processing
Cooling and holding of process liquids for applicable production requirements.
Chemical Processing
Cooling and storage of liquid materials used in chemical processing.
Key Components & Configurations
Cooling, agitation and control systems can be configured to match tank capacity, product characteristics and operating requirements.

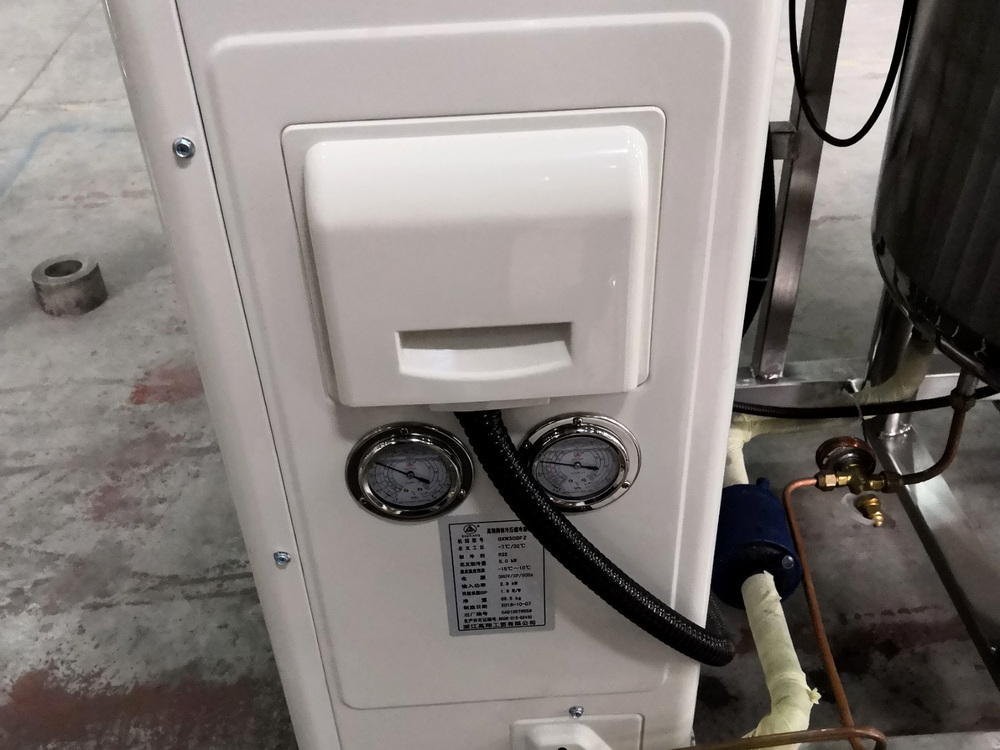

Refrigeration Unit
Integrated refrigeration unit provides reliable cooling for liquid storage and temperature control.

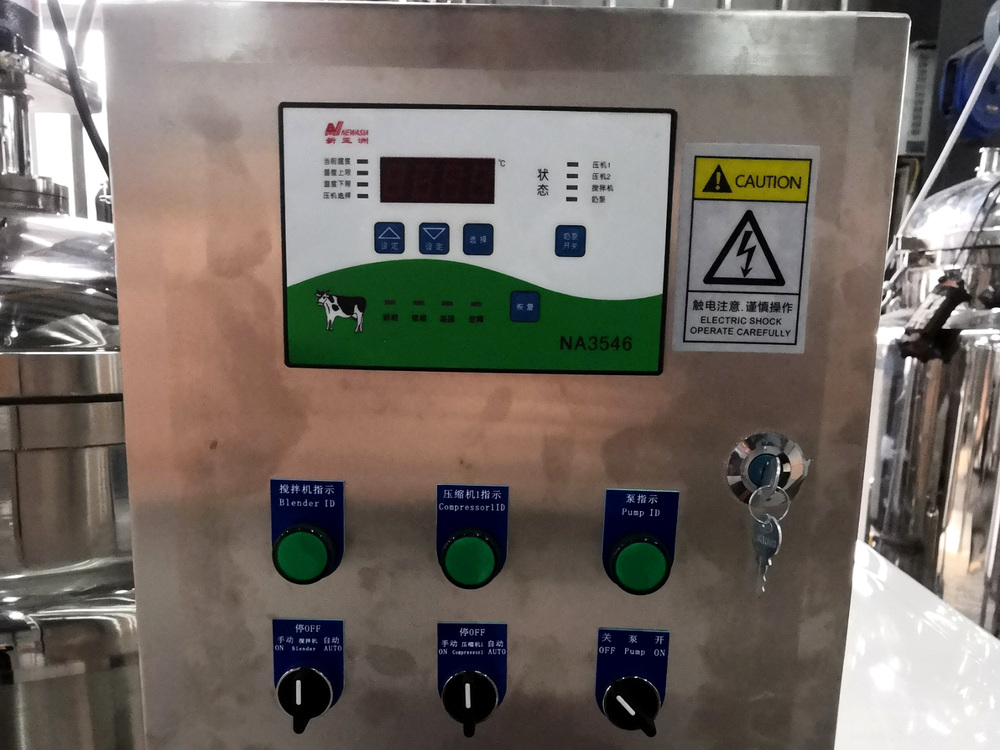

Electrical Control System
Centralized controls for refrigeration, agitation and system operation.

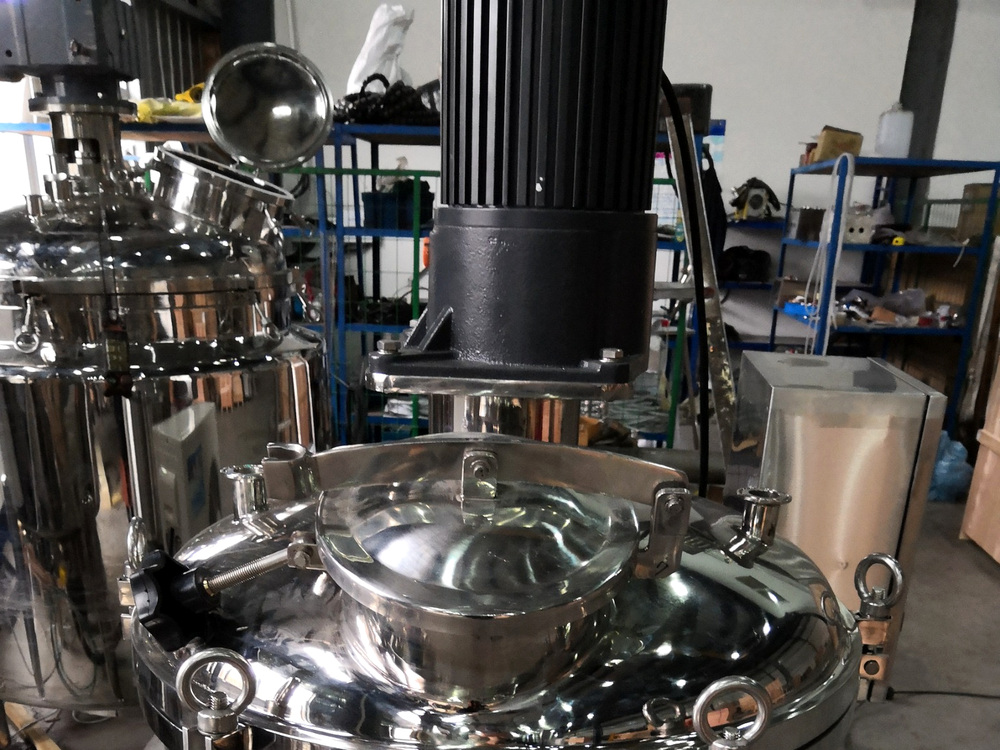

Agitation System
Top-mounted drive provides controlled agitation for improved temperature uniformity during cooling and storage.

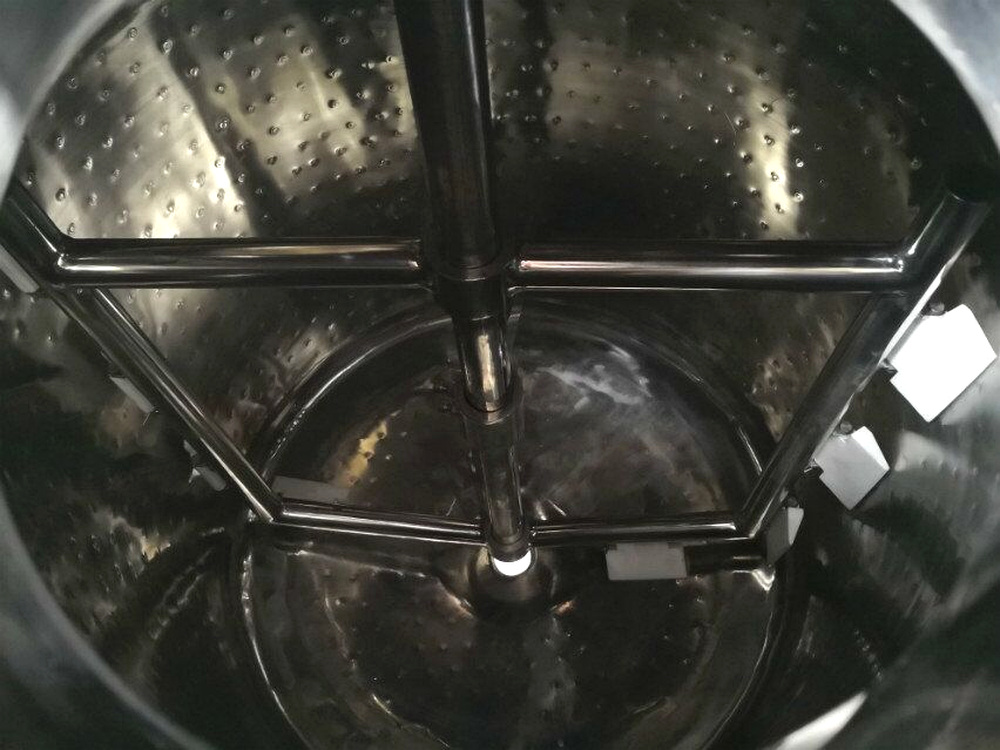

Internal Agitator
Internal agitator promotes effective liquid circulation and uniform cooling throughout the tank.
Need Help Choosing the Right Cooling Storage Tank?
Tell us your required capacity, product temperature, cooling requirements and operating conditions. Our team will help you select a suitable cooling storage tank configuration.
Request a Quote
