Double-Effect Concentrator
A two-stage vacuum evaporation system designed for efficient concentration of liquid materials. Secondary vapor from the first effect is reused for second-effect heating, helping reduce steam consumption while supporting low-temperature concentration of heat-sensitive products.
Configuration Overview
Two-stage vacuum concentration system designed for efficient evaporation and reduced steam consumption.
500–3,000 kg/h
Evaporation Capacity
Double-Effect
Evaporation System
Vacuum Operation
Concentration Process
Energy-Saving
Secondary Vapor Reuse
Available Configurations

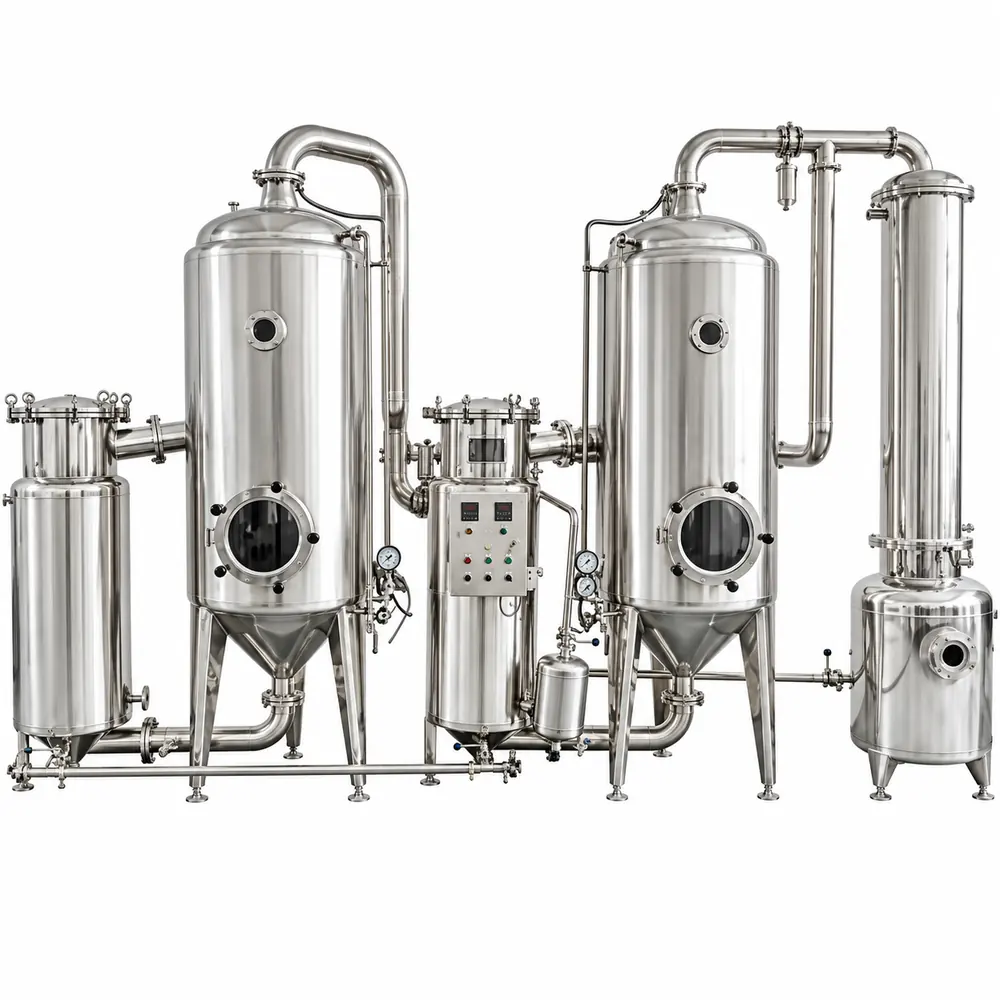

Standard Double-Effect Concentrator
Two-stage evaporation system for efficient vacuum concentration and reduced steam consumption.

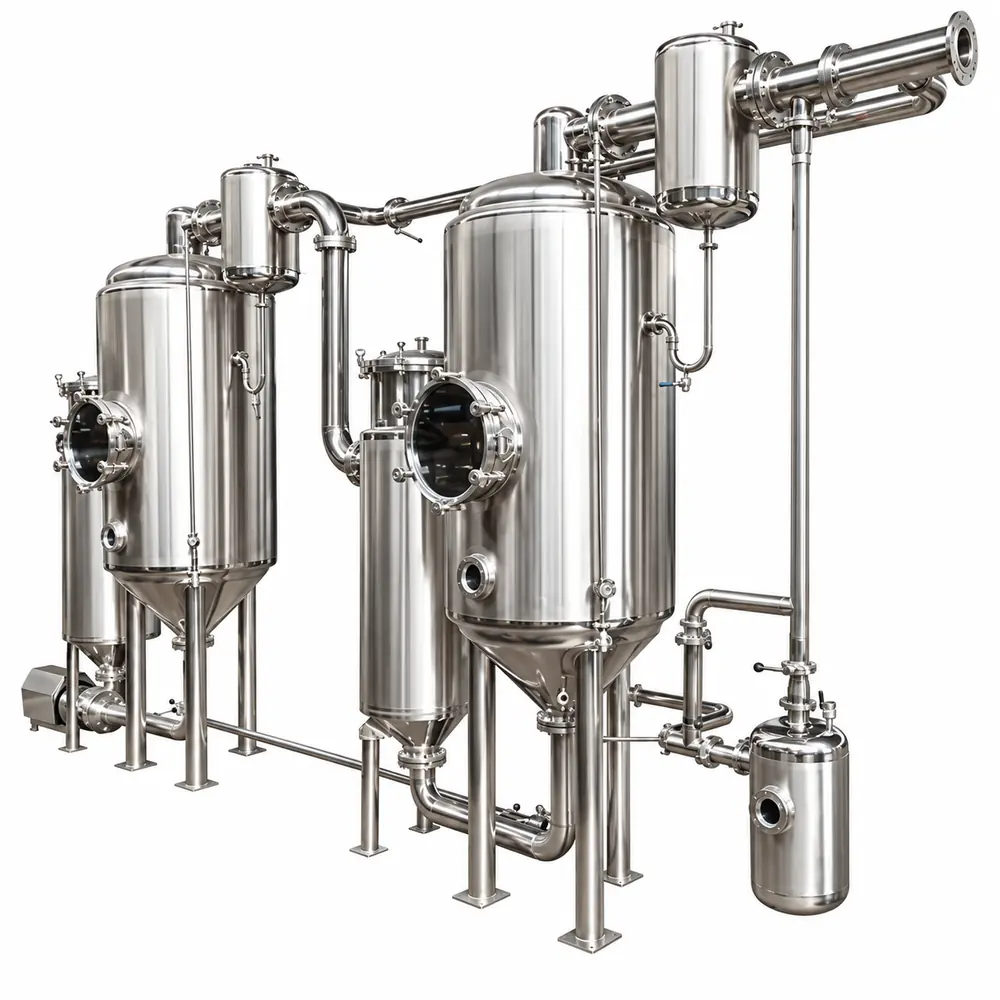

External Circulation Concentrator
External circulation configuration designed for stable heat transfer and continuous concentration.

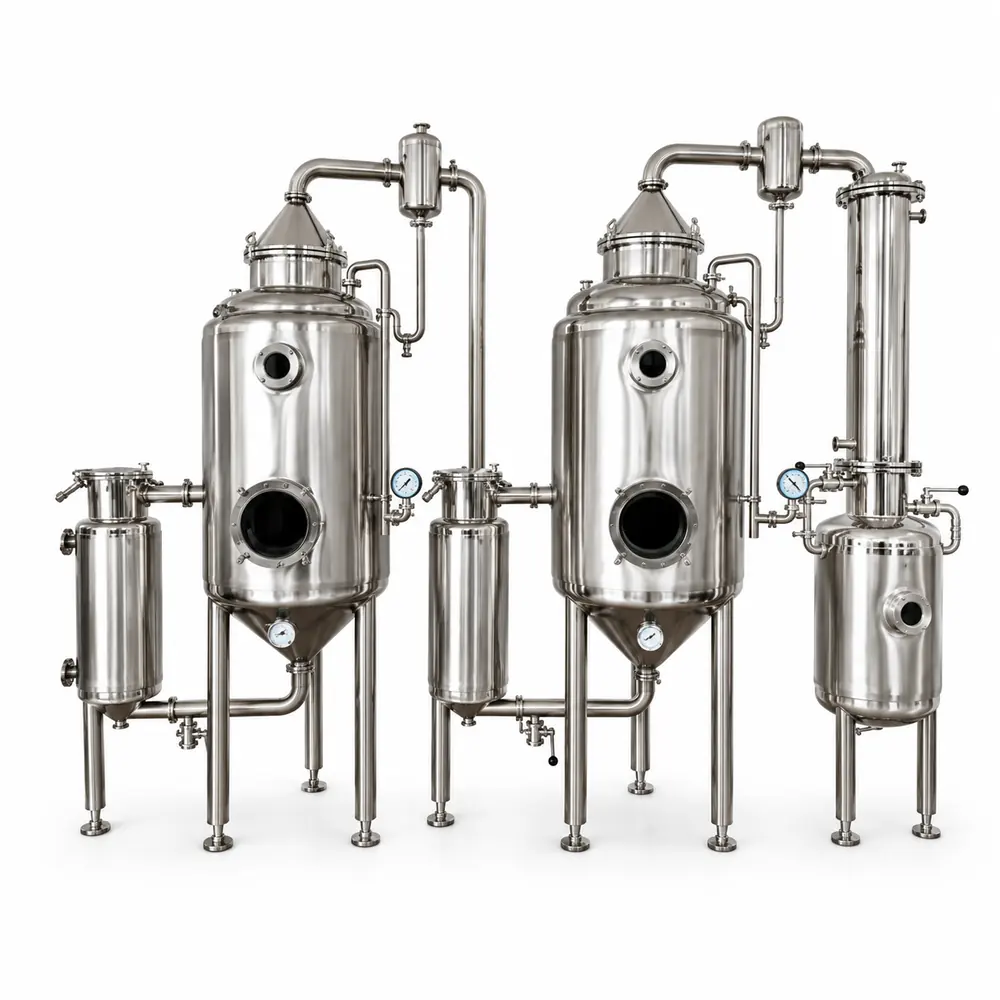

Compact Skid-Mounted Concentrator
Integrated skid-mounted design for compact installation and simplified system arrangement.

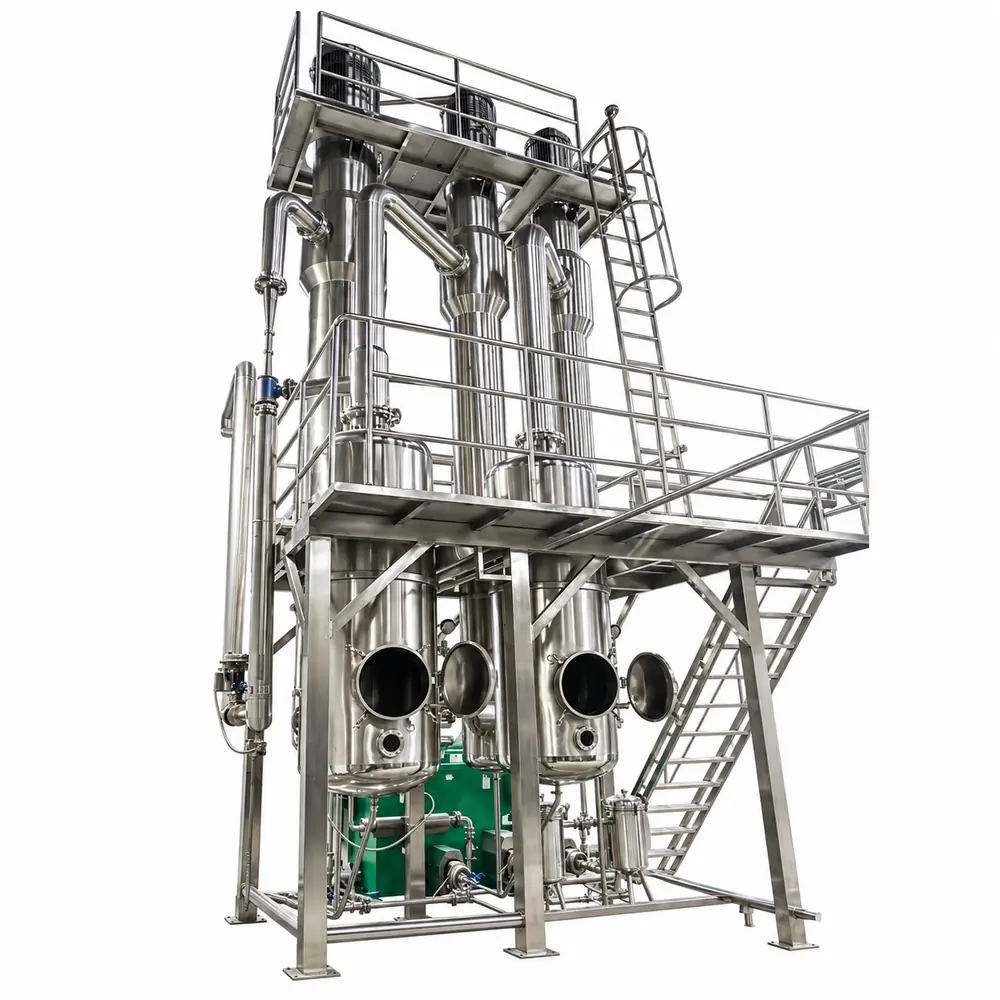

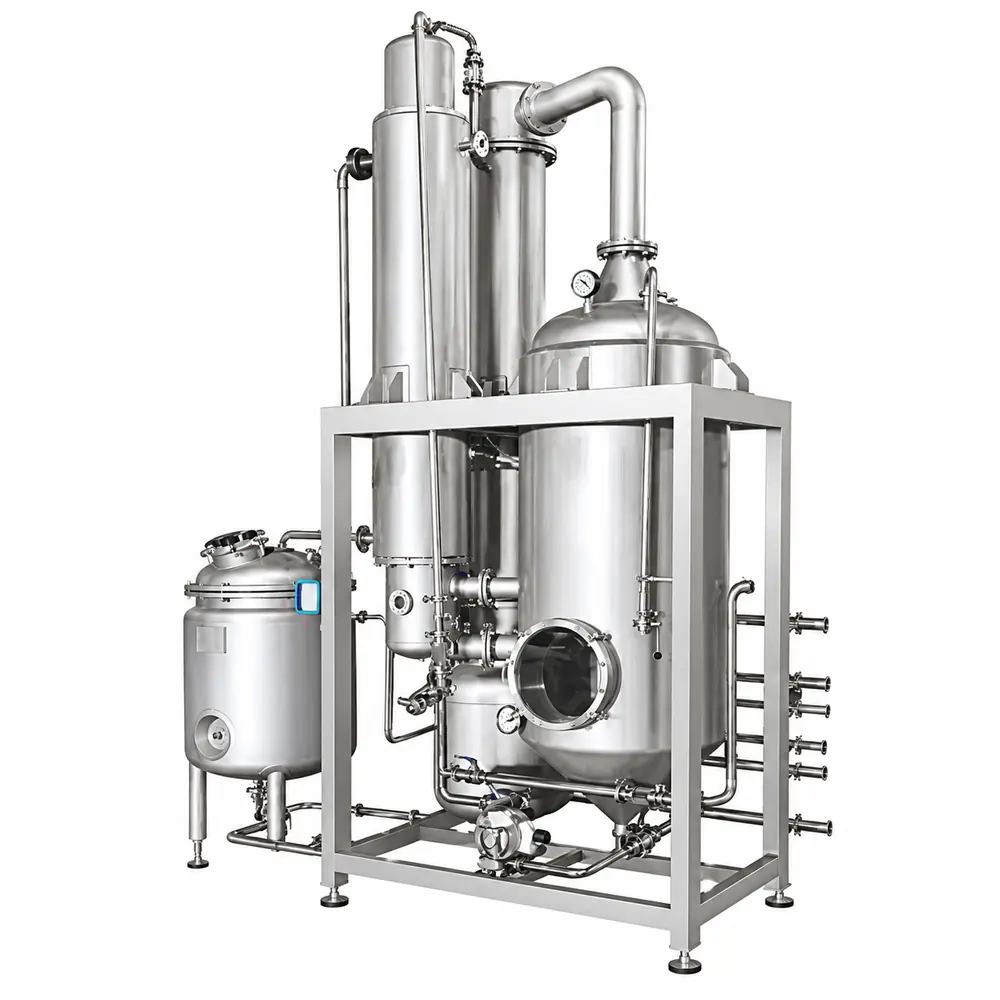

Platform-Mounted Concentration System
Elevated platform configuration for organized equipment layout, convenient access and operation.

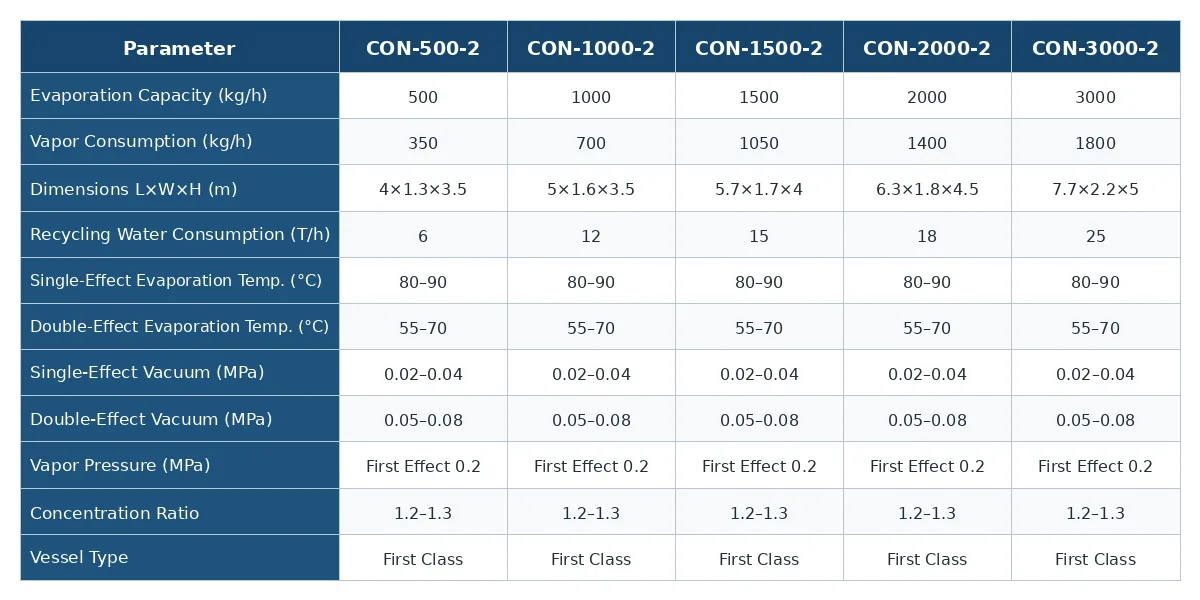

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Parameter | CON-500-2 | CON-1000-2 | CON-1500-2 | CON-2000-2 | CON-3000-2 |
|---|---|---|---|---|---|
| Evaporation Capacity (kg/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Vapor Consumption (kg/h) | 350 | 700 | 1050 | 1400 | 1800 |
| Dimensions L×W×H (m) | 4×1.3×3.5 | 5×1.6×3.5 | 5.7×1.7×4 | 6.3×1.8×4.5 | 7.7×2.2×5 |
| Recycling Water Consumption (T/h) | 6 | 12 | 15 | 18 | 25 |
| Single-Effect Evaporation Temp. (°C) | 80–90 | 80–90 | 80–90 | 80–90 | 80–90 |
| Double-Effect Evaporation Temp. (°C) | 55–70 | 55–70 | 55–70 | 55–70 | 55–70 |
| Single-Effect Vacuum (MPa) | 0.02–0.04 | ||||
| Double-Effect Vacuum (MPa) | 0.05–0.08 | ||||
| Vapor Pressure (MPa) | First Effect 0.2 | ||||
| Concentration Ratio | 1.2–1.3 | ||||
| Vessel Type | First Class | ||||
Typical Applications
Vacuum concentration solutions for food, pharmaceutical, chemical and heat-sensitive liquid materials.
Food & Beverage
Vacuum concentration of juices, syrups and liquid extracts.
Pharma & Herbal
Low-temperature concentration of pharmaceutical and herbal extracts.
Chemical Processing
Vacuum concentration of liquid chemical solutions.
Heat-Sensitive Liquids
Low-temperature concentration of heat-sensitive liquids.
Optional Configurations
Optional components can be configured to suit different process and operating requirements.

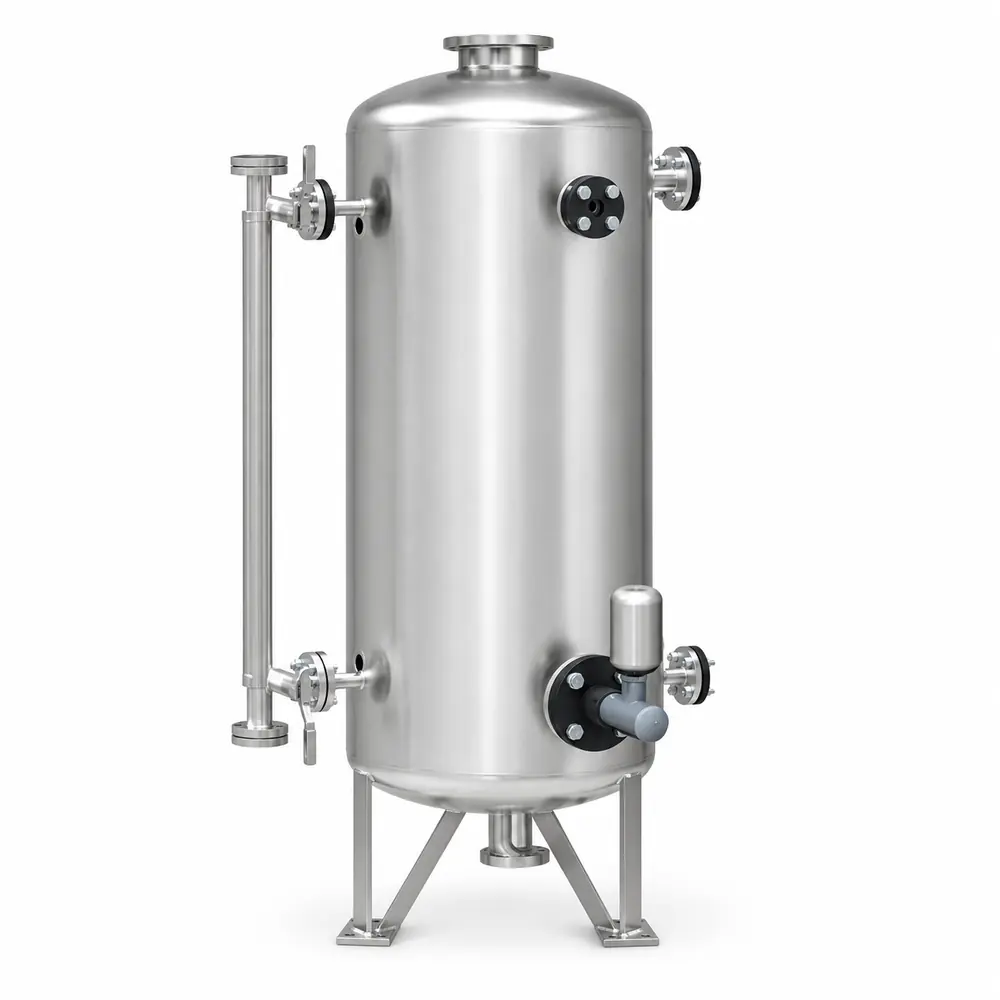

Condensate Receiver Tank
Collects condensed liquid for recovery or subsequent discharge.

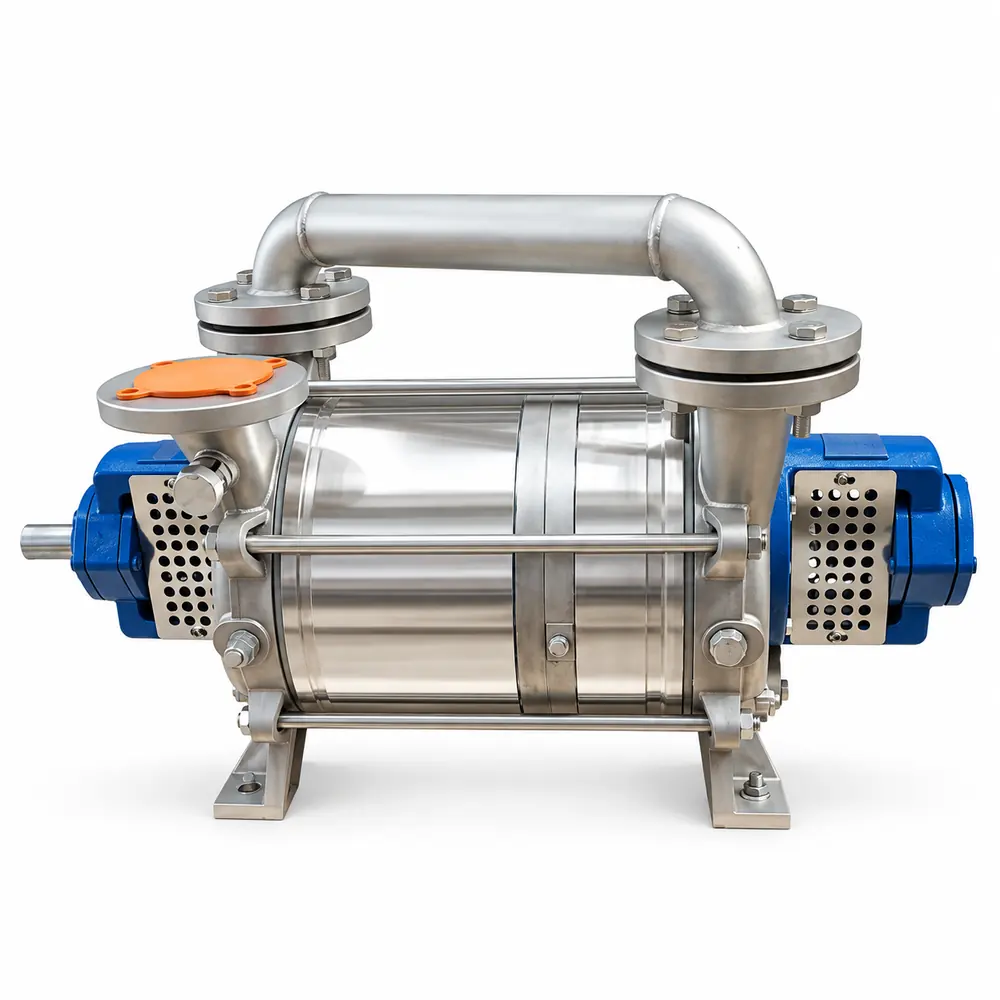

Liquid Ring Vacuum Pump
Provides stable vacuum conditions for low-temperature concentration.

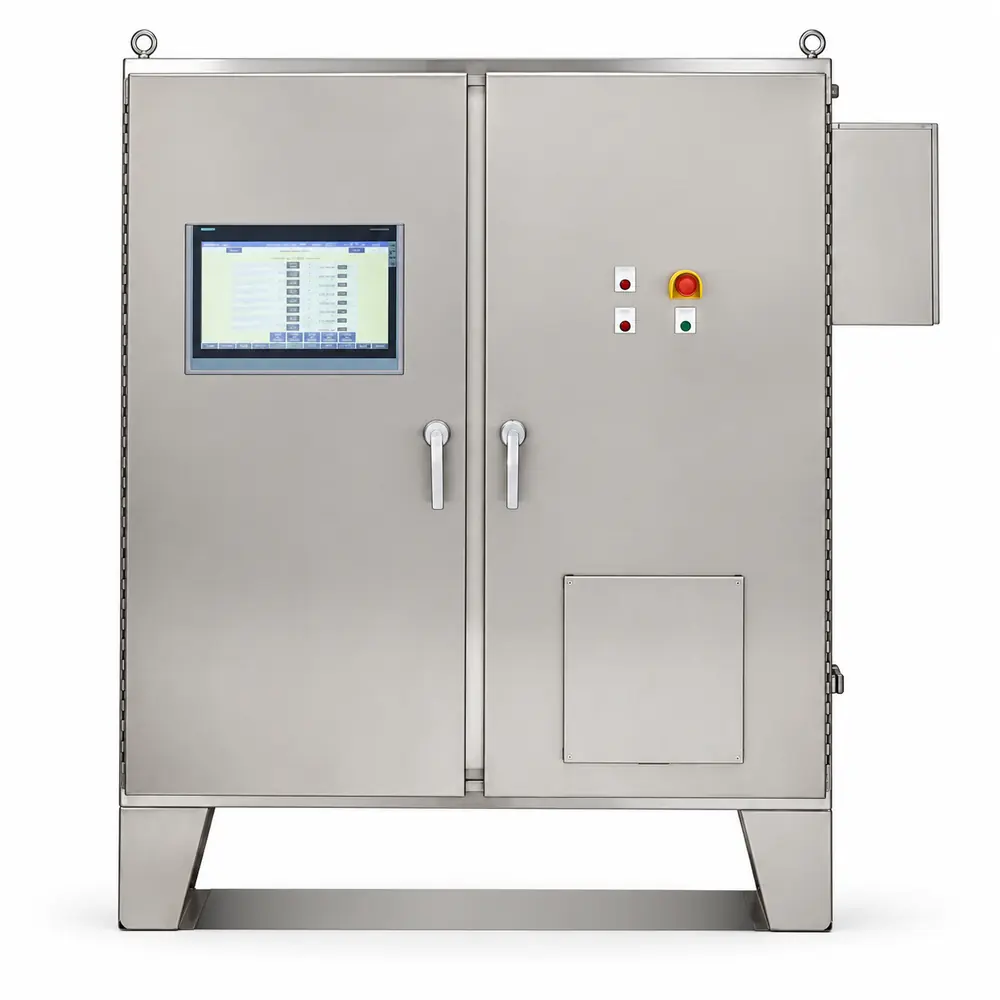

PLC Control Cabinet
Centralized control of vacuum, temperature and system operation.
Vertical Tubular Condenser
Efficiently condenses process vapor during evaporation.
Need a Double-Effect Concentrator for Your Process?
Tell us your material, required evaporation capacity, target concentration, operating conditions and installation requirements. Our team will help you select a suitable Double-Effect Concentrator configuration.
