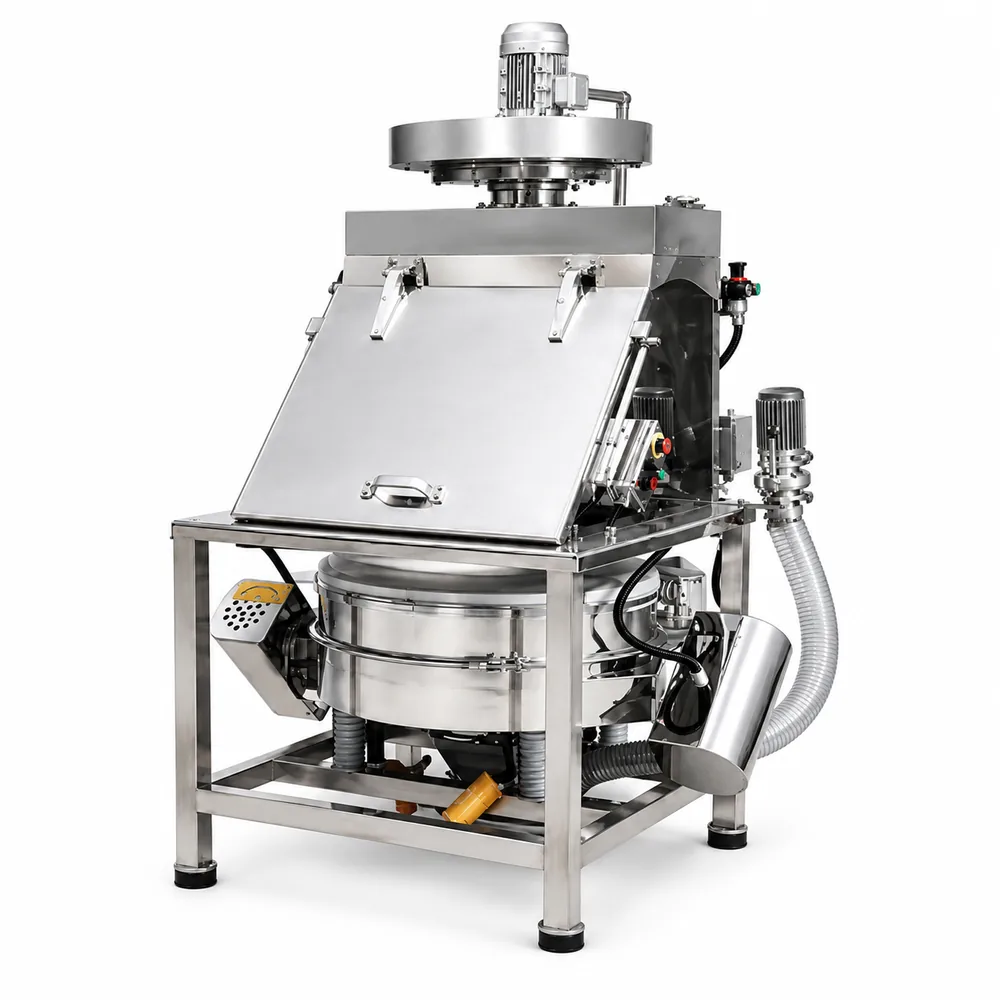

Dust-Free Feeding Station
Designed for manual feeding of bagged powders and small granular materials. The integrated dust collection system helps control airborne dust during feeding, while the screening section helps separate agglomerates and oversized particles before downstream conveying or processing.
Configuration Overview
Designed for clean and efficient powder feeding with integrated dust collection and screening.
Pulse-Jet
Filter Cleaning
1.1 kW
Fan Power
SUS304 / SUS316L
Material Options
2-in-1
Dust Collection & Screening
Available Configurations

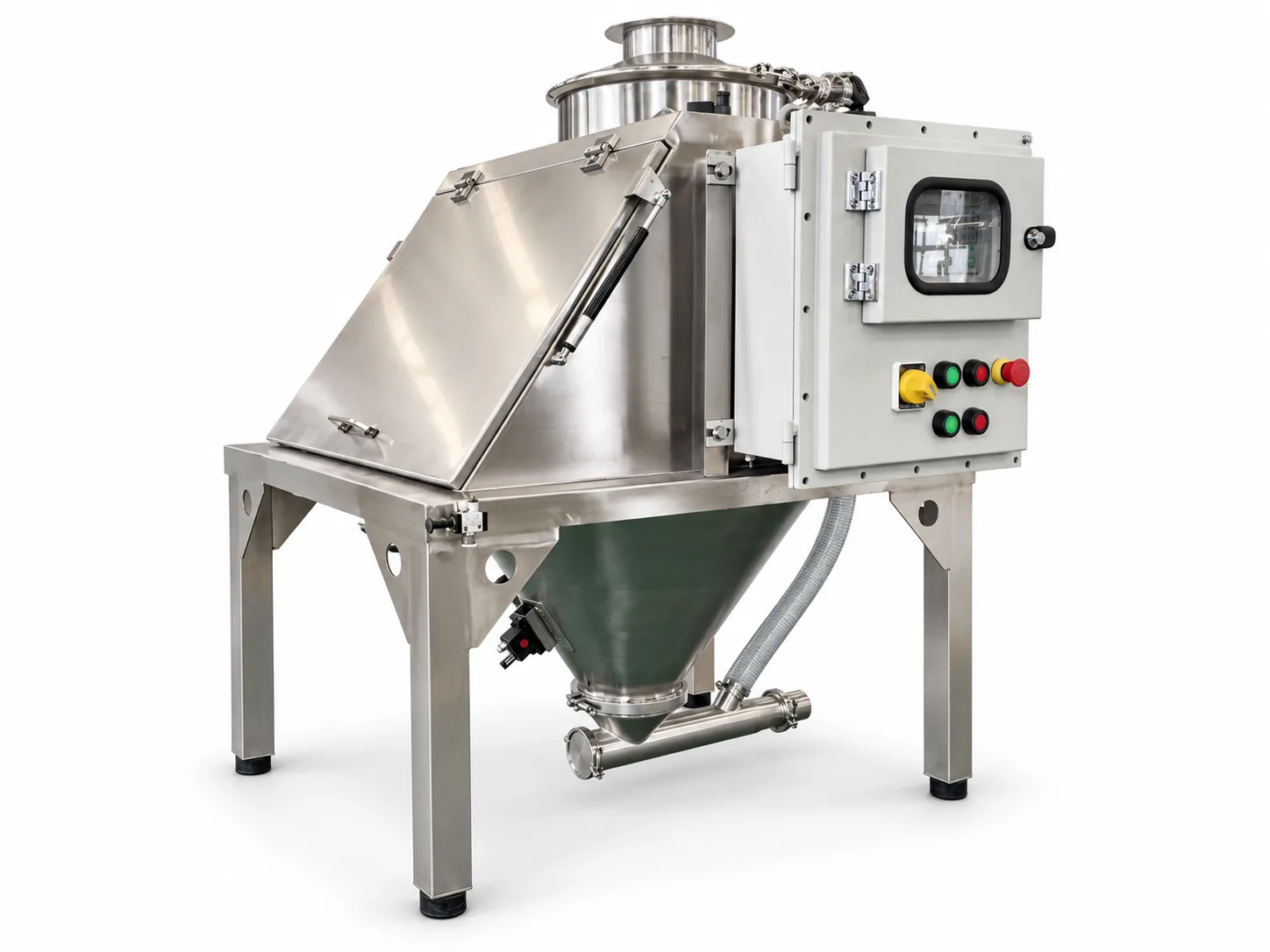

Enclosed Feeding Station
Enclosed design helps reduce airborne dust during manual powder feeding and handling.

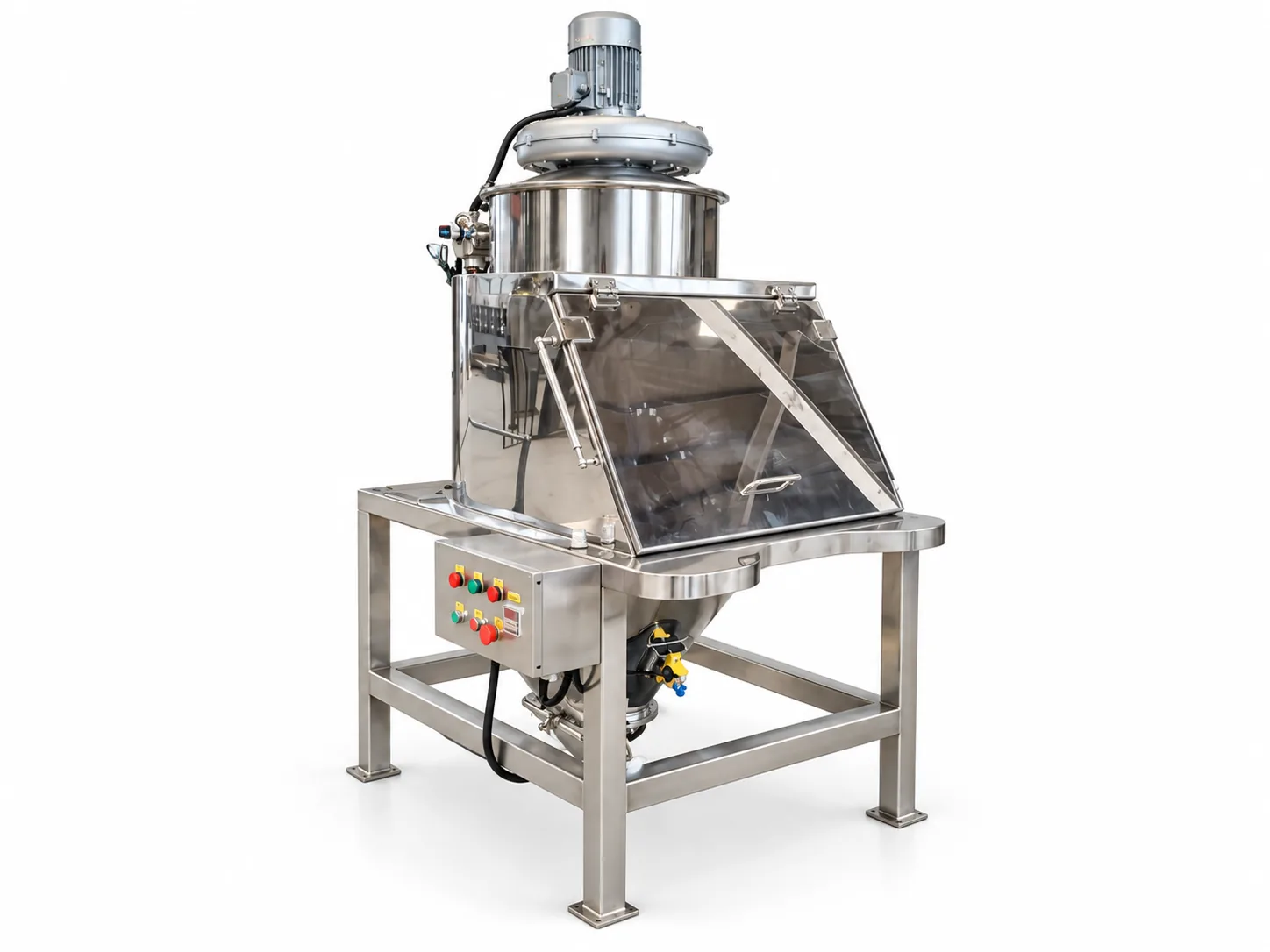

Integrated Feeding Station
Integrated structure combines manual feeding, dust collection and screening in one unit.

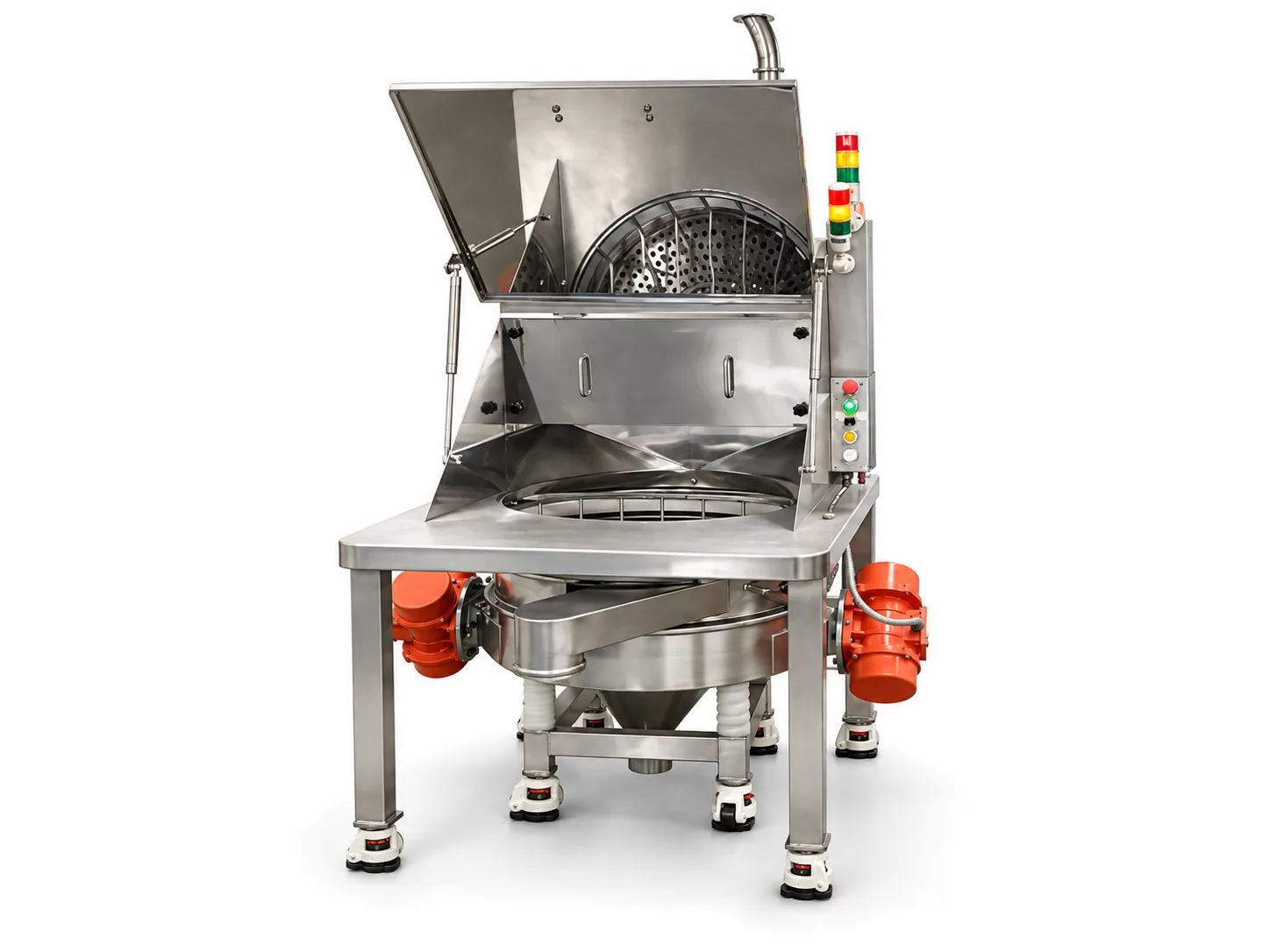

Open Bag Dumping Station
Open-access design allows convenient manual bag dumping with integrated screening.

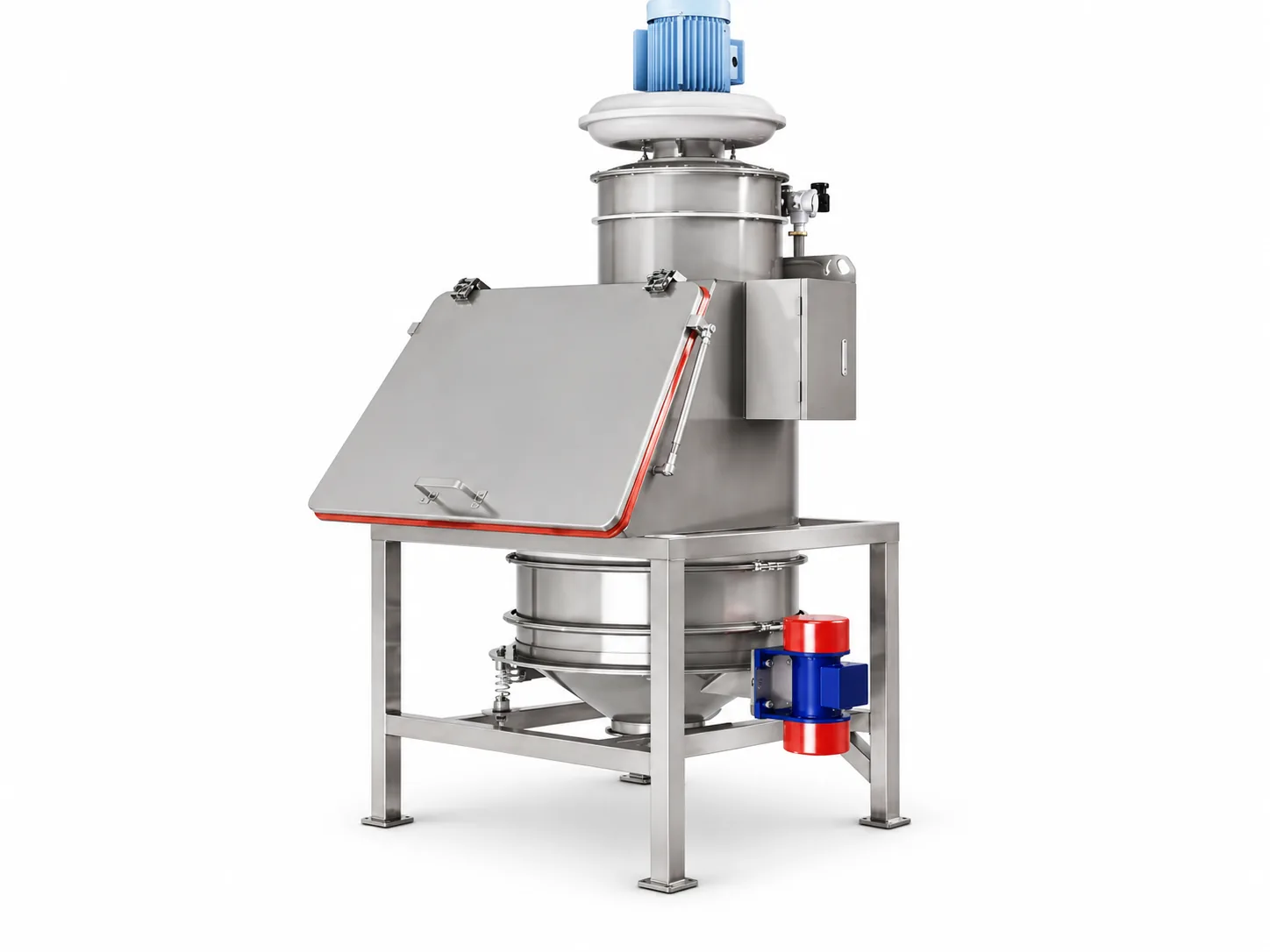

Compact Feeding Station
Compact structure combines manual feeding and dust collection in a smaller equipment footprint.

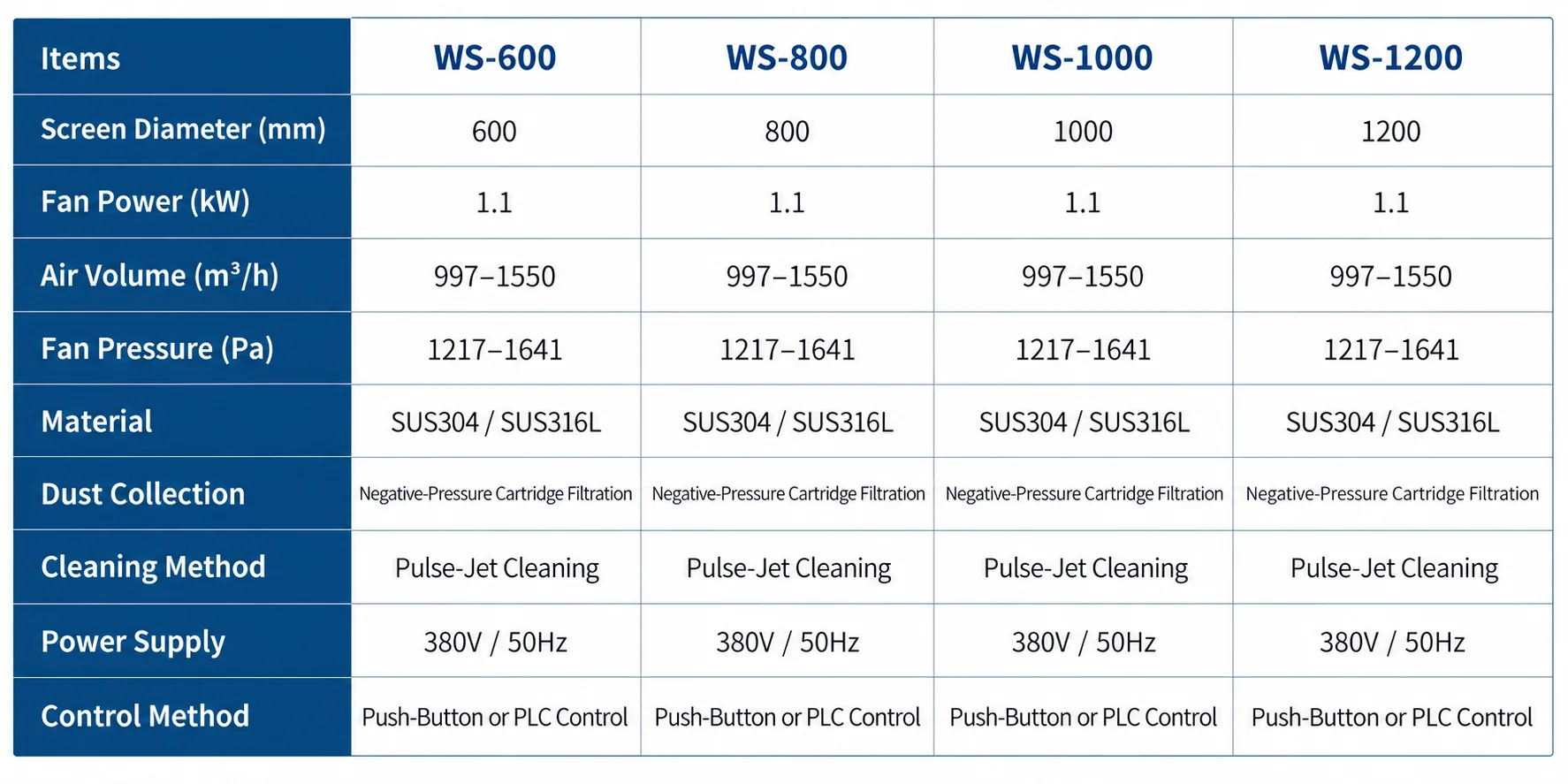

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Items | WS-600 | WS-800 | WS-1000 | WS-1200 |
|---|---|---|---|---|
| Screen Diameter (mm) | 600 | 800 | 1000 | 1200 |
| Fan Power (kW) | 1.1 | 1.1 | 1.1 | 1.1 |
| Air Volume (m³/h) | 997–1550 | 997–1550 | 997–1550 | 997–1550 |
| Fan Pressure (Pa) | 1217–1641 | 1217–1641 | 1217–1641 | 1217–1641 |
| Material | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L |
| Dust Collection | Negative-Pressure Cartridge Filtration | Negative-Pressure Cartridge Filtration | Negative-Pressure Cartridge Filtration | Negative-Pressure Cartridge Filtration |
| Cleaning Method | Pulse-Jet Cleaning | Pulse-Jet Cleaning | Pulse-Jet Cleaning | Pulse-Jet Cleaning |
| Power Supply | 380V / 50Hz | 380V / 50Hz | 380V / 50Hz | 380V / 50Hz |
| Control Method | Push-Button or PLC Control | Push-Button or PLC Control | Push-Button or PLC Control | Push-Button or PLC Control |
Typical Applications
Suitable for dust-controlled feeding and screening of powders and granular materials across multiple industries.
Food & Beverage
Dust-controlled feeding and screening of flour, sugar, starch and other powdered ingredients.
Pharmaceutical
Controlled feeding and screening of powders used in pharmaceutical processing.
Chemical Processing
Dust-controlled handling of chemical powders, additives and fine materials.
Powder Handling
Manual feeding and screening of bagged powders and small granular materials.
Key Components
Key components support dust collection, screening, filter cleaning and equipment control during powder feeding.

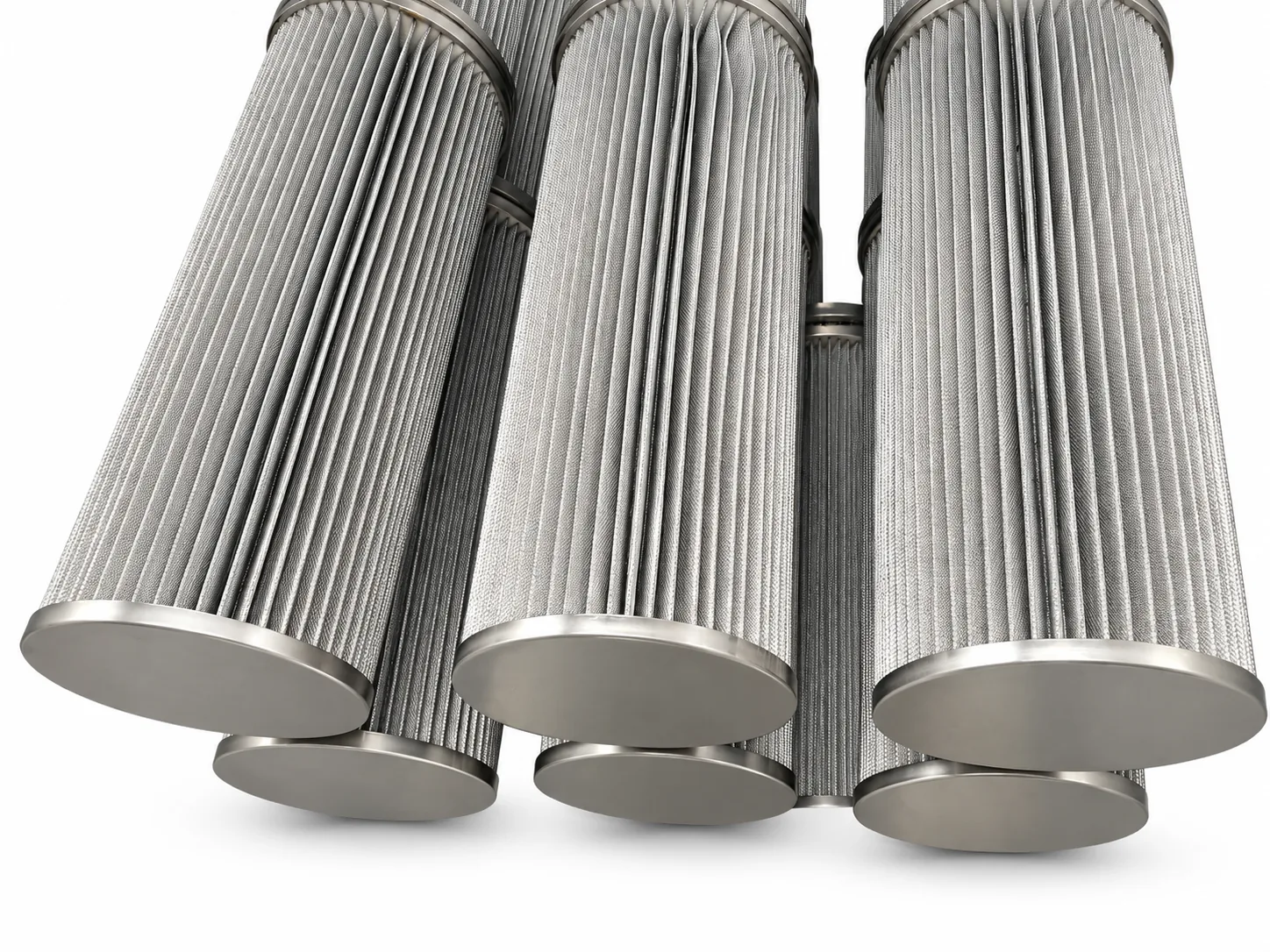

Filter Cartridge Assembly
Filter cartridges capture airborne dust generated during manual powder feeding.

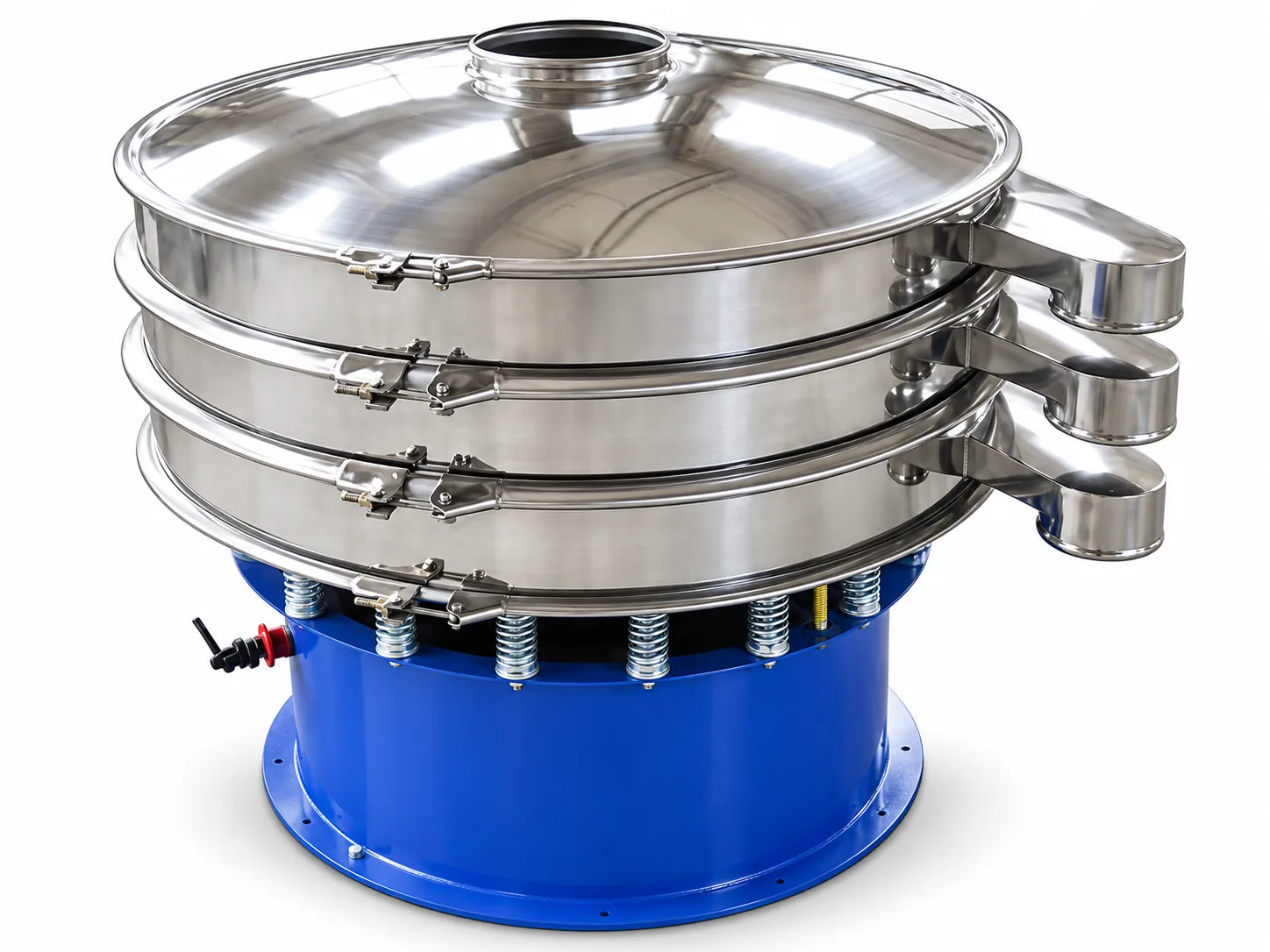

Integrated Vibrating Screen
Integrated screening helps separate agglomerates and oversized particles before downstream transfer.

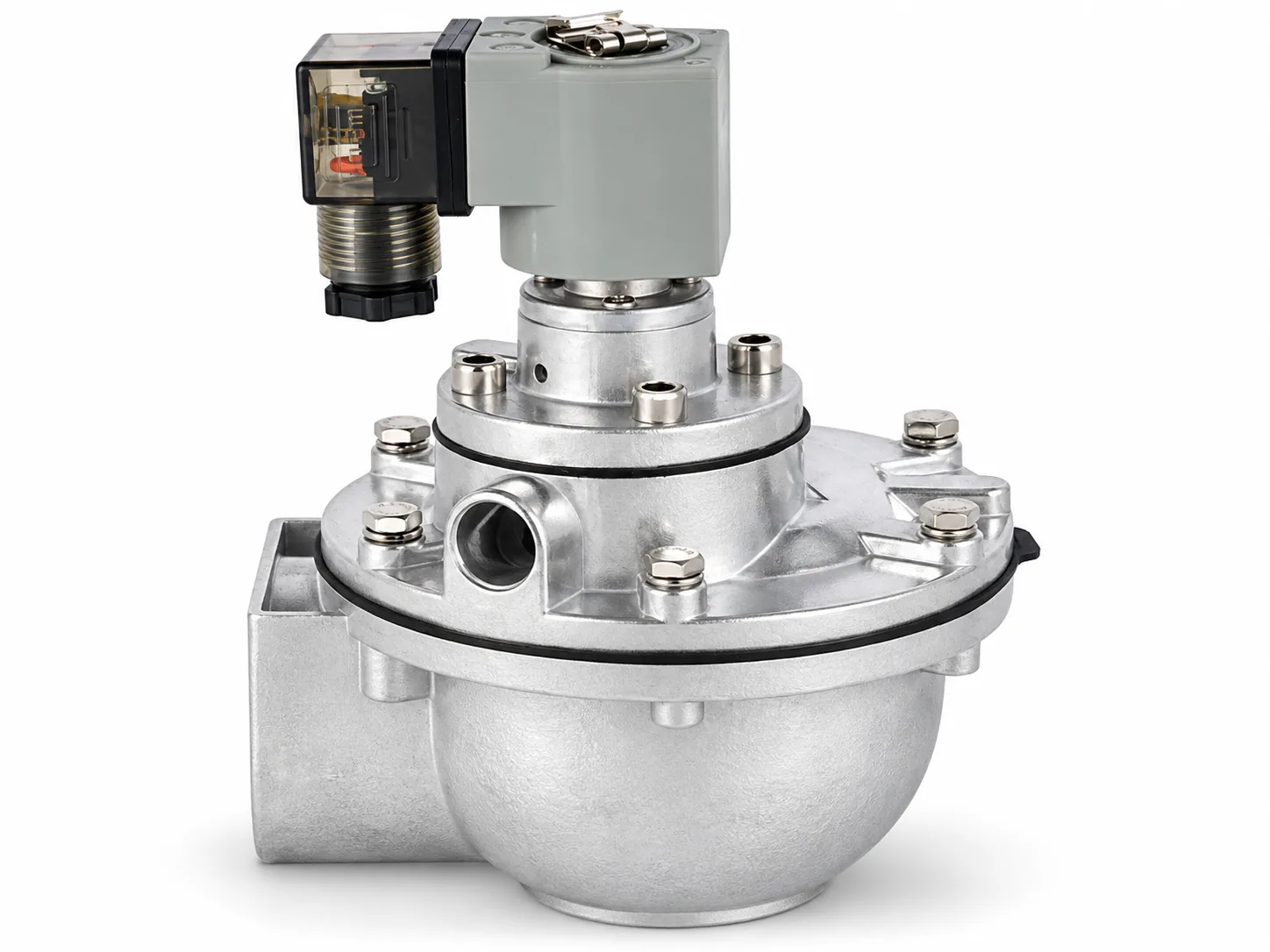

Pulse-Jet Cleaning Valve
Provides pulse-jet cleaning to remove accumulated dust from the filter cartridge surface.

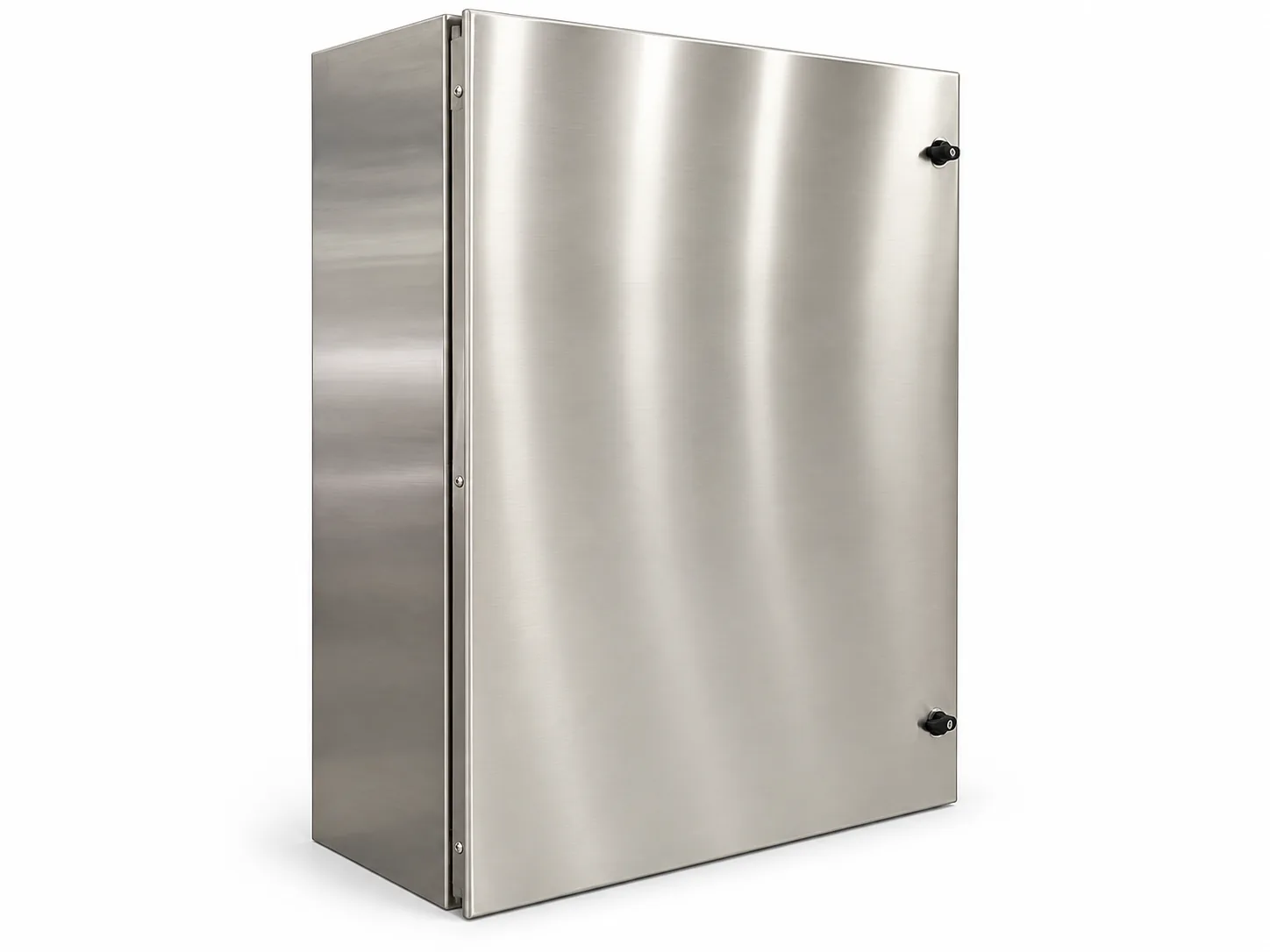

Control Cabinet
Available with push-button or PLC control according to project requirements.
Need a Dust-Free Feeding Station for Your Process?
Tell us your material type, feeding capacity, screening requirements, dust-control needs and installation conditions. Our team will help you select a suitable Dust-Free Feeding Station configuration.
