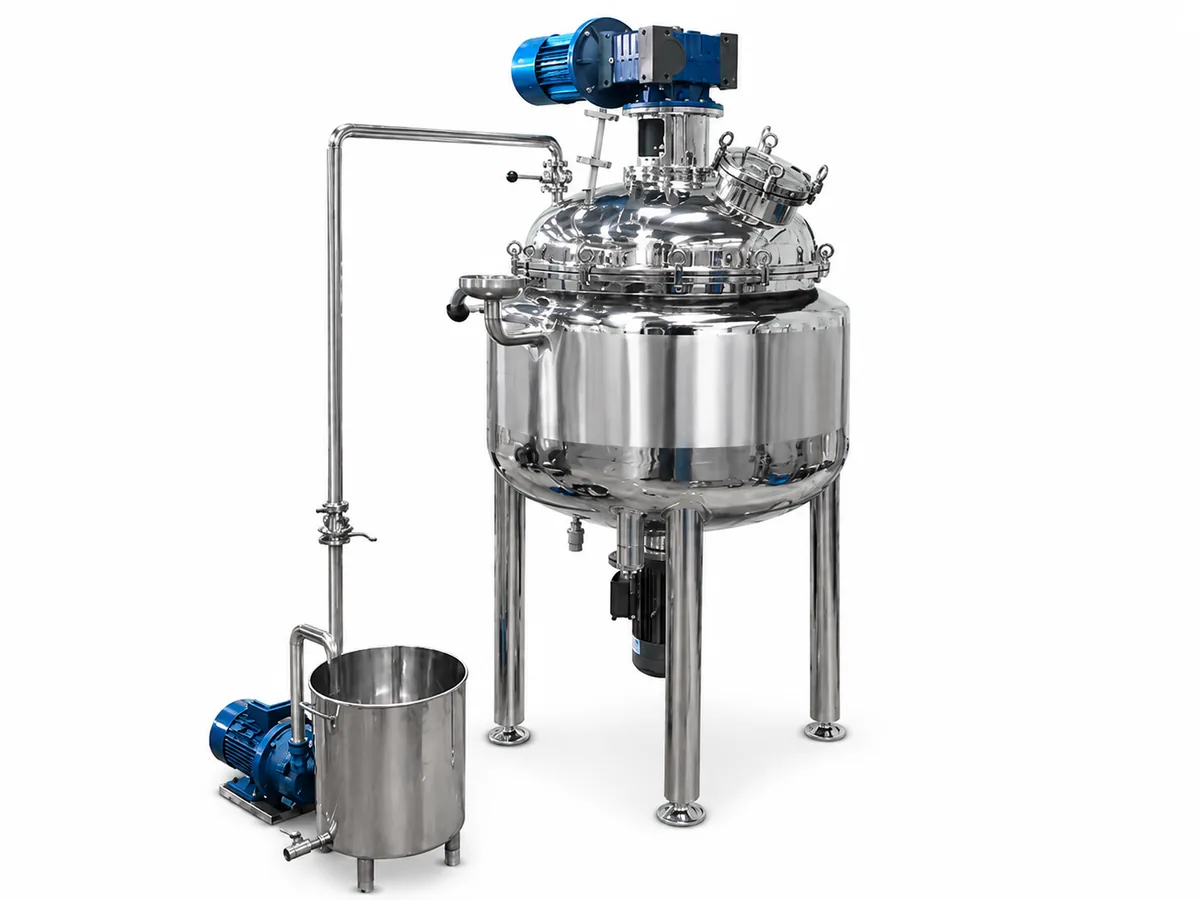

Emulsifying Tank
A stainless steel processing vessel integrating mixing, dispersing, homogenizing and emulsifying functions. It can be configured with heating or cooling, vacuum system, temperature control and other process options to meet different production requirements.
Configuration Overview
Flexible configurations for mixing, homogenizing and emulsifying processes.
50–30,000 L
Capacity
Dual Mixing
Agitation + Homogenizing
SUS304 / SUS316L
Contact Material
Process Options
Heating · Cooling · Vacuum
Available Configurations

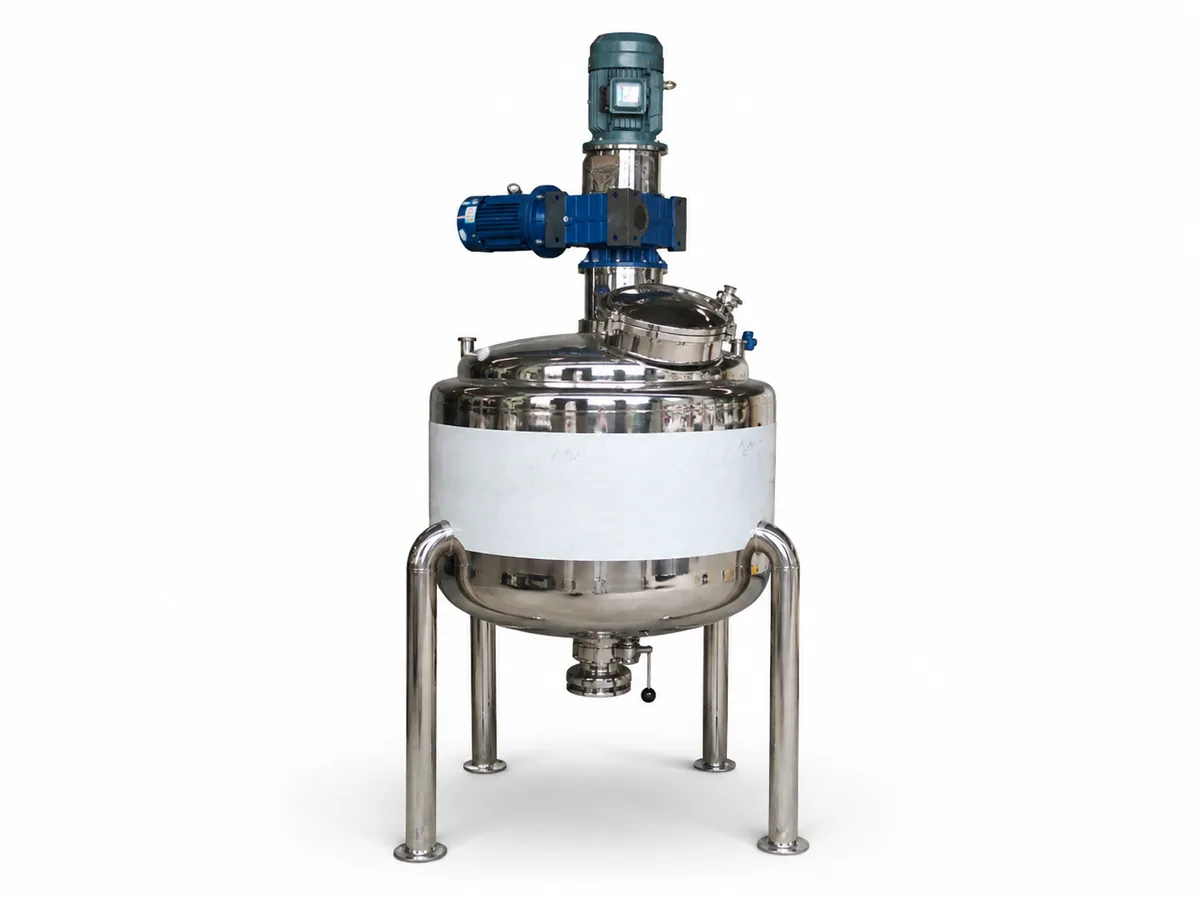

Compact Dual-Drive
Compact design with agitation and homogenizing functions.

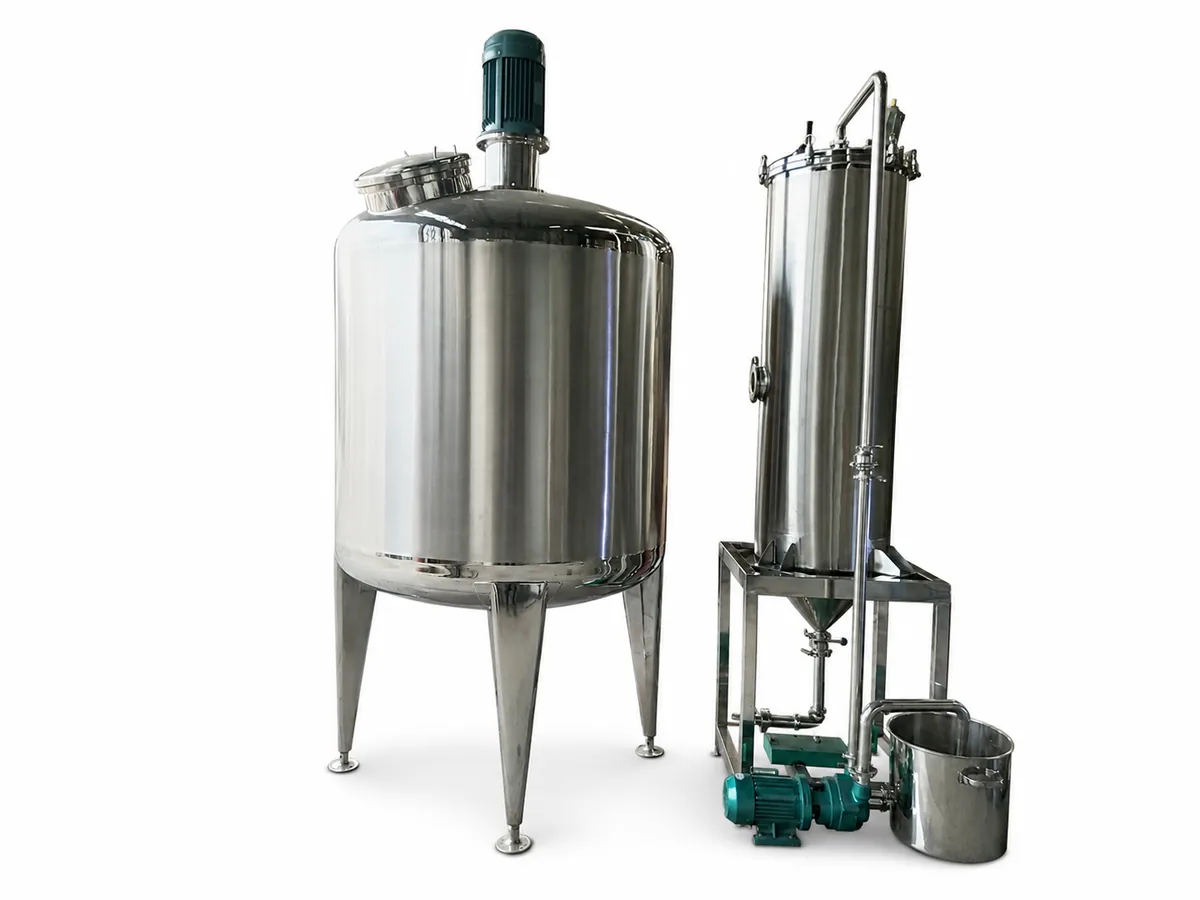

External Circulation
Integrated circulation system for flexible material processing.

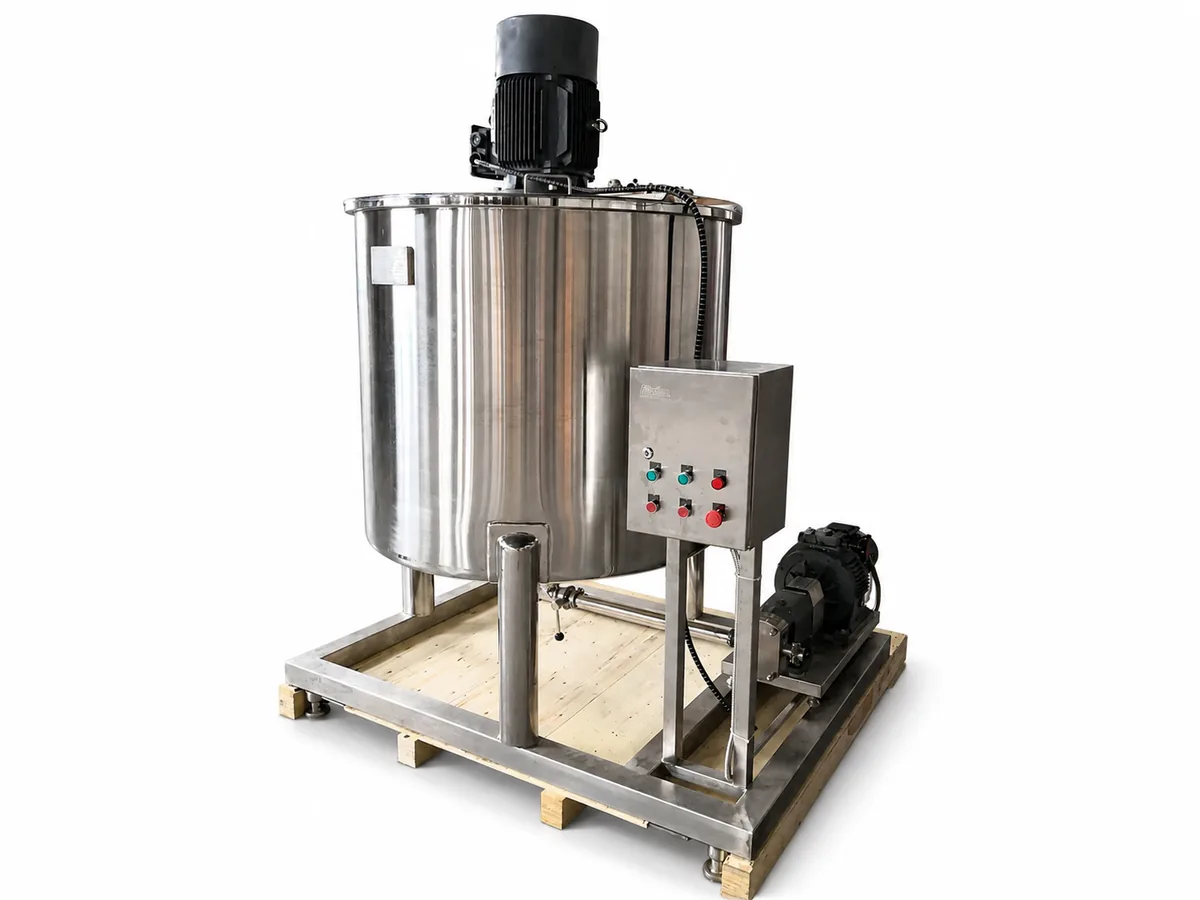

Skid-Mounted System
Integrated tank, control and drive components on one compact frame.

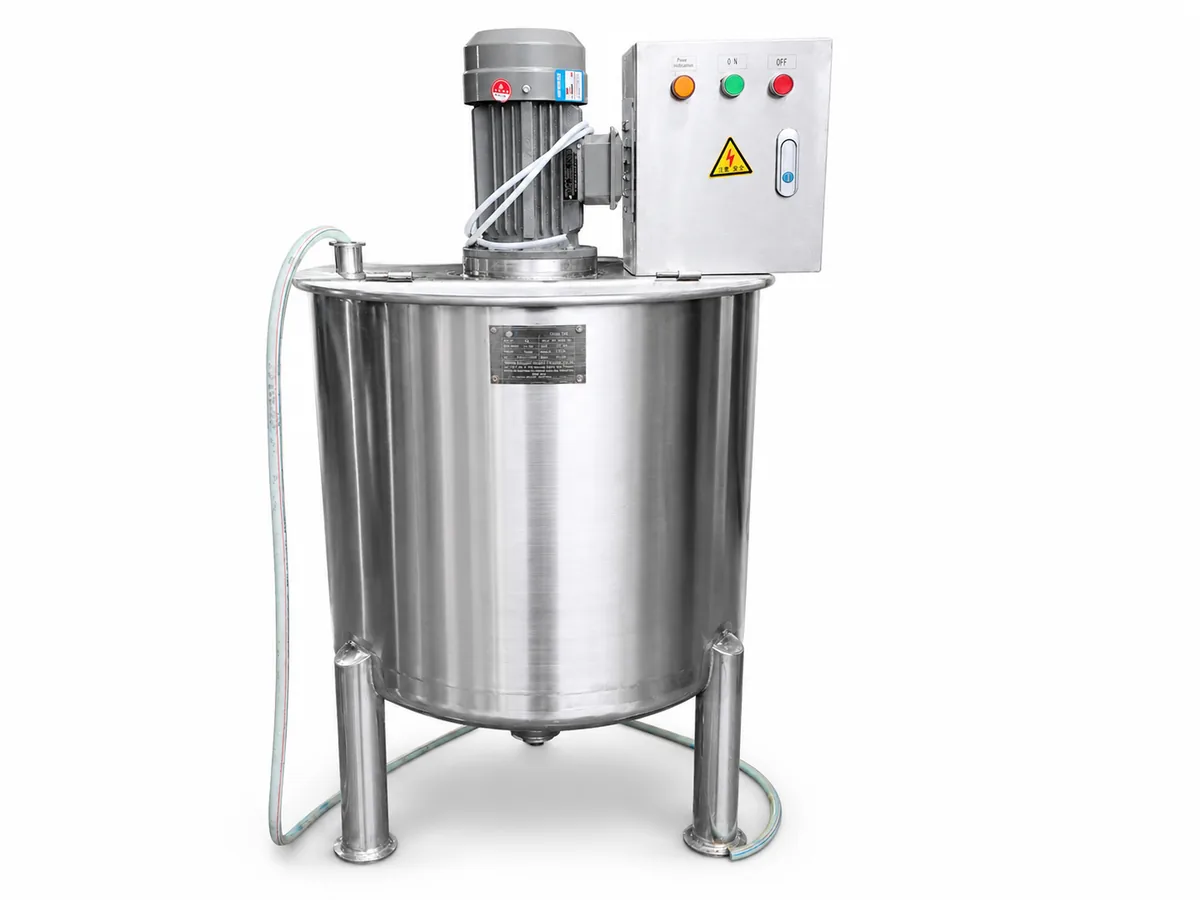

Standard Agitation
Simple vertical configuration for general mixing and processing.

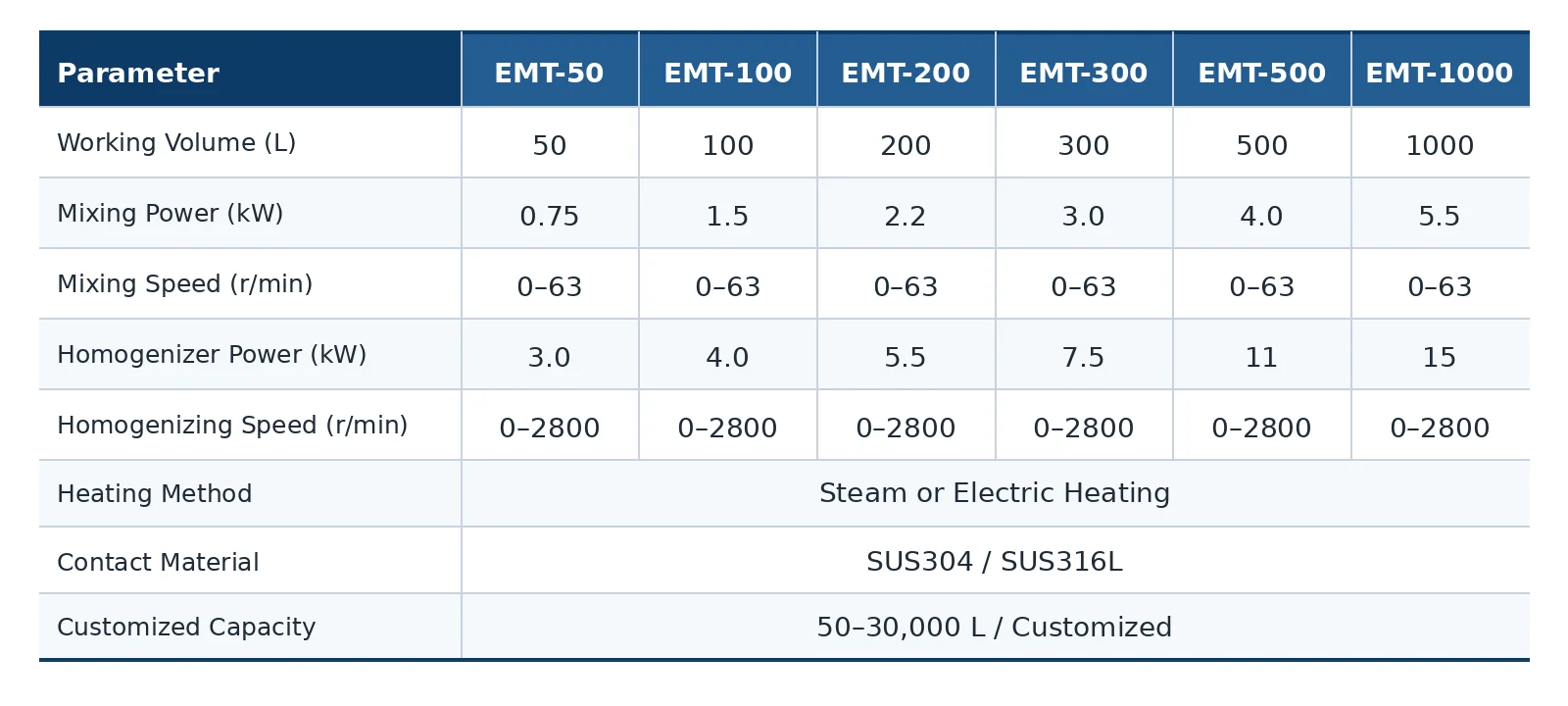

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Parameter | EMT-50 | EMT-100 | EMT-200 | EMT-300 | EMT-500 | EMT-1000 |
|---|---|---|---|---|---|---|
| Working Volume (L) | 50 | 100 | 200 | 300 | 500 | 1000 |
| Mixing Power (kW) | 0.75 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 |
| Mixing Speed (r/min) | 0–63 | 0–63 | 0–63 | 0–63 | 0–63 | 0–63 |
| Homogenizer Power (kW) | 3.0 | 4.0 | 5.5 | 7.5 | 11 | 15 |
| Homogenizing Speed (r/min) | 0–2800 | 0–2800 | 0–2800 | 0–2800 | 0–2800 | 0–2800 |
| Heating Method | Steam or Electric Heating | |||||
| Contact Material | SUS304 / SUS316L | |||||
| Customized Capacity | 50–30,000 L / Customized | |||||
Typical Applications
Designed for mixing, homogenizing and emulsifying applications across a wide range of industries.
Food & Beverage
Emulsifying beverages, sauces and liquid food products.
Cosmetics
Homogenizing creams, lotions and personal care formulations.
Pharmaceutical
Controlled mixing and emulsifying for formulated products.
Chemical Processing
Mixing and homogenizing for daily and fine chemicals.
Optional Configurations
Configurations can be tailored to suit different process, piping, installation and operating requirements.

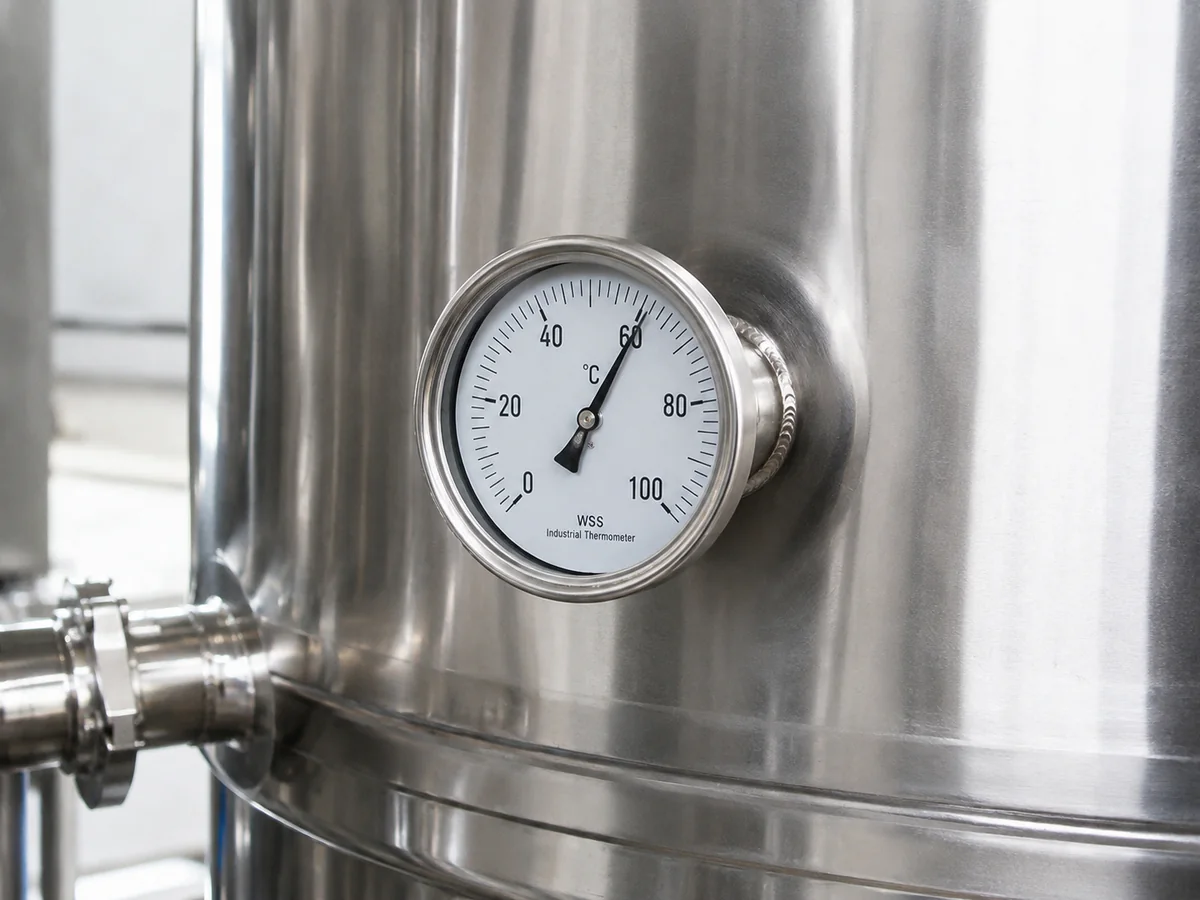

Temperature Monitoring
Temperature indication for convenient process monitoring.

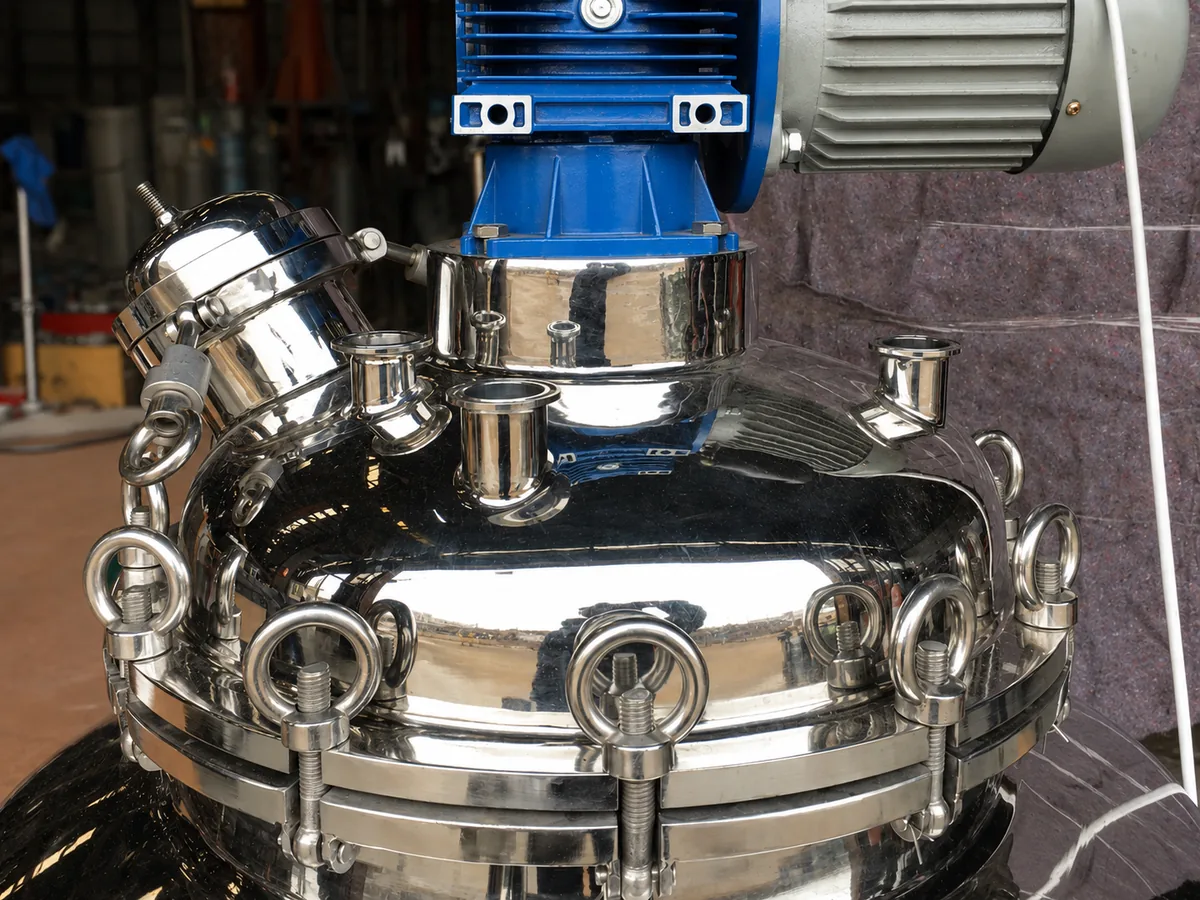

Quick-Opening Manway
Quick-opening design for easier charging, inspection and cleaning.

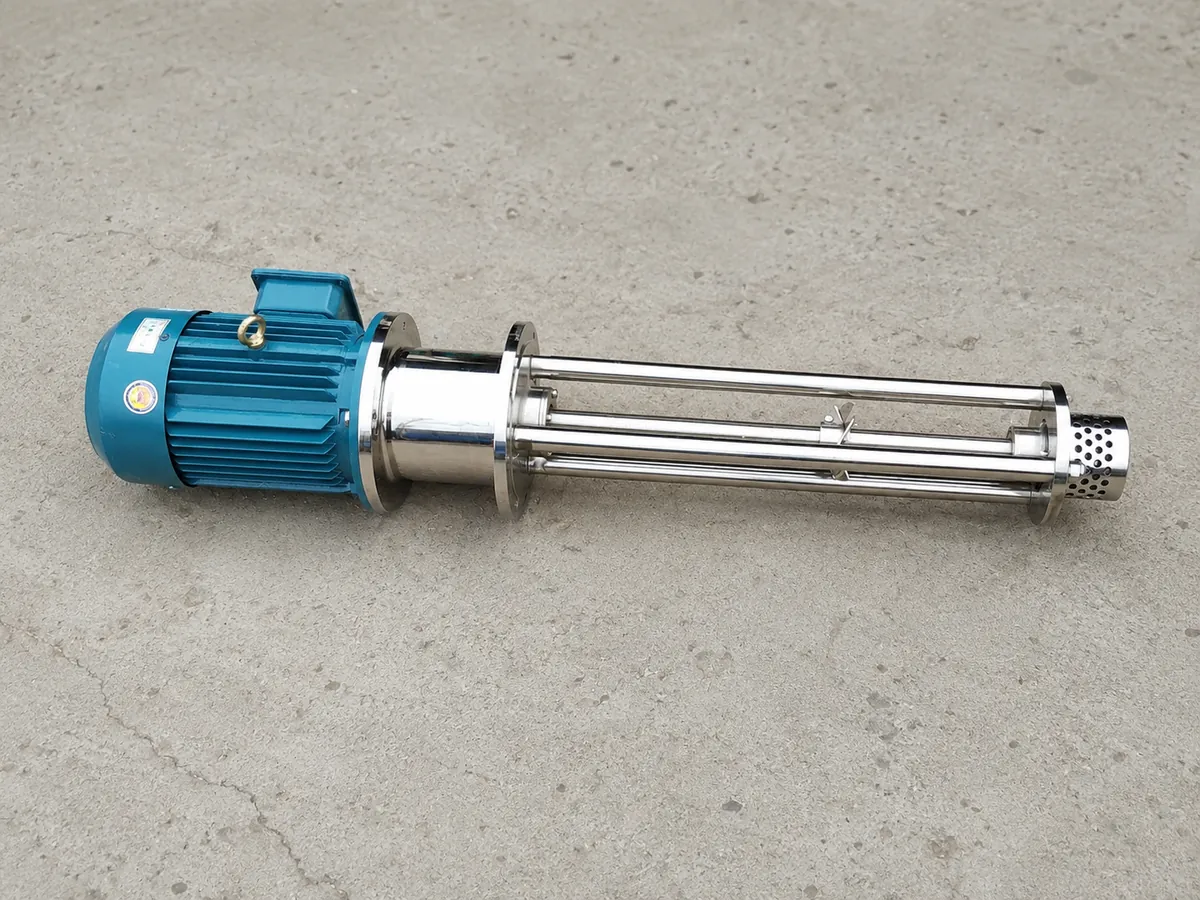

High-Shear Homogenizer
High-shear homogenizing unit for efficient dispersion and emulsification.

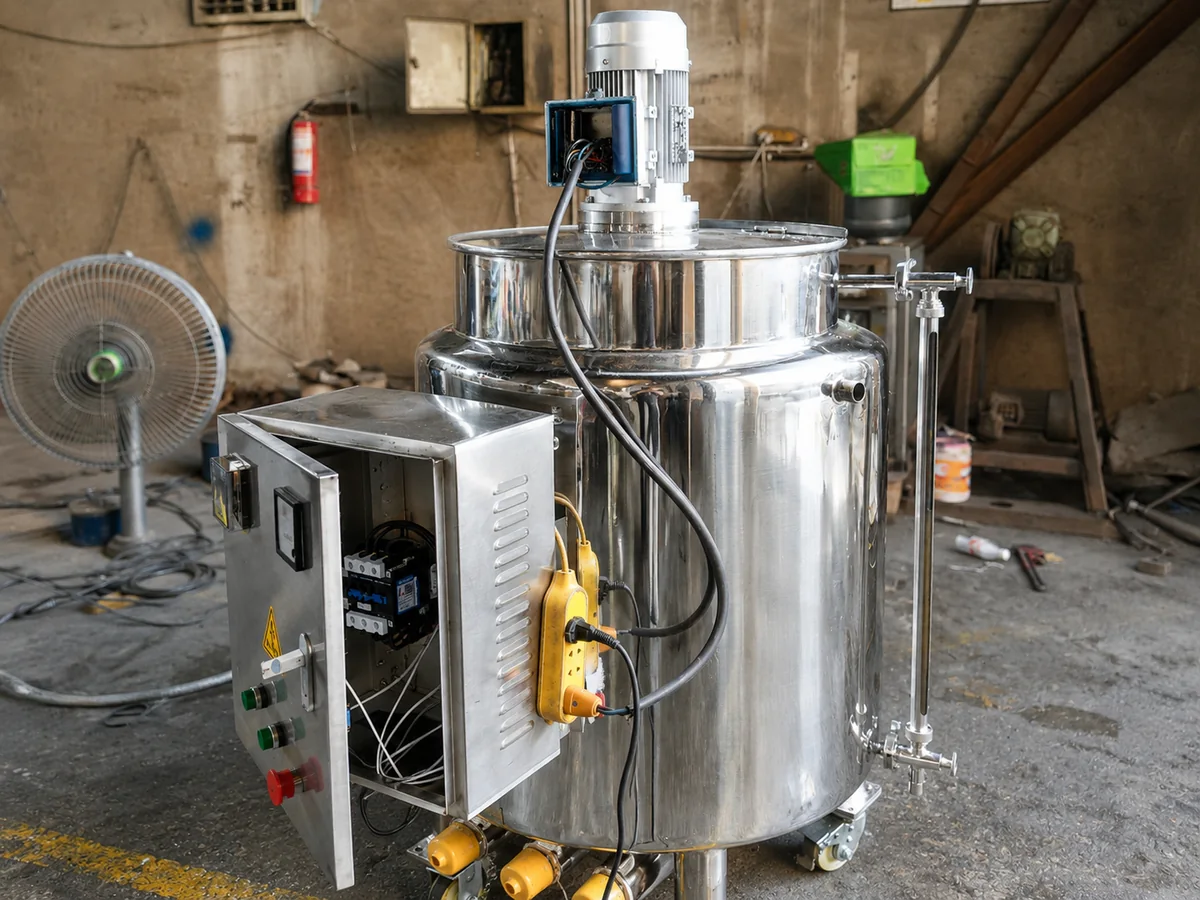

Electrical Control System
Integrated electrical controls for convenient process operation.
Need an Emulsifying Tank for Your Process?
Tell us your required capacity, product viscosity, mixing and homogenizing requirements, heating or cooling method, material grade and installation conditions. Our team will help you select a suitable emulsifying tank configuration.
