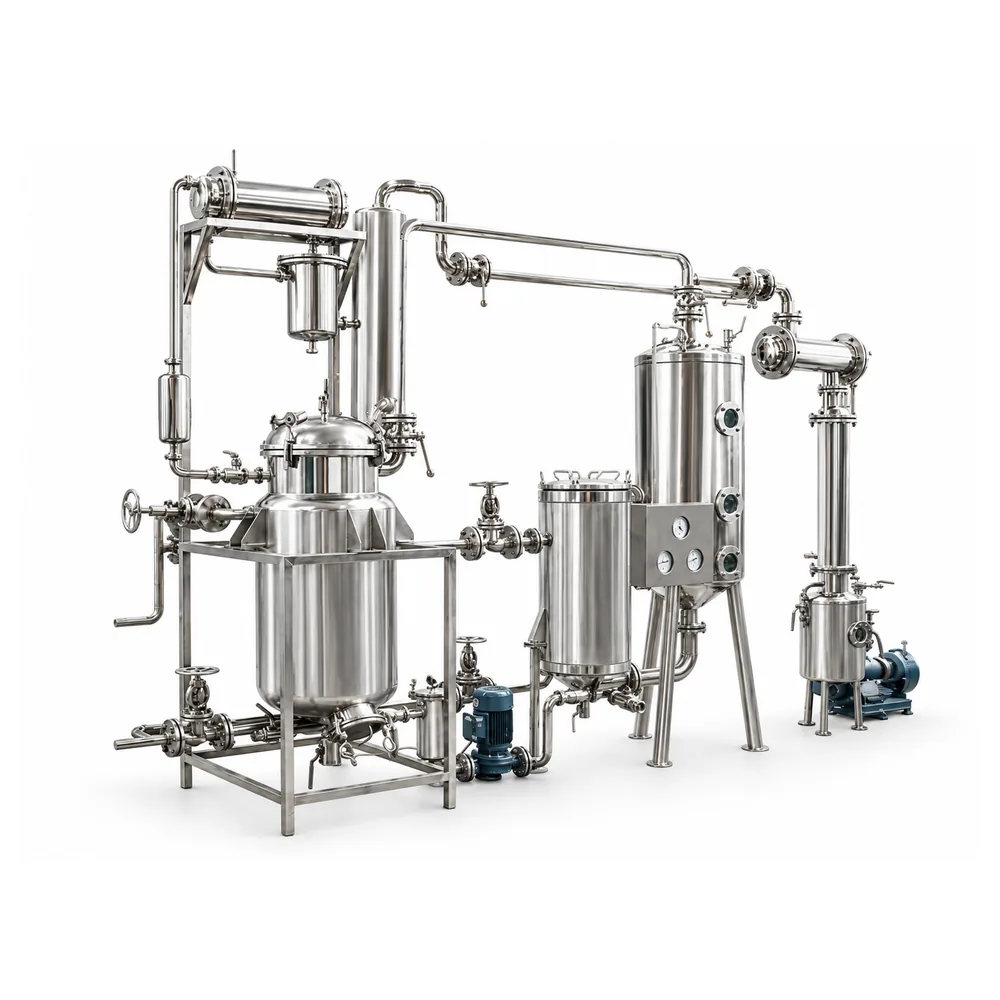

Extraction & Concentration Recovery Unit
Integrated extraction, vacuum concentration and solvent recovery in one processing system for herbal, botanical, pharmaceutical and food applications. Designed for efficient extraction, concentration and solvent recovery in an integrated production process.
Configuration Overview
Integrated extraction, vacuum concentration and solvent recovery in one processing system.
65–580 L
Extraction Tank Volume
10–150 kg/h
Evaporation Capacity
-0.09 MPa
Vacuum Level
3-in-1 Process
Extraction · Concentration · Recovery
Available Configurations
Compact Integrated Type
Compact system for small-batch extraction, concentration and solvent recovery.
Dual-Vessel Integrated Type
Dual-vessel configuration for flexible extraction and concentration processing.
Multi-Vessel Integrated Type
Multi-vessel system for customized extraction, concentration and solvent recovery requirements.
Advanced Multi-Vessel Type
Advanced integrated configuration for extraction, concentration and solvent recovery processes.

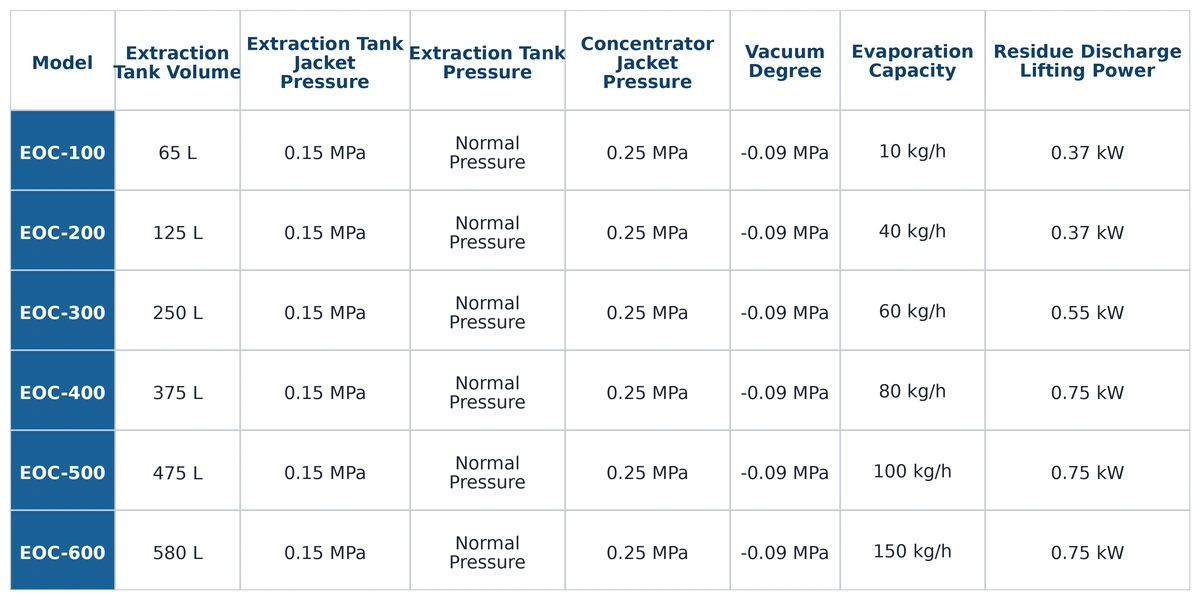

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Model | Extraction Tank Volume |
Extraction Tank Jacket Pressure |
Extraction Tank Pressure |
Concentrator Jacket Pressure |
Vacuum Degree |
Evaporation Capacity |
Residue Discharge Lifting Power |
|---|---|---|---|---|---|---|---|
| EOC-100 | 65 L | 0.15 MPa | Normal Pressure | 0.25 MPa | -0.09 MPa | 10 kg/h | 0.37 kW |
| EOC-200 | 125 L | 0.15 MPa | Normal Pressure | 0.25 MPa | -0.09 MPa | 40 kg/h | 0.37 kW |
| EOC-300 | 250 L | 0.15 MPa | Normal Pressure | 0.25 MPa | -0.09 MPa | 60 kg/h | 0.55 kW |
| EOC-400 | 375 L | 0.15 MPa | Normal Pressure | 0.25 MPa | -0.09 MPa | 80 kg/h | 0.75 kW |
| EOC-500 | 475 L | 0.15 MPa | Normal Pressure | 0.25 MPa | -0.09 MPa | 100 kg/h | 0.75 kW |
| EOC-600 | 580 L | 0.15 MPa | Normal Pressure | 0.25 MPa | -0.09 MPa | 150 kg/h | 0.75 kW |
Typical Applications
Designed for extraction, vacuum concentration and solvent recovery across pharmaceutical, botanical, food and chemical processing applications.
Herbal & Botanical Extraction
Extraction and concentration of active components from herbs, roots and botanical materials.
Pharmaceutical Processing
Integrated extraction and concentration for pharmaceutical and traditional medicine production.
Food & Beverage Extracts
Processing and concentration of plant extracts, flavors and food-based liquid products.
Solvent Recovery
Recovery of organic solvents during extraction and concentration processes.
Optional Configurations
Configurations can be tailored to suit different process, piping, installation, and operating requirements.

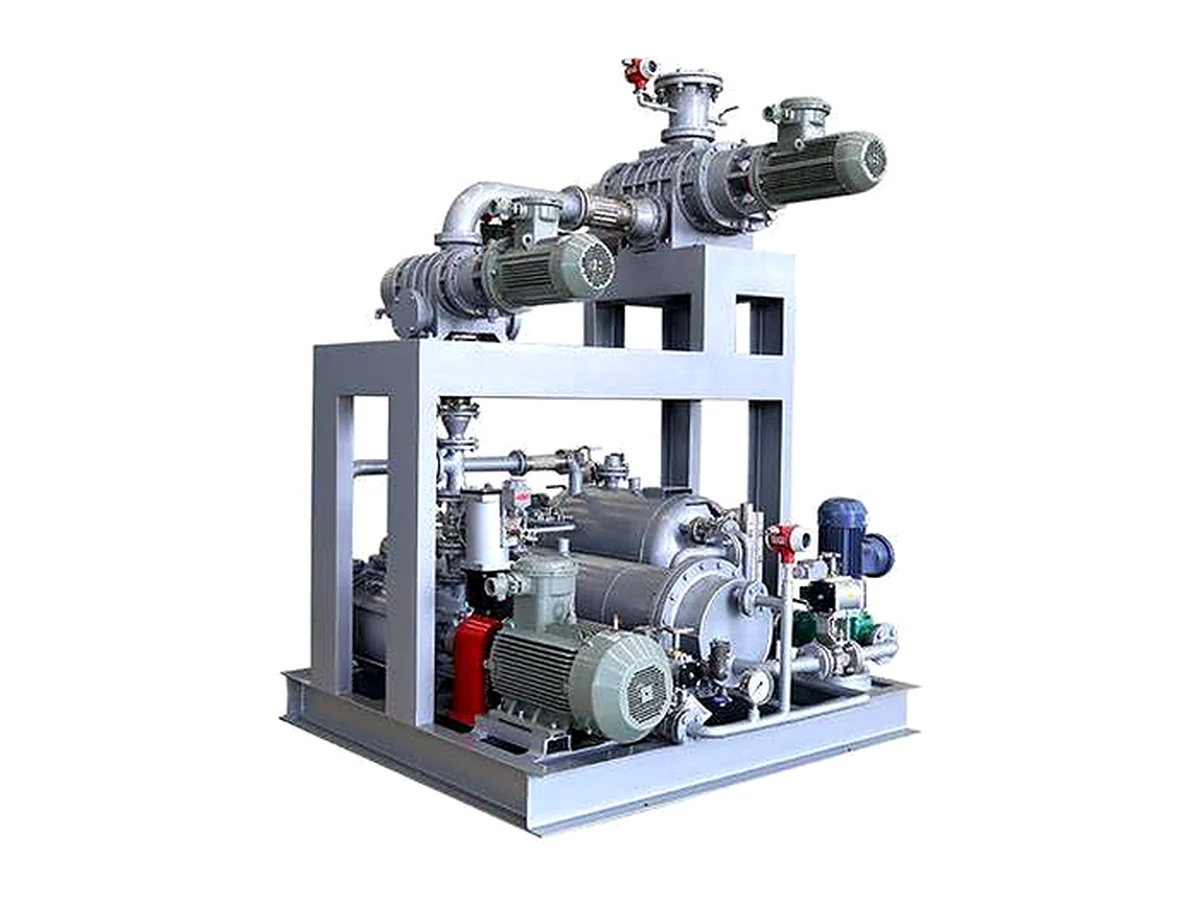

Vacuum Pump System
Provides vacuum support for concentration and solvent recovery processes.

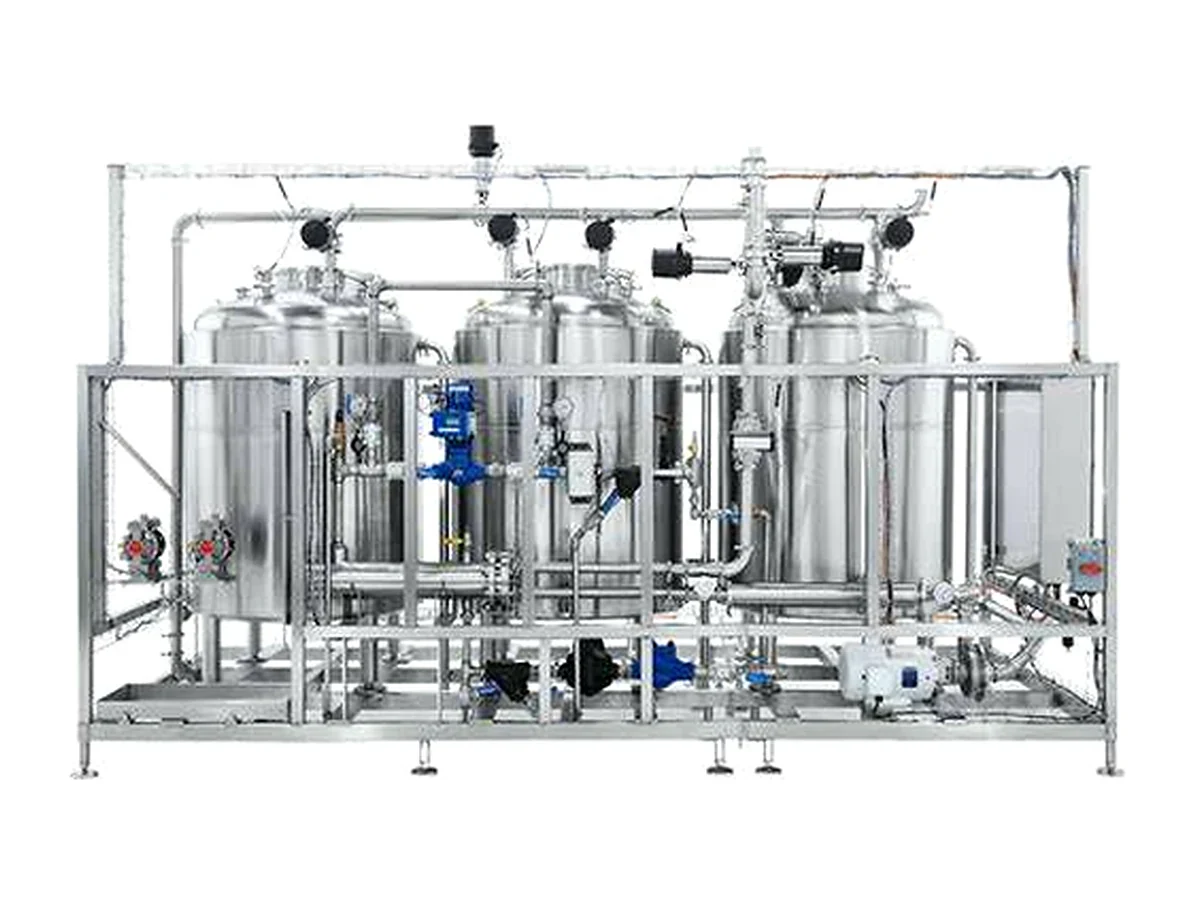

CIP Cleaning System
Integrated cleaning system for efficient vessel and pipeline cleaning without disassembly.

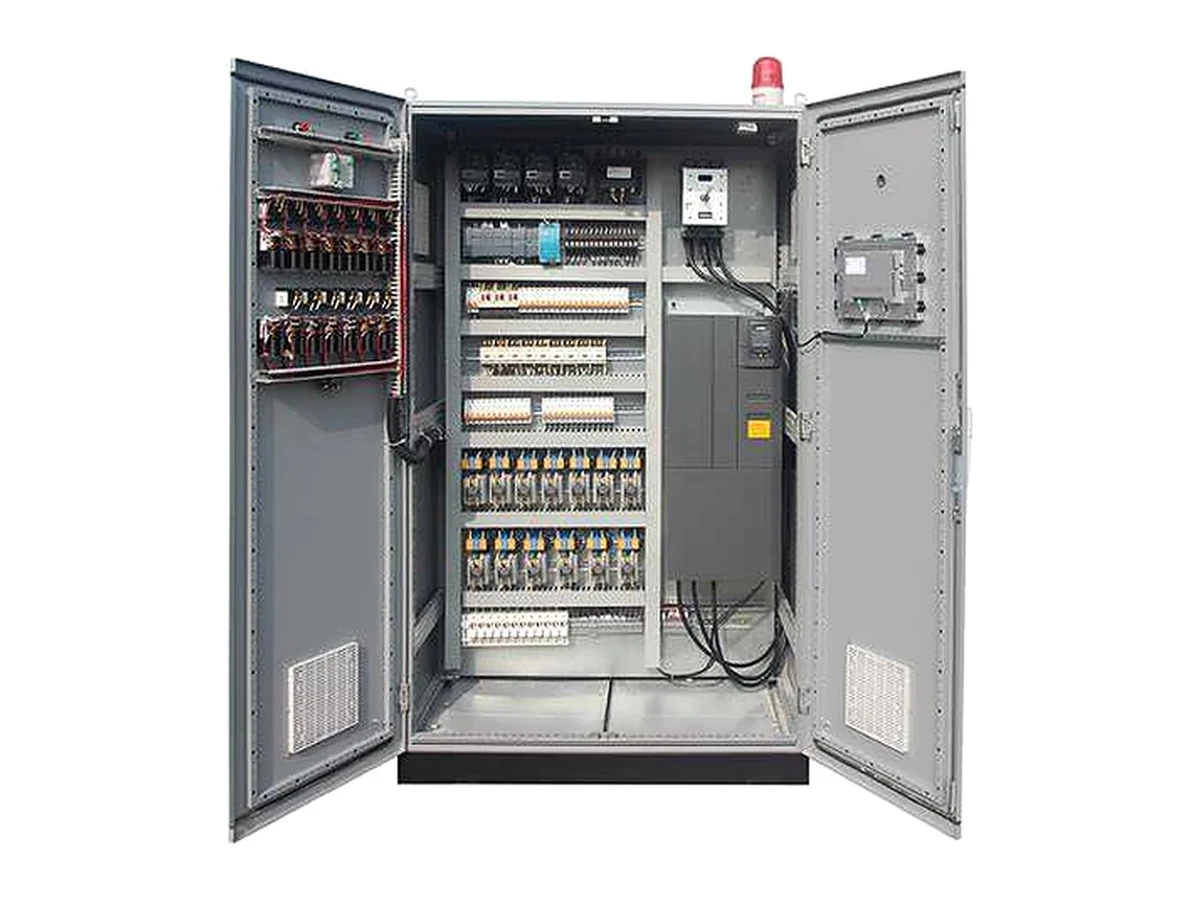

PLC Control System
Centralized control system for coordinated equipment and process operation.

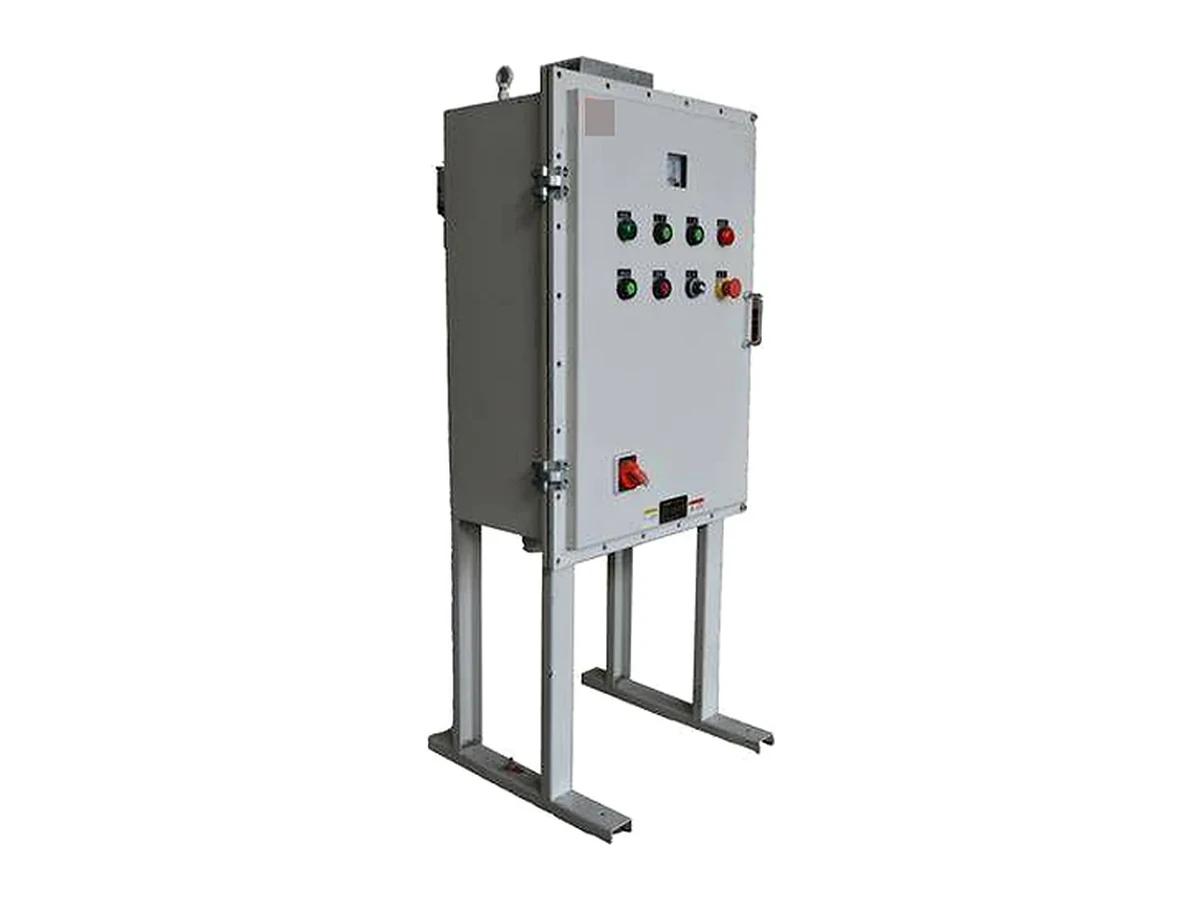

Electrical Control Cabinet
Customized electrical cabinet for power distribution, motor control, and coordinated system operation.
Need an Extraction & Concentration Recovery Unit for Your Process?
Tell us your material, required extraction capacity, evaporation capacity and process requirements. Our team will help you select a suitable Extraction & Concentration Recovery Unit configuration.
