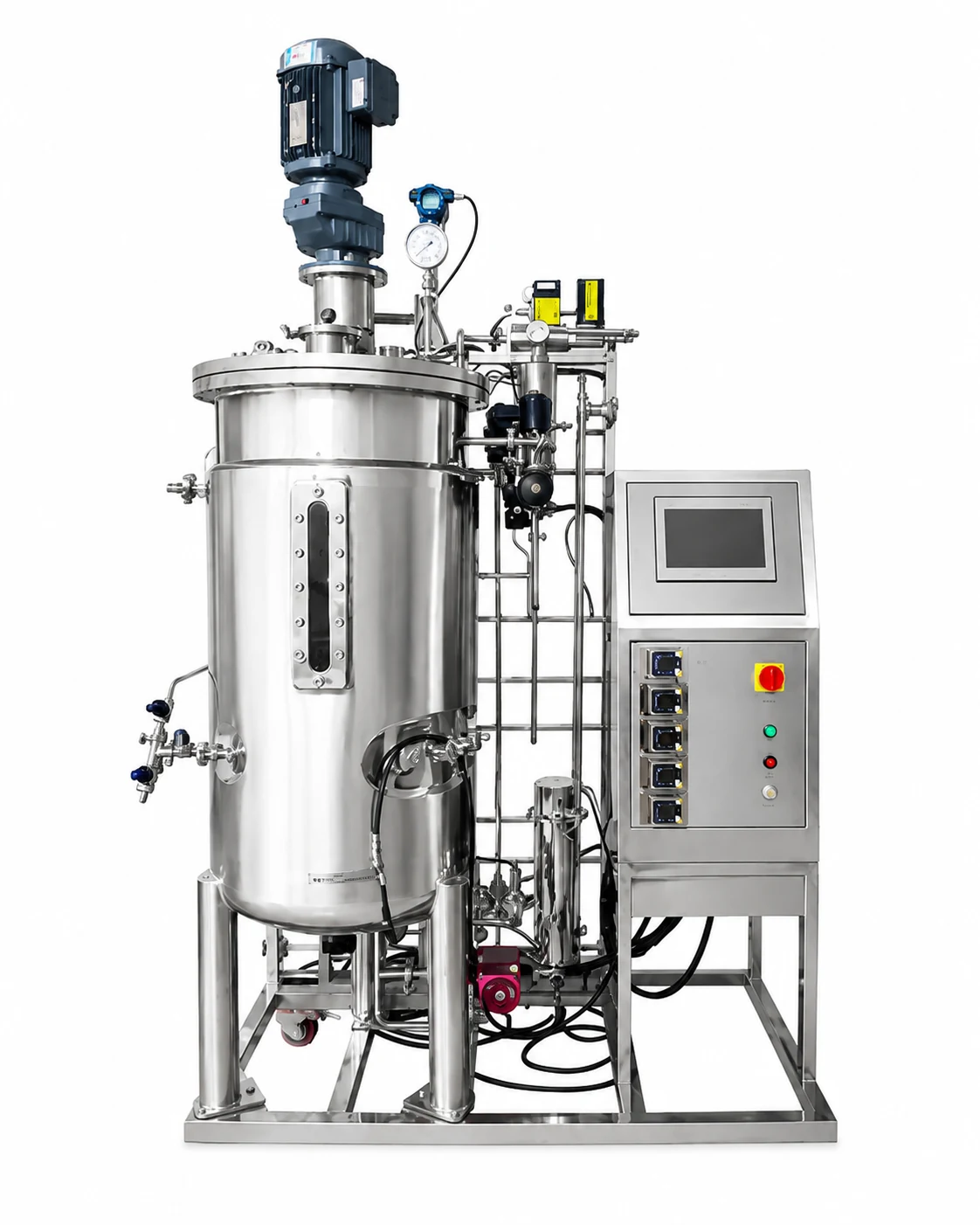

Fermentation Tank
Designed for controlled fermentation processes with integrated mixing, aeration and temperature regulation. Configurable with temperature, pH, pressure, liquid level, CIP and other process interfaces to meet different fermentation requirements.
Configuration Overview
Configurable mixing, aeration, temperature control and process interfaces for different fermentation requirements.
Mixing & Aeration
Agitator · Air Distributor
SUS304 / SUS316L
Tank Material
Temperature Control
Cooling Tube / Jacket
Process Interfaces
pH · Pressure · Level · CIP
Available Configurations

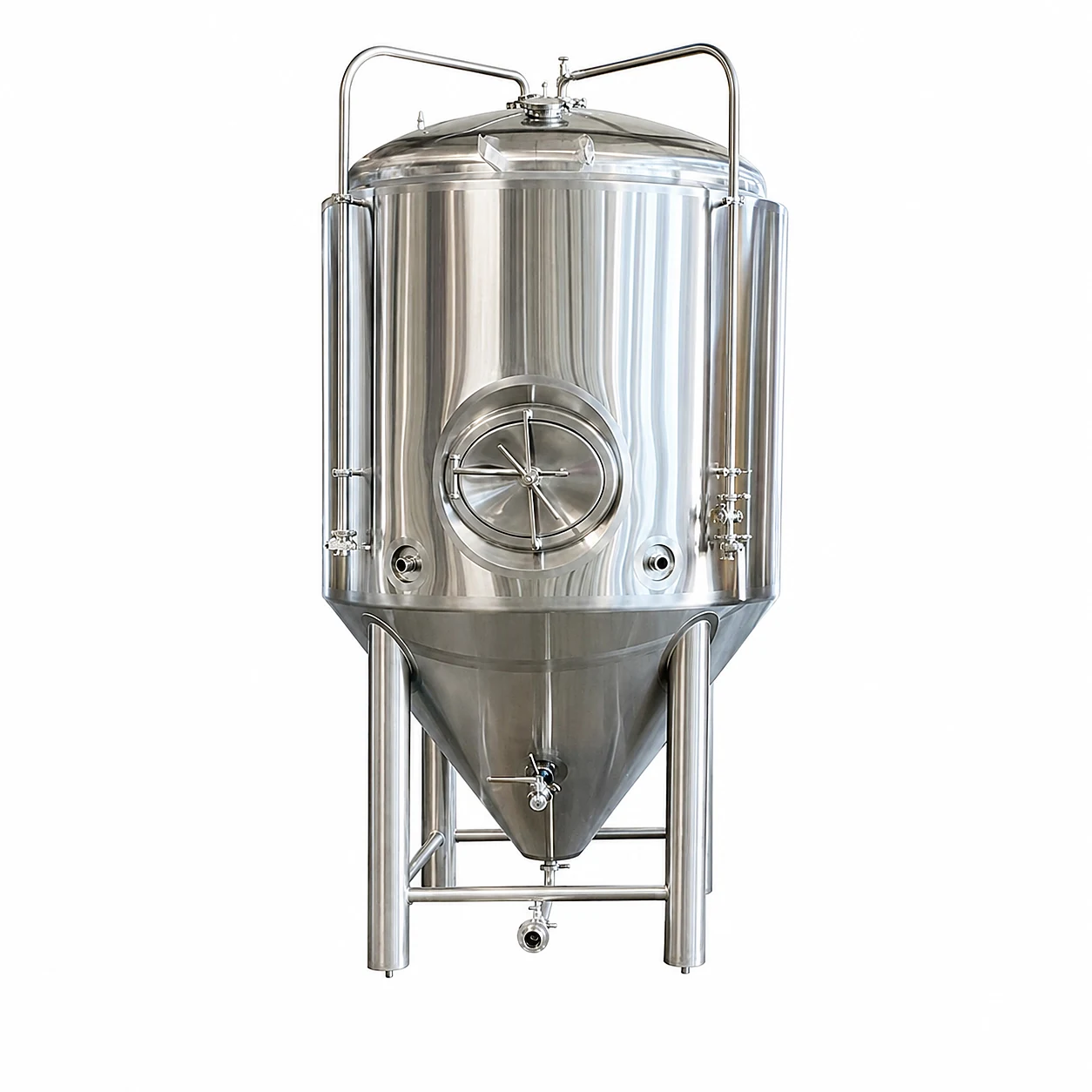

Standard Fermentation
Tank
Standard vertical design for
general fermentation and
standard process applications.

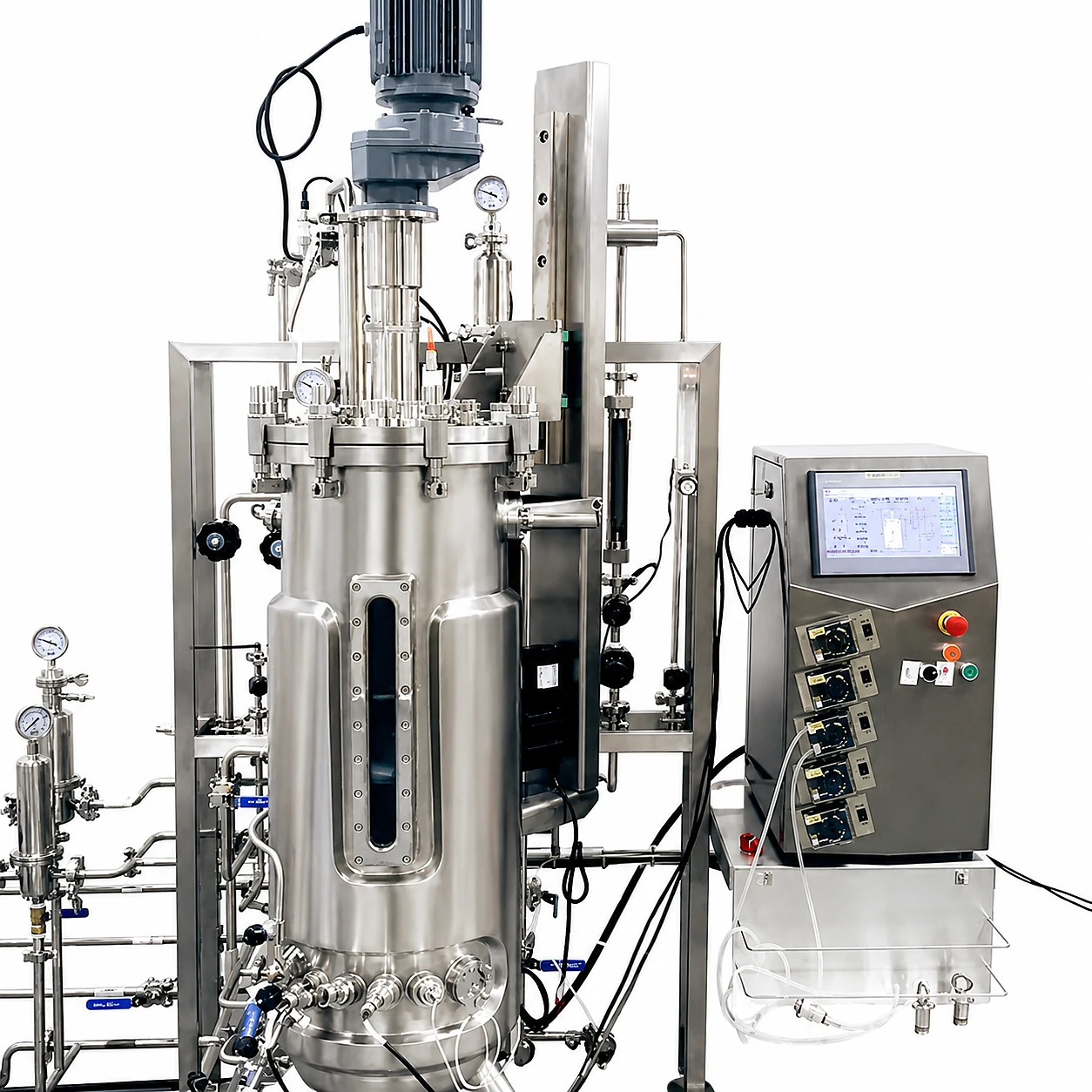

Automatic Fermentation
Tank
Integrated instrumentation and
control for stable automated
fermentation processes.

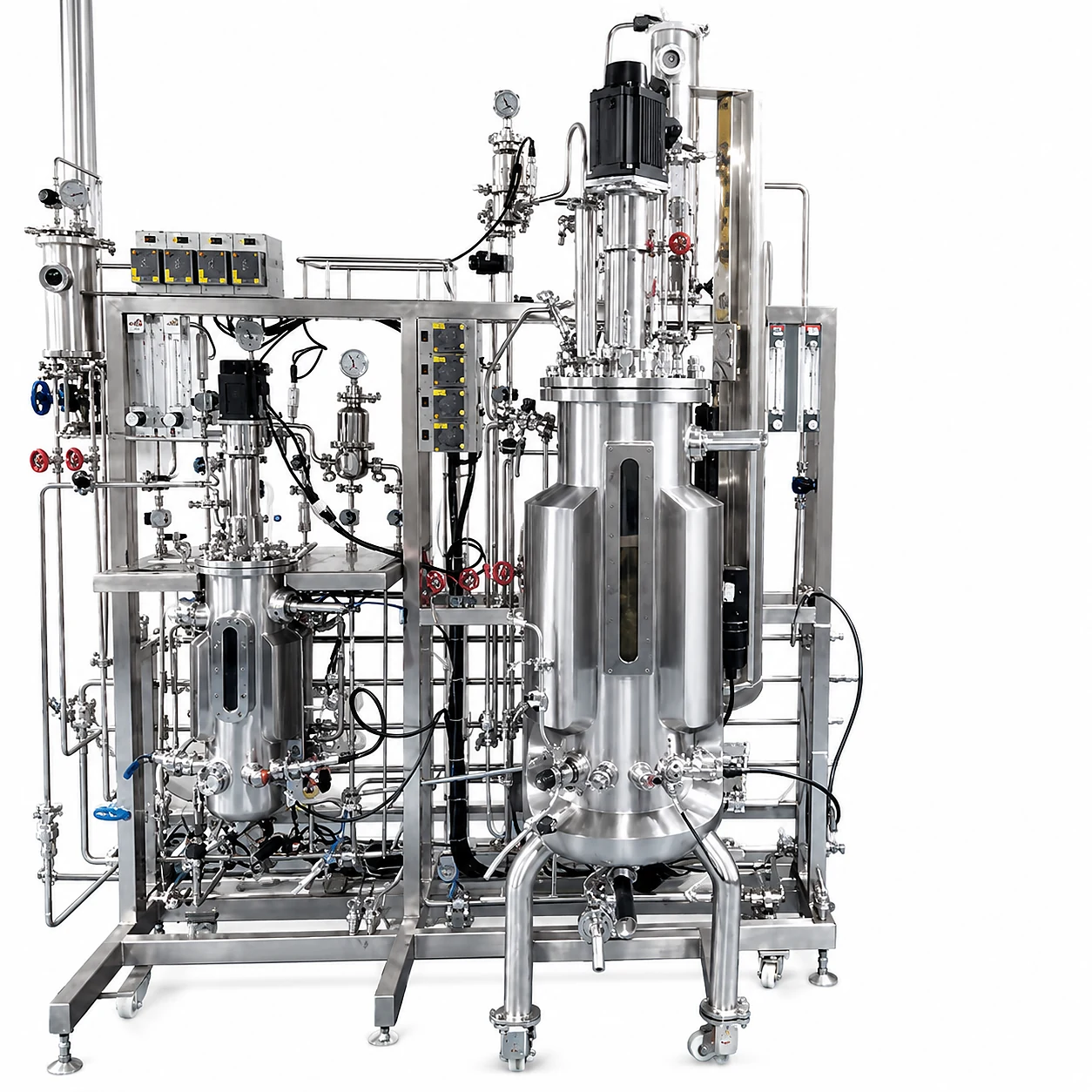

Customized Fermentation
System
Integrated tanks, piping and
control tailored to specific
process requirements.

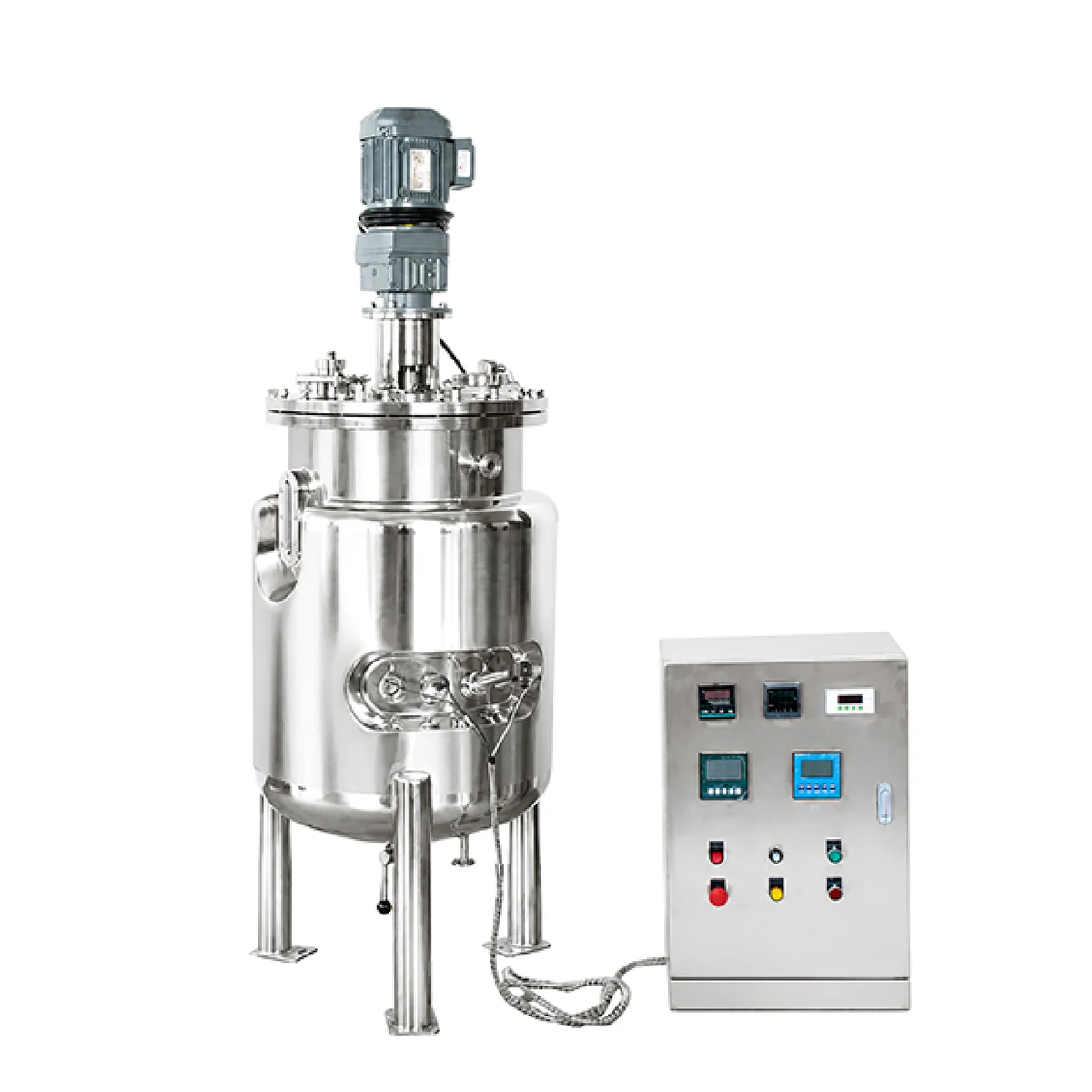

Pilot Fermentation
Tank
Compact fermentation system for
pilot testing, development and
scale-up applications.
Technical Specifications
Specifications can be customized according to process, control and installation requirements.

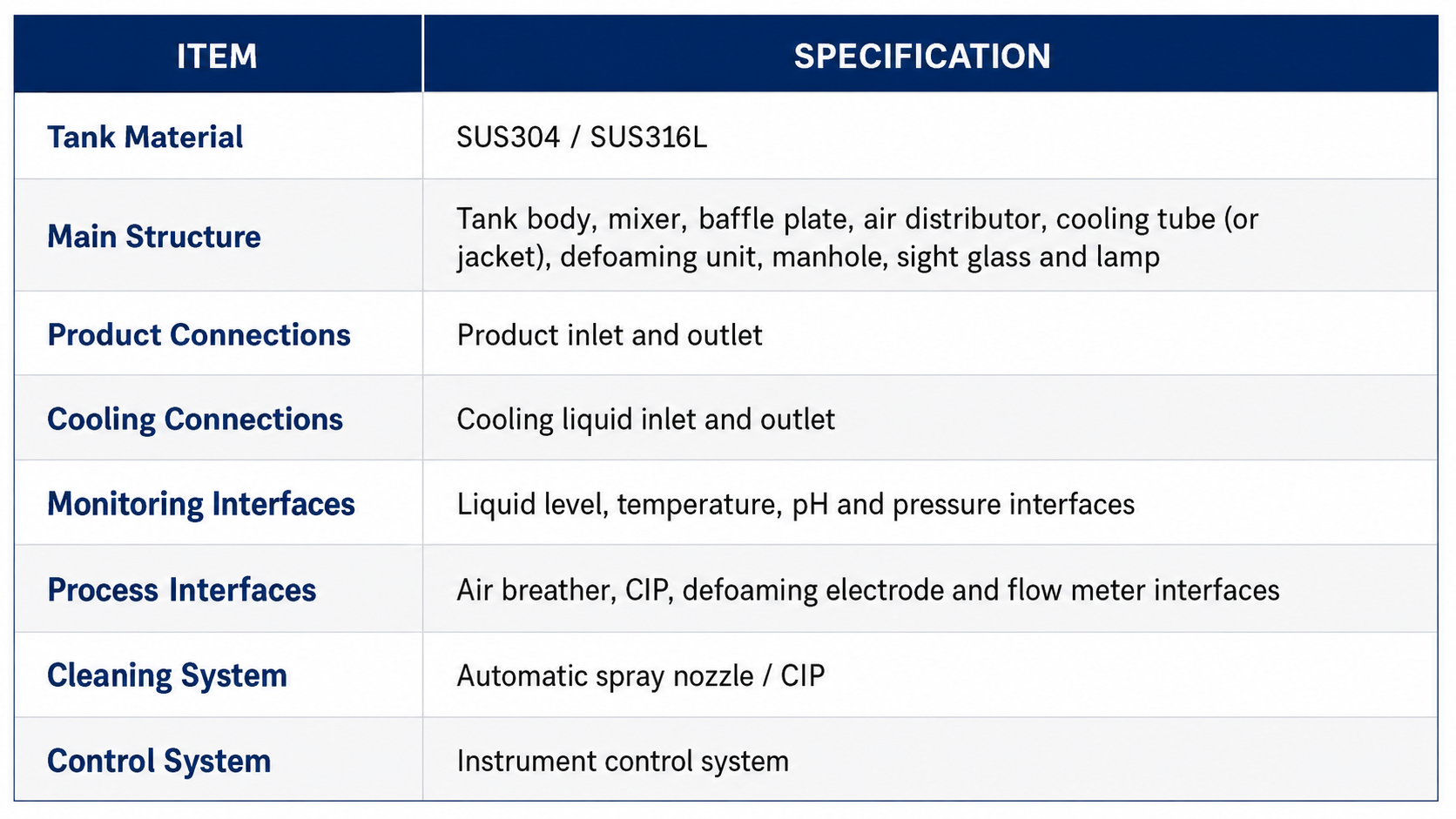

| ITEM | SPECIFICATION |
|---|---|
| Tank Material | SUS304 / SUS316L |
| Main Structure | Tank body, agitator, baffle plate, air distributor, cooling tube (or jacket), defoaming unit, manhole, sight glass and lamp |
| Product Connections | Product inlet and outlet |
| Cooling Connections | Cooling liquid inlet and outlet |
| Monitoring Interfaces | Liquid level, temperature, pH and pressure interfaces |
| Process Interfaces | Air breather, CIP, defoaming electrode and flow meter interfaces |
| Cleaning System | Automatic spray nozzle / CIP |
| Control System | Instrument control system |
Typical Applications
Designed for controlled fermentation processes across food, biotechnology, pharmaceutical and process development applications.
Food & Beverage Fermentation
Fermentation of beverages, food ingredients, cultures and related liquid products.
Pharmaceutical & Biotechnology
Controlled fermentation for pharmaceutical, biological and biotechnology processes.
Microbial & Enzyme Fermentation
Suitable for microbial culture, enzyme production and other fermentation processes.
Pilot & Process Development
Flexible configuration for pilot testing, process development and scale-up studies.
Optional Configurations
Optional components and process interfaces can be configured according to fermentation requirements.

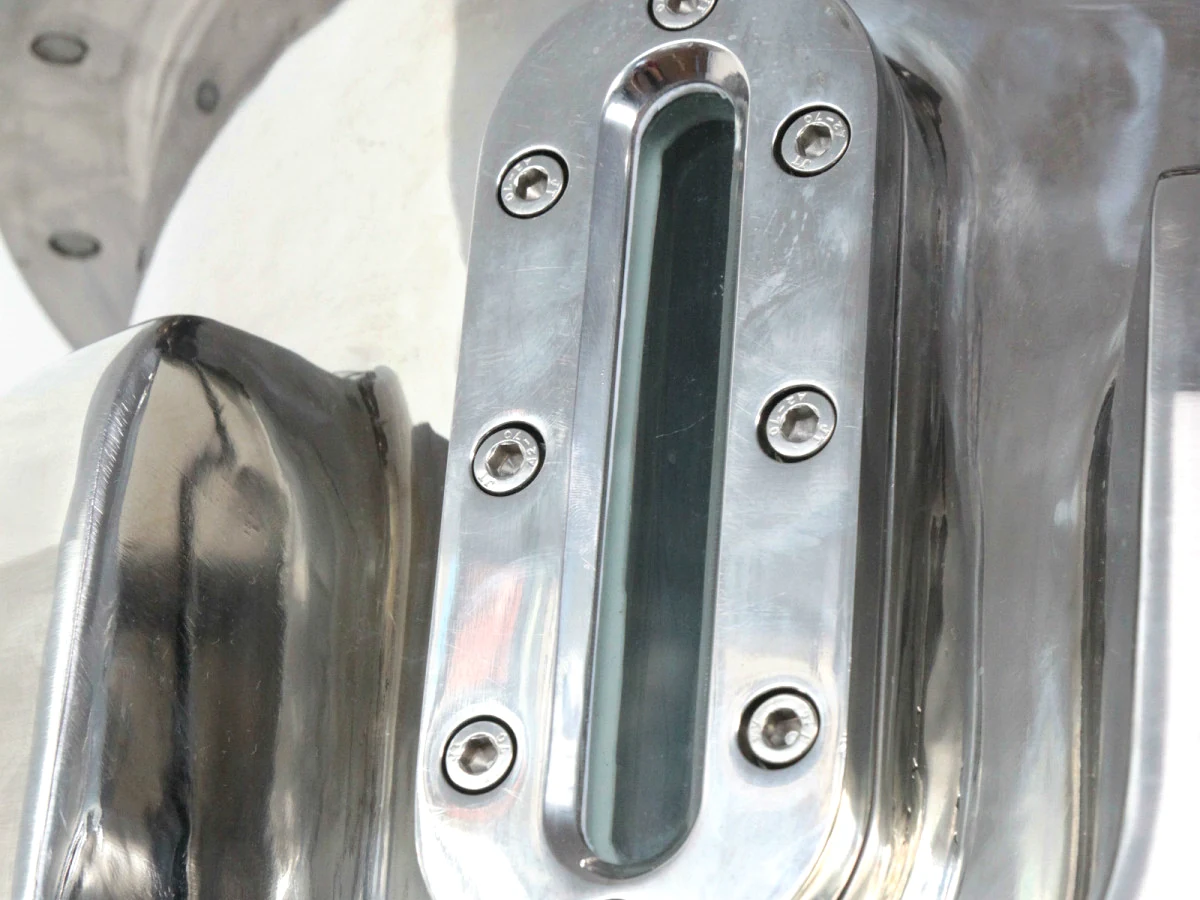

Sight Glass
Visual observation of liquid level and internal process conditions.

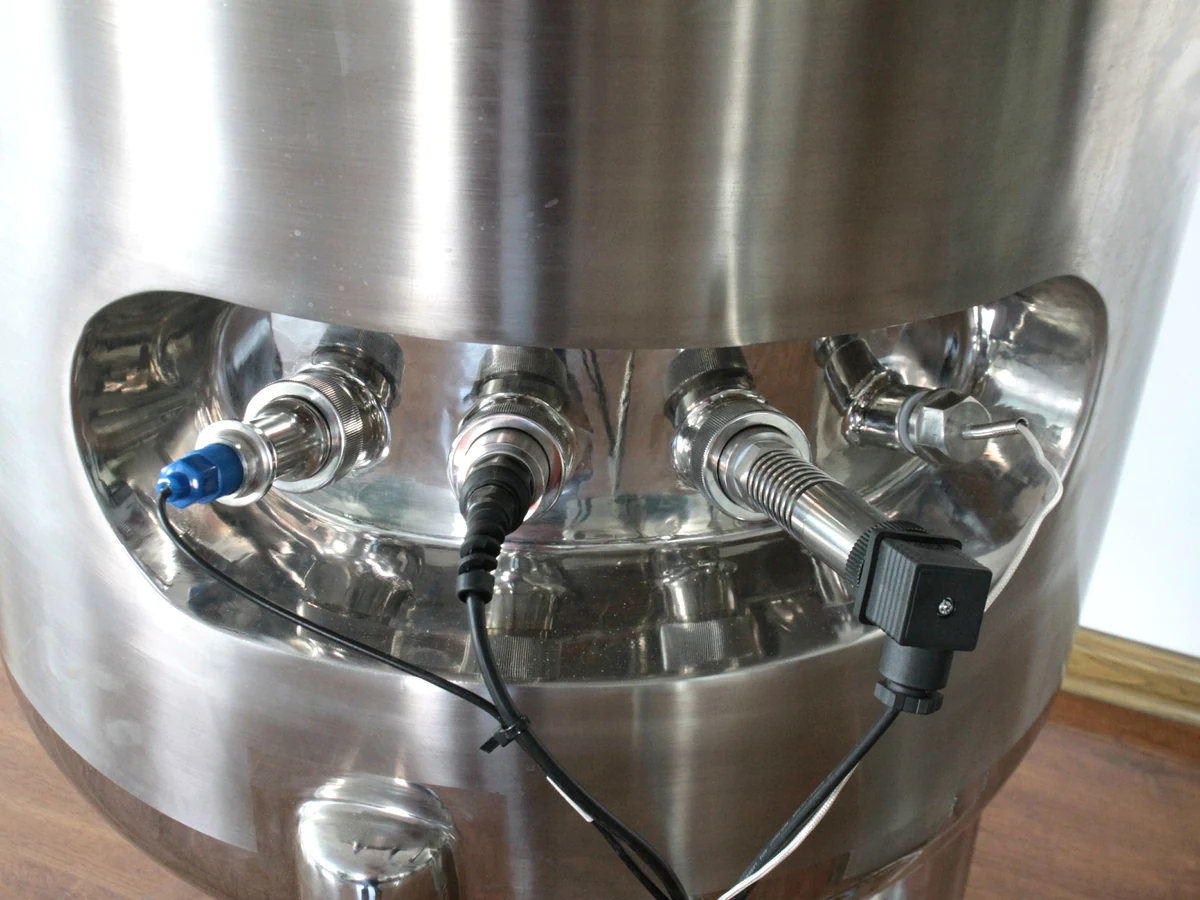

Process Monitoring Interfaces
Interfaces for temperature, pH, pressure and liquid level monitoring.

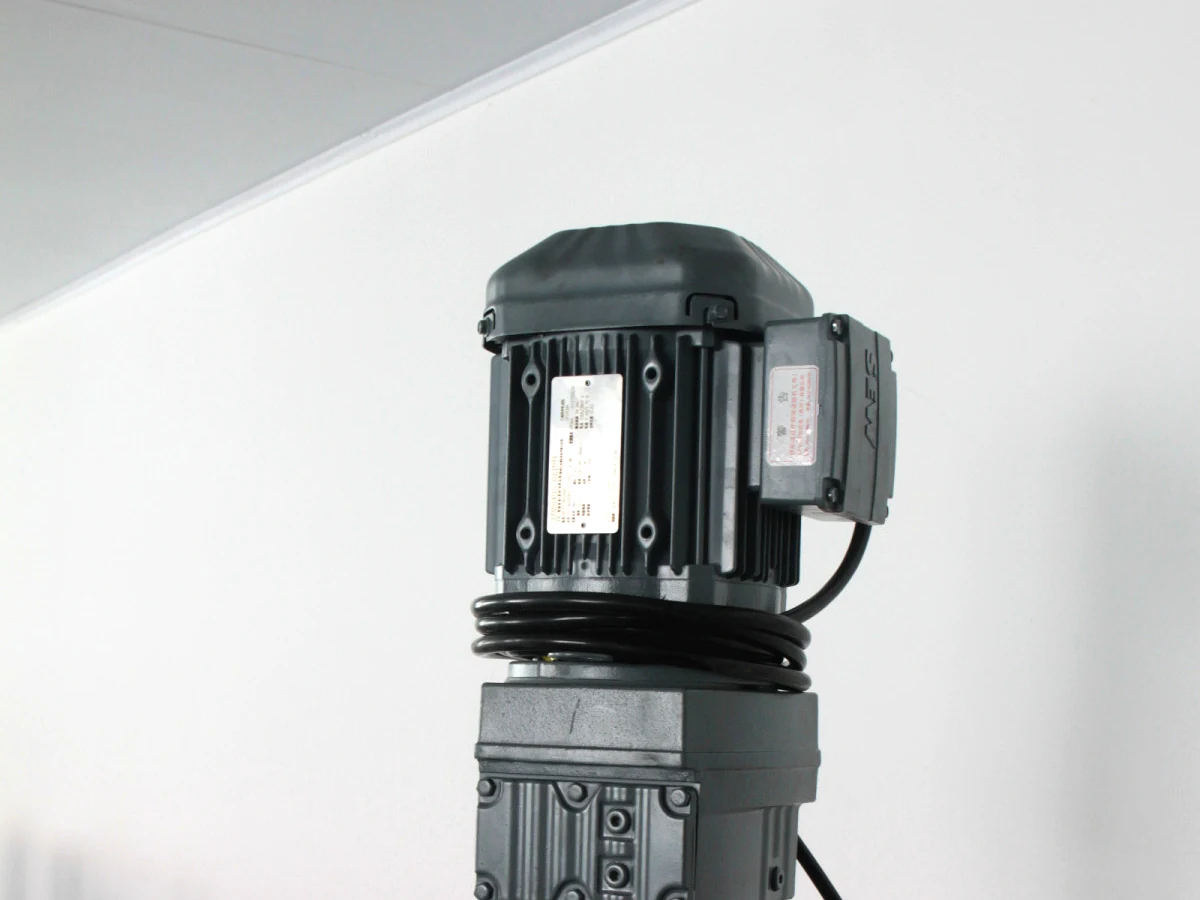

Agitation Drive System
Top-mounted drive configuration for mechanical agitation.

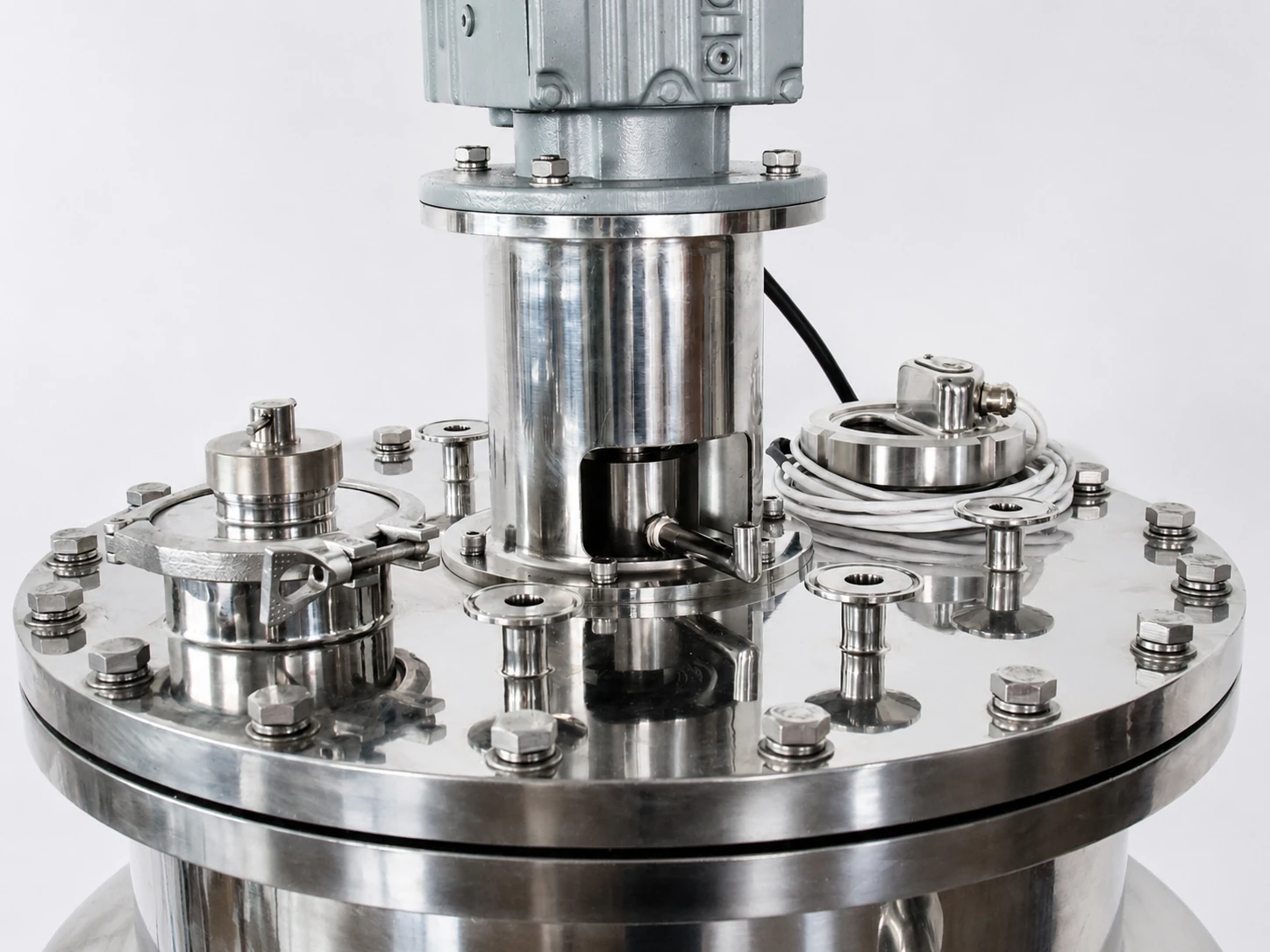

Process Connection Ports
Sanitary ports for product inlet, air breather, CIP and instrumentation connections.

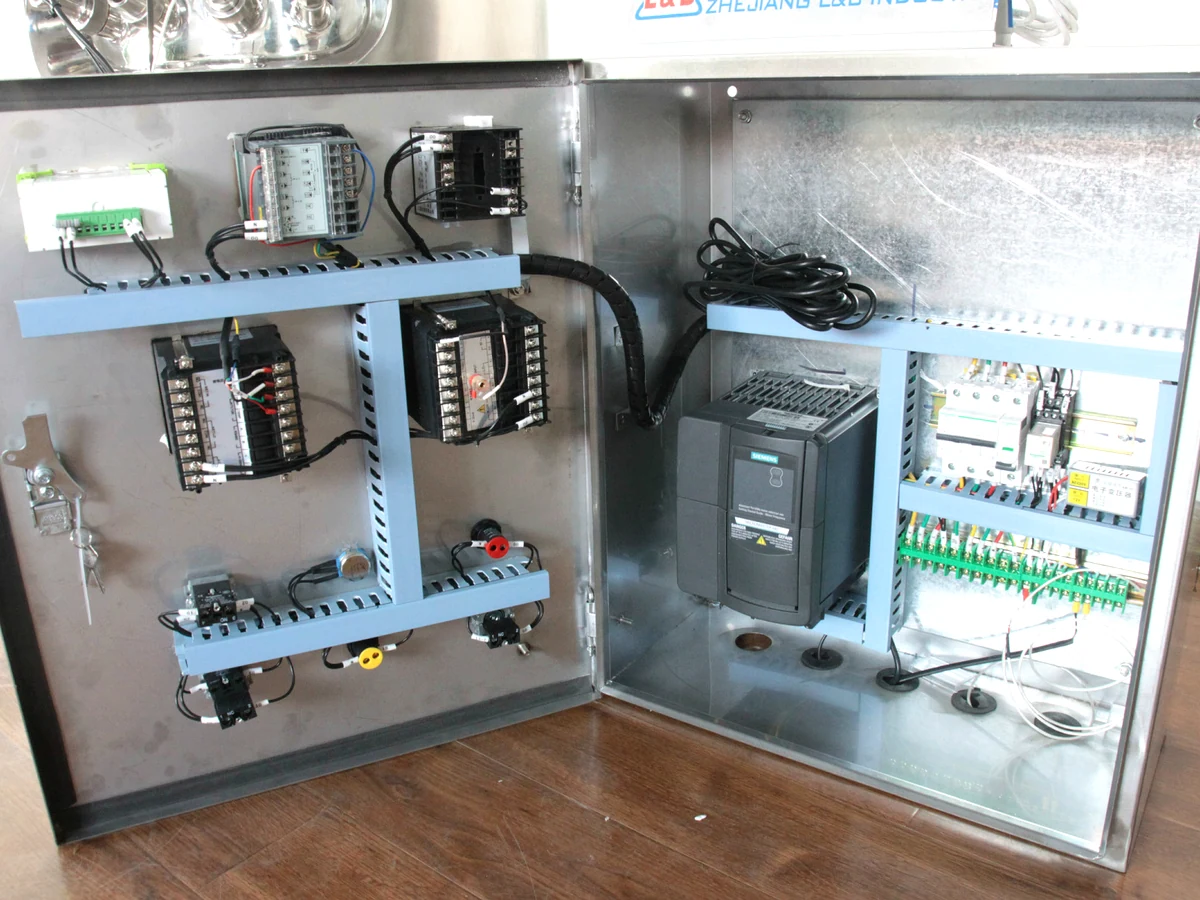

Instrument Control System
Instrument-based control configuration for process monitoring and operation.

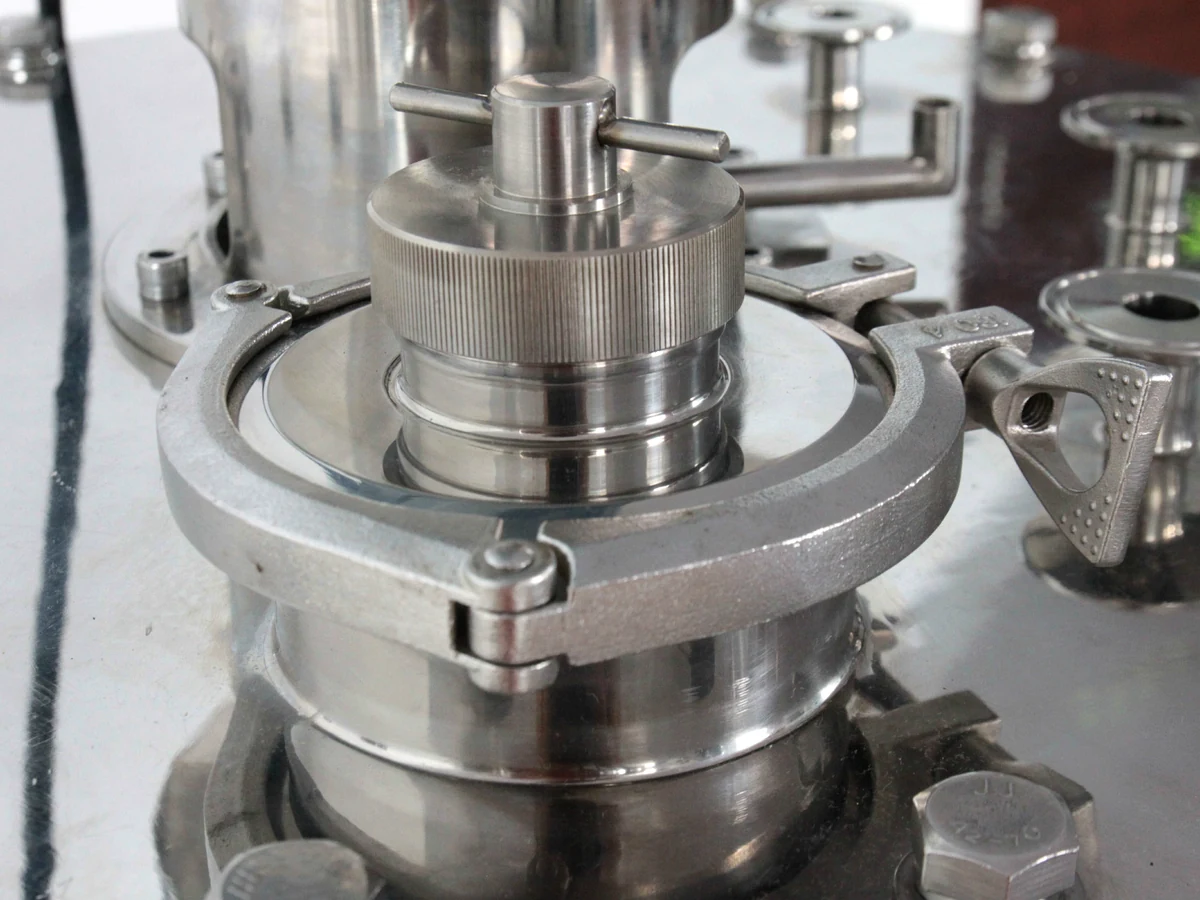

Quick-Opening Manway
Quick-opening sanitary manway for inspection, cleaning and maintenance.
Need a Fermentation Tank for Your Process?
Tell us your required capacity, process medium, fermentation requirements, agitation, aeration, temperature control and installation conditions. Our team will help you select a suitable fermentation tank configuration.
