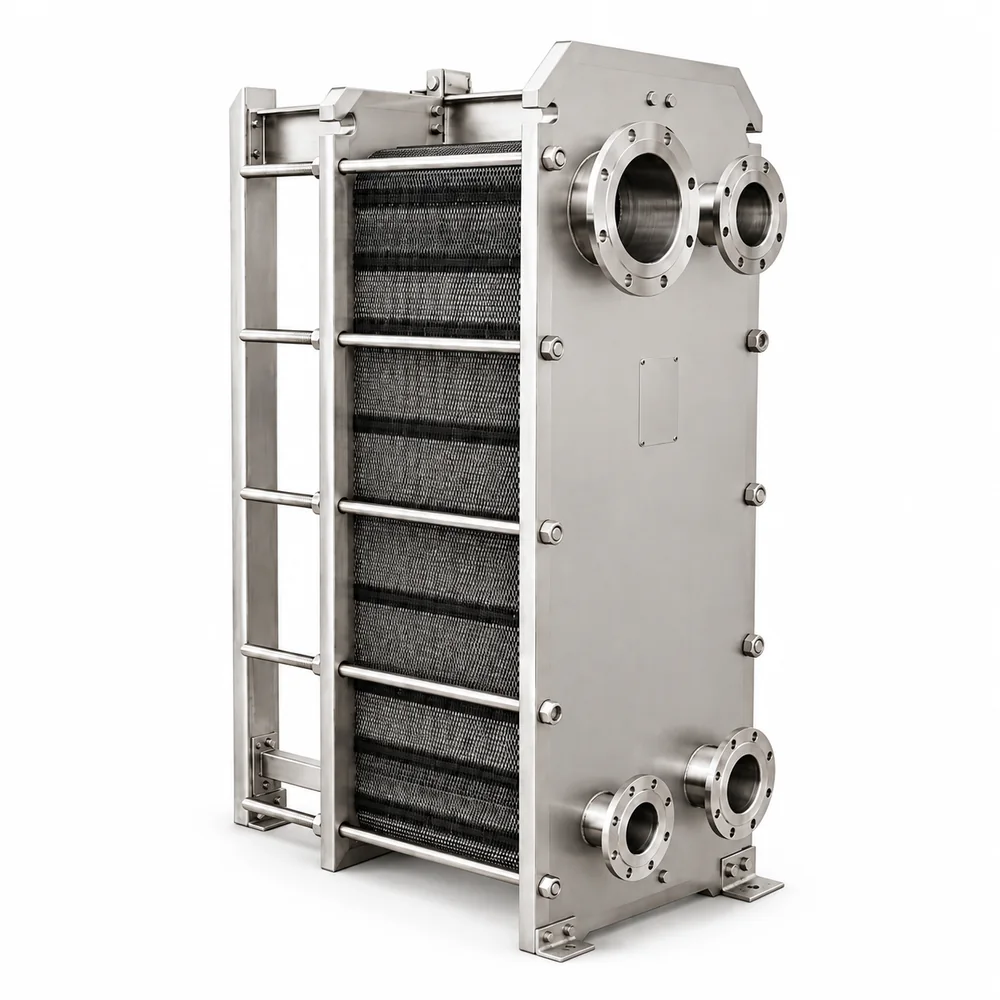

Gasketed Plate Heat Exchanger
A gasketed plate heat exchanger designed for efficient heating, cooling and heat recovery in liquid processing systems. Its removable plate pack provides high heat transfer efficiency, flexible capacity adjustment and convenient cleaning and maintenance.
Configuration Overview
Configure the plate material, connection size and flow arrangement to match your heat transfer requirements and operating conditions.
DN40–DN250
Connection Size
0.12–0.85 m²
Effective Plate Area
SUS304 / SUS316L
Plate Material
Single / Multi-Pass
Flow Arrangement
Available Configurations

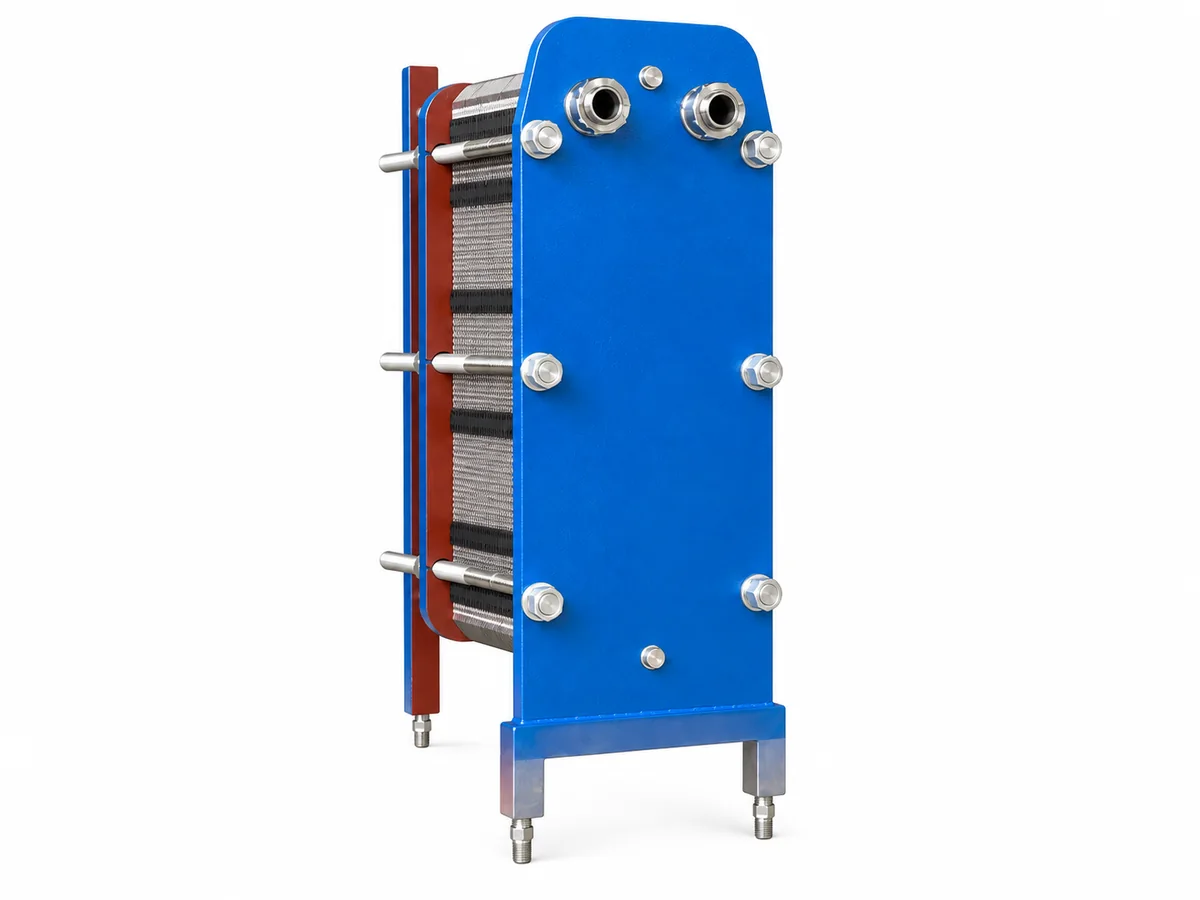

Coated Frame
Coated frame for standard industrial heat-transfer applications.

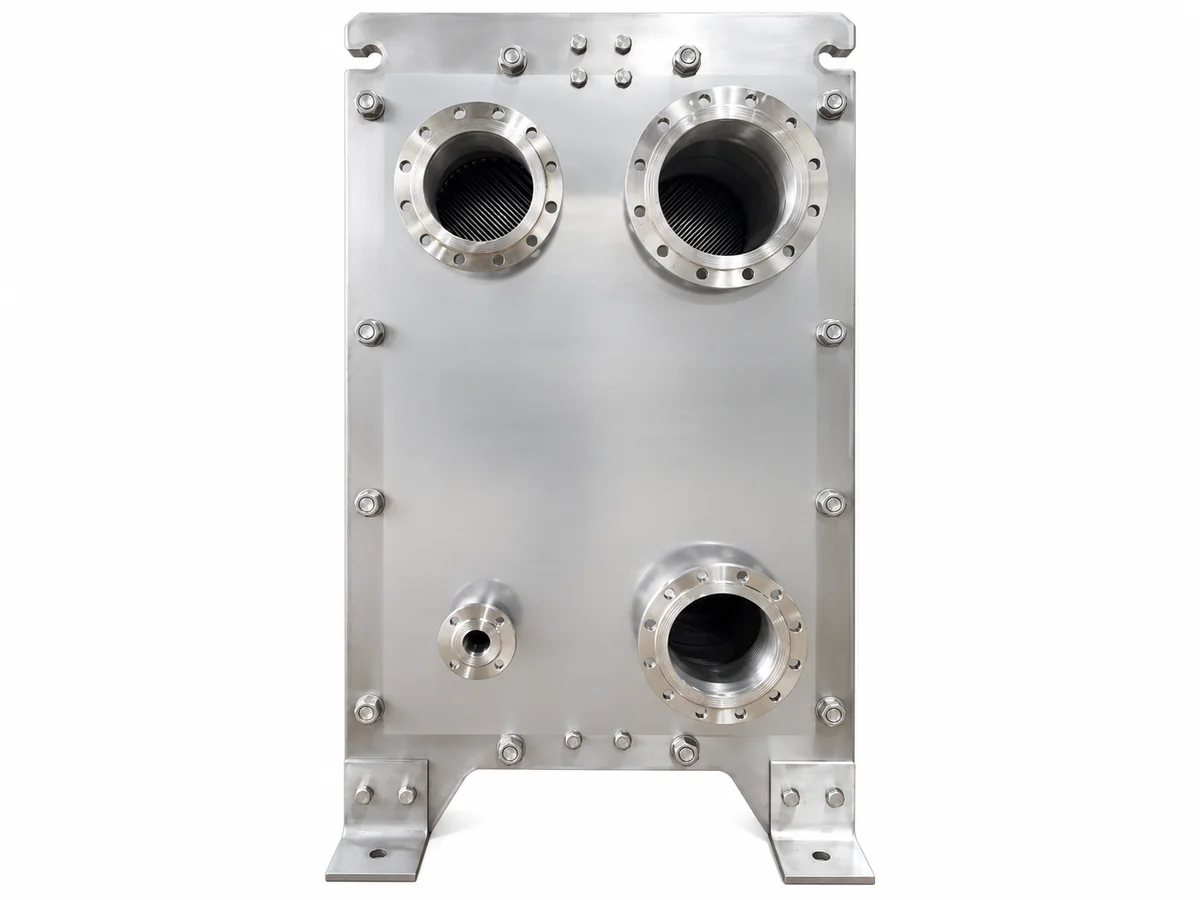

Flanged Connection
Flanged connection for industrial process piping systems.

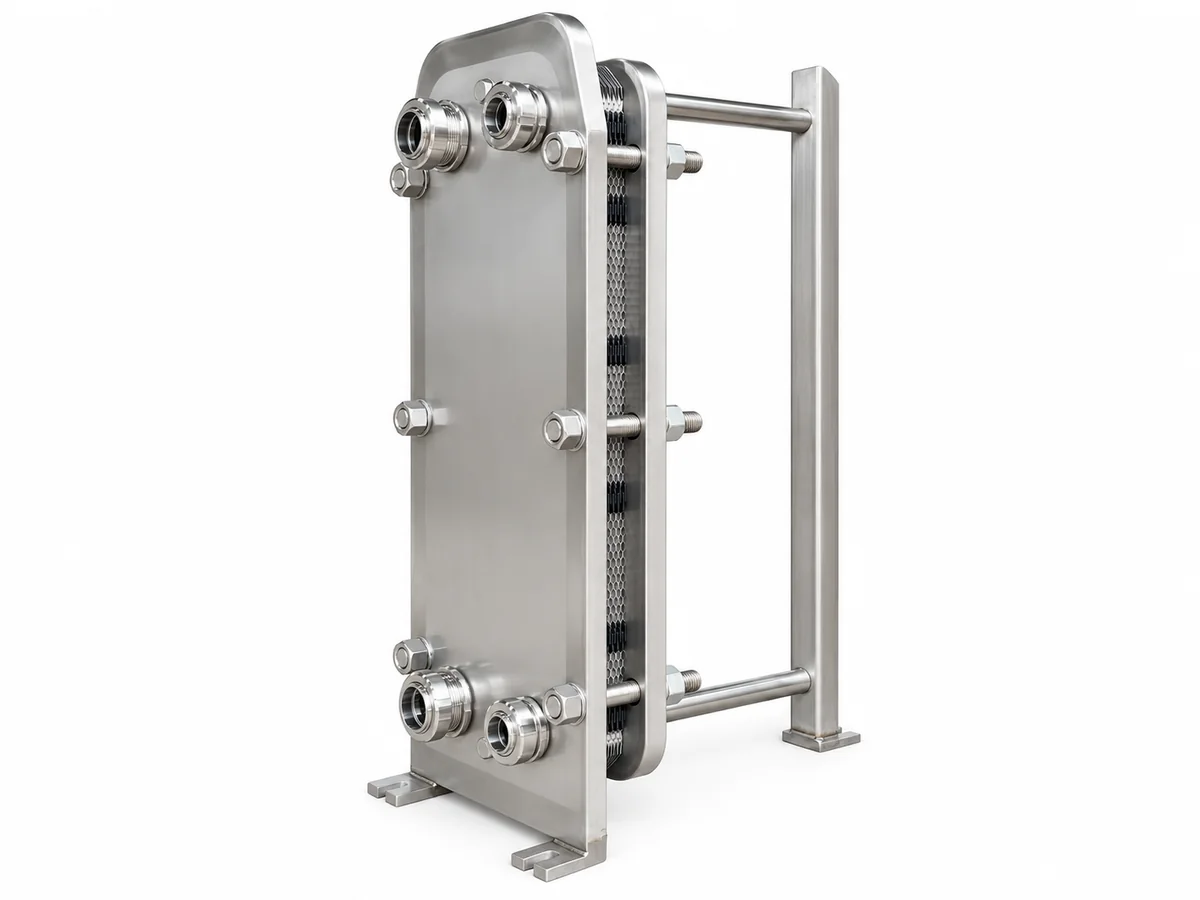

Sanitary Clamp Connection
Sanitary clamp connection for hygienic process applications.

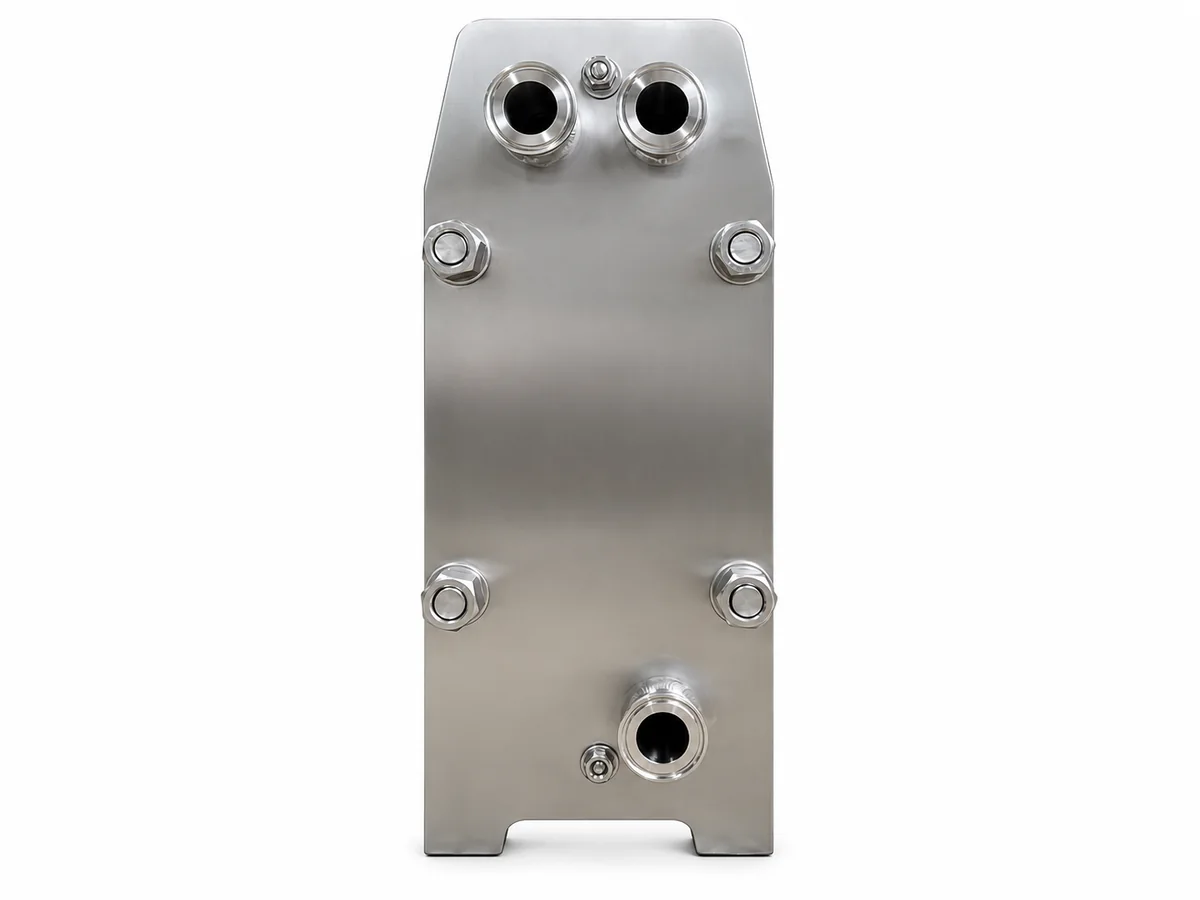

Stainless Steel Frame
Stainless steel frame for hygienic process applications.

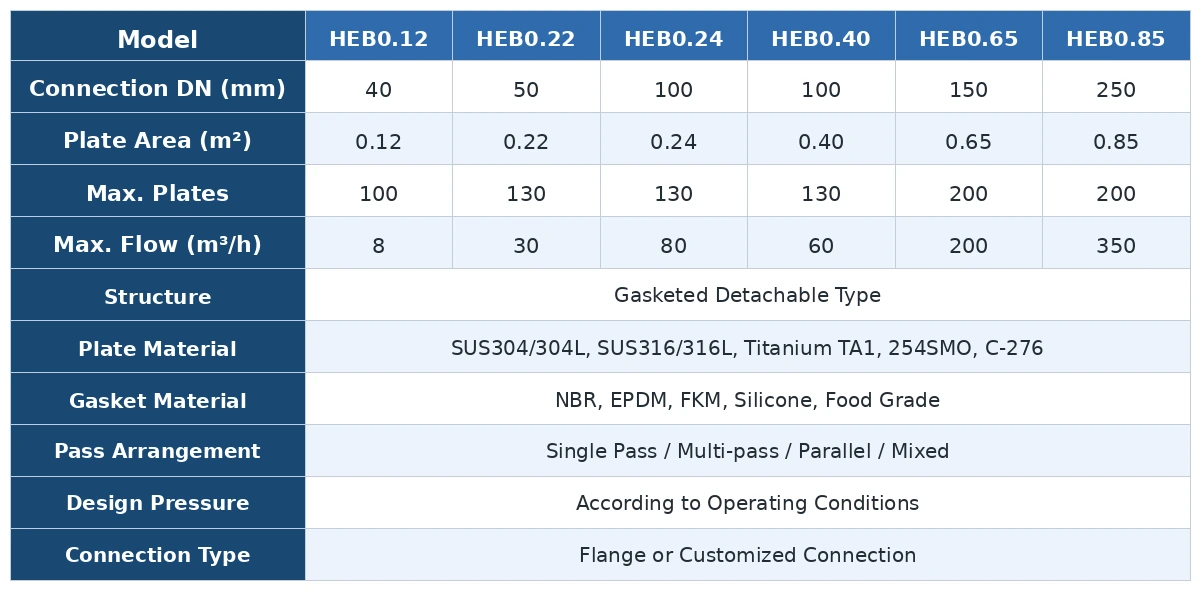

Technical Specifications
Specifications can be customized according to heat-transfer duty, flow rate, media and installation requirements.
| Model | HEB0.12 | HEB0.22 | HEB0.24 | HEB0.40 | HEB0.65 | HEB0.85 |
|---|---|---|---|---|---|---|
| Connection DN (mm) | 40 | 50 | 100 | 100 | 150 | 250 |
| Effective Plate Area (m²) | 0.12 | 0.22 | 0.24 | 0.40 | 0.65 | 0.85 |
| Max. Plates | 100 | 130 | 130 | 130 | 200 | 200 |
| Max. Flow (m³/h) | 8 | 30 | 80 | 60 | 200 | 350 |
| Structure | Detachable Gasketed Type | |||||
| Plate Material | SUS304/304L, SUS316/316L, Titanium TA1, 254SMO, C-276 | |||||
| Gasket Material | NBR, EPDM, FKM, Silicone, Food Grade | |||||
| Pass Arrangement | Single Pass / Multi-Pass / Parallel / Mixed | |||||
| Design Pressure | According to Operating Conditions | |||||
| Connection Type | Flanged or Customized Connection | |||||
Typical Applications
Suitable for efficient heating, cooling and heat recovery across a wide range of process industries.
Food & Beverage
Efficient heating and cooling for food, beverage and sanitary process applications.
Pharmaceutical
Reliable heat transfer for temperature-controlled pharmaceutical processes.
Chemical Processing
Heating, cooling and heat recovery for a wide range of process fluids.
Water & Utilities
Efficient heat exchange for water treatment, utility and cooling systems.
Optional Configurations
Configurations can be tailored to suit different media, heat-transfer duties, piping layouts and operating requirements.

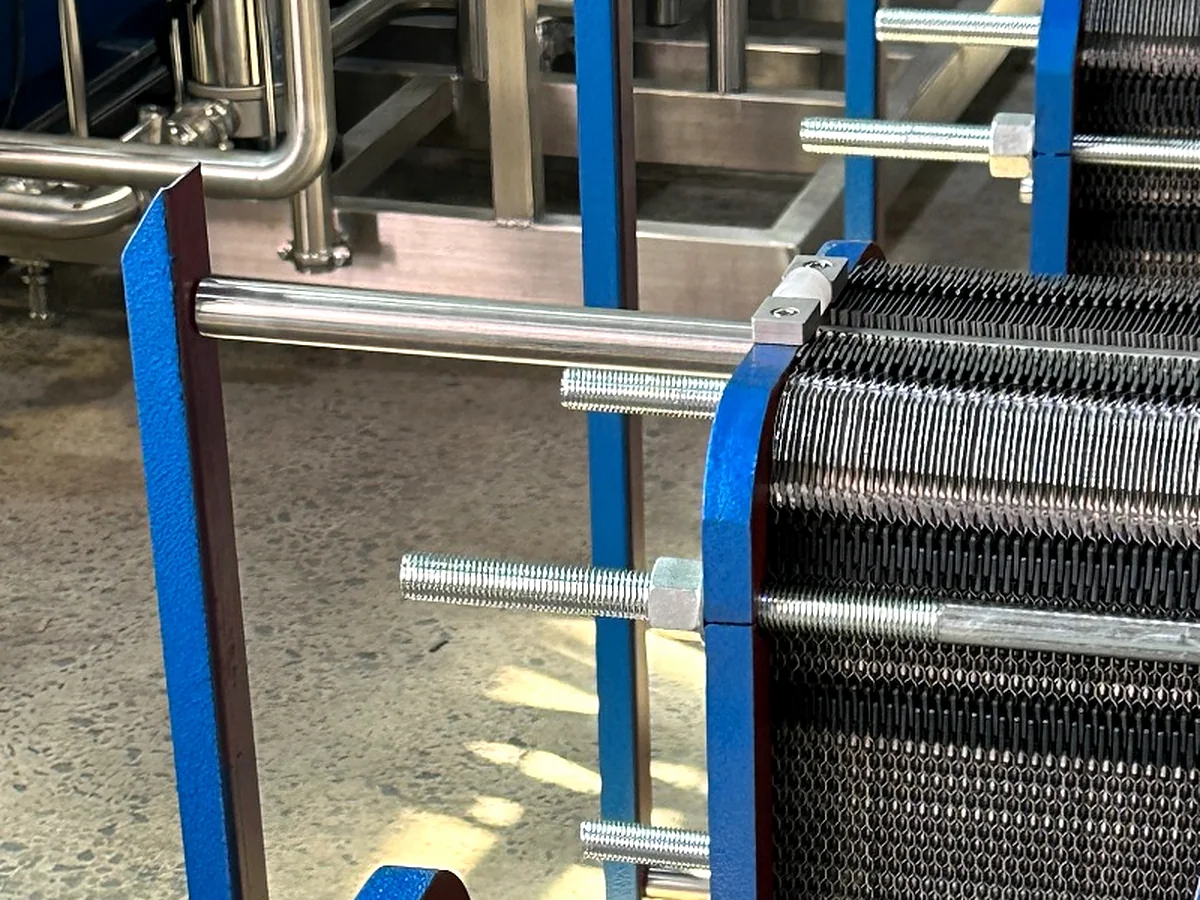

Plate Pack Options
Plate configurations can be selected for different heat-transfer duties and process conditions.

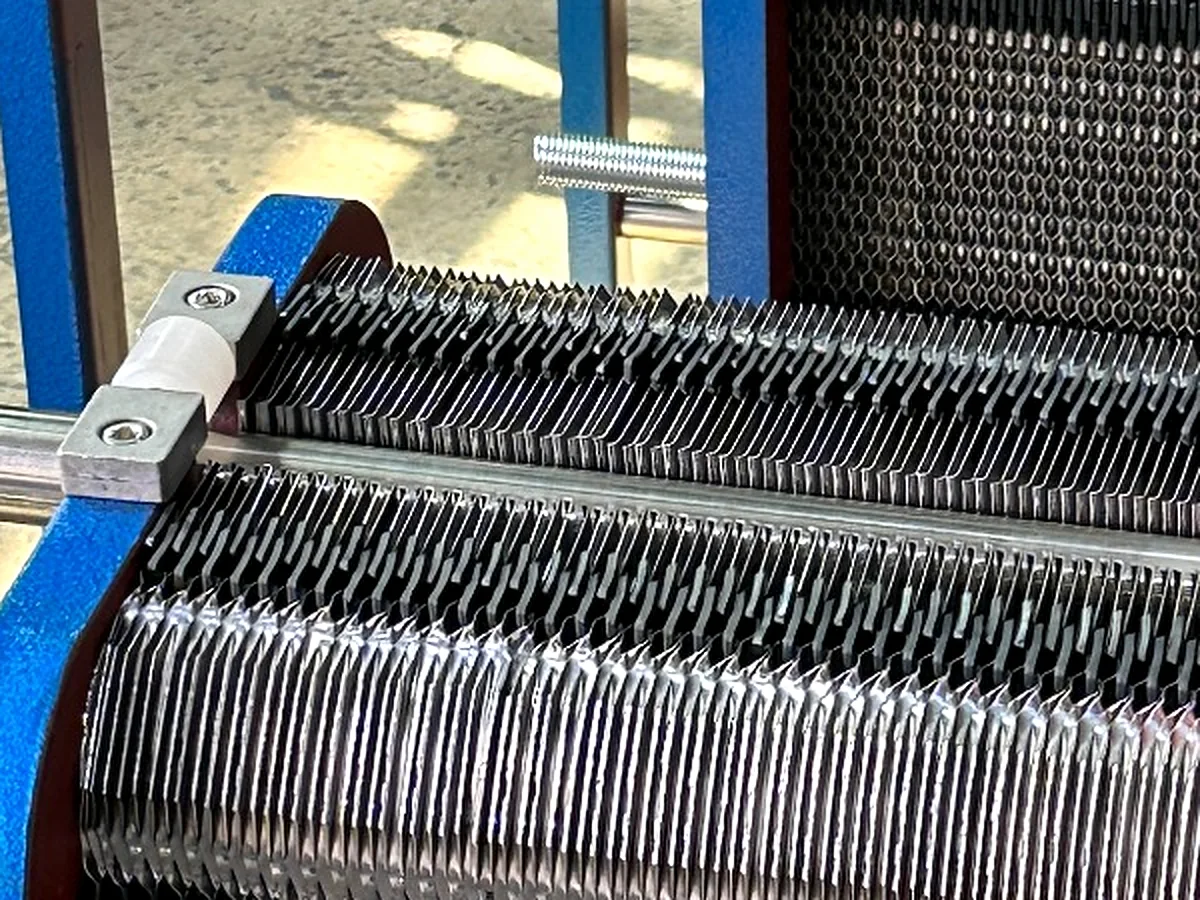

Gasket Options
Gasket options can be selected to match process media and operating conditions.

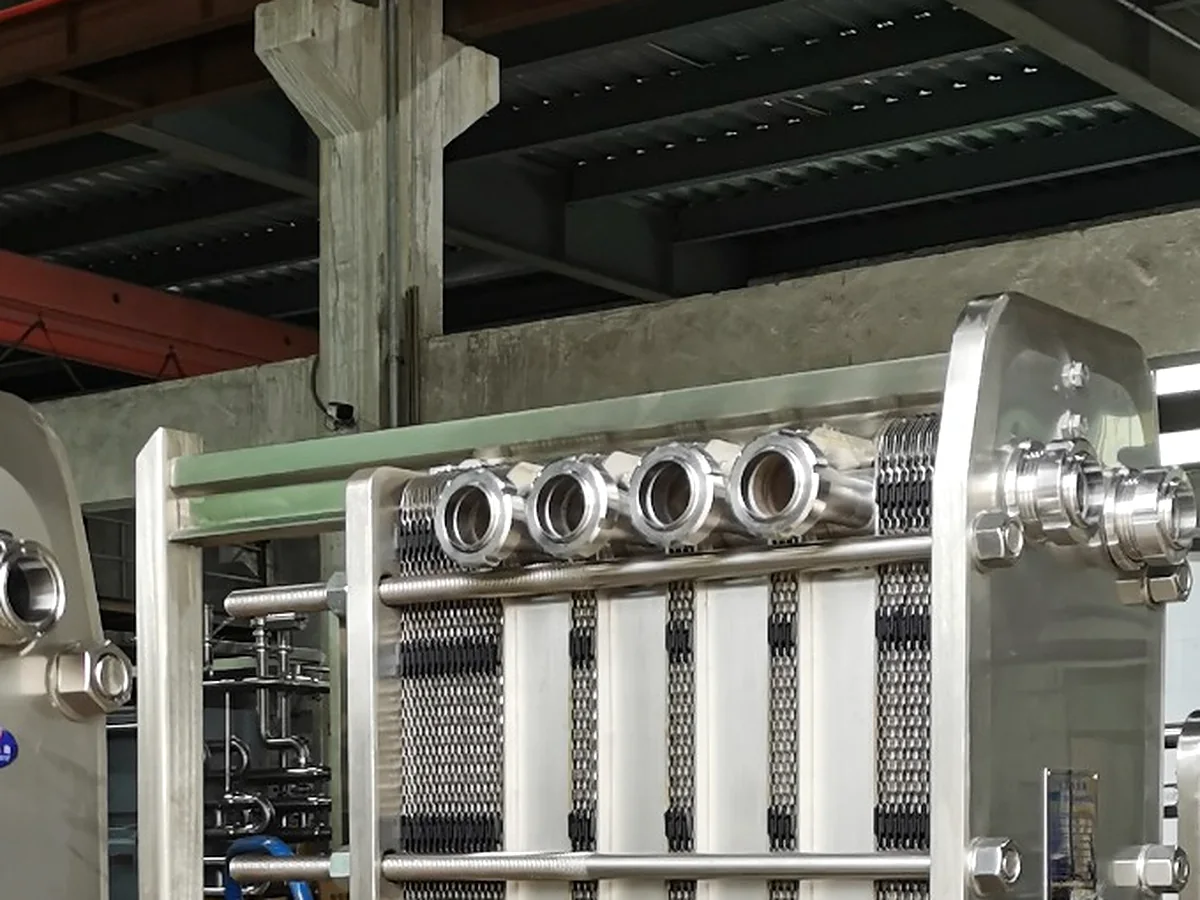

Flow Arrangement
Flow arrangements can be configured to suit different heat-transfer requirements.

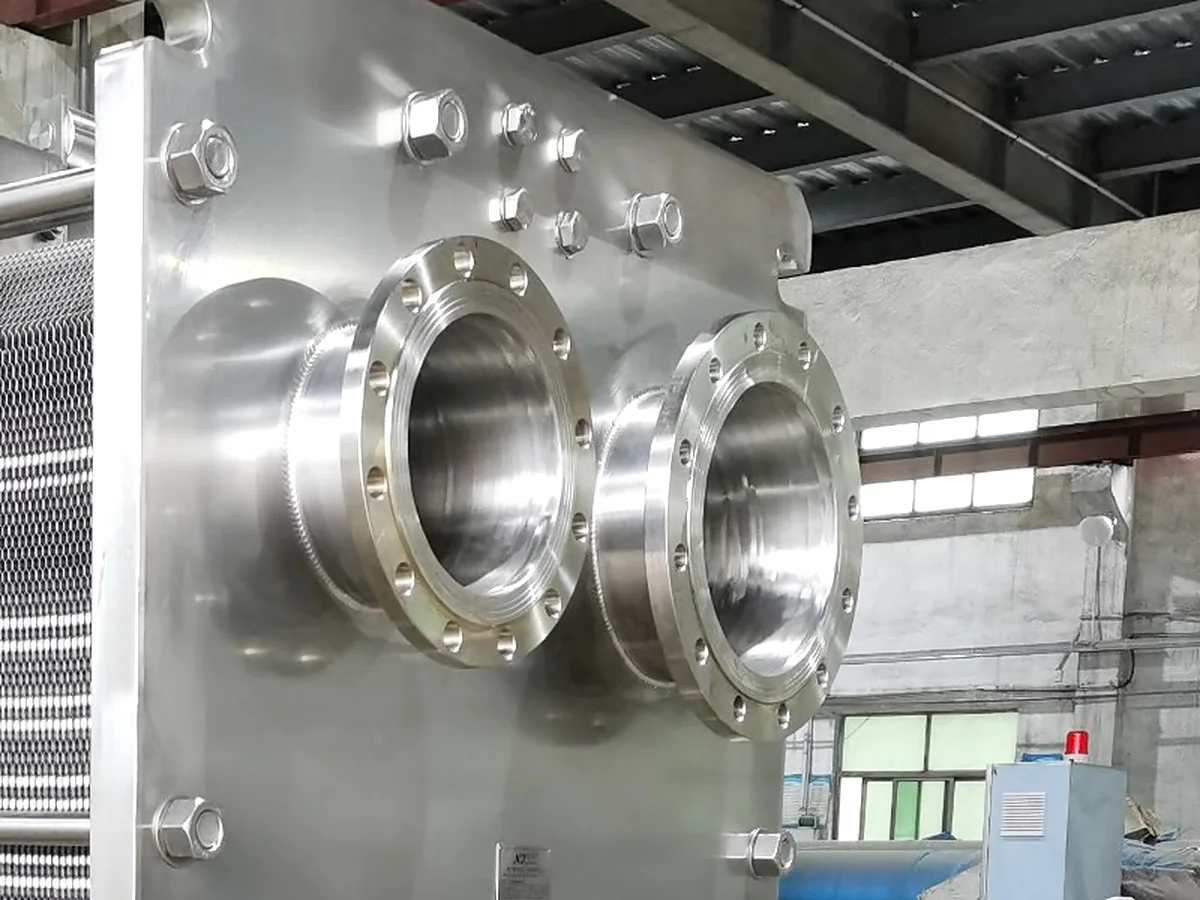

Connection Options
Connection types can be selected to match piping layouts and installation requirements.
Need a Gasketed Plate Heat Exchanger for Your Process?
Tell us your media, flow rate, inlet and outlet temperatures, and operating conditions. Our team will help you select a suitable gasketed plate heat exchanger configuration.
Request a Quote
