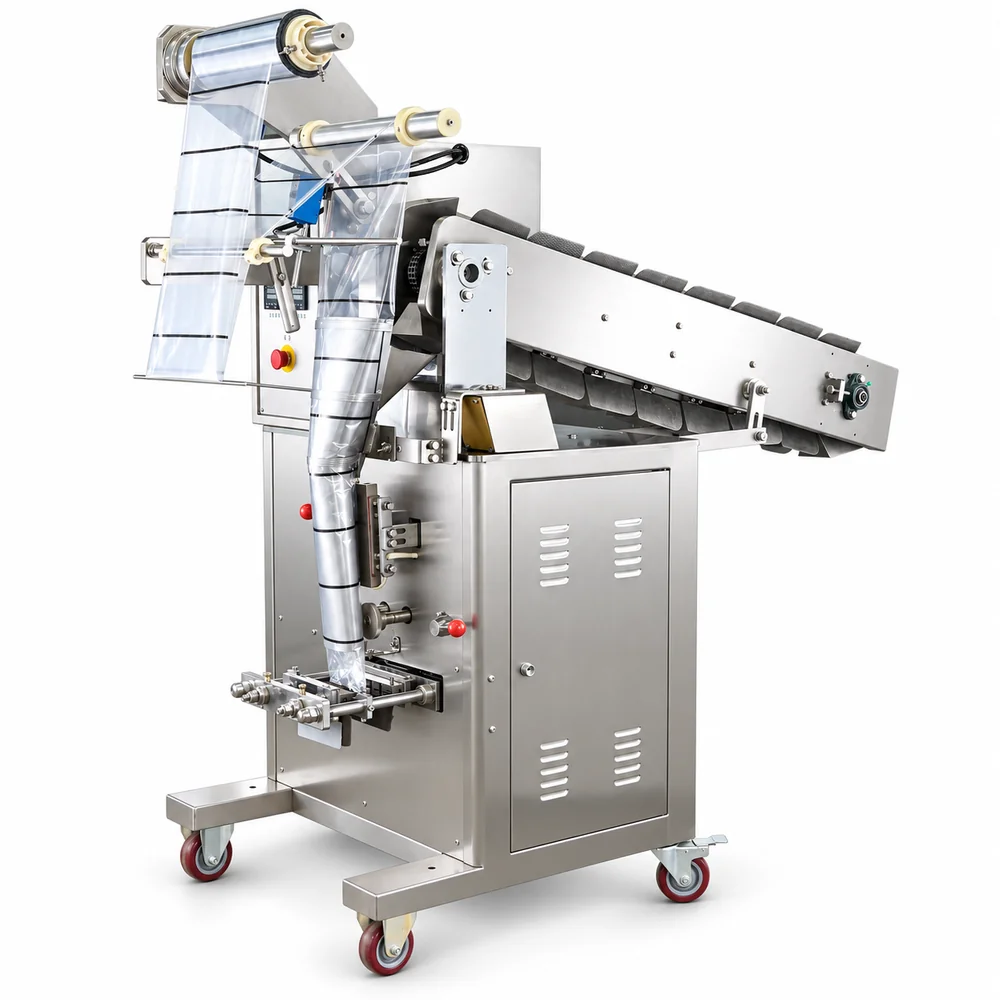

Granule Packaging Machine
Automatic packaging for free-flowing granules such as rice, sugar, and seeds, with configurations selected according to product and packaging requirements.
Configuration Overview
Packaging options are selected based on granule characteristics, target pack weight, and bag requirements.
Roll-Film Packaging
Film forming and sealing
Pre-Made Pouches
Eight-station pouch system
Cup Dosing
Volumetric cup dosing
Bag Formats
Back / 3-Side / 4-Side
Available Configurations

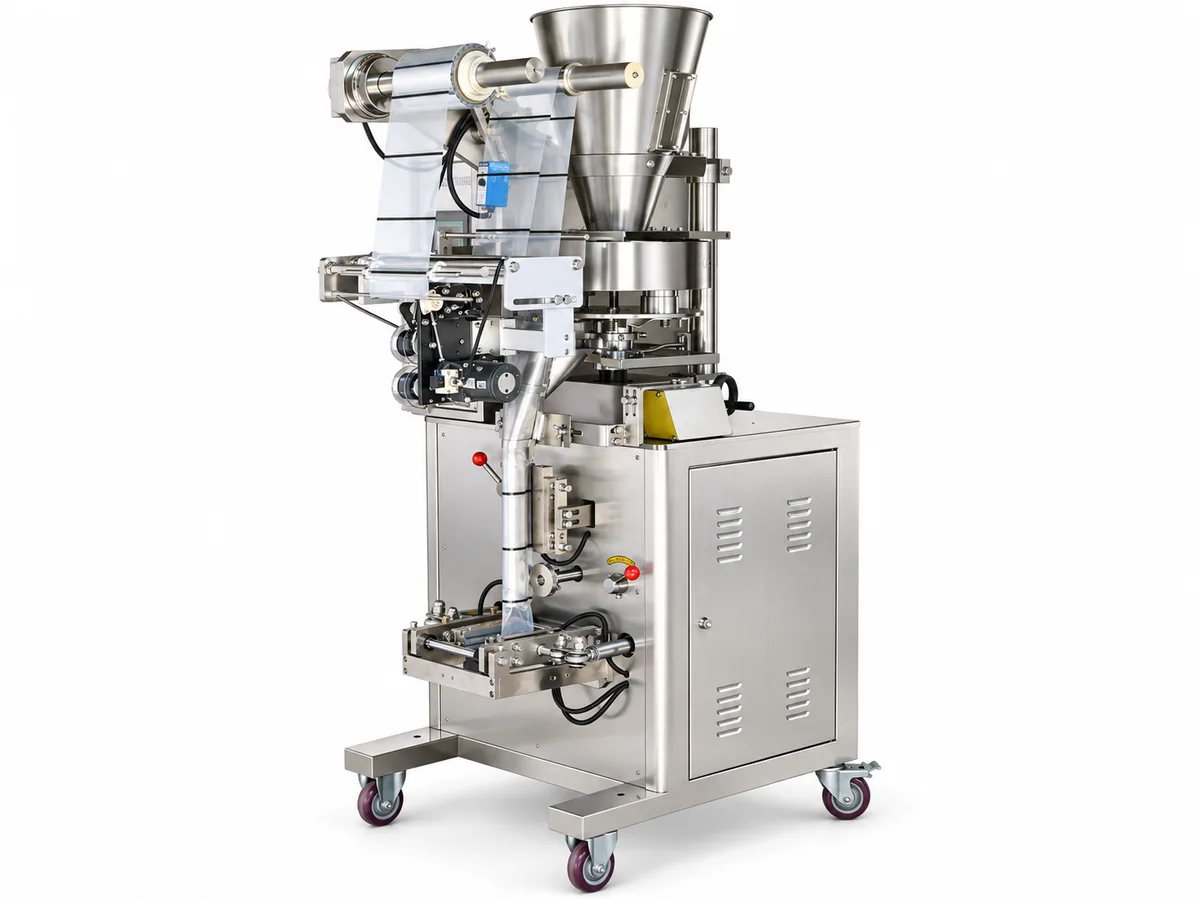

Mechanical Granule Packing Machine
Mechanical configuration for reliable and continuous granule packaging.

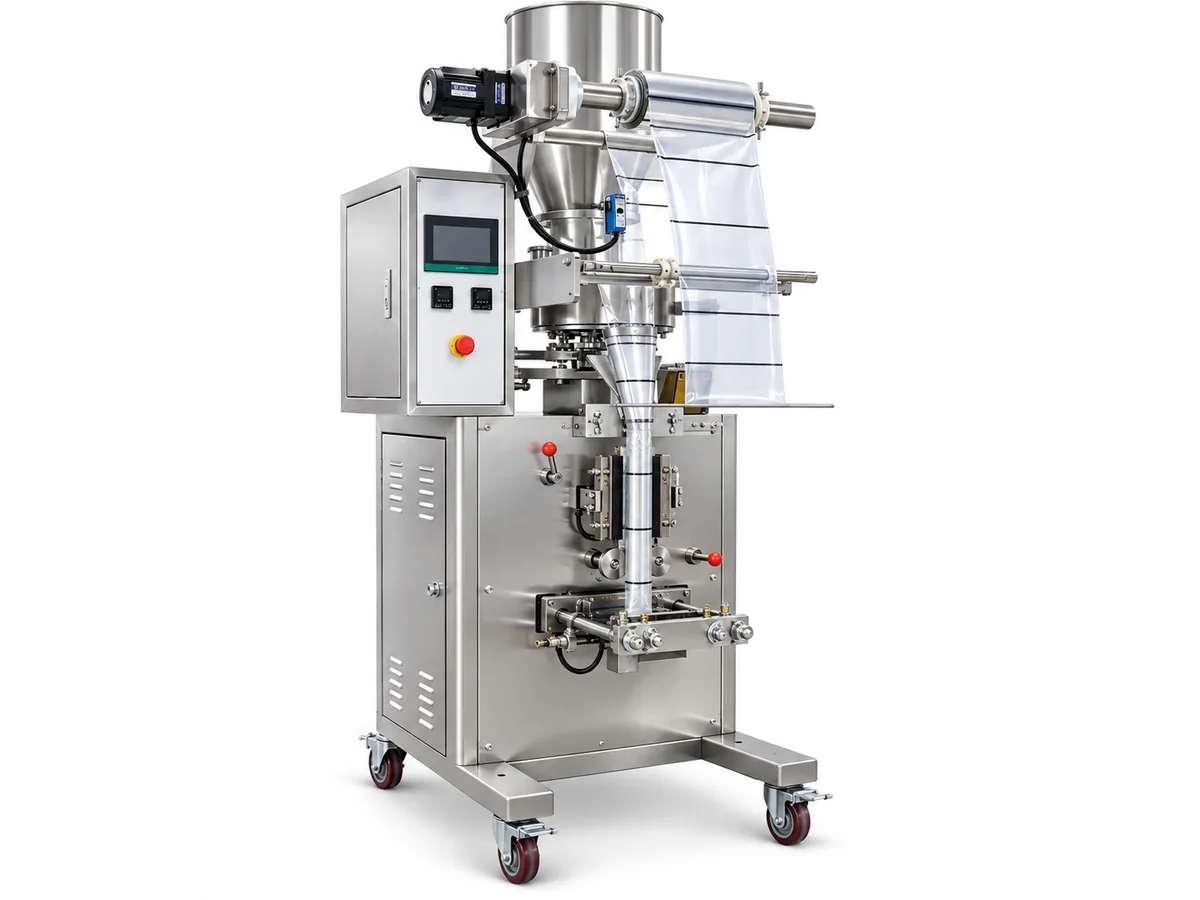

Pneumatic Granule Packing Machine
Pneumatic configuration for stable granule filling and bag sealing.

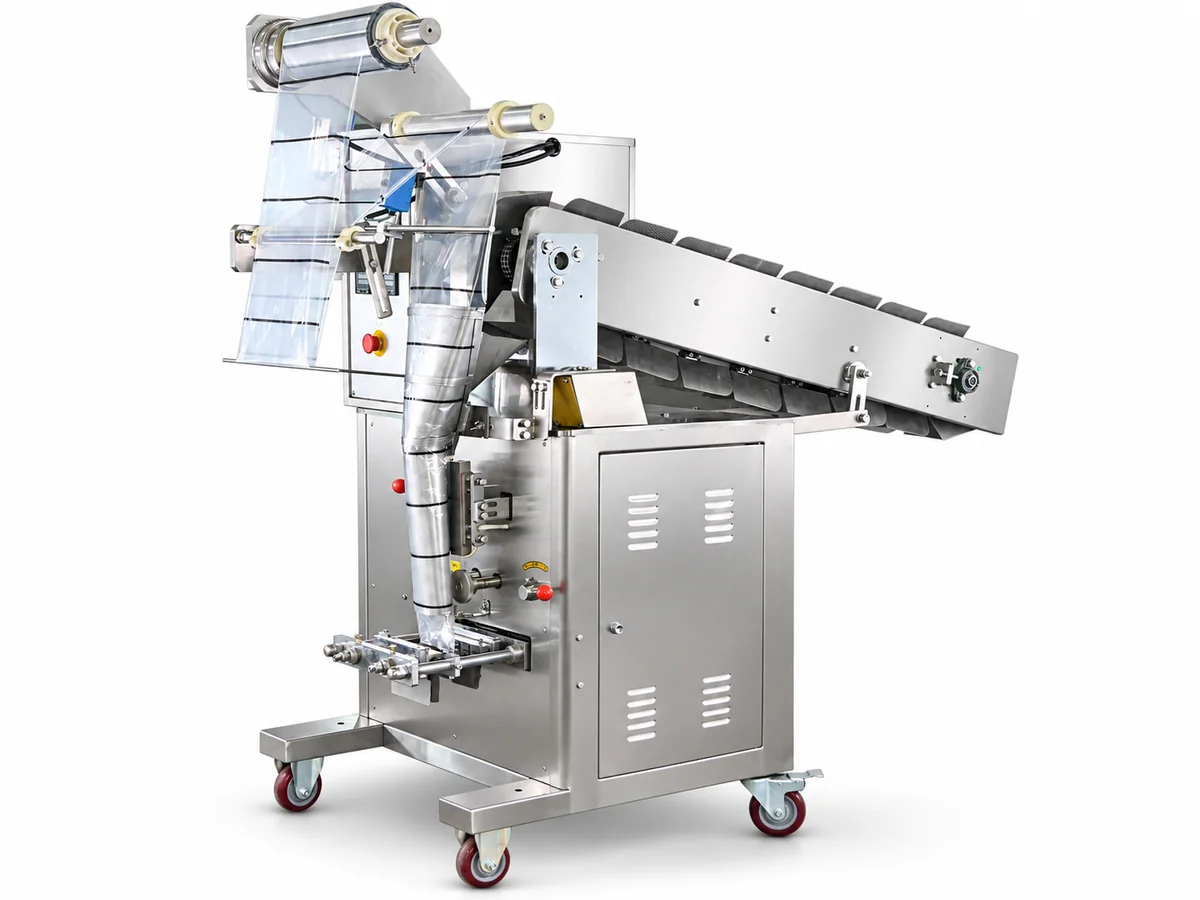

Bucket-Feed Granule Packing Machine
Bucket-feed design for controlled feeding of free-flowing granular materials.

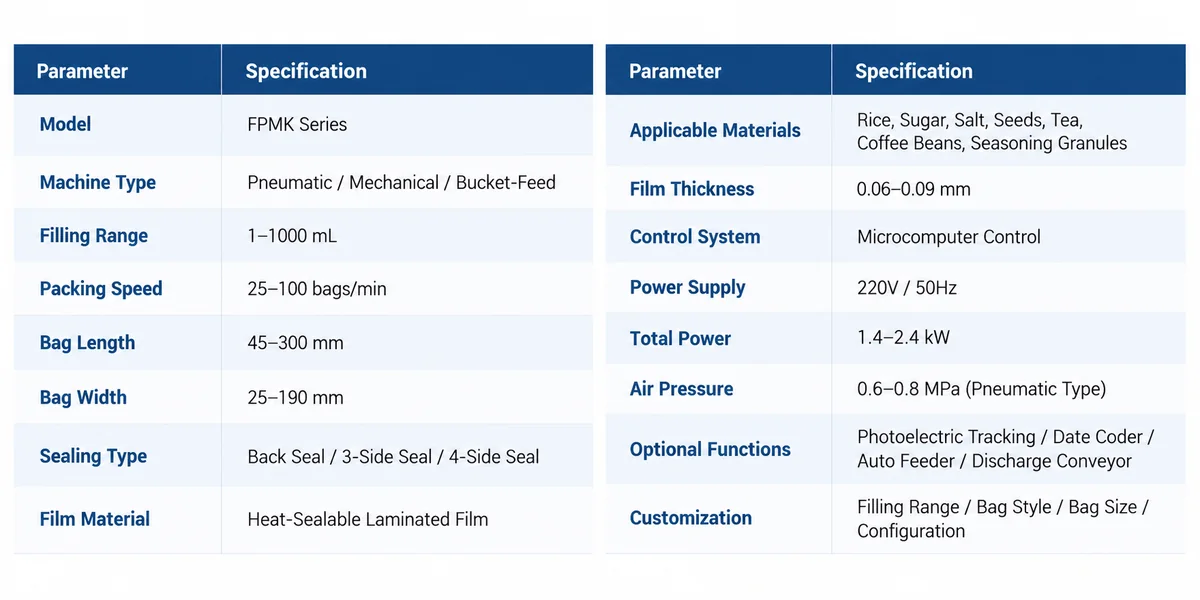

Technical Specifications
Reference specifications for selected granule packaging models. Final configuration depends on the product and packaging requirements.
Roll-Film Packaging Models
| Model | Filling Range | Speed (bags/min) |
Bag L × W (mm) |
Power / Voltage | Air Supply | Weight |
|---|---|---|---|---|---|---|
| H100DK1C | 1–100 mL | 25–100 | 45–170 × 25–120 | 1.8 kW / 220 V | 0.8 MPa / 200 L/min | 235 kg |
| H100DK2C | 1–100 mL | 25–100 | 45–170 × 25–130 | 1.8 kW / 220 V | 0.8 MPa / 200 L/min | 235 kg |
| H100DK3C | 1–100 mL | 25–100 | 45–170 × 25–130 | 1.8 kW / 220 V | 0.8 MPa / 200 L/min | 235 kg |
| HXL-K100 | 5–100 mL | 40–70 | 160 × 120 | 2.4 kW / 220 V | Not specified | 400 kg |
| HXL-K300 | 100–1000 mL | 30–70 | 300 × 190 | 2.4 kW / 220 V | Not specified | 580 kg |
| SJIII-K100 | 5–100 mL | 40–70 | 150 × 120 | 1.4 kW / 220 V | 0.8 MPa / 100 L/min | 300 kg |
| SJIII-K300 | To Be Confirmed | 30–70 | 300 × 190 | 1.6 kW / 220 V | 0.8 MPa / 150 L/min | 480 kg |
Pre-Made Pouch Packaging Model
| Parameter | HL8-250 |
|---|---|
| Machine Type | Eight-Station Pre-Made Pouch Machine |
| Filling Range | 100–500 g |
| Packaging Speed | 20–40 bags/min |
| Bag Width | 70–250 mm |
| Bag Length | 70–350 mm |
| Dosing Method | Volumetric Measuring Cups |
| Control System | PLC + HMI Touchscreen |
| Total Power | 3.2 kW / 380 V |
| Machine Weight | 1500 kg |
| Bag Options | Stand-Up, Zipper, 3-Side and 4-Side Pouches |
Reference specifications based on supplier documentation. Actual performance and configuration are subject to confirmation.
Typical Applications
Suitable for packing rice, sugar, salt, seeds, tea, coffee beans and other free-flowing granules.
Rice & Grains
Packing rice, grains and other free-flowing granular foods.
Sugar & Salt
Suitable for measured packing of sugar, salt and similar granules.
Seeds & Seasonings
For seeds, seasonings and other dry granules.
Tea & Coffee Beans
Suitable for tea, coffee beans and related granular products.
Optional Configurations
Optional accessories can be selected according to packaging, feeding and production requirements.
Volumetric Cup Doser
Adjustable cup sets for different filling ranges.

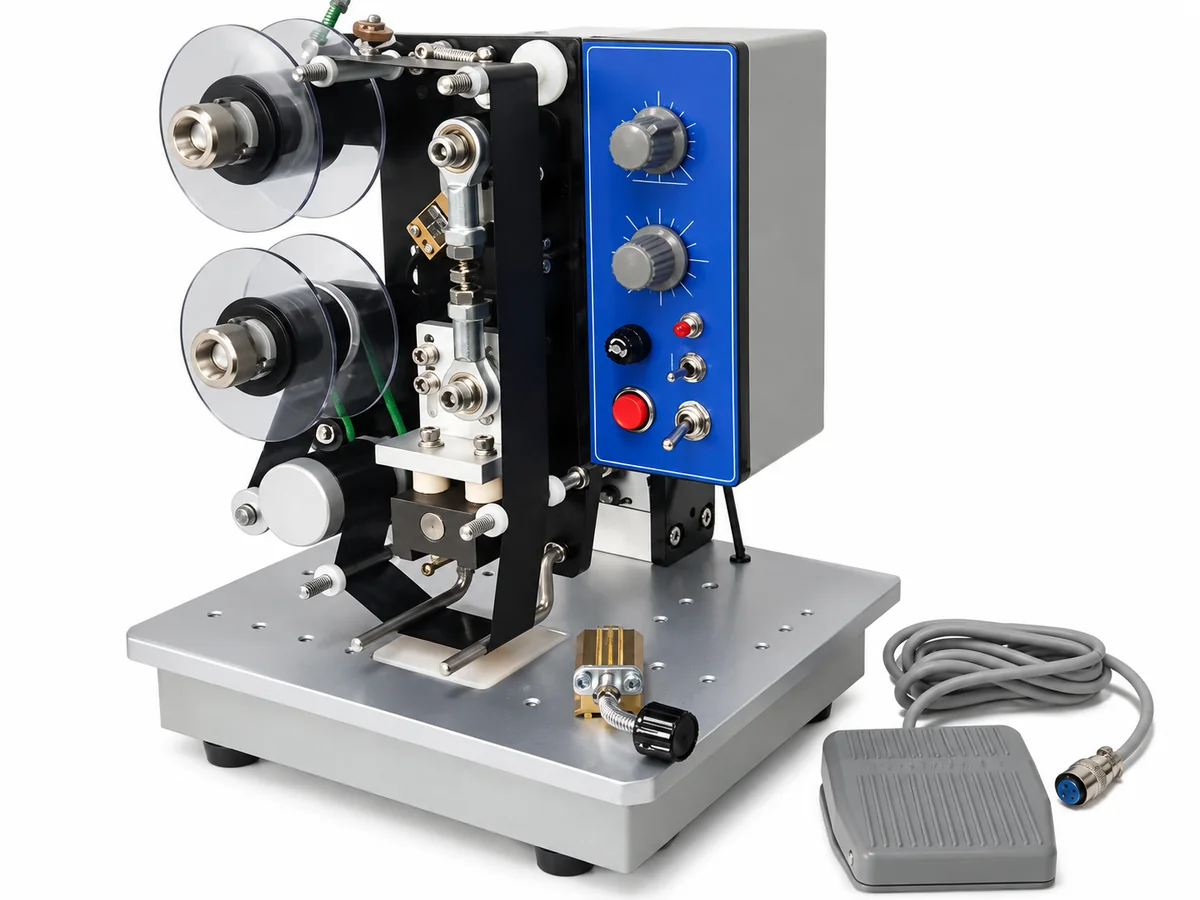

Date Coding Unit
Prints dates and batch numbers on the package.

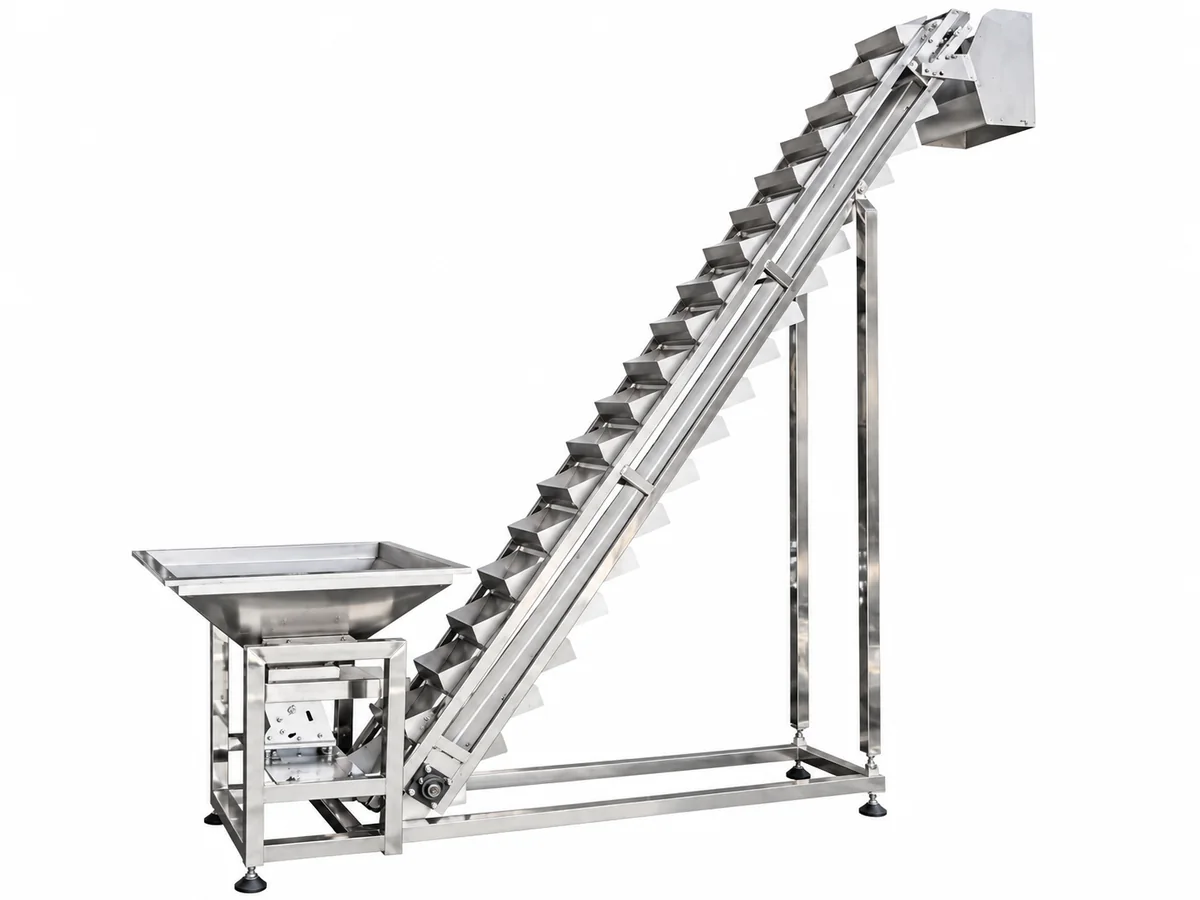

Bucket Elevator Feeder
Feeds granules into the machine automatically.

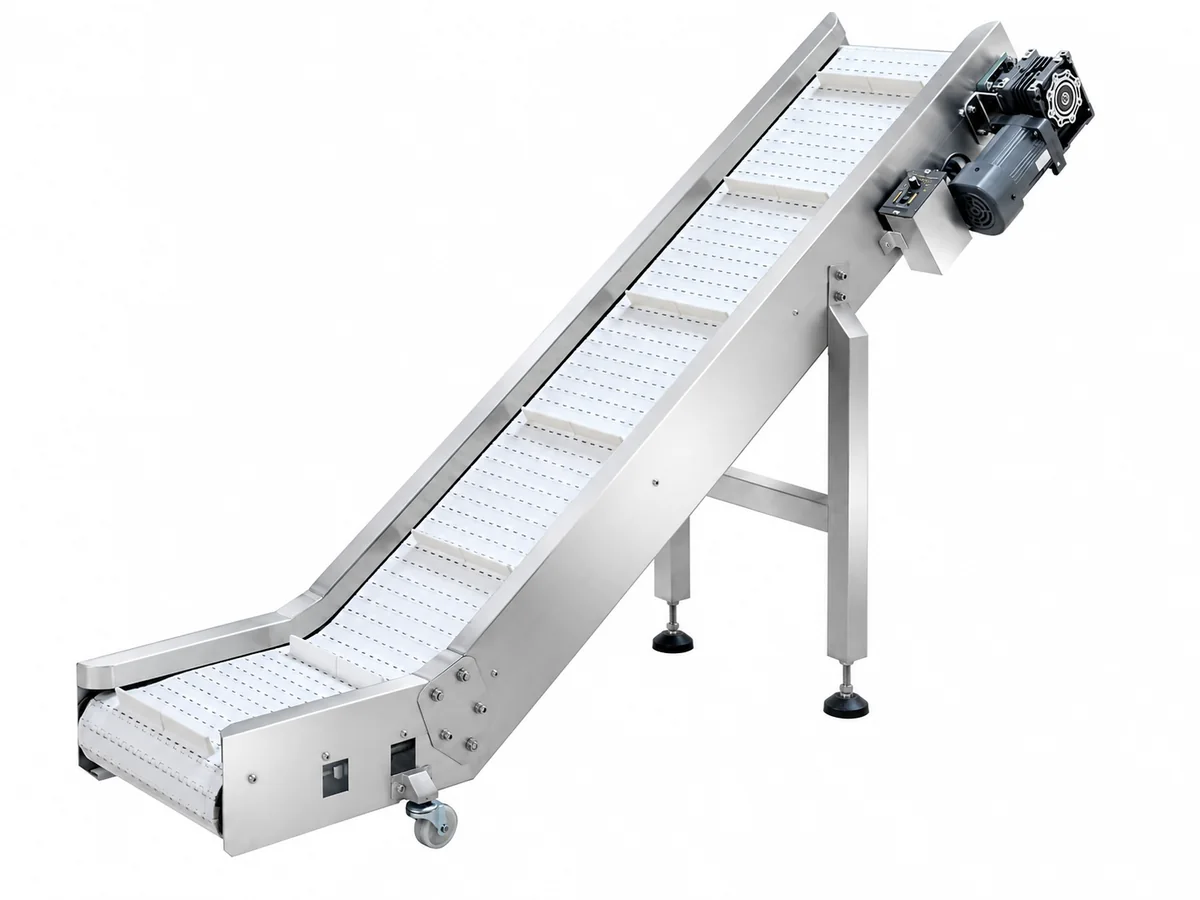

Bag Discharge Conveyor
Transfers packed bags for collection or downstream handling.
