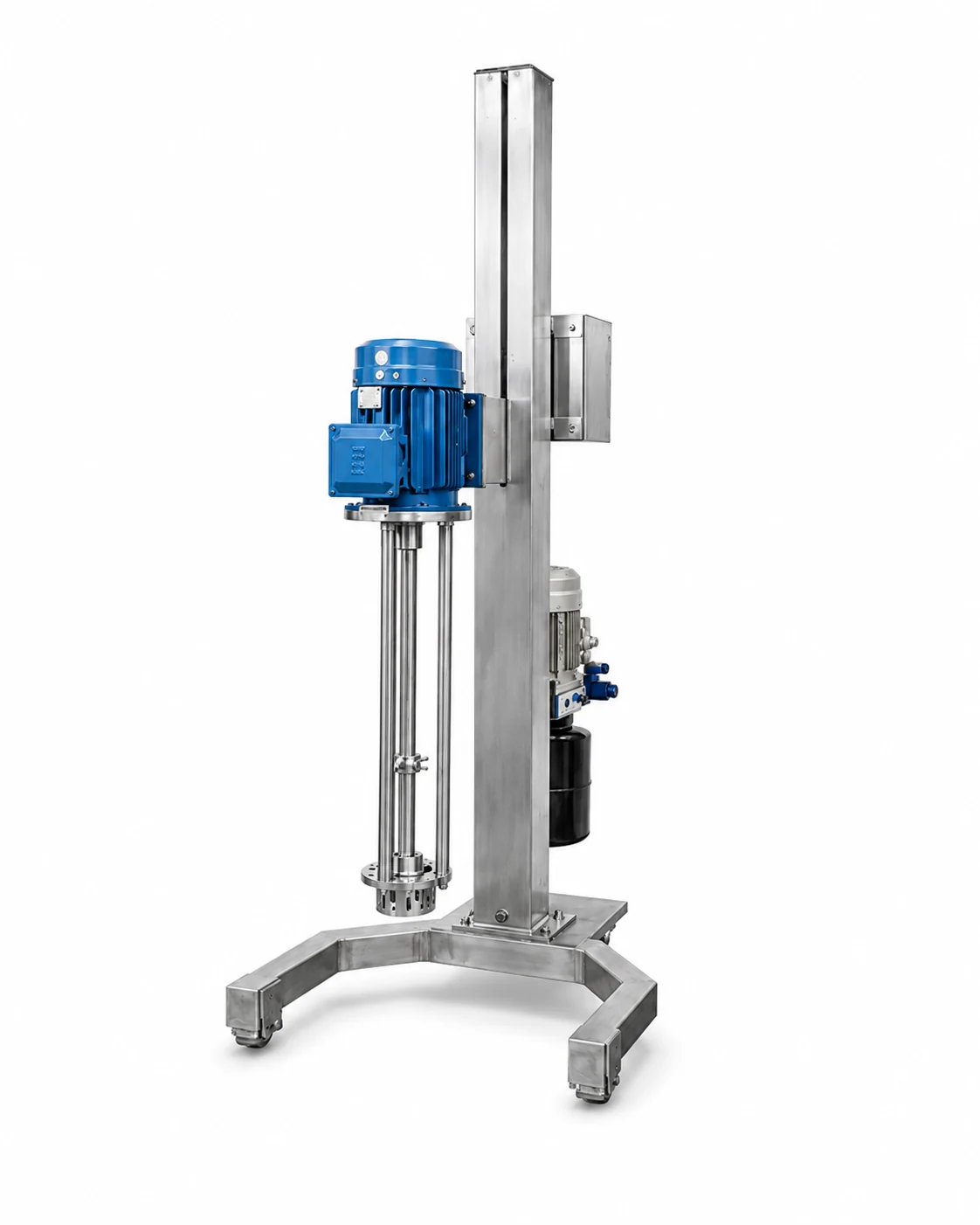

High-Shear Homogeneous Emulsifier
High-shear emulsifying equipment designed for efficient mixing, dispersing, homogenizing and emulsifying of liquid and semi-liquid materials. Multiple installation and processing configurations are available for different production requirements.
Configuration Overview
Flexible models and installation options for different processing capacities and production requirements.
5–10,000 L/h
Processing Capacity
1.1–75 kW
Motor Power
1400 / 2800 rpm
Speed
Installation Options
Tank-Mounted · Stand-Alone
Available Configurations

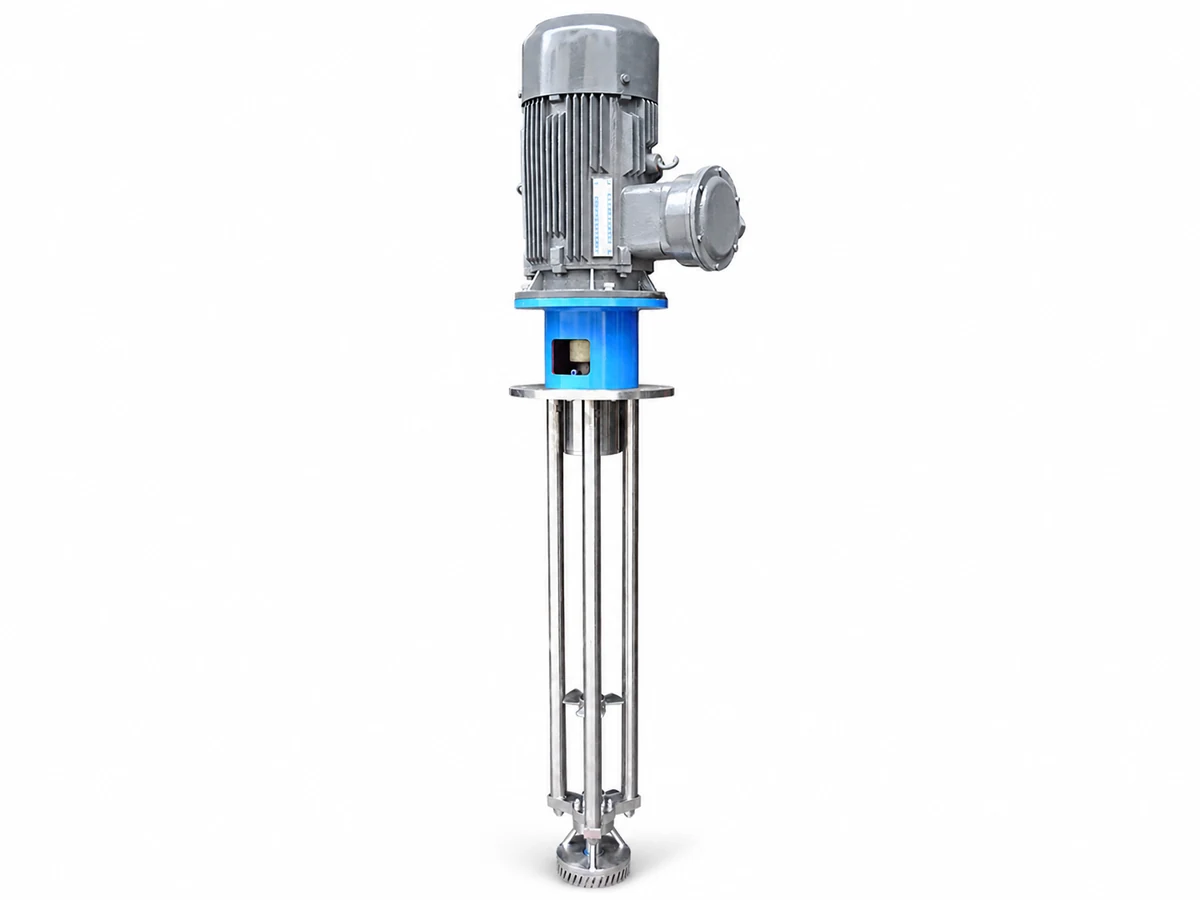

Tank-Mounted Emulsifier
Direct tank mounting for high-shear mixing and emulsification.

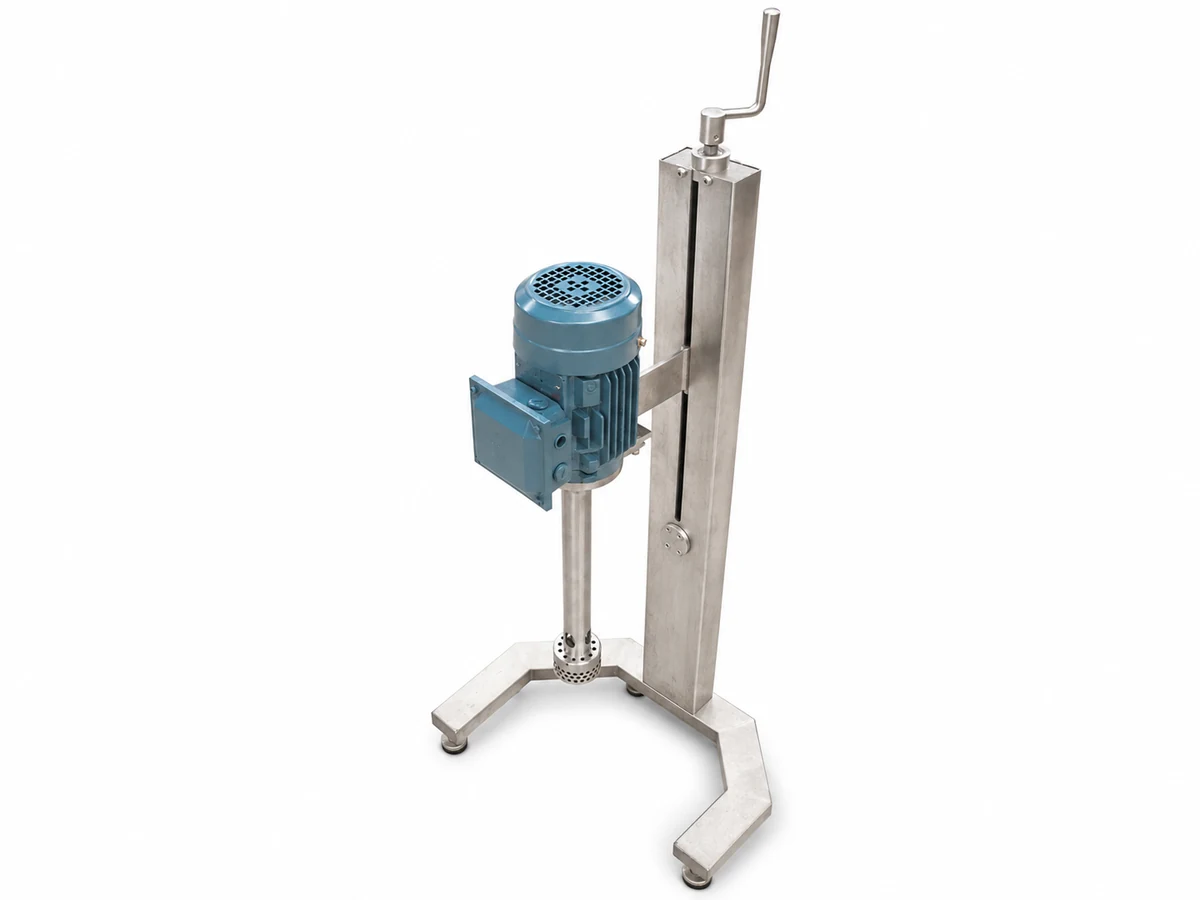

Manual-Lift Emulsifier
Manual lifting for flexible batch mixing and emulsification.
Hydraulic Lift Emulsifier
Hydraulic lifting for flexible batch mixing and emulsification.

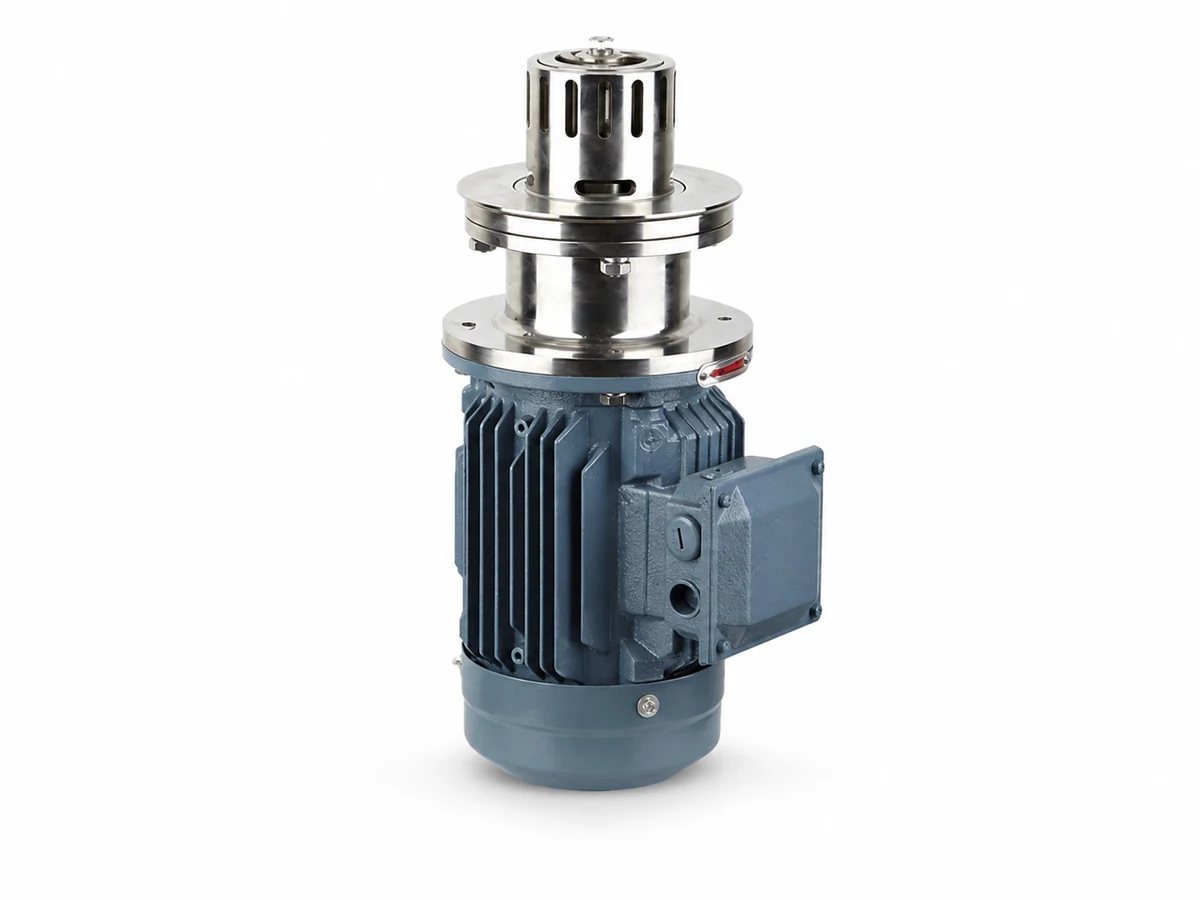

Bottom-Mounted Emulsifier
Bottom mounting for efficient circulation and emulsification.

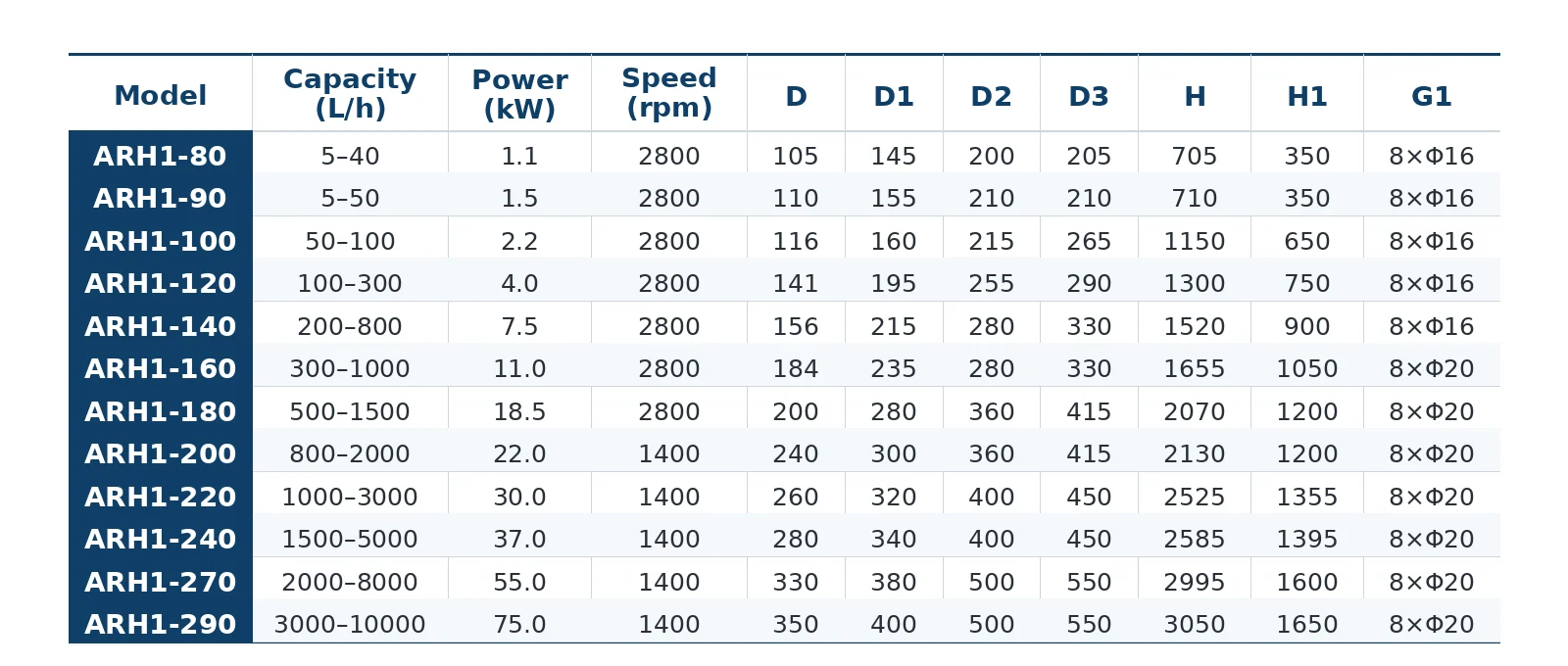

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Model | Capacity (L/h) |
Power (kW) |
Speed (rpm) |
D | D1 | D2 | D3 | H | H1 | G1 |
|---|---|---|---|---|---|---|---|---|---|---|
| ARH1-80 | 5–40 | 1.1 | 2800 | 105 | 145 | 200 | 205 | 705 | 350 | 8×Φ16 |
| ARH1-90 | 5–50 | 1.5 | 2800 | 110 | 155 | 210 | 210 | 710 | 350 | 8×Φ16 |
| ARH1-100 | 50–100 | 2.2 | 2800 | 116 | 160 | 215 | 265 | 1150 | 650 | 8×Φ16 |
| ARH1-120 | 100–300 | 4.0 | 2800 | 141 | 195 | 255 | 290 | 1300 | 750 | 8×Φ16 |
| ARH1-140 | 200–800 | 7.5 | 2800 | 156 | 215 | 280 | 330 | 1520 | 900 | 8×Φ16 |
| ARH1-160 | 300–1000 | 11.0 | 2800 | 184 | 235 | 280 | 330 | 1655 | 1050 | 8×Φ20 |
| ARH1-180 | 500–1500 | 18.5 | 2800 | 200 | 280 | 360 | 415 | 2070 | 1200 | 8×Φ20 |
| ARH1-200 | 800–2000 | 22.0 | 1400 | 240 | 300 | 360 | 415 | 2130 | 1200 | 8×Φ20 |
| ARH1-220 | 1000–3000 | 30.0 | 1400 | 260 | 320 | 400 | 450 | 2525 | 1355 | 8×Φ20 |
| ARH1-240 | 1500–5000 | 37.0 | 1400 | 280 | 340 | 400 | 450 | 2585 | 1395 | 8×Φ20 |
| ARH1-270 | 2000–8000 | 55.0 | 1400 | 330 | 380 | 500 | 550 | 2995 | 1600 | 8×Φ20 |
| ARH1-290 | 3000–10000 | 75.0 | 1400 | 350 | 400 | 500 | 550 | 3050 | 1650 | 8×Φ20 |
Typical Applications
Suitable for high-shear mixing, dispersing, homogenizing and emulsifying across a wide range of process industries.
Food & Beverage
Mixing sauces, dairy products and beverages.
Pharmaceuticals
Homogenizing liquid pharmaceutical formulations.
Chemical Processing
Dispersing additives, coatings and chemicals.
Personal Care
Emulsifying creams, lotions and cosmetic products.
Optional Configurations
Optional configurations are available to suit different process, control and operating requirements.

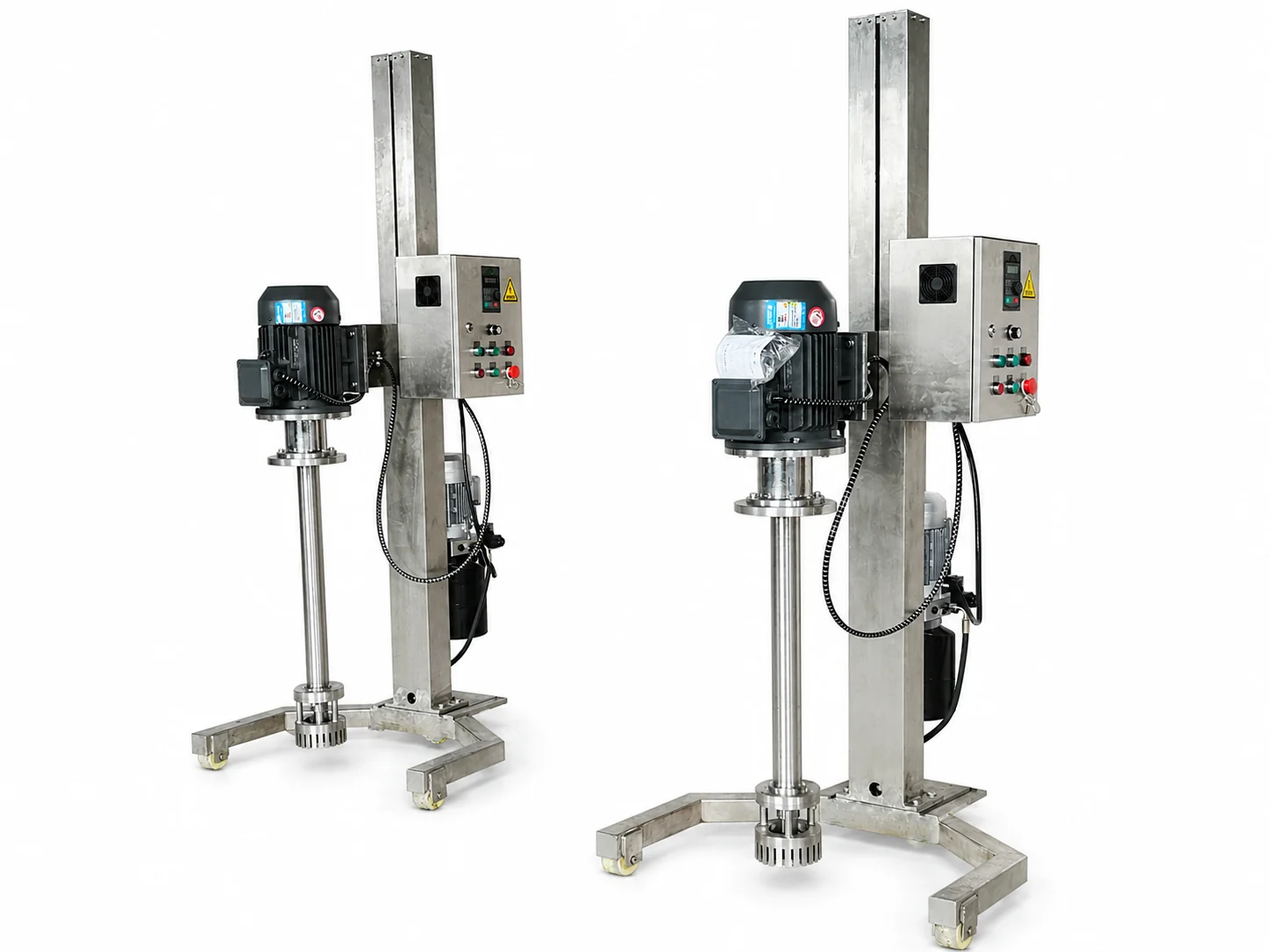

Control System Options
Flexible control options for different process needs.

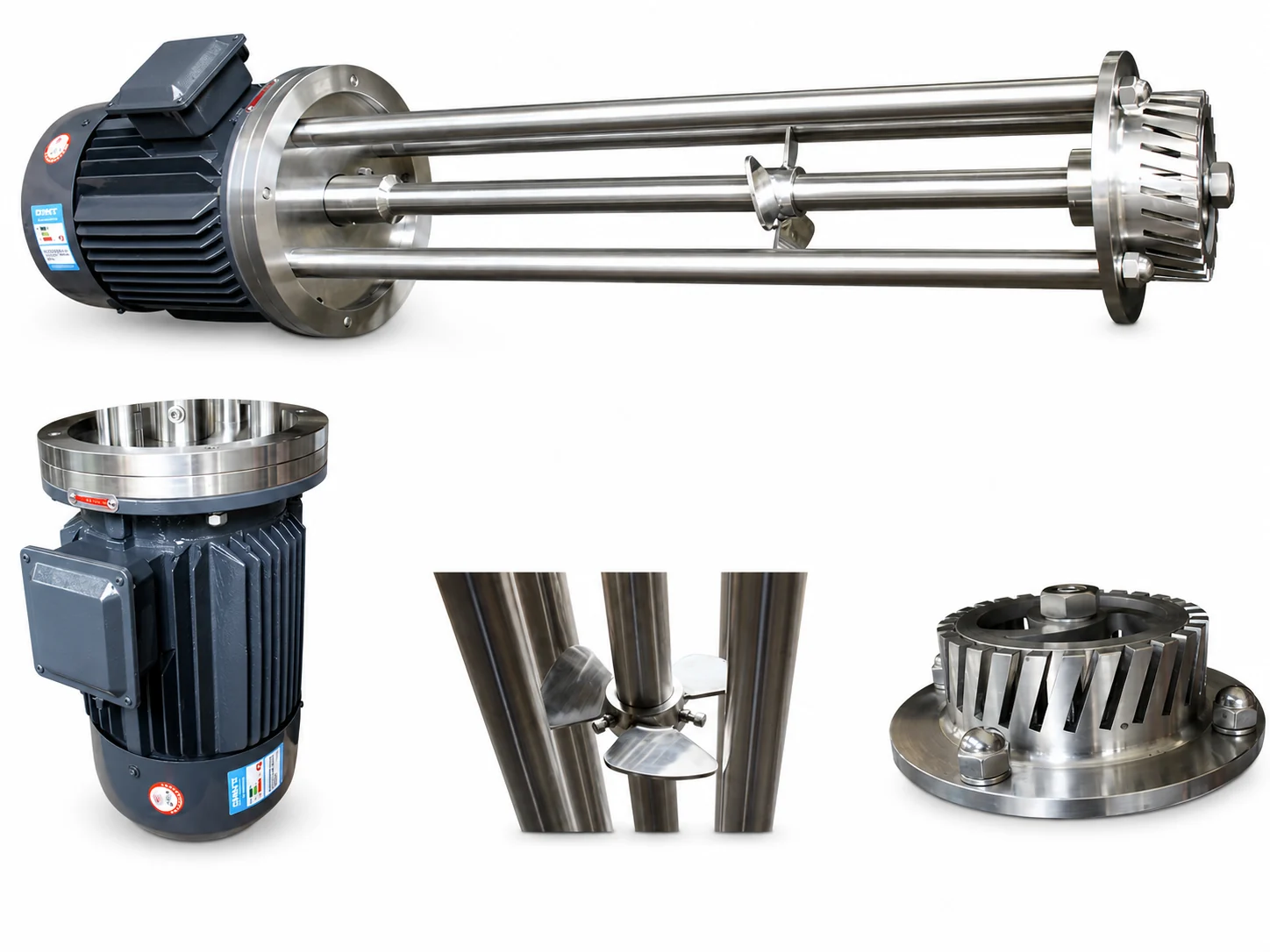

Shaft & Mixing Assembly
Custom shaft assemblies for different process needs.

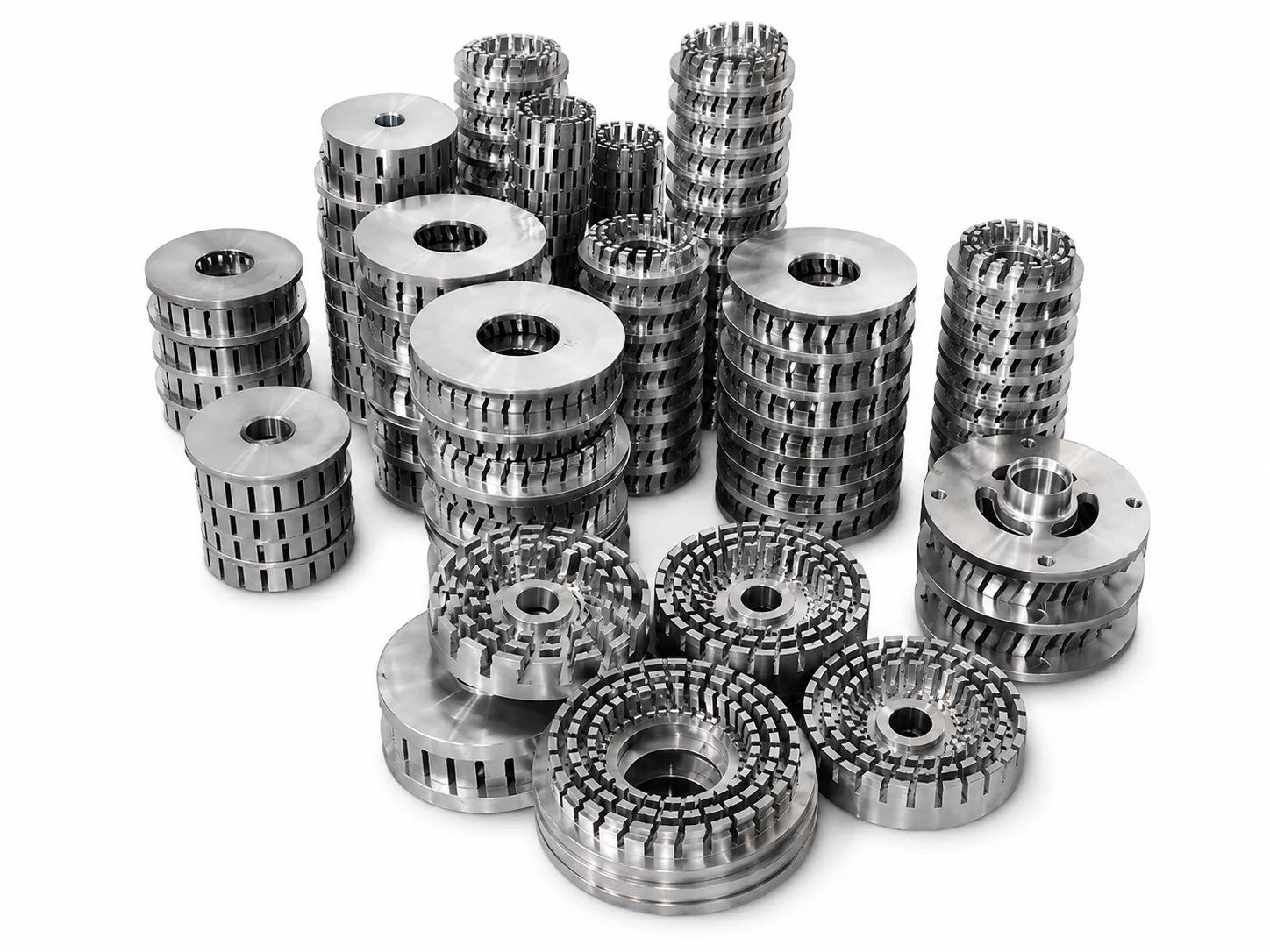

Homogenizing Head Options
Rotor-stator head options for different emulsifying needs.

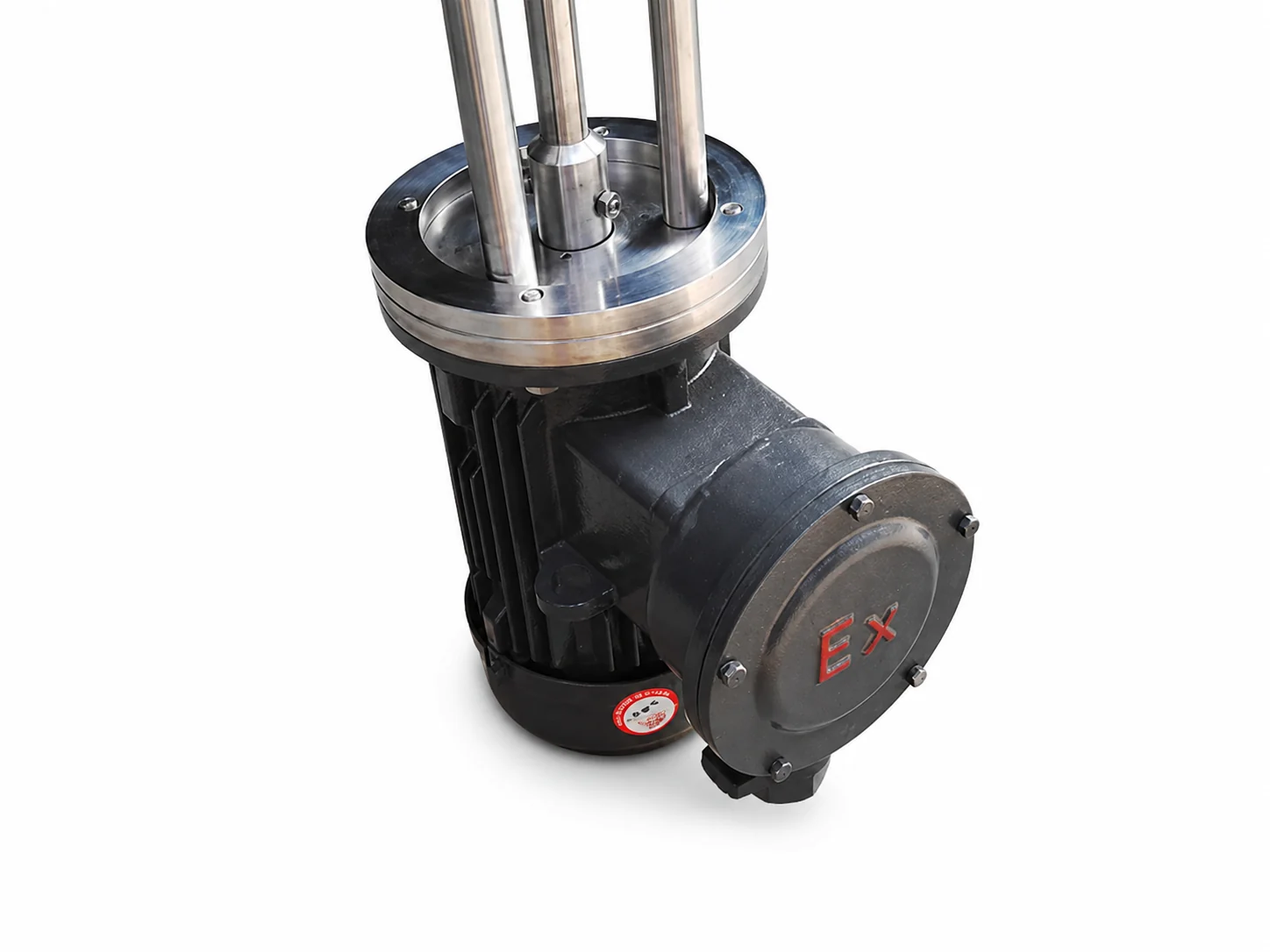

Explosion-Proof Motor
Explosion-proof motor option for specific environments.
Need a High-Shear Homogeneous Emulsifier for Your Process?
Tell us your required capacity, product viscosity, mixing requirements, installation method and operating conditions. Our team will help you select a suitable high-shear homogeneous emulsifier configuration.
Request a Quote
