Horizontal Ribbon Mixer
Horizontal ribbon mixer designed for efficient and uniform blending of powders, granules and other bulk materials. Suitable for a wide range of industrial mixing applications with customizable configurations.
Configuration Overview
Configure the mixer to match your batch size, material and mixing requirements.
100–1,000 L
Capacity
40–700 L
Working Volume
SUS304 / SUS316L
Material
15–40 rpm
Mixing Speed
Available Configurations

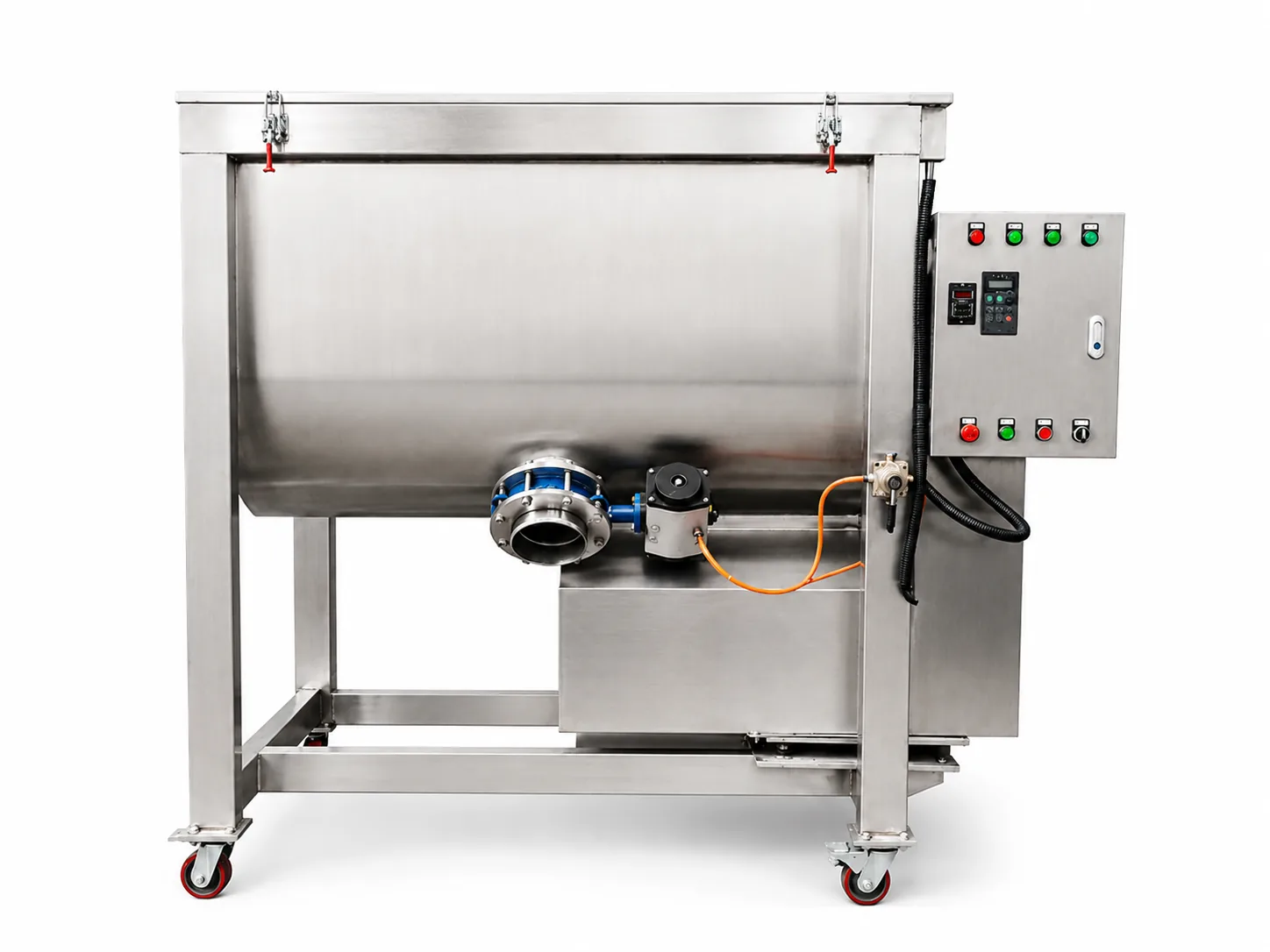

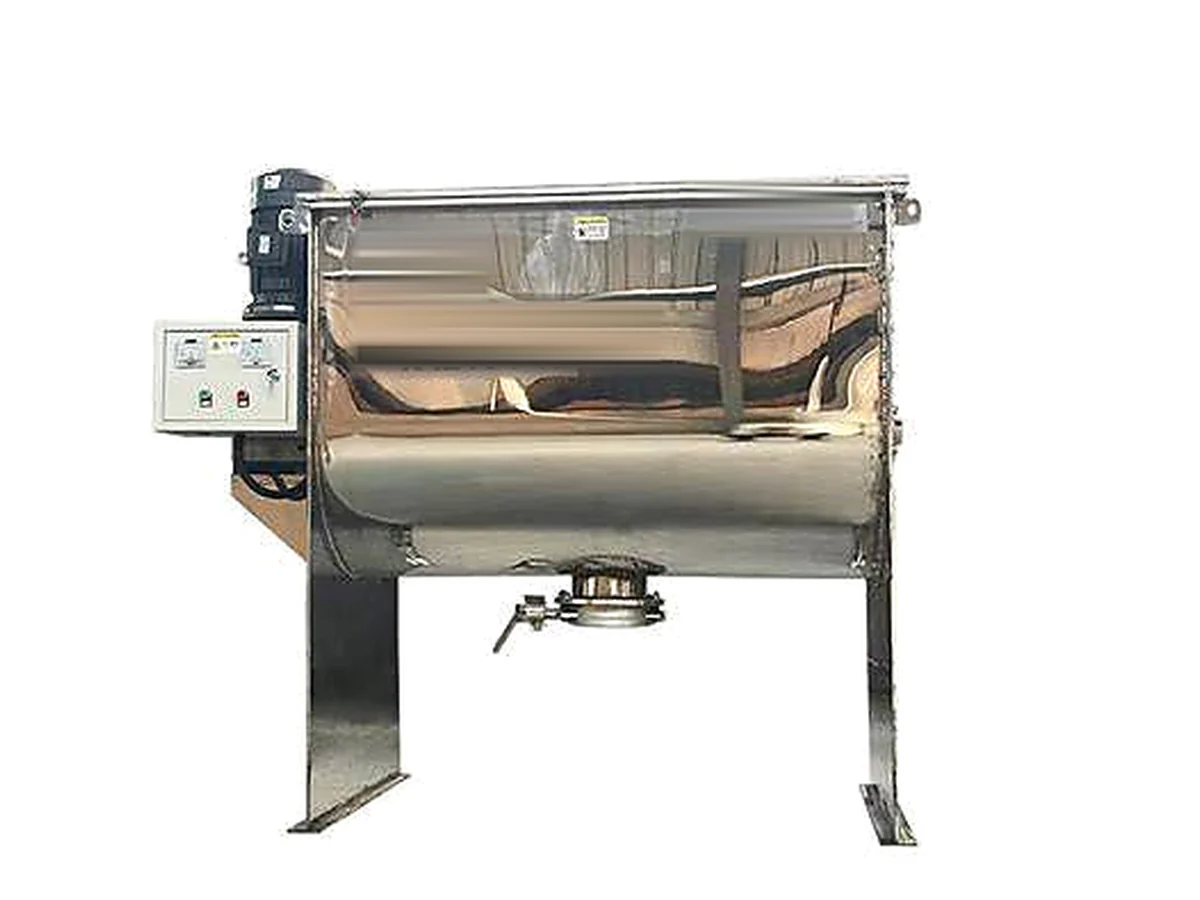

Standard Type
Standard configuration for general powder and granule mixing.

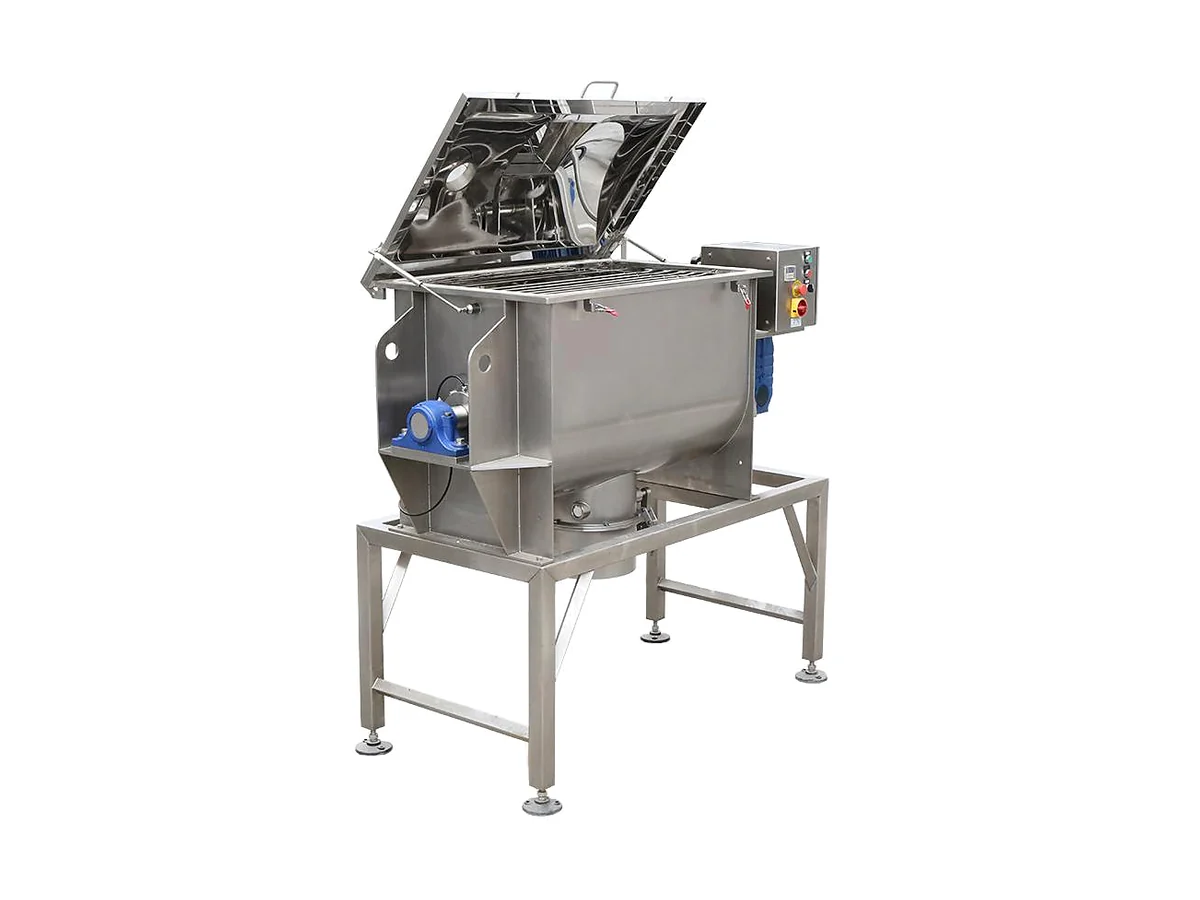

Open-Lid Type
Full-opening lid for easier feeding, inspection and cleaning.

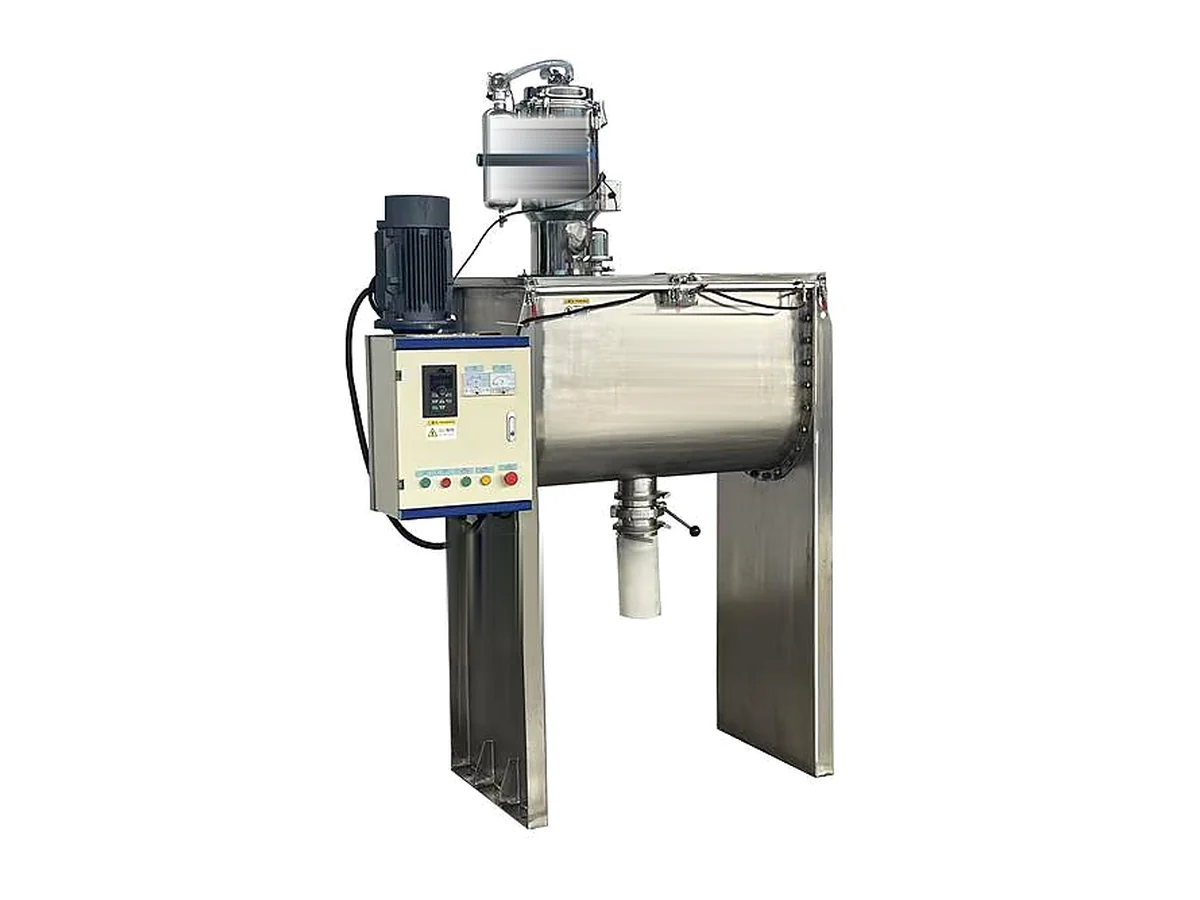

Vacuum Feeding Type
Integrated vacuum feeder for cleaner and easier material loading.

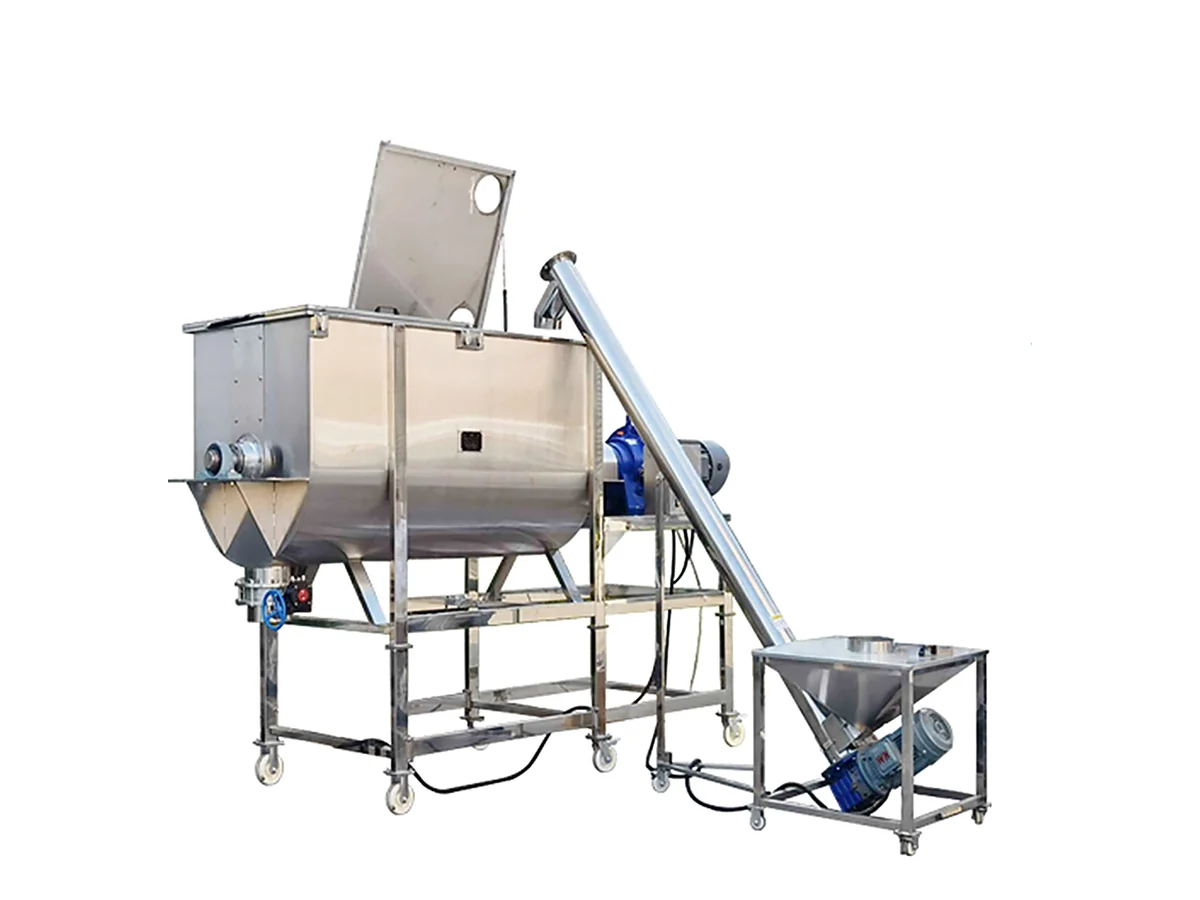

Screw Feeding Type
Screw feeding system for convenient and continuous material loading.

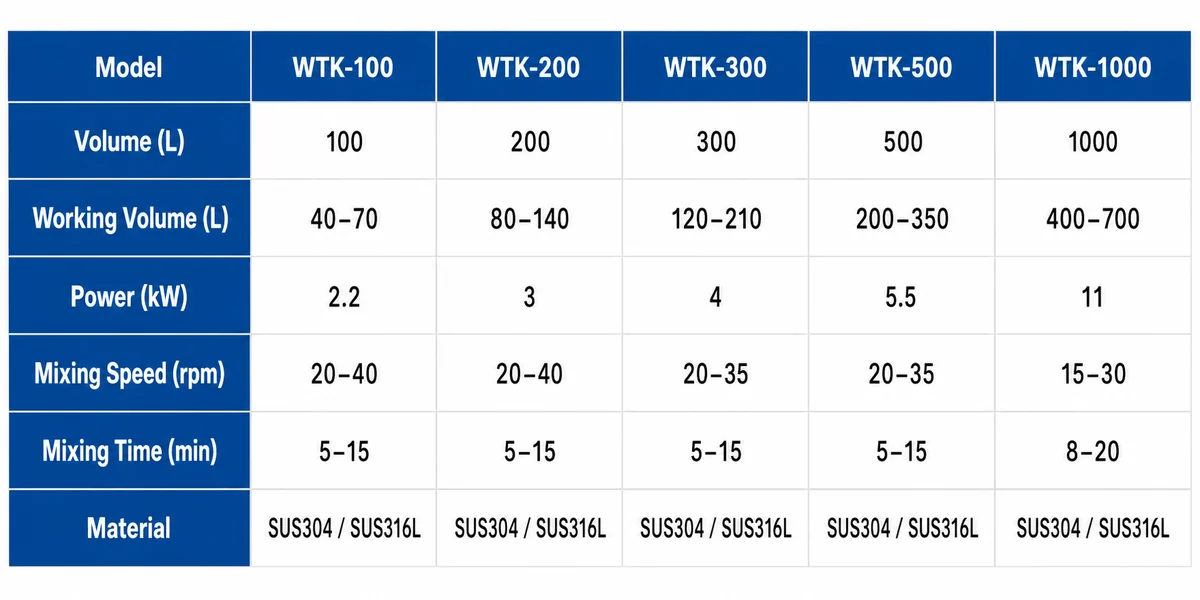

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Model | WTK-100 | WTK-200 | WTK-300 | WTK-500 | WTK-1000 |
|---|---|---|---|---|---|
| Volume (L) | 100 | 200 | 300 | 500 | 1000 |
| Working Volume (L) | 40–70 | 80–140 | 120–210 | 200–350 | 400–700 |
| Power (kW) | 2.2 | 3 | 4 | 5.5 | 11 |
| Mixing Speed (rpm) | 20–40 | 20–40 | 20–35 | 20–35 | 15–30 |
| Mixing Time (min) | 5–15 | 5–15 | 5–15 | 5–15 | 8–20 |
| Material | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L |
Typical Applications
Suitable for uniform blending of powders, granules and other dry bulk materials across a range of industries.
Food & Seasoning
Mixing of food powders, seasonings and dry ingredients.
Pharmaceutical
Blending of pharmaceutical powders and granulated materials.
Chemical & Additives
Mixing of chemical powders, additives and functional materials.
Feed & Agriculture
| Blending of feed ingredients, premixes and granular materials. |
Key Components & Configurations
Key components and configurations can be tailored to suit different material, process and operating requirements.

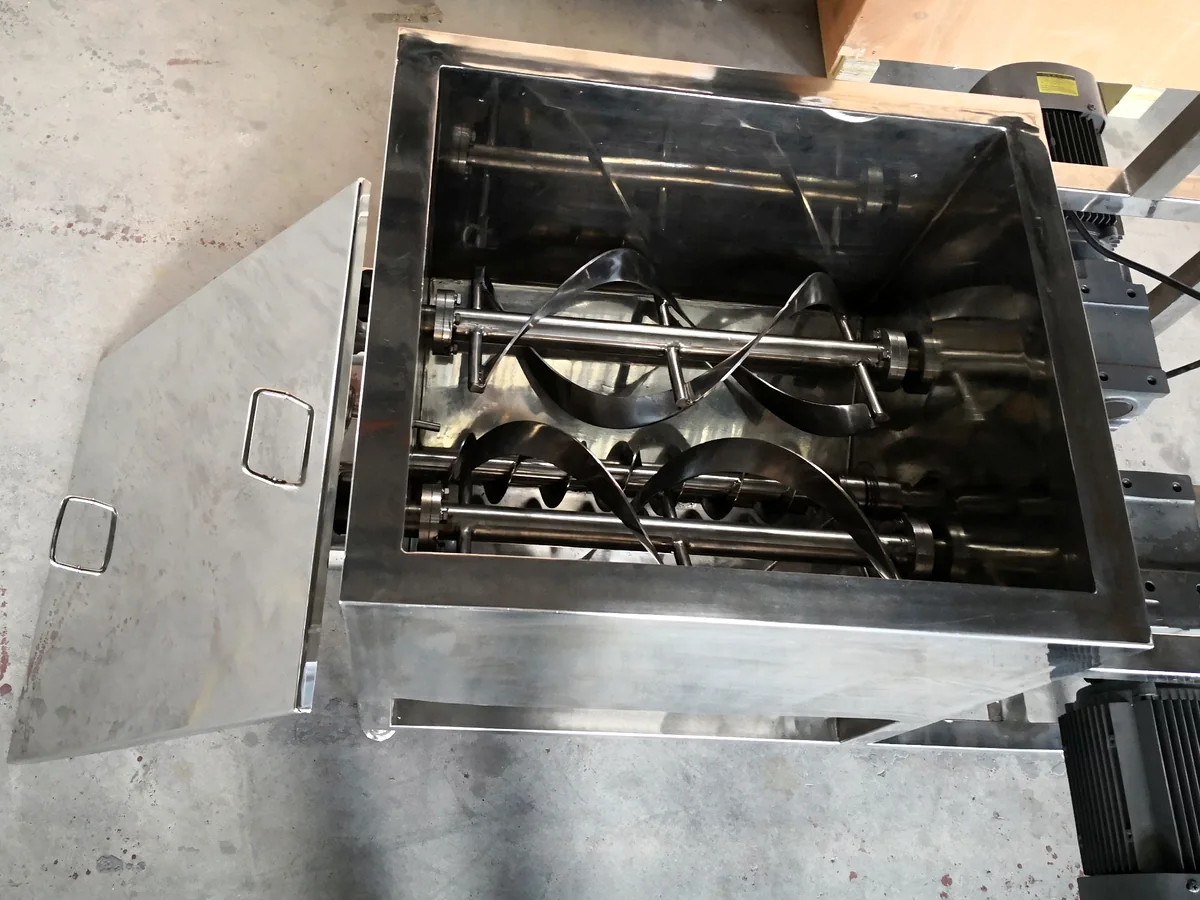

Open-Lid Mixing Chamber
Open-lid design allows easy feeding, inspection and cleaning.

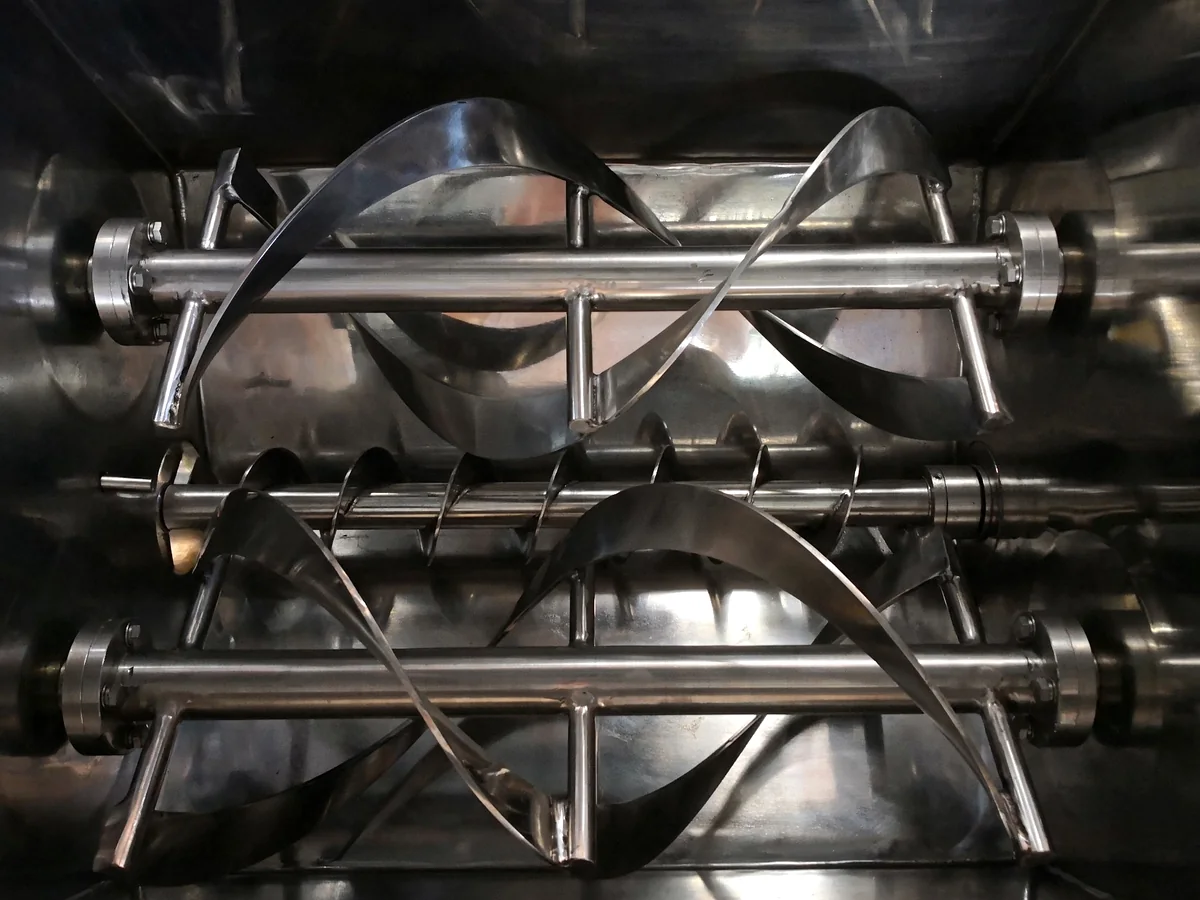

Double Ribbon Agitator
Double ribbon structure supports fast and uniform material blending.

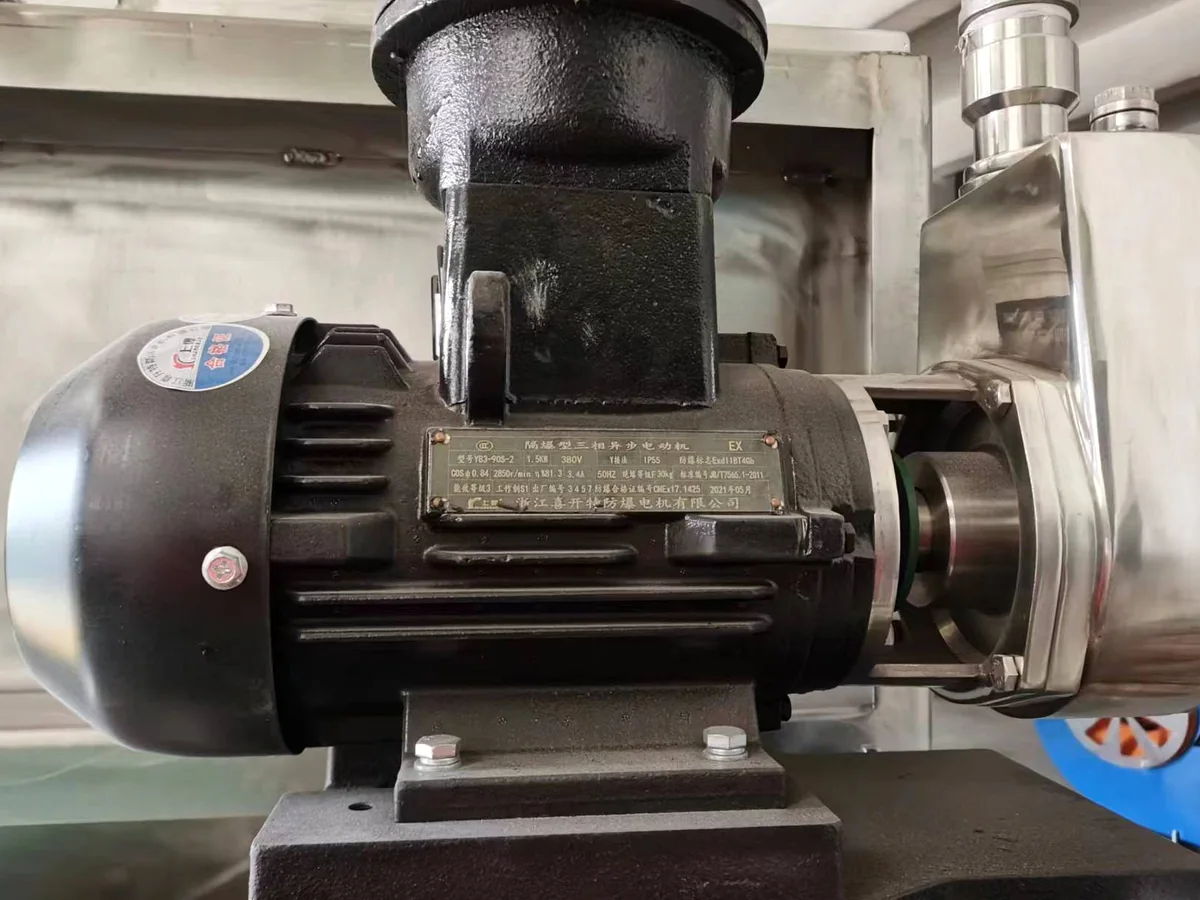

Motor & Drive System
Reliable motor and drive system ensures stable mixing operation.

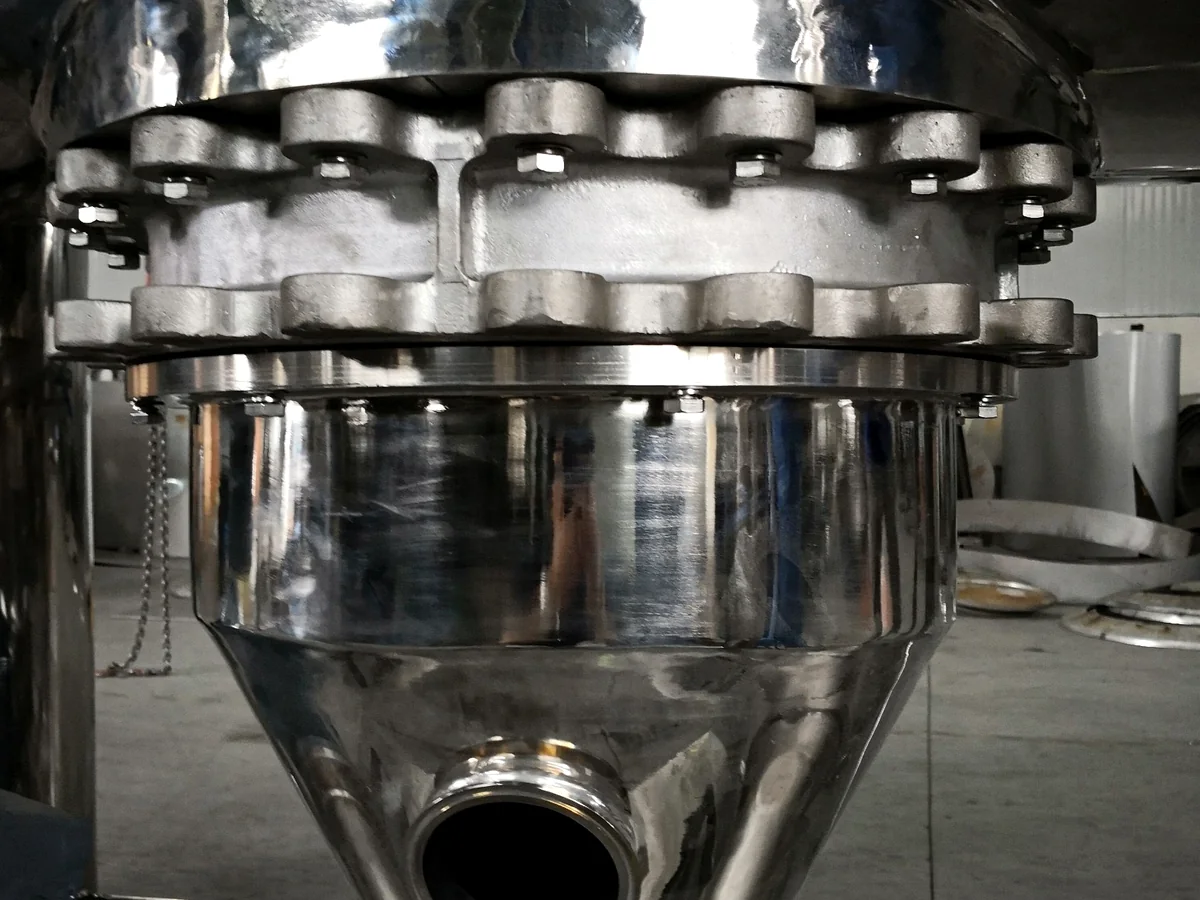

Bottom Discharge Assembly
Bottom discharge assembly enables fast and convenient material unloading.
Need a Horizontal Ribbon Mixer for Your Process?
Tell us your required capacity, material characteristics, mixing requirements and operating conditions. Our team will help you select a suitable Horizontal Ribbon Mixer configuration.
Request a Quote
