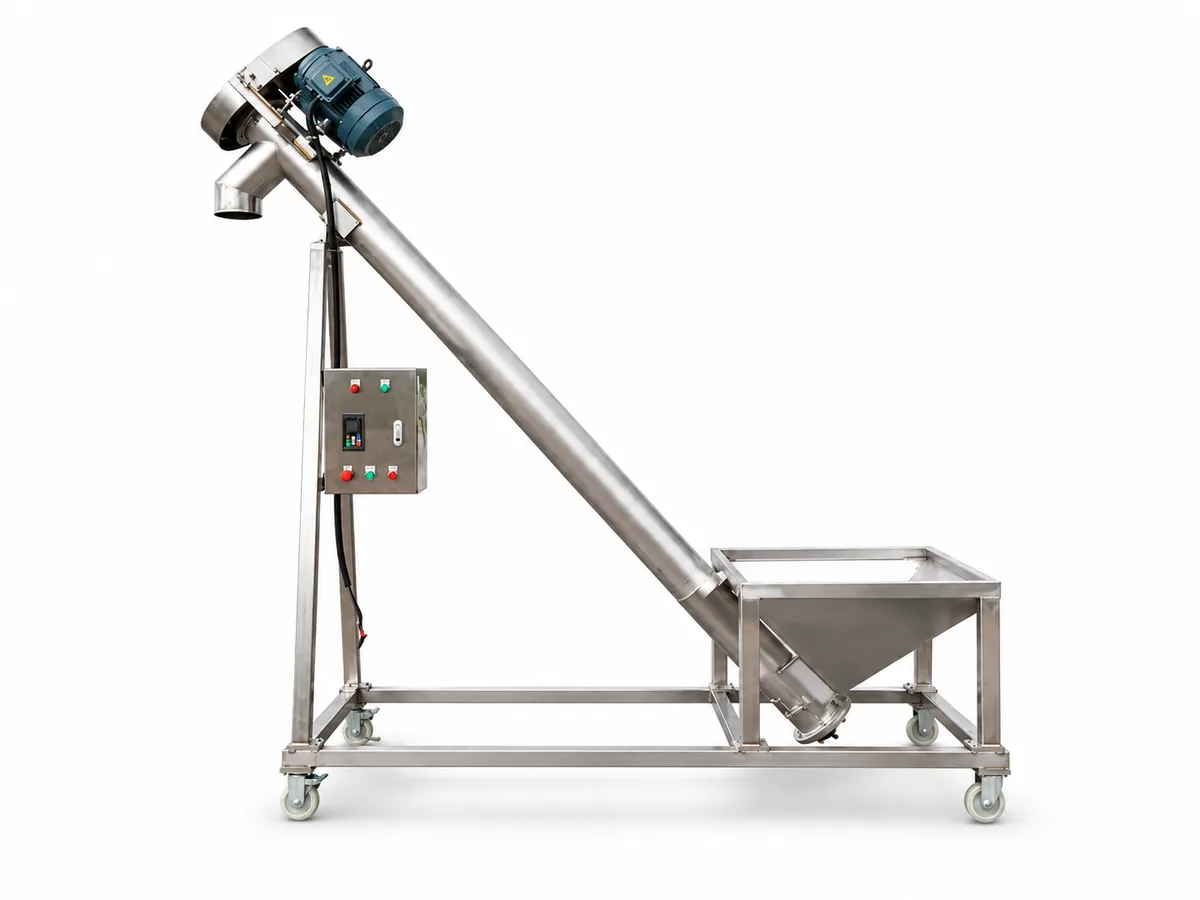

Inclined Screw Feeder
Inclined screw feeder for continuous conveying of powders and small granules. Features an enclosed screw tube, feeding hopper and mobile frame for clean, reliable and flexible material handling.
Configuration Overview
Configure the feeder to match your material, conveying capacity and lifting height requirements.
100–3,000 kg/h
Conveying Capacity
1.5–4.0 m
Lifting Height
SUS304 / SUS316L
Material
Ø108–219 mm
Screw Tube Diameter
Available Configurations

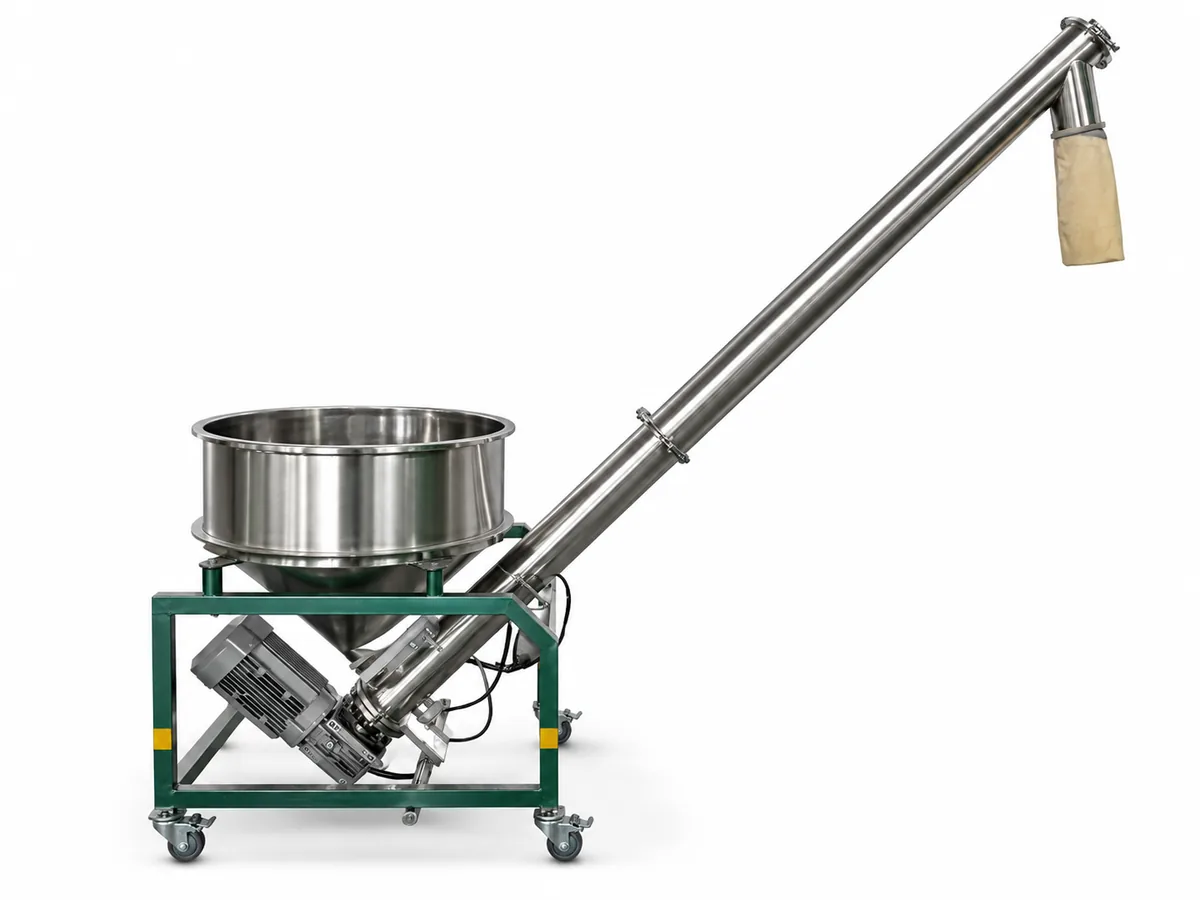

Mobile Open-Hopper
Feeder
Open hopper design for flexible powder and granule feeding.

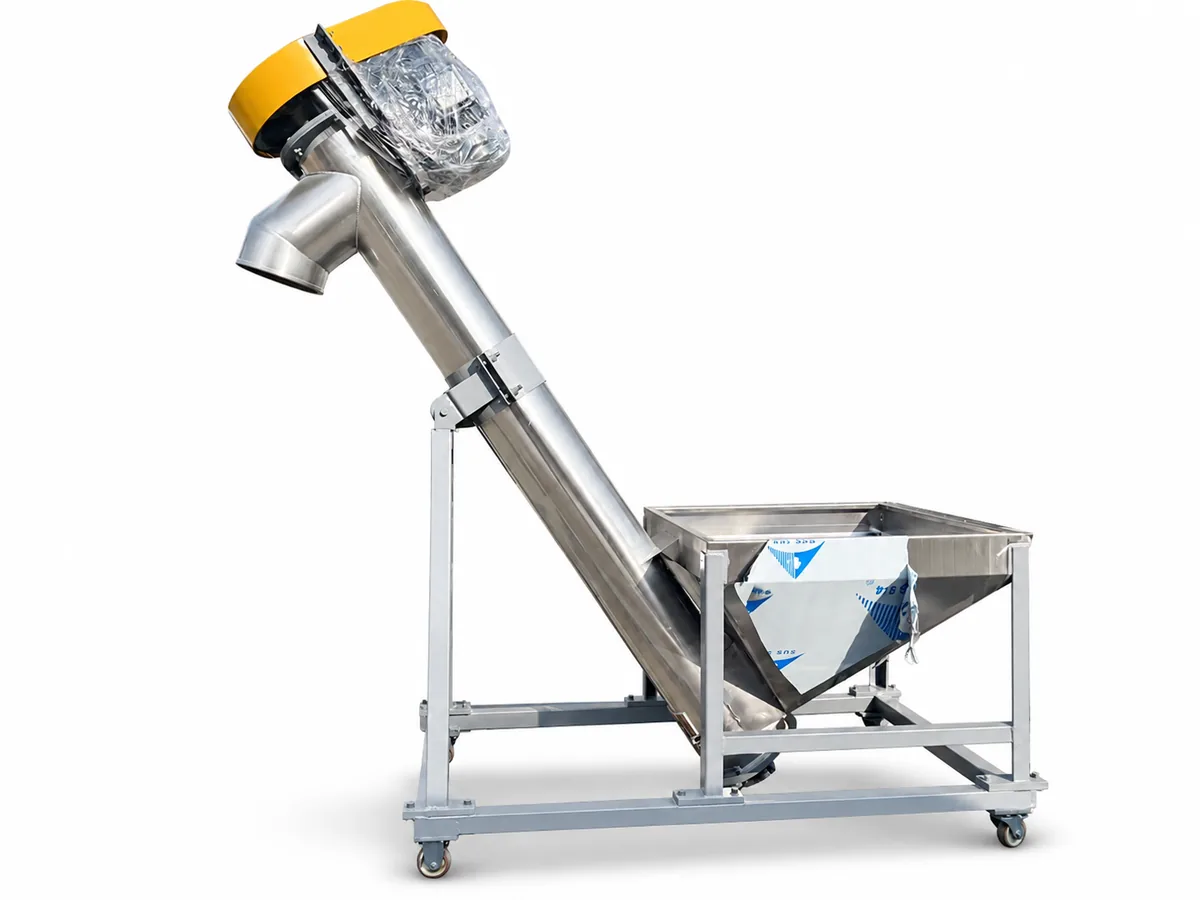

Compact Open-Hopper
Feeder
Compact design for efficient transfer in limited spaces.

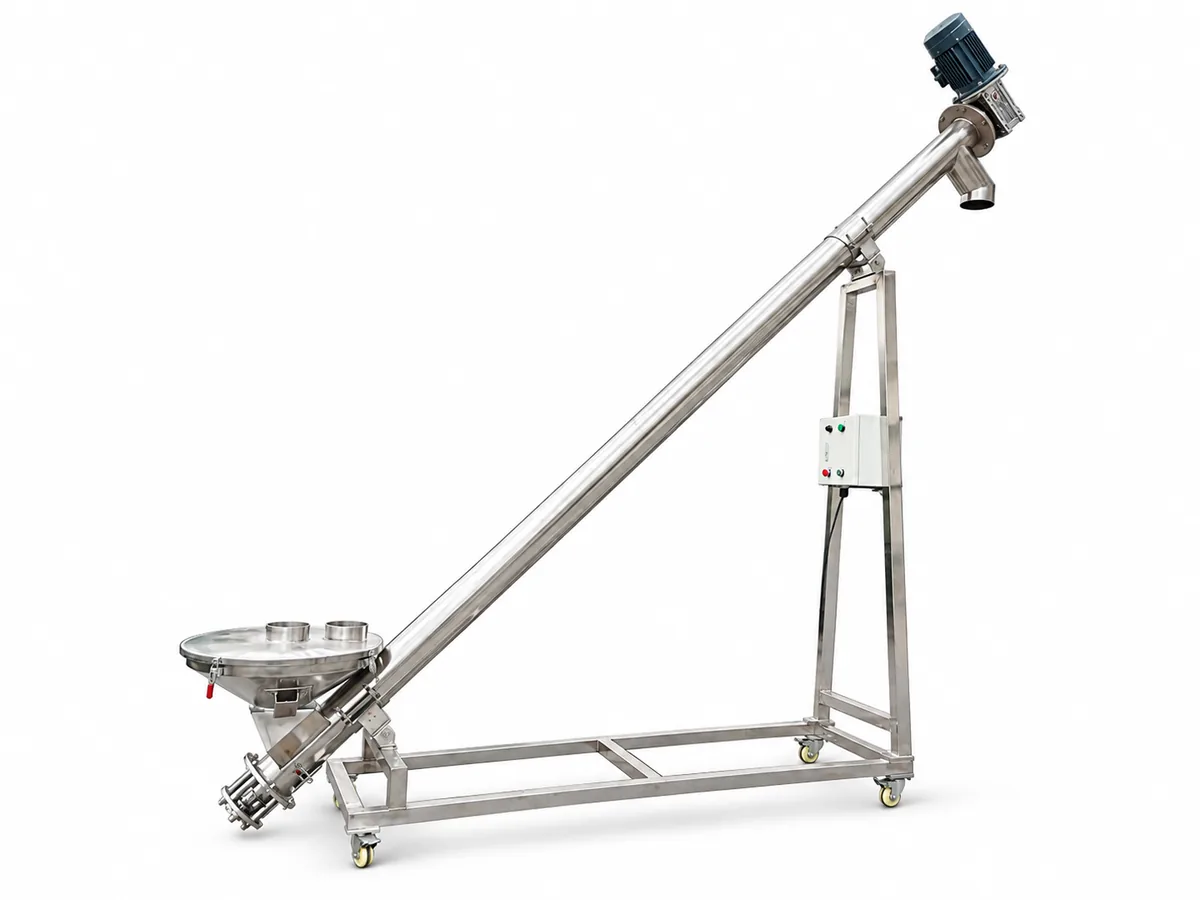

High-Lift Closed-Hopper
Feeder
Closed hopper design for cleaner high-level conveying.

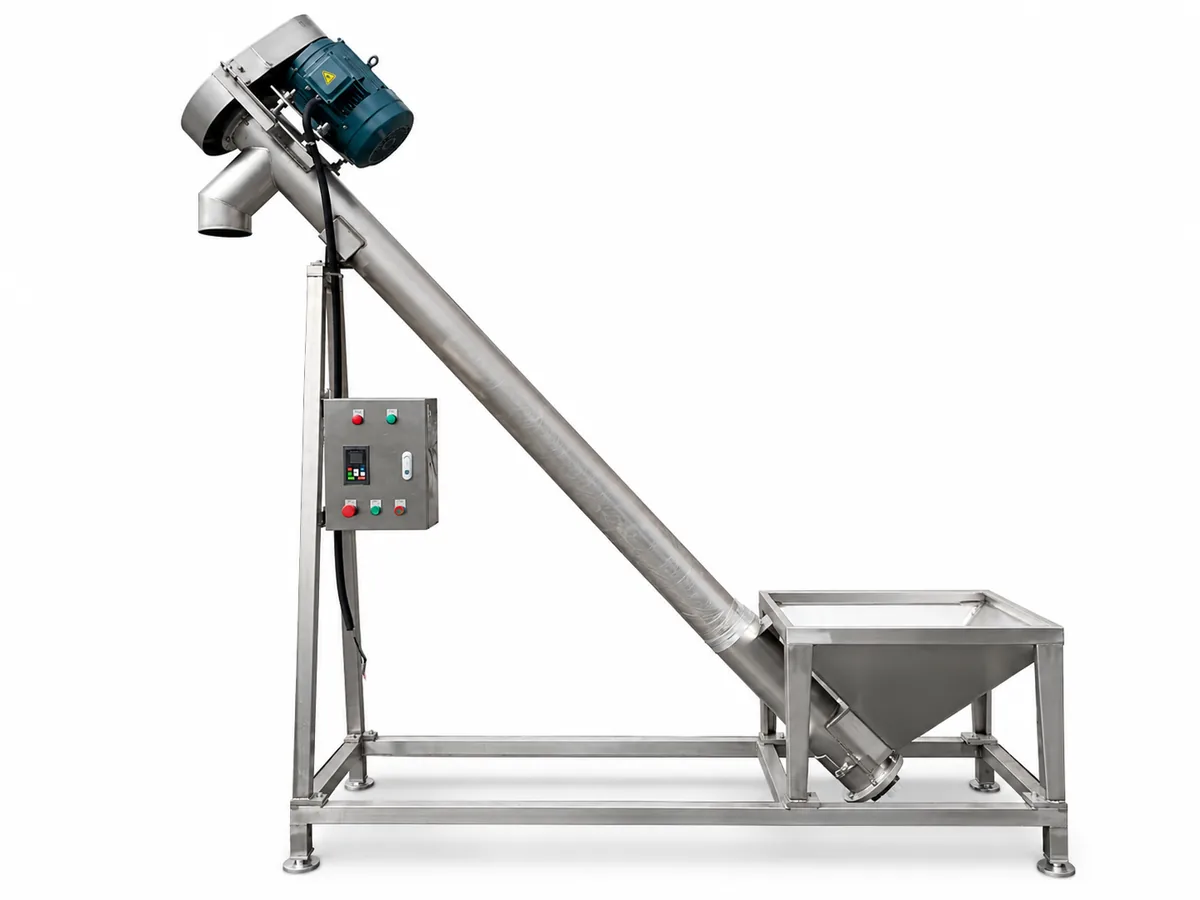

Mobile High-Lift
Feeder
Mobile design for flexible connection with processing lines.

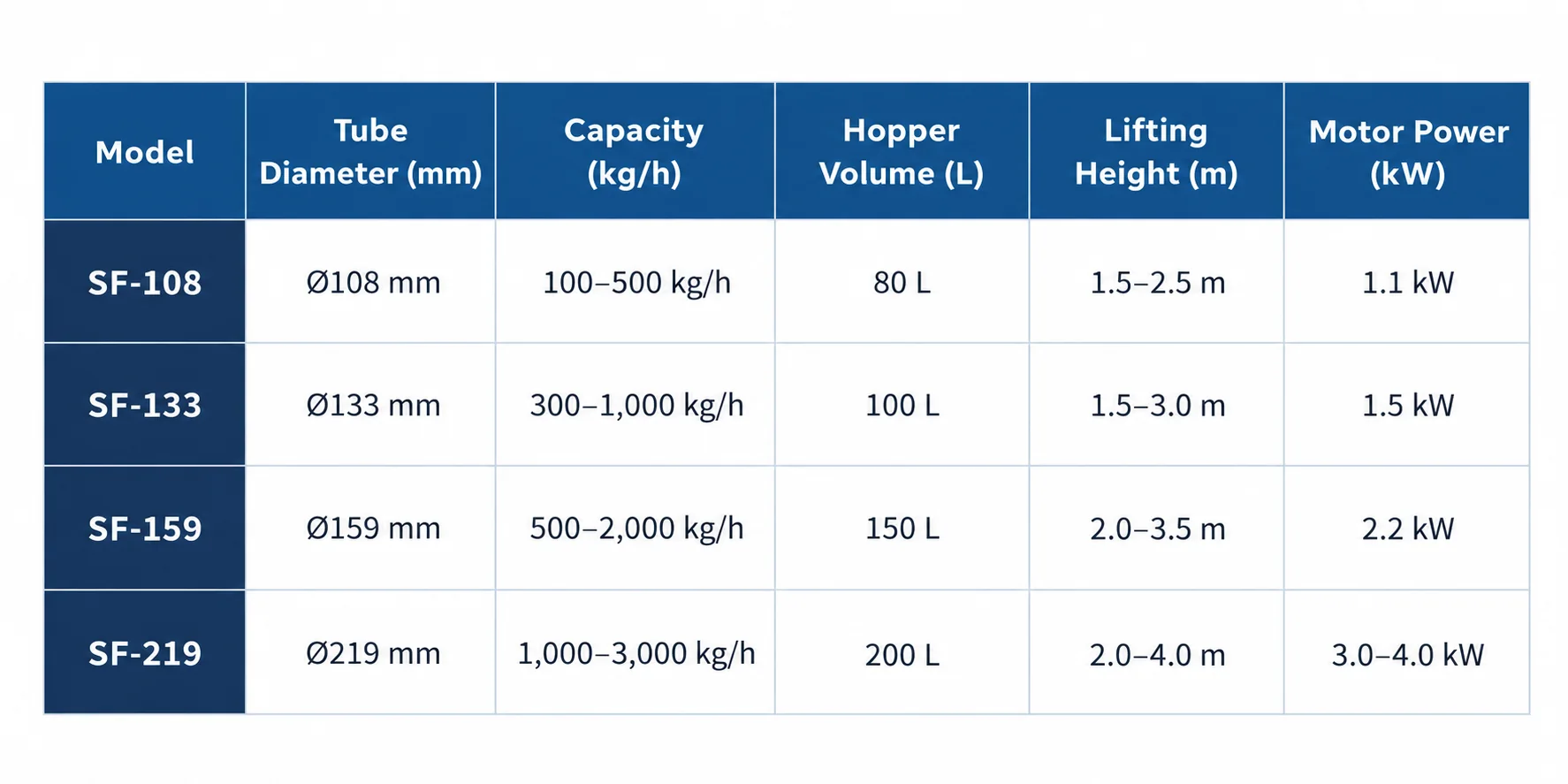

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Model | Tube Diameter (mm) |
Capacity (kg/h) |
Hopper Volume (L) |
Lifting Height (m) |
Motor Power (kW) |
|---|---|---|---|---|---|
| SF-108 | Ø108 mm | 100–500 kg/h | 80 L | 1.5–2.5 m | 1.1 kW |
| SF-133 | Ø133 mm | 300–1,000 kg/h | 100 L | 1.5–3.0 m | 1.5 kW |
| SF-159 | Ø159 mm | 500–2,000 kg/h | 150 L | 2.0–3.5 m | 2.2 kW |
| SF-219 | Ø219 mm | 1,000–3,000 kg/h | 200 L | 2.0–4.0 m | 3.0–4.0 kW |
Typical Applications
Suitable for conveying powders and granules to mixers, hoppers, packaging machines and other processing equipment.
Food Processing
Transfer flour, sugar, starch and other food powders or granules.
Pharmaceutical
Feed powders and granules to processing equipment.
Chemical Processing
Convey additives and other chemical powders or granules.
Powder Handling
Continuous feeding to mixers, hoppers and packaging systems.
Configuration Options
Configurations can be tailored to suit different materials, conveying capacities, installation layouts and operating requirements.

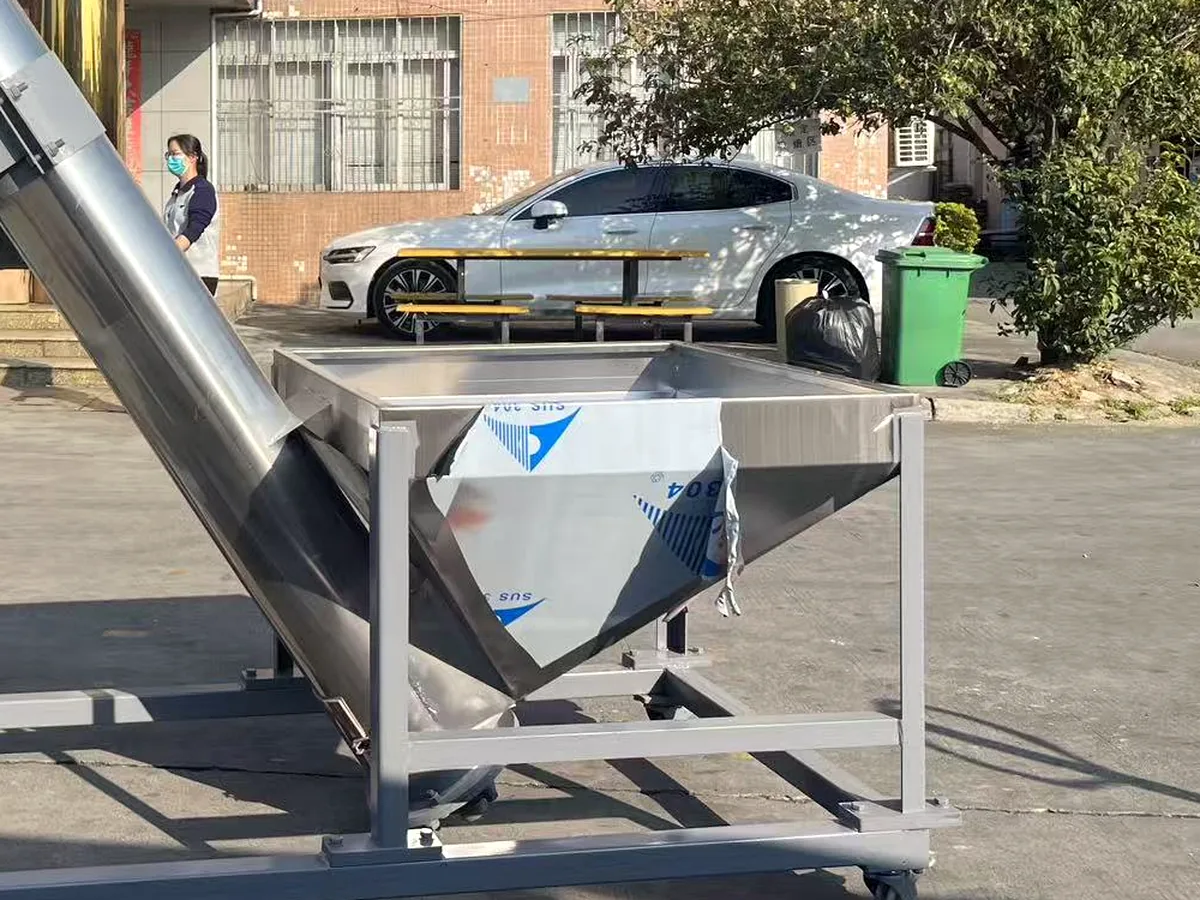

Hopper Options
Multiple hopper designs suit different feeding needs.

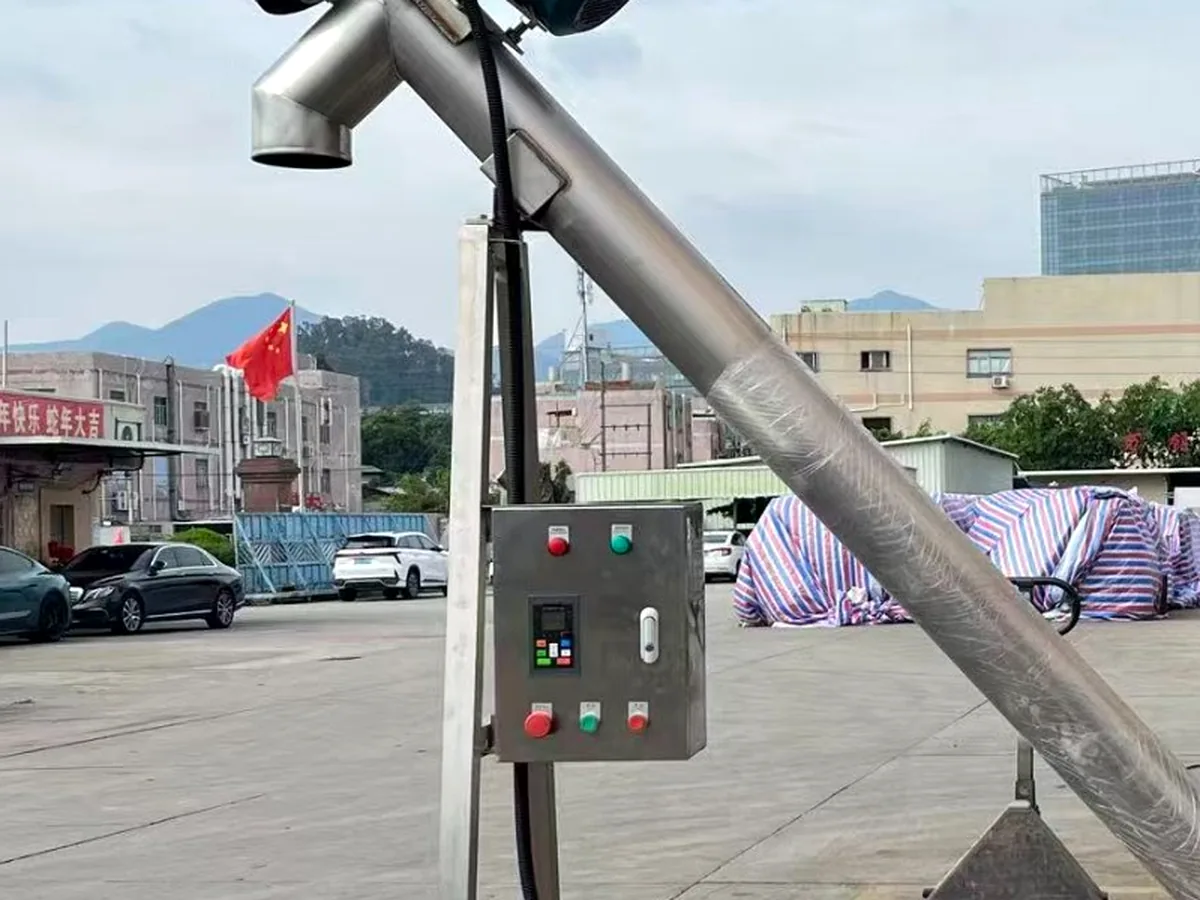

Control System
Custom controls support stable, flexible conveying.

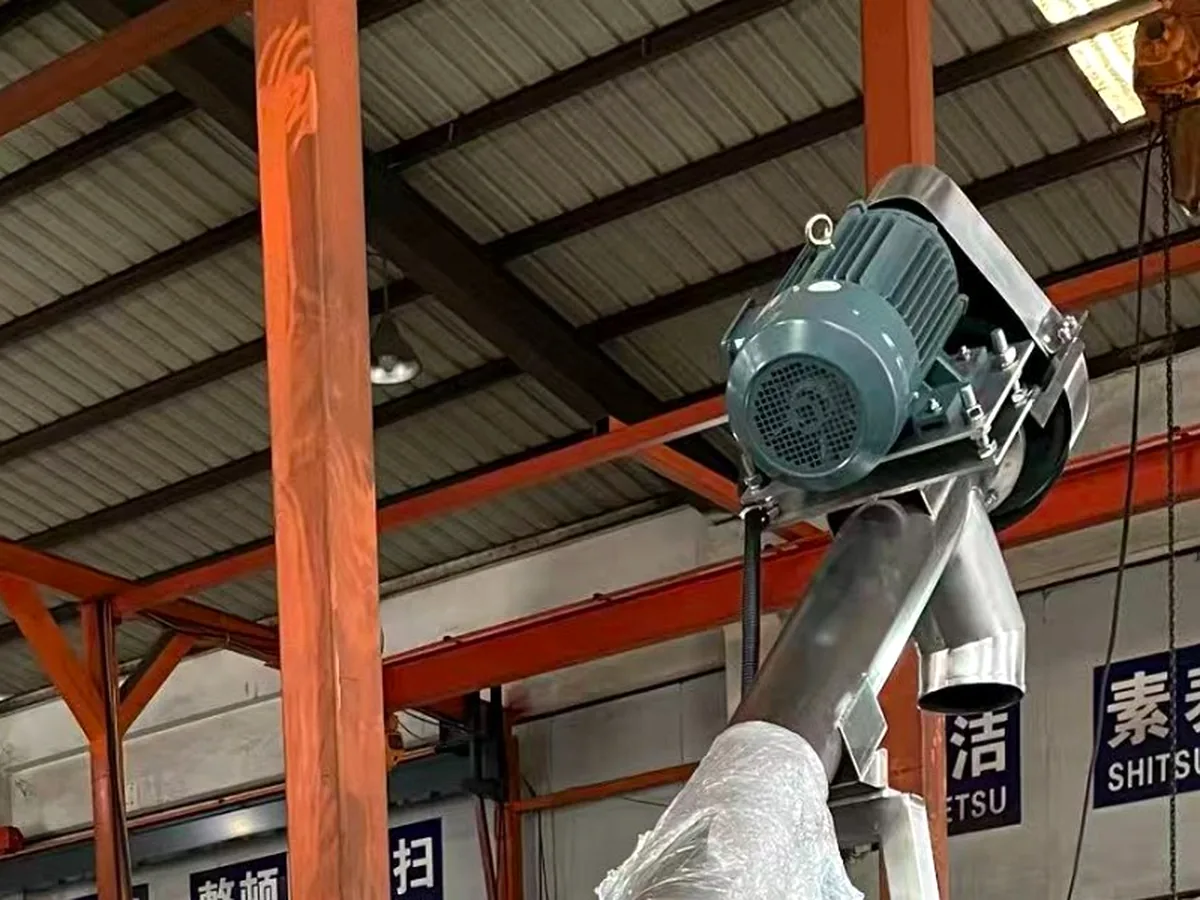

Discharge Connection
Custom outlets connect with downstream equipment.

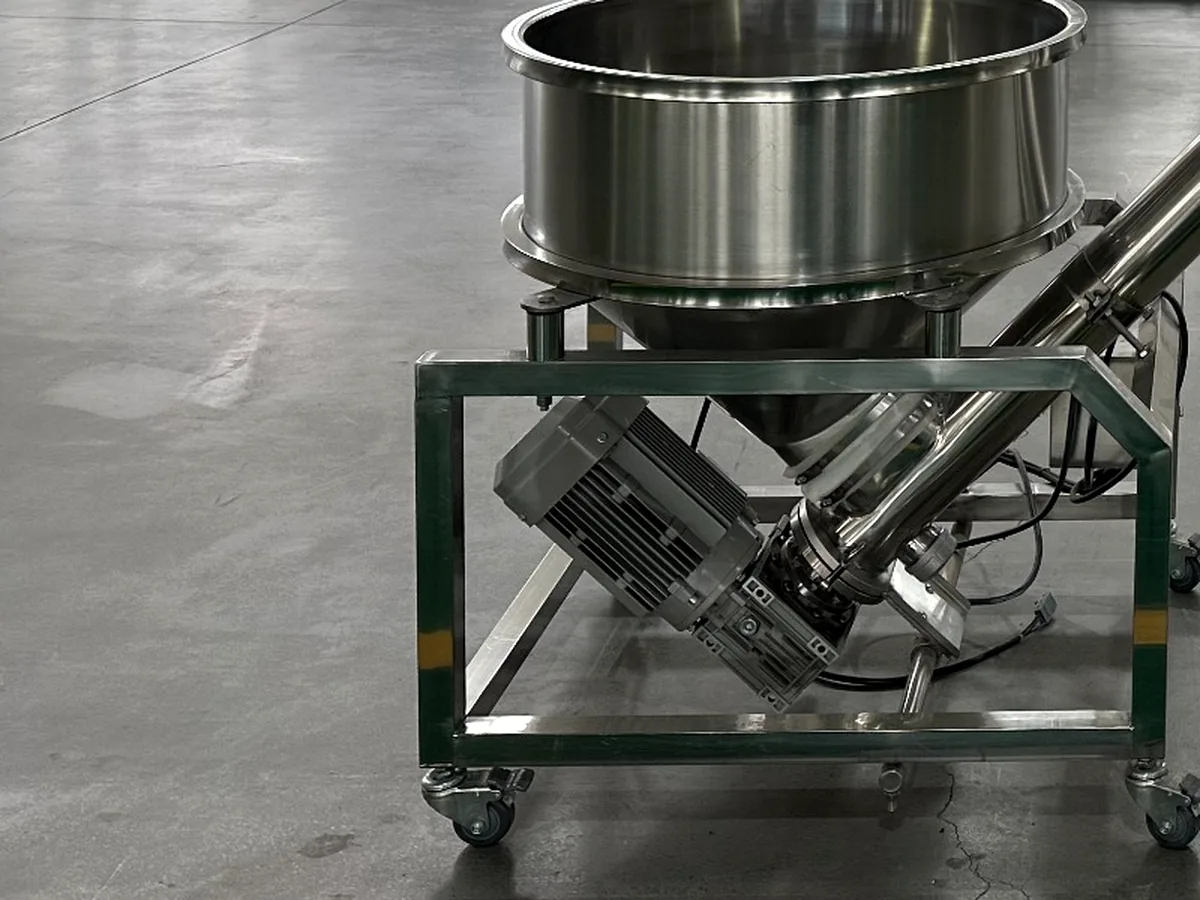

Mobile Caster Base
Caster base enables easy movement and positioning.
Need an Inclined Screw Feeder for Your Process?
Tell us your material, required conveying capacity, lifting height and installation requirements. Our team will help you select a suitable Inclined Screw Feeder configuration.
