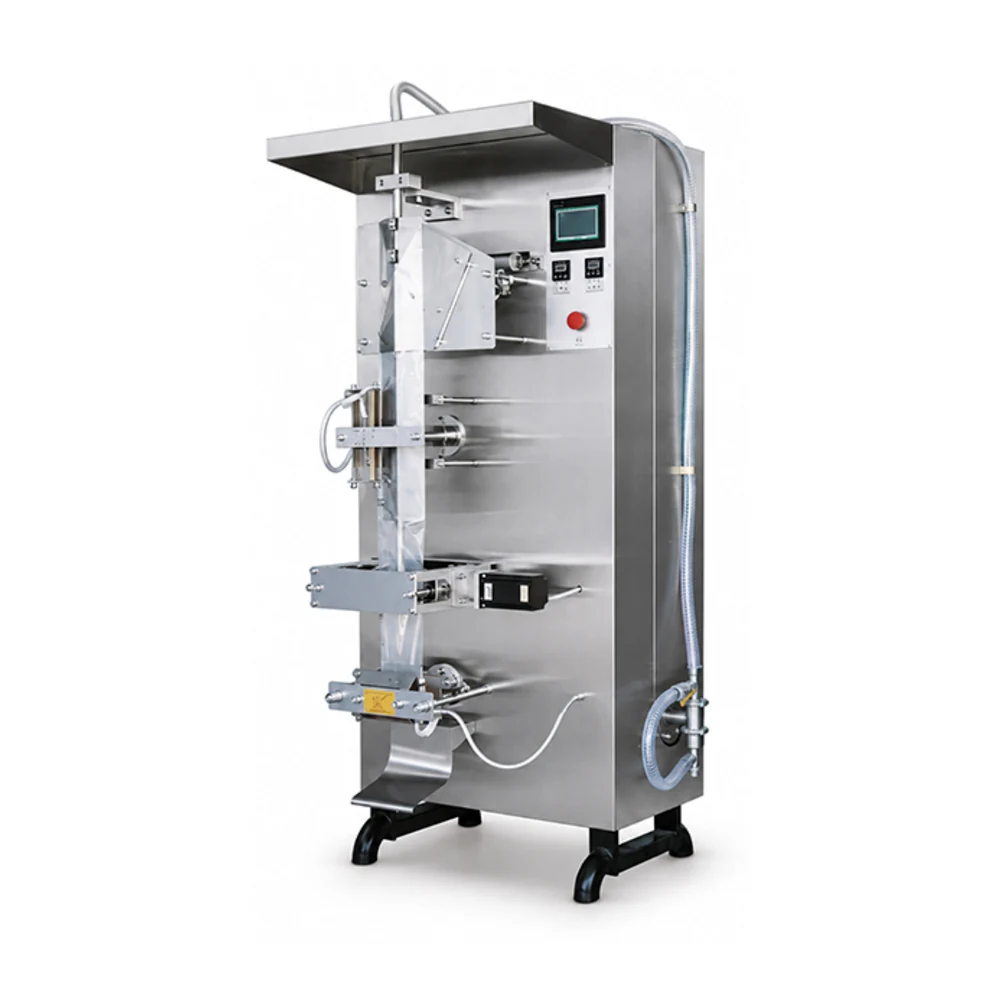

Liquid Packaging Machine
Automatic liquid packaging machine for bag forming, dosing, filling, sealing and cutting of free-flowing liquid products. Suitable for milk, soy milk, soy sauce, vinegar, rice wine, beverages and similar liquids.
Configuration Overview
Standard configurations cover different filling ranges and sealing formats for liquid packaging applications.
50–1000 mL
Filling Range
19–37 bags/min
Packing Speed
Back / Center / Side
Sealing Type
Food-Grade SS304
Material Contact Parts
Available Configurations

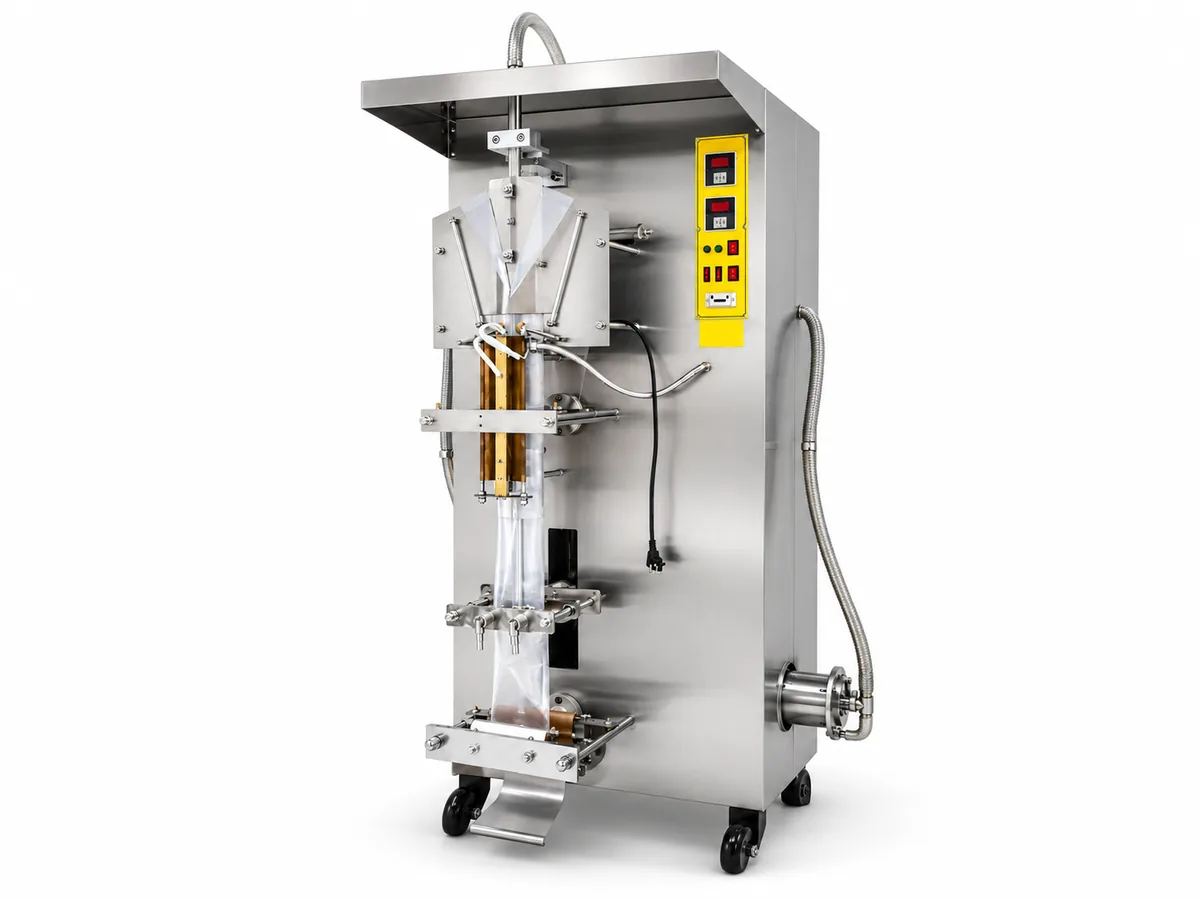

Back Sealing
Rear vertical sealing with a clean front appearance, suitable for general liquid sachet packaging.

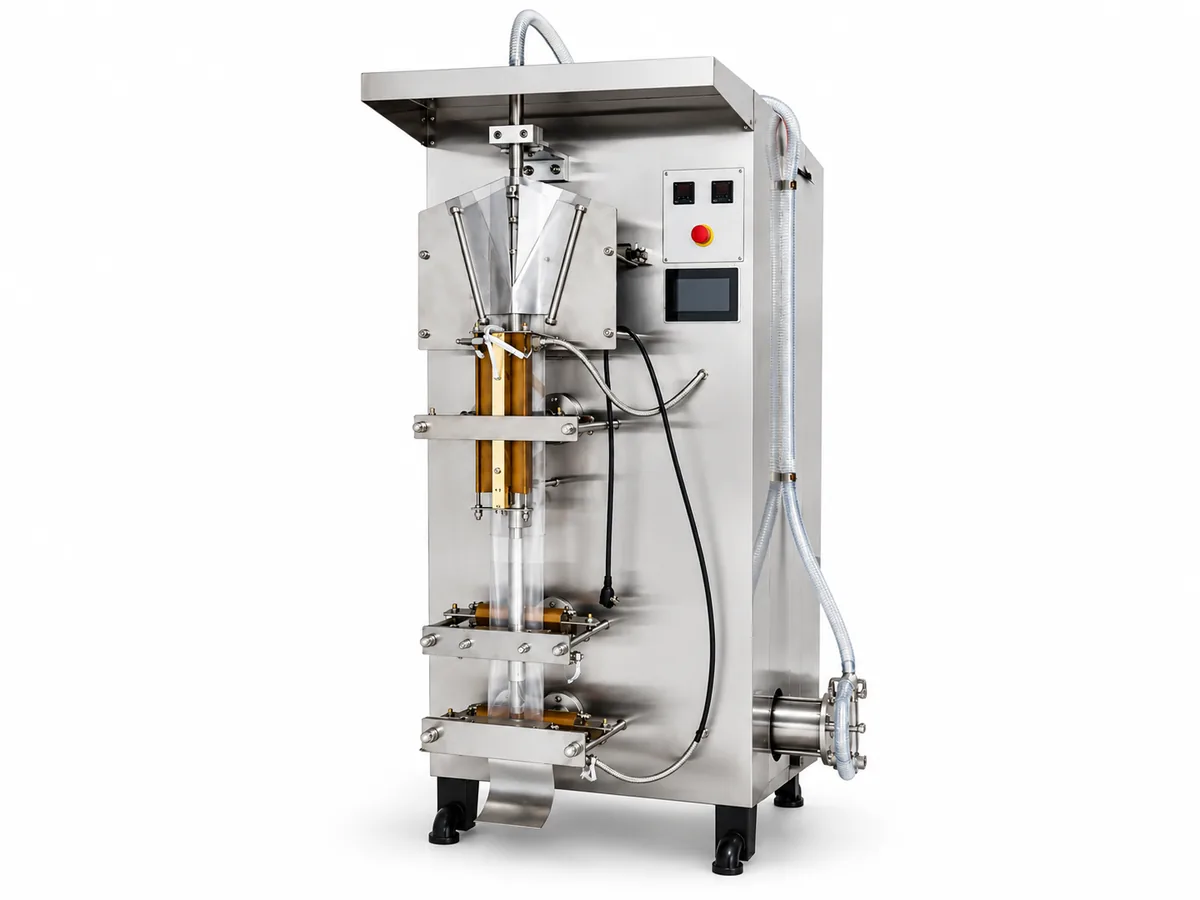

Center Sealing
Center vertical sealing with a symmetrical pouch appearance, suitable for standard display packaging.

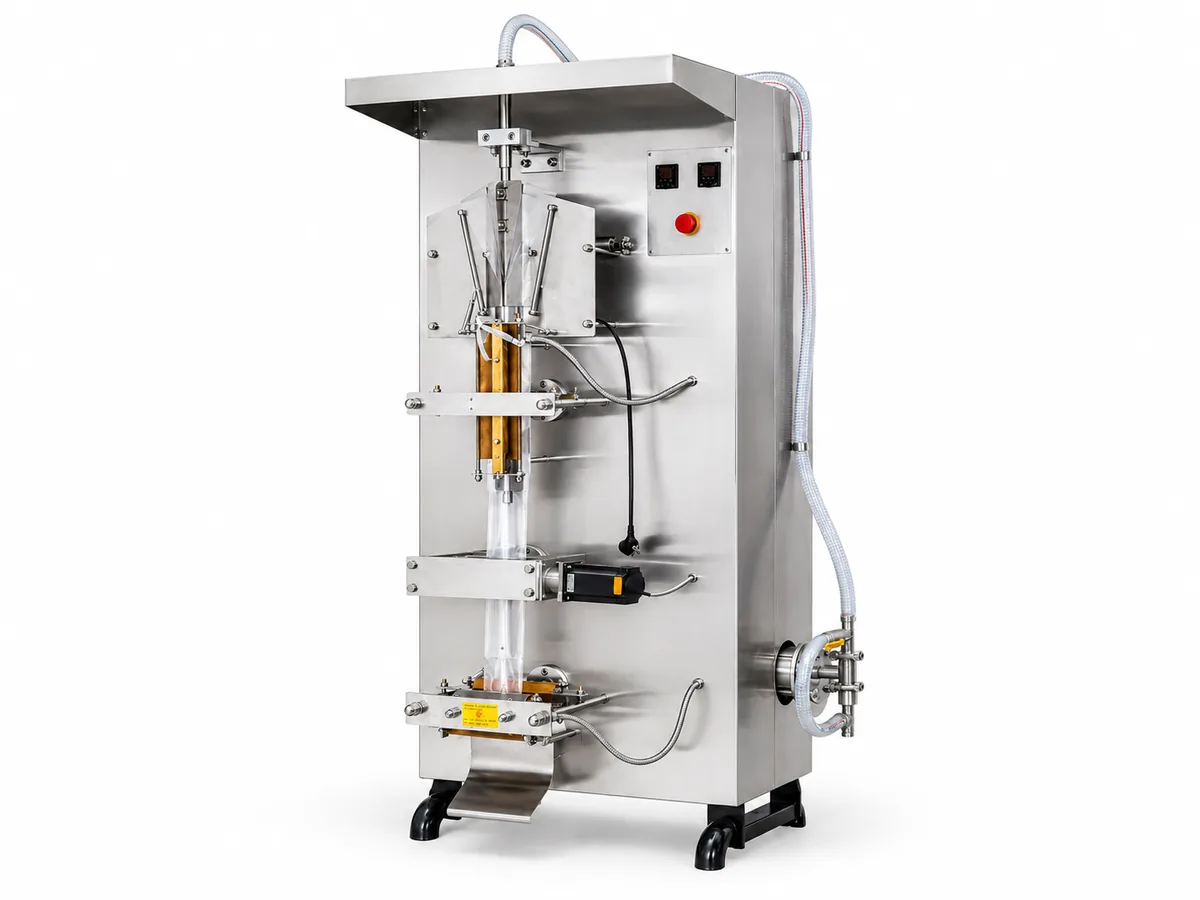

Side Sealing
Side sealing configuration for wider pouch formats and products requiring special sealing arrangements.
Technical Specifications
Technical specifications for standard liquid packaging machine configurations. Final specifications may vary according to bag type, packaging film and customization requirements.
| Specification | SJ1000 Back Sealing |
ZF-1000 Center Sealing |
BF-1000 Side Sealing |
|---|---|---|---|
| Filling Range | 50–550 mL | 50–550 mL | 50–550 mL |
| Bag Length | 50–150 mm | 50–150 mm | 50–150 mm |
| Bag Width | 40–150 mm | 65–150 mm | 120–160 mm |
| Film Width | 100–320 mm | 150–320 mm | 240–320 mm |
| Packing Speed | 33–37 bags/min | 28 bags/min | 28 bags/min |
| Power Supply | 220 V / 50 Hz / 1.6 kW | 220 V / 50 Hz / 2.1 kW | 220 V / 50 Hz / 2.1 kW |
| Machine Dimensions | 880 × 760 × 1800 mm | 1050 × 850 × 2050 mm | 1050 × 850 × 2050 mm |
| Machine Weight | 275 kg | 370 kg | 370 kg |
| Specification | SJ2000 Back Sealing |
ZF-2000 Center Sealing |
|---|---|---|
| Filling Range | 200–1000 mL | 200–1000 mL |
| Bag Length | 50–250 mm | 50–250 mm |
| Bag Width | 40–175 mm | 65–175 mm |
| Film Width | 100–380 mm | 150–380 mm |
| Packing Speed | 19–22 bags/min | 19–25 bags/min |
| Power Supply | 220 V / 50 Hz / 2.5 kW | 220 V / 50 Hz / 2.5 kW |
| Machine Dimensions | 1050 × 850 × 2050 mm | 1050 × 850 × 2050 mm |
| Machine Weight | 380 kg | 380 kg |
Parameters are based on standard configurations and may vary according to bag type, packaging film and customization requirements.
Typical Applications
Suitable for automatic packaging of free-flowing liquids including beverages, dairy products, seasonings and daily chemical liquids.
Beverages & Rice Wine
Suitable for beverages, rice wine and other free-flowing drink products.
Milk & Soy Milk
Automatic packaging for milk, soy milk and similar free-flowing liquid products.
Soy Sauce & Vinegar
Suitable for soy sauce, vinegar, seasoning liquids and similar food products.
Shampoo & Detergent
Suitable for shampoo, detergent and other free-flowing daily chemical liquids.
Optional Configurations
Optional auxiliary equipment can be selected according to product characteristics, packaging requirements and production needs.

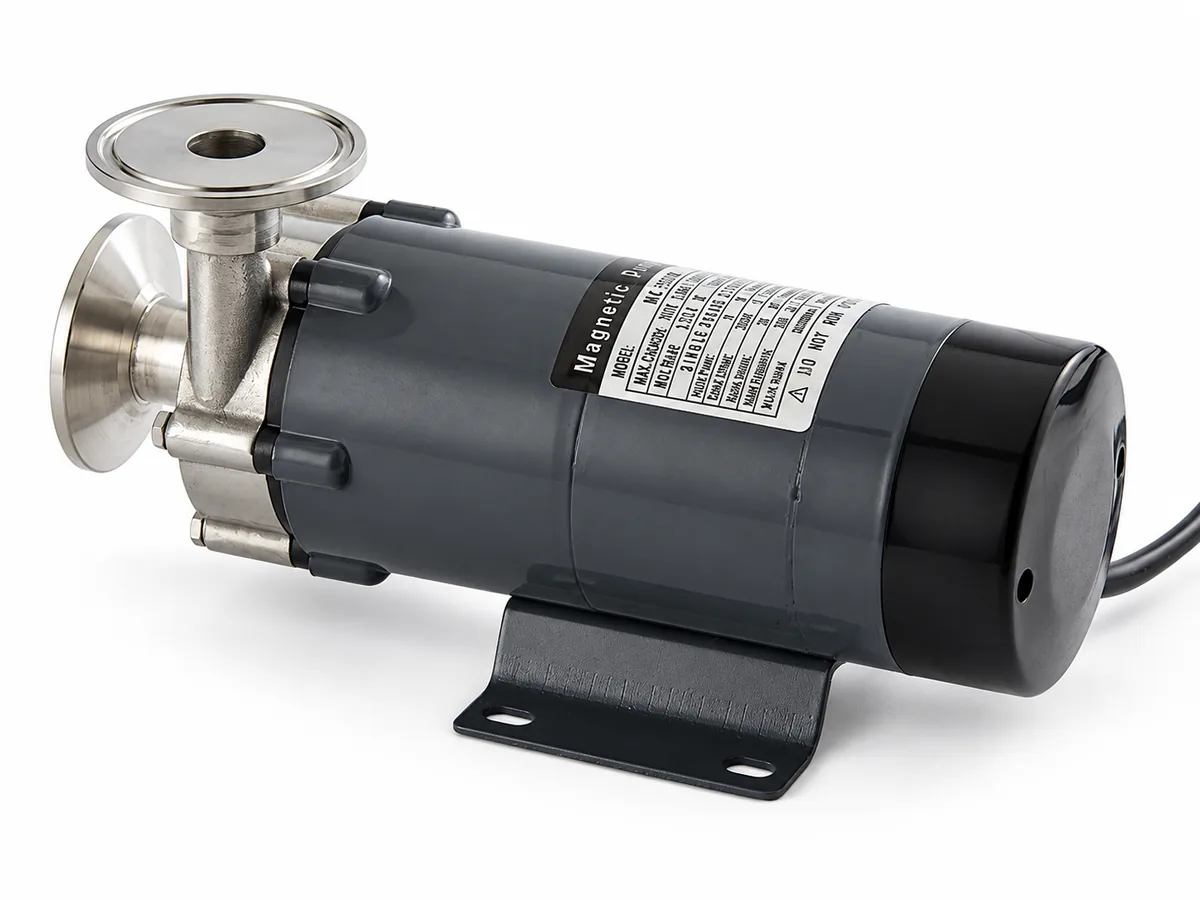

Feeding Pump
Provides stable and continuous liquid feeding to the packaging machine.

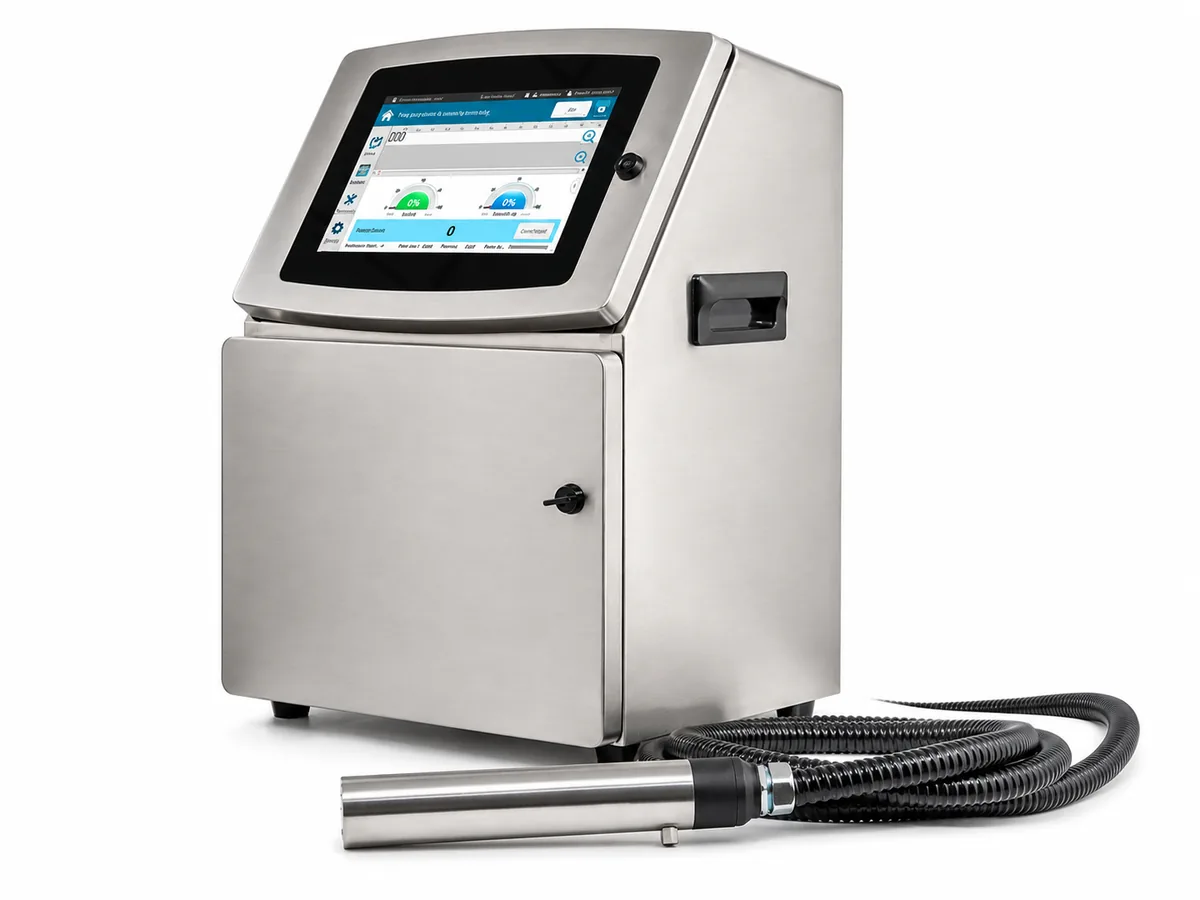

Coding Printer
Prints production date, batch number and other required information.

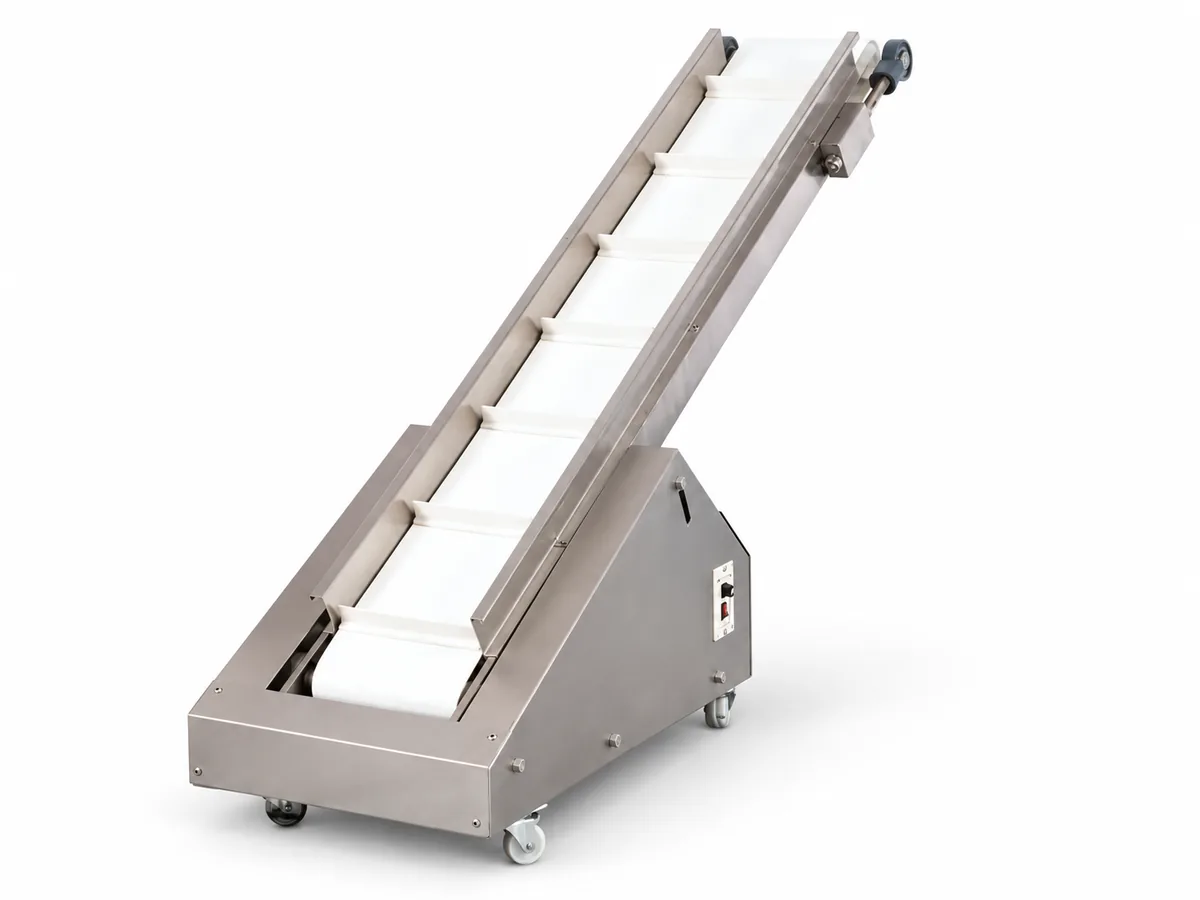

Take-Away Conveyor
Transfers finished pouches to downstream collection or handling.

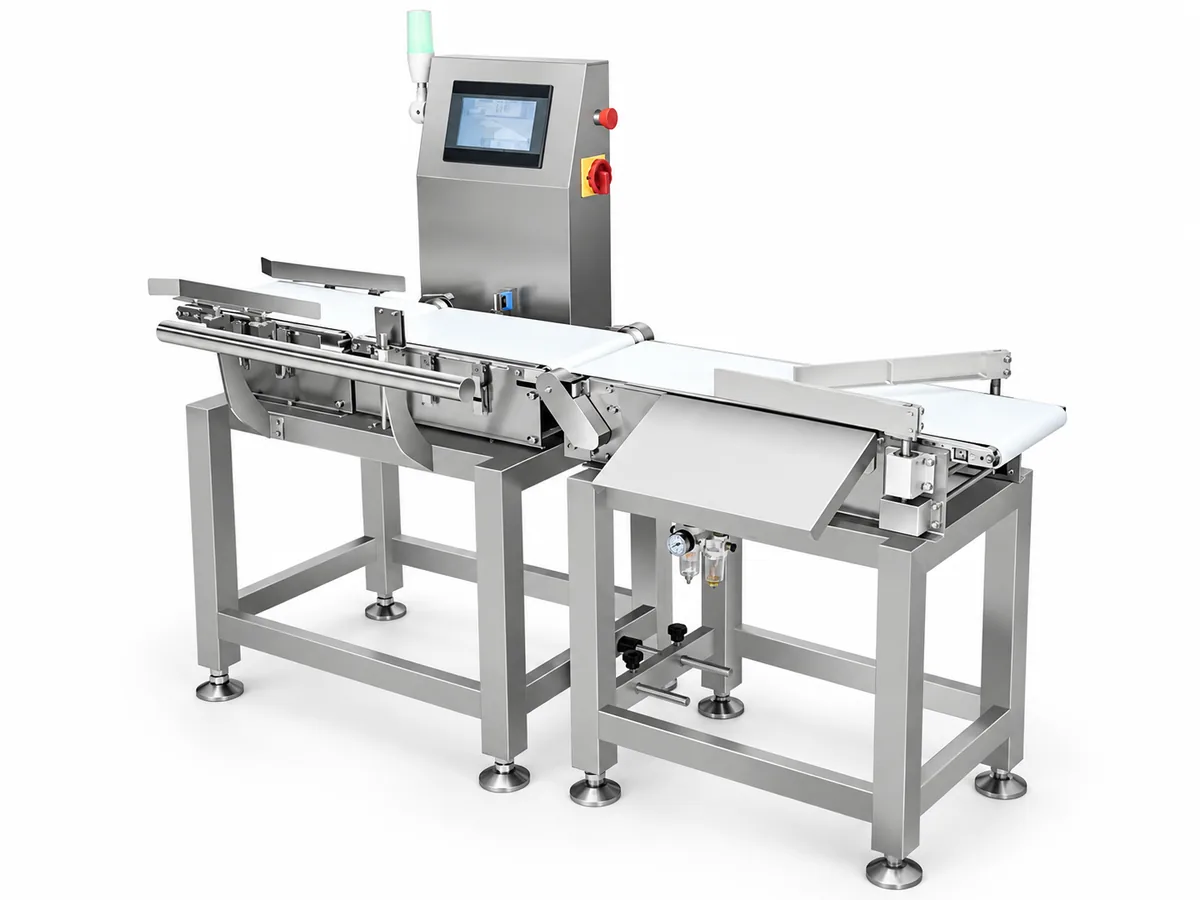

Checkweigher
Checks finished pouch weight for quality control and product inspection.
Need a Liquid Packaging Machine for Your Project?
Tell us your product characteristics, required packaging range and production requirements, and we will recommend a suitable machine configuration.
