Microporous Membrane Filter
Designed for sanitary liquid filtration, this microporous membrane filter features a hygienic stainless steel housing, sanitary connections and an easy-to-clean structure. Multiple filter element configurations are available to meet different flow rates and filtration requirements.
Configuration Overview
Flexible filter configurations for different flow rates and process requirements.
0.3–42 t/h
Flow Range
1–21 Elements
Filter Elements
254–1016 mm
Cartridge Length
Clamp / Thread / Flange
Connection Options
Available Configurations

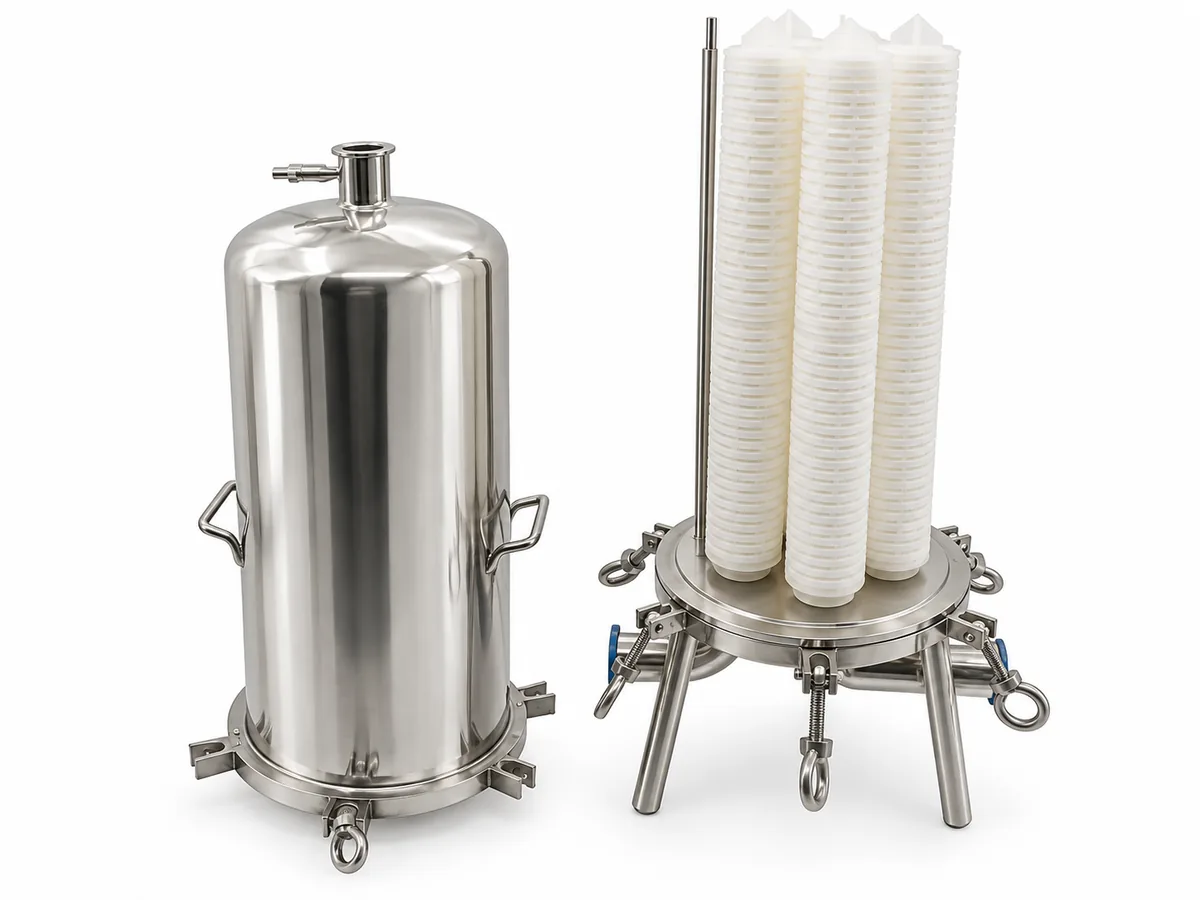

Standard Multi-Cartridge Filter
General configuration for sanitary liquid filtration with multiple cartridges.

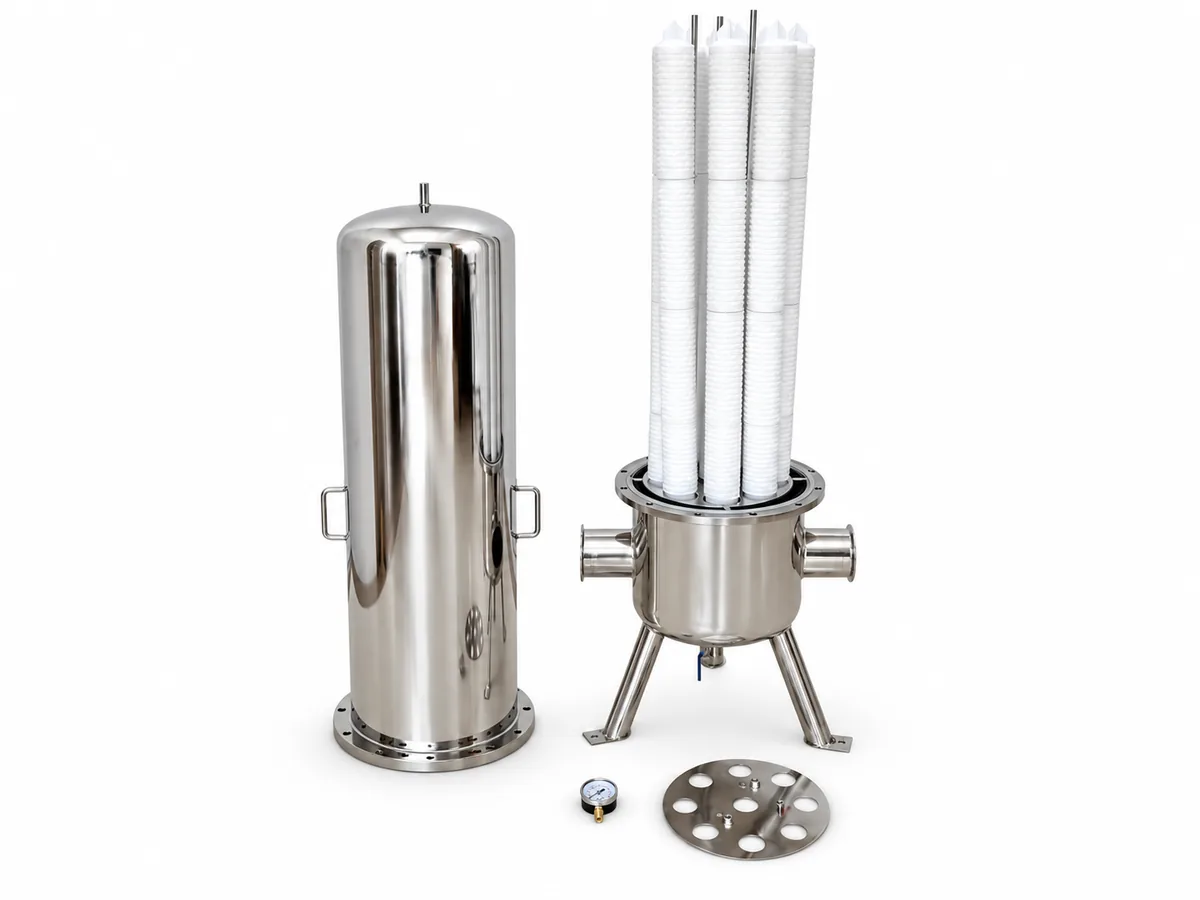

Extended-Length Cartridge Filter
Longer cartridge options for different filtration and flow requirements.

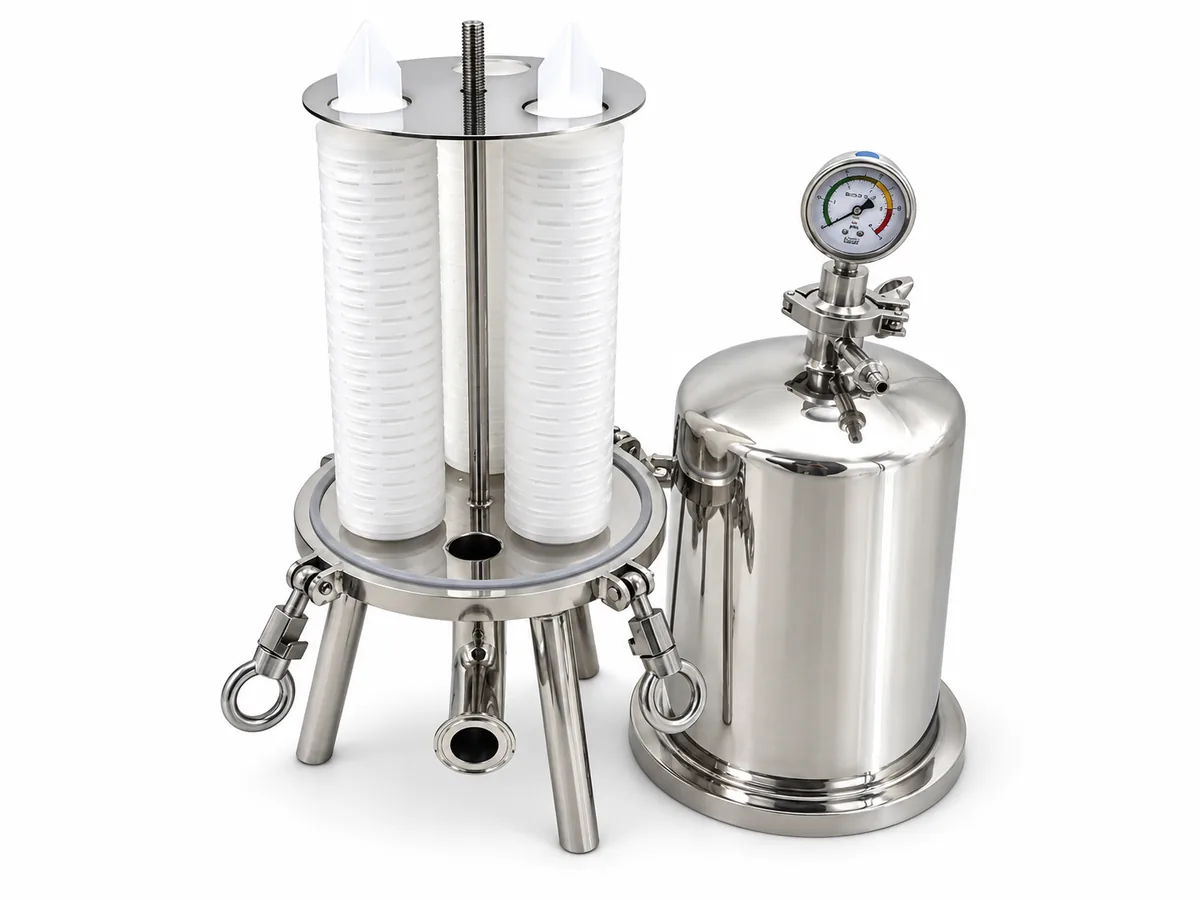

Multi-Cartridge Filter Housing
Removable cartridge assembly for flexible sanitary filtration systems.
Technical Specifications
Specifications can be customized according to flow rate, filter elements, cartridge length and connection requirements.
| Filter Elements | Flow Range | Cartridge Length | Inlet / Outlet | Connection |
|---|---|---|---|---|
| 1 | 0.3–1.5 t/h | 254–762 mm | 25 mm | Clamp |
| 3 | 1.0–4.5 t/h | 254–762 mm | 32–38 mm | Clamp |
| 5 | 1.5–7.5 t/h | 254–762 mm | 32–38 mm | Clamp |
| 7 | 5.0–14 t/h | 254–762 mm | 38–48 mm | Clamp / Thread / Flange |
| 9 | 6.0–15 t/h | 508–1016 mm | 48 mm | Clamp / Thread / Flange |
| 12 | 6.0–24 t/h | 508–1016 mm | 48–57 mm | Clamp / Thread / Flange |
| 15 | 8.0–30 t/h | 508–1016 mm | 76 mm | Thread / Flange |
| 21 | 12–42 t/h | 508–1016 mm | 89 mm | Thread / Flange |
Typical Applications
Suitable for sanitary liquid filtration across food, pharmaceutical, chemical and water processing applications.
Food & Beverage
Clarification and fine filtration for beverages and liquid ingredients.
Pharma & Biotech
Sanitary filtration for pharmaceutical and biotech liquids.
Chemical Processing
Fine filtration for compatible chemical and process liquids.
Water Treatment
Polishing filtration for purified and process water systems.
Optional Configurations
Filter specifications can be configured to match different flow rates, piping and process requirements.

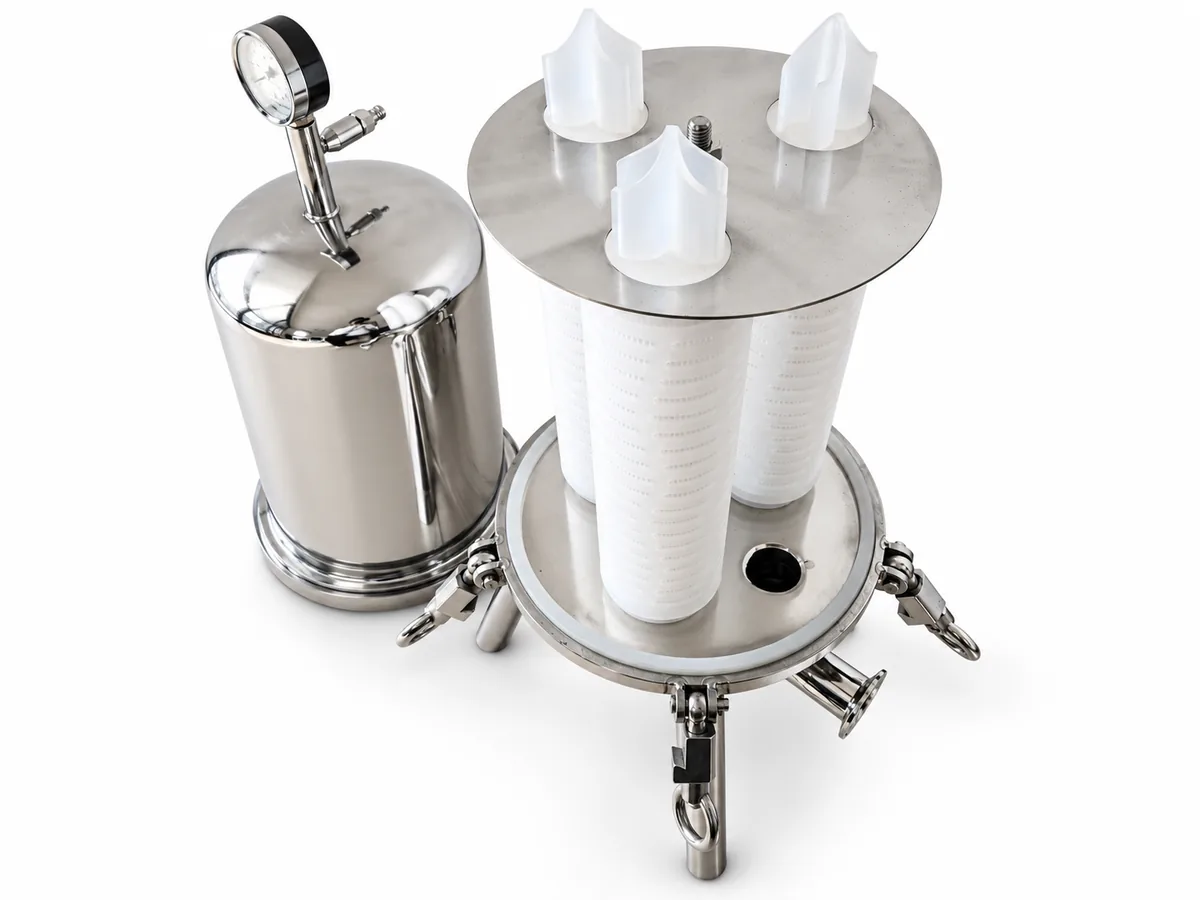

Filter Element Quantity
Multiple element configurations are available for different flow requirements.

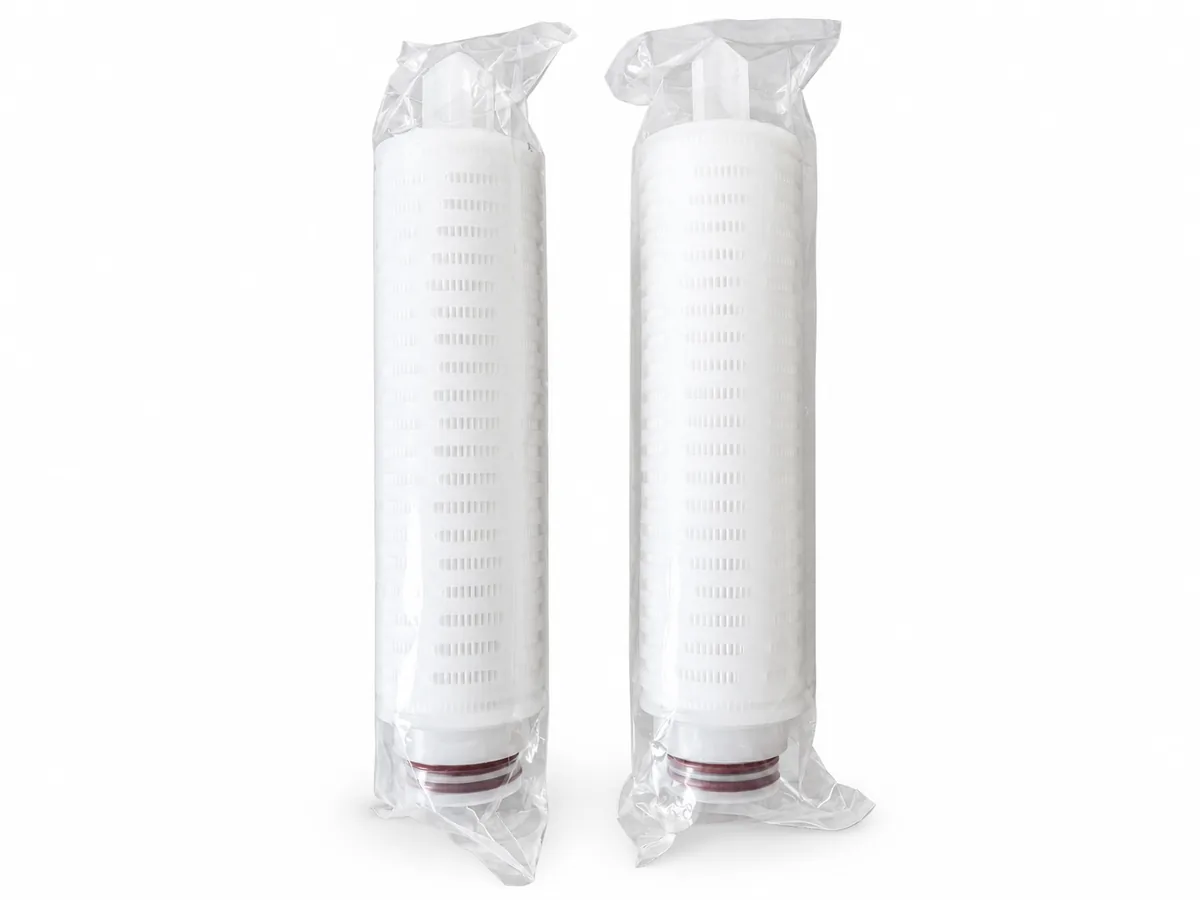

Filter Cartridge Options
Replaceable cartridges can be selected for different filtration requirements.

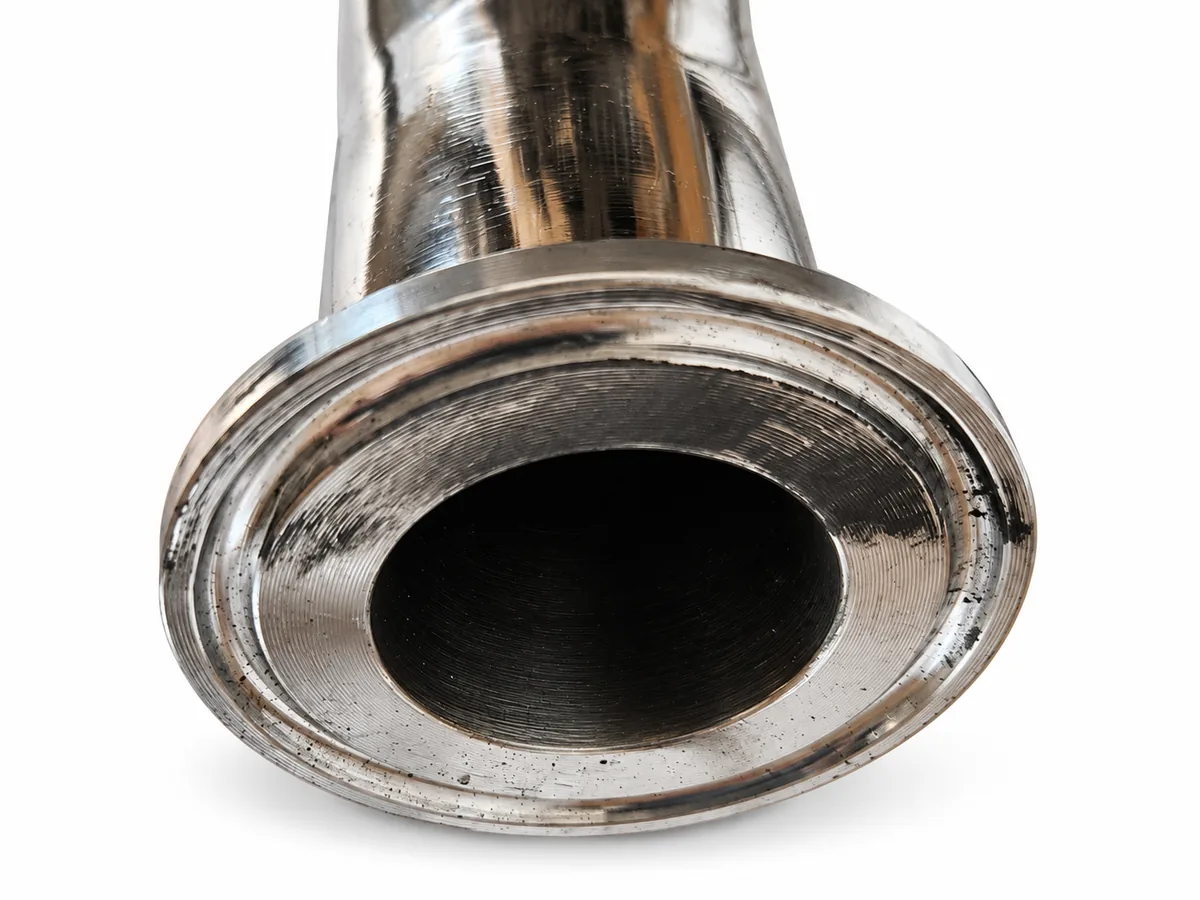

Sanitary Connections
Clamp, thread and flange connections are available for different piping layouts.

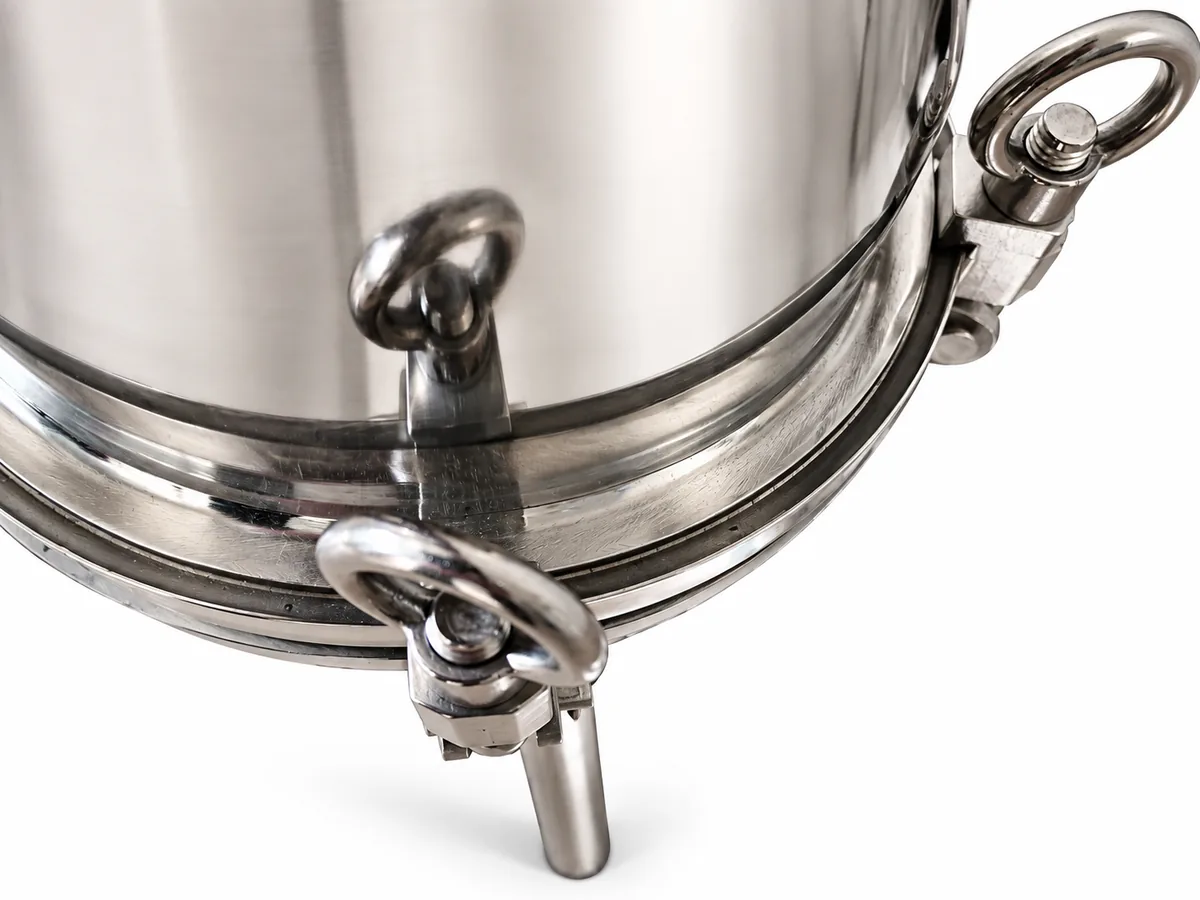

Quick-Opening Clamp
Quick-opening design supports easier cleaning and routine maintenance.
Need a Microporous Membrane Filter for Your Process?
Tell us your required flow rate, filter element quantity, cartridge length, connection type and application. Our team will help you select a suitable microporous membrane filter configuration.
