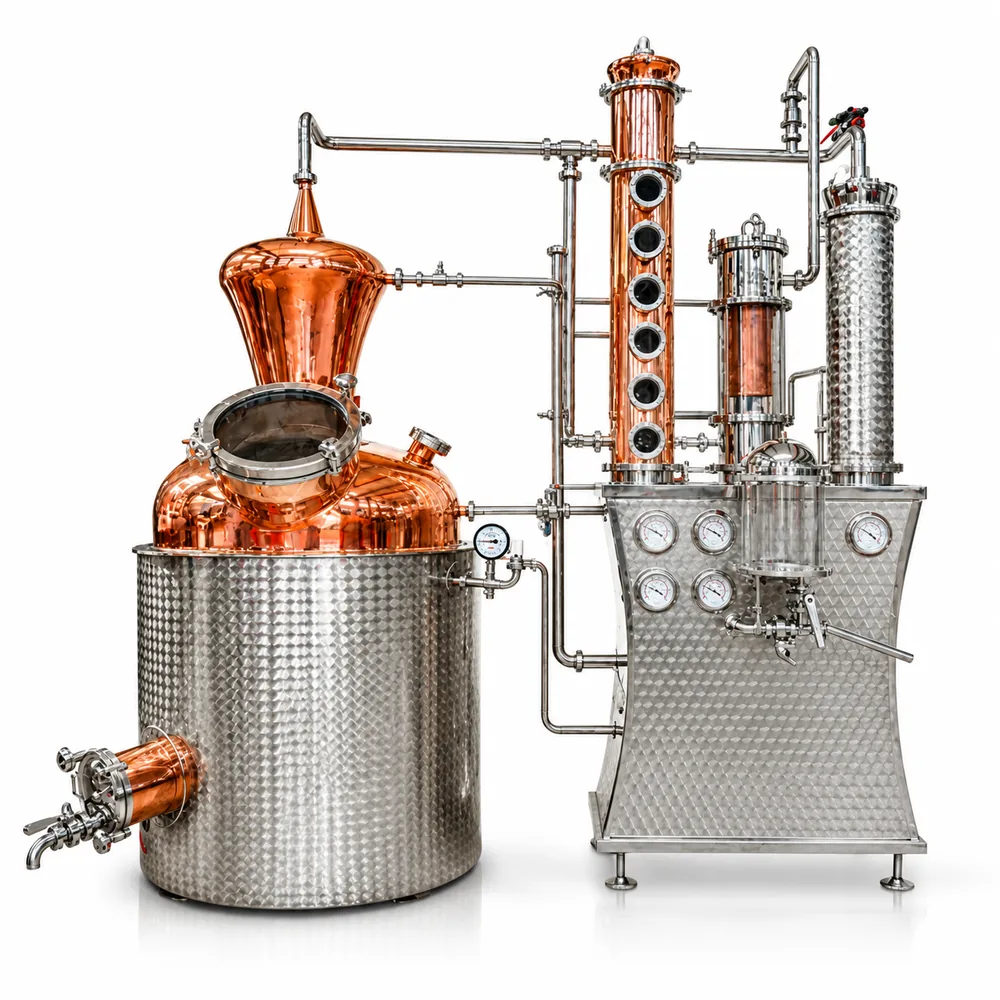

Multi-Functional Distillation System
A versatile stainless steel and copper distillation system designed for whisky, brandy, gin, rum, fruit spirits and other distilled products. Configurable with a copper pot head, rectification column, dephlegmator, condenser and sight glasses to meet different batch capacities and process requirements.
Configuration Overview
Flexible configurations for different capacities, heating methods and distillation requirements.
Custom Capacity
Working Capacity
Pot Still / Plate Column
Structure Type
SUS304 / SUS316L + Copper
Material
Electric / Steam
Heating Method
Available Configurations

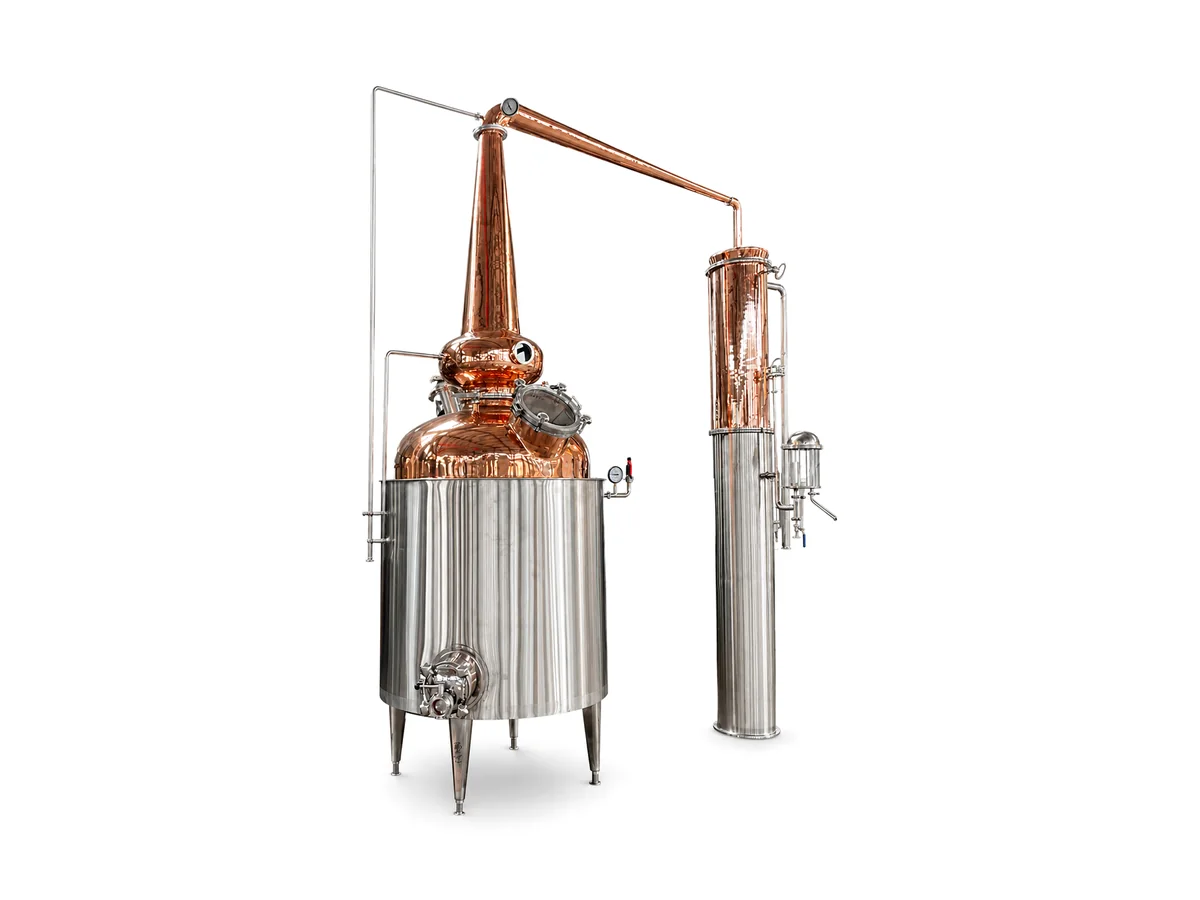

Copper Pot Distillation
System
Traditional copper pot design for craft spirit distillation and flavor-focused production.

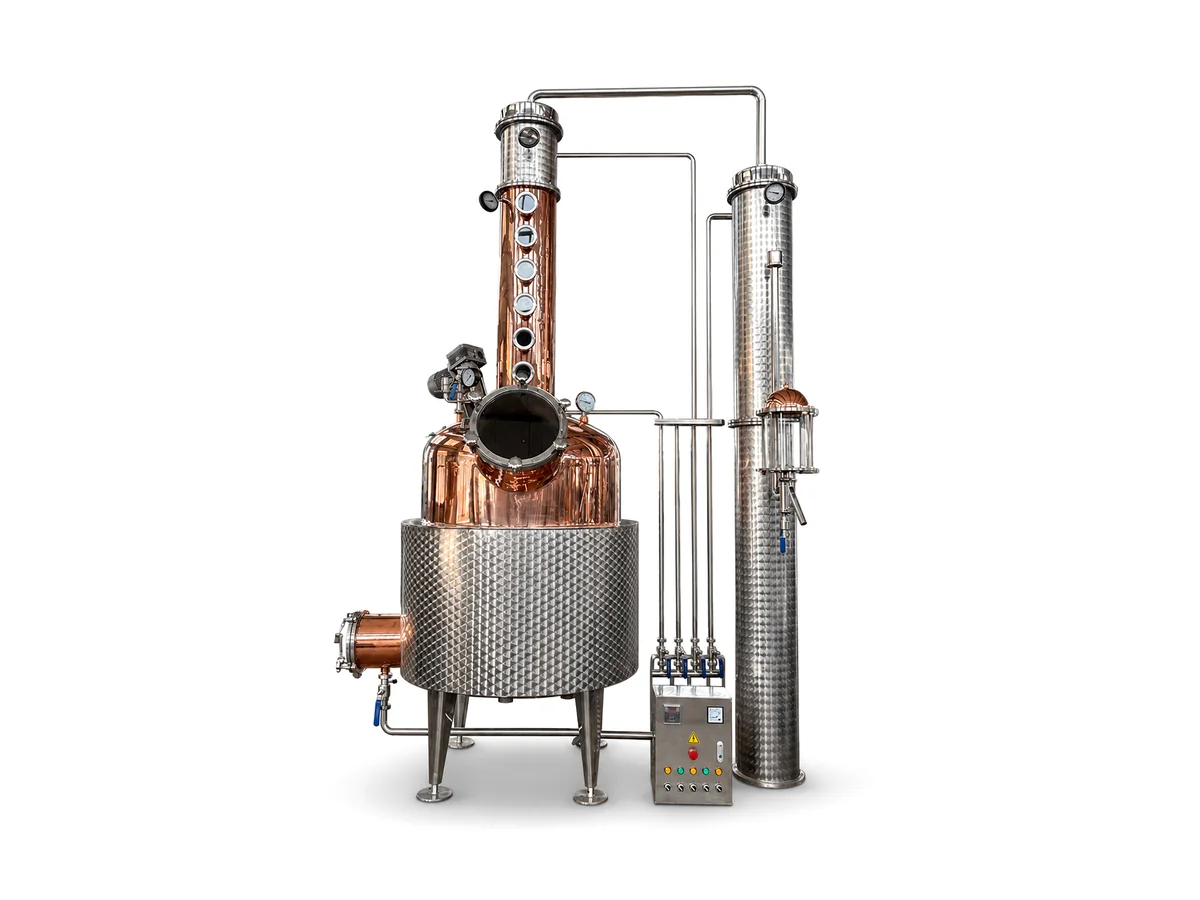

Plate Column Distillation
System
Sight-glass plate column configuration for flexible reflux and separation control.

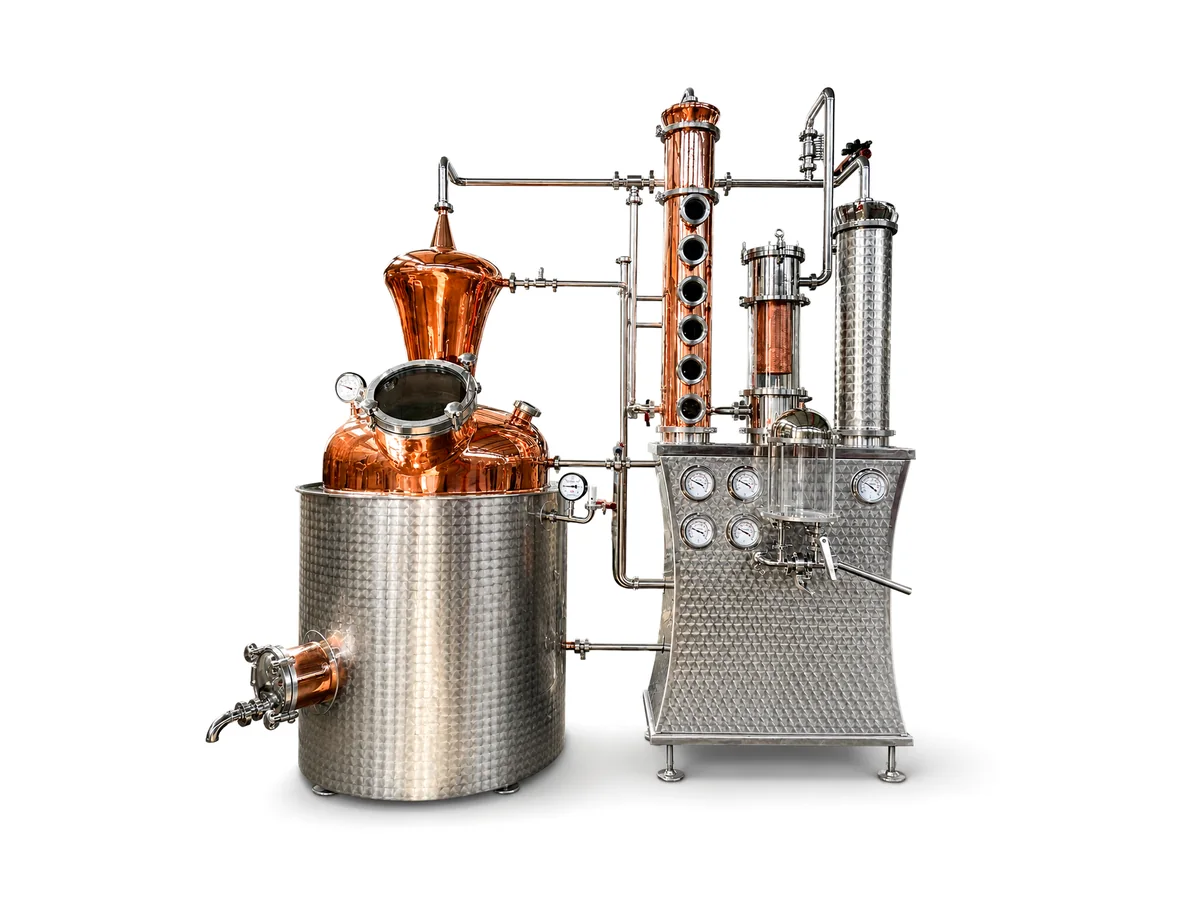

Copper & Stainless Steel
Distillation System
Stainless steel construction with copper process parts for versatile distillation applications.

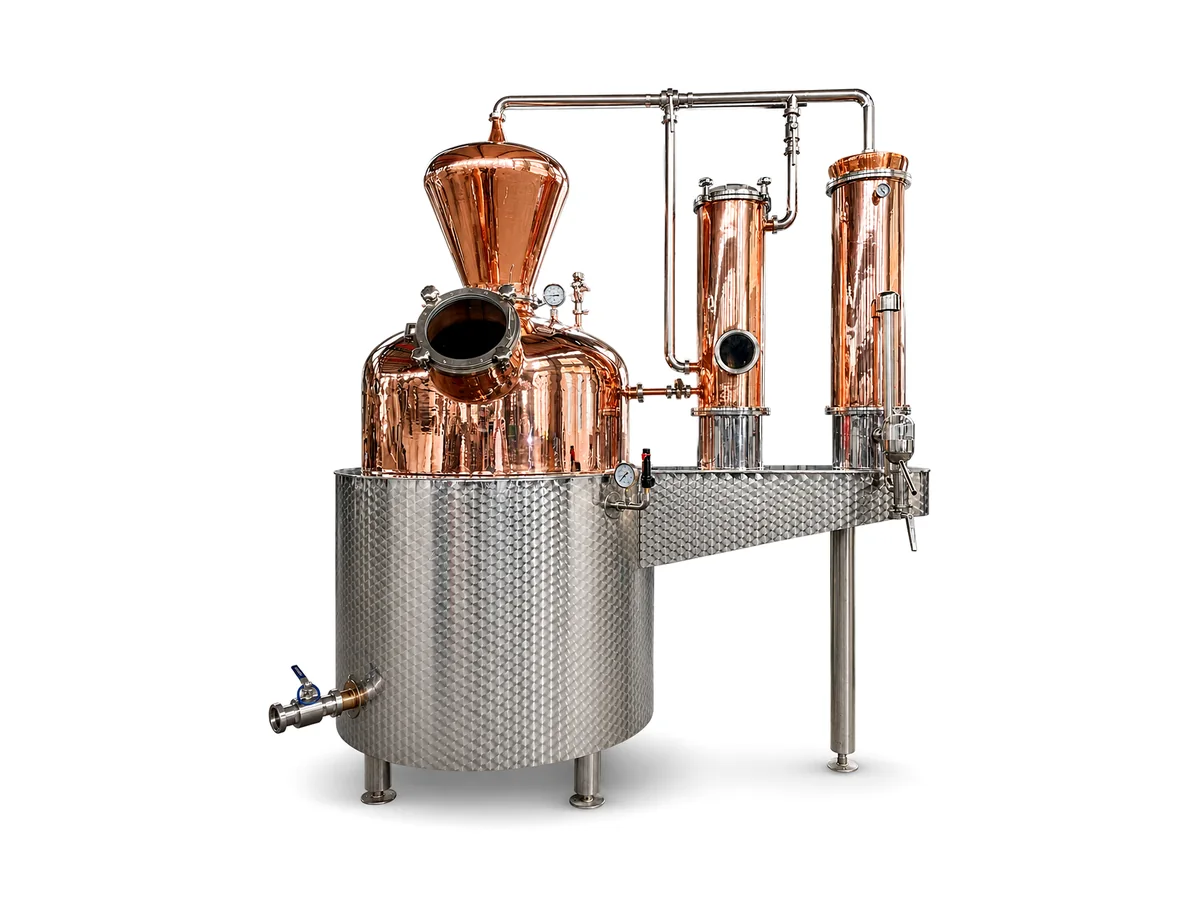

Customized Distillation
System
Capacity, heating, column design and connections can be customized to process needs.

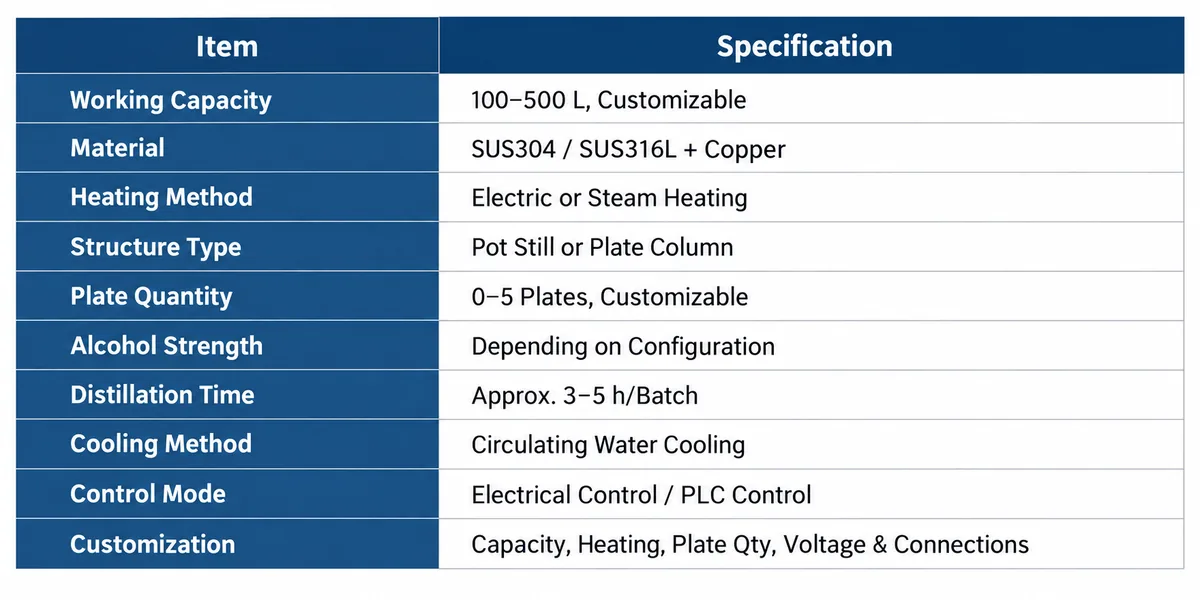

Technical Specifications
Specifications can be customized according to capacity, heating method and distillation requirements.
| Item | Specification |
|---|---|
| Working Capacity | Customizable |
| Material | SUS304 / SUS316L + Copper Components |
| Heating Method | Electric / Steam, Optional |
| Structure Type | Pot Still / Plate Column |
| Plate Quantity | Customizable |
| Alcohol Strength | Depends on Process & Configuration |
| Distillation Time | Depends on Capacity & Process |
| Cooling Method | Circulating Water Cooling |
| Control Mode | Electrical / PLC Control, Optional |
| Customization | Capacity, Heating, Column, Voltage & Connections |
Typical Applications
Designed for whisky, brandy, gin, rum, fruit spirits and other craft spirit production.
Whisky & Whiskey
Suitable for pot still and reflux configurations for whisky and whiskey production.
Brandy & Fruit Spirits
Designed for brandy and fruit spirit distillation with optional copper-contact process components.
Gin & Botanical Spirits
Suitable for gin and botanical spirit production with configurable reflux and condensation systems.
Rum & Craft Spirits
Flexible distillation configurations for rum and other craft spirit production.
Optional Configurations
Distillation components, heating method and process monitoring options can be configured to suit different production requirements.

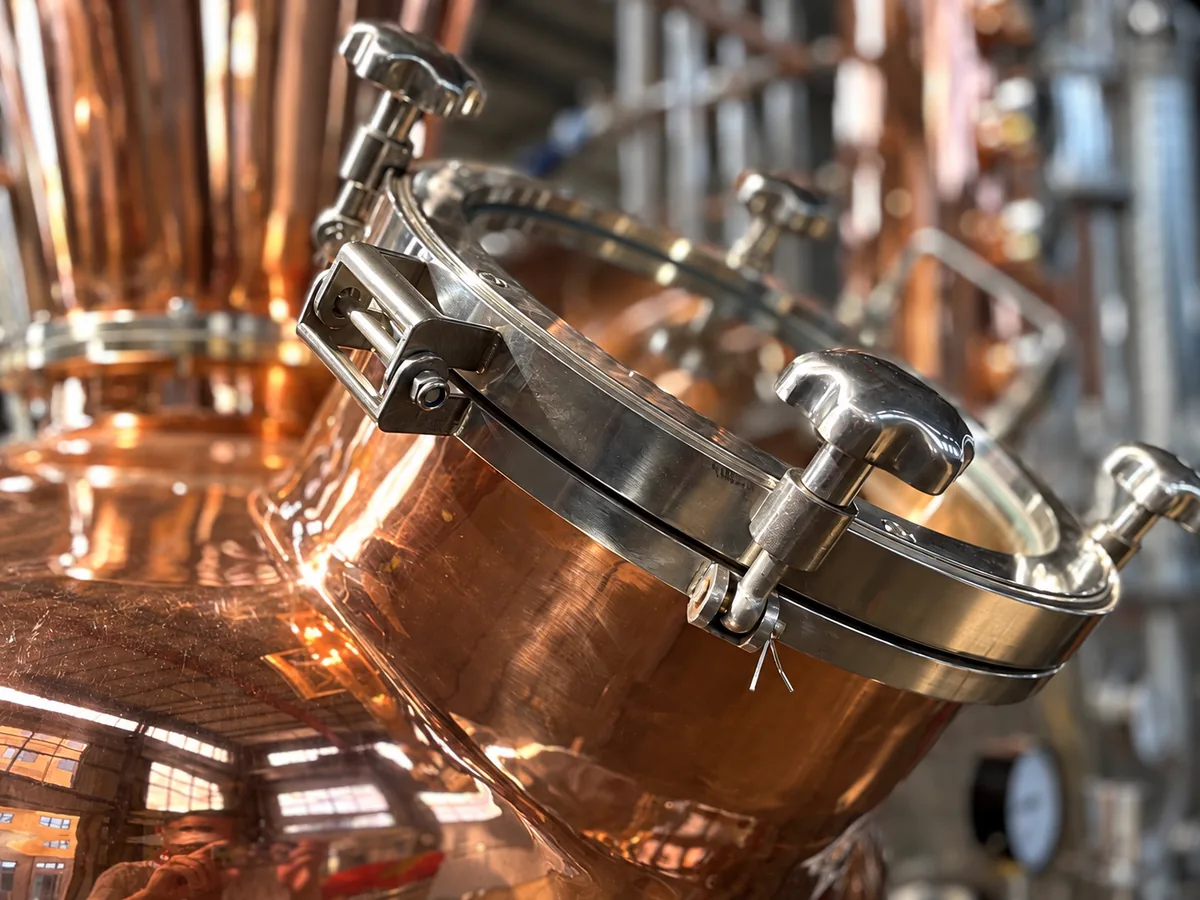

Quick-Opening Manway
Provides convenient access for cleaning, inspection and maintenance.

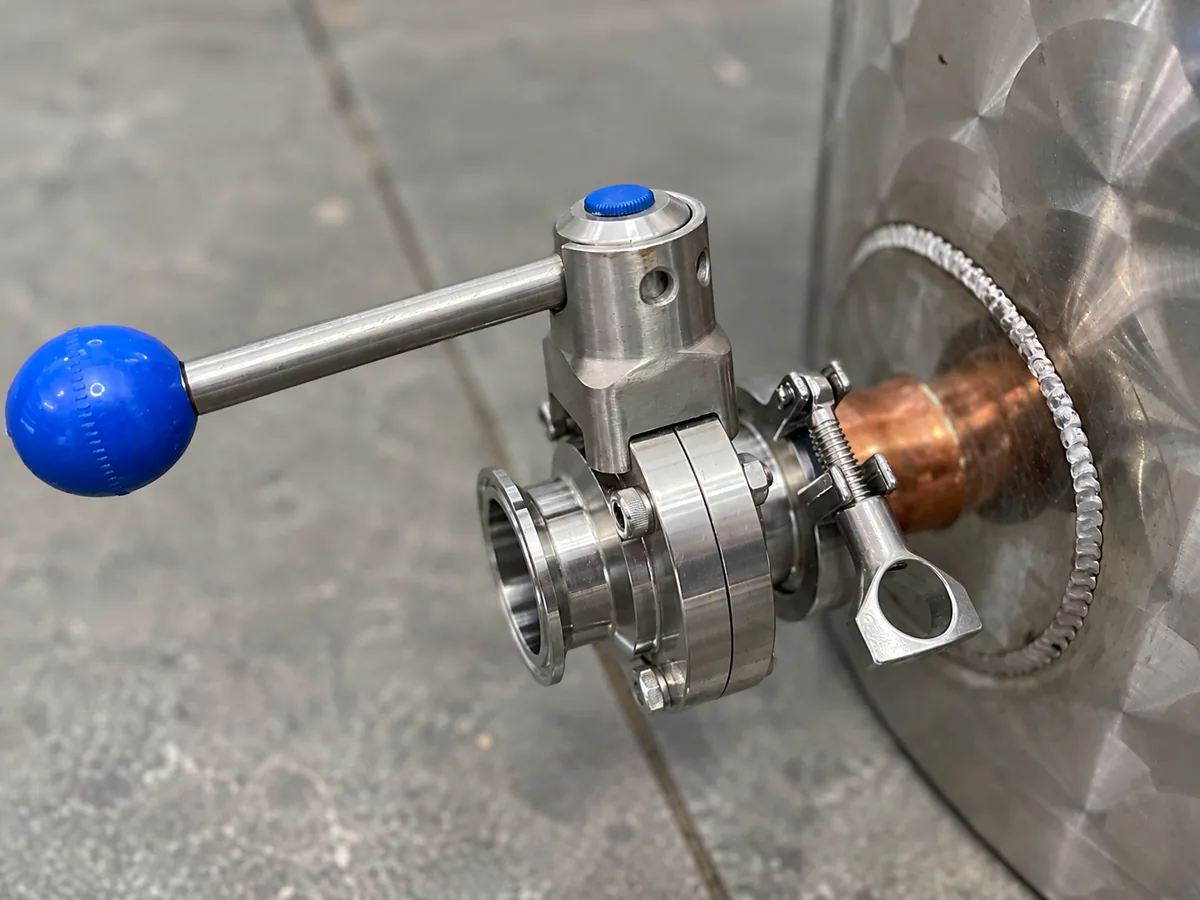

Sanitary Valve
Sanitary valves and process connections can be configured to suit different piping requirements.

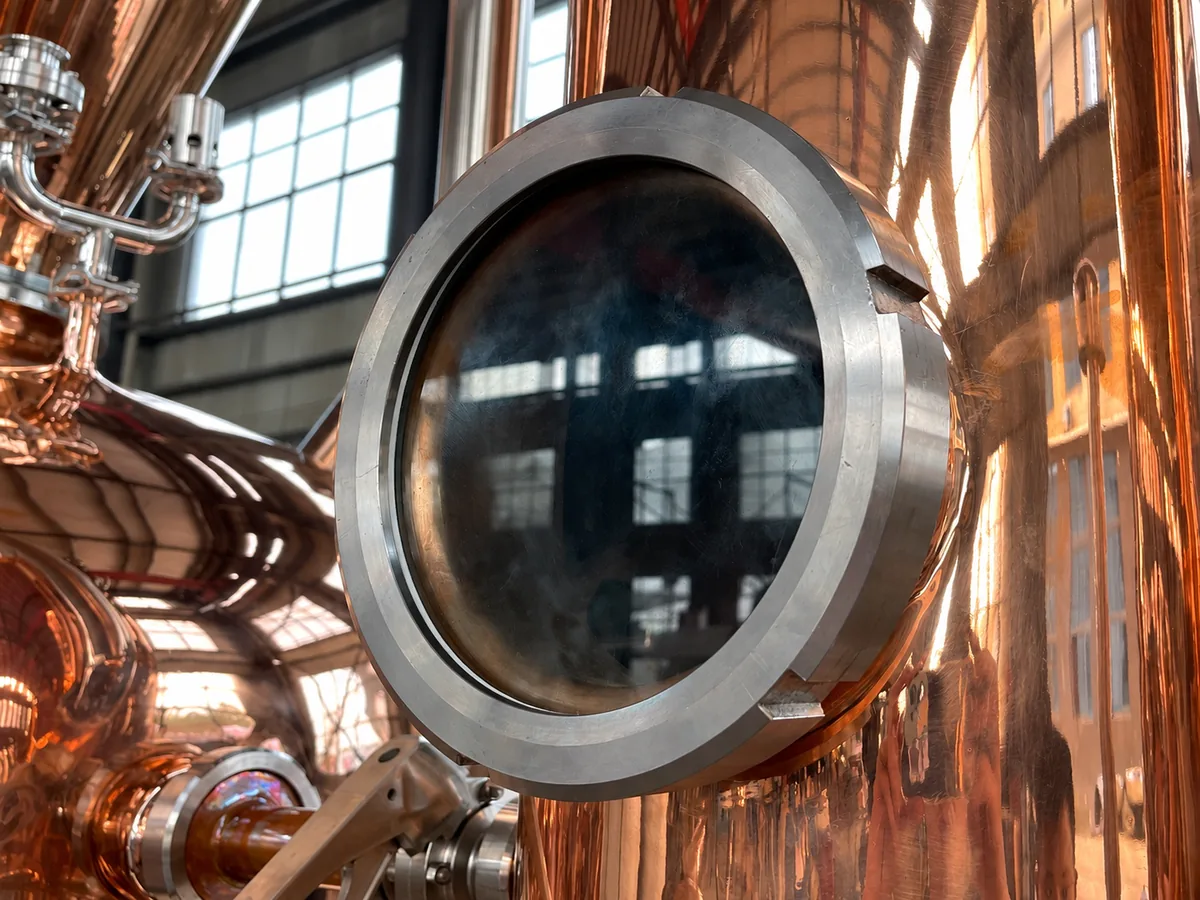

Sight Glass
Allows convenient visual monitoring of the distillation process.

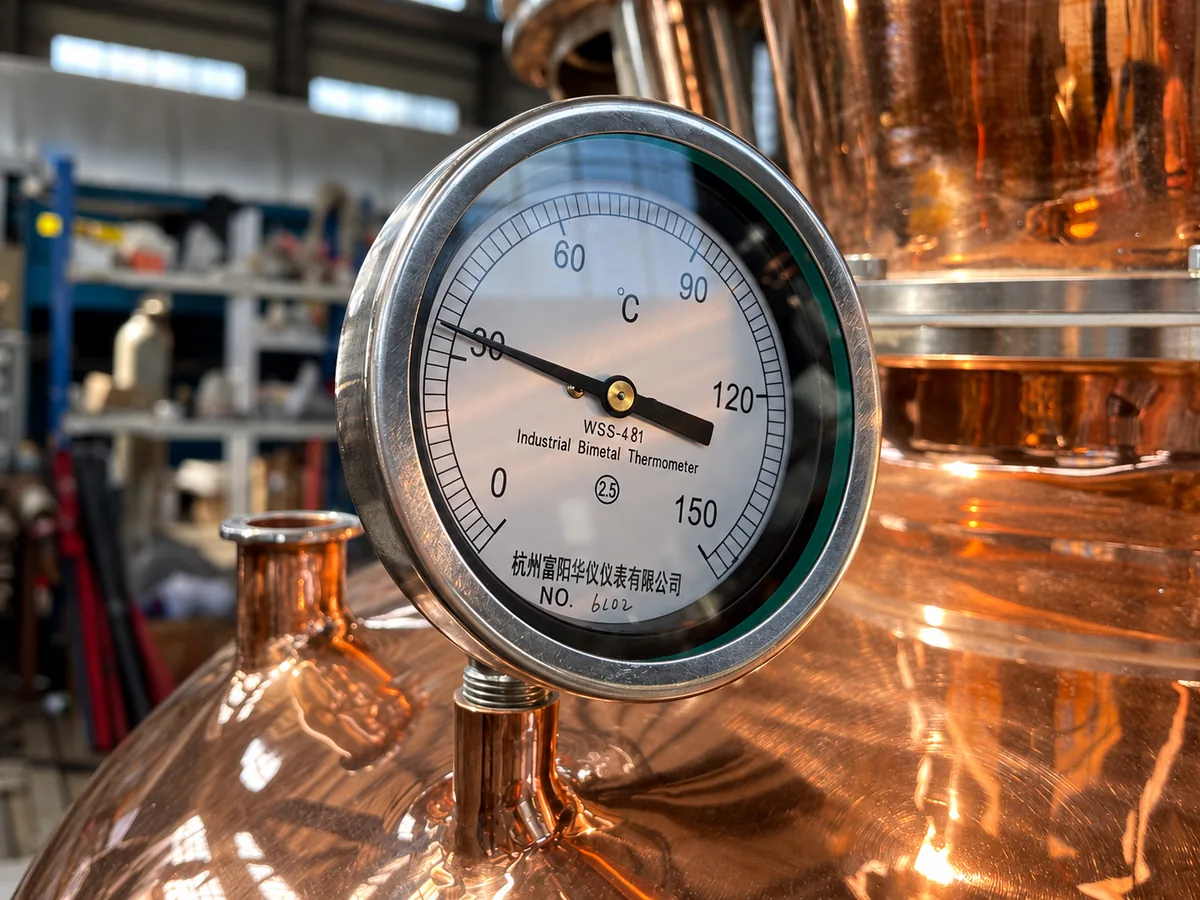

Temperature Monitoring
Bimetal thermometer provides direct temperature monitoring during the distillation process.
Need a Multi-Functional Distillation System for Your Process?
Tell us your raw material, required batch capacity, heating method and process requirements. Our team will help you select a suitable Multi-Functional Distillation System configuration.
