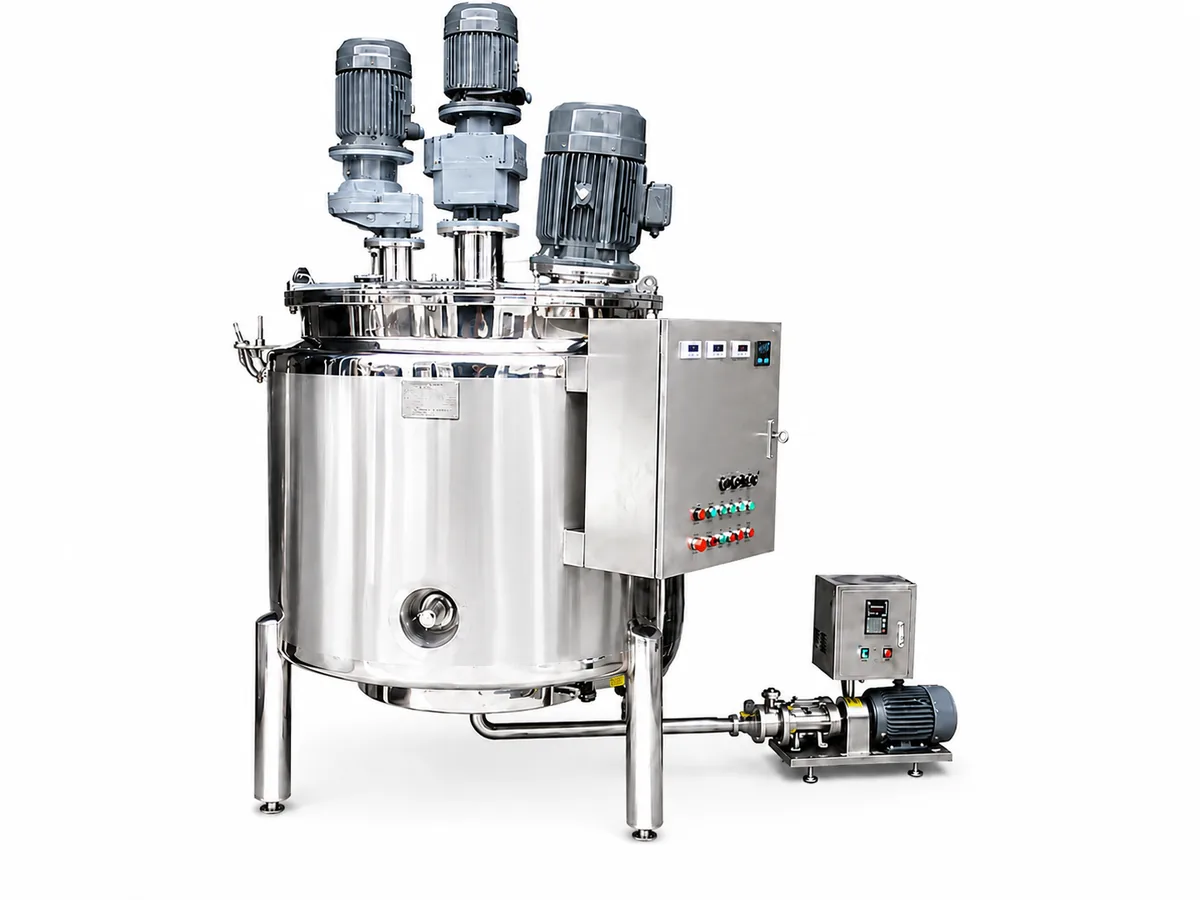

Multifunctional Dispersing Tank
Stainless steel multifunctional dispersing tank designed for high-shear dispersing, homogenizing, mixing and dissolving. Multiple mixing drives and vacuum-assisted processing can be configured to meet different product viscosities and process requirements.
Configuration Overview
Multiple mixing systems can be configured for dispersing, homogenizing, scraping and mixing processes.
Processing Capacity
Model capacities: ≤80 to ≤1600 L
Multi-Drive Mixing
Homogenizer, scraper and impeller
Vacuum Processing
Supports vacuum-assisted dispersion
Stainless Steel Vessel
Designed for versatile process applications
Available Drive Configurations

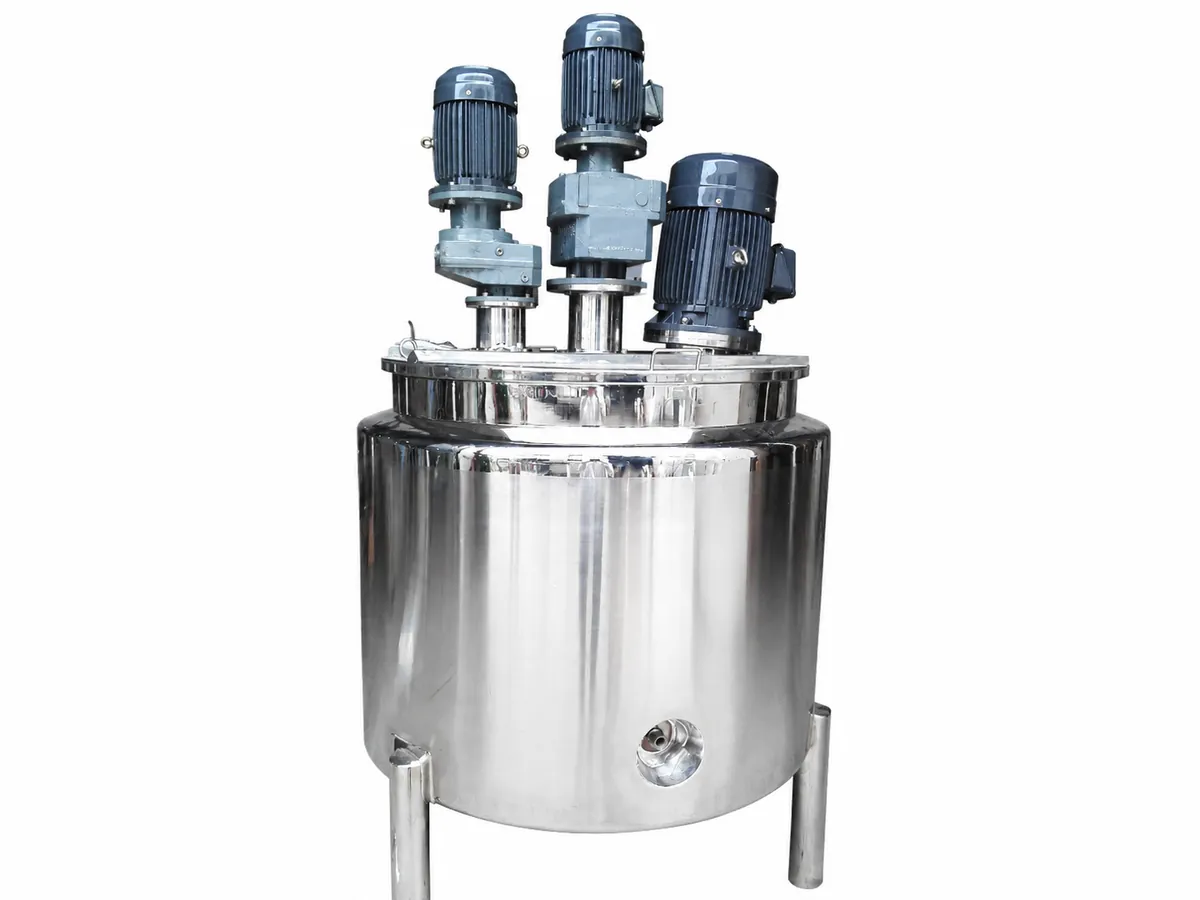

Triple-Drive Configuration
Multiple drives integrated for complex dispersing and mixing processes.

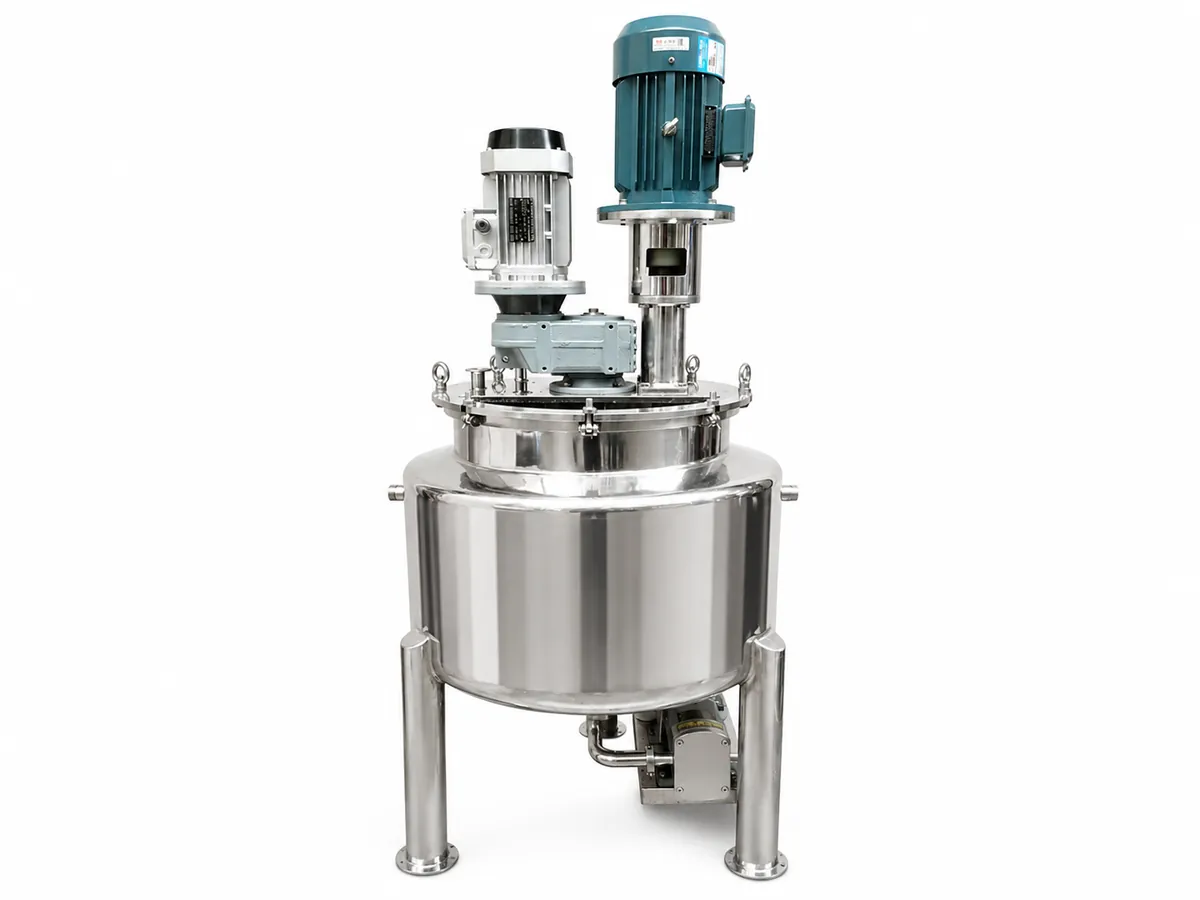

Dual-Drive Configuration
Two independent drives for combined dispersing and mixing processes.

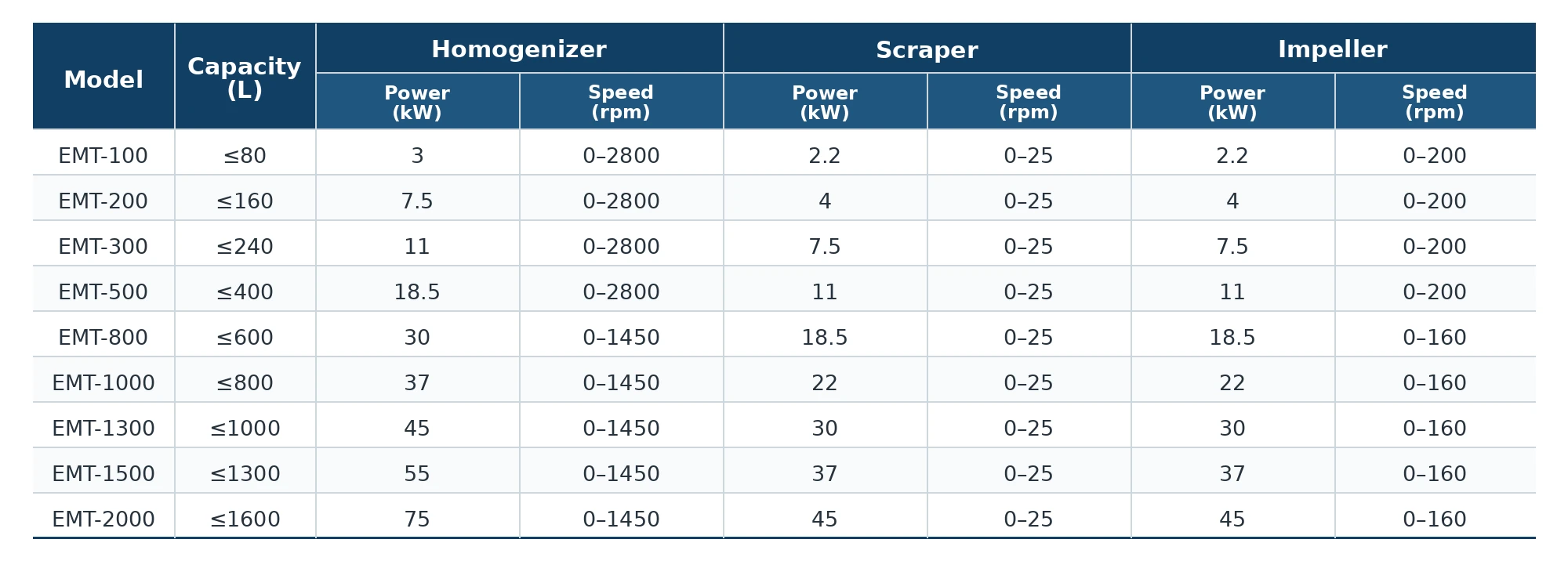

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Model | Capacity (L) |
Homogenizer | Scraper | Impeller | |||
|---|---|---|---|---|---|---|---|
| Power (kW) |
Speed (rpm) |
Power (kW) |
Speed (rpm) |
Power (kW) |
Speed (rpm) |
||
| EMT-100 | ≤80 | 3 | 0–2800 | 2.2 | 0–25 | 2.2 | 0–200 |
| EMT-200 | ≤160 | 7.5 | 0–2800 | 4 | 0–25 | 4 | 0–200 |
| EMT-300 | ≤240 | 11 | 0–2800 | 7.5 | 0–25 | 7.5 | 0–200 |
| EMT-500 | ≤400 | 18.5 | 0–2800 | 11 | 0–25 | 11 | 0–200 |
| EMT-800 | ≤600 | 30 | 0–1450 | 18.5 | 0–25 | 18.5 | 0–160 |
| EMT-1000 | ≤800 | 37 | 0–1450 | 22 | 0–25 | 22 | 0–160 |
| EMT-1300 | ≤1000 | 45 | 0–1450 | 30 | 0–25 | 30 | 0–160 |
| EMT-1500 | ≤1300 | 55 | 0–1450 | 37 | 0–25 | 37 | 0–160 |
| EMT-2000 | ≤1600 | 75 | 0–1450 | 45 | 0–25 | 45 | 0–160 |
Typical Applications
Suitable for dispersing, mixing and homogenizing a wide range of liquid and viscous materials.
Coatings & Inks
Mixing and dispersion for coatings, inks and color pastes.
Adhesives & Resins
Processing of adhesives, binders and resins.
Cosmetics & Skincare
Homogenizing creams, ointments and personal care products.
Battery Materials
Dispersion of lithium battery and new energy materials.
Optional Configurations
Configurations can be tailored to suit different process, piping, installation and operating requirements.

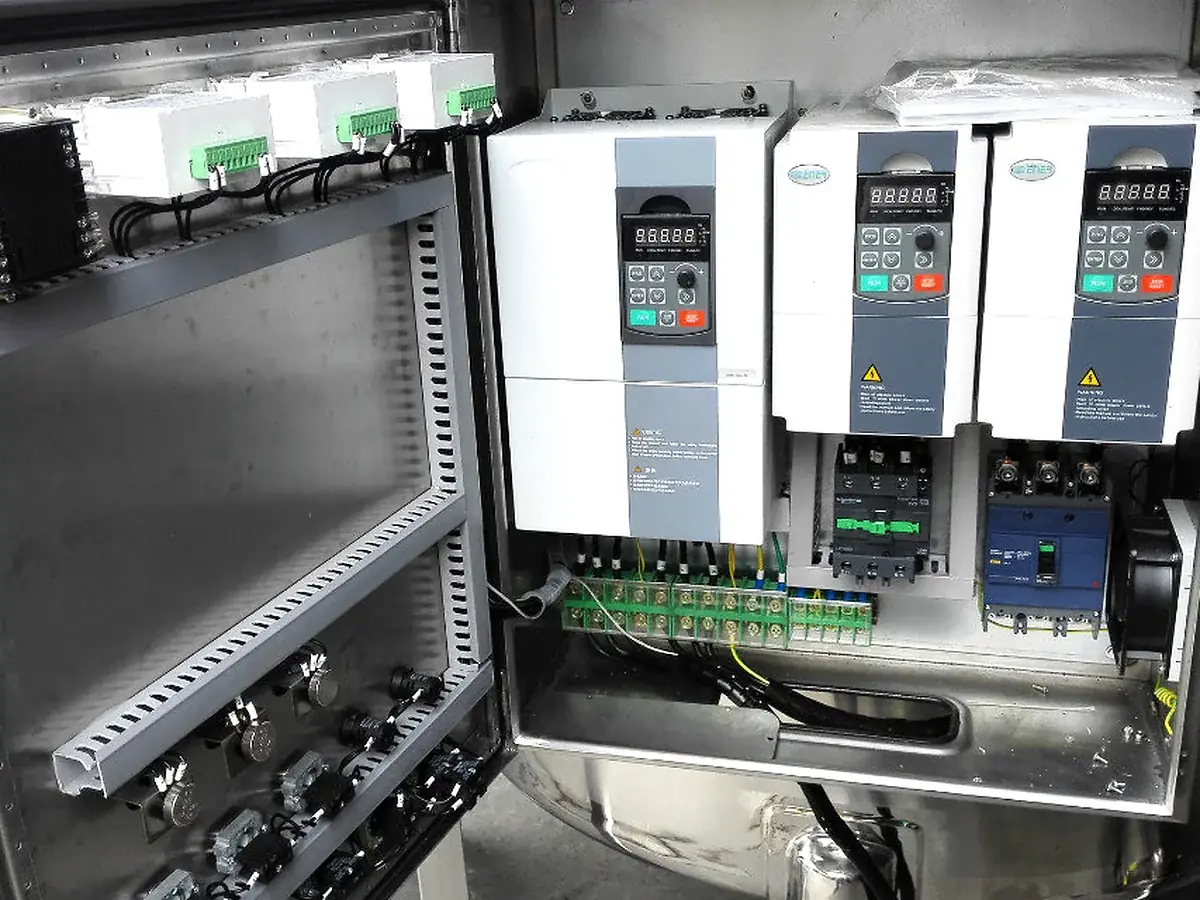

Variable Frequency Control
Independent speed control for different mixing drives.

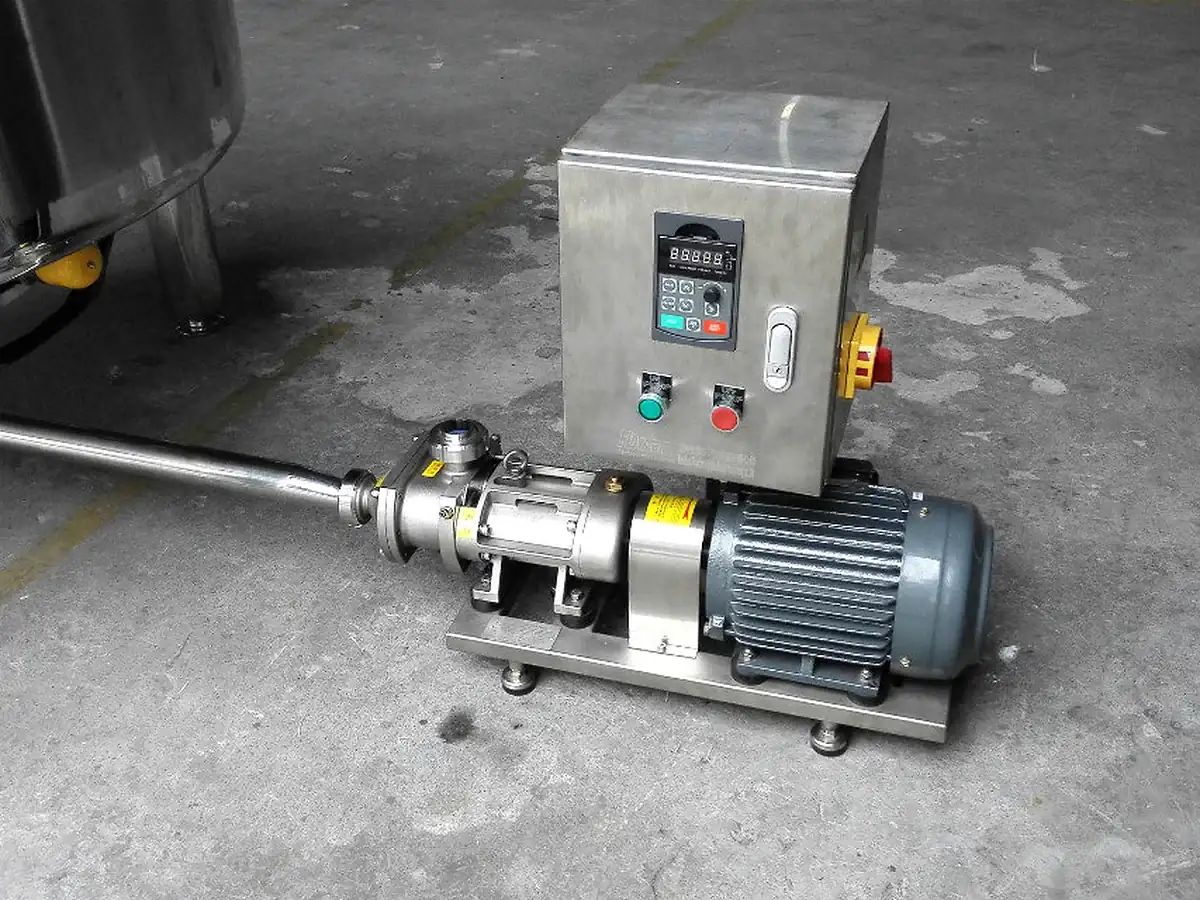

Transfer Pump System
Optional pump system for material transfer and circulation.

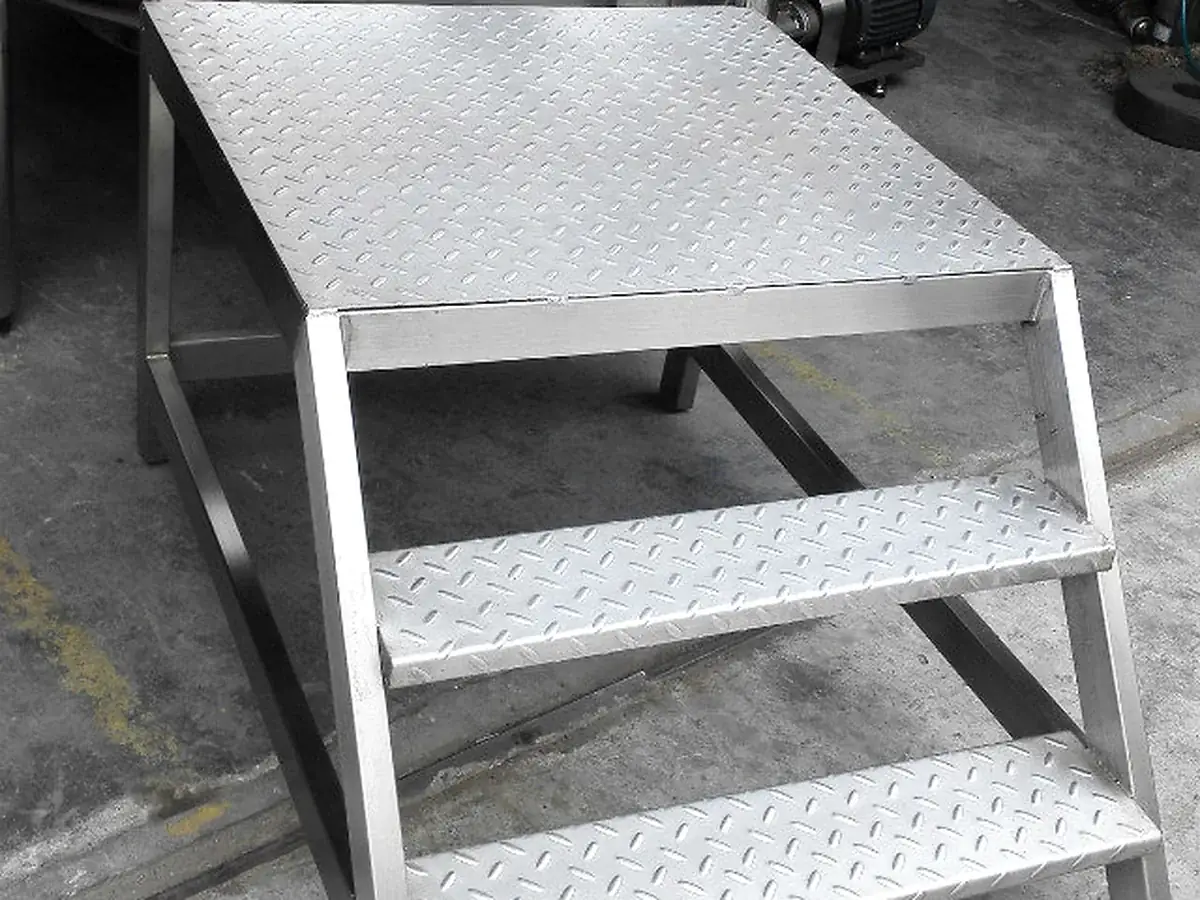

Access Platform
Provides easier access for operation and maintenance.

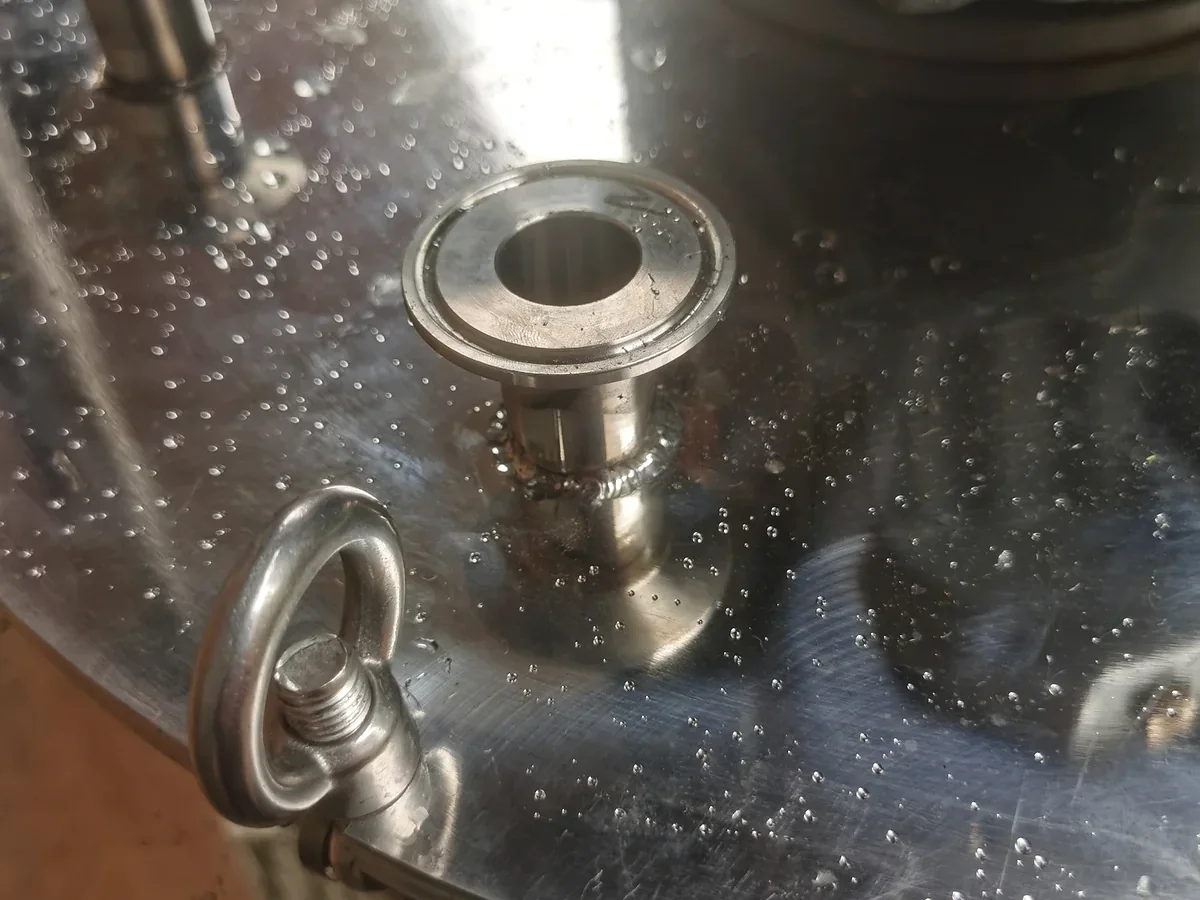

Sanitary Connections
Custom connections for process piping requirements.
Need a Multifunctional Dispersing Tank for Your Process?
Tell us your required capacity, product viscosity, mixing requirements, vacuum requirements and installation conditions. Our team will help you select a suitable multifunctional dispersing tank configuration.
