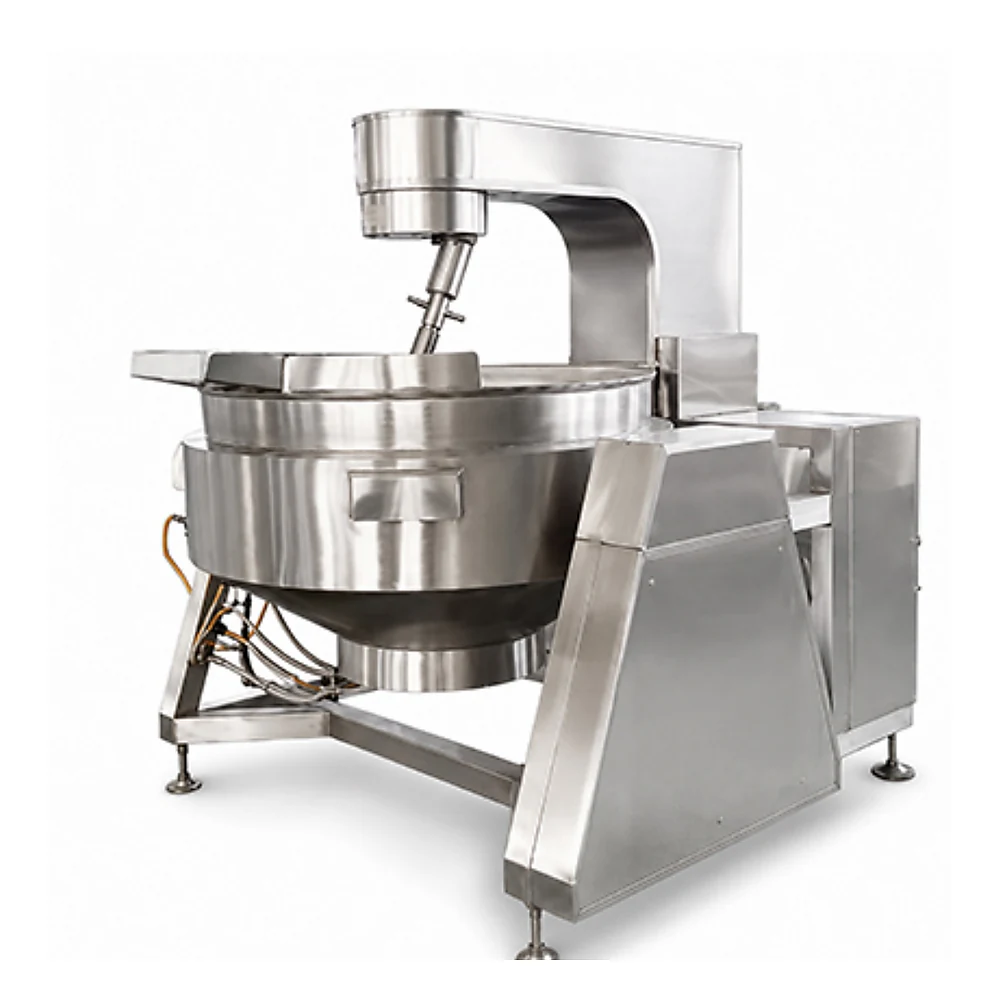

Planetary Jacketed Kettle
Designed for efficient heating, cooking and high-viscosity mixing, with planetary agitation and wall-scraping action for more uniform processing. Multiple heating configurations are available to suit different production requirements.
Configuration Overview
Flexible configurations for different capacities, heating methods and processing requirements.
50–10,000 L
Capacity
Planetary Mixing
Mixing System
SUS304 / SUS316L
Material
Heating Options
Electric · Gas · Steam · Electromagnetic
Available Heating Options

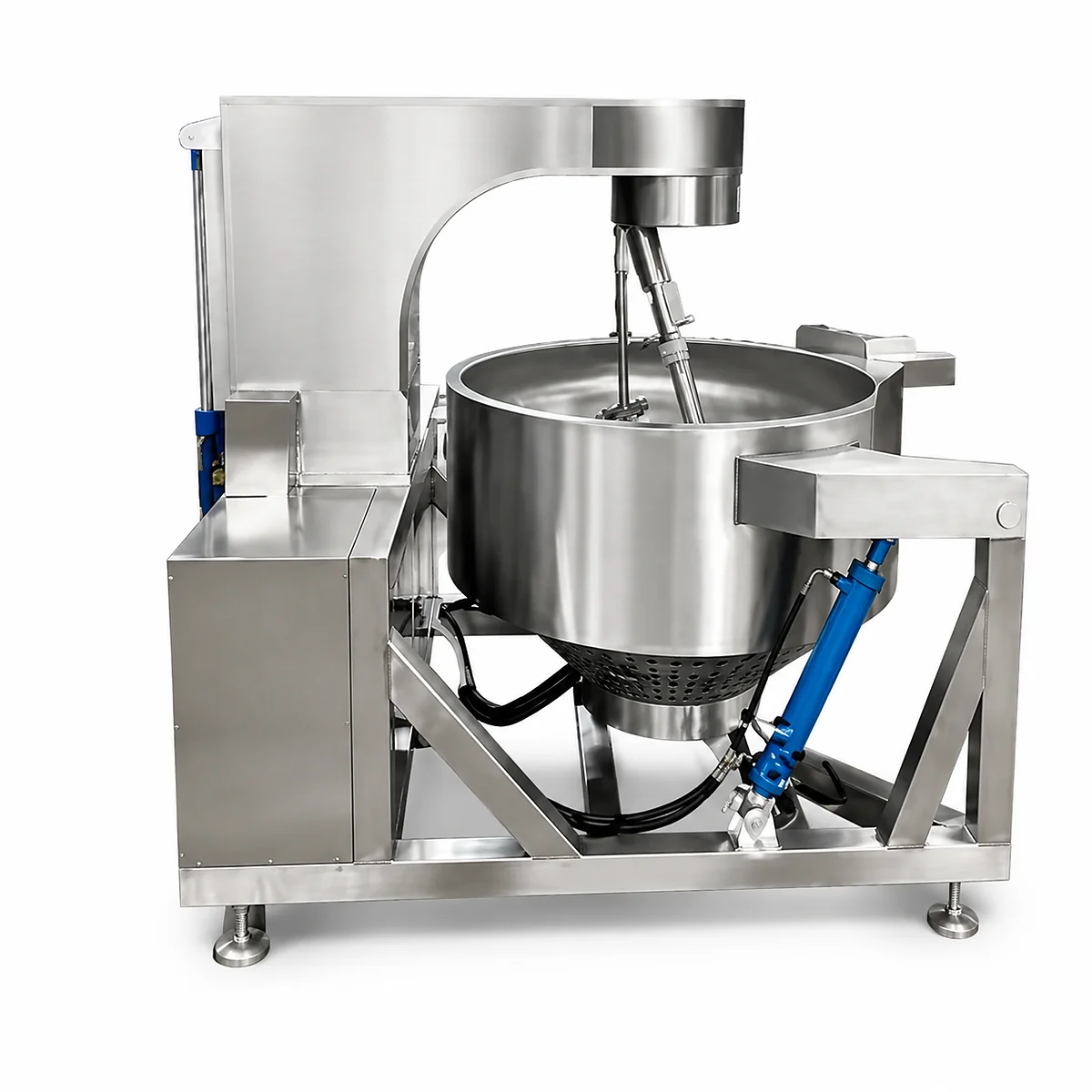

Electromagnetic Heating
Efficient heating option for responsive temperature control.

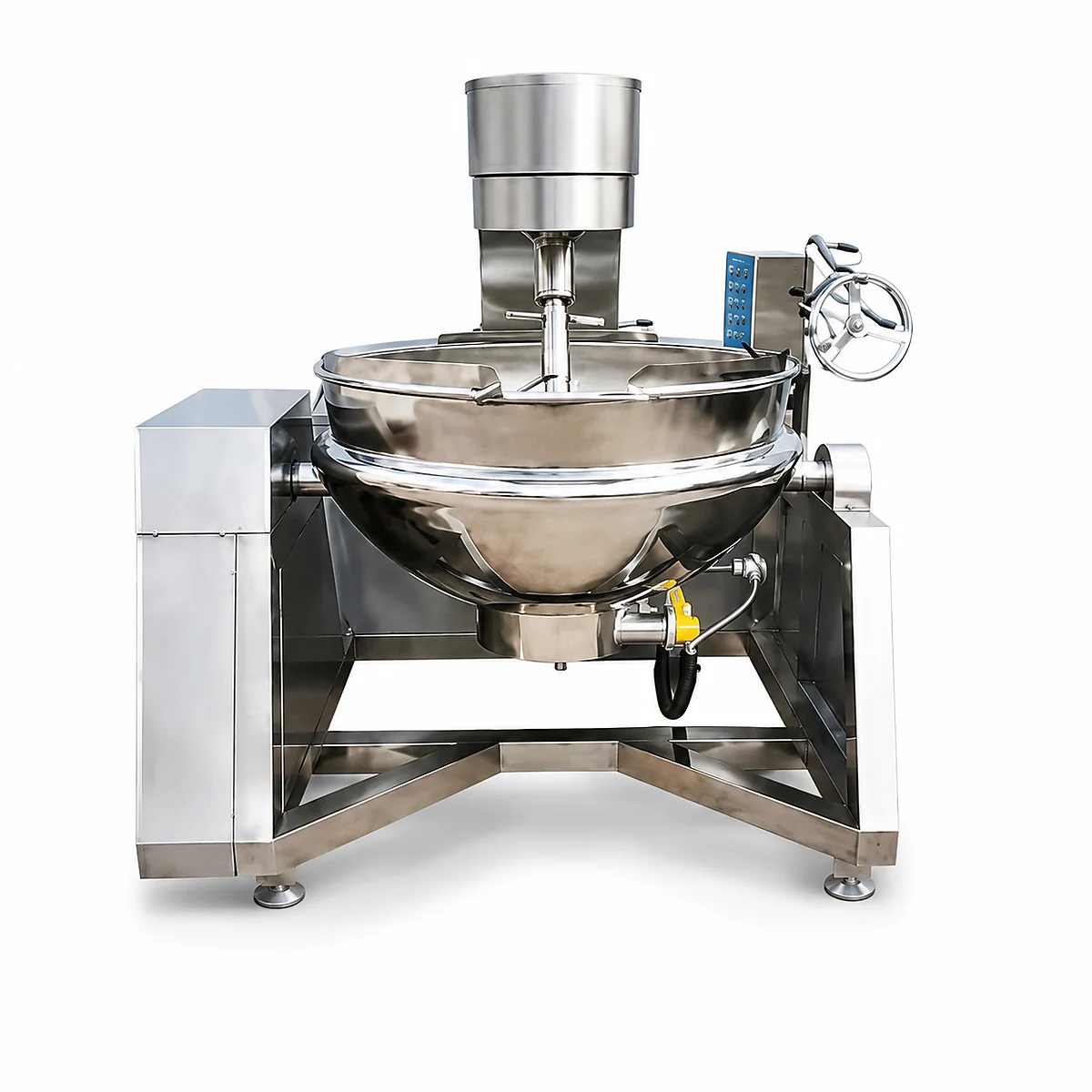

Electric Heating
Clean and convenient heating for flexible production requirements.

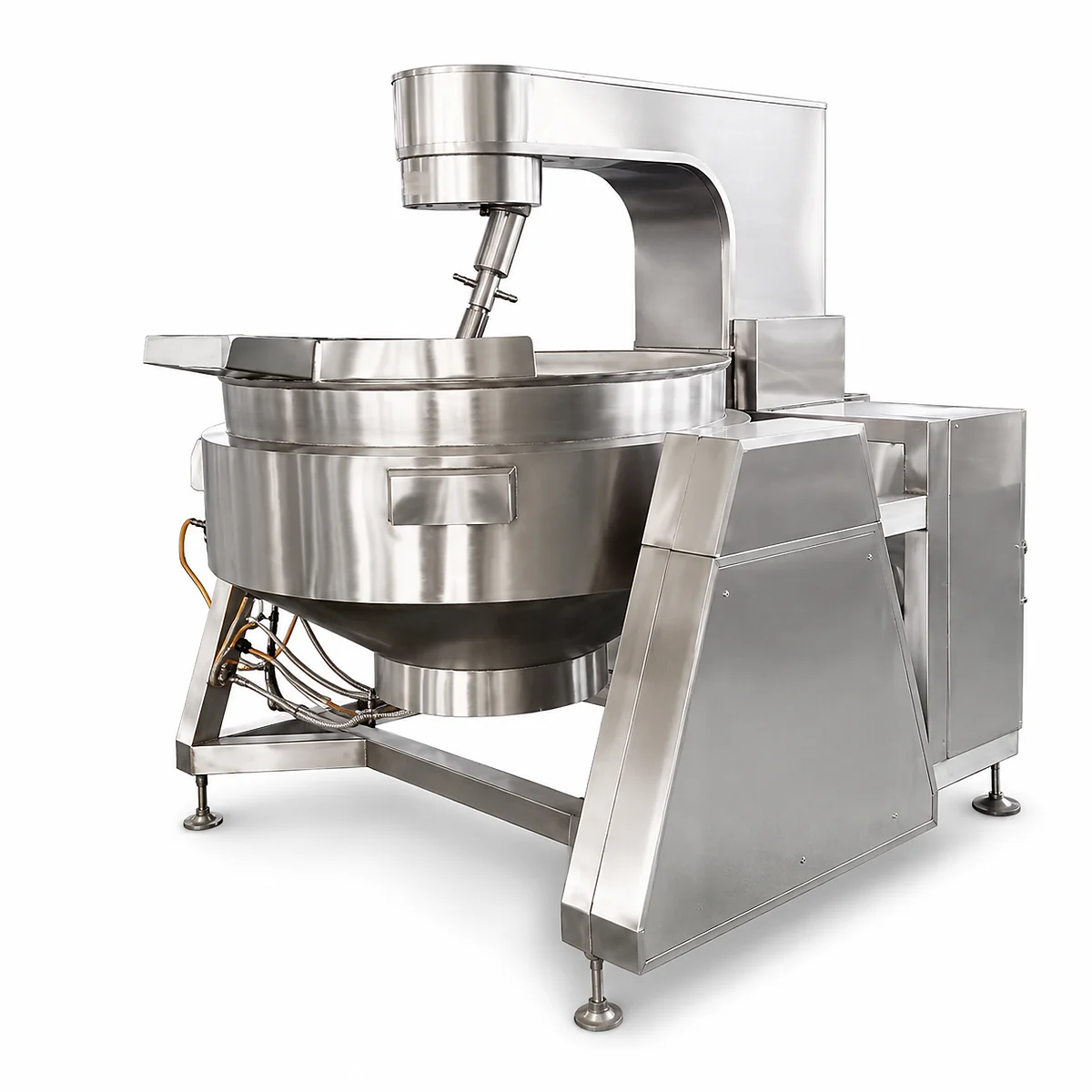

Gas Heating
Direct heating option for efficient cooking and processing.

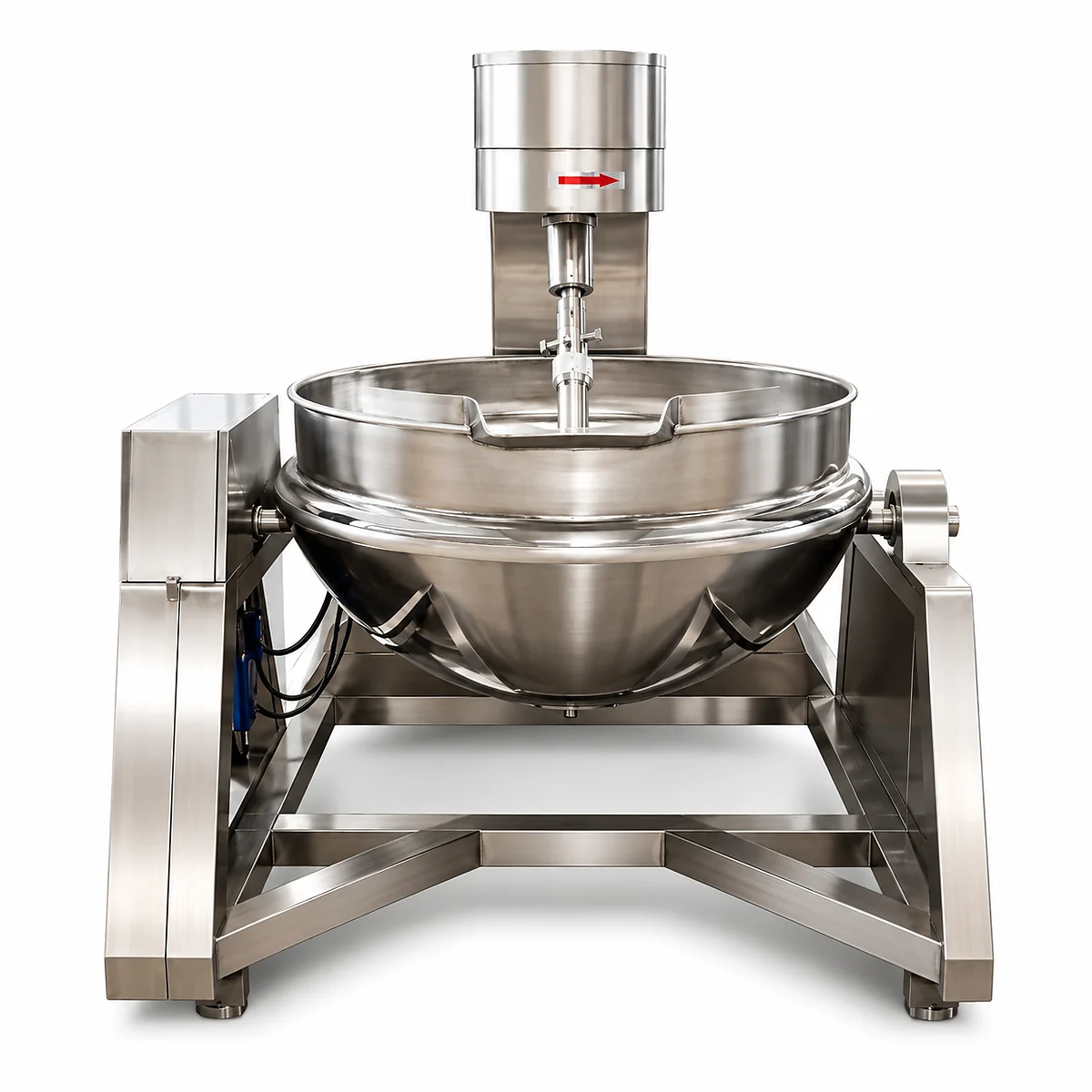

Steam Heating
Stable heating option for uniform thermal processing.

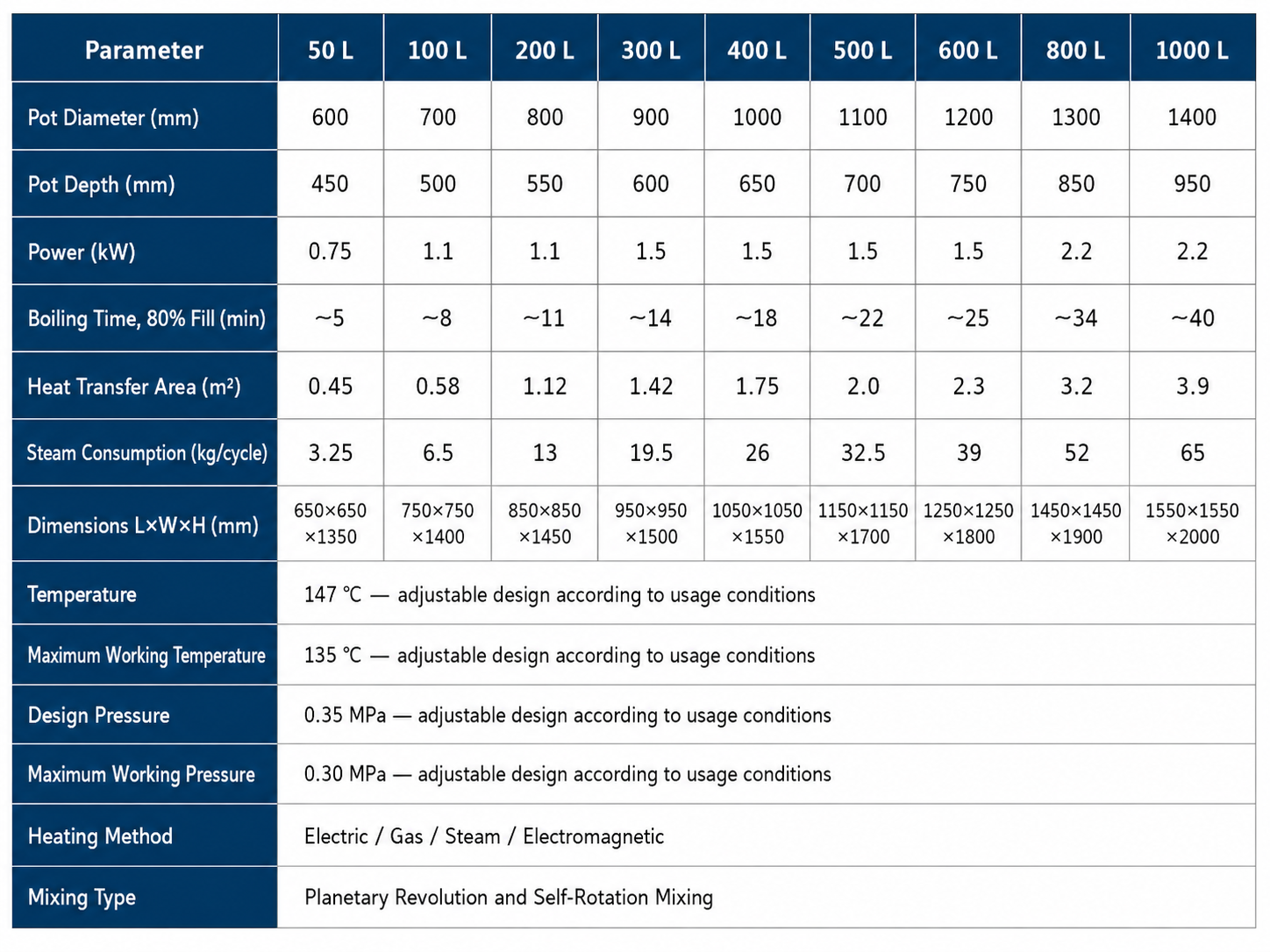

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Parameter | 50 L | 100 L | 200 L | 300 L | 400 L | 500 L | 600 L | 800 L | 1000 L |
|---|---|---|---|---|---|---|---|---|---|
| Pot Diameter (mm) | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 |
| Pot Depth (mm) | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 850 | 950 |
| Power (kW) | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 |
| Boiling Time, 80% Fill (min) | ~5 | ~8 | ~11 | ~14 | ~18 | ~22 | ~25 | ~34 | ~40 |
| Heat Transfer Area (m²) | 0.45 | 0.58 | 1.12 | 1.42 | 1.75 | 2.0 | 2.3 | 3.2 | 3.9 |
| Steam Consumption (kg/cycle) | 3.25 | 6.5 | 13 | 19.5 | 26 | 32.5 | 39 | 52 | 65 |
| Dimensions L×W×H (mm) | 650×650×1350 | 750×750×1400 | 850×850×1450 | 950×950×1500 | 1050×1050×1550 | 1150×1150×1700 | 1250×1250×1800 | 1450×1450×1900 | 1550×1550×2000 |
| Temperature | 147 °C — adjustable design according to usage conditions | ||||||||
| Maximum Working Temperature | 135 °C — adjustable design according to usage conditions | ||||||||
| Design Pressure | 0.35 MPa — adjustable design according to usage conditions | ||||||||
| Maximum Working Pressure | 0.30 MPa — adjustable design according to usage conditions | ||||||||
| Heating Method | Electric / Gas / Steam / Electromagnetic | ||||||||
| Mixing Type | Planetary Revolution and Self-Rotation Mixing | ||||||||
Typical Applications
Ideal for heating, mixing and cooking high-viscosity and sticky food products.
Sauces & Condiments
Chili sauce, seasoning sauce, hot pot base and similar products.
Jam & Syrup Processing
Jam, syrup and other viscous food products.
Confectionery & Fillings
Candy, fillings and other high-viscosity materials.
Prepared Foods & Central Kitchens
Meat products, fried rice, prepared foods and central kitchen processing.
Optional Configurations
Optional mixing, tilting and control configurations are available to suit different processing requirements.

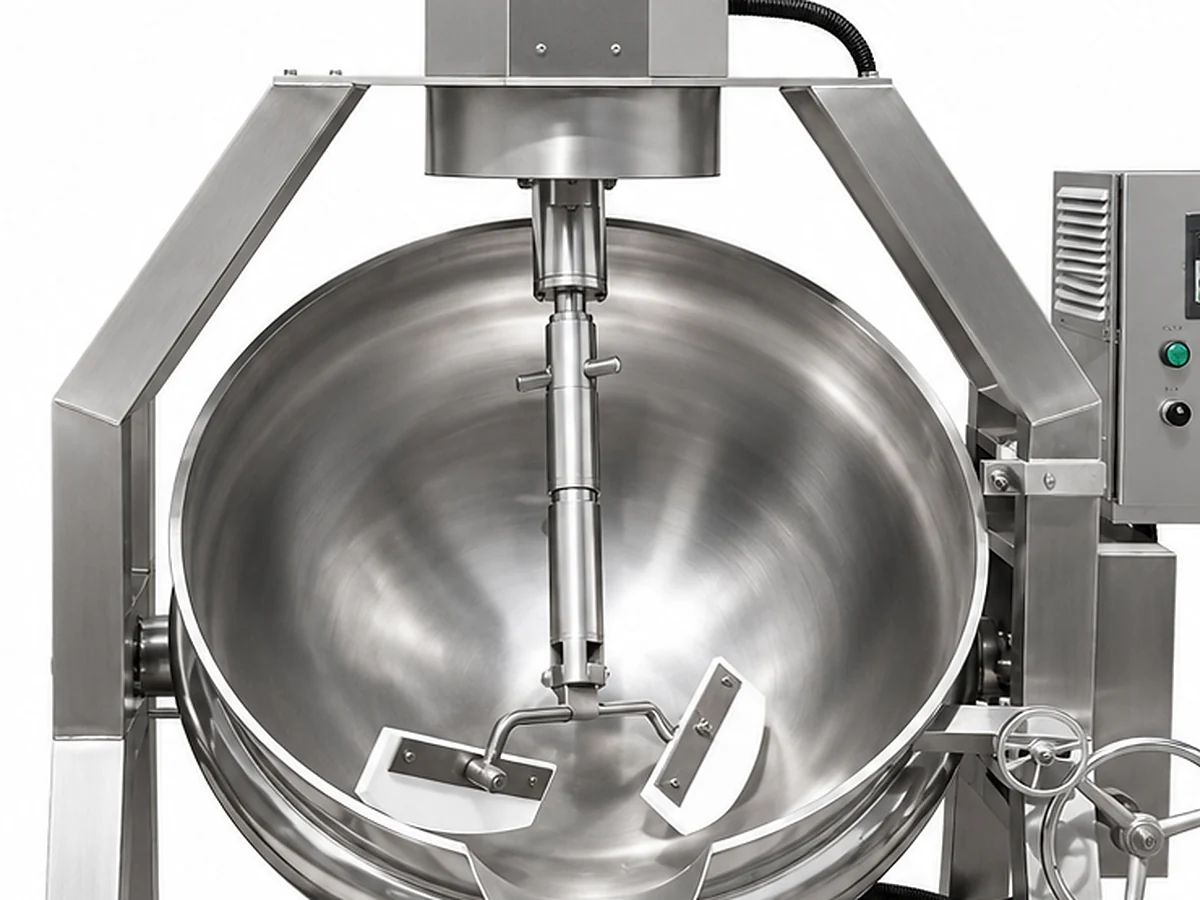

Planetary Stirring & Scraper
Planetary stirring with scraping blades helps improve mixing uniformity and reduce product sticking.

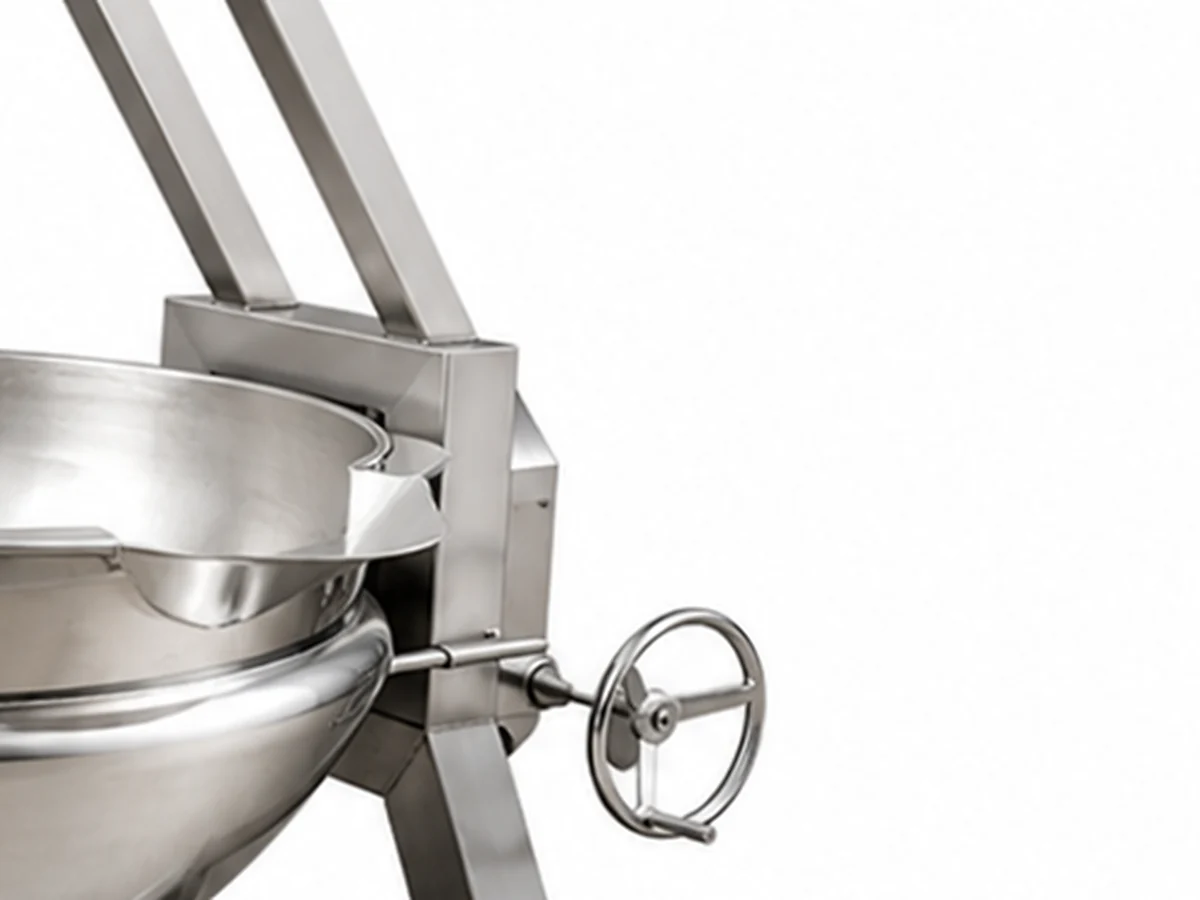

Manual Tilting System
Handwheel-operated tilting provides simple and reliable discharge control.

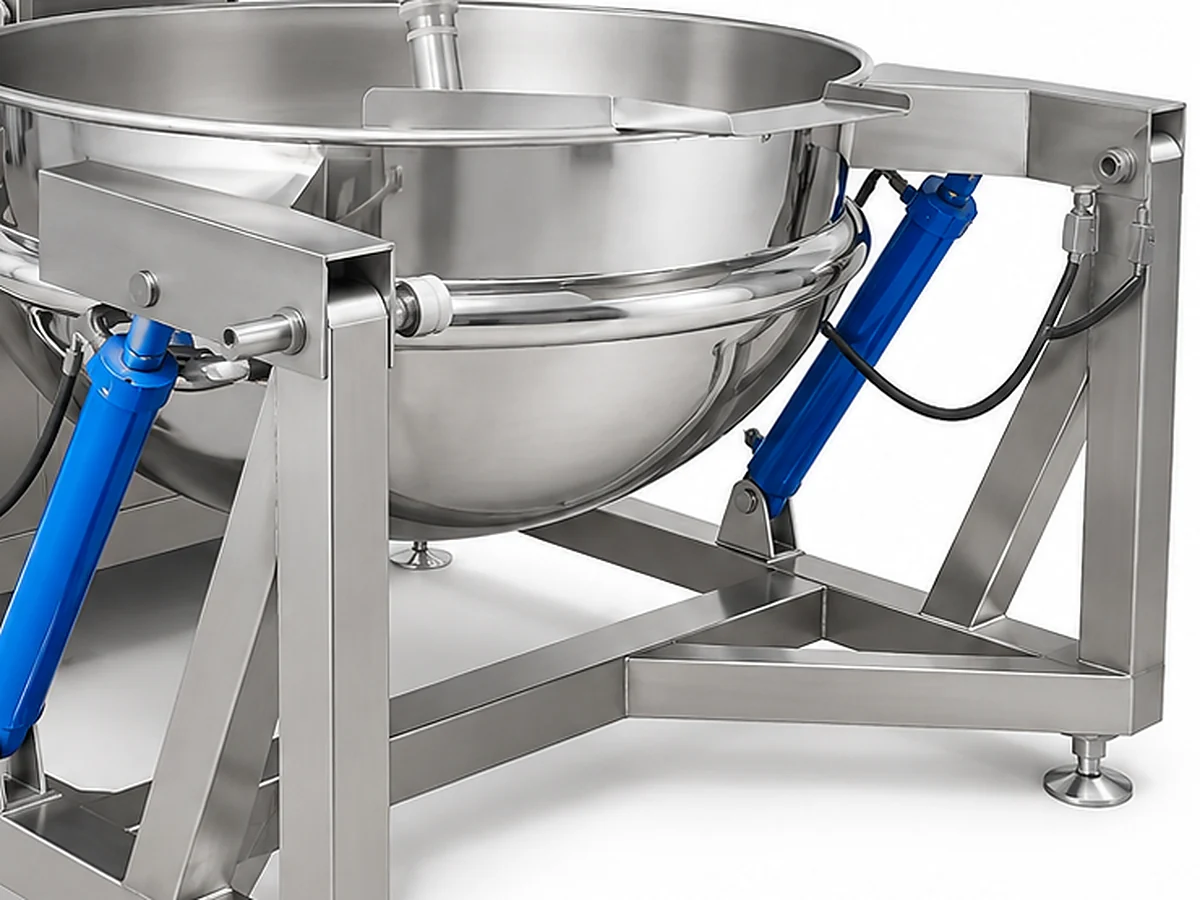

Hydraulic Tilting System
Hydraulic-assisted tilting enables easier discharge with reduced manual effort.

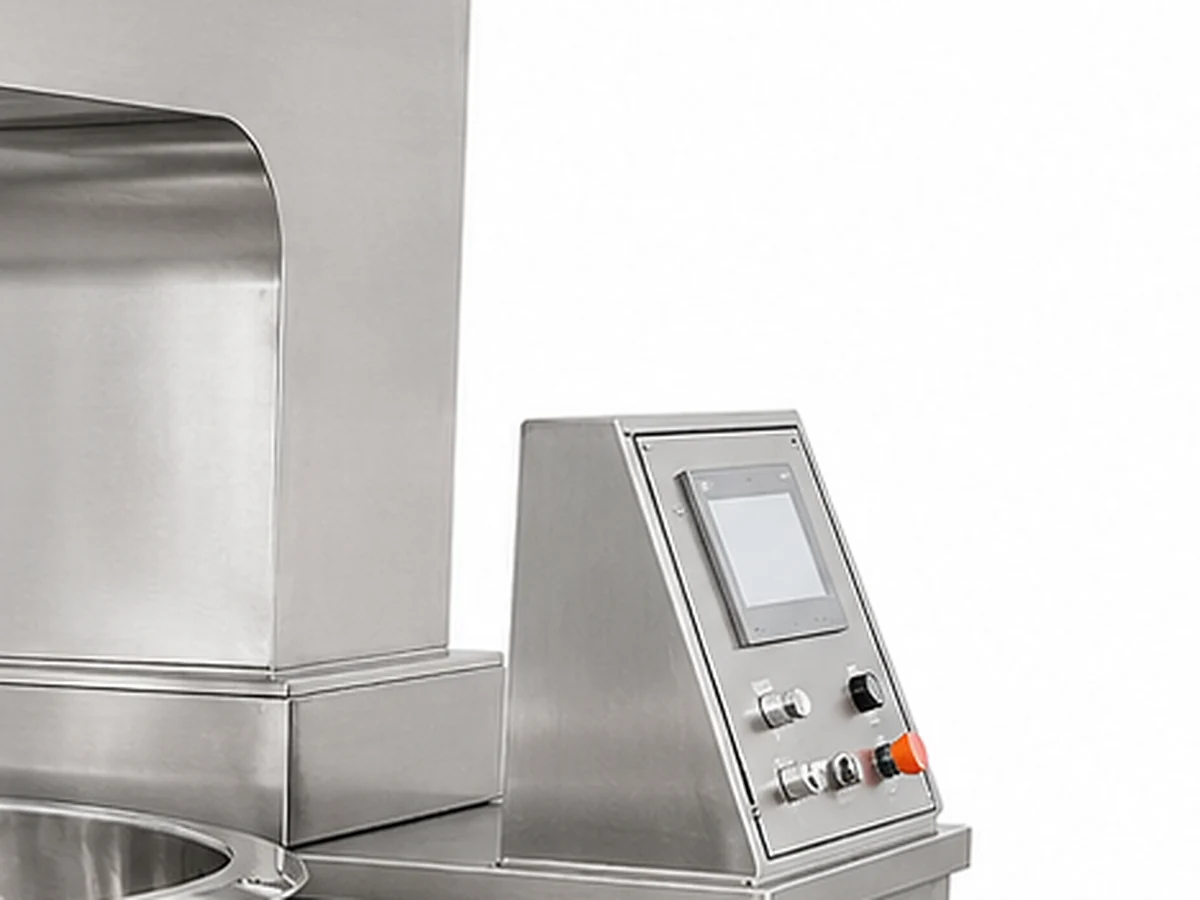

PLC Touch-Screen Control
Optional touch-screen control provides convenient operation and process adjustment.
Need a Planetary Jacketed Kettle for Your Process?
Tell us your required capacity, product viscosity, heating method, mixing requirements, discharge method and installation conditions. Our team will help you select a suitable planetary jacketed kettle configuration.
