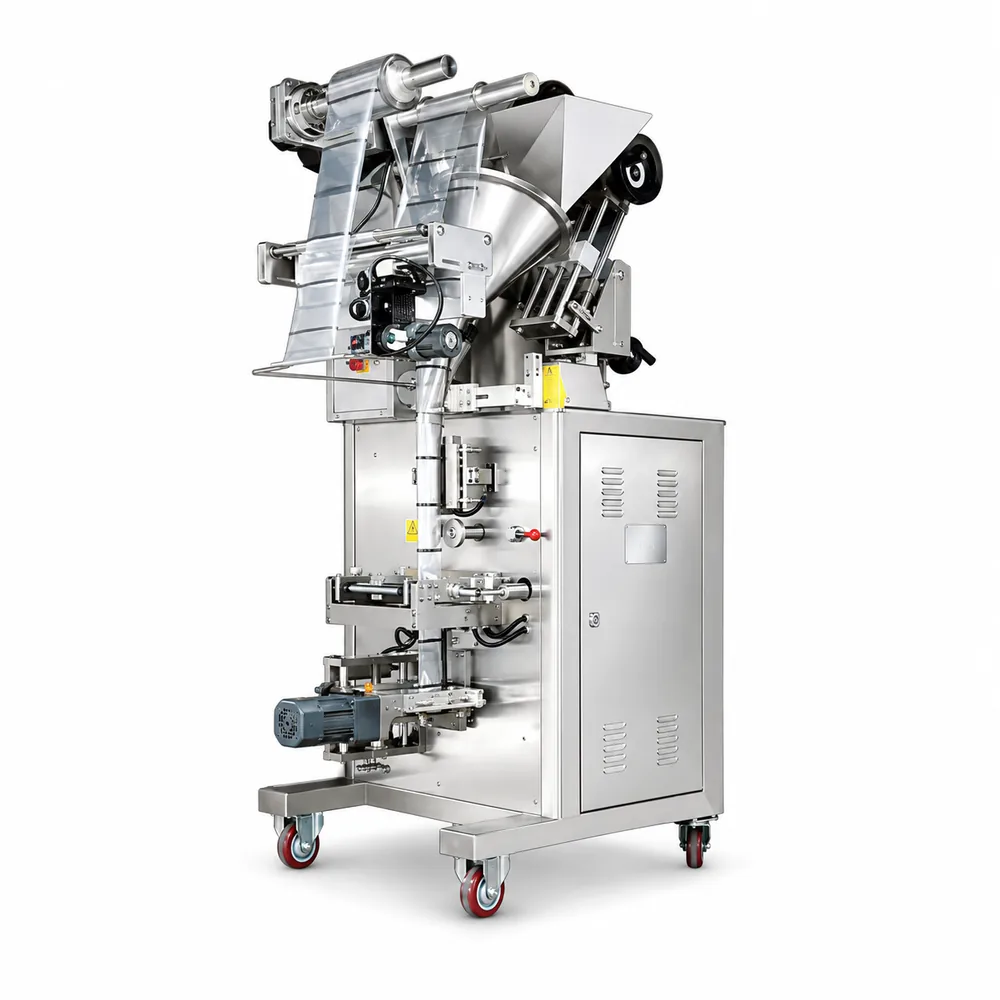

Powder Packaging Machine
Automatic powder packaging machine for milk powder, flour, seasoning powder and similar dry powders. Integrates powder dosing, bag forming, filling, sealing and cutting in one compact system.
Configuration Overview
Compare powder packaging machines by dosing method, sealing style, filling capacity and packaging speed. Specifications vary by model and configuration.
Drive Types
Mechanical / Pneumatic
Auger Dosing
Screw-Type Powder Filling
Sealing Styles
Back / 3-Side / 4-Side
Model-Based Specs
Range & Speed by Model
Available Configurations

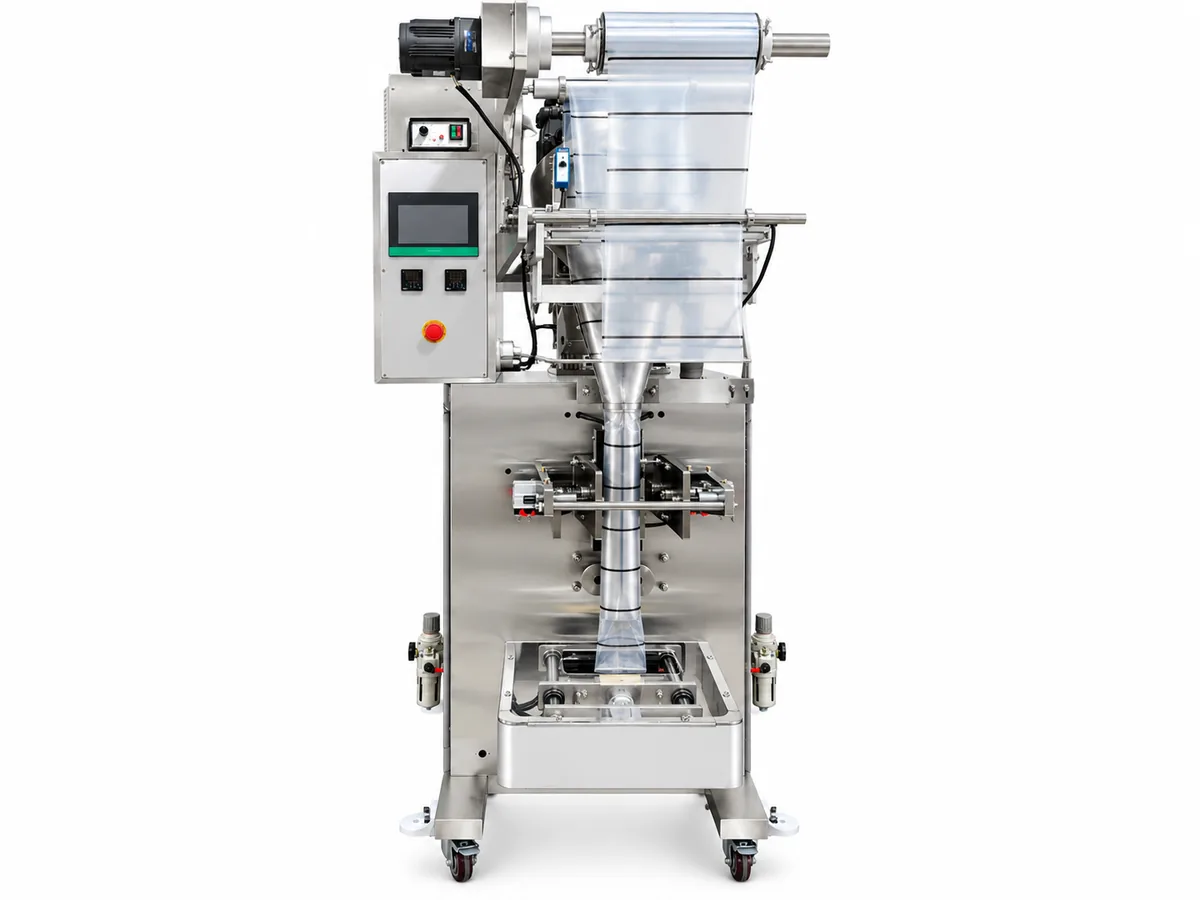

Mechanical Powder Packaging Machine
HXL-F series mechanical drive with screw dosing.

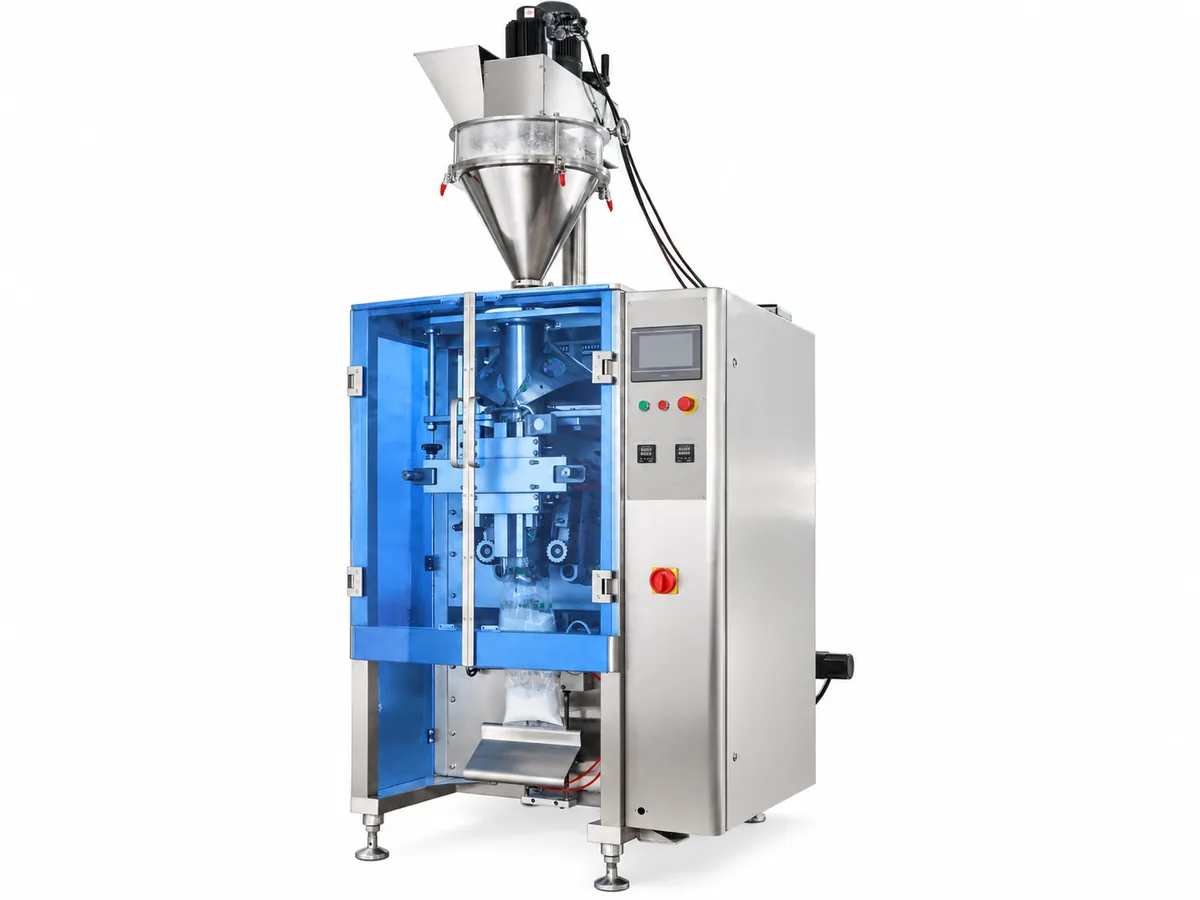

Pneumatic Powder Packaging Machine
SJIII-F series pneumatic drive with screw dosing.
Technical Specifications
Specifications can be customized according to filling range, bag size, sealing type and packaging requirements.
| Specification | Mechanical | Pneumatic | ||
|---|---|---|---|---|
| HXL-F100 | HXL-F300 | SJIII-F100 | SJIII-F300 | |
| Dosing Method | Screw Volumetric | Screw Volumetric | Screw Volumetric | Screw Volumetric |
| Filling Range | 5–100 mL | 50–500 mL | 5–100 mL | 50–500 mL |
| Packaging Speed | 30–60 bags/min | 25–60 bags/min | 30–60 bags/min | 25–60 bags/min |
| Bag Length | 160 mm | 300 mm | 150 mm | 300 mm |
| Bag Width | 120 mm | 190 mm | 120 mm | 190 mm |
| Bag Style | Flat / Pillow | Flat / Pillow | Flat / Pillow | Flat / Pillow |
| Power | 2.4 kW | 2.4 kW | 1.8 kW | 2.0 kW |
| Voltage | 220 V / 50 Hz | 220 V / 50 Hz | 220 V / 50 Hz | 220 V / 50 Hz |
| Air Requirement | Not Specified | Not Specified | 0.8 MPa / 100 L/min | 0.8 MPa / 150 L/min |
| Machine Dimensions | 0.8 × 1.0 × 1.8 m | 1.0 × 1.2 × 2.2 m | 0.8 × 1.0 × 1.8 m | 1.0 × 1.2 × 2.2 m |
| Machine Weight | 410 kg | 600 kg | 310 kg | 500 kg |
| H100DF Series | |||
|---|---|---|---|
| Specification | H100DFV1C | H100DFV2C | H100DFV3C |
| Sealing Type | Back Seal | 3-Side Seal | 4-Side Seal |
| Filling Range | 1–100 mL | 1–100 mL | 1–100 mL |
| Packaging Speed | 25–80 bags/min | 25–80 bags/min | 25–80 bags/min |
| Dosing Method | Powder Dosing Head | Powder Dosing Head | Powder Dosing Head |
| Bag Length | 45–170 mm | 45–170 mm | 45–170 mm |
| Bag Width | 25–120 mm | 25–130 mm | 25–130 mm |
| Packaging Film | 0.06–0.09 mm | 0.06–0.09 mm | 0.06–0.09 mm |
| Power | 2.0 kW | 2.0 kW | 2.0 kW |
| Voltage | 220 V / 50 Hz | 220 V / 50 Hz | 220 V / 50 Hz |
| Air Requirement | 0.8 MPa / 200 L/min | 0.8 MPa / 200 L/min | 0.8 MPa / 200 L/min |
| Machine Dimensions | 0.9 × 1.2 × 1.7 m | 0.9 × 1.2 × 1.7 m | 0.9 × 1.2 × 1.7 m |
| Machine Weight | 247 kg | 247 kg | 247 kg |
| Control System | Touchscreen | Touchscreen | Touchscreen |
Typical Applications
Suitable for food powders, seasonings and selected industrial powders, depending on material characteristics and machine configuration.
Food Powders
Flour, milk powder, coffee powder and similar dry powders.
Seasonings & Spices
Seasoning powders, ground spices and powdered food ingredients.
Pharmaceutical Powders
Selected pharmaceutical powders, subject to suitability and compliance review.
Chemical Powders
Compatible dry chemical powders, subject to material testing.
Optional Configurations
Optional equipment can be selected to improve feeding, coding, conveying and quality control.

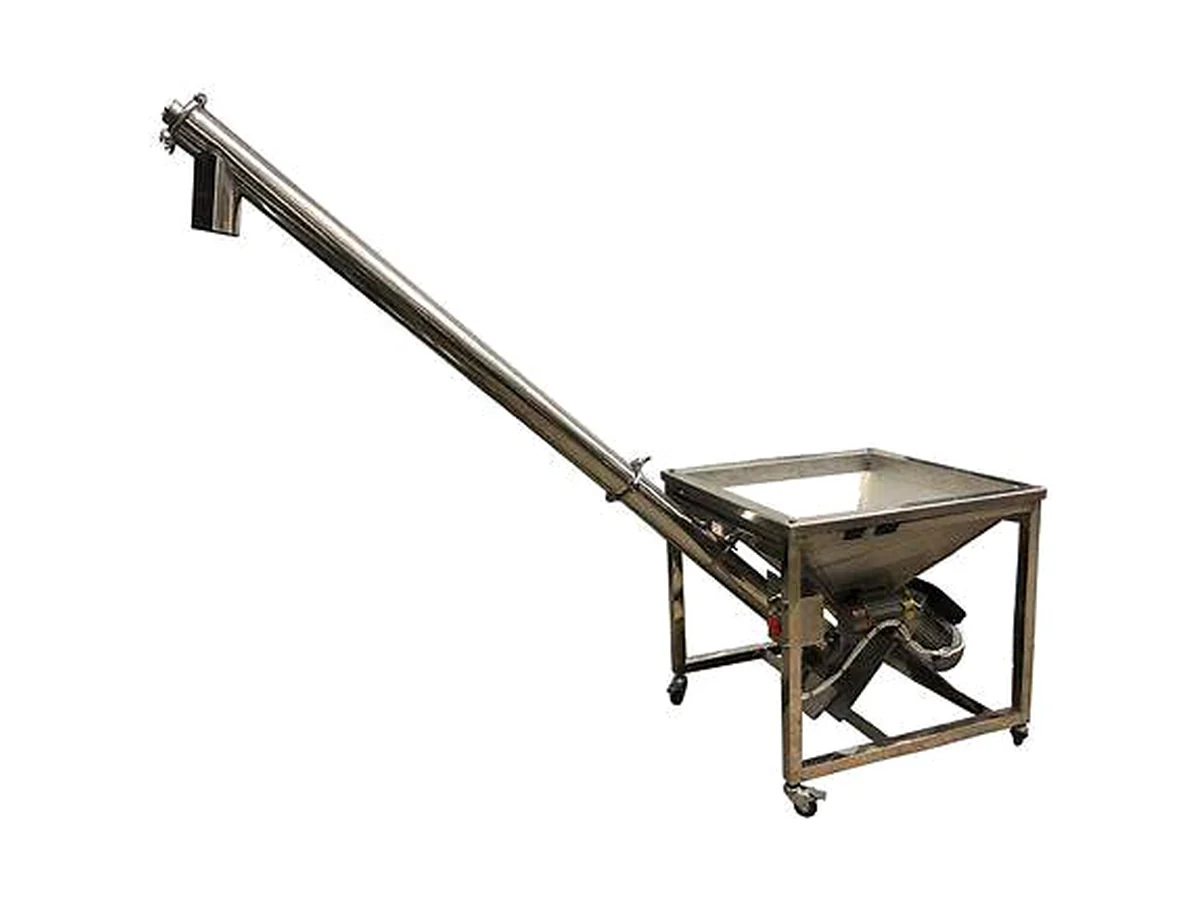

Feeding System
Automatic powder feeding for continuous packaging operation.

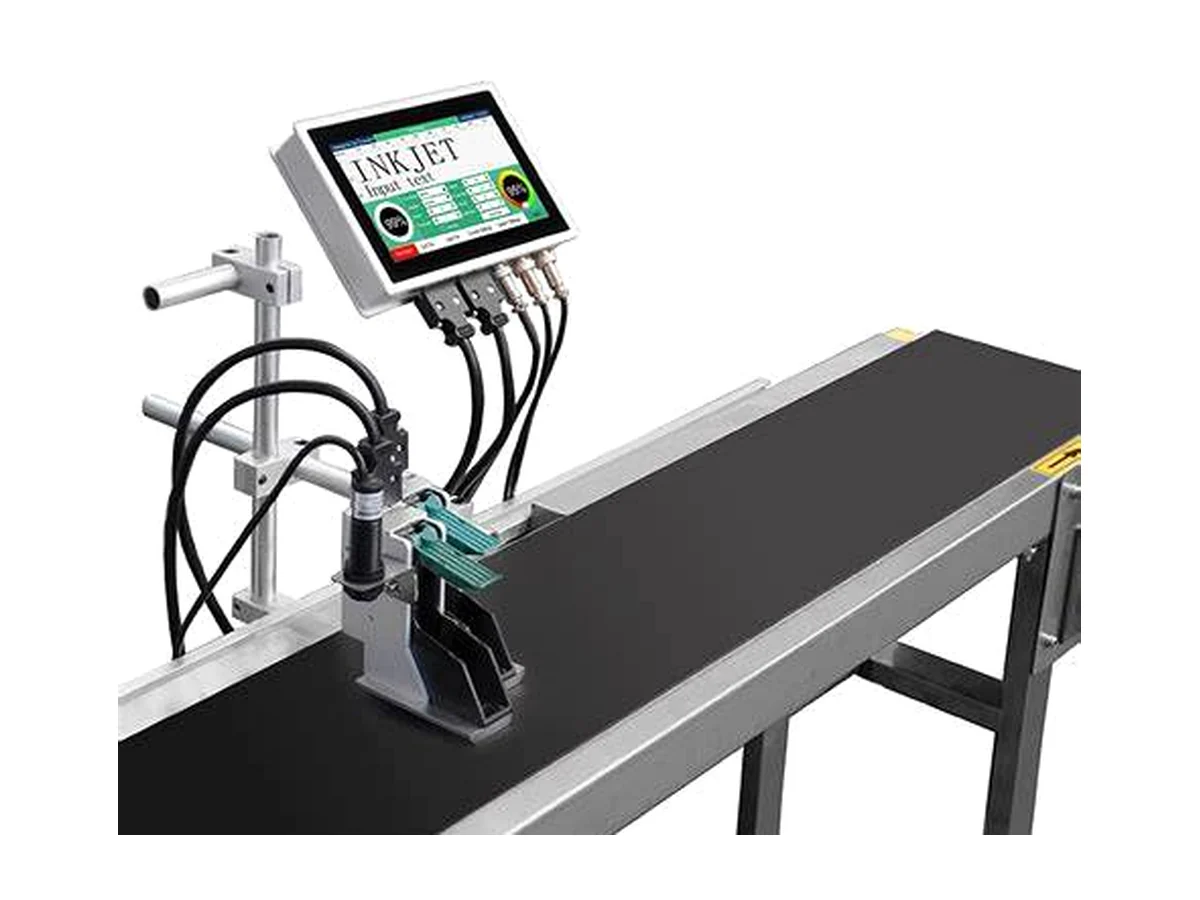

Date Coding Machine
Prints production date, batch number and related information.

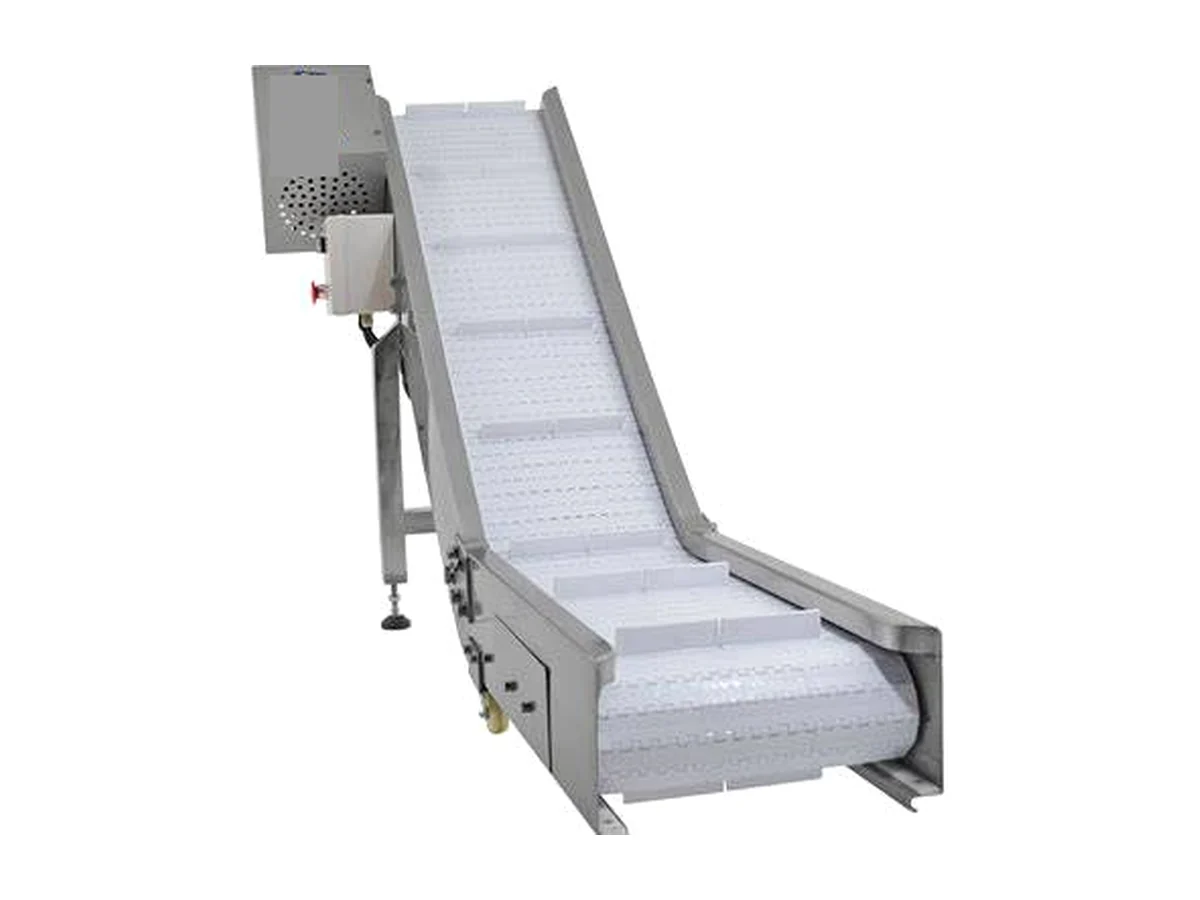

Take-Away Conveyor
Transfers finished bags to the next processing stage.

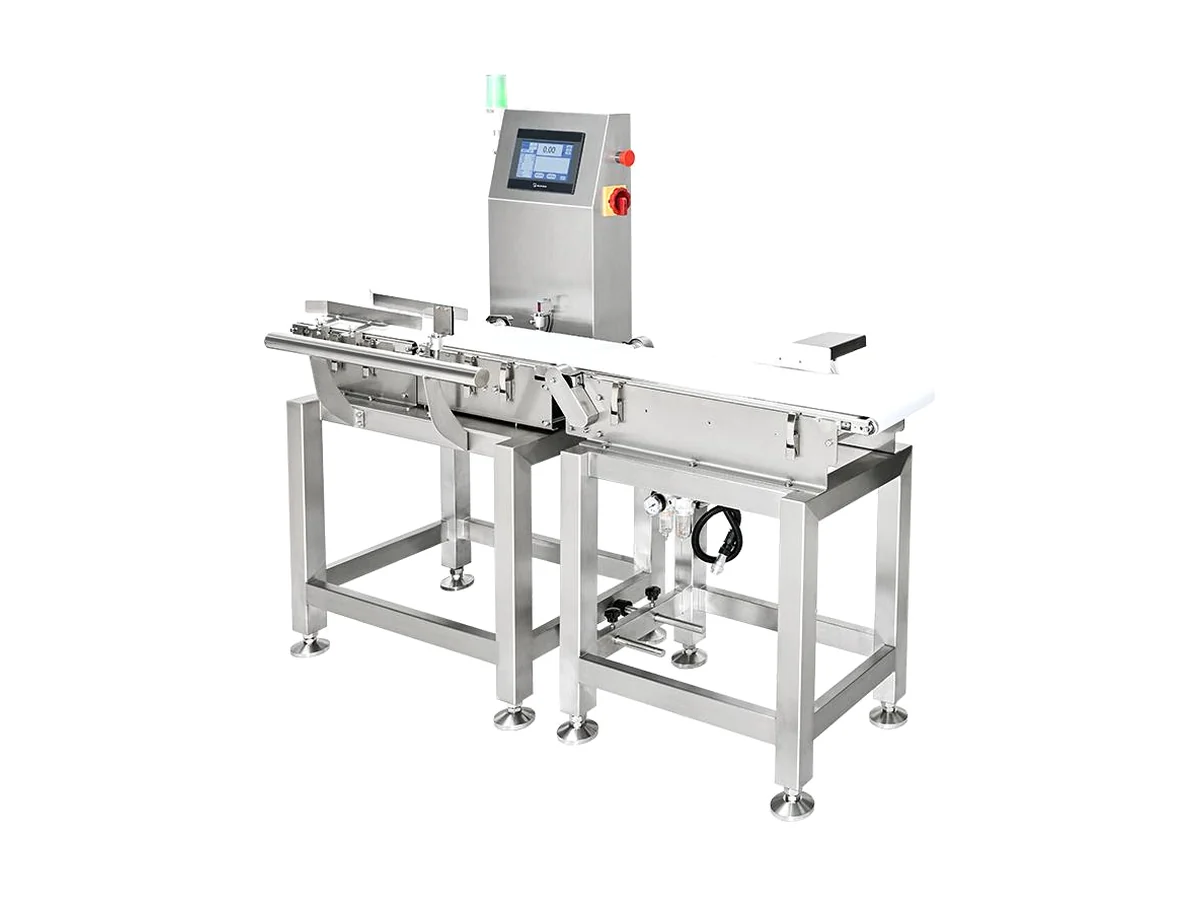

Checkweigher
Checks finished package weight for quality control.
Need a Powder Packaging Machine?
Tell us your product, filling range, and bag requirements. We will recommend a suitable configuration and provide a quotation.
