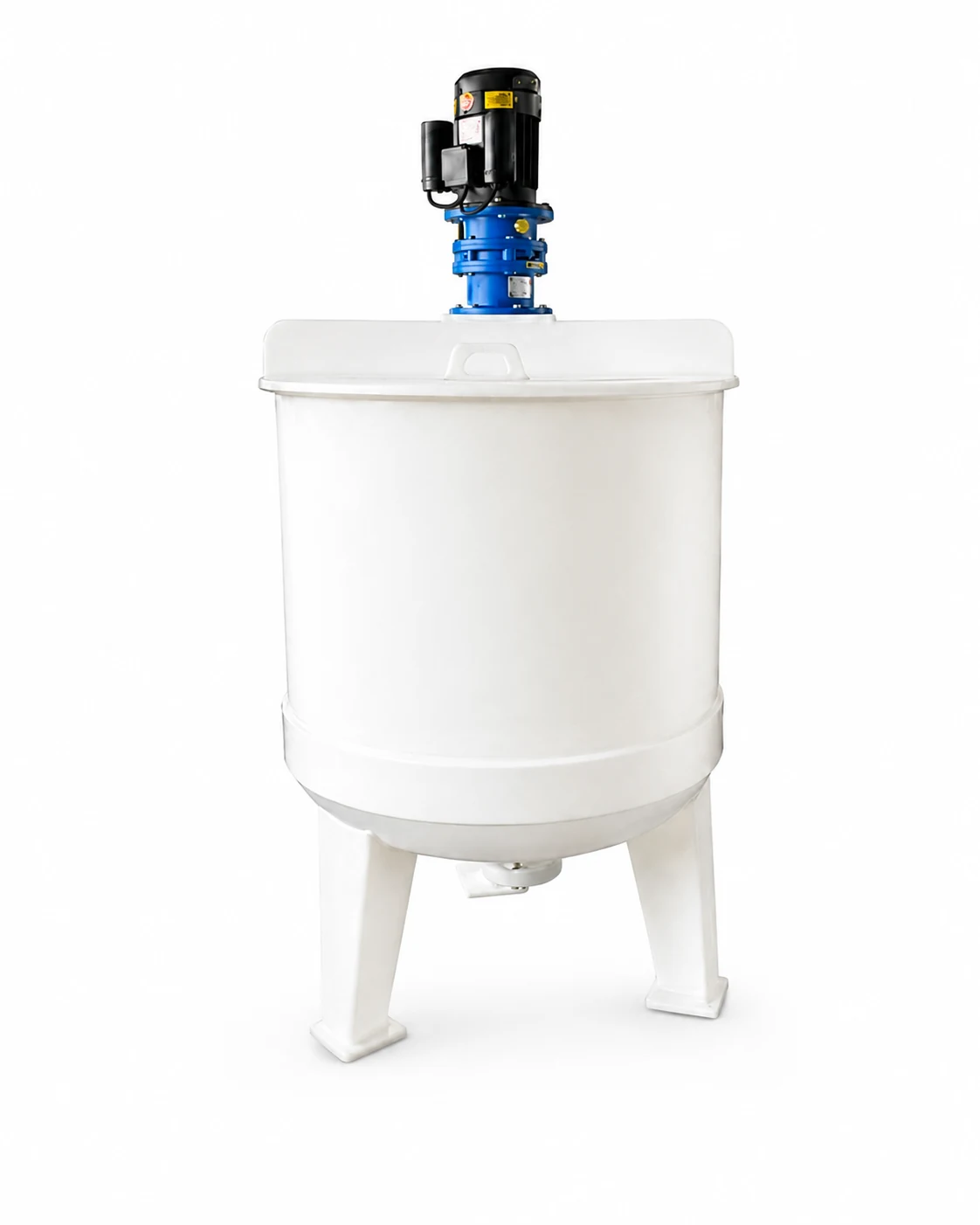

PP Mixing Tank
Designed for mixing, blending and processing corrosive or chemically sensitive liquids. The polypropylene construction provides excellent corrosion resistance, while tank capacity, agitation speed, outlet size and other configurations can be customized according to process requirements.
Configuration Overview
Available in multiple capacities and mixing configurations for corrosive-liquid processing.
50–30,000 L
Capacity
PP / FRPP
Tank Material
30–200 rpm
Agitation Speed
≤80°C
Max. Operating Temperature
Available PP Mixing Tank Configurations

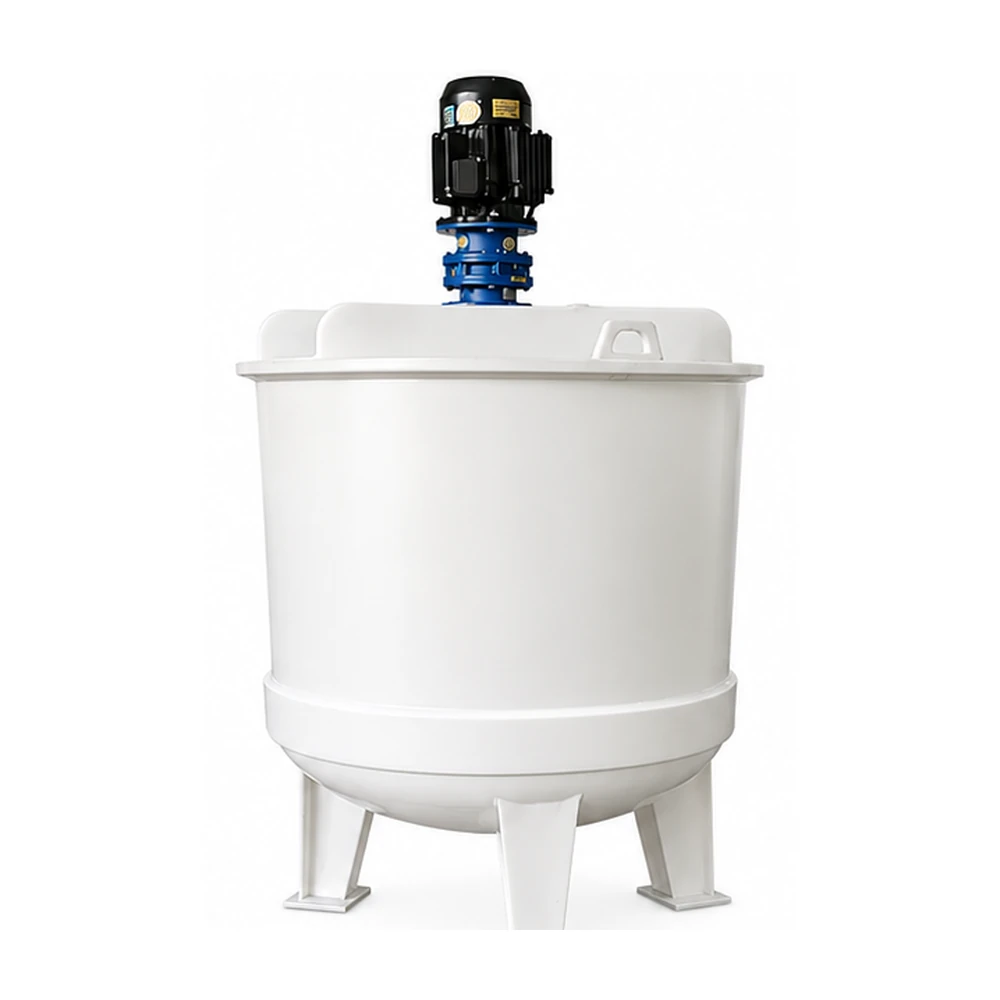

Standard Vertical
PP Mixing Tank
General-purpose vertical design for liquid mixing and blending.

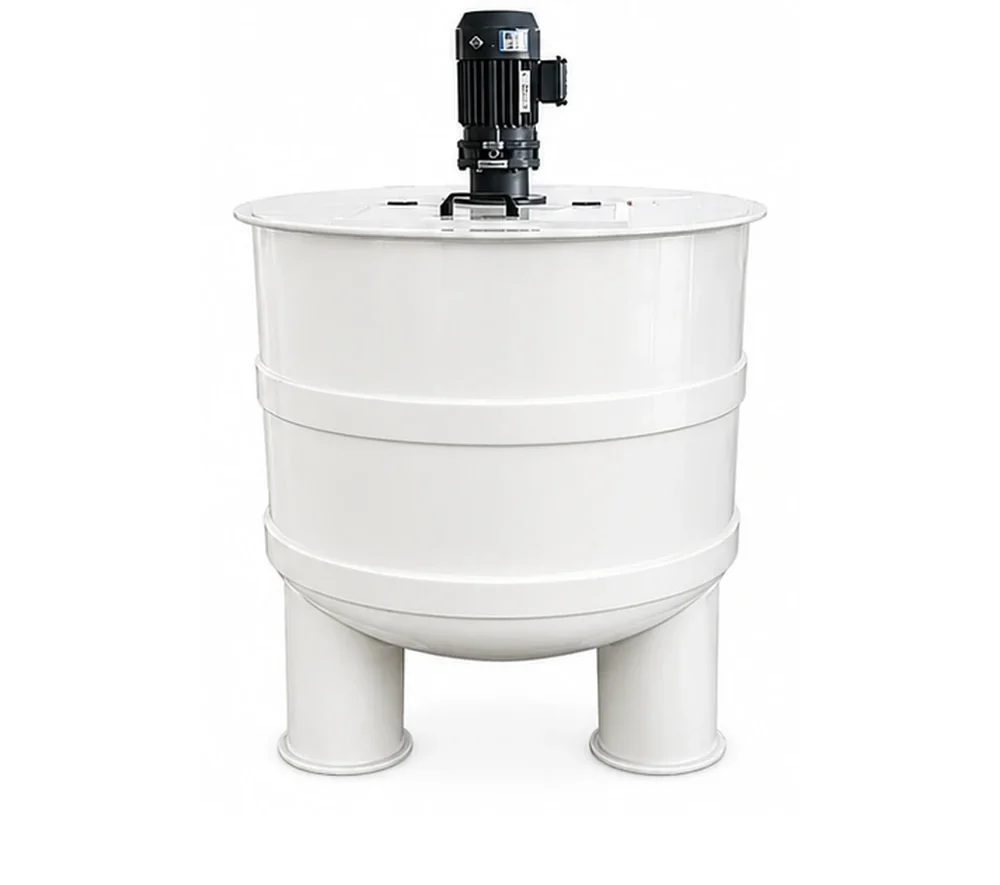

Open-Top
PP Mixing Tank
Open-top design for easy feeding, observation and cleaning.

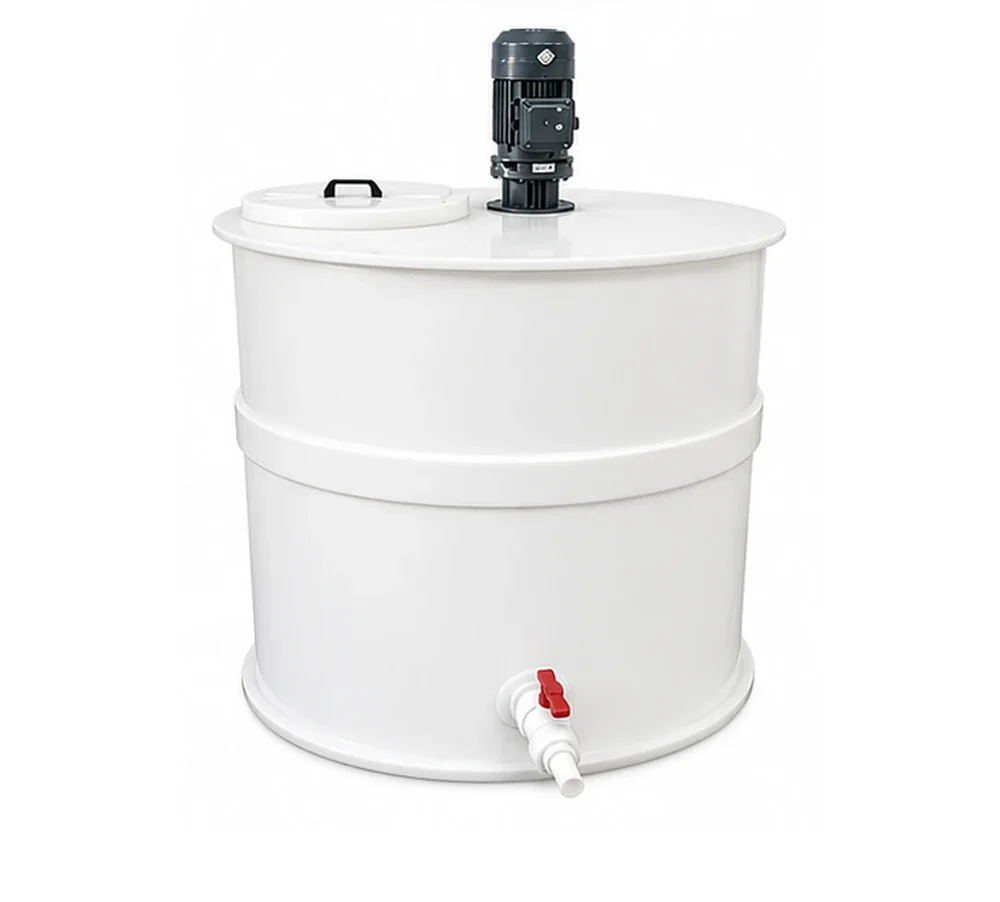

Closed-Top
PP Mixing Tank
Closed-top design for cleaner and more stable processing.

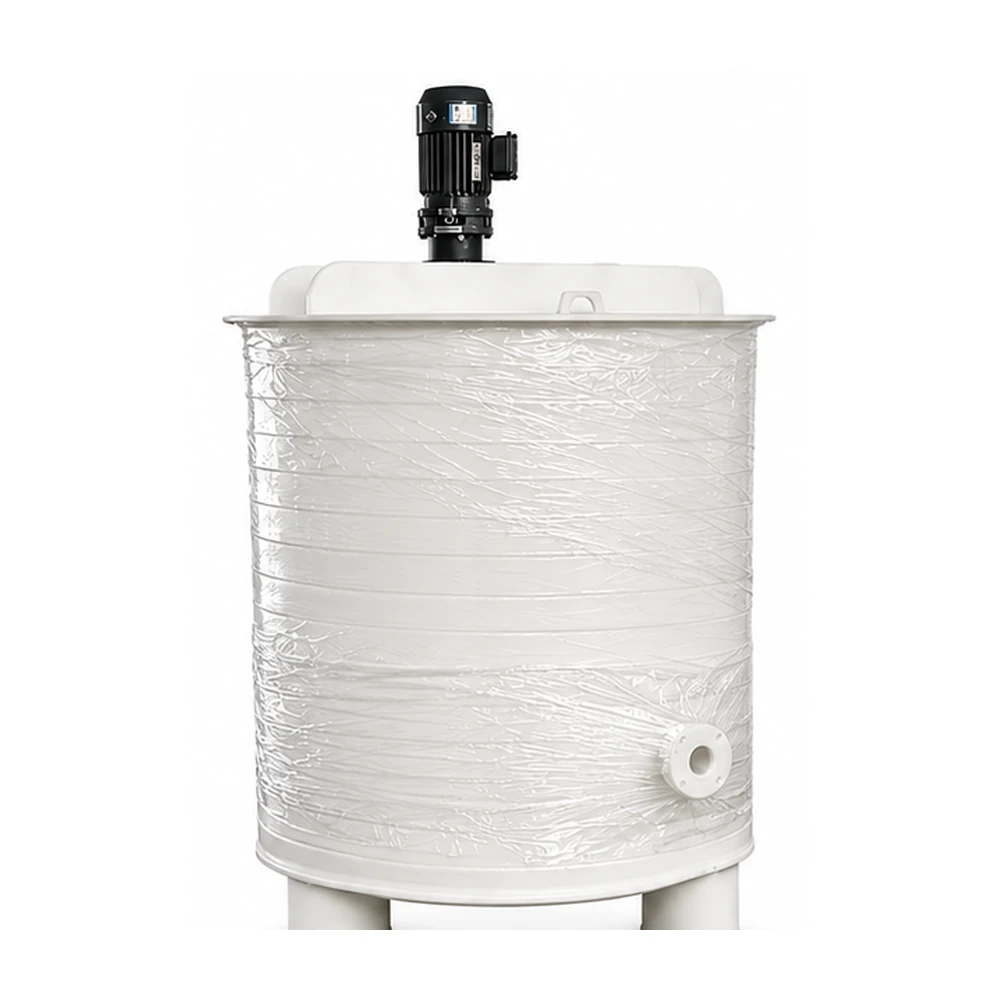

Large-Capacity
PP Mixing Tank
Large-volume design for higher-capacity mixing and processing.

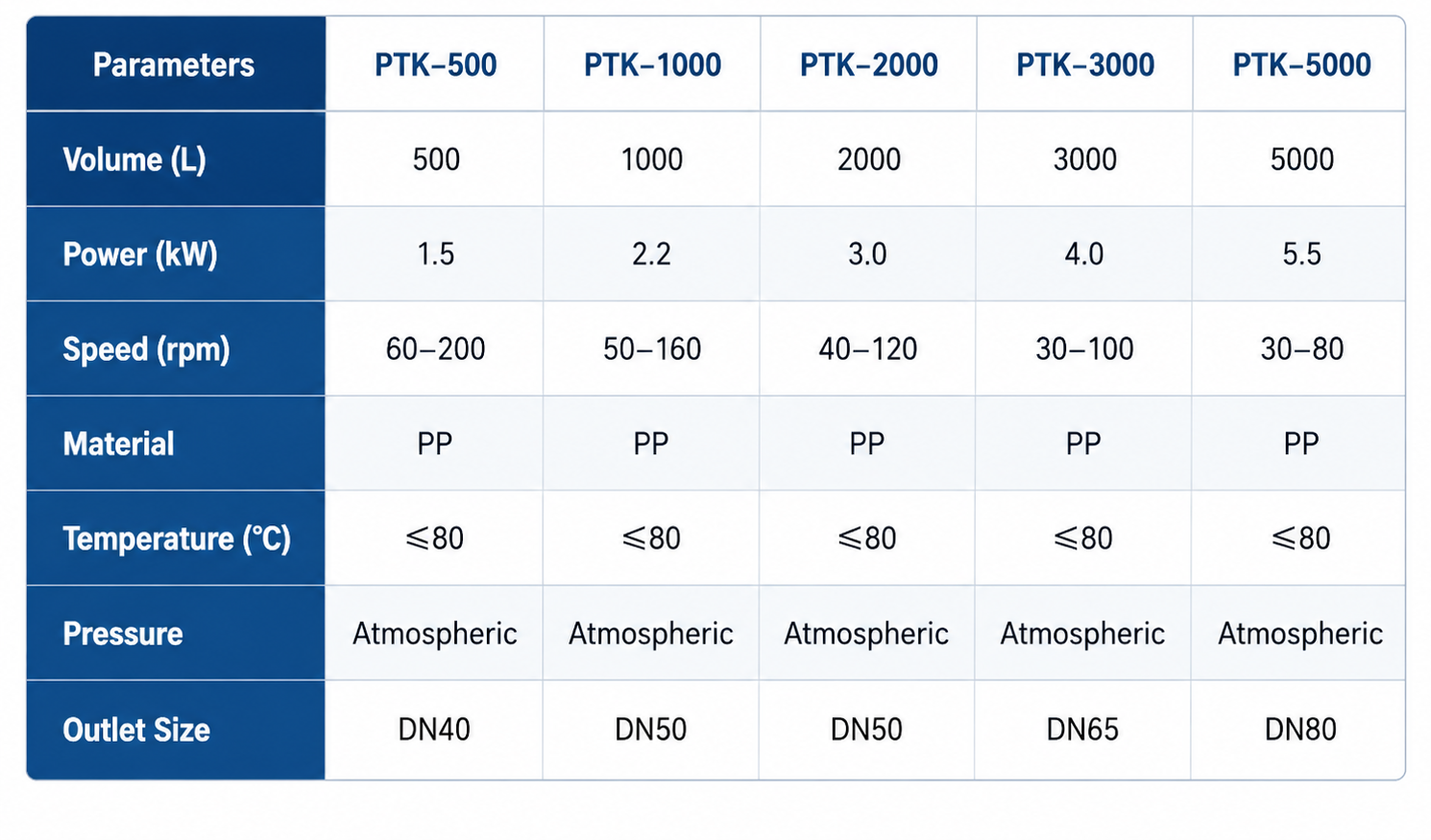

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Parameters | PTK-500 | PTK-1000 | PTK-2000 | PTK-3000 | PTK-5000 |
|---|---|---|---|---|---|
| Volume (L) | 500 | 1000 | 2000 | 3000 | 5000 |
| Power (kW) | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 |
| Speed (rpm) | 60–200 | 50–160 | 40–120 | 30–100 | 30–80 |
| Material | PP | PP | PP | PP | PP |
| Temperature (°C) | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 |
| Pressure | Atmospheric | Atmospheric | Atmospheric | Atmospheric | Atmospheric |
| Outlet Size | DN40 | DN50 | DN50 | DN65 | DN80 |
Typical Applications
Suitable for mixing, preparation and handling of corrosive or chemically sensitive liquids across industrial applications.
Chemical Processing
Mixing and preparation of acids, alkalis, reagents and other process liquids.
Water Treatment
Preparation and mixing of treatment chemicals, additives and conditioning solutions.
Electroplating & Surface Treatment
Mixing and holding of plating, pickling and surface-treatment solutions.
Industrial Mixing & Preparation
General blending and preparation of process liquids for industrial production.
Optional Configurations
Configurations can be tailored to suit different process, piping, installation and operating requirements.

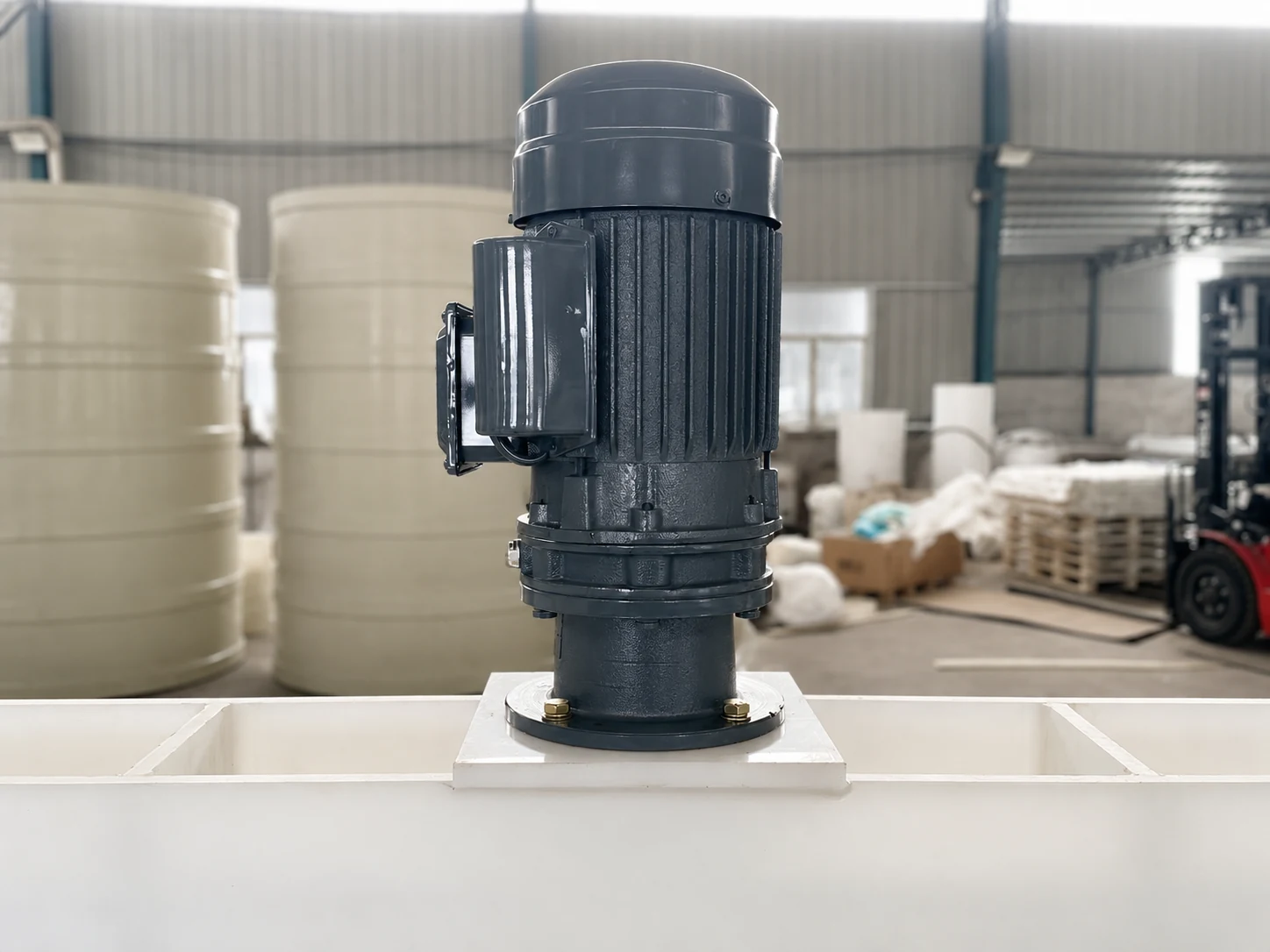

Drive Motor Options
Motor and drive configuration can be selected to match different mixing requirements.

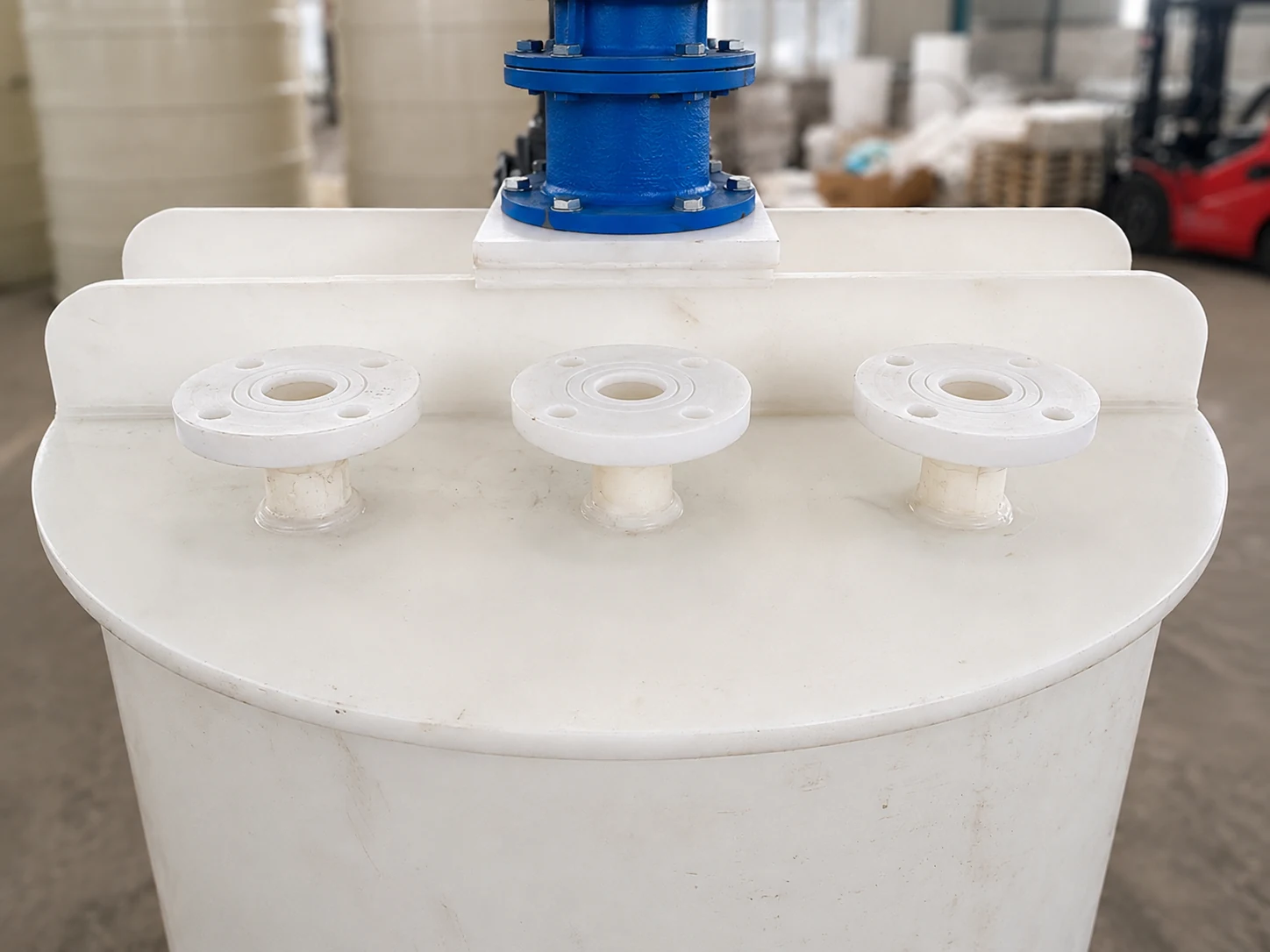

Nozzle & Top Options
Top openings, nozzle quantity and connection layout can be customized as required.

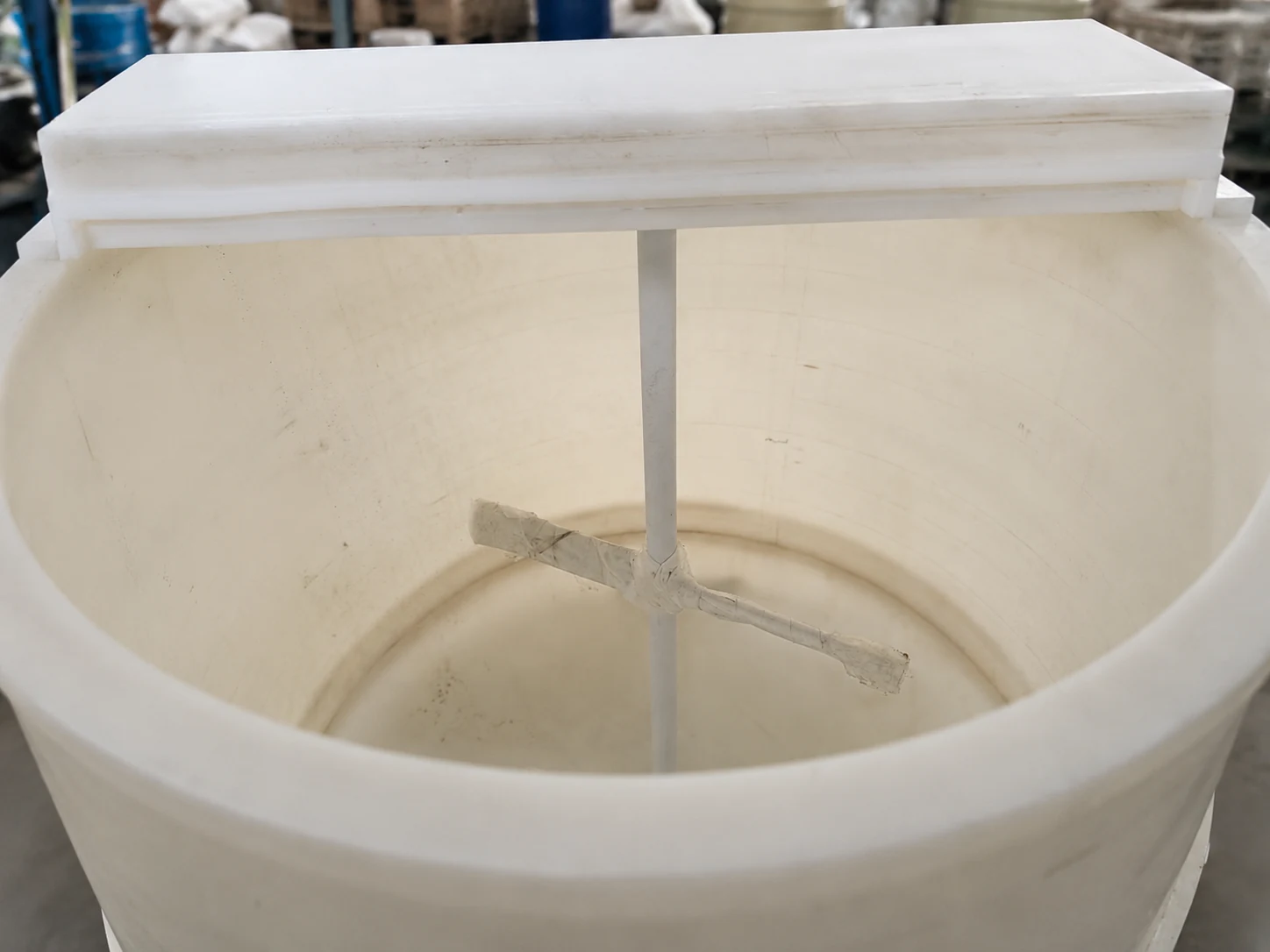

Agitator Type
Agitator design can be selected according to material and mixing requirements.

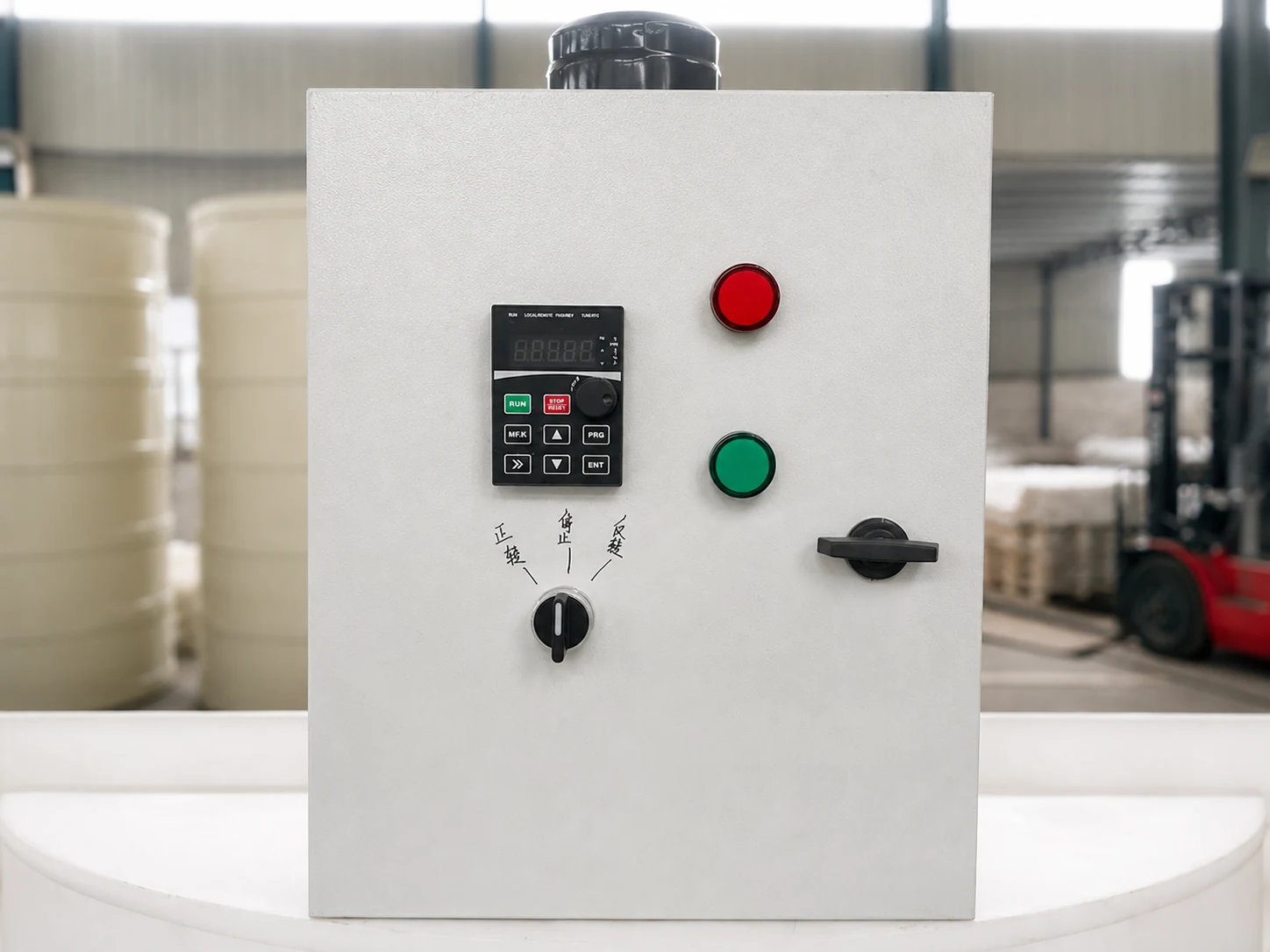

Control Panel Options
Speed control and electrical functions can be configured for different operating needs.
Need a PP Mixing Tank for Your Process?
Tell us your required capacity, liquid properties, mixing purpose, agitation requirements, nozzle connections and installation conditions. Our team will help you select a suitable PP mixing tank configuration.
Request a Quote
