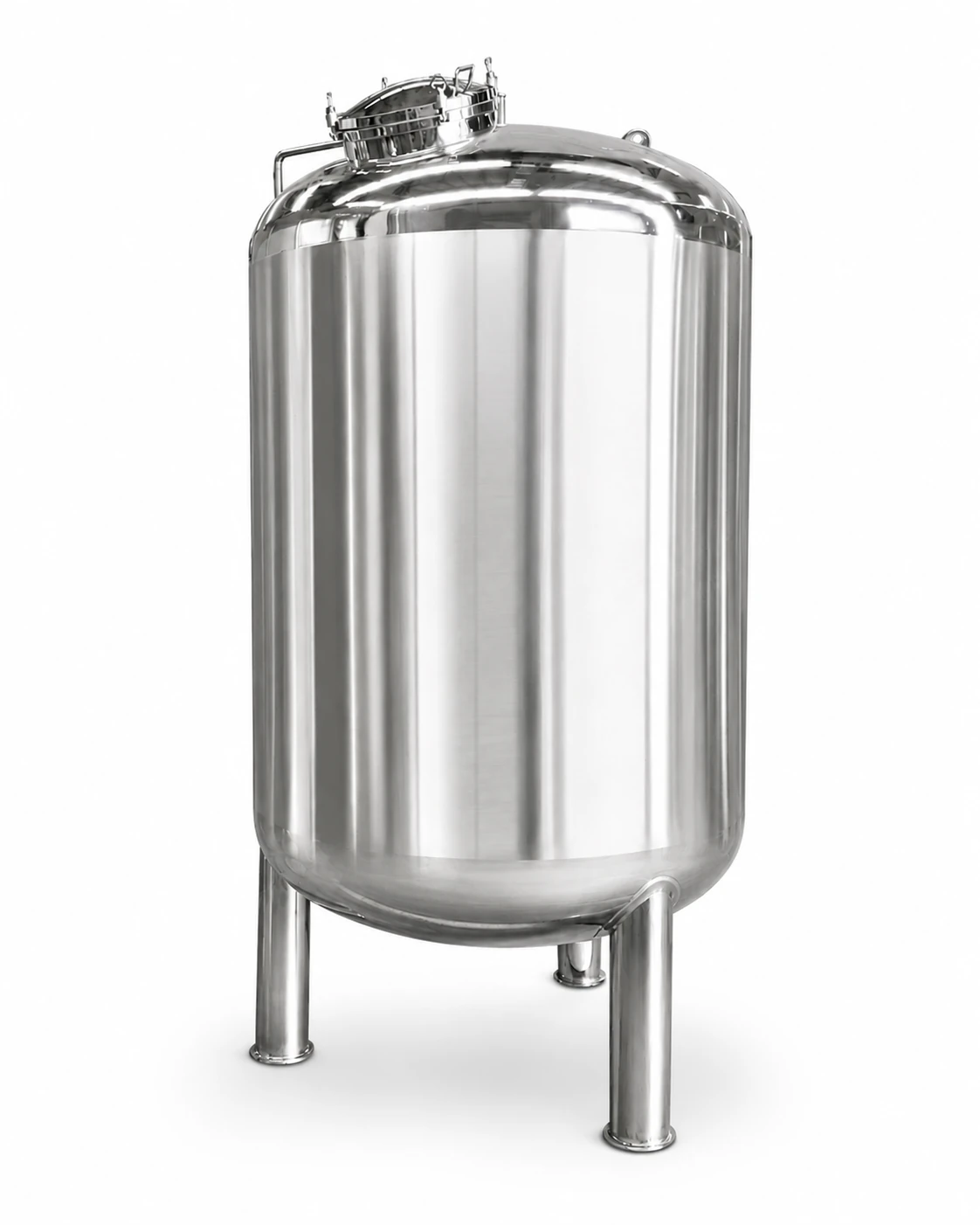

Stainless Steel Storage Tank
Designed for reliable storage, temporary holding and transfer of liquid materials. Available in vertical or horizontal configurations, with capacity, material and functional options customized to different process requirements.
Configuration Overview
Configure the tank to match your capacity, material and process requirements.
50–30,000 L
Capacity
Vertical / Horizontal
Orientation
SUS304 / SUS316L
Material
Functional Options
Heating · Cooling · Agitation · Level Control
Available Tank Structures

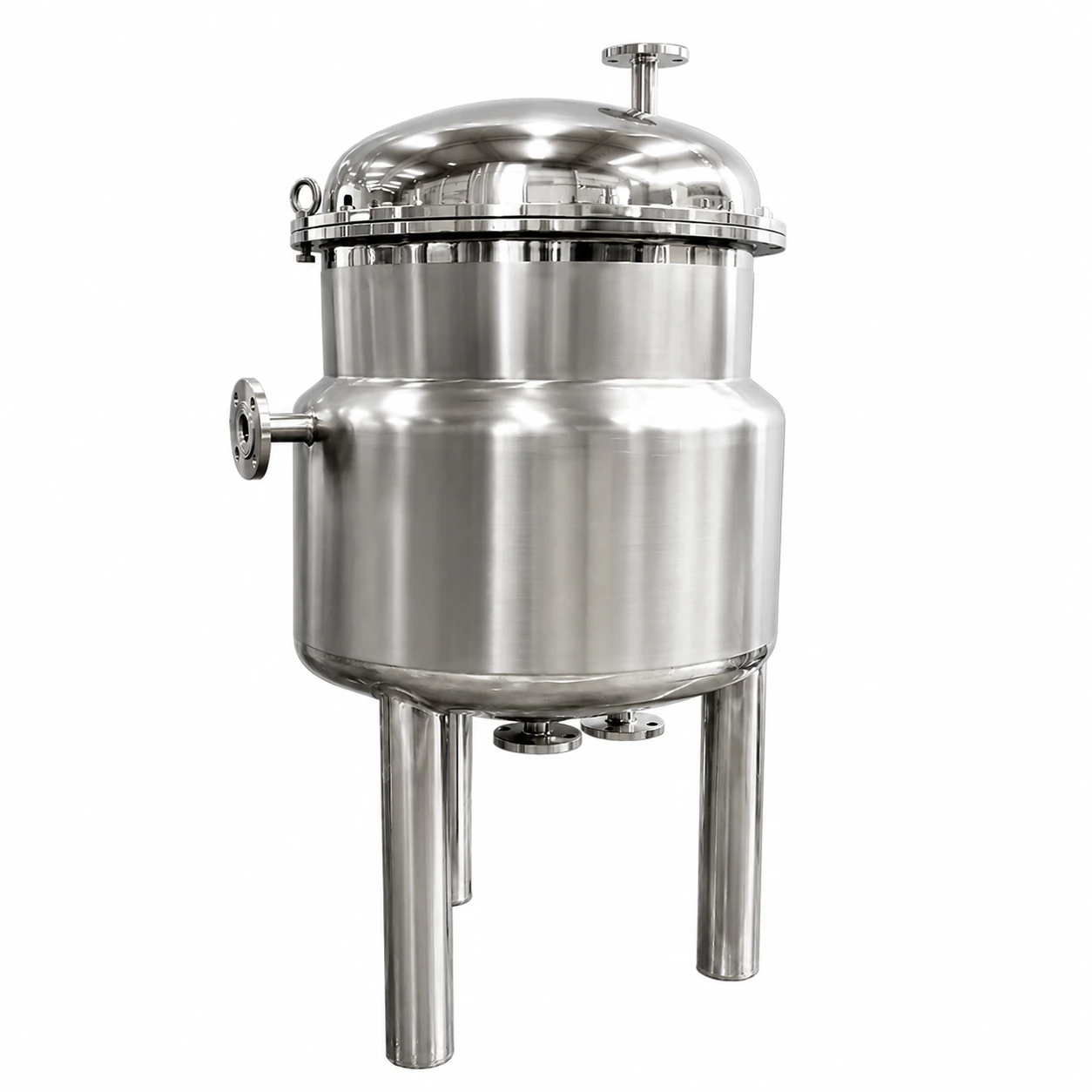

Vertical Domed-Top Tank
Compact vertical design for general liquid storage applications.

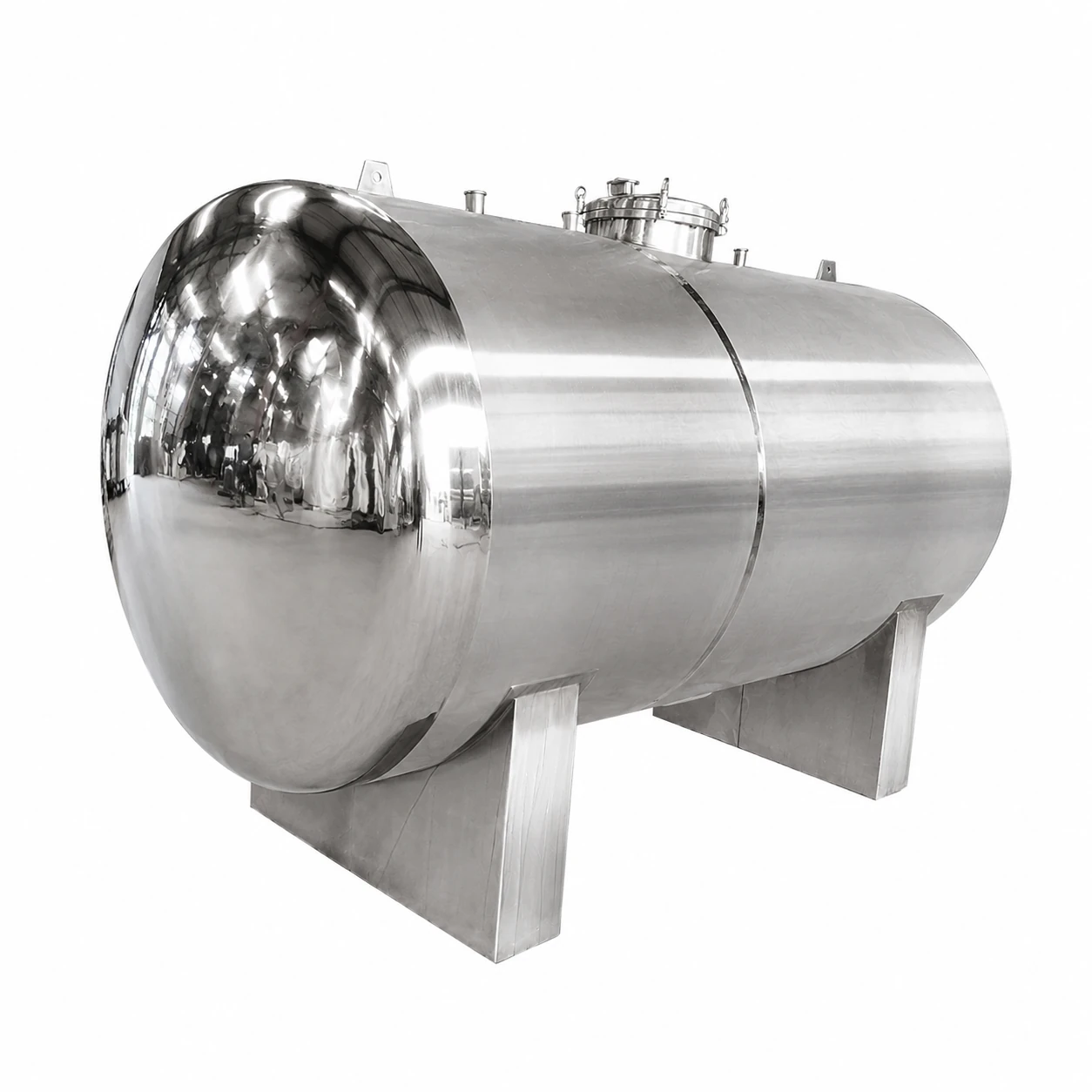

Horizontal Storage Tank
Horizontal configuration for space-efficient liquid storage.

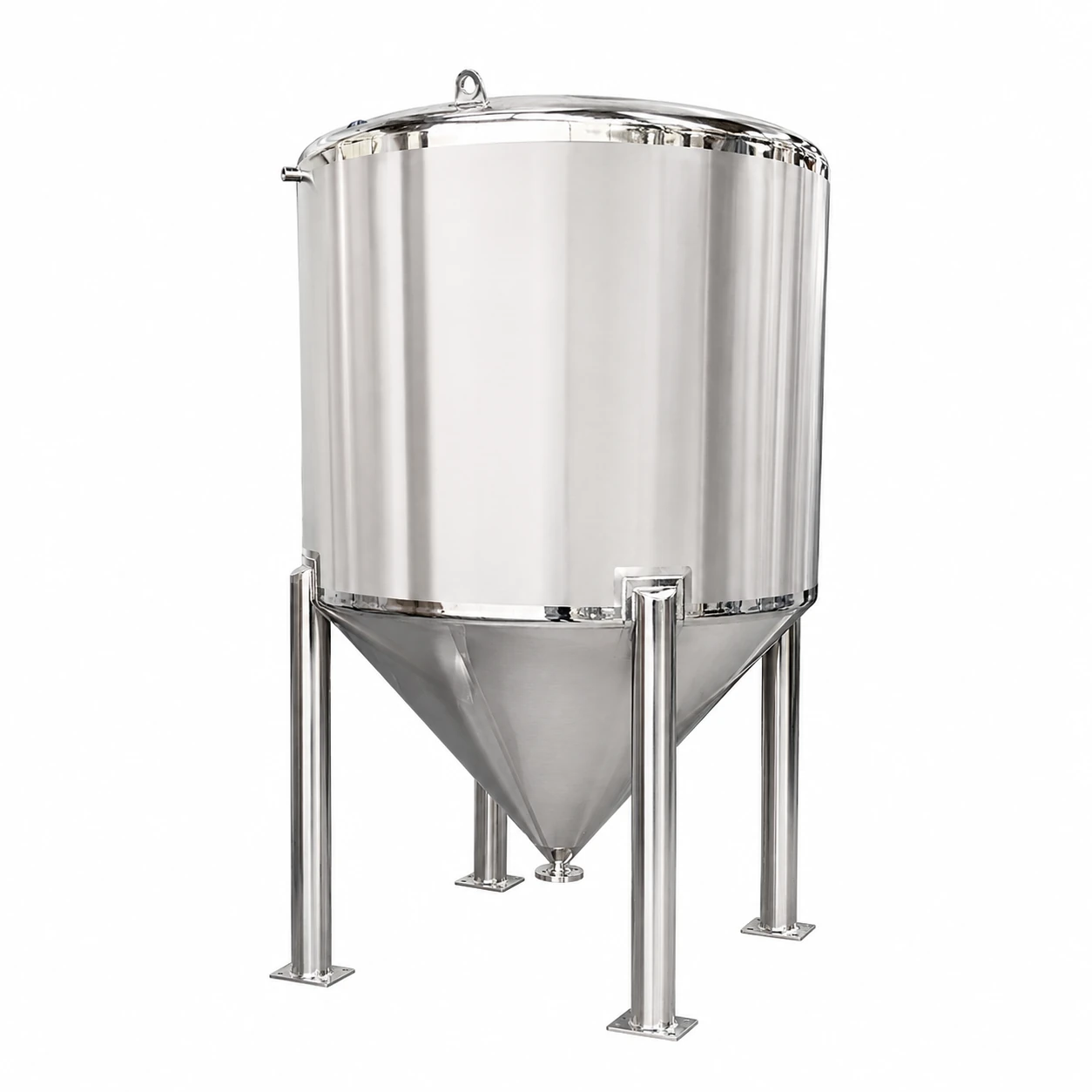

Cone-Bottom Storage Tank
Cone-bottom design supports efficient drainage and discharge.

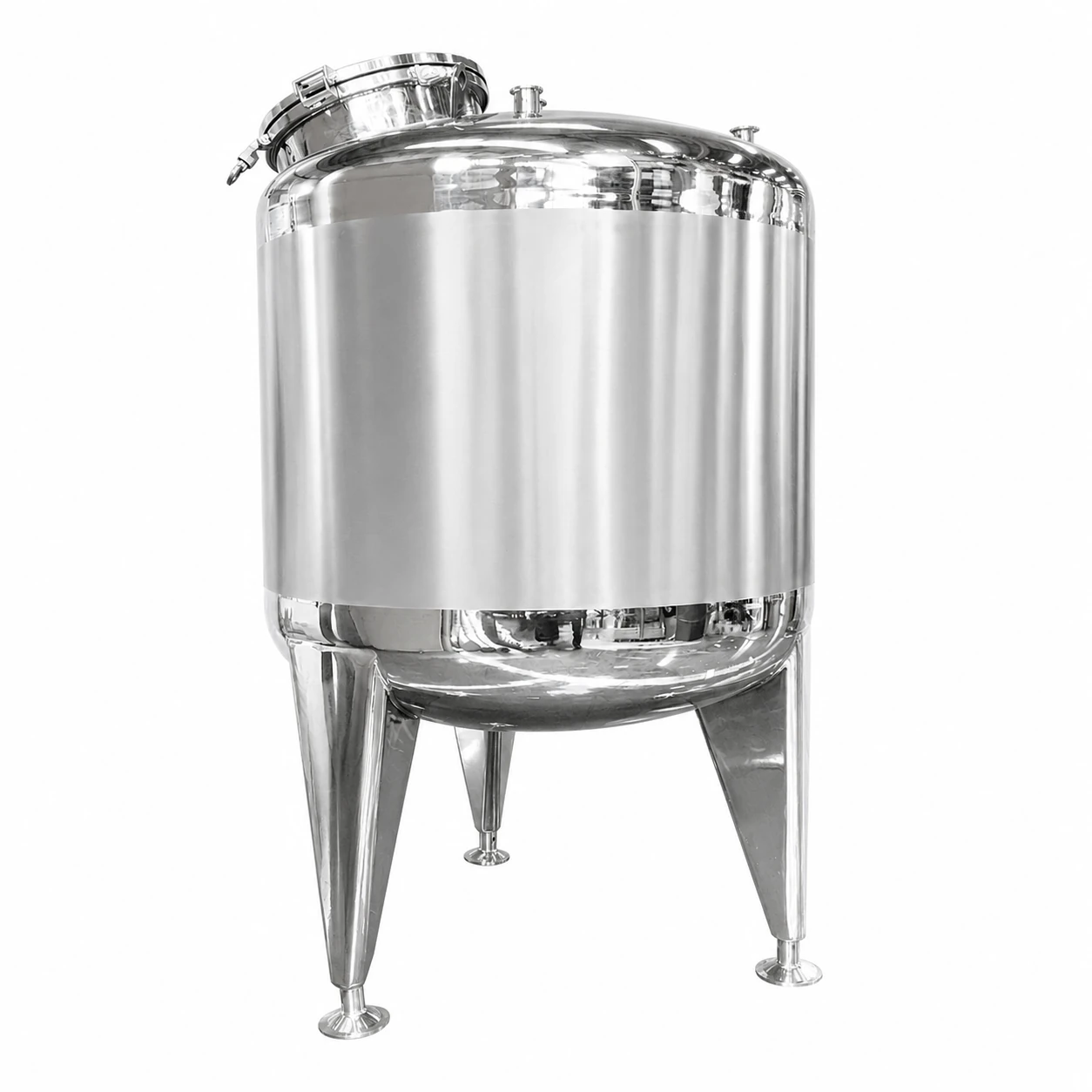

Vertical Leg-Supported Tank
Versatile vertical structure for customized storage requirements.

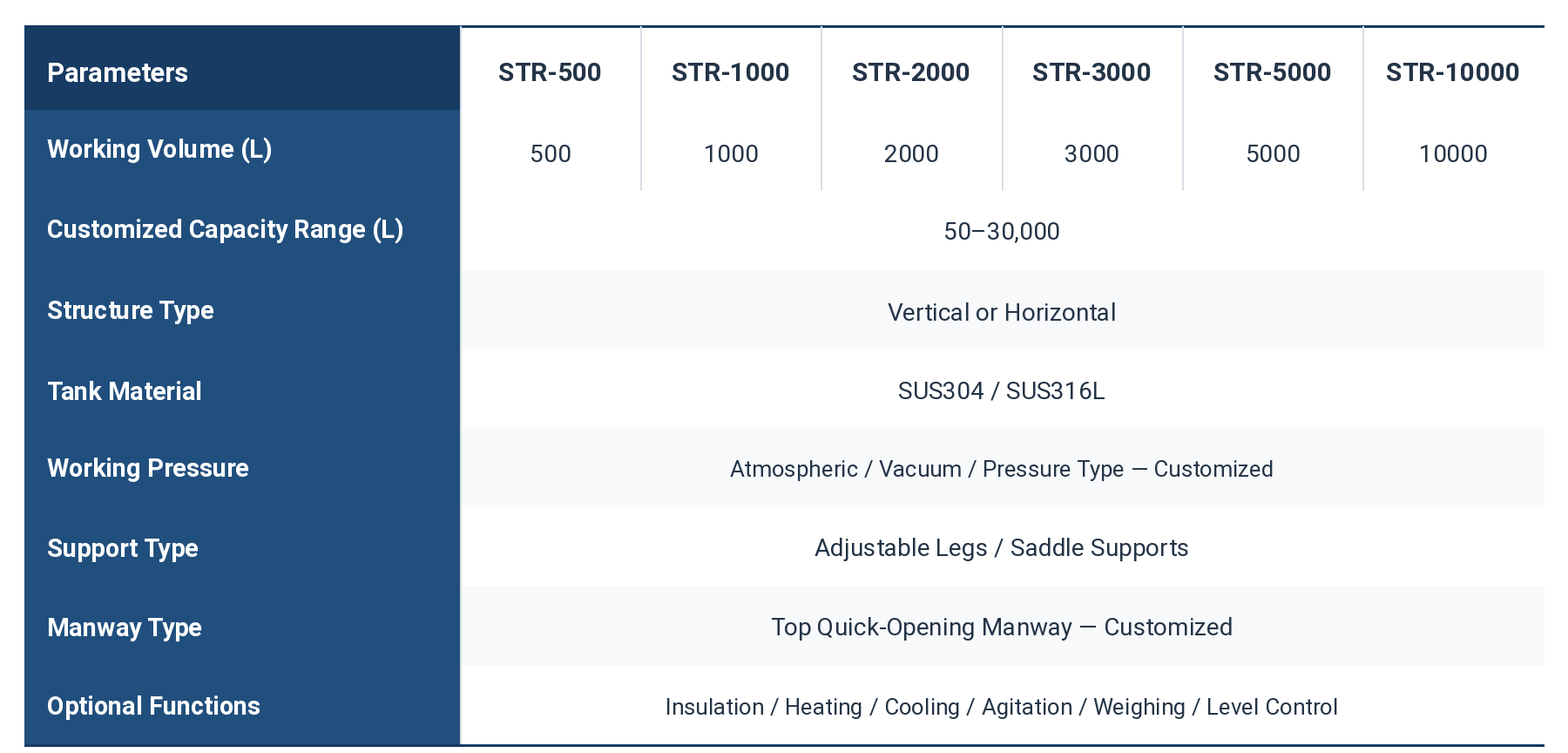

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Parameters | 500 L | 1000 L | 2000 L | 3000 L | 5000 L | 10000 L |
|---|---|---|---|---|---|---|
| Working Volume (L) | 500 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Customized Capacity Range (L) | 50–30,000 | |||||
| Structure Type | Vertical or Horizontal | |||||
| Tank Material | SUS304 / SUS316L | |||||
| Working Pressure | Atmospheric / Vacuum / Pressure Type — Customized | |||||
| Support Type | Adjustable Legs / Saddle Supports | |||||
| Manway Type | Top Quick-Opening Manway — Customized | |||||
| Optional Functions | Insulation / Heating / Cooling / Agitation / Weighing / Level Control | |||||
Typical Applications
Suitable for liquid storage, temporary holding and process applications across a wide range of industries.
Food & Beverage
Storage of beverages, ingredients and liquid food products.
Pharmaceutical Processing
Storage and holding of process liquids and formulated products.
Chemical Processing
Storage of process liquids and chemical materials.
Water & Utilities
Storage and buffer applications for water and utility systems.
Optional Configurations
Configurations can be tailored to suit different process, piping, installation and operating requirements.

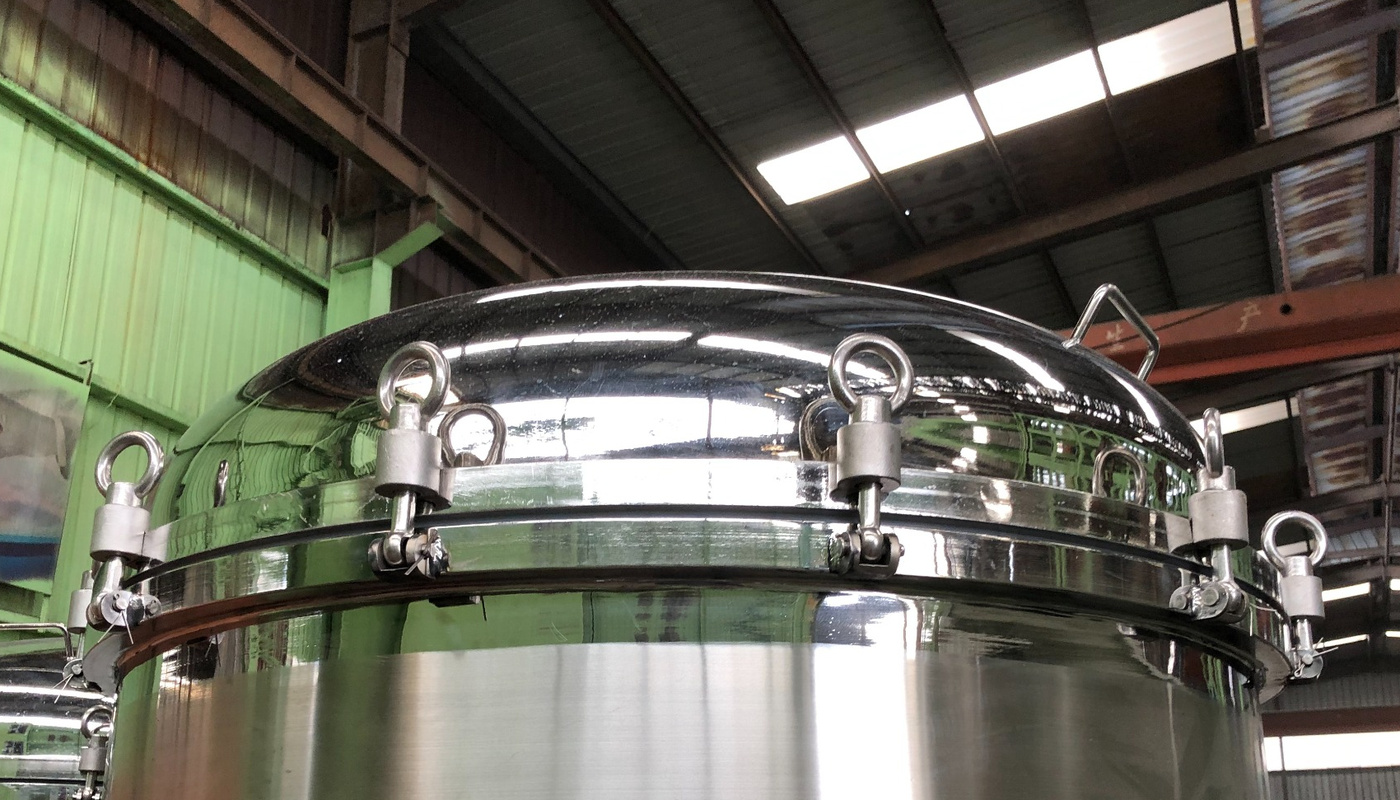

Manway & Cover
Quick-opening manway and cover configurations can be tailored for cleaning, inspection and maintenance needs.

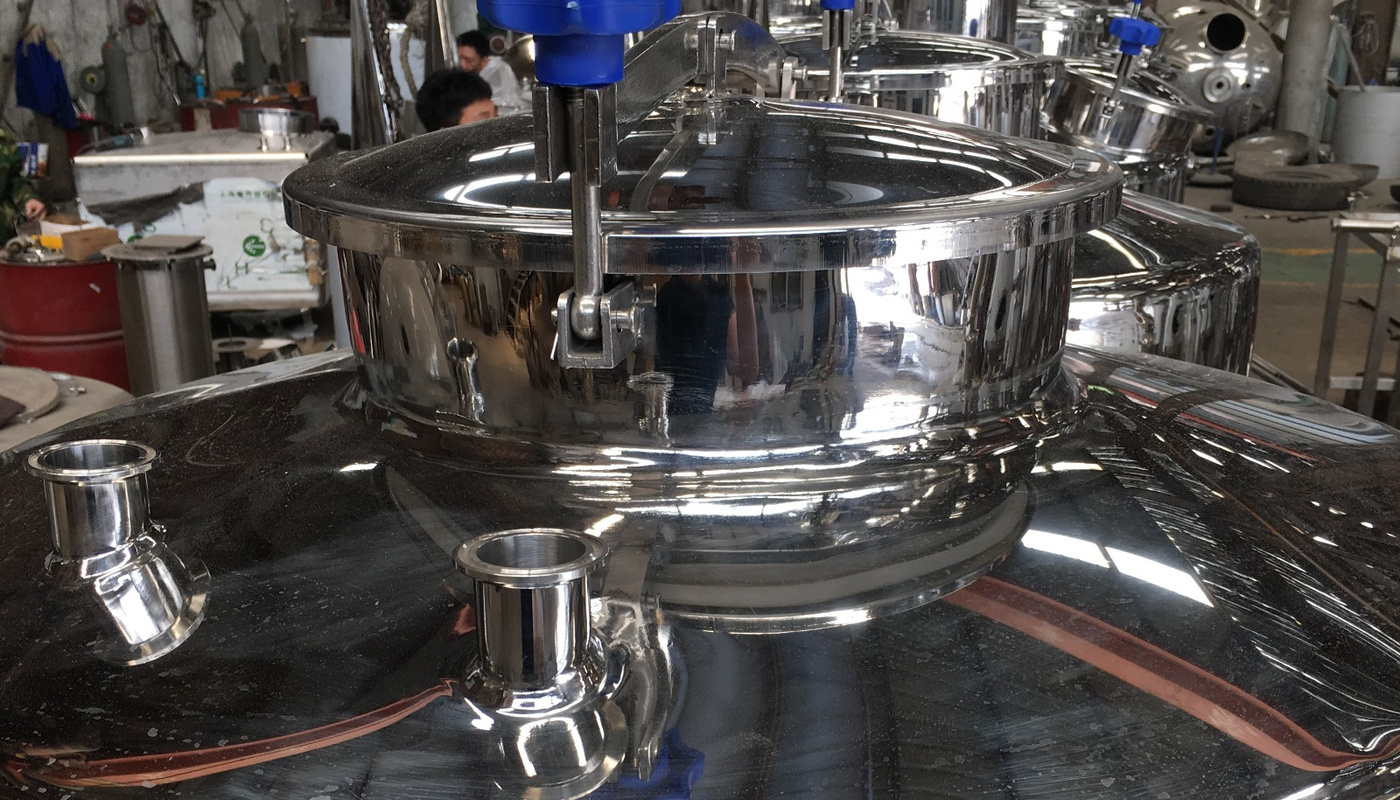

Sanitary Connections
Inlet, outlet and process connections can be customized to suit piping layout and operating requirements.

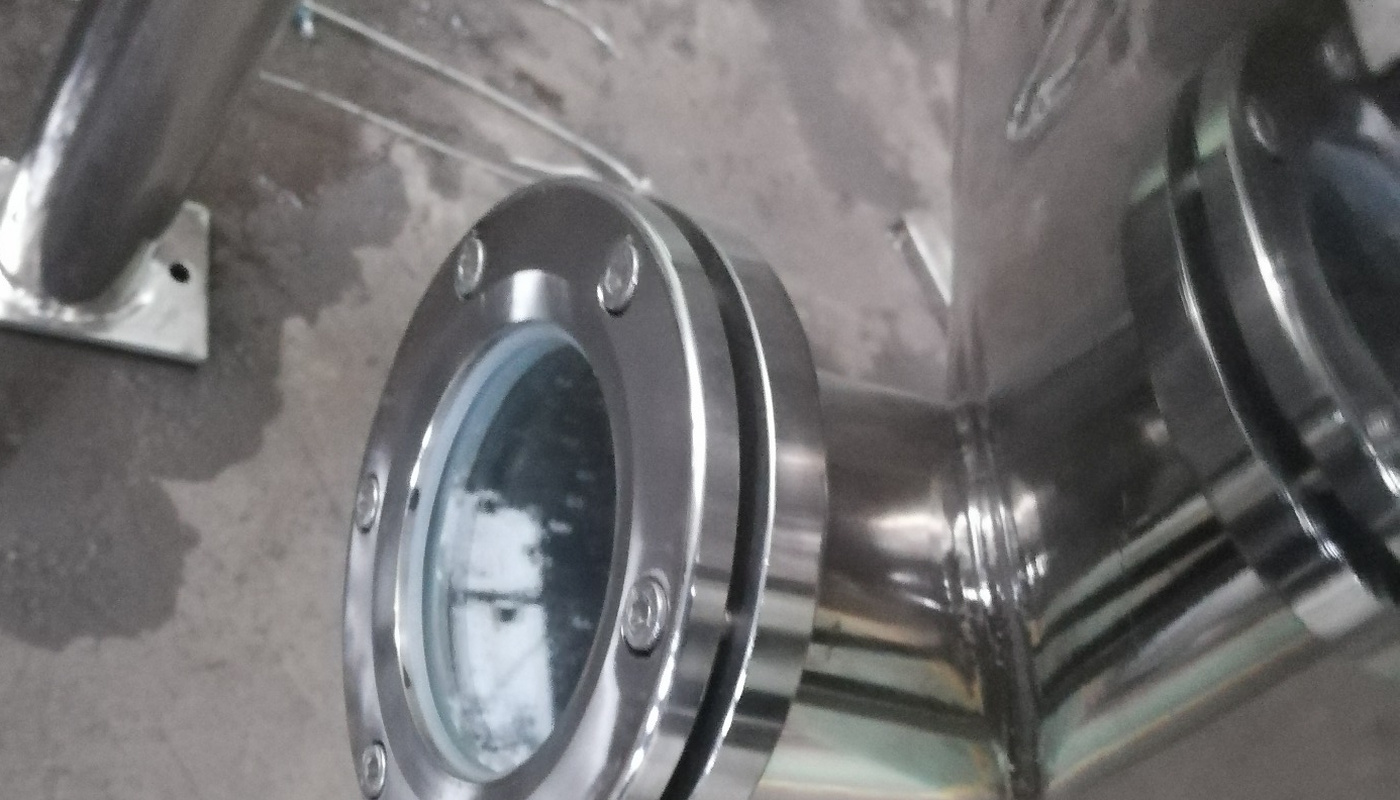

Sight Glass
Optional sight glass provides convenient visual inspection of the tank interior.
Mobile Caster Base
Optional caster base allows easier movement and positioning for flexible installation.
Need Help Choosing the Right Storage Tank?
Tell us your required capacity, material, operating conditions and process requirements. Our team will help you select a suitable tank configuration.
Request a Quote
