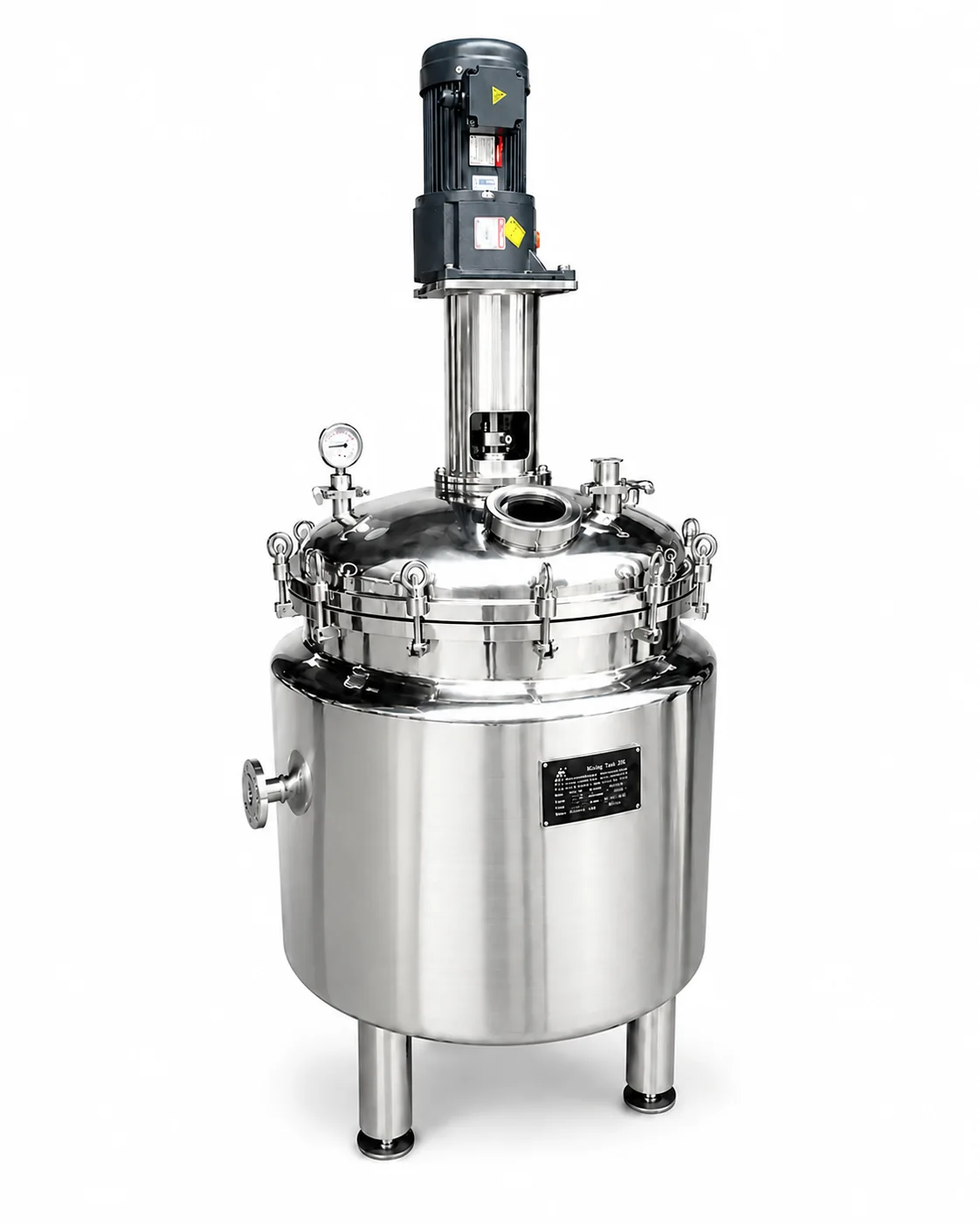

Reaction Kettle
Customizable stainless steel reaction kettle designed for mixing, heating, cooling and controlled processing across a wide range of industrial applications.
Configuration Overview
Configure the reaction kettle to match your capacity, material and process requirements.
50–10,000 L
Capacity
Agitator Options
Mixing System
SUS304 / SUS316L
Material Options
Heating & Cooling
Jacket · Half-Pipe · Coil
Available Reaction Kettle Configurations

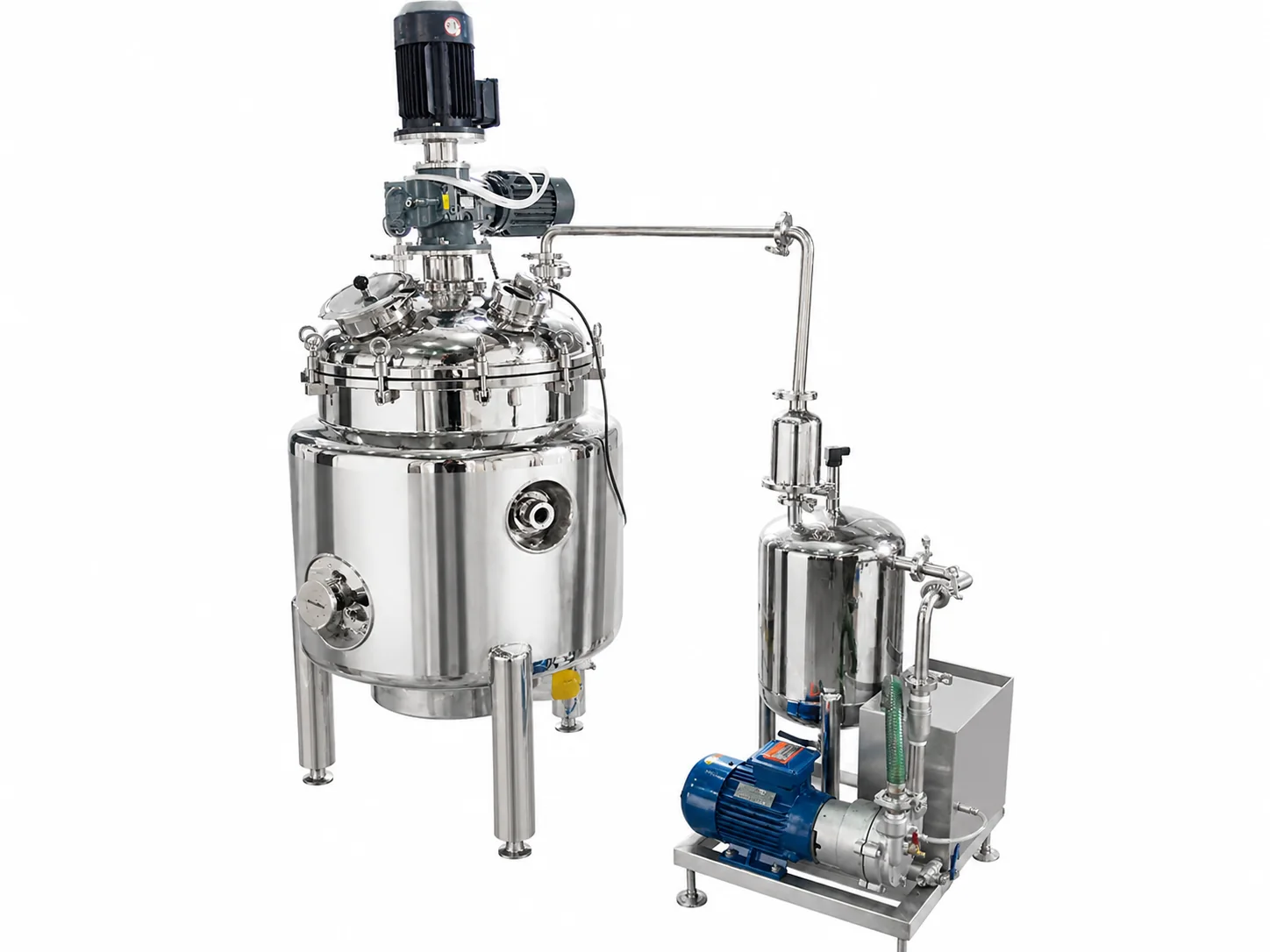

Vacuum Reaction Kettle
Vacuum-assisted configuration for flexible process requirements.

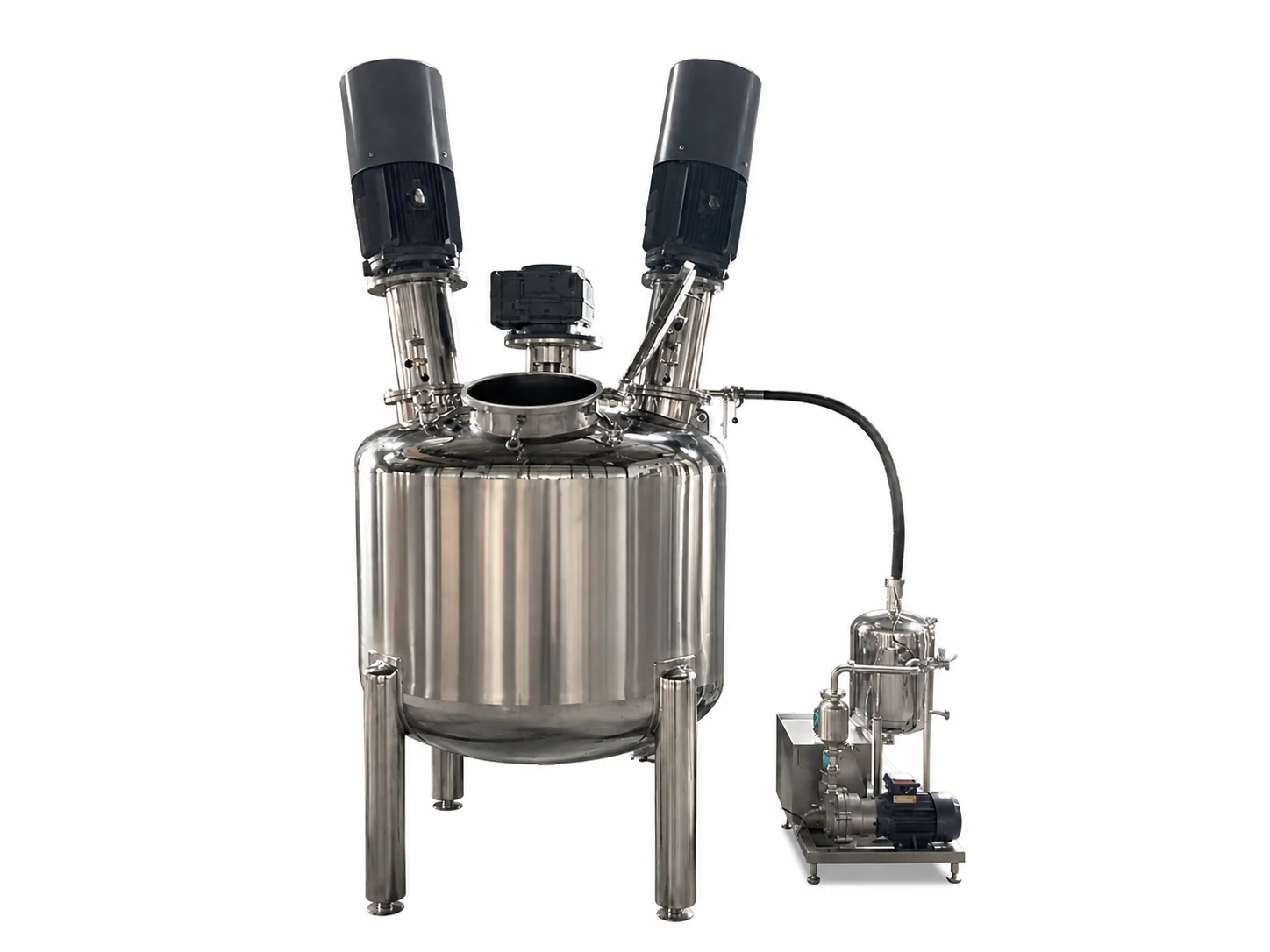

Multi-Agitator Reaction Kettle
Multiple agitators support flexible mixing and processing.

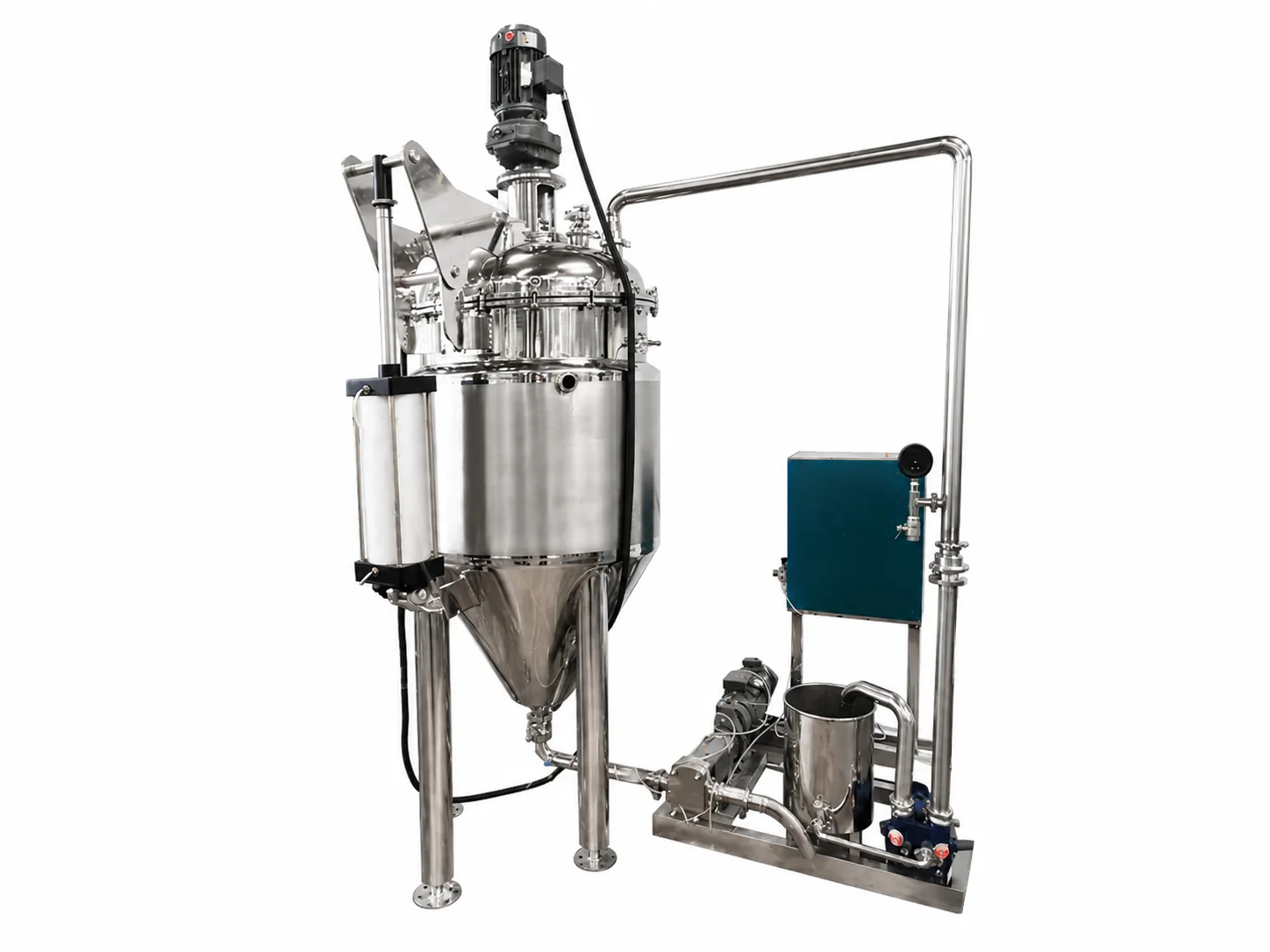

Cone-Bottom Reaction Kettle
Cone-bottom design supports efficient discharge and transfer.

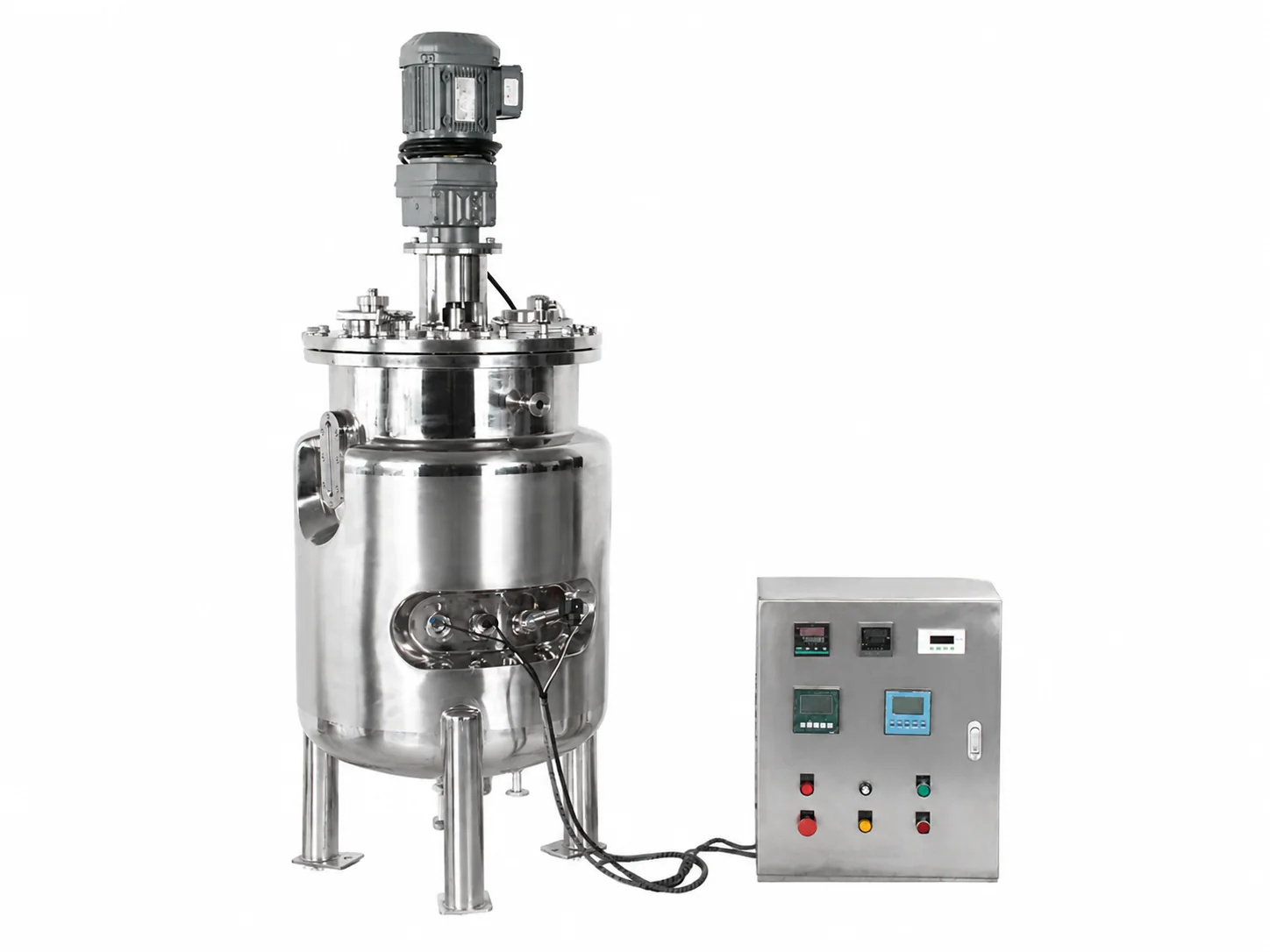

Reaction Kettle with Control
Integrated control for agitation and process operation.

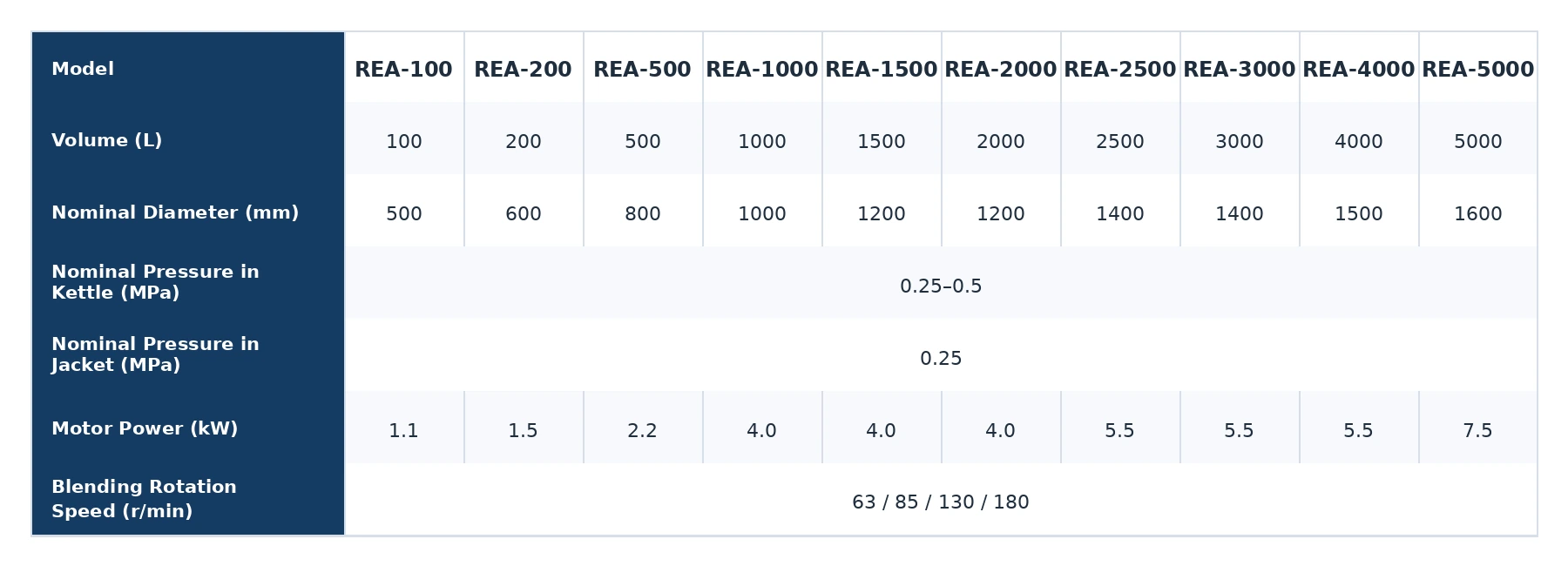

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Model | REA-100 | REA-200 | REA-500 | REA-1000 | REA-1500 | REA-2000 | REA-2500 | REA-3000 | REA-4000 | REA-5000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Volume (L) | 100 | 200 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| Nominal Diameter (mm) | 500 | 600 | 800 | 1000 | 1200 | 1200 | 1400 | 1400 | 1500 | 1600 |
| Nominal Pressure in Kettle (MPa) | 0.25–0.5 | |||||||||
| Nominal Pressure in Jacket (MPa) | 0.25 | |||||||||
| Motor Power (kW) | 1.1 | 1.5 | 2.2 | 4.0 | 4.0 | 4.0 | 5.5 | 5.5 | 5.5 | 7.5 |
| Blending Rotation Speed (r/min) | 63 / 85 / 130 / 180 | |||||||||
Typical Applications
Designed for mixing, reaction and temperature-controlled processing across a wide range of industries.
Food Processing
Mixing, heating and controlled processing for food and liquid products.
Pharmaceutical Processing
Reaction and formulation processes for pharmaceutical production.
Chemical Processing
Suitable for hydrolysis, neutralization, crystallization and other chemical processes.
Environmental Processing
Customized processing for environmental and industrial applications.
Optional Configurations
Configurations can be tailored to suit different process, piping, installation and operating requirements.

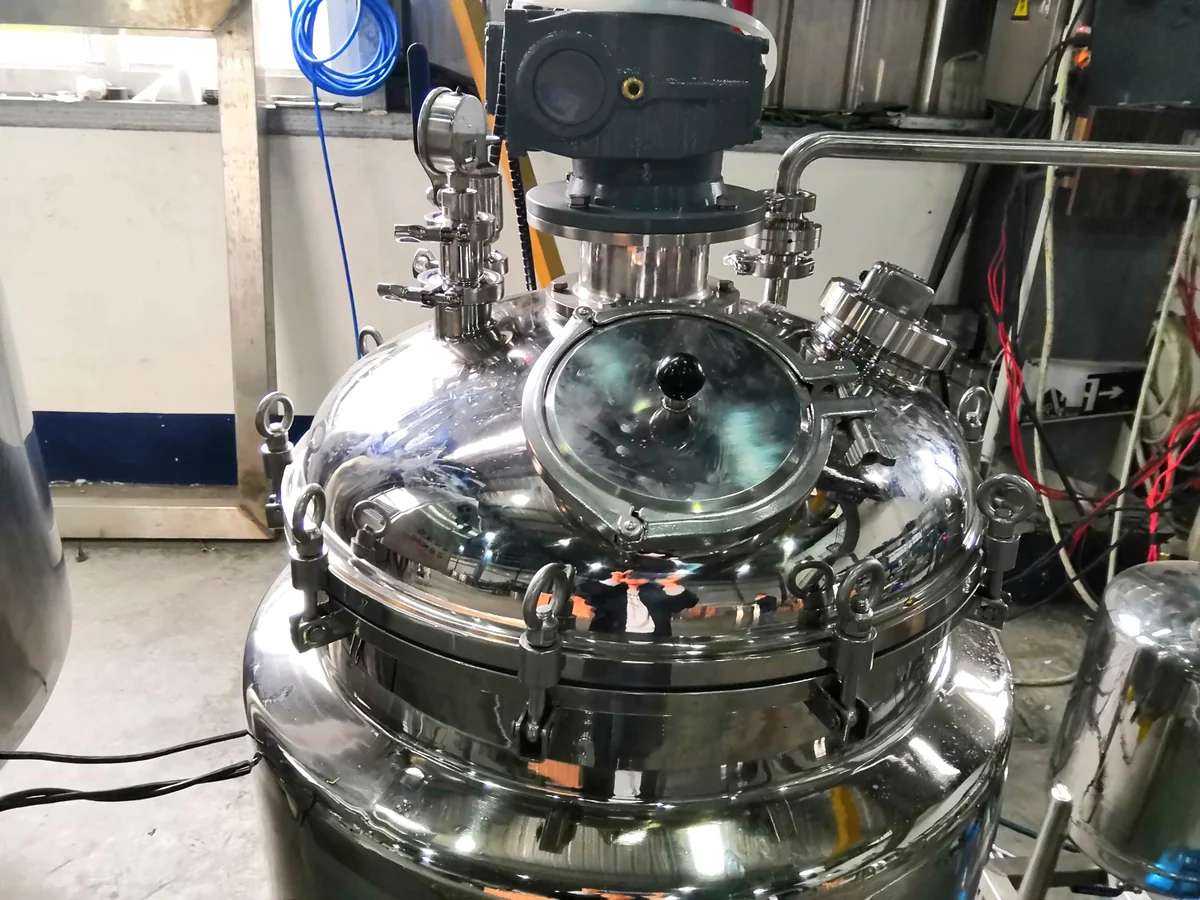

Manway & Inspection Port
Quick access for inspection, cleaning and maintenance.

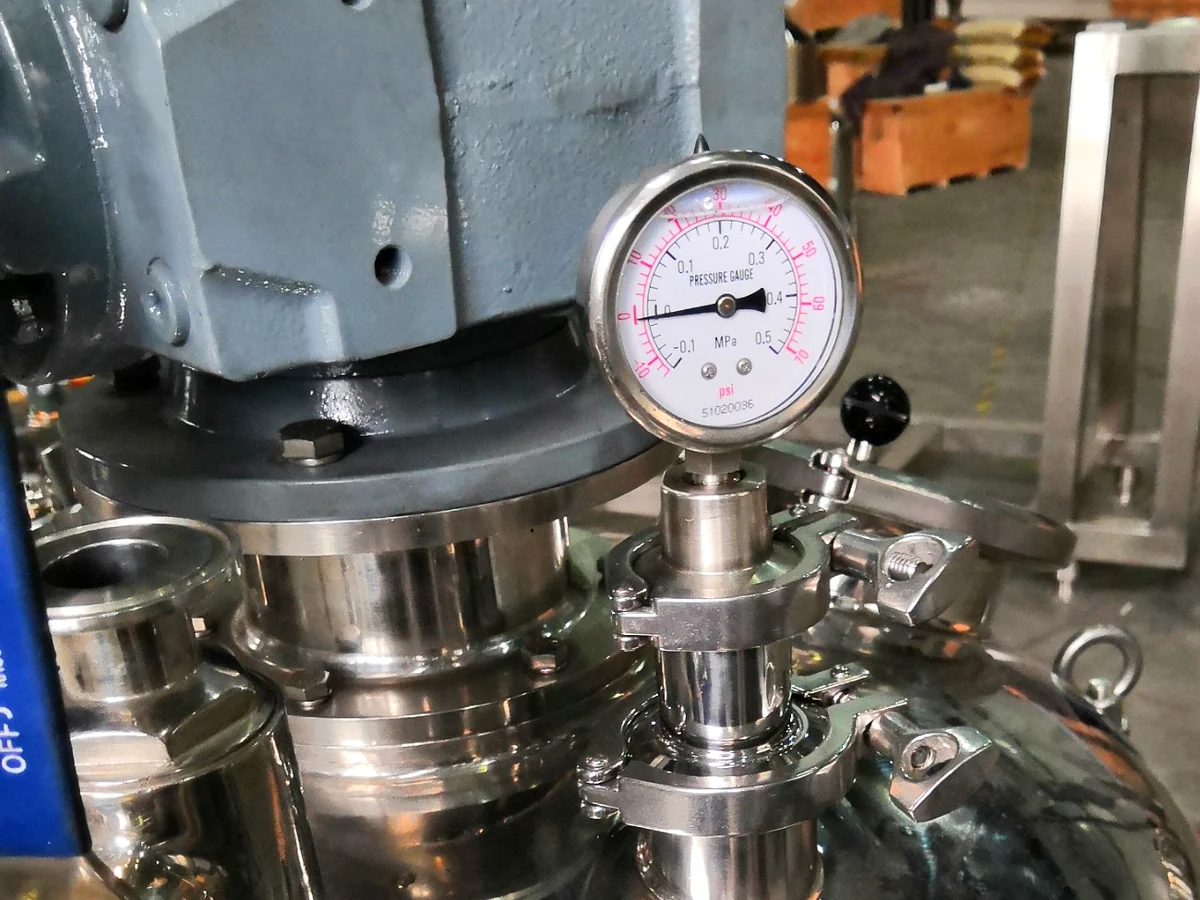

Pressure Monitoring
Pressure monitoring for stable process operation.

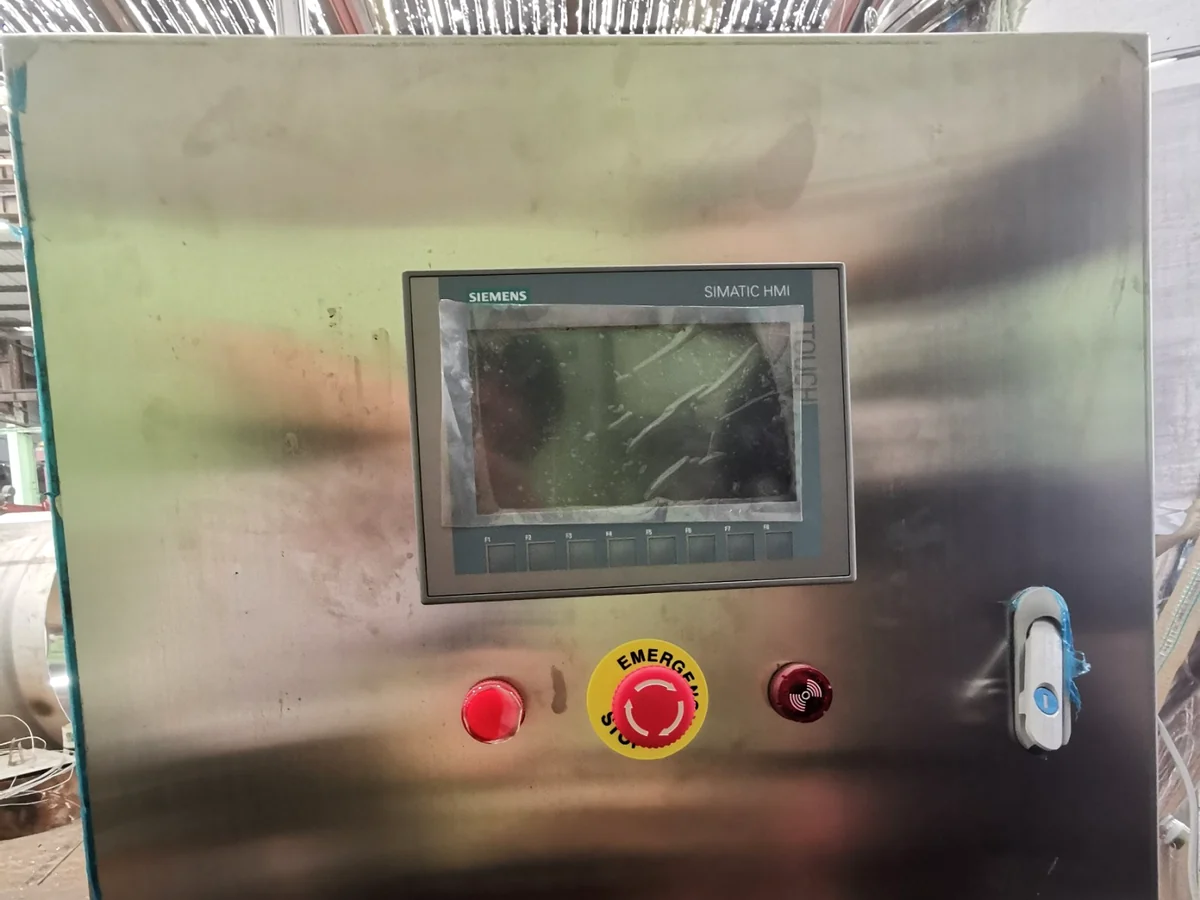

PLC / HMI Control
Centralized control for process monitoring and operation.

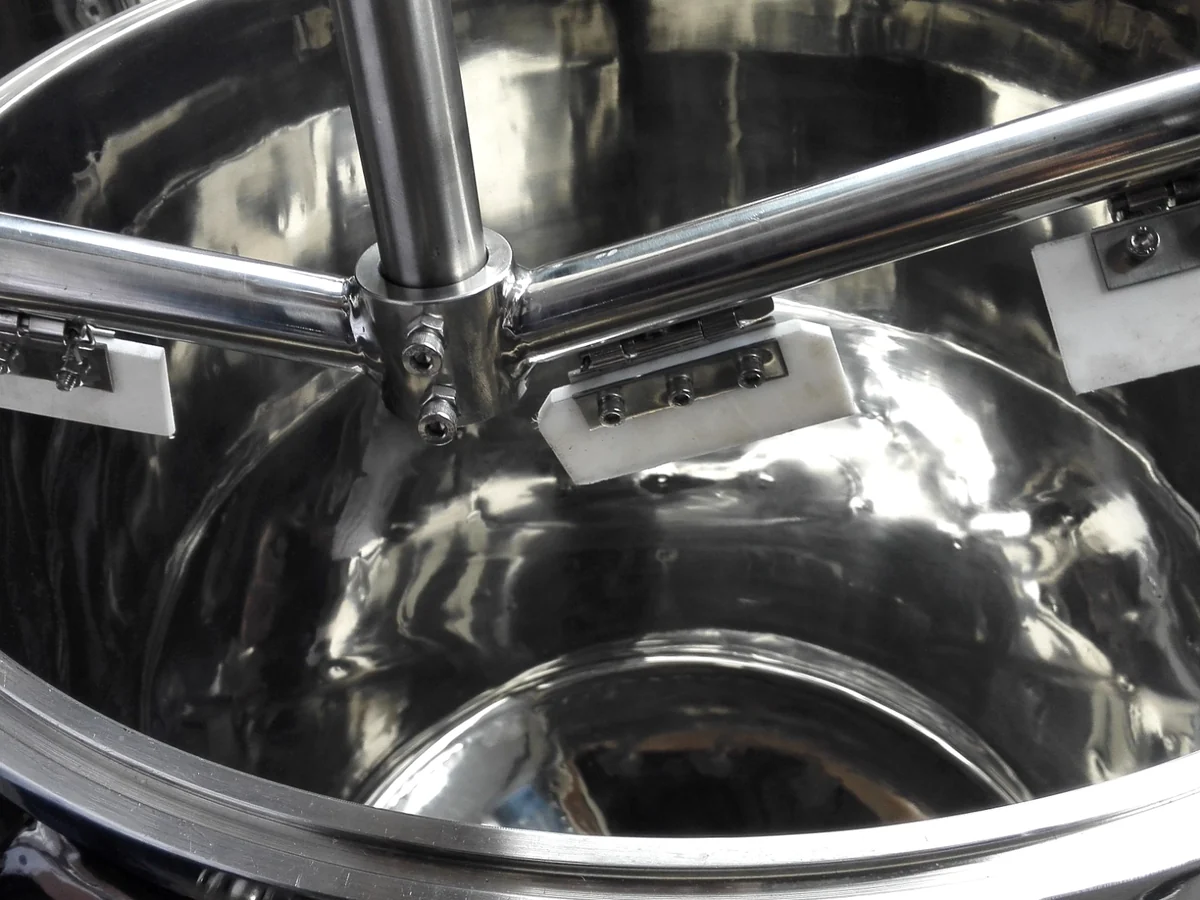

Agitator Options
Agitator options for different mixing and processing needs.
Need a Reaction Kettle for Your Process?
Tell us your required capacity, product viscosity, heating method, mixing requirements, discharge method and installation conditions. Our team will help you select a suitable reaction kettle configuration.
Request a Quote
