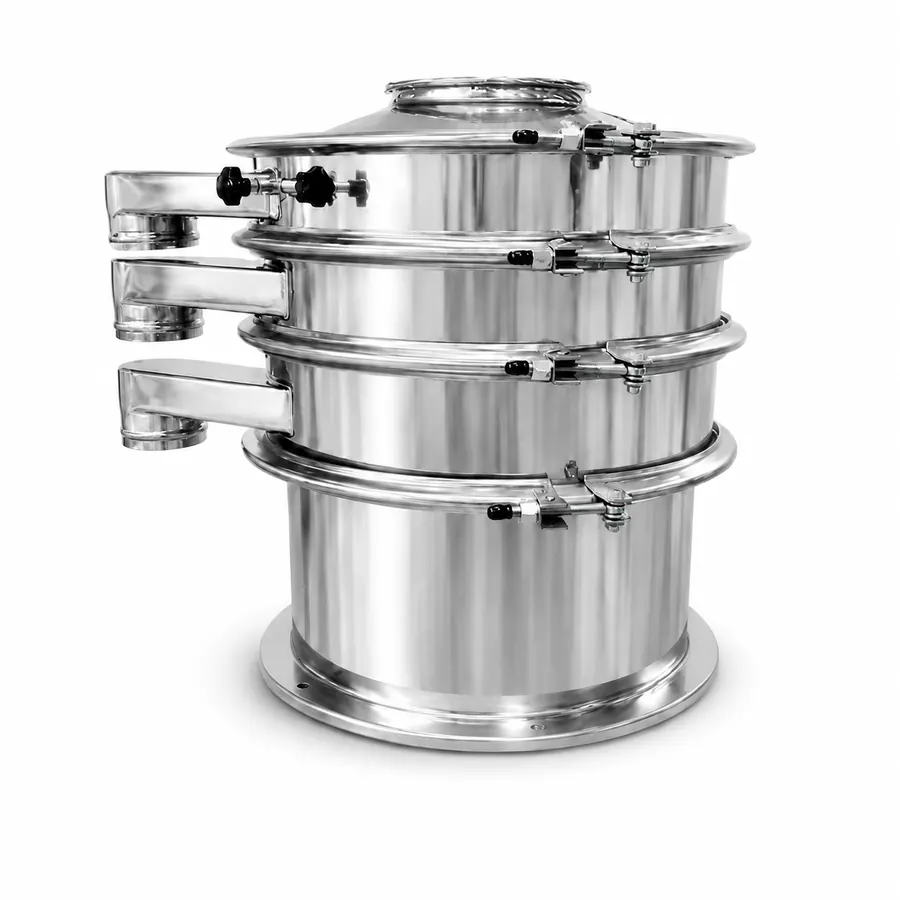

Rotary Vibrating Sieve
Efficient screening equipment for grading, impurity removal, and solid-liquid separation of powders, granules, and slurry materials. Multi-deck configurations are available to meet different screening requirements.
Configuration Overview
Configure the screen diameter, number of decks, mesh size, and material to match your screening requirements.
600–2000 mm
Screen Diameter
1–4 Decks
Screen Decks
5–600 Mesh
Mesh Size
SUS304 / SUS316L
Material
Available Configurations

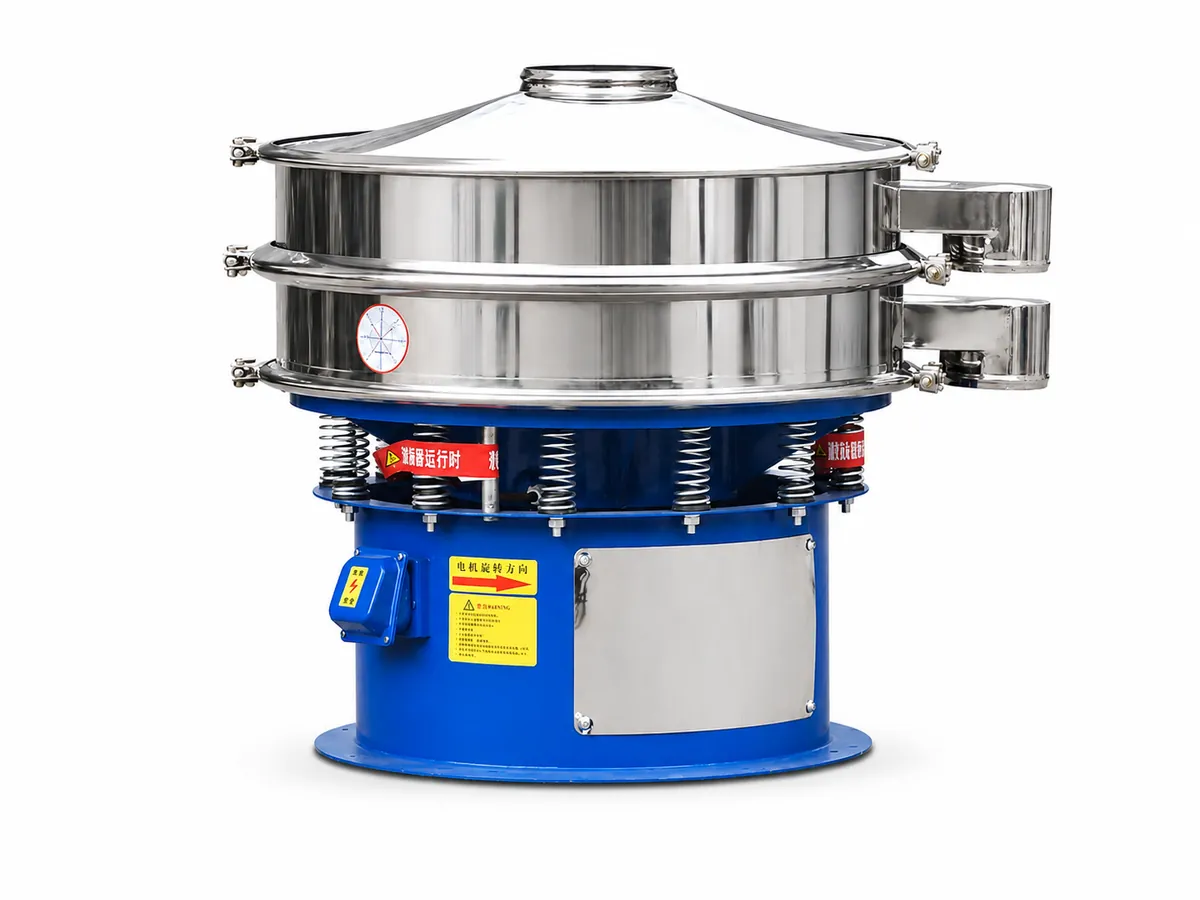

Standard Vibrating Sieve
General-purpose design for powder and particle screening.

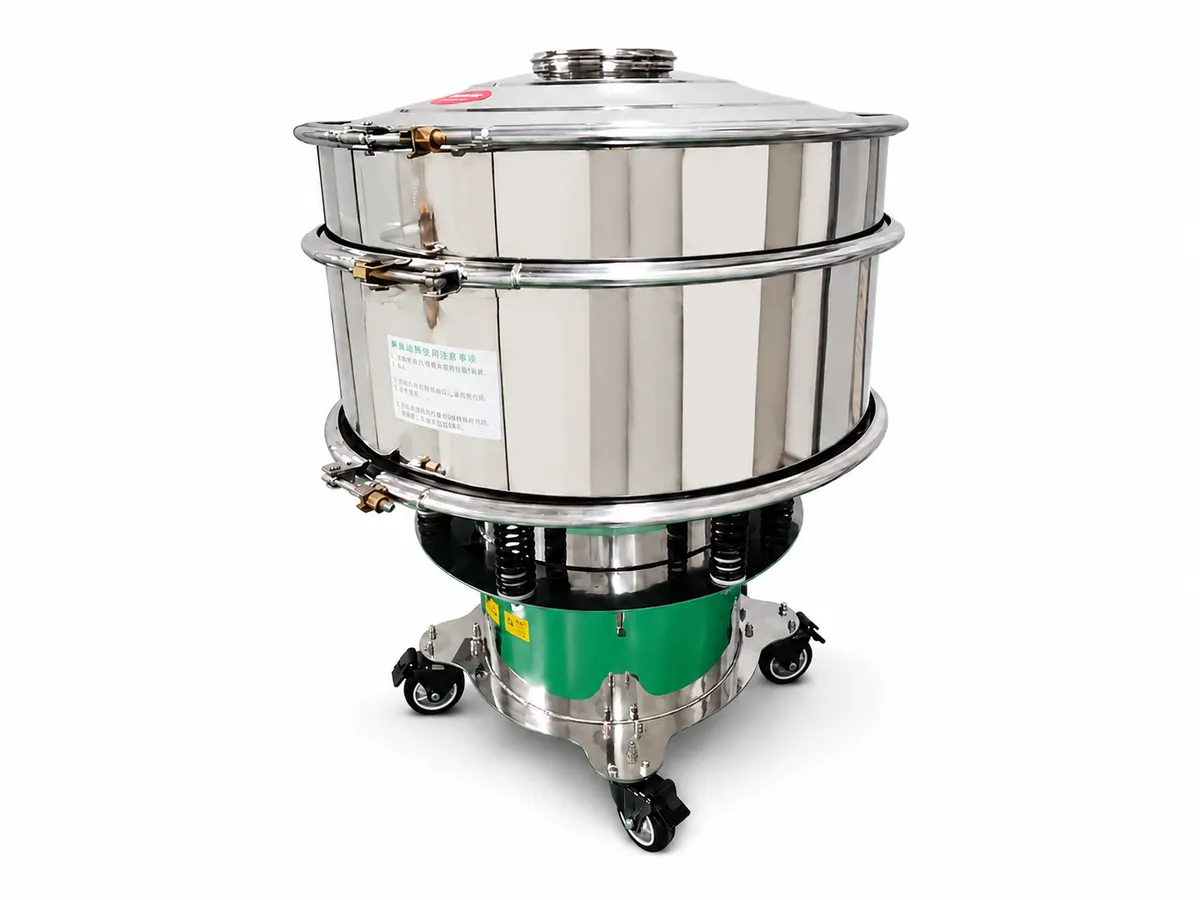

Mobile Vibrating Sieve
Caster-mounted design for flexible positioning and cleaning.

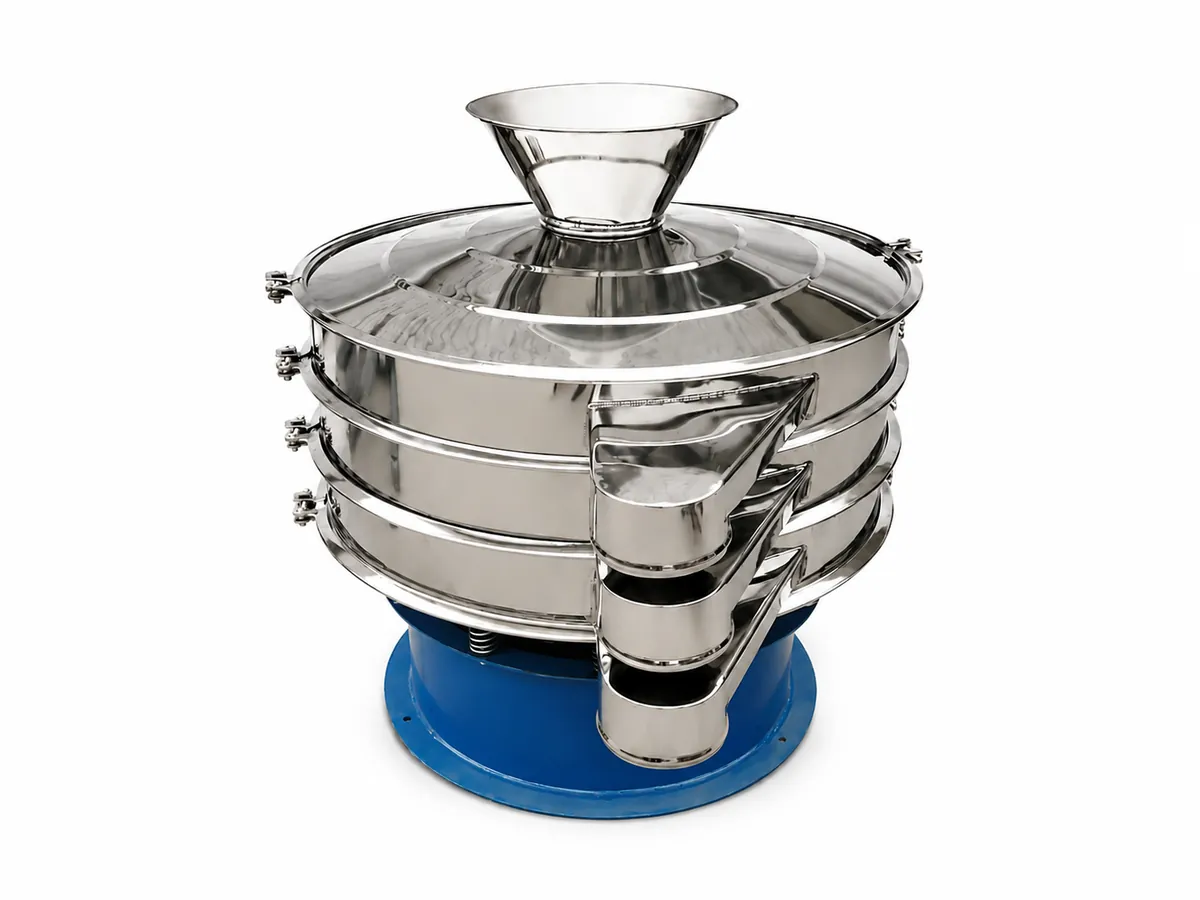

Hopper-Fed Vibrating Sieve
Top hopper for convenient and controlled material feeding.

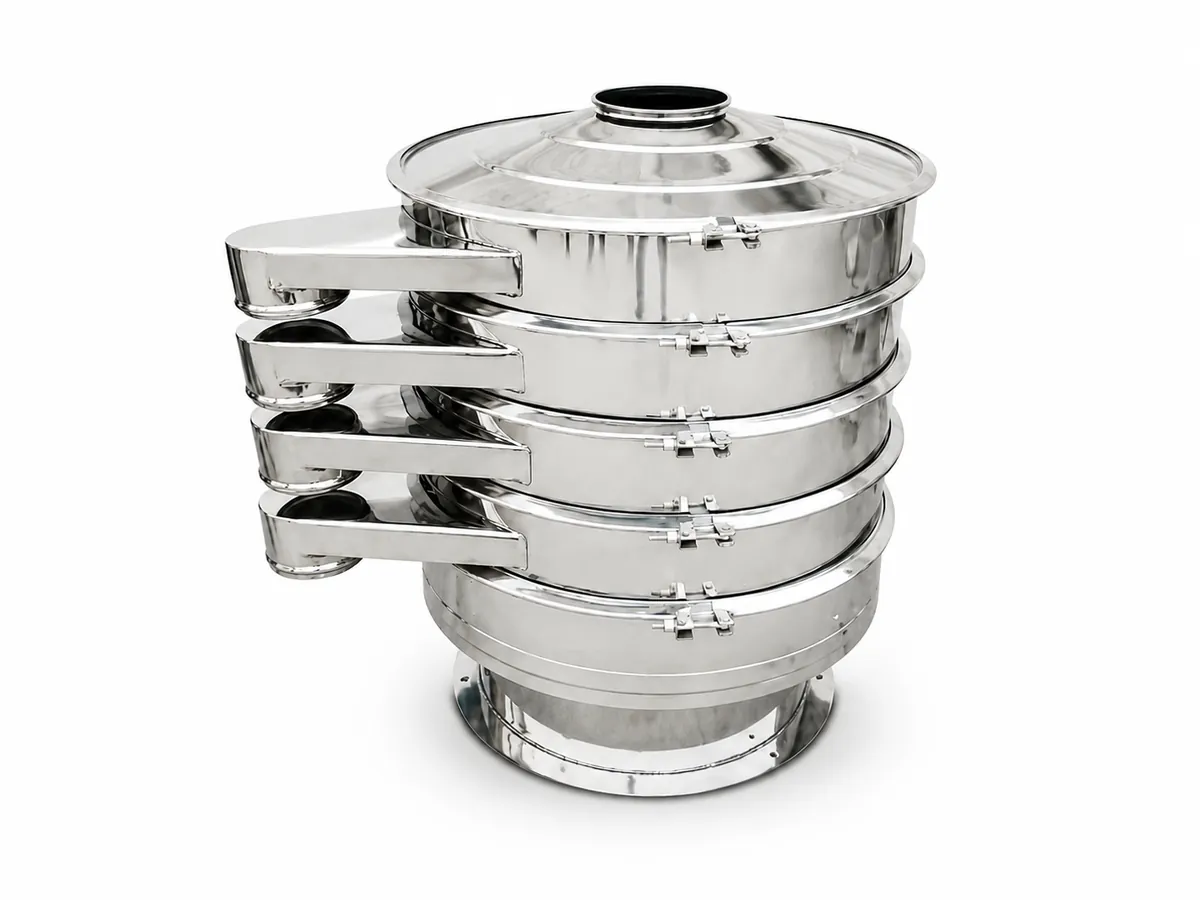

Multi-Deck Vibrating Sieve
Multiple decks for efficient multi-stage particle separation.

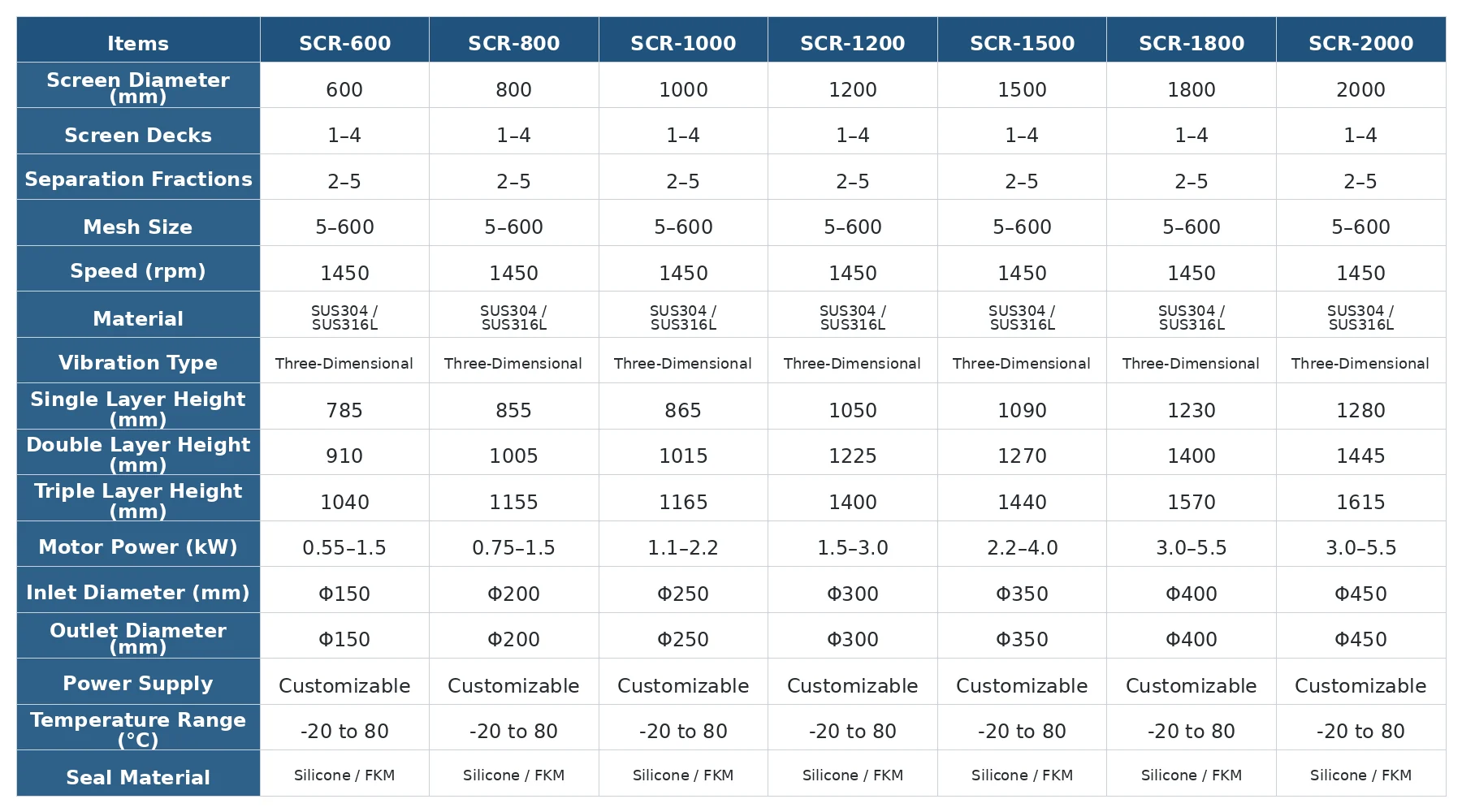

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Items | SCR-600 | SCR-800 | SCR-1000 | SCR-1200 | SCR-1500 | SCR-1800 | SCR-2000 |
|---|---|---|---|---|---|---|---|
| Screen Diameter (mm) |
600 | 800 | 1000 | 1200 | 1500 | 1800 | 2000 |
| Screen Decks | 1–4 | 1–4 | 1–4 | 1–4 | 1–4 | 1–4 | 1–4 |
| Separation Fractions | 2–5 | 2–5 | 2–5 | 2–5 | 2–5 | 2–5 | 2–5 |
| Mesh Size | 5–600 | 5–600 | 5–600 | 5–600 | 5–600 | 5–600 | 5–600 |
| Speed (rpm) | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Material | SUS304 / SUS316L |
SUS304 / SUS316L |
SUS304 / SUS316L |
SUS304 / SUS316L |
SUS304 / SUS316L |
SUS304 / SUS316L |
SUS304 / SUS316L |
| Vibration Type | Three-Dimensional | Three-Dimensional | Three-Dimensional | Three-Dimensional | Three-Dimensional | Three-Dimensional | Three-Dimensional |
| Single Layer Height (mm) |
785 | 855 | 865 | 1050 | 1090 | 1230 | 1280 |
| Double Layer Height (mm) |
910 | 1005 | 1015 | 1225 | 1270 | 1400 | 1445 |
| Triple Layer Height (mm) |
1040 | 1155 | 1165 | 1400 | 1440 | 1570 | 1615 |
| Motor Power (kW) | 0.55–1.5 | 0.75–1.5 | 1.1–2.2 | 1.5–3.0 | 2.2–4.0 | 3.0–5.5 | 3.0–5.5 |
| Inlet Diameter (mm) | Φ150 | Φ200 | Φ250 | Φ300 | Φ350 | Φ400 | Φ450 |
| Outlet Diameter (mm) |
Φ150 | Φ200 | Φ250 | Φ300 | Φ350 | Φ400 | Φ450 |
| Power Supply | Customizable | Customizable | Customizable | Customizable | Customizable | Customizable | Customizable |
| Temperature Range (°C) |
−20 to 80 | −20 to 80 | −20 to 80 | −20 to 80 | −20 to 80 | −20 to 80 | −20 to 80 |
| Seal Material | Silicone / FKM | Silicone / FKM | Silicone / FKM | Silicone / FKM | Silicone / FKM | Silicone / FKM | Silicone / FKM |
Typical Applications
Suitable for grading, impurity removal and solid-liquid separation of powders, granules and slurry materials.
Food Processing
Screening of flour, sugar, starch and other food powders.
Pharmaceutical Powders
Fine screening and impurity removal of pharmaceutical powders.
Chemical Powders
Particle grading and screening of chemical powders and granules.
Slurry Separation
Solid-liquid separation and filtration of slurry materials.
Optional Configurations
Optional components can be customized to suit different materials, mesh sizes and screening requirements.

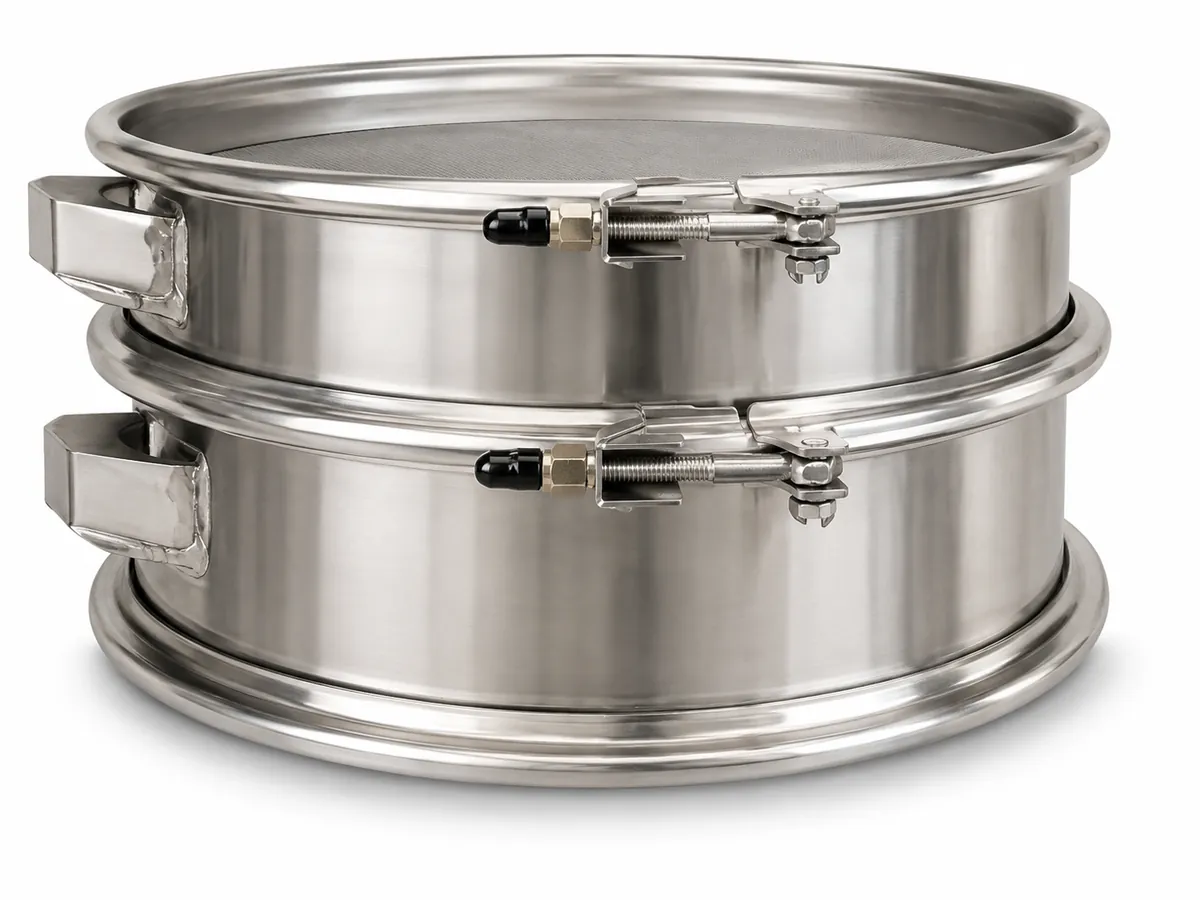

Quick-Release Clamp Design
Quick-release clamps allow fast disassembly, screen replacement and cleaning.

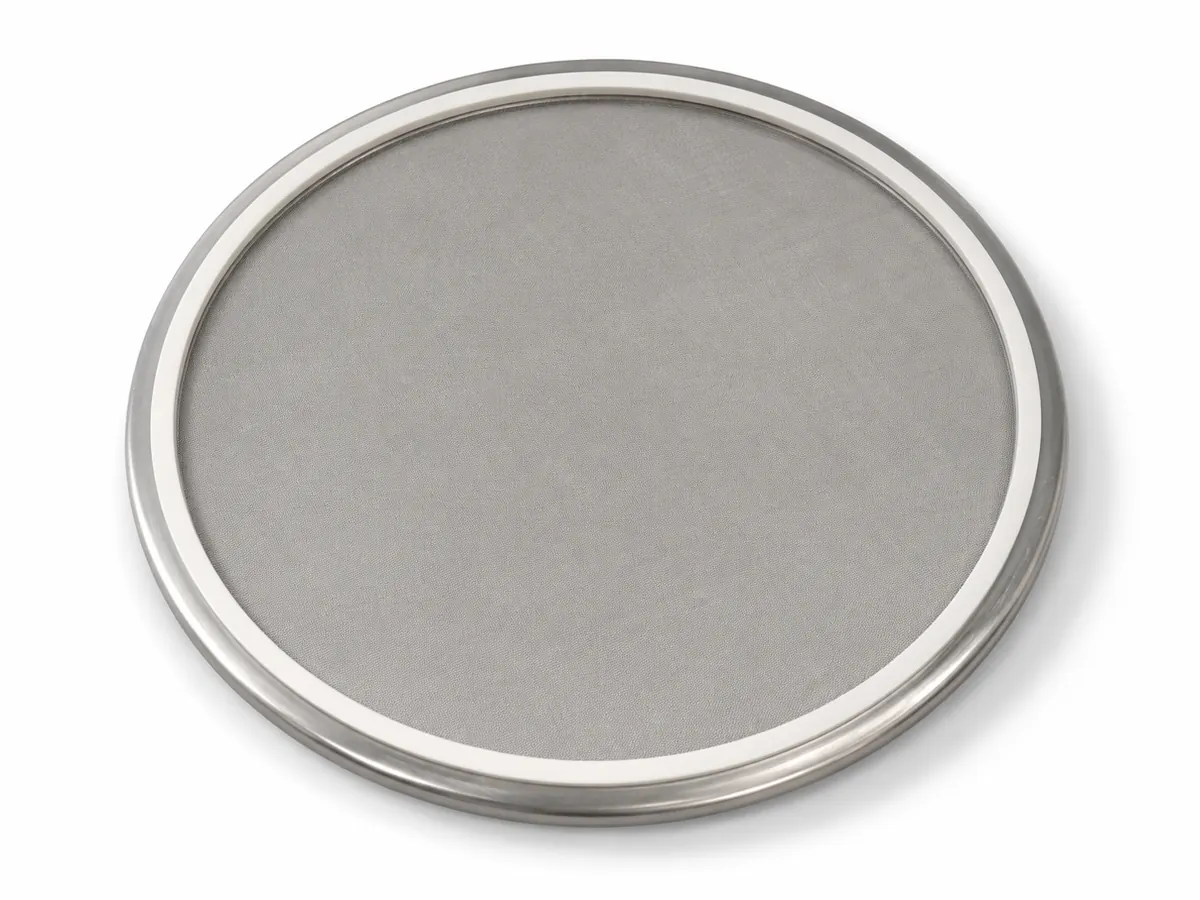

Replaceable Screen Mesh
Different mesh sizes are available for various screening requirements.

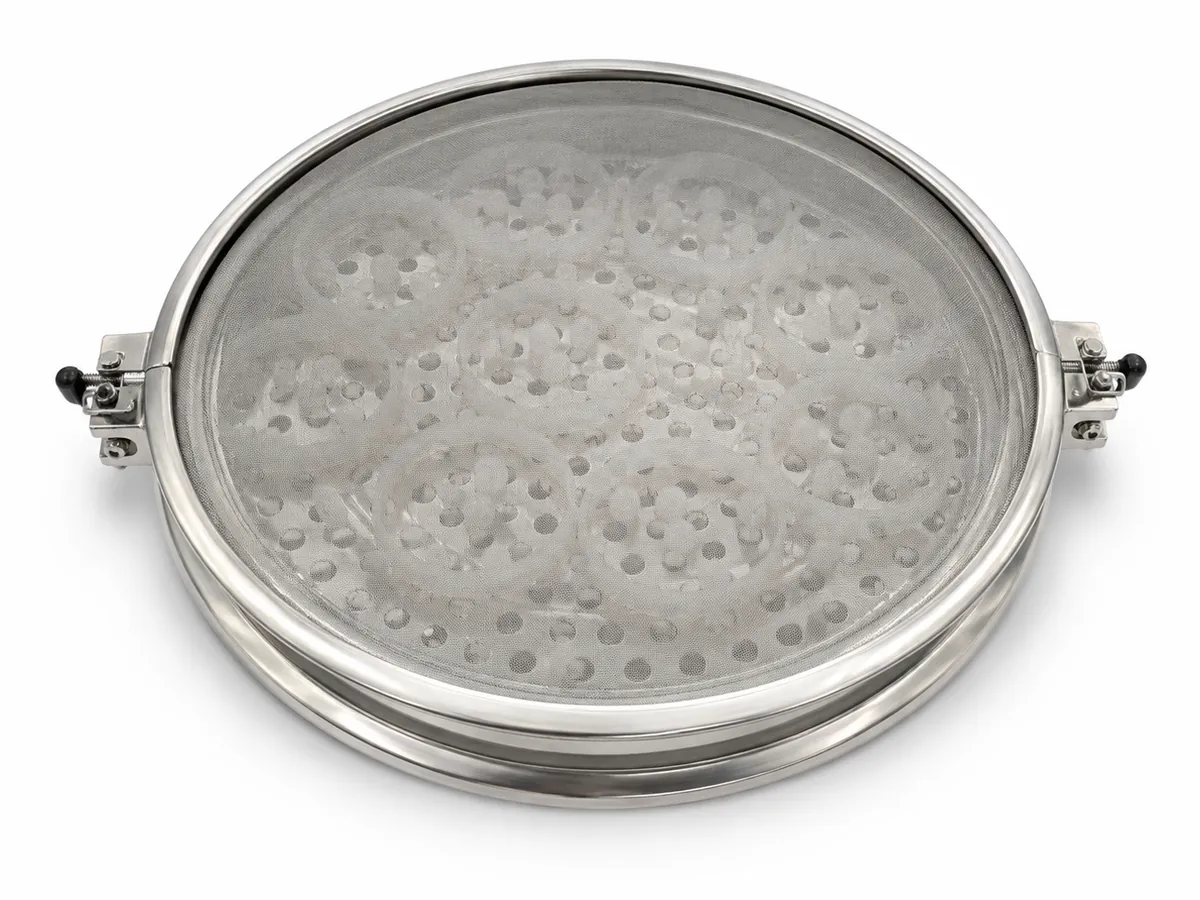

Screen Cleaning Assembly
Integrated cleaning structure helps reduce mesh blockage during operation.

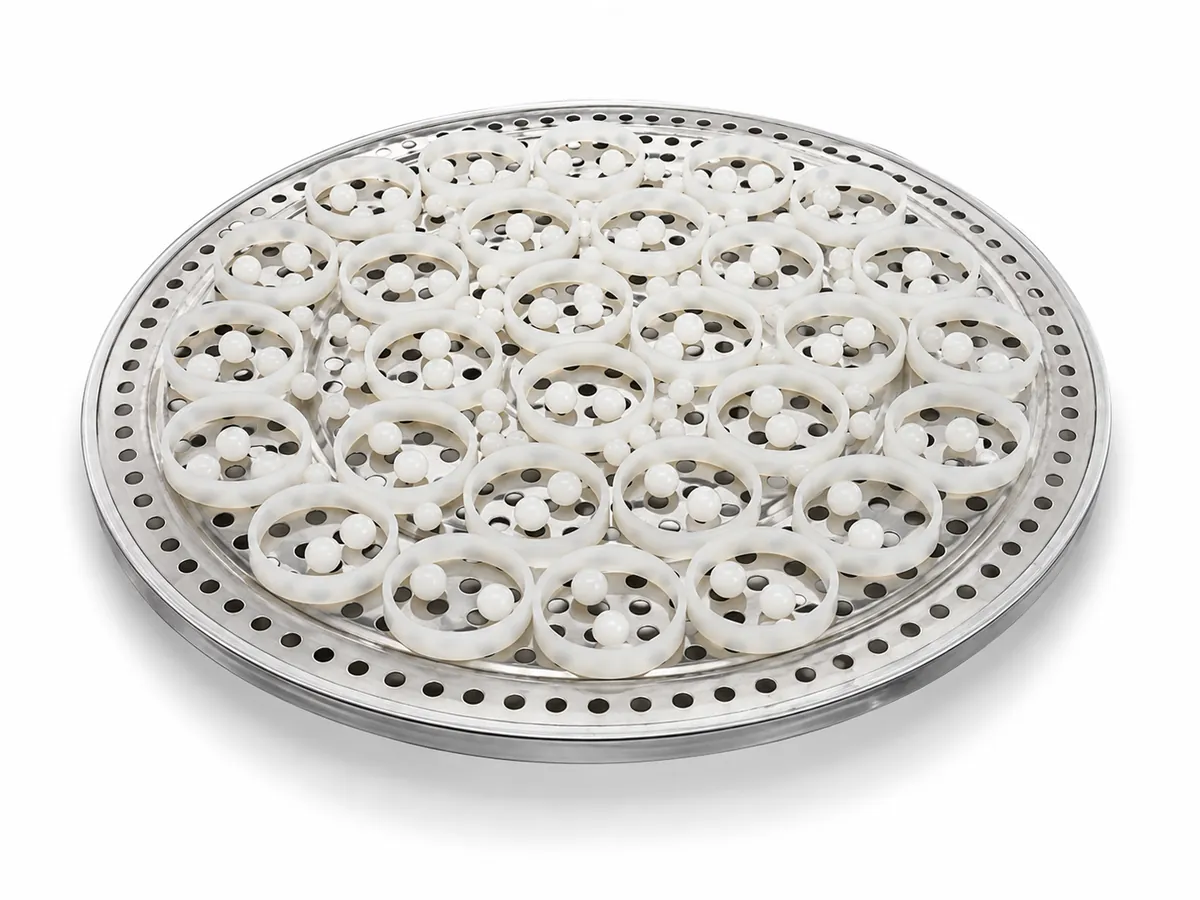

Bouncing Ball System
Bouncing balls help keep the screen clear and maintain screening efficiency.
Need a Rotary Vibrating Sieve for Your Process?
Tell us your required capacity, material characteristics, mesh size, number of decks, installation method and operating conditions. Our team will help you select a suitable Rotary Vibrating Sieve configuration.
Request a Quote
