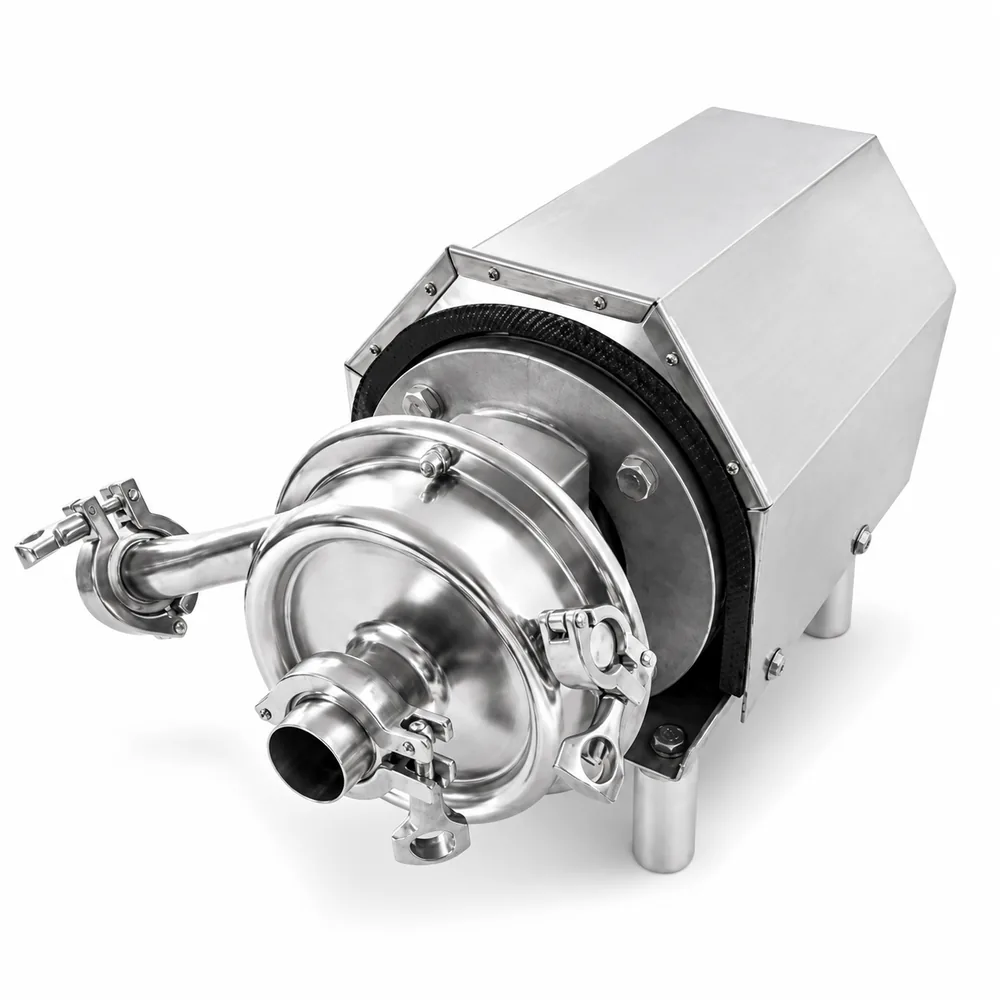

Sanitary Centrifugal Pump
Sanitary centrifugal pump designed for efficient transfer of low-viscosity liquids in food, beverage, pharmaceutical and hygienic processing systems.
Configuration Overview
Select the right pump based on flow rate, pump head, motor power and sanitary connection size.
3–100 m³/h
Flow Rate
16–50 m
Pump Head
0.75–18.5 kW
Motor Power
38–102 / 32–89 mm
Inlet / Outlet Diameter
Available Configurations

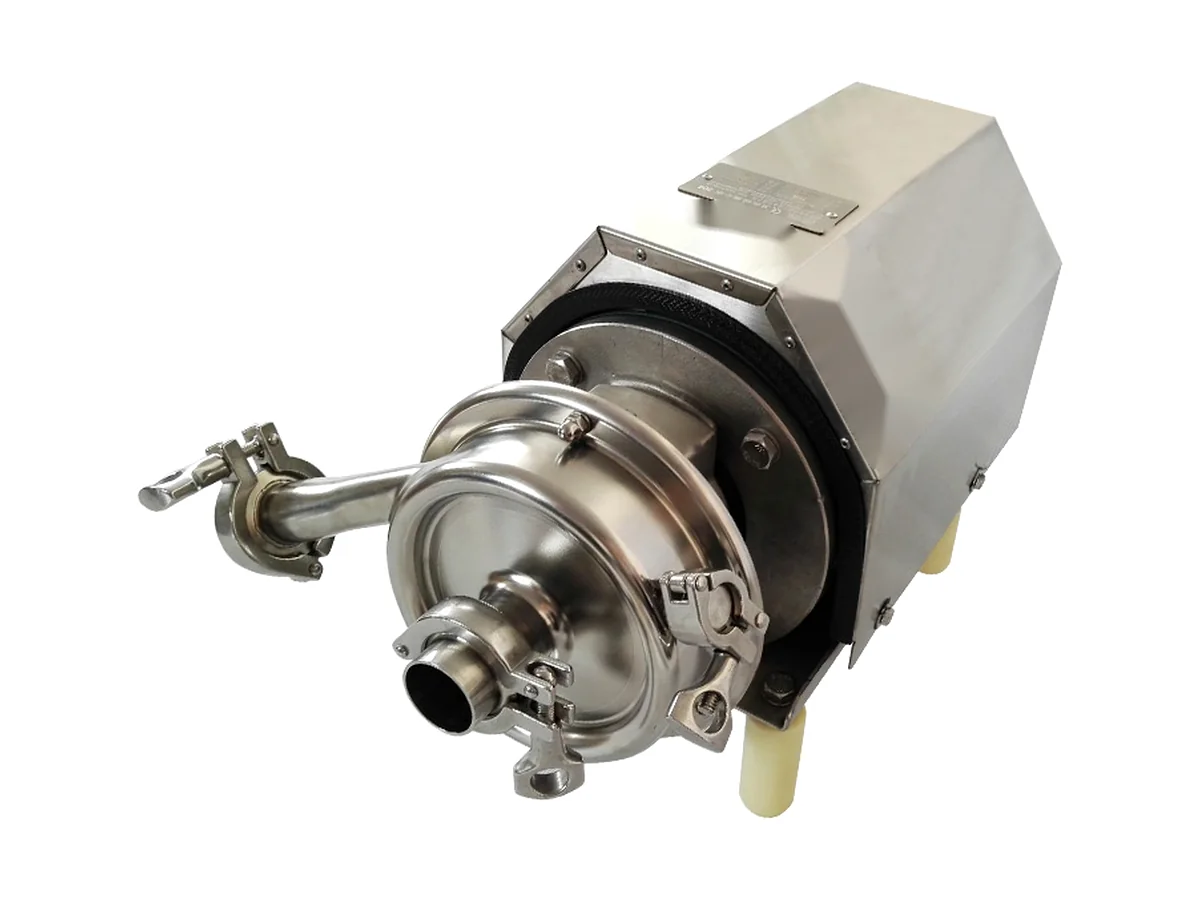

Enclosed-Motor Centrifugal Pump
Stainless steel motor enclosure for hygienic processing environments.

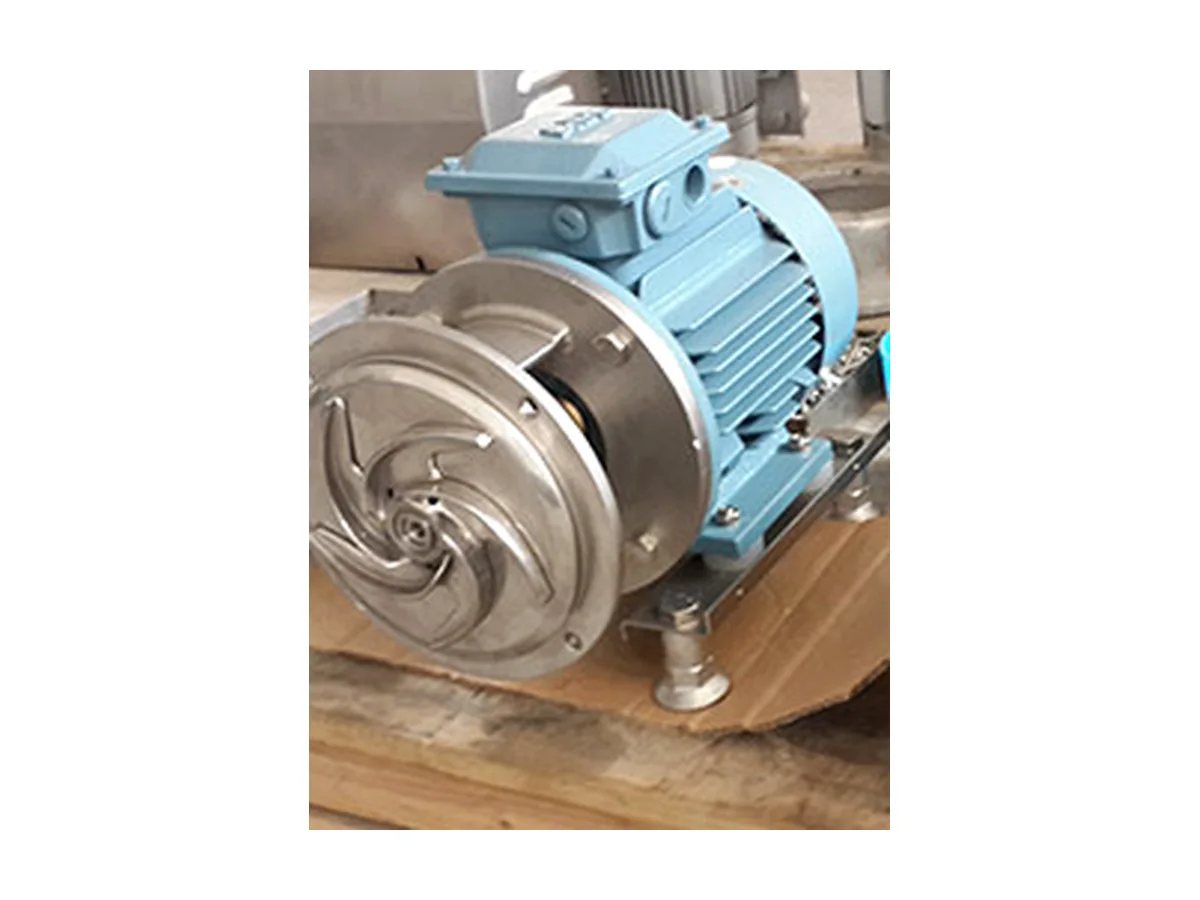

Standard Centrifugal Pump
Direct-drive configuration for general sanitary liquid transfer.

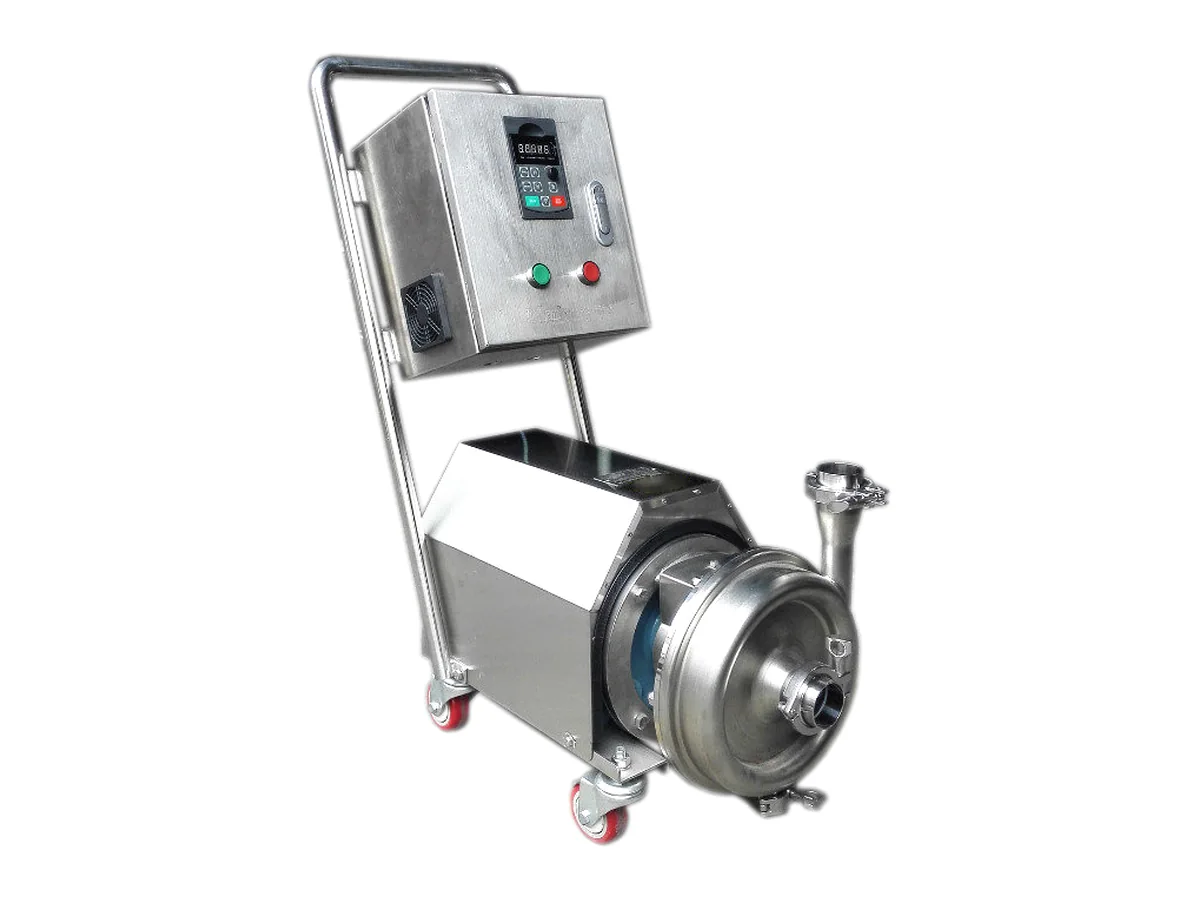

Mobile Centrifugal Pump Unit
Mobile configuration with integrated speed control for flexible operation.

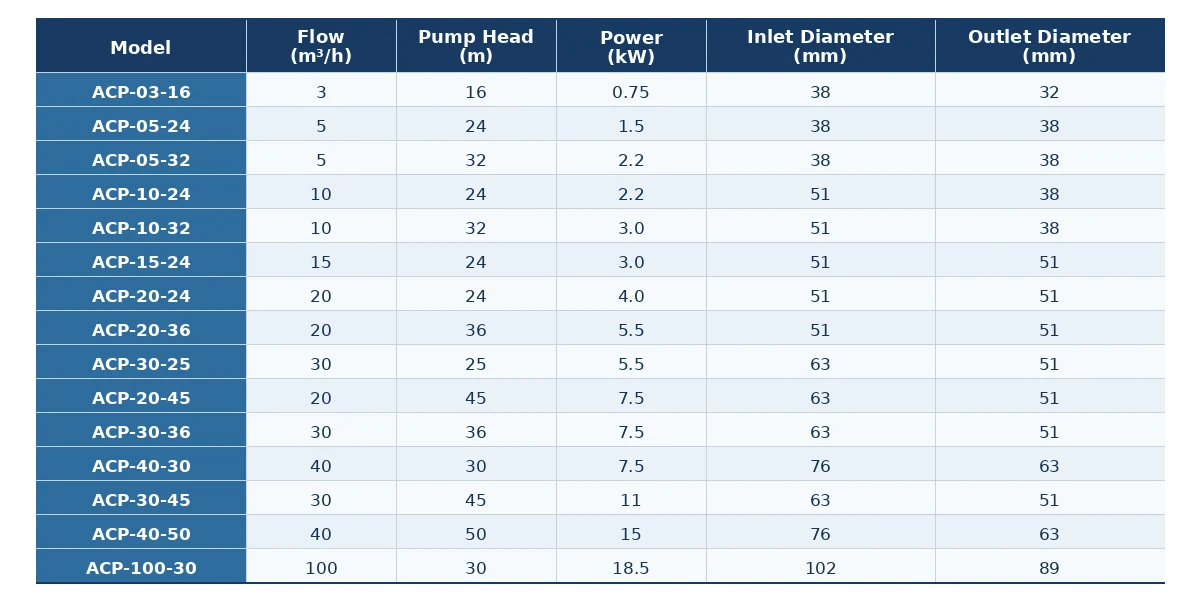

Technical Specifications
Select the appropriate model according to required flow rate, pump head, motor power and connection size.
| Model | Flow Rate (m³/h) |
Pump Head (m) |
Motor Power (kW) |
Inlet Diameter (mm) |
Outlet Diameter (mm) |
|---|---|---|---|---|---|
| ACP-03-16 | 3 | 16 | 0.75 | 38 | 32 |
| ACP-05-24 | 5 | 24 | 1.5 | 38 | 38 |
| ACP-05-32 | 5 | 32 | 2.2 | 38 | 38 |
| ACP-10-24 | 10 | 24 | 2.2 | 51 | 38 |
| ACP-10-32 | 10 | 32 | 3.0 | 51 | 38 |
| ACP-15-24 | 15 | 24 | 3.0 | 51 | 51 |
| ACP-20-24 | 20 | 24 | 4.0 | 51 | 51 |
| ACP-20-36 | 20 | 36 | 5.5 | 51 | 51 |
| ACP-30-25 | 30 | 25 | 5.5 | 63 | 51 |
| ACP-20-45 | 20 | 45 | 7.5 | 63 | 51 |
| ACP-30-36 | 30 | 36 | 7.5 | 63 | 51 |
| ACP-40-30 | 40 | 30 | 7.5 | 76 | 63 |
| ACP-30-45 | 30 | 45 | 11 | 63 | 51 |
| ACP-40-50 | 40 | 50 | 15 | 76 | 63 |
| ACP-100-30 | 100 | 30 | 18.5 | 102 | 89 |
Typical Applications
Designed for hygienic liquid transfer across food, beverage, dairy, pharmaceutical and utility applications.
Food & Beverage
Hygienic transfer of beverages, ingredients and liquid food products.
Dairy Processing
Efficient transfer of milk, dairy products and process liquids.
Pharmaceutical Processing
Clean liquid transfer for hygienic pharmaceutical process lines.
Process Water & Utilities
Reliable transfer of clean water and utility process liquids.
Optional Configurations
Configurations can be tailored to suit different process, piping, installation and operating requirements.

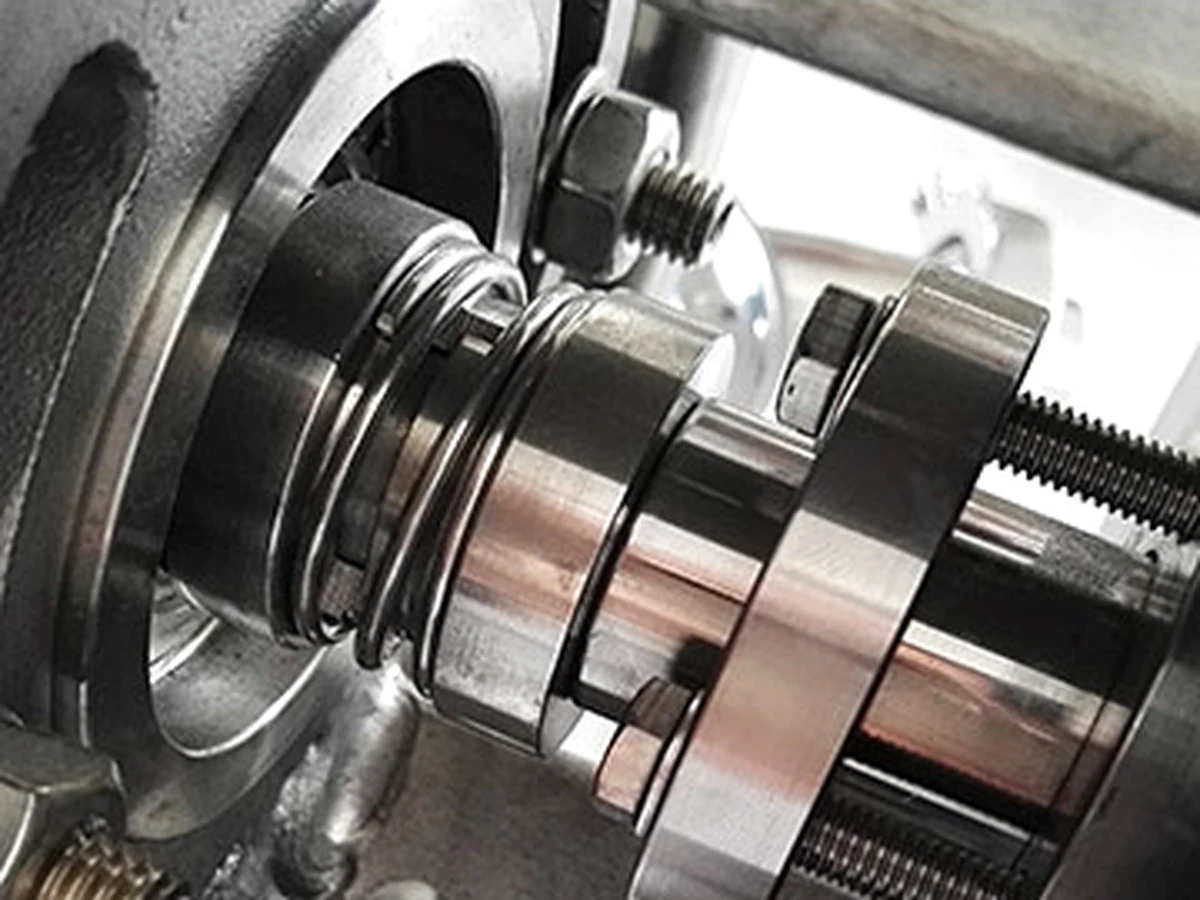

Single Mechanical Seal
Standard sealing option for clean liquid transfer and general sanitary applications.

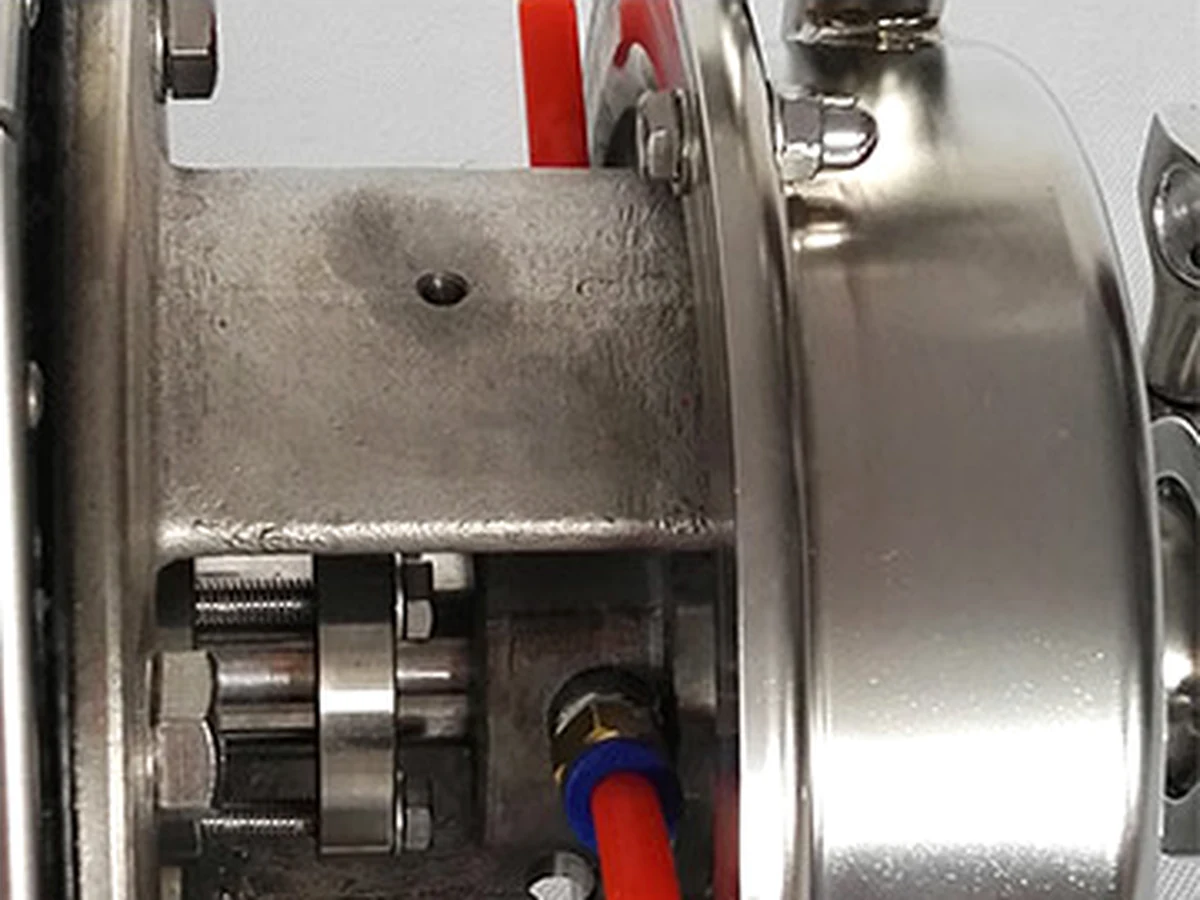

Double Mechanical Seal
Double-seal configuration for demanding process conditions and enhanced sealing performance.

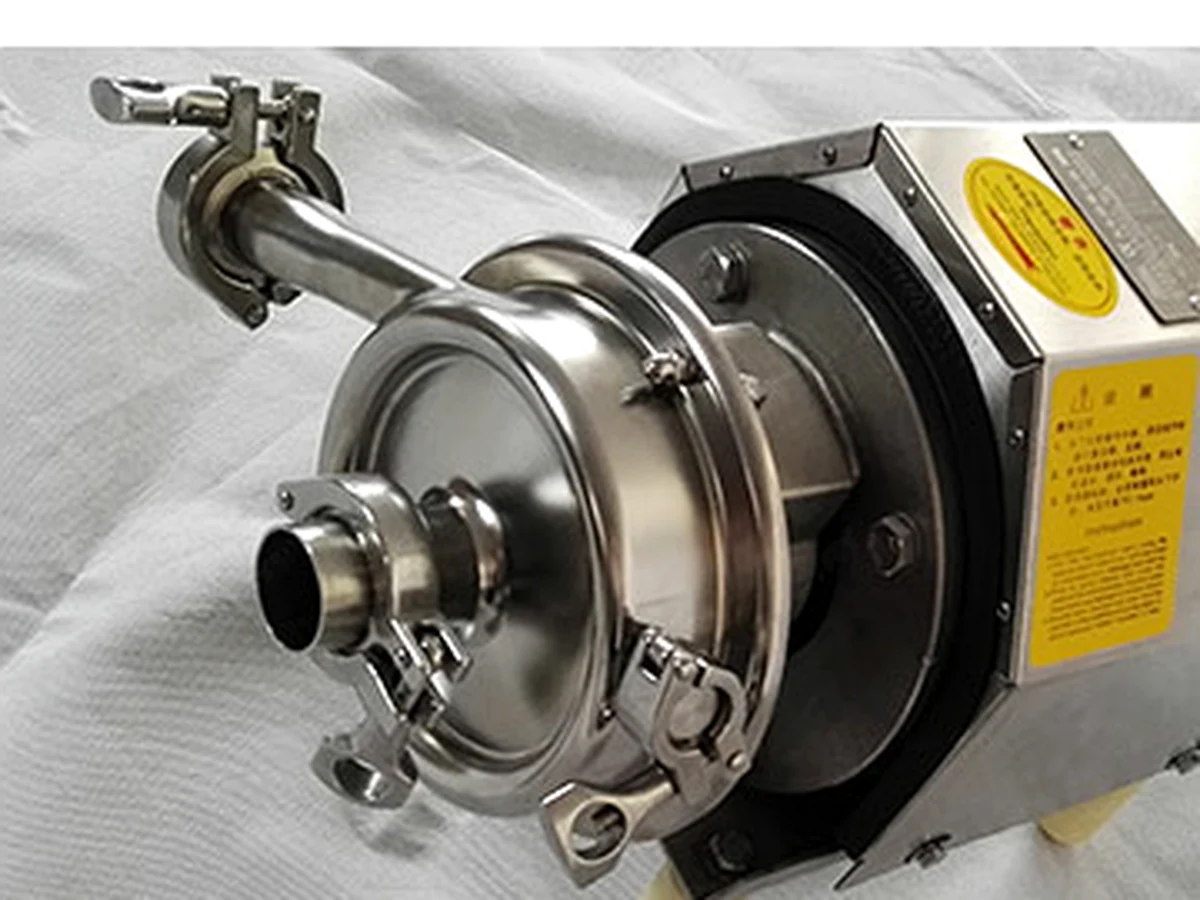

Adjustable Outlet Orientation
Outlet direction can be adjusted to suit different piping layouts and installation requirements.

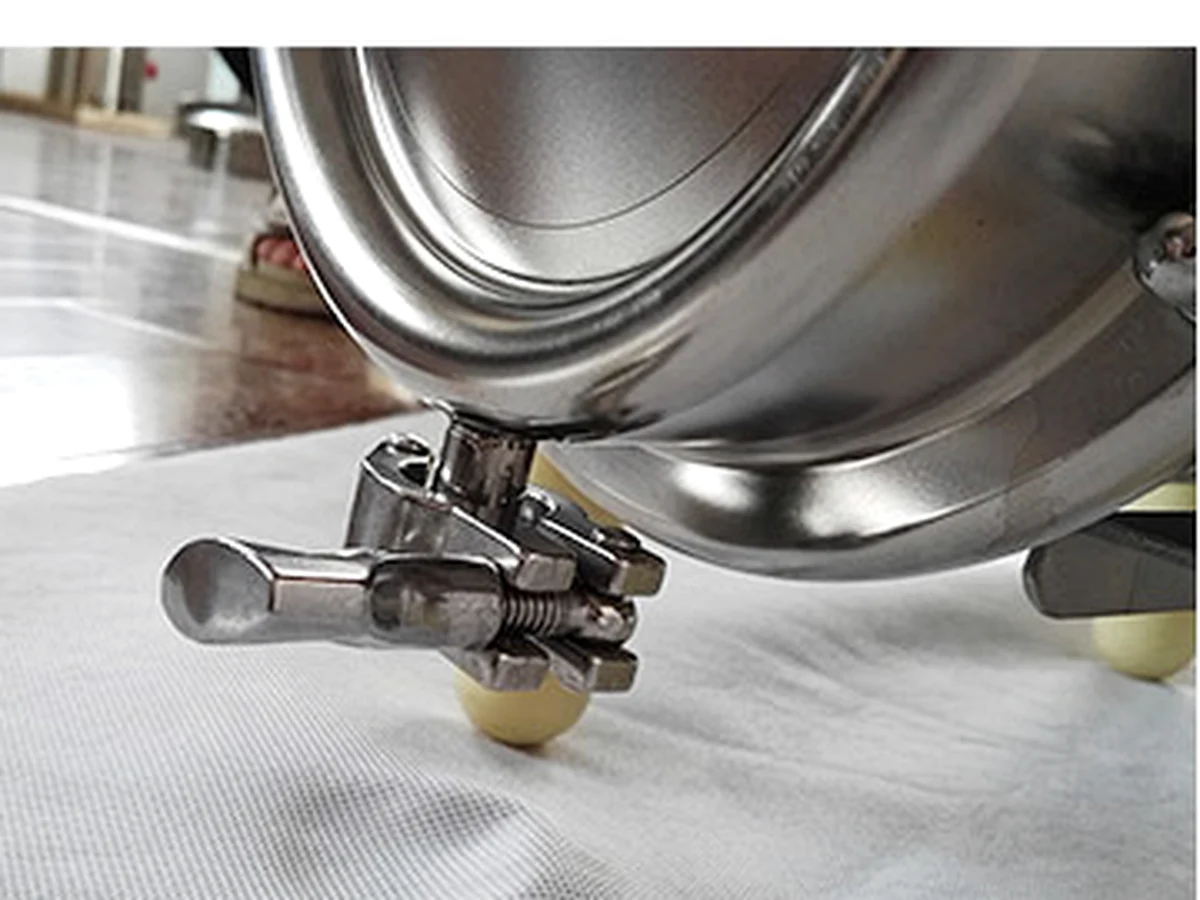

Bottom Drain Port
Bottom drain design supports residual liquid discharge and easier cleaning.
Need a Sanitary Centrifugal Pump for Your Process?
Tell us your required flow rate, pump head, connection size and application. Our team will help you select a suitable sanitary centrifugal pump configuration.
Request a Quote
