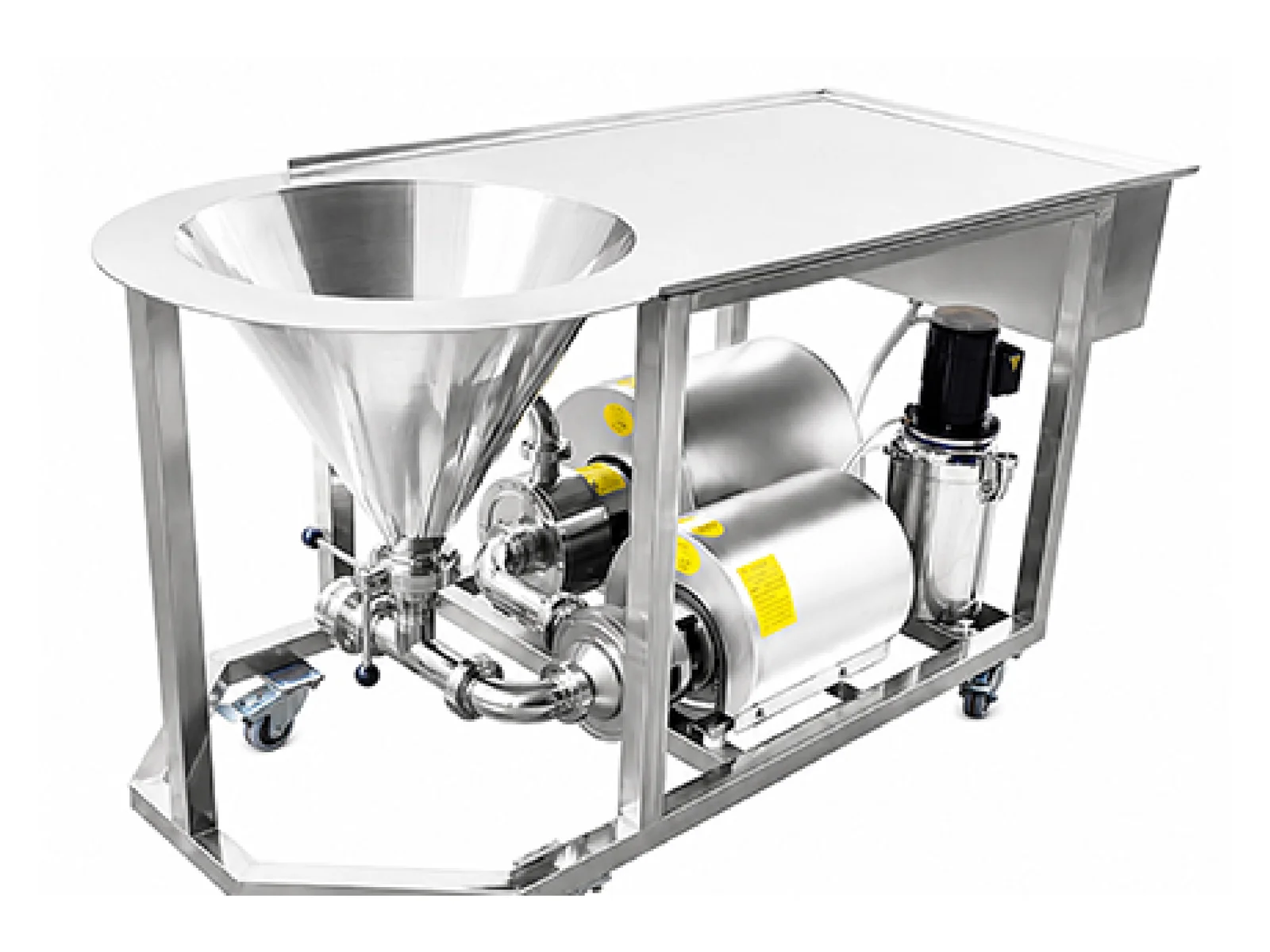

Simple Mixing & Batching Machine
Compact stainless steel mixing and batching system designed for liquid and powder material handling. The integrated hopper and inline mixing unit provide a space-saving solution for material feeding and mixing in processing lines.
Configuration Overview
Flexible configuration for different mixing and batching requirements.
0.1–20 T/H
Processing Capacity
4–18 kW
Mixer Power
2800 / 1400 rpm
Mixing Speed
51/32–76/63 mm
Inlet / Outlet
Available Configurations

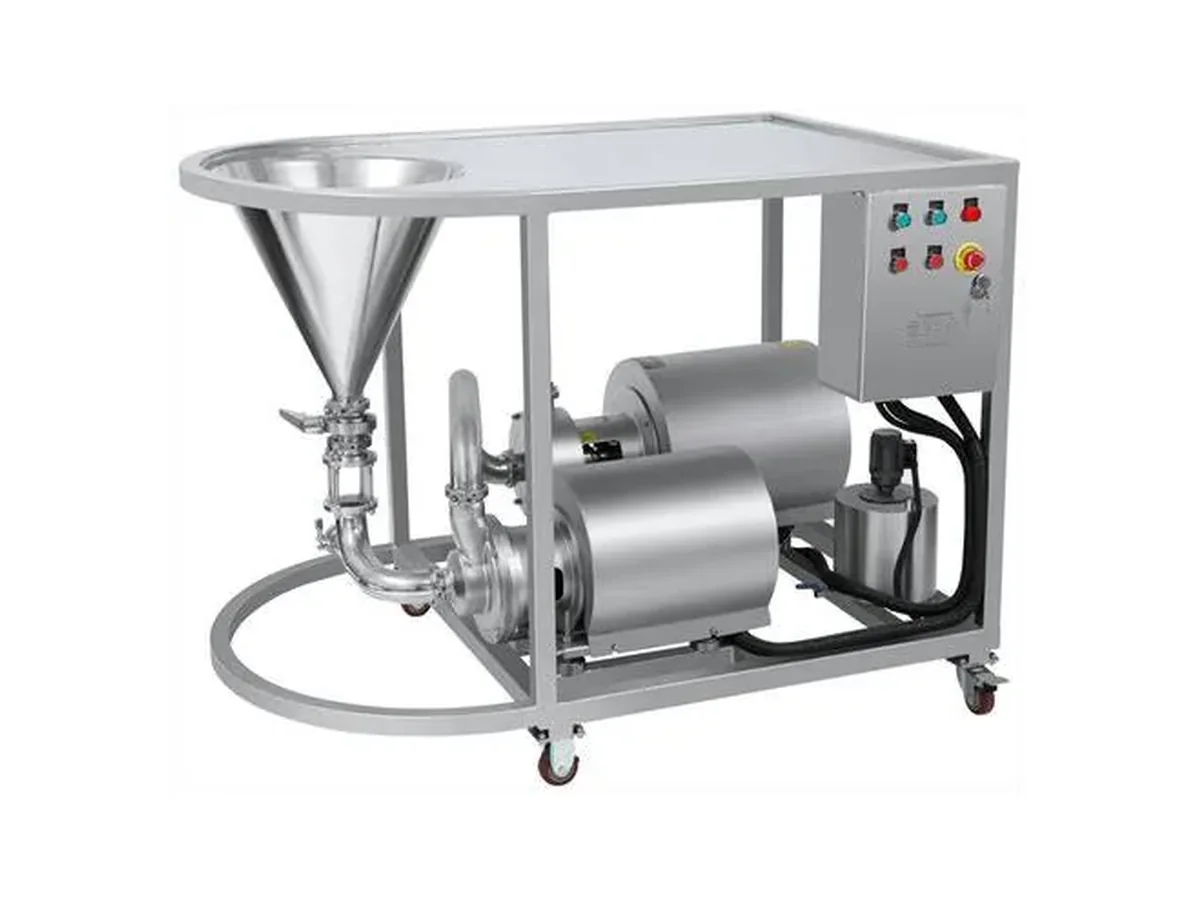

Integrated Platform Type
Integrated frame with hopper, mixing unit and control system for efficient production.

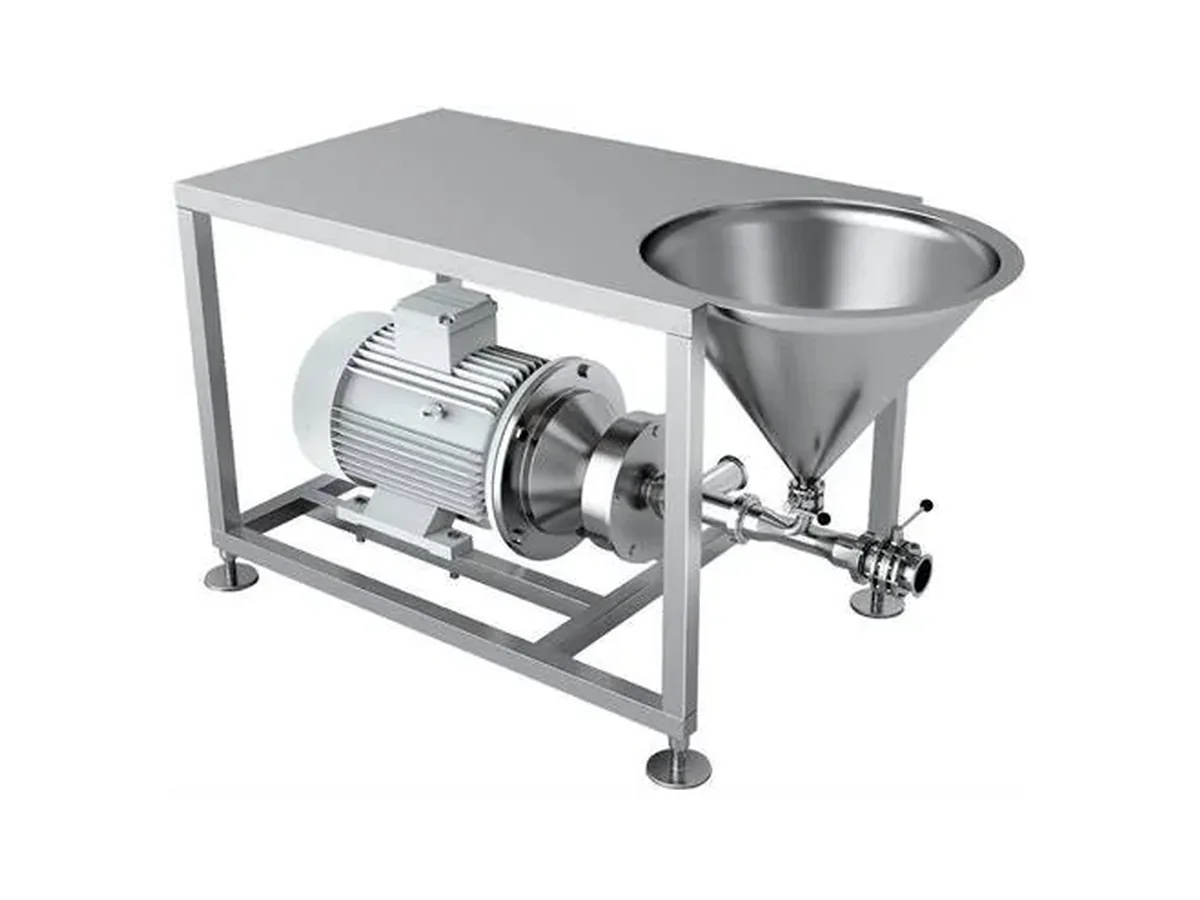

Compact Inline Type
Compact fixed-frame design for continuous powder-liquid mixing and emulsification.

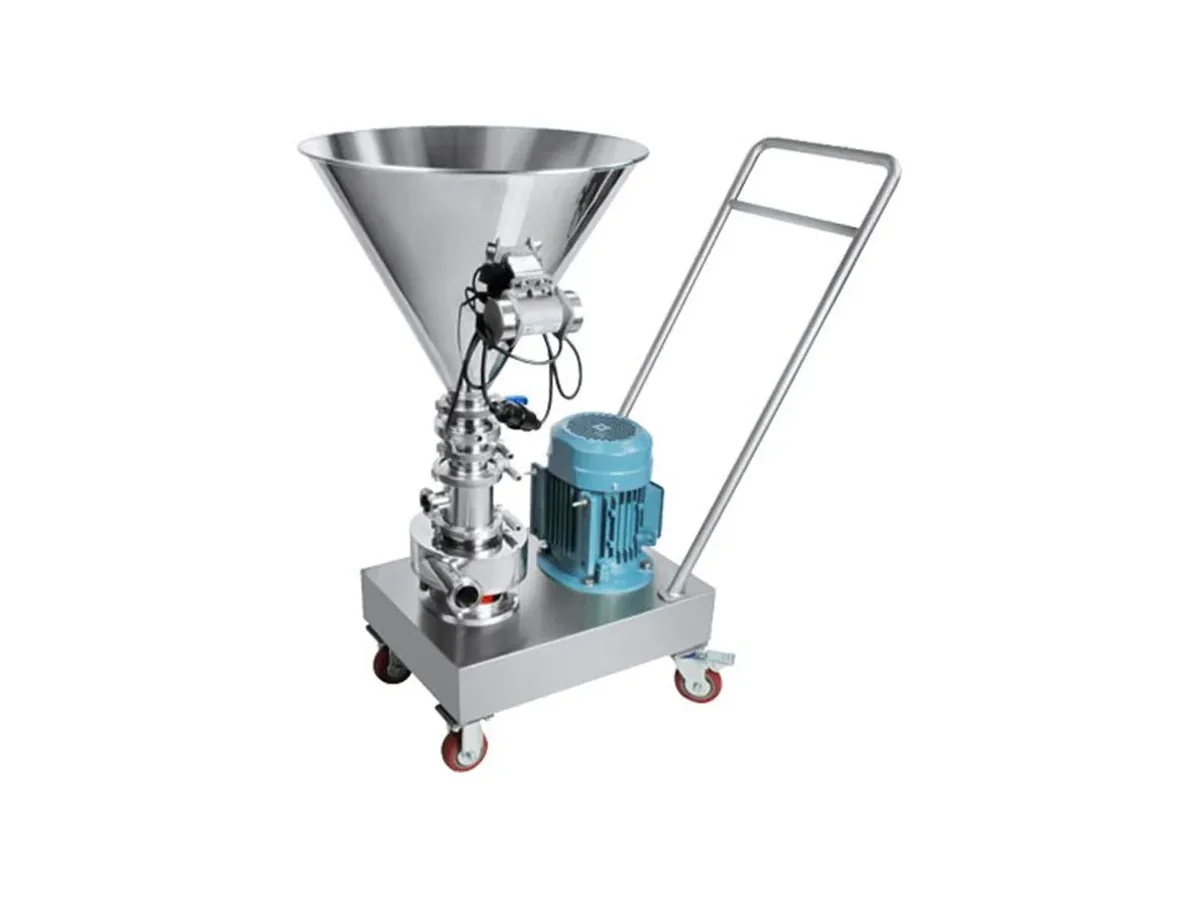

Mobile Trolley Type
Mobile compact design for flexible positioning and small-batch processing.

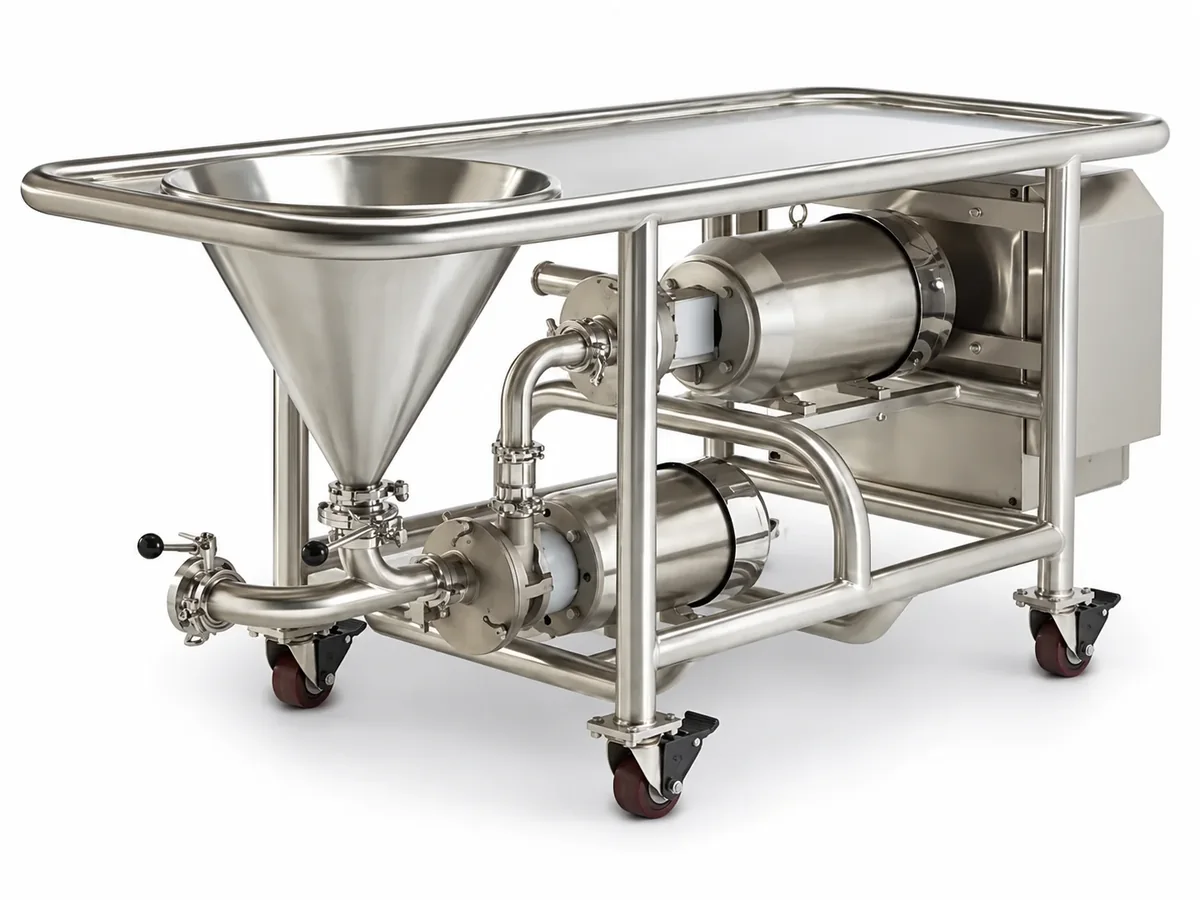

Dual-Drive Frame Type
Dual-drive configuration for higher mixing capacity and demanding processes.

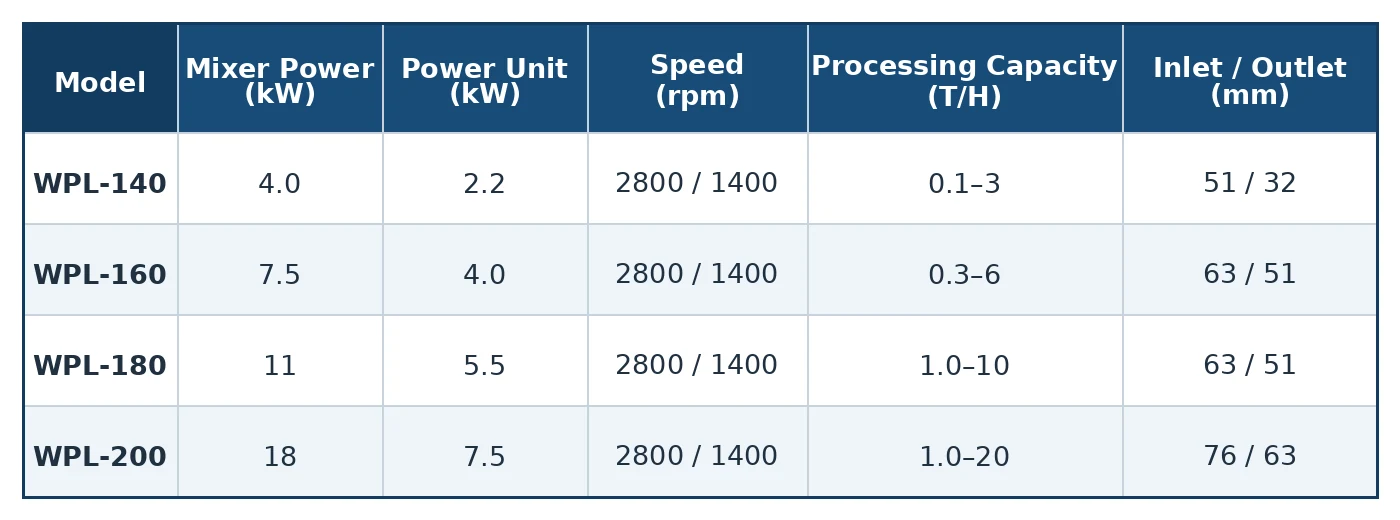

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Model | Mixer Power (kW) |
Power Unit (kW) |
Speed (rpm) |
Processing Capacity (T/H) |
Inlet / Outlet (mm) |
|---|---|---|---|---|---|
| WPL-140 | 4.0 | 2.2 | 2800 / 1400 | 0.1–3 | 51 / 32 |
| WPL-160 | 7.5 | 4.0 | 2800 / 1400 | 0.3–6 | 63 / 51 |
| WPL-180 | 11 | 5.5 | 2800 / 1400 | 1.0–10 | 63 / 51 |
| WPL-200 | 18 | 7.5 | 2800 / 1400 | 1.0–20 | 76 / 63 |
Typical Applications
Designed for powder-liquid mixing and batching in food, beverage, dairy, pharmaceutical and general processing applications.
Food & Beverage
Powder-liquid mixing and batching for food and beverage processing.
Dairy Products
Powder-liquid mixing and blending for dairy-product processing.
Pharmaceutical
Powder-liquid mixing and batching for applicable pharmaceutical processing.
General Processing
Compact powder-liquid mixing for a range of general processing applications.
Configuration Options
Configuration details can be selected according to material feeding, piping, control and installation requirements.

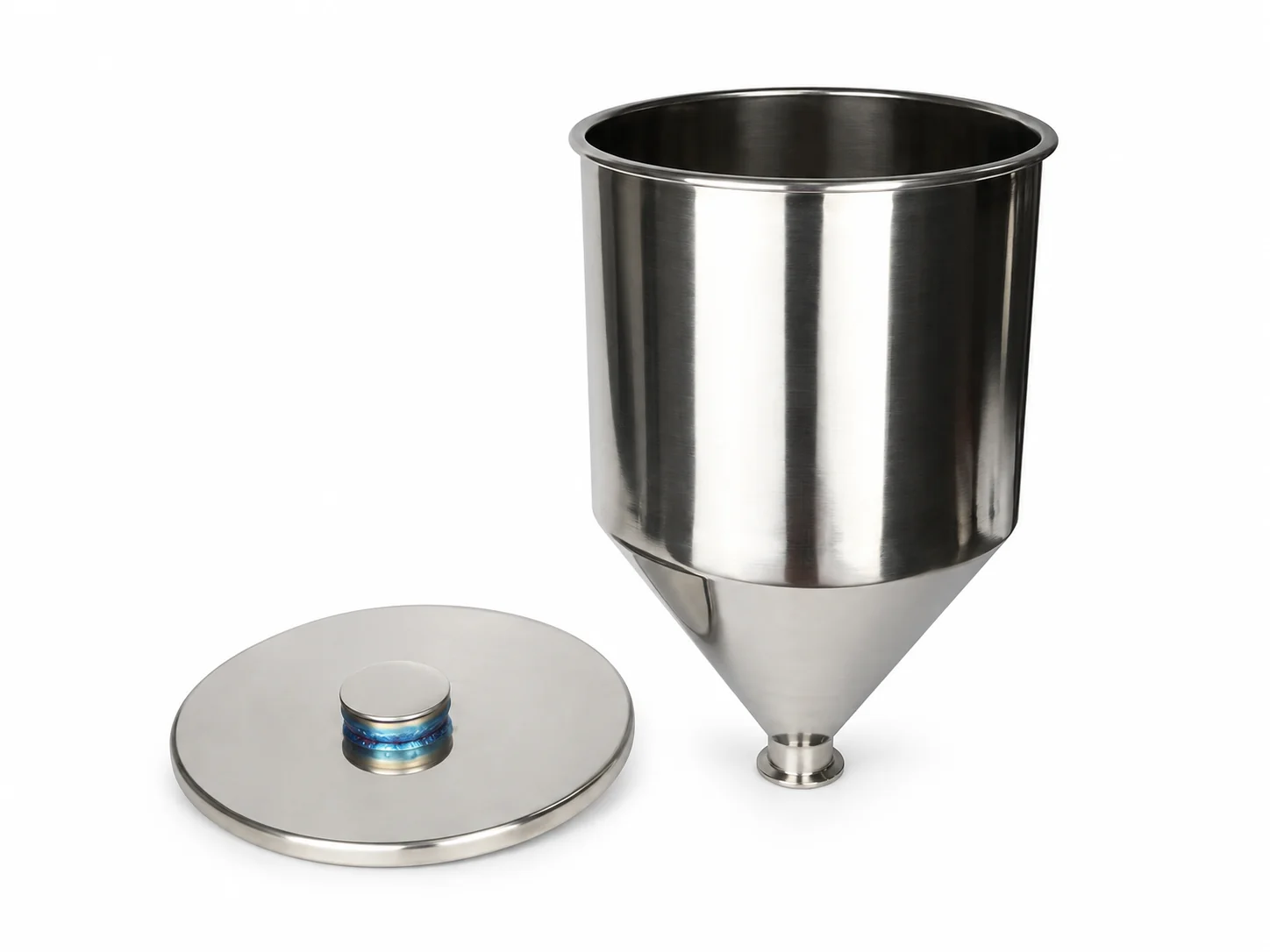

Feed Hopper Configuration
Feed hopper configurations for different material feeding arrangements.

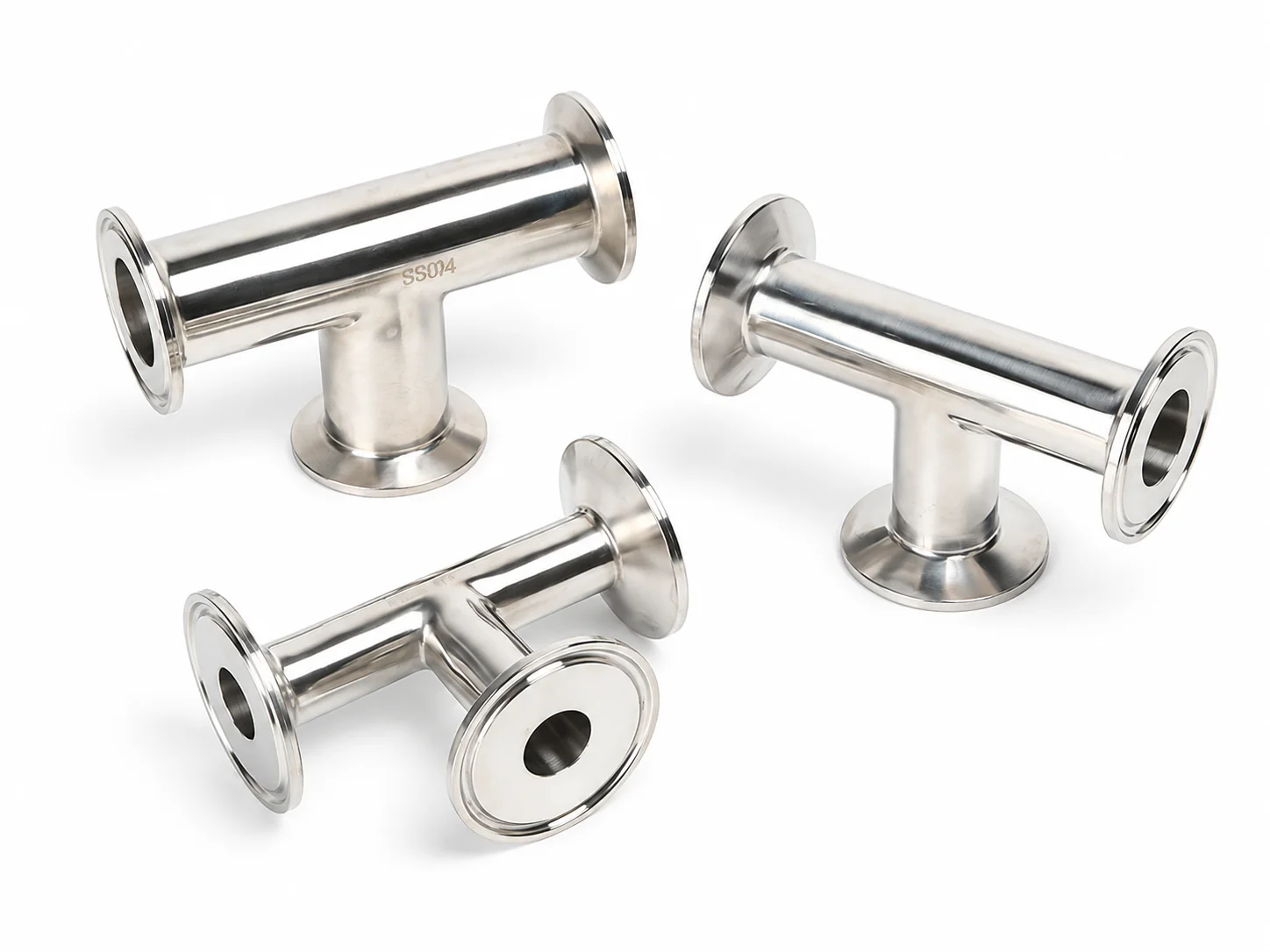

Process Connections
Connection arrangements for different piping and process layouts.

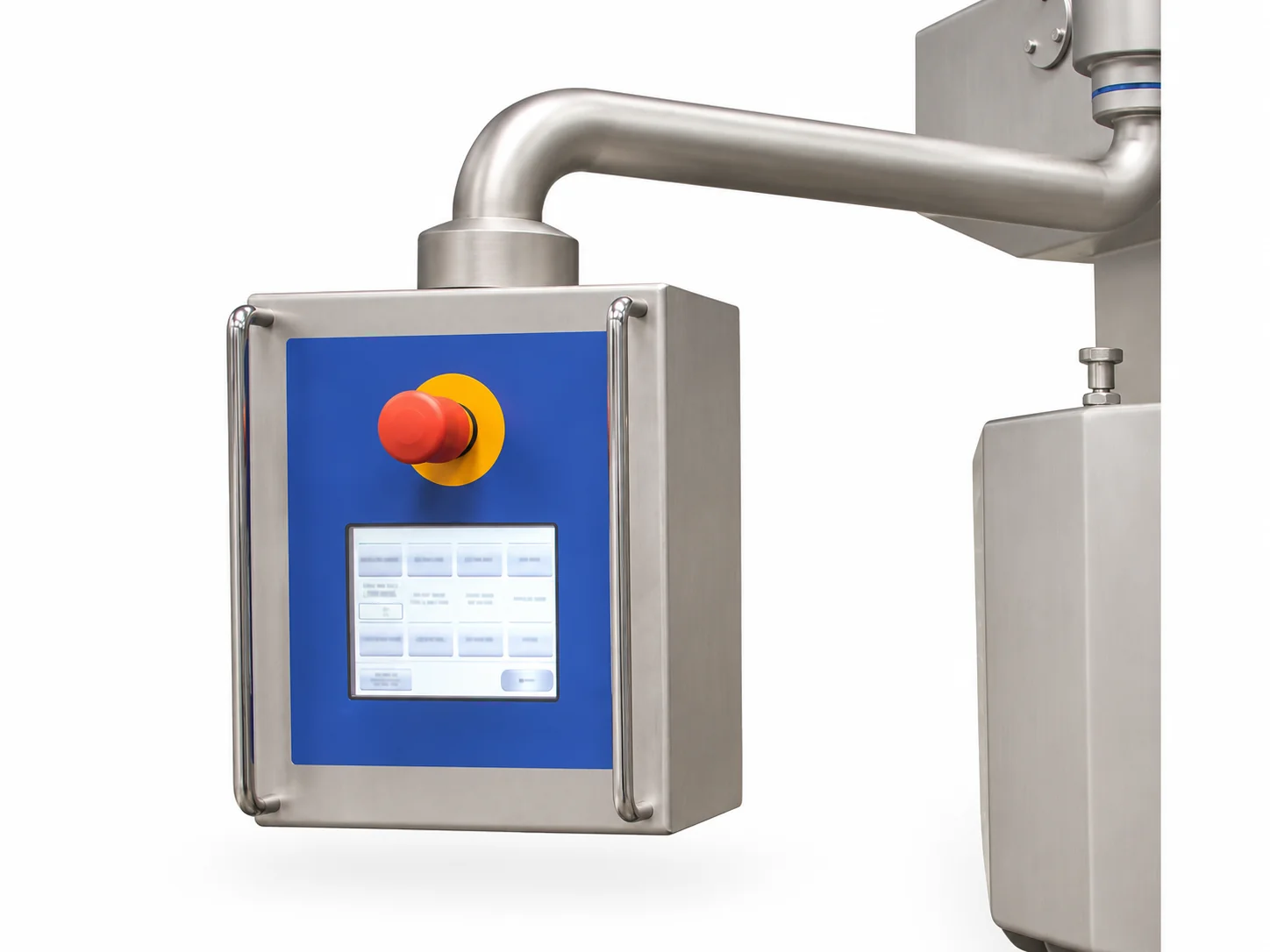

Control Panel
Control panel configurations for machine operation and process adjustment.

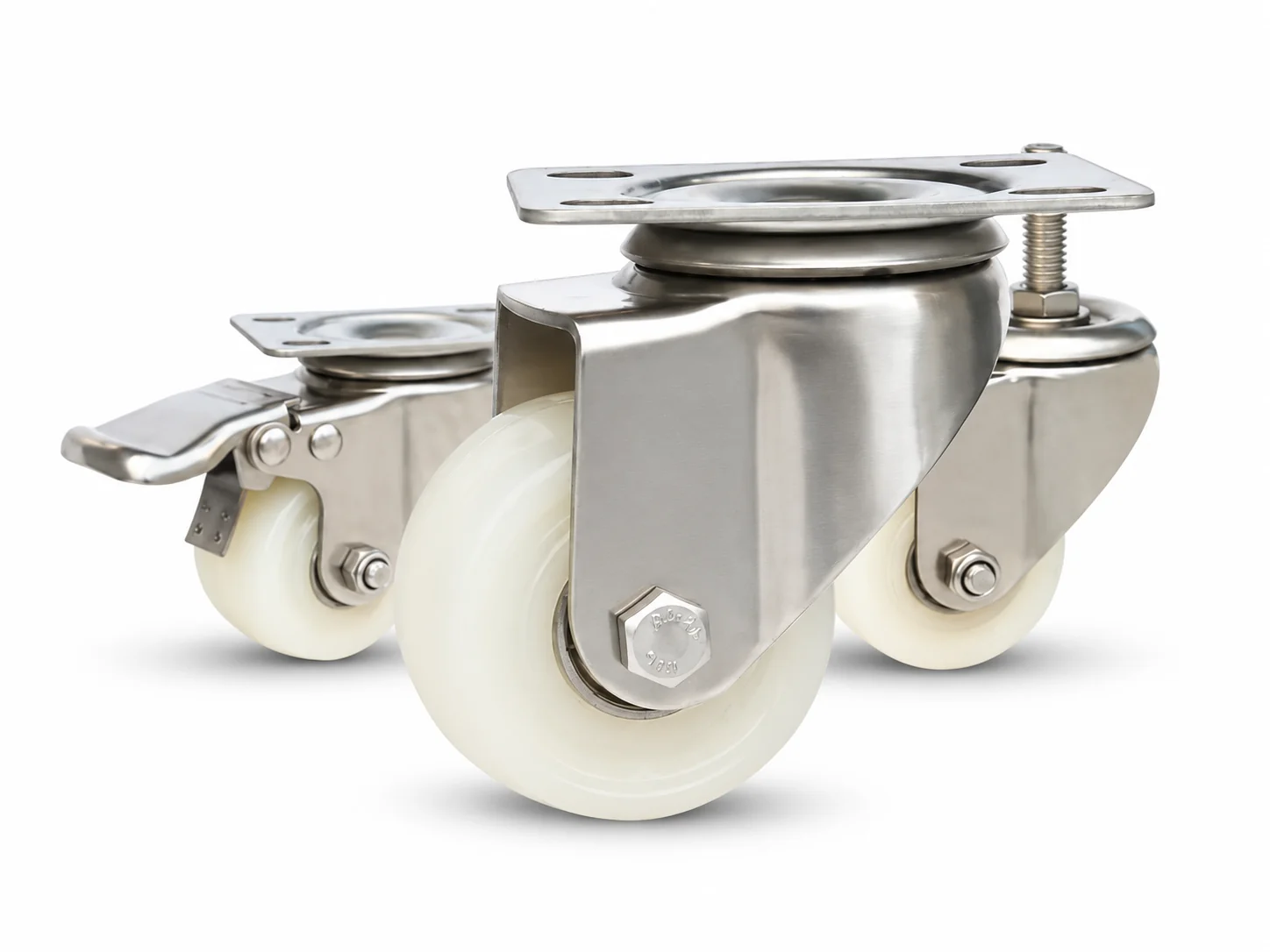

Mobile Caster Base
Caster-mounted base configuration for movable installation and flexible positioning.
Need a Simple Mixing & Batching Machine for Your Process?
Tell us your required capacity, material characteristics, mixing and batching requirements, installation method and operating conditions. Our team will help you select a suitable configuration for your process.
Request a Quote
