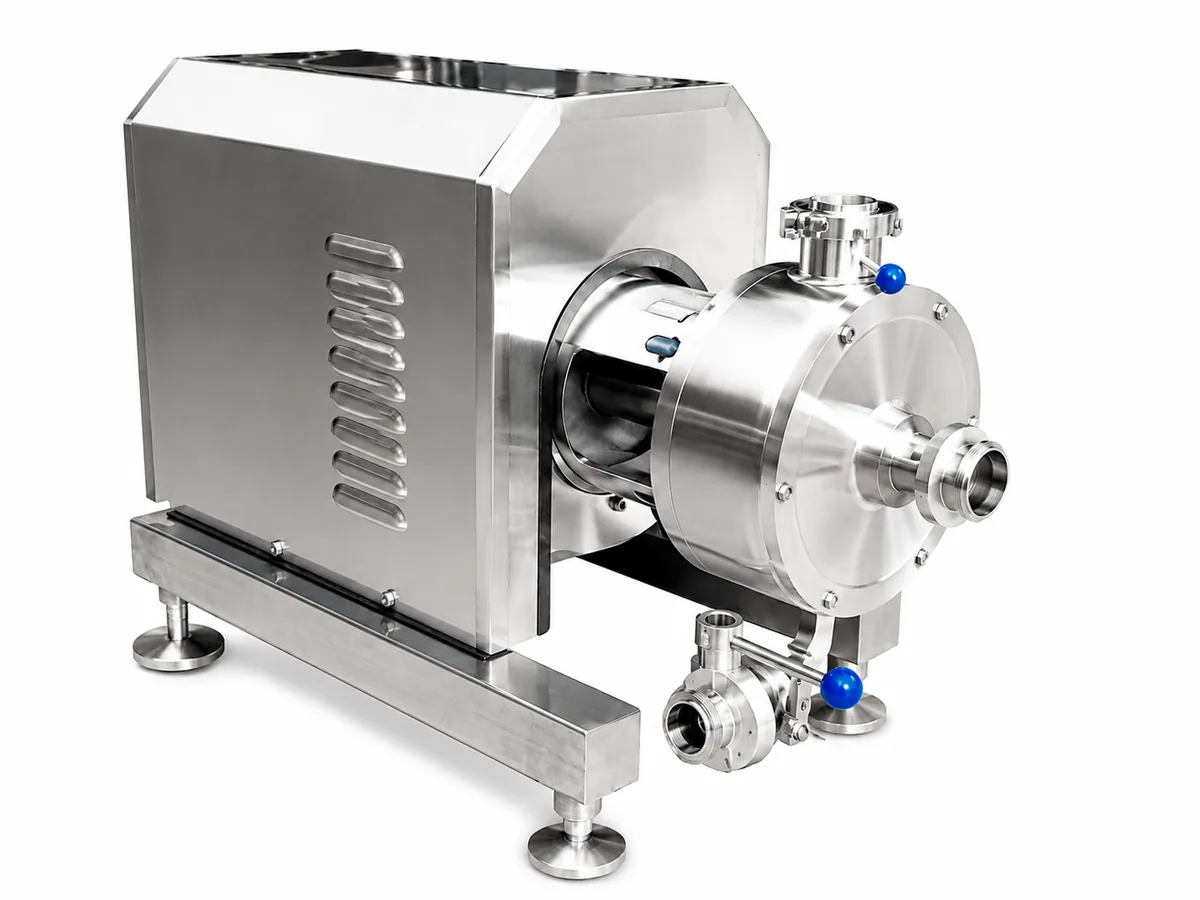

Single-Stage Homogenizing Pump
High-shear homogenizing pump for continuous mixing, dispersion and emulsification. Suitable for inline or circulation processing with efficient and stable operation.
Configuration Overview
Select the pump configuration to match your flow rate, processing capacity and application requirements.
0-90 m³/h
Flow Rate
1.5-75 kW
Motor Power
Inline / Circulation
Processing Mode
Standalone / System
Configuration
Available Pump Configurations

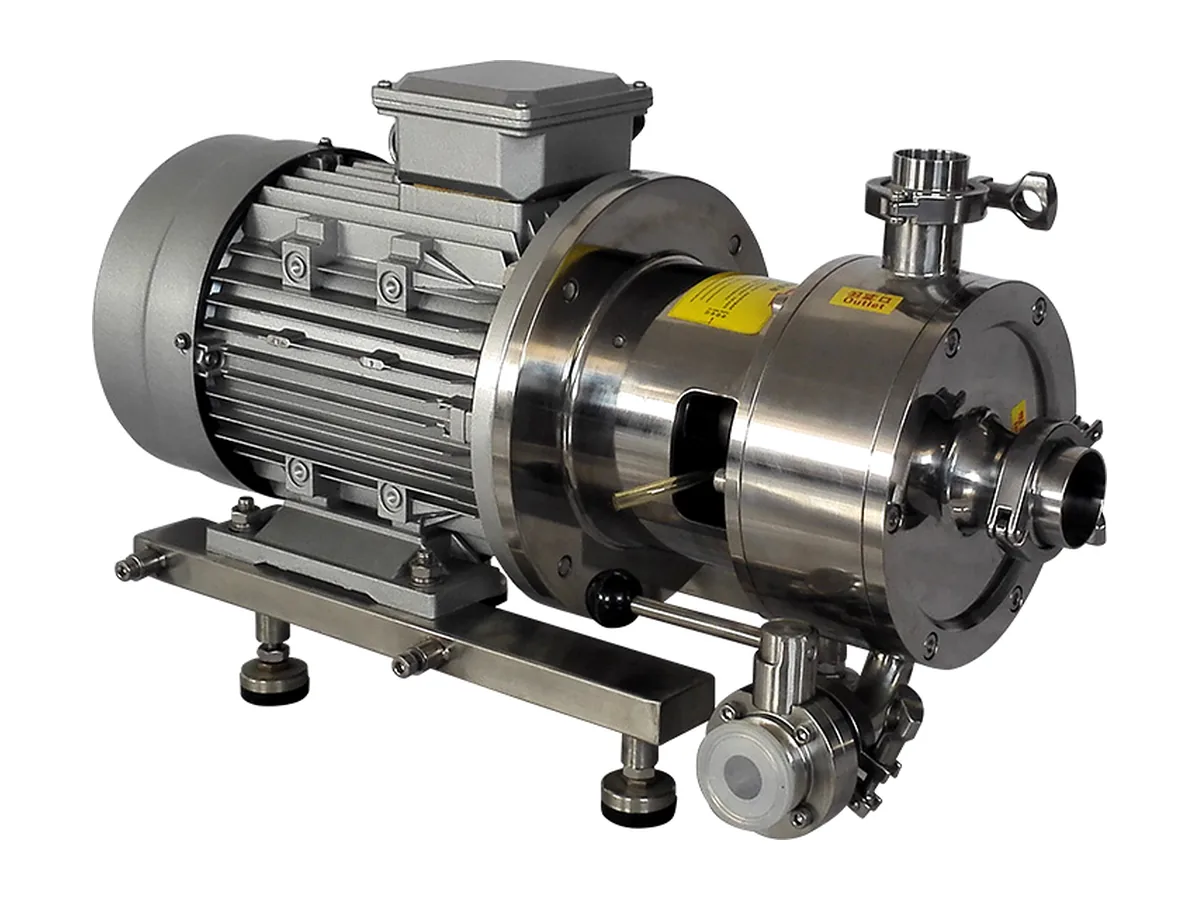

Standalone Pump
Standalone pump for inline mixing, emulsifying and homogenizing.

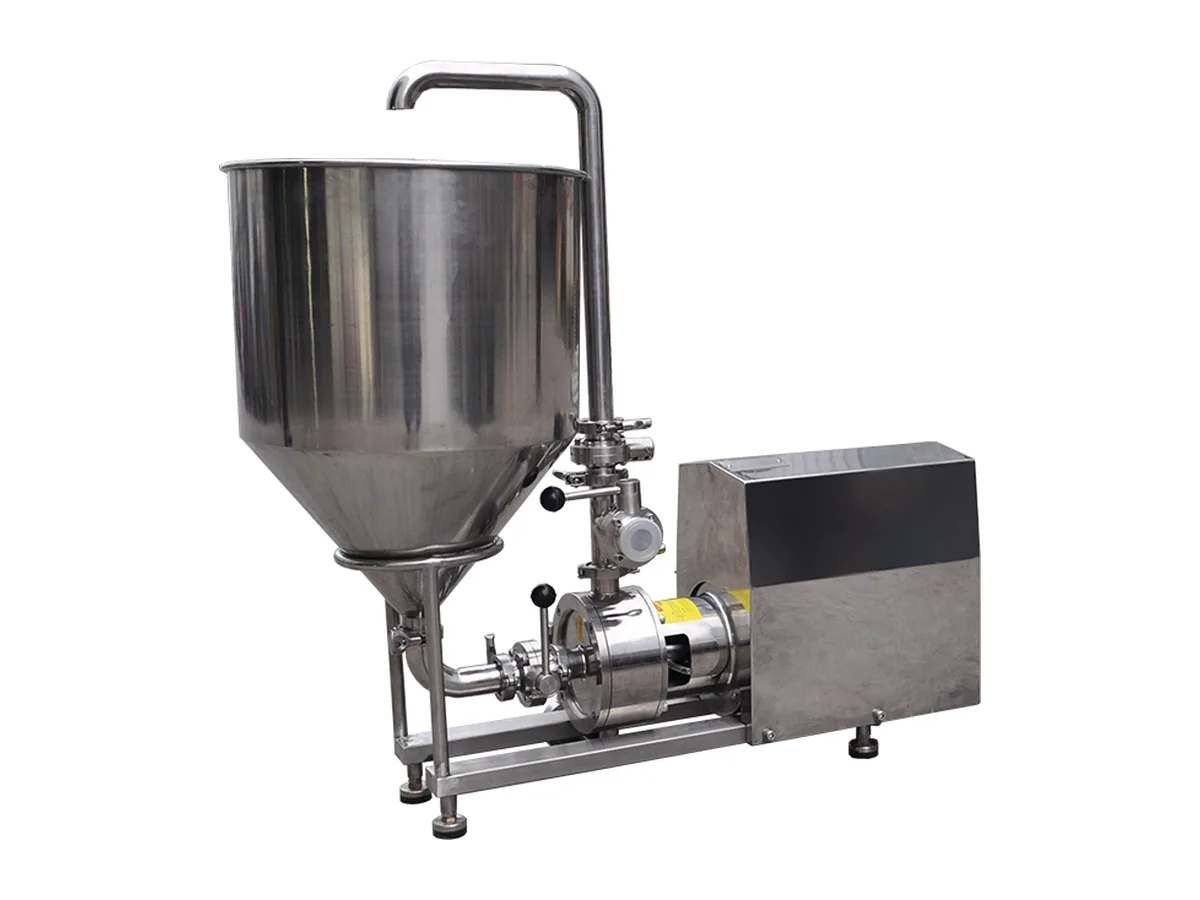

Hopper-Fed Pump
Hopper-fed design for direct material feeding and continuous processing.

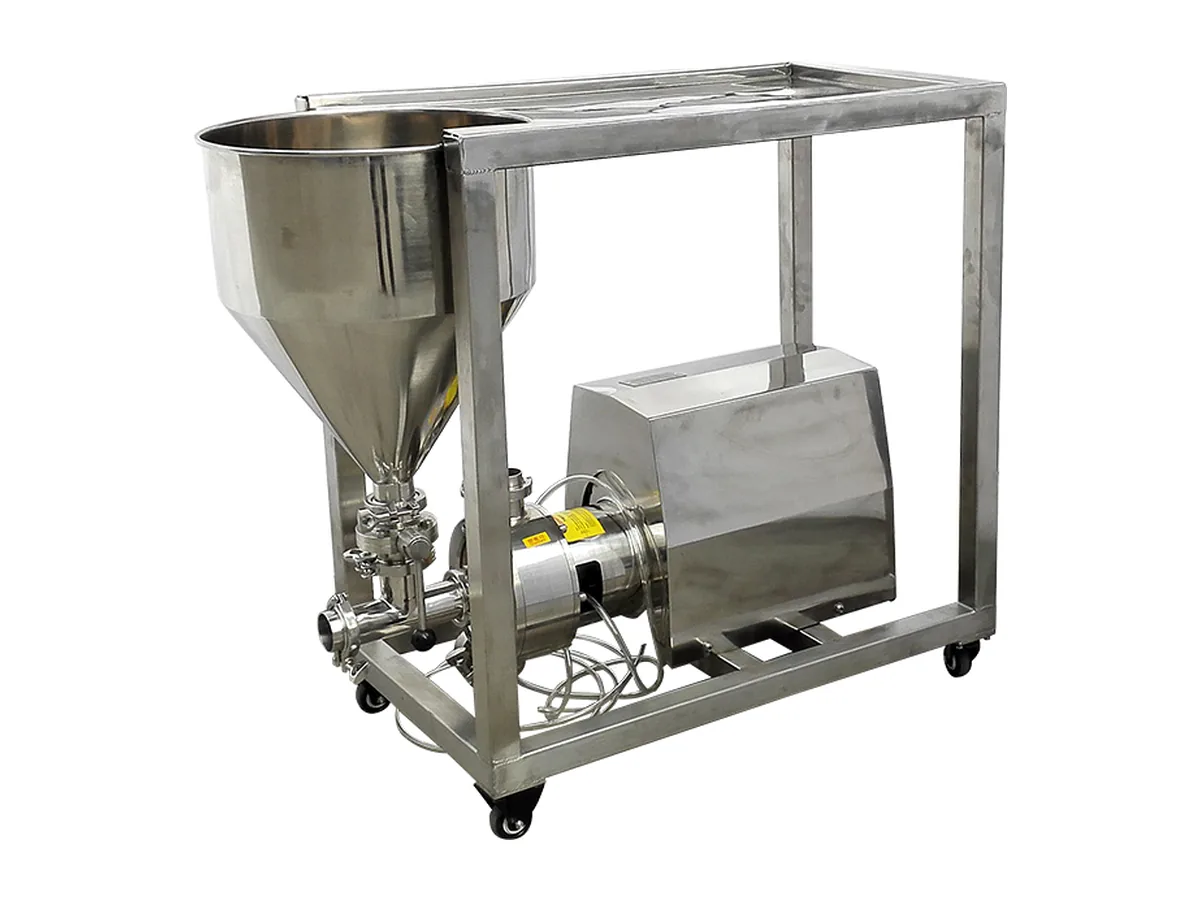

Frame-Mounted Unit
Frame-mounted unit with hopper for stable and flexible operation.

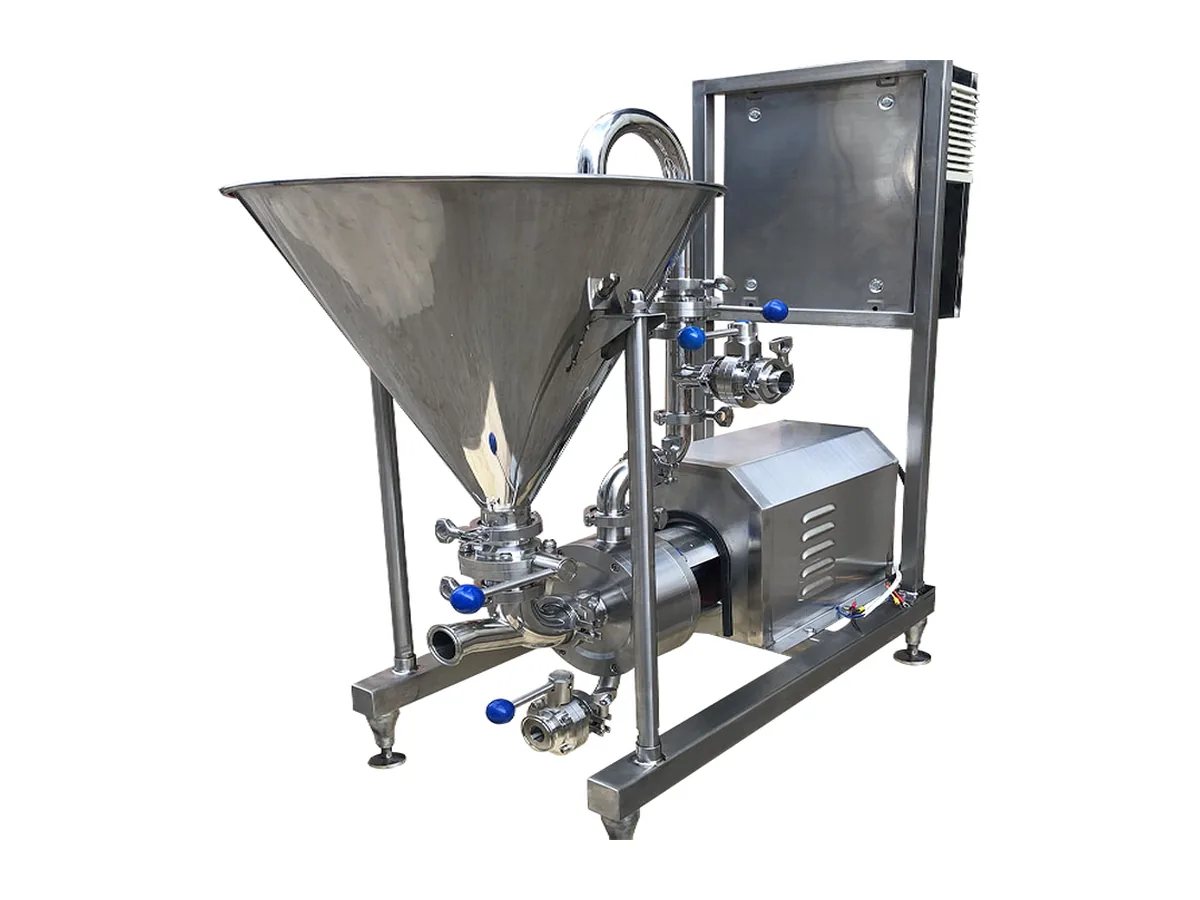

Pump with Control Cabinet
Integrated controls for easy operation and process adjustment.

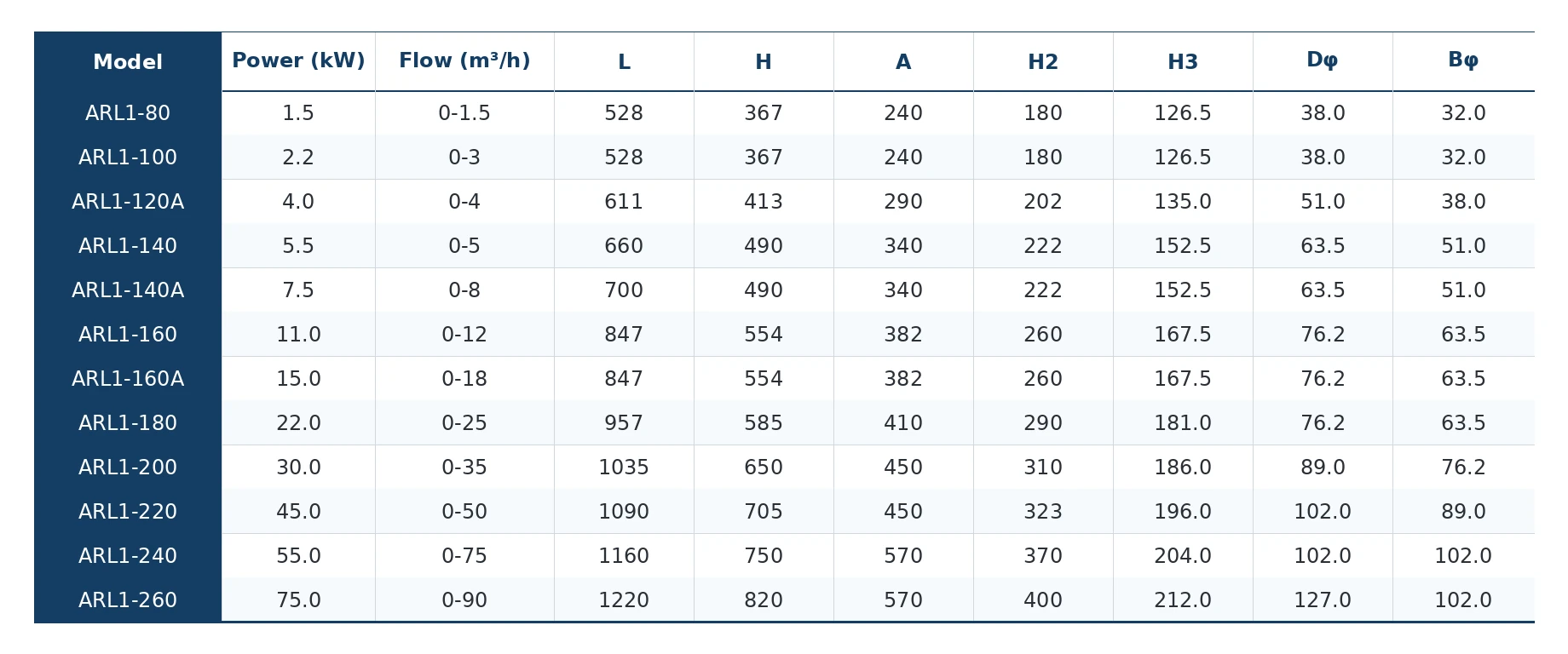

Technical Specifications
Specifications can be customized according to flow rate, process and installation requirements.
| Model | Power (kW) | Flow (m³/h) | L | H | A | H2 | H3 | Dφ | Bφ |
|---|---|---|---|---|---|---|---|---|---|
| ARL1-80 | 1.5 | 0-1.5 | 528 | 367 | 240 | 180 | 126.5 | 38.0 | 32.0 |
| ARL1-100 | 2.2 | 0-3 | 528 | 367 | 240 | 180 | 126.5 | 38.0 | 32.0 |
| ARL1-120A | 4.0 | 0-4 | 611 | 413 | 290 | 202 | 135.0 | 51.0 | 38.0 |
| ARL1-140 | 5.5 | 0-5 | 660 | 490 | 340 | 222 | 152.5 | 63.5 | 51.0 |
| ARL1-140A | 7.5 | 0-8 | 700 | 490 | 340 | 222 | 152.5 | 63.5 | 51.0 |
| ARL1-160 | 11.0 | 0-12 | 847 | 554 | 382 | 260 | 167.5 | 76.2 | 63.5 |
| ARL1-160A | 15.0 | 0-18 | 847 | 554 | 382 | 260 | 167.5 | 76.2 | 63.5 |
| ARL1-180 | 22.0 | 0-25 | 957 | 585 | 410 | 290 | 181.0 | 76.2 | 63.5 |
| ARL1-200 | 30.0 | 0-35 | 1035 | 650 | 450 | 310 | 186.0 | 89.0 | 76.2 |
| ARL1-220 | 45.0 | 0-50 | 1090 | 705 | 450 | 323 | 196.0 | 102.0 | 89.0 |
| ARL1-240 | 55.0 | 0-75 | 1160 | 750 | 570 | 370 | 204.0 | 102.0 | 102.0 |
| ARL1-260 | 75.0 | 0-90 | 1220 | 820 | 570 | 400 | 212.0 | 127.0 | 102.0 |
Typical Applications
Suitable for continuous mixing, emulsifying and homogenizing across a wide range of processing industries.
Food & Beverage
Sauces, dressings, beverages and liquid food processing.
Cosmetics & Personal Care
Creams, lotions, emulsions and personal care formulations.
Pharmaceutical Processing
Liquid and semi-liquid formulations requiring uniform dispersion.
Chemical Processing
Emulsions, suspensions and other industrial liquid formulations.
Optional Configurations
Configurations can be tailored to suit different feeding, control, installation and processing requirements.

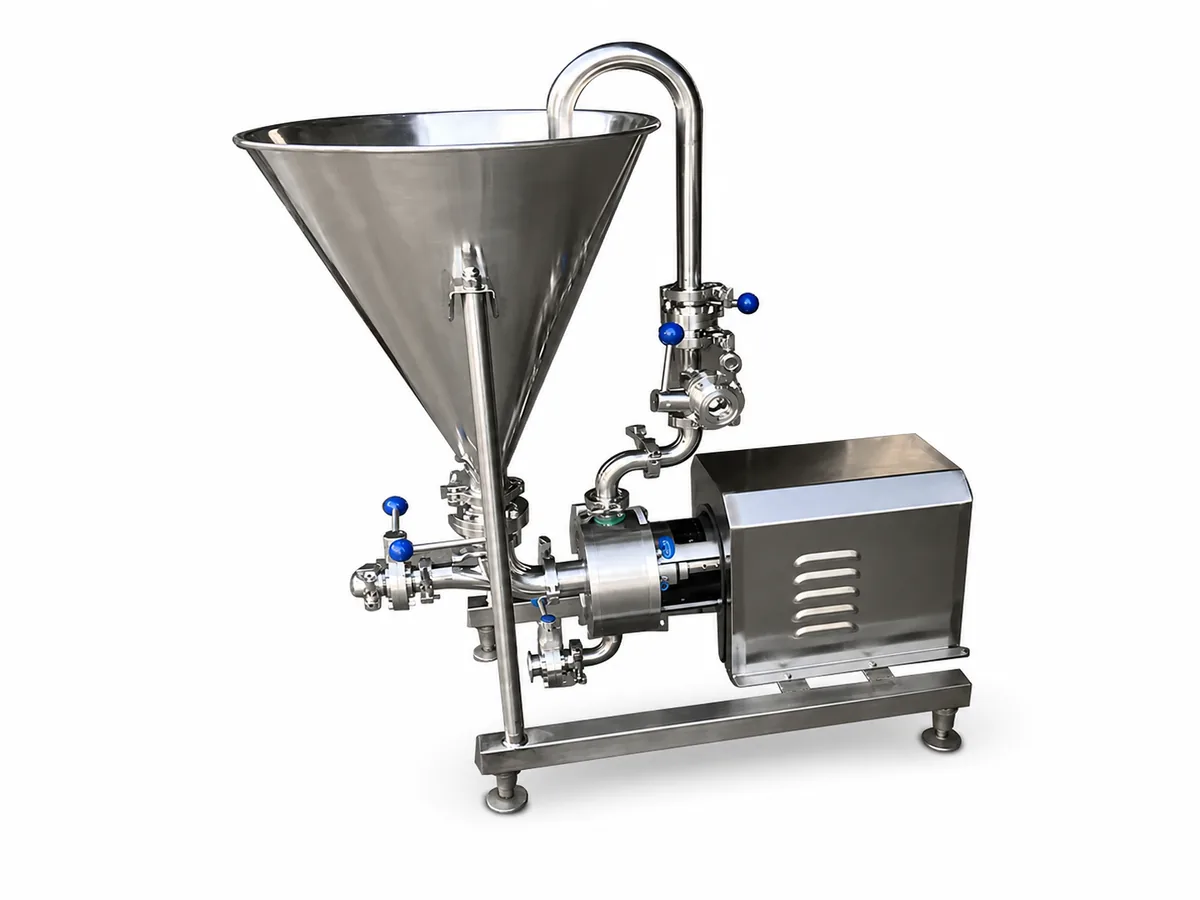

Hopper Feeding System
Optional hopper system for direct material feeding and continuous processing.

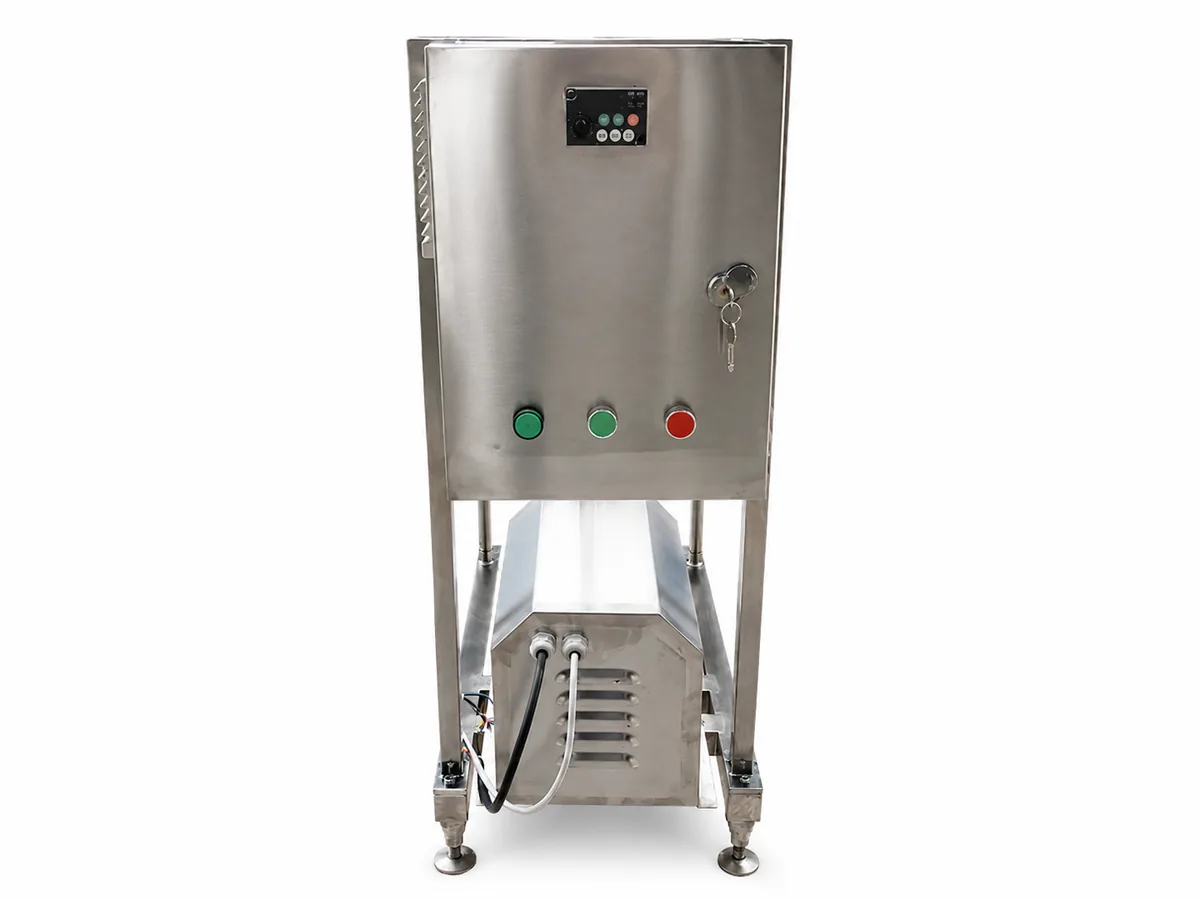

Control Cabinet
Optional control cabinet for convenient operation and process adjustment.

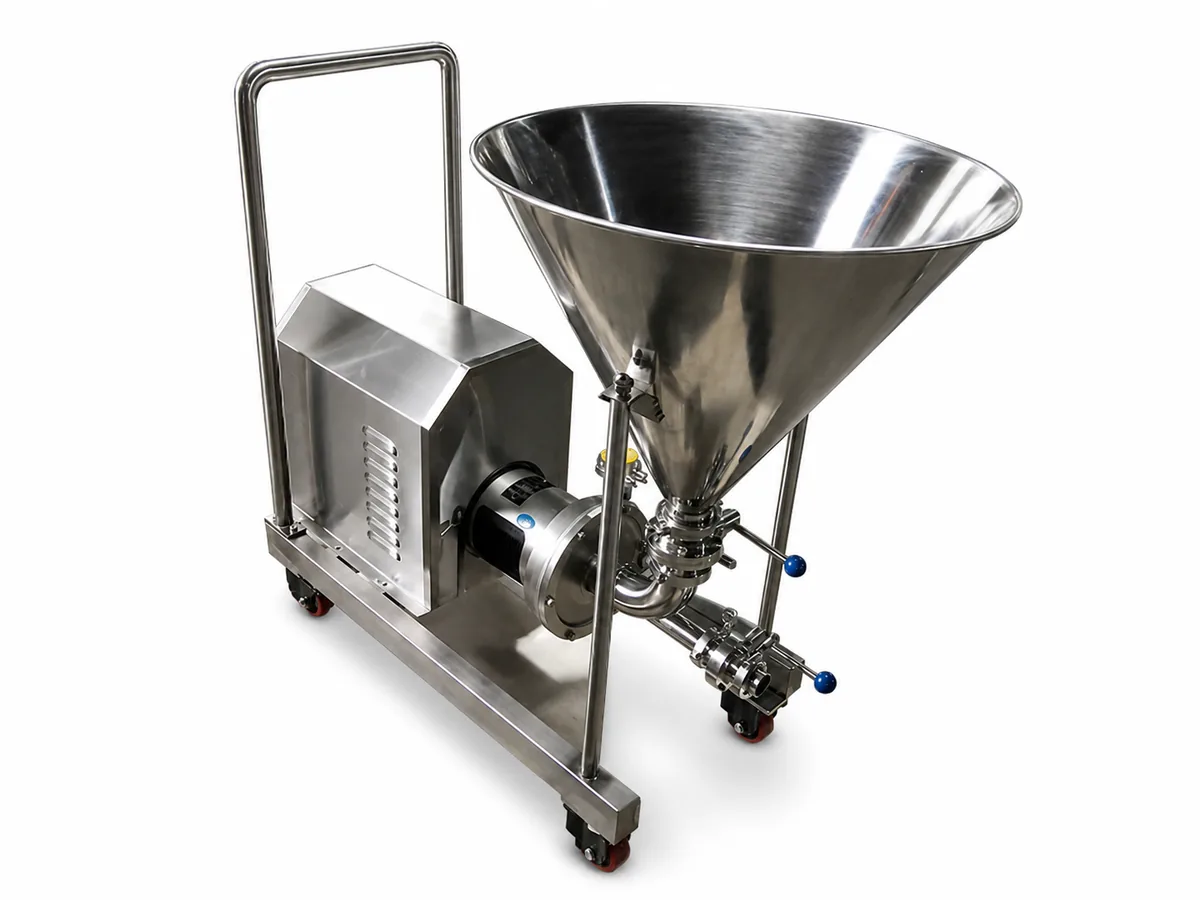

Mobile Frame Base
Mobile frame with casters allows flexible movement and easier installation.

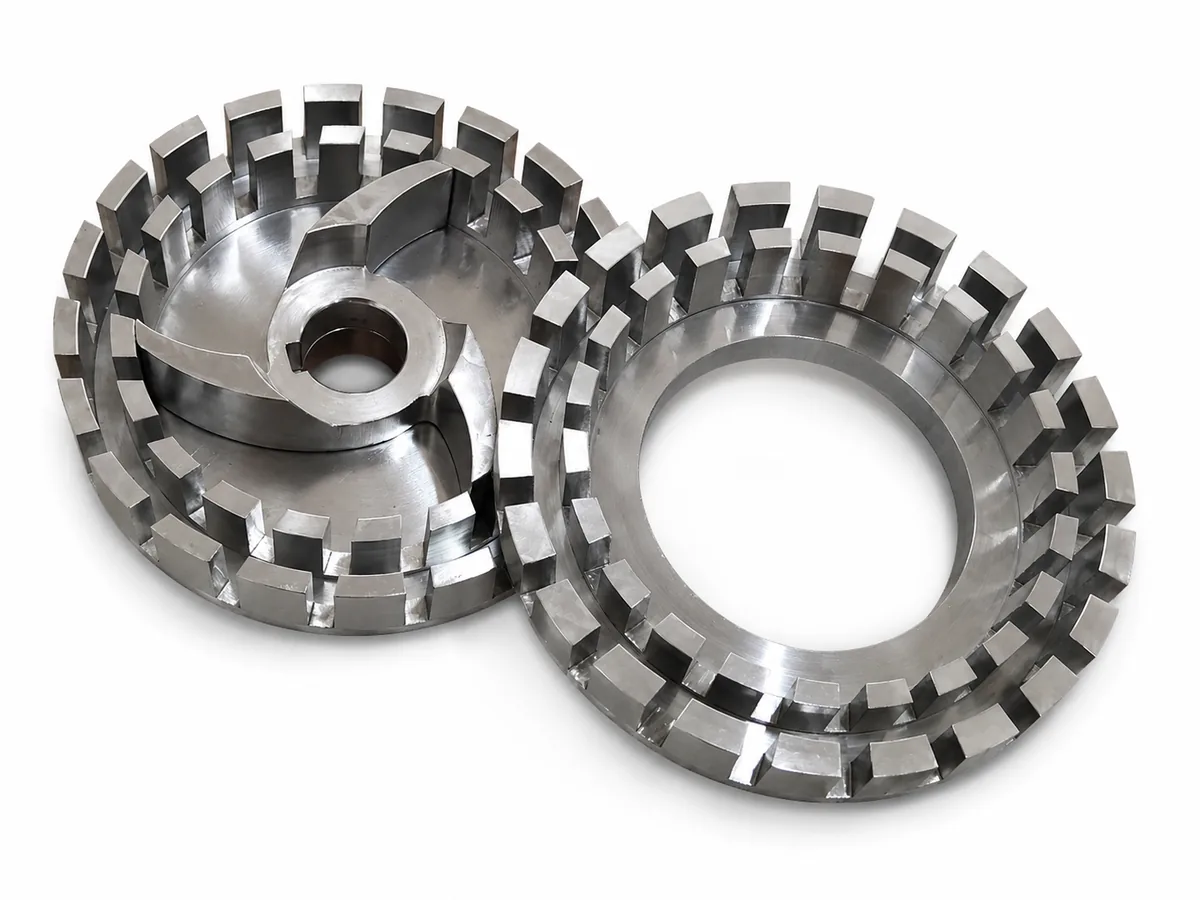

Rotor & Stator Assembly
Rotor and stator options are available for different emulsifying and homogenizing requirements.
Need a Single-Stage Homogenizing Pump for Your Process?
Tell us your required capacity, product viscosity, flow rate, installation method and operating conditions. Our team will help you select a suitable single-stage homogenizing pump configuration.
