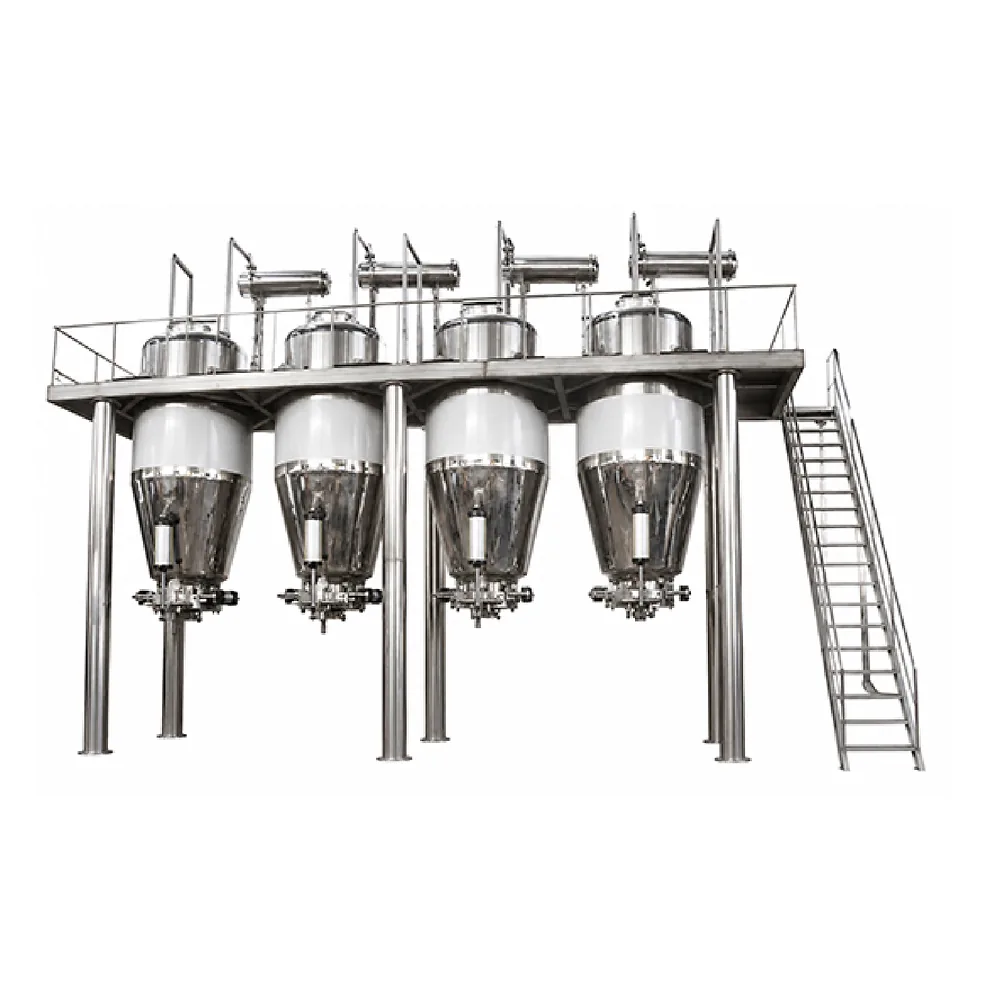

Stainless Steel Extraction Tank
Multi-purpose extraction equipment for water, alcohol and oil extraction, steaming and solvent recovery. Multiple filtration and slag discharge configurations are available for different processing requirements.
Configuration Overview
Configure the extraction tank according to capacity, heating, filtration and slag discharge requirements.
500–6,000 L
Working Volume
0.25 MPa
Jacket Working Pressure
Normal Pressure
Internal Working Pressure
Multiple Options
Filtration & Slag Discharge
Available Configurations

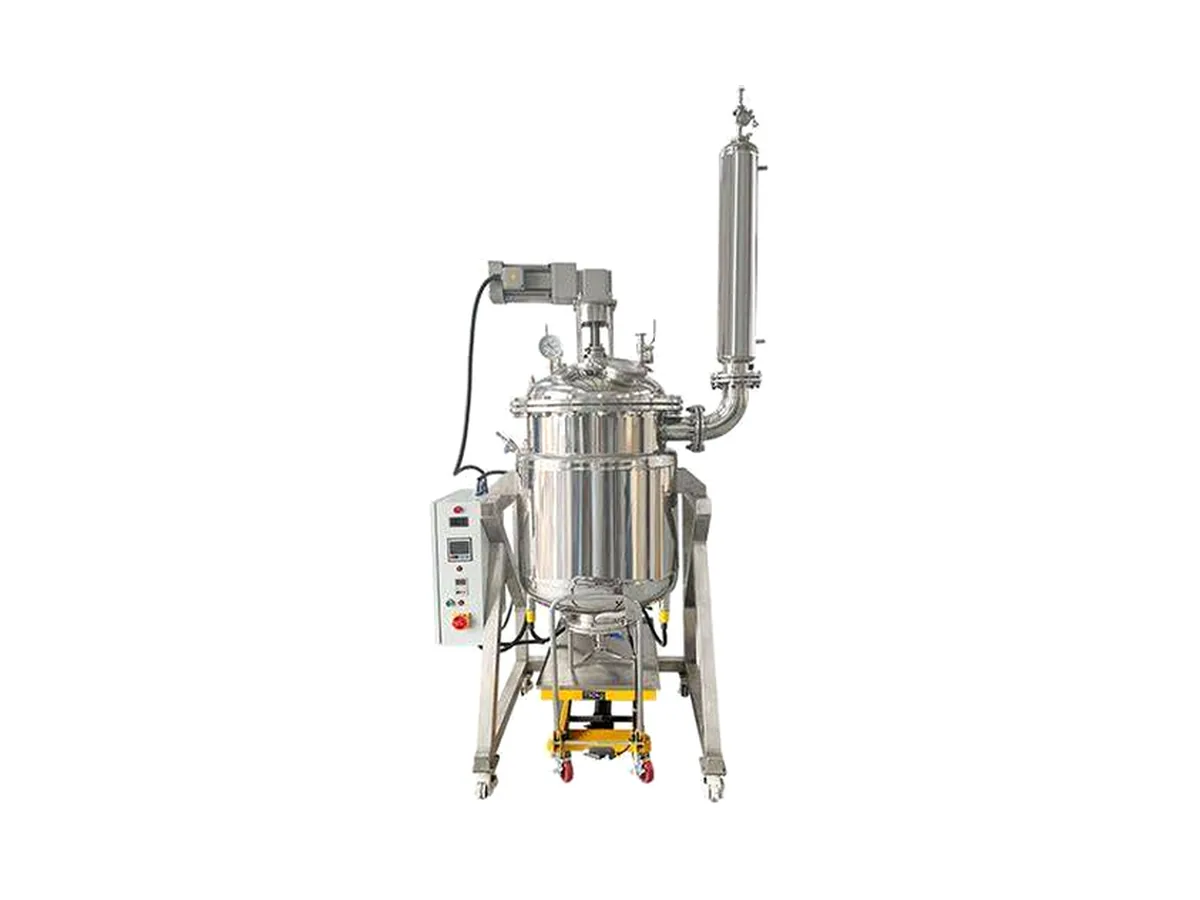

Straight Cylindrical Extraction Tank
Straight cylindrical design for conventional extraction and processing applications.

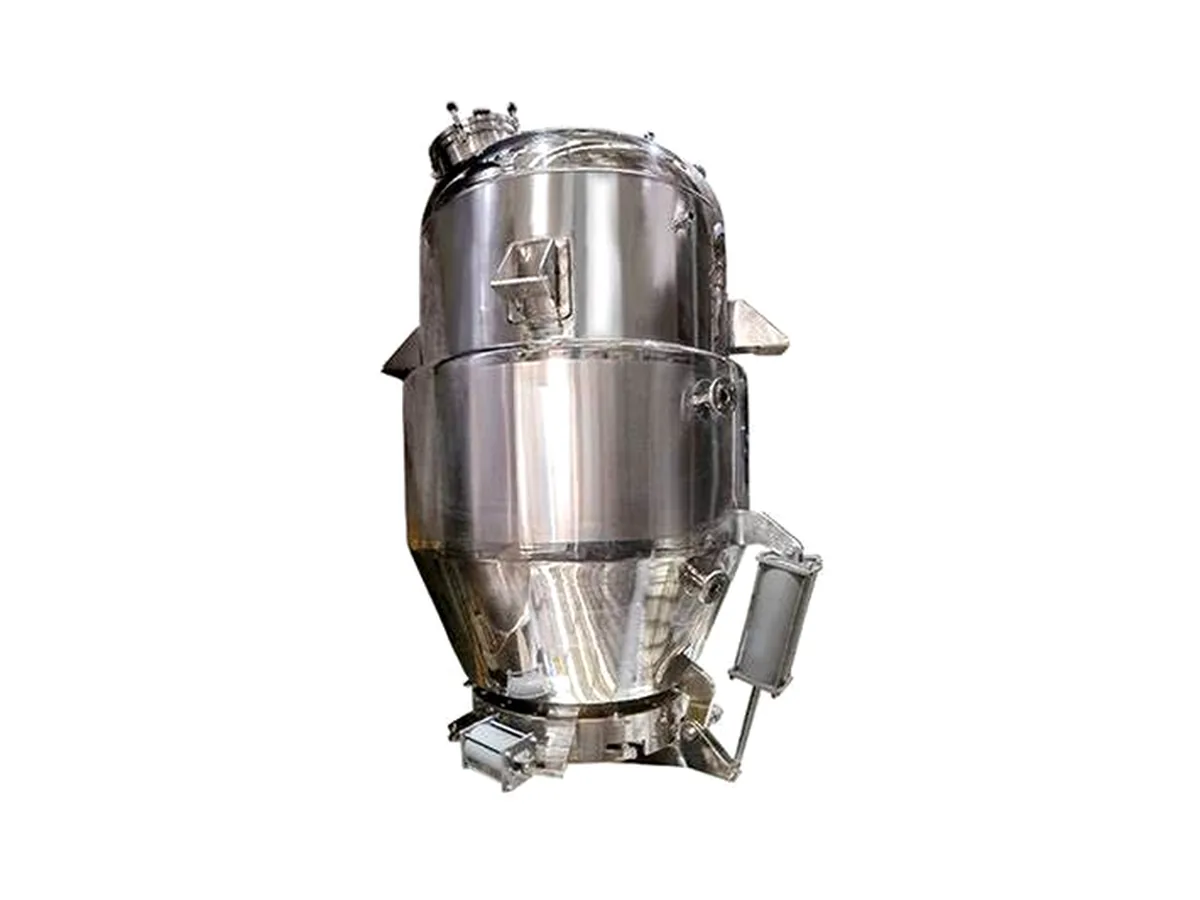

Conical-Bottom Extraction Tank
Conical-bottom structure supports efficient material discharge and residue removal.
Mushroom-Type Extraction Tank
Expanded upper chamber provides additional space for boiling, vapor separation and extraction.

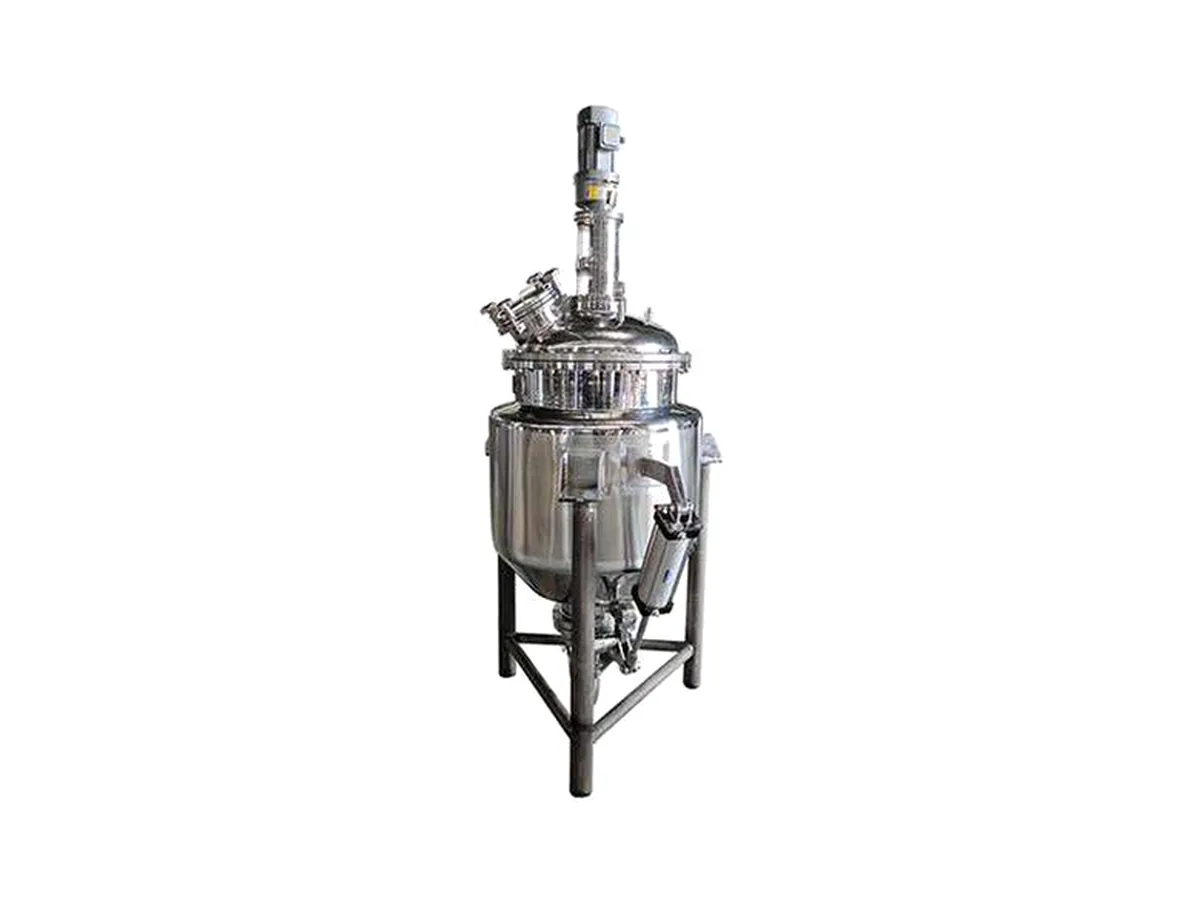

Dynamic Agitated Extraction Tank
Integrated agitation improves material circulation and extraction efficiency during processing.

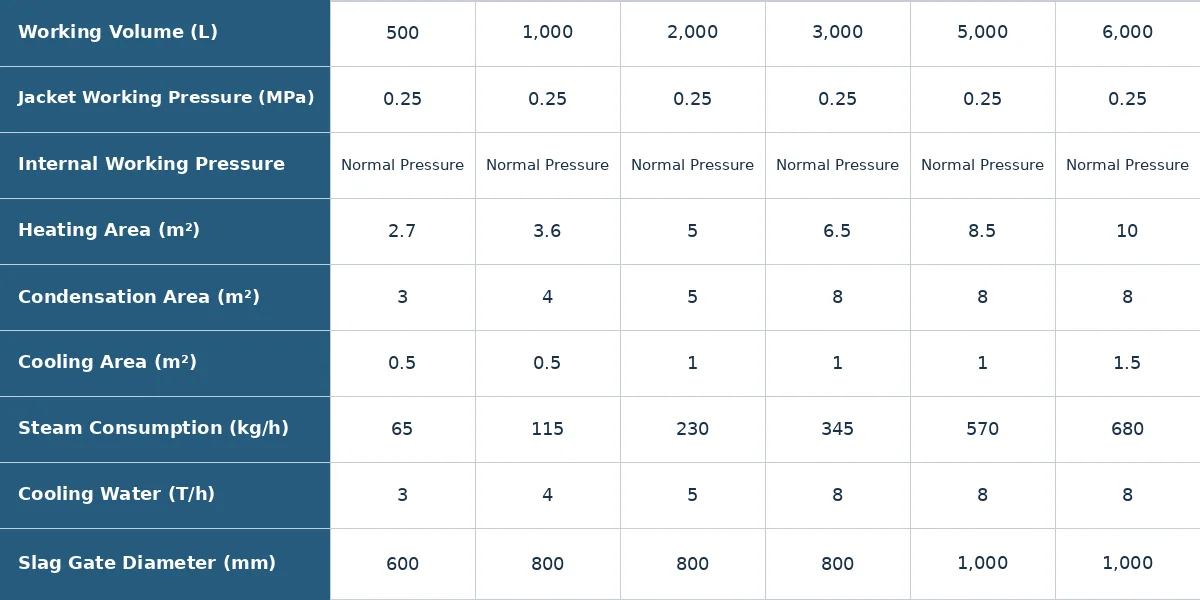

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
Typical Applications
Suitable for water extraction, alcohol extraction, aromatic oil extraction and related processing applications.
Herbal & Botanical Extraction
Extraction of active components from herbs, roots and other botanical materials.
Food & Beverage Ingredients
Extraction of natural ingredients, flavors and functional components for food processing.
Aromatic Oil Extraction
Suitable for extraction of aromatic oils and related natural components.
Chemical & Process Industries
Applied in selected chemical, hydrometallurgical and industrial extraction processes.
Optional Configurations
Filtration and slag discharge configurations can be customized according to material characteristics and process requirements.

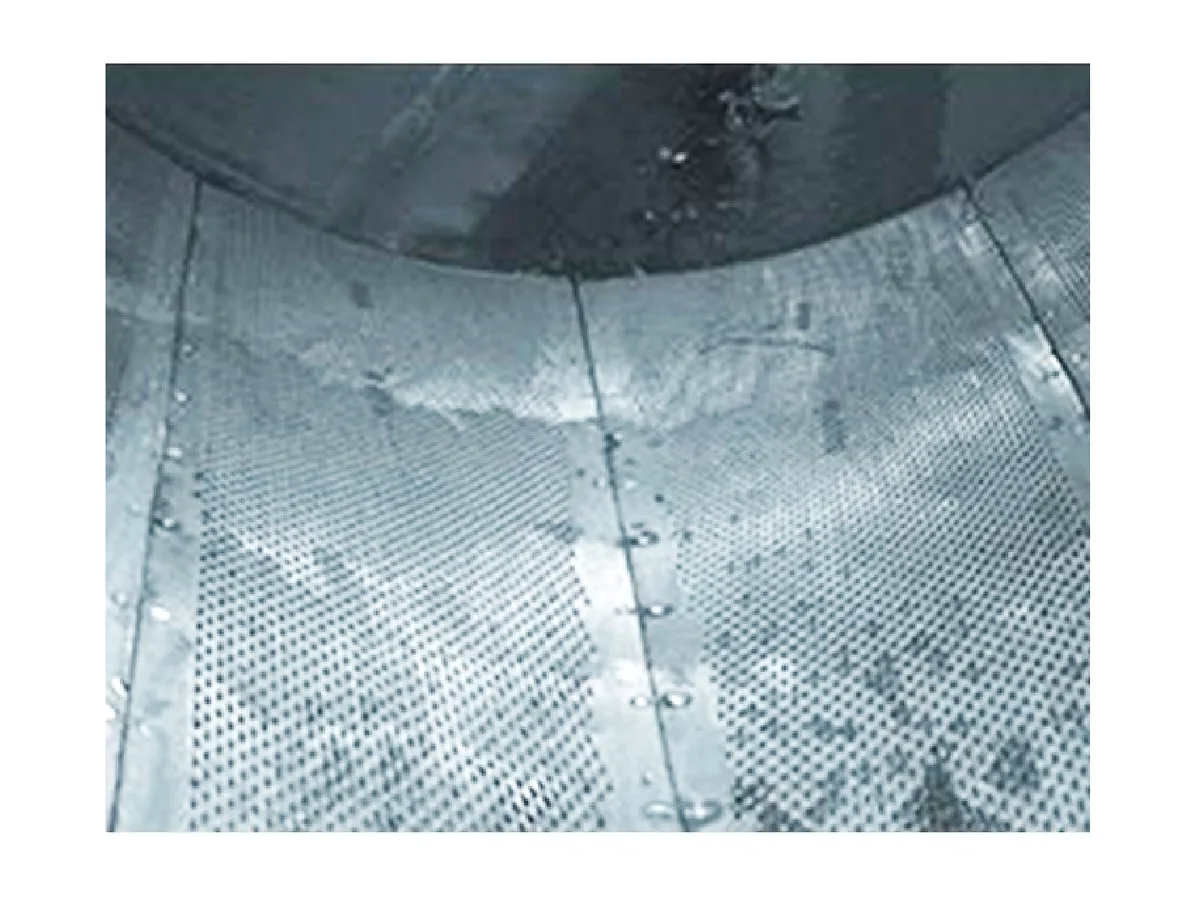

Bottom Filter Plate
Perforated filtration structure for efficient liquid discharge and solid residue separation.

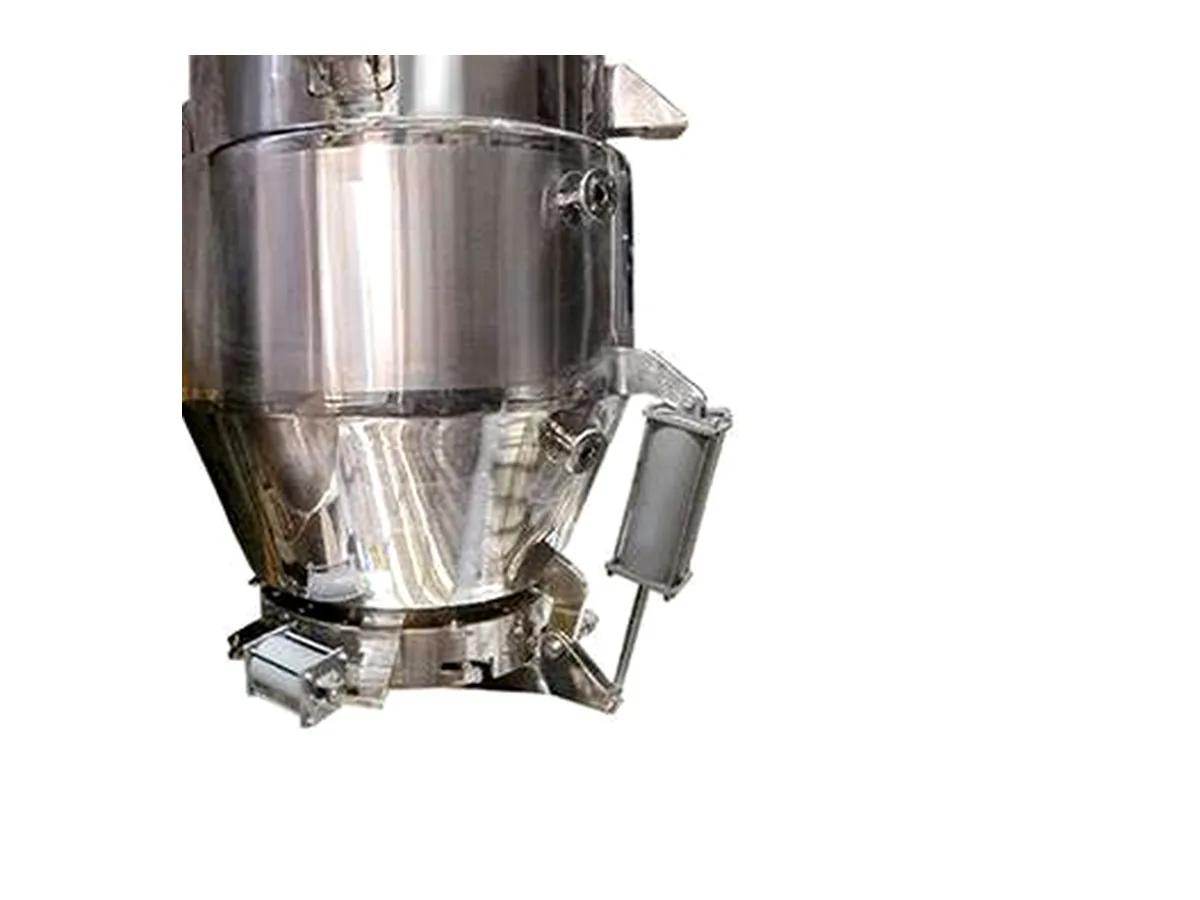

Rotary Slag Outlet
Pneumatic opening mechanism for convenient and controlled residue discharge.

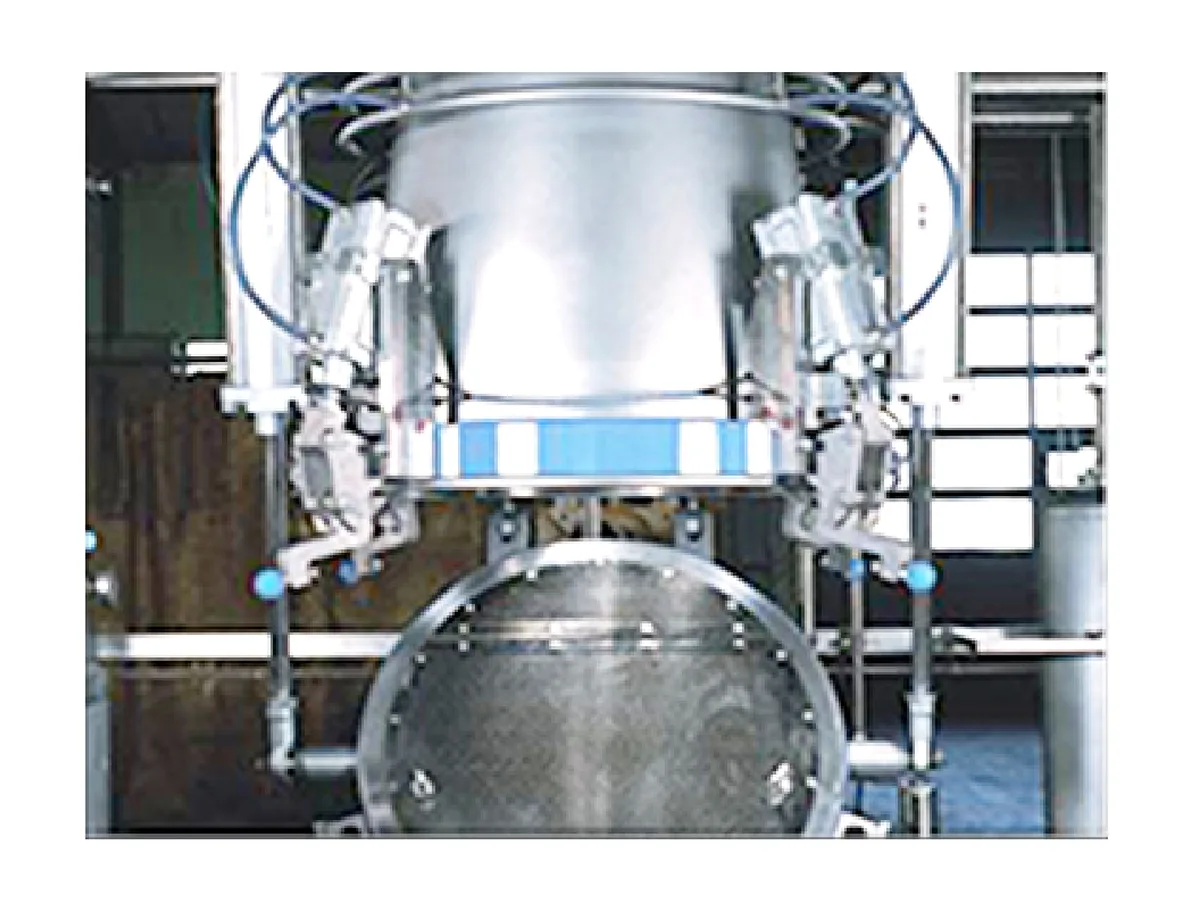

Large-Diameter Slag Outlet
Enlarged discharge opening for efficient removal of bulk extraction residue.

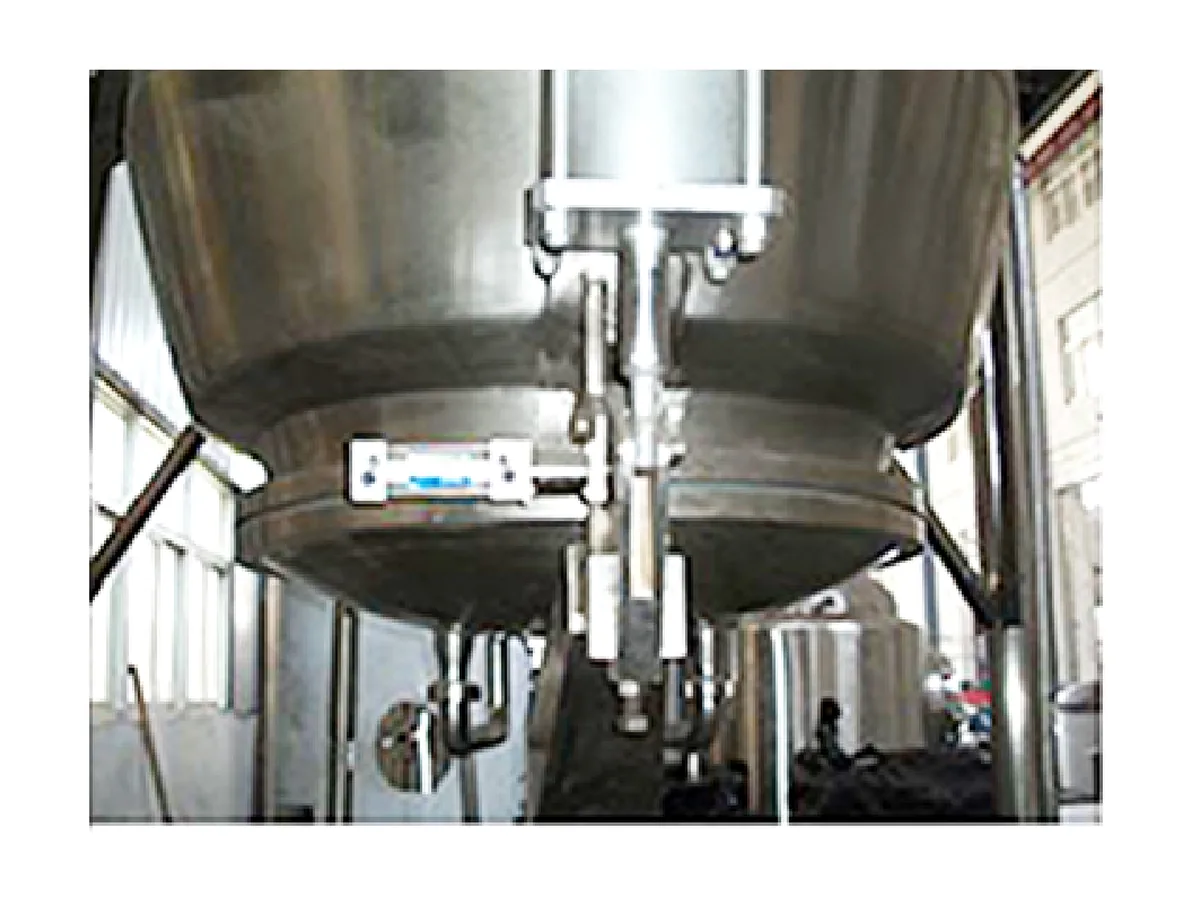

Quick-Opening Slag Outlet
Quick-opening structure designed for easier operation, cleaning and maintenance.
