Stainless Steel Frame Filter
A sanitary plate-and-frame filtration system designed for clarification and fine filtration of liquid products in food, beverage, pharmaceutical and chemical processing.
Configuration Overview
Flexible filtration specifications and flow capacities are available to meet different processing requirements.
Φ100–Φ400 mm
Filter Plate Size
1–8 T/H
Flow Capacity
10 Layers
Filter Layers
0.55–2.2 kW
Pump Power
Available Configurations
Compact Configuration
Compact mobile design for small-batch filtration and flexible production use.
Standard Configuration
Standard plate-and-frame design for routine liquid clarification and filtration.
Extended Plate Configuration
Extended plate arrangement for larger filtration area and higher processing capacity.
Technical Specifications
Specifications can be customized according to filtration capacity, process conditions, and installation requirements.
| Model | Filter Plate Size | Flow Capacity (T/H) |
Filter Layers | Filter Membrane | Power (kW) |
Dimensions (mm) |
Inlet / Outlet (mm) |
|---|---|---|---|---|---|---|---|
| FILB-10-100 | Φ100 | 1 | 10 | 0.8 | 0.55 | 680 × 310 × 580 | 19 / 19 |
| FILB-10-150 | Φ150 | 1.5–2 | 10 | 0.8 | 0.75 | 780 × 350 × 700 | 27 / 22 |
| FILB-10-200 | Φ200 | 3 | 10 | 0.8 | 1.1 | 820 × 380 × 760 | 27 / 22 |
| FILB-10-300 | Φ300 | 5 | 10 | 0.8 | 1.5 | 920 × 500 × 900 | 27 / 27 |
| FILB-10-400 | Φ400 | 8 | 10 | 0.8 | 2.2 | 1260 × 600 × 1120 | 50 / 32 |
Typical Applications
Suitable for clarification and fine filtration of low-viscosity liquids in food, beverage, pharmaceutical, chemical and utility processes.
Food & Beverage
Clarification and fine filtration of beverages, ingredients and other low-viscosity process liquids.
Pharmaceuticals
Fine filtration of compatible process liquids before storage, transfer or downstream processing.
Chemical Processing
Removal of suspended solids from compatible low-viscosity chemical and process liquids.
Water & Utilities
Polishing filtration of process water and compatible utility liquids before downstream use.
Optional Configurations
Configurations can be tailored to suit different process, piping, installation and operating requirements.

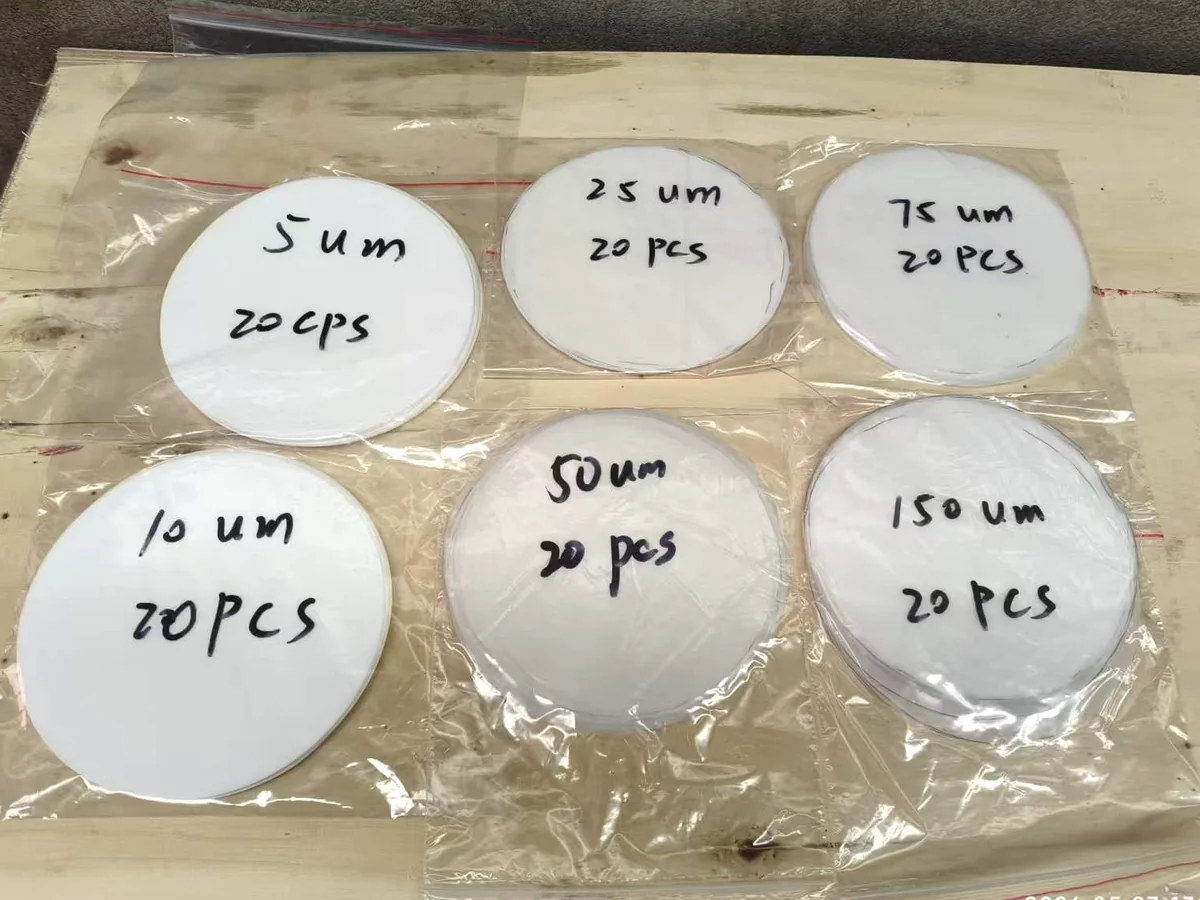

Filter Media Options
Filter media can be selected to suit different filtration and product requirements.

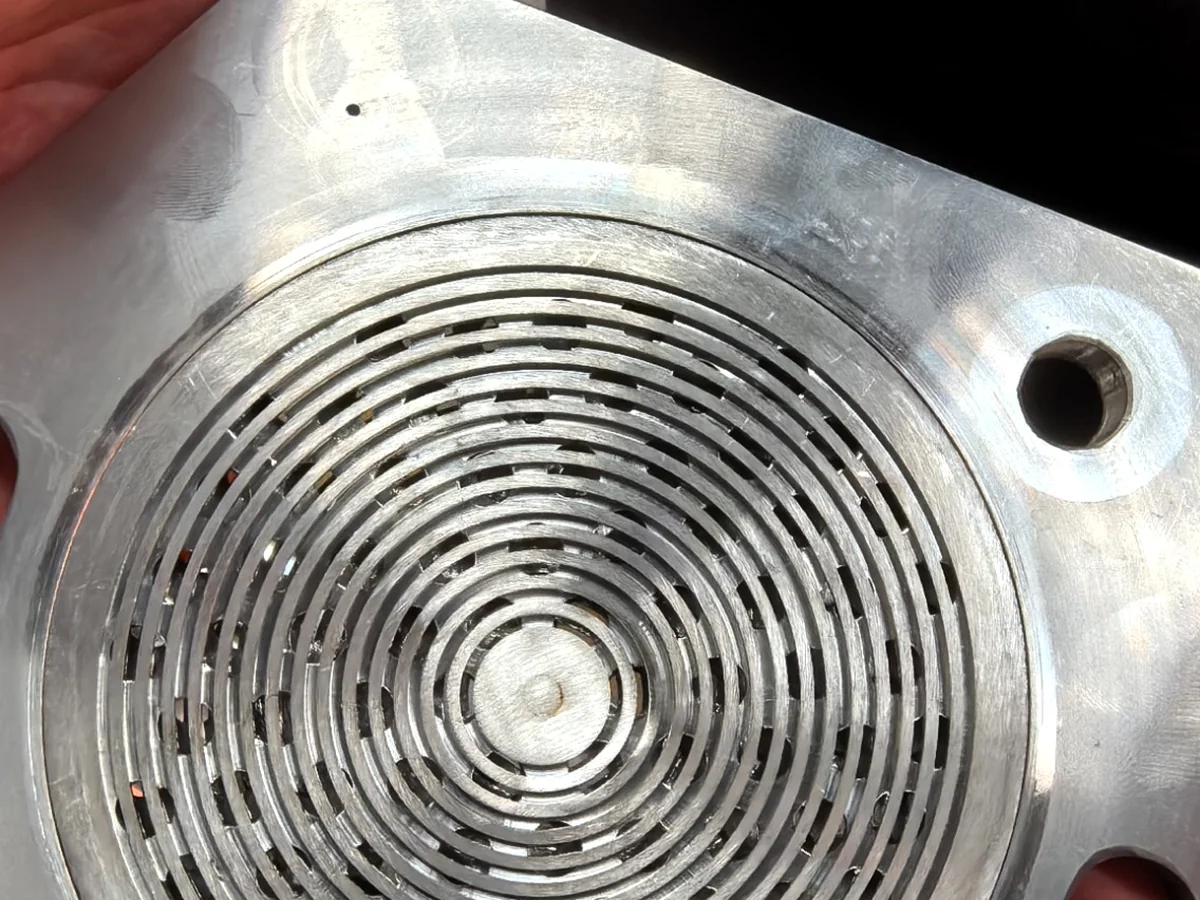

Filter Plate Design
Plate configurations can be selected to match filtration area and process requirements.

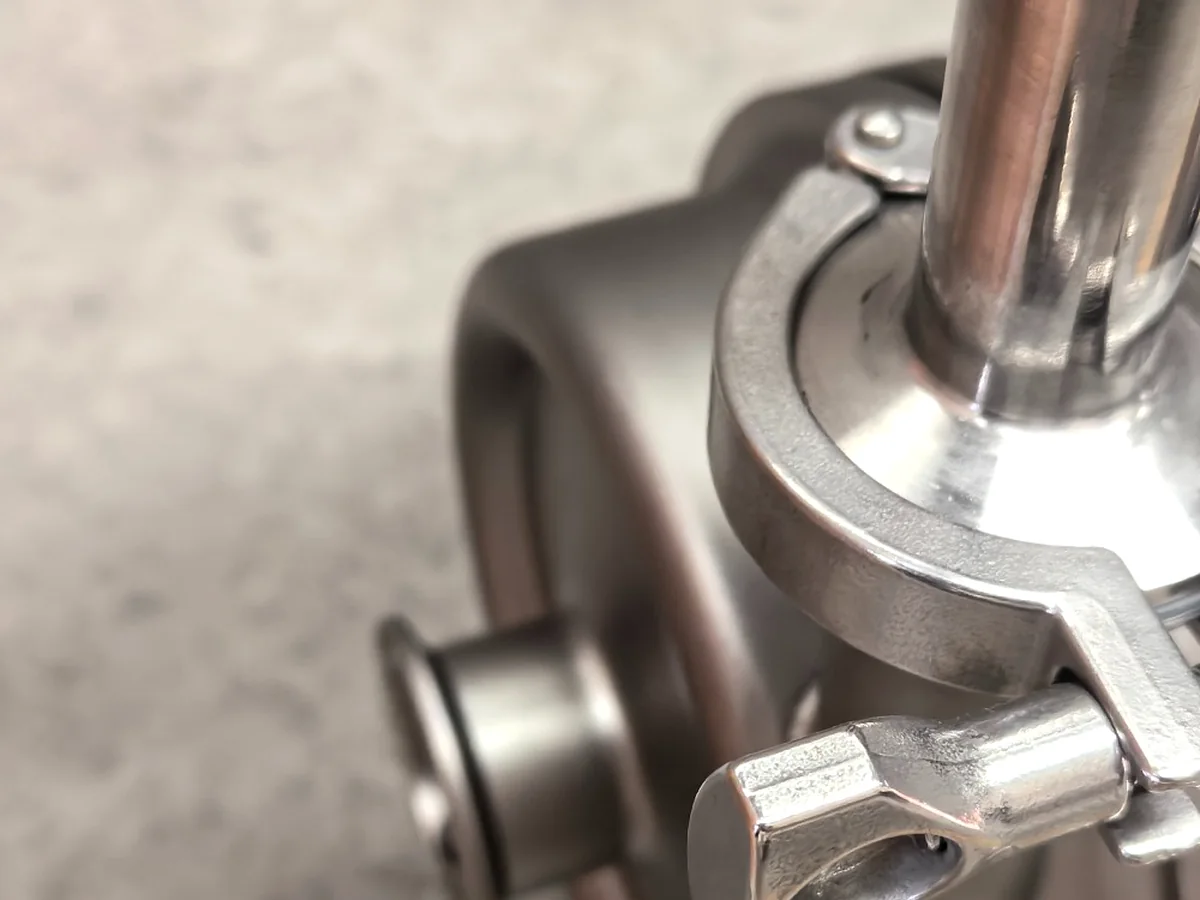

Sanitary Connections
Sanitary clamp connections simplify installation, cleaning and routine maintenance.

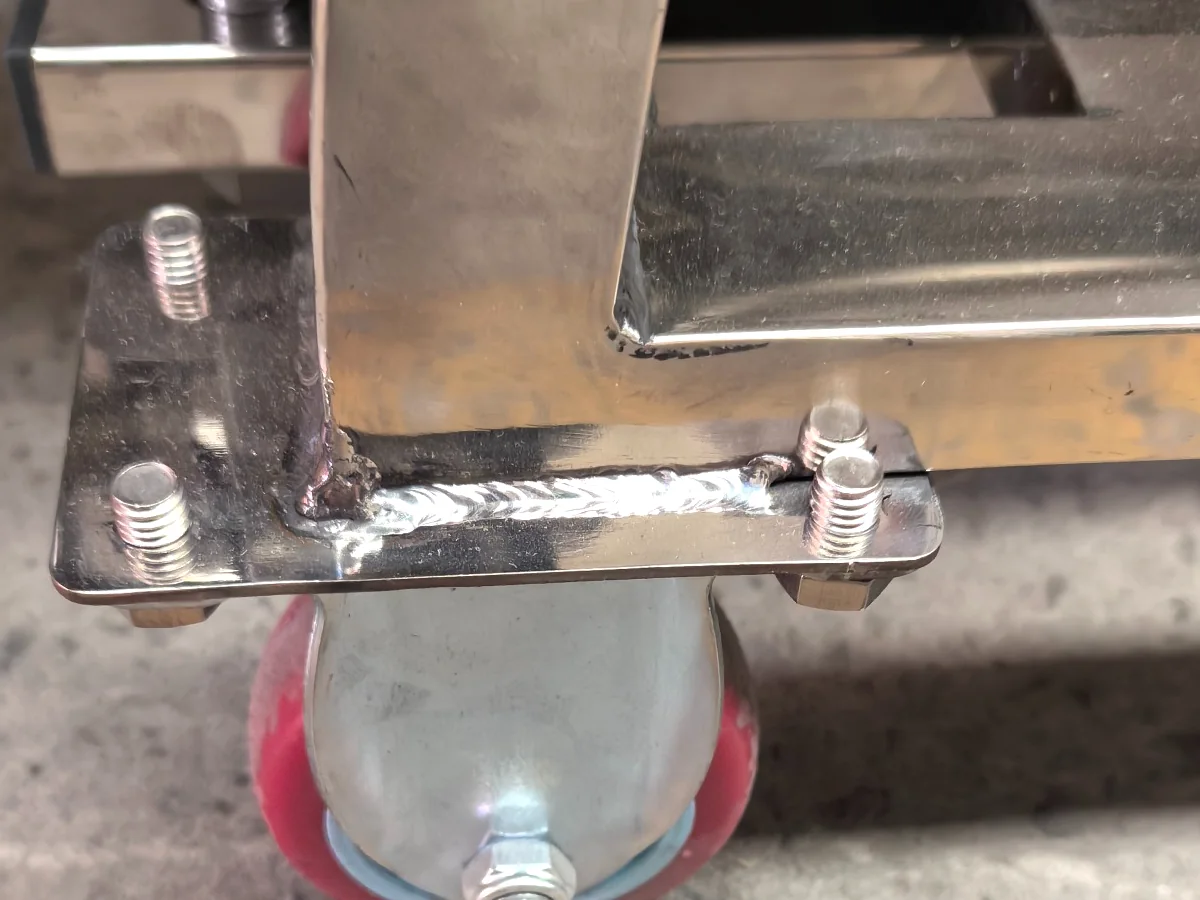

Mobile Caster Base
Caster-mounted design allows easy movement, positioning and equipment relocation.
Need a Stainless Steel Frame Filter for Your Process?
Tell us your required filtration capacity, filter plate size, filtration requirements and connection size. Our team will help you select a suitable stainless steel frame filter configuration.
Request a Quote
