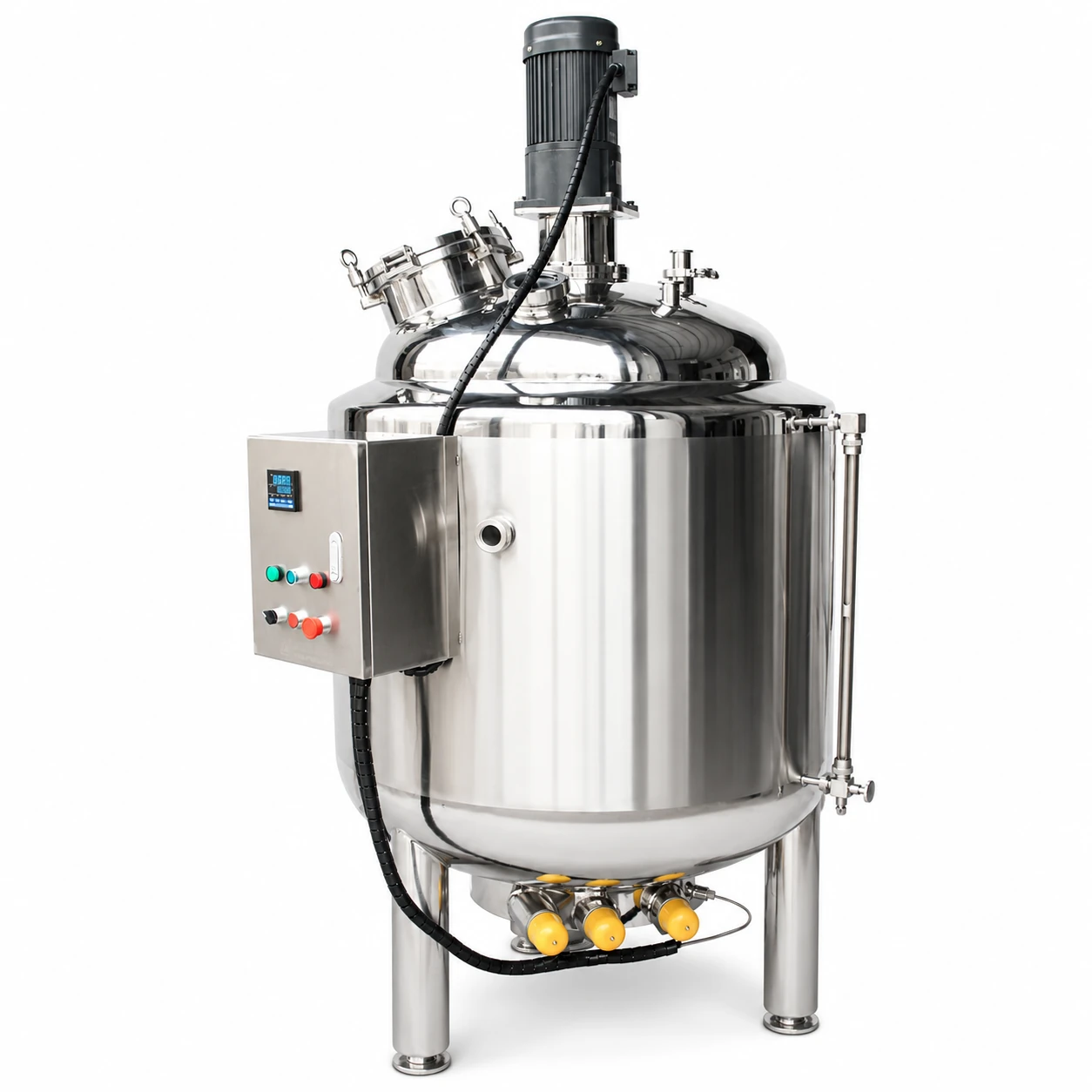

Stainless Steel Mixing Tank
Stainless steel mixing tank for efficient mixing, blending, dissolving, heating and cooling of liquid and semi-fluid products. Available with customized capacity, agitator type, heating or cooling jacket, and control options to suit different process requirements.
Mixing Tank Configuration Overview
Configure the mixing tank to match your process requirements, including capacity, agitation, temperature control and automation.
Capacity Range
50–30,000 L
Tank Structure Options
Single-Layer · Jacketed · Insulated
Material Options
SUS304 / SUS316L
Agitator Options
Paddle · Propeller · Anchor · Frame
Heating & Cooling Options
Electric · Steam · Thermal Oil
Cooling Water · Chilled Water
Control Options
VFD · PLC + HMI
Available Mixing Tank Configurations

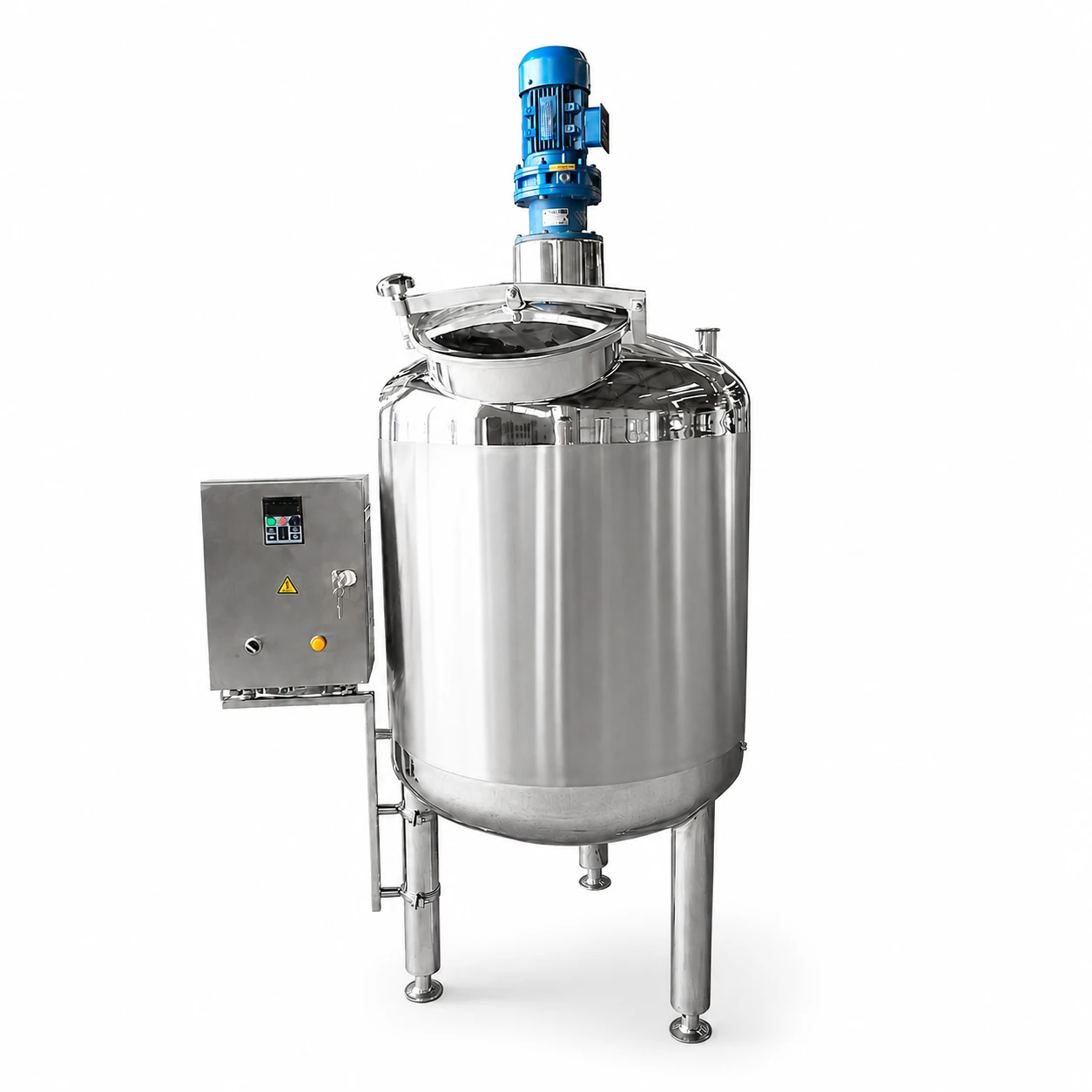

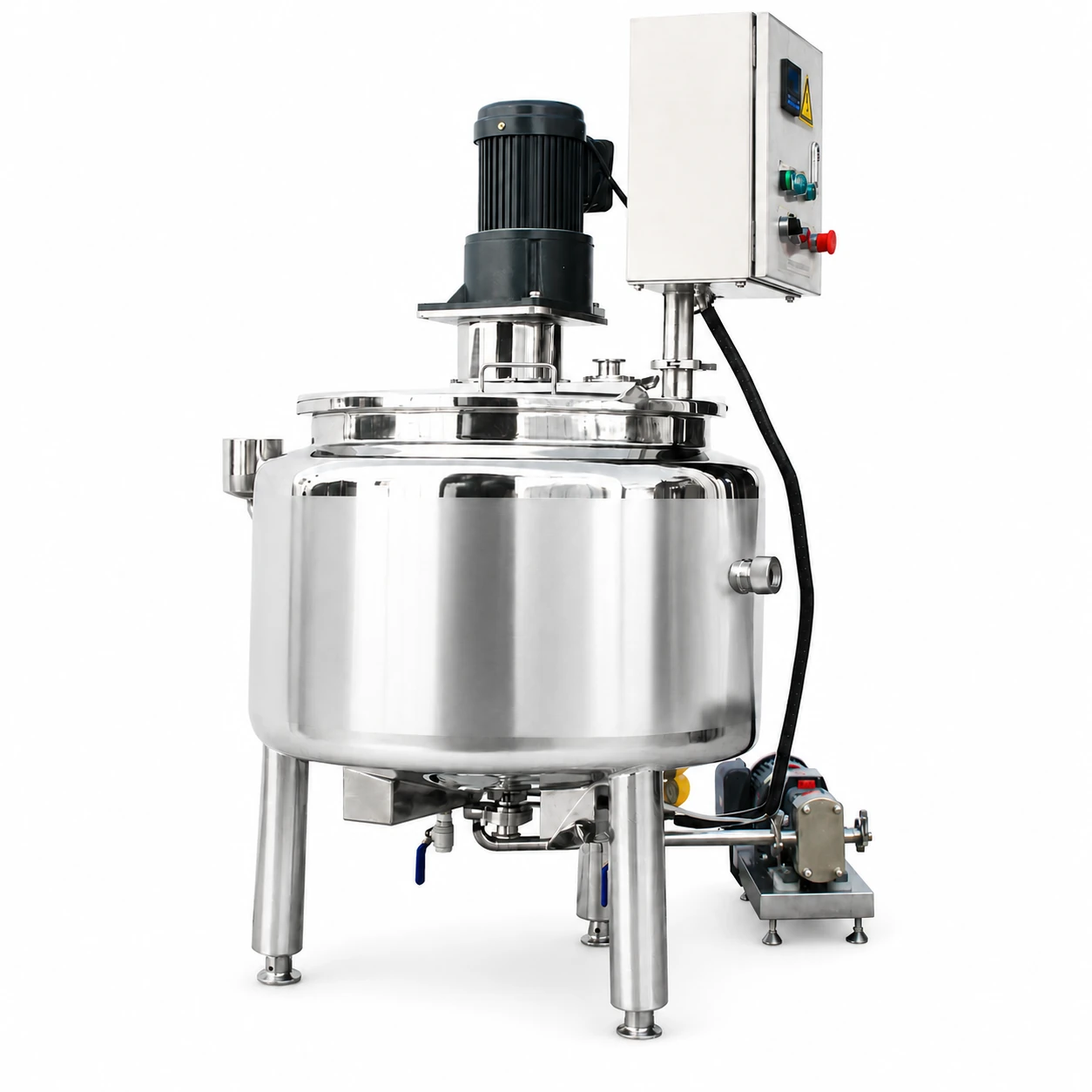

Integrated Mixing Tank
Integrated with control and transfer components for a more complete processing setup.
Closed-Top Mixing Tank
Enclosed vessel design for controlled mixing and cleaner material handling.

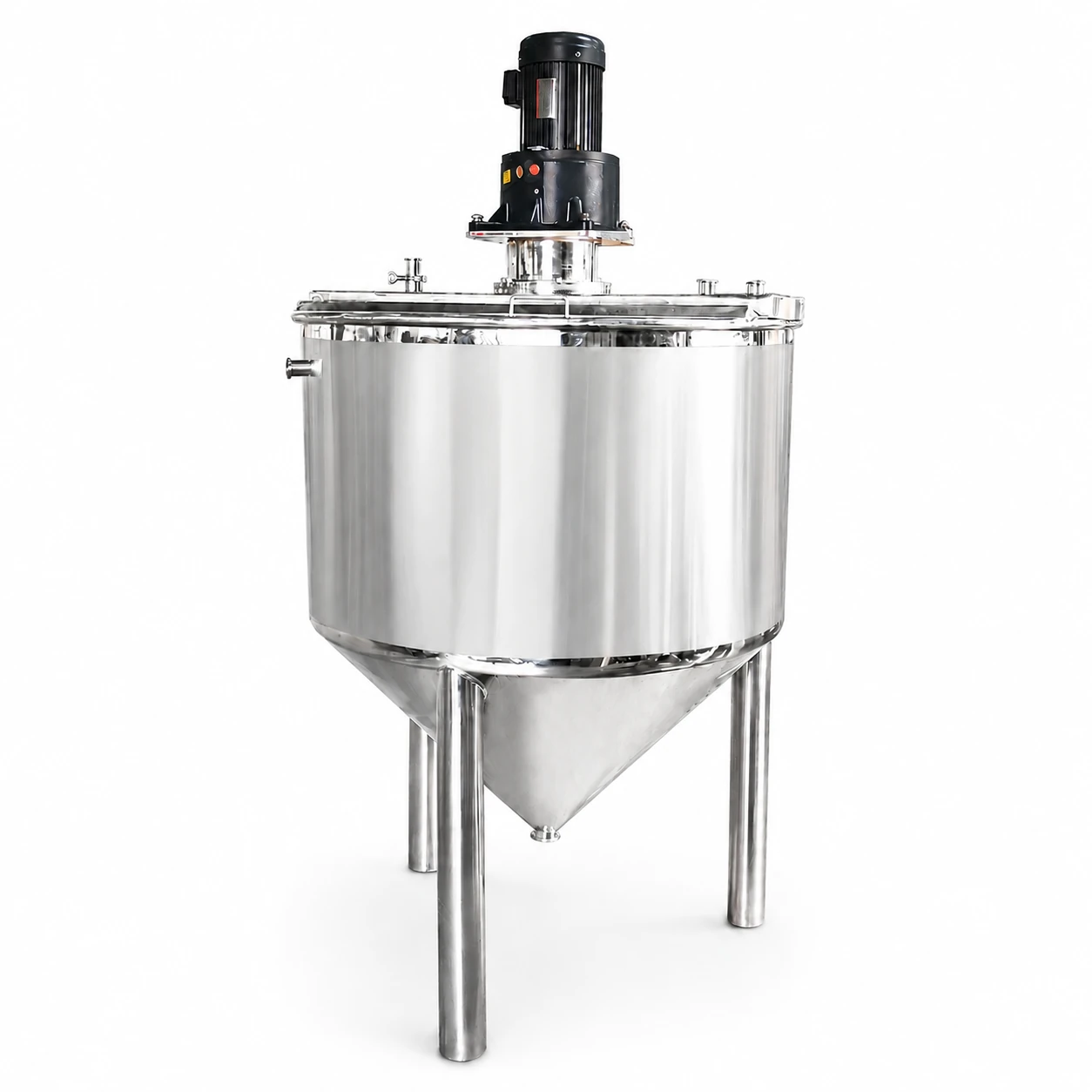

Cone-Bottom Mixing Tank
Cone-bottom design supports efficient discharge and reduced material retention.

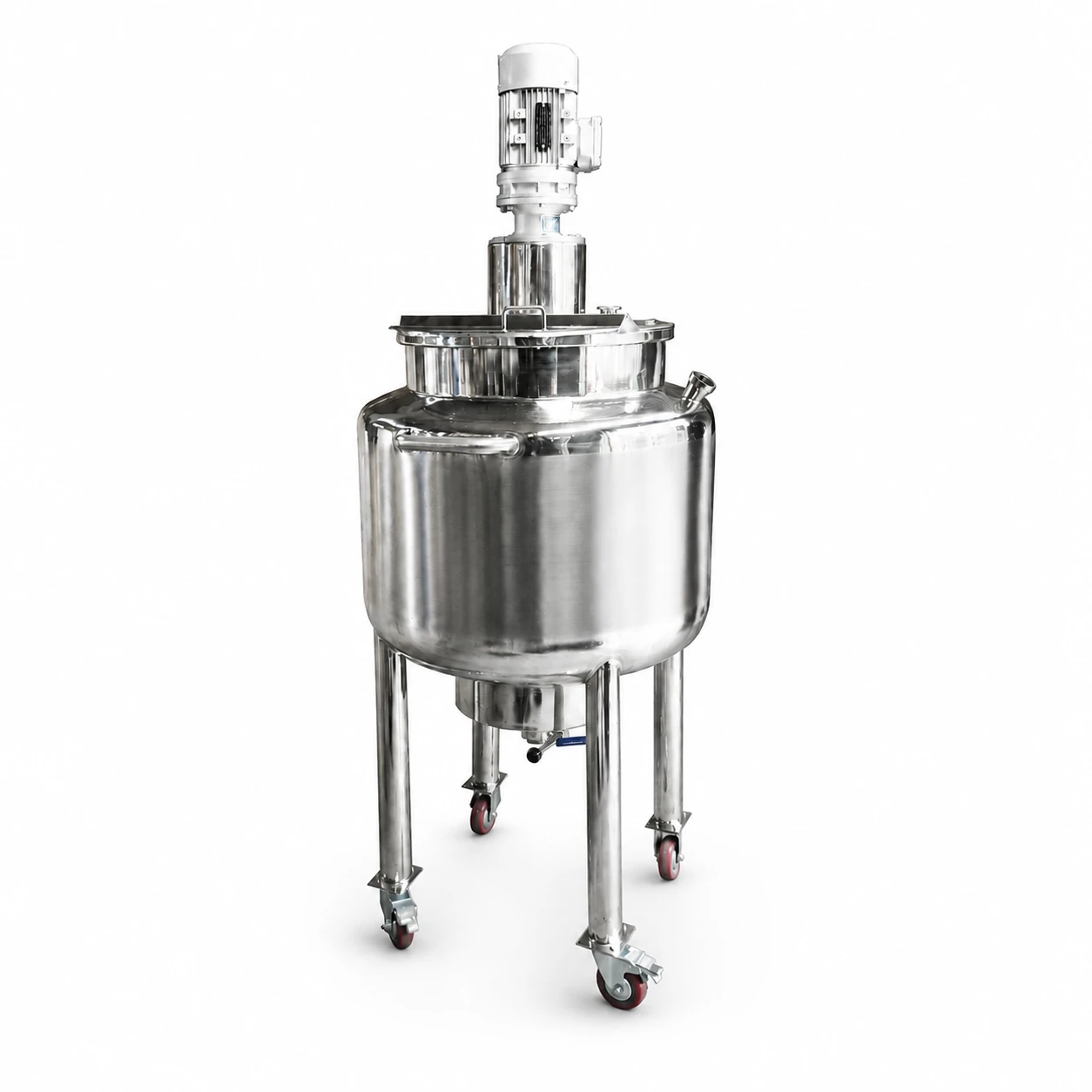

Mobile Mixing Tank
Caster-mounted design allows flexible movement between different processing areas.

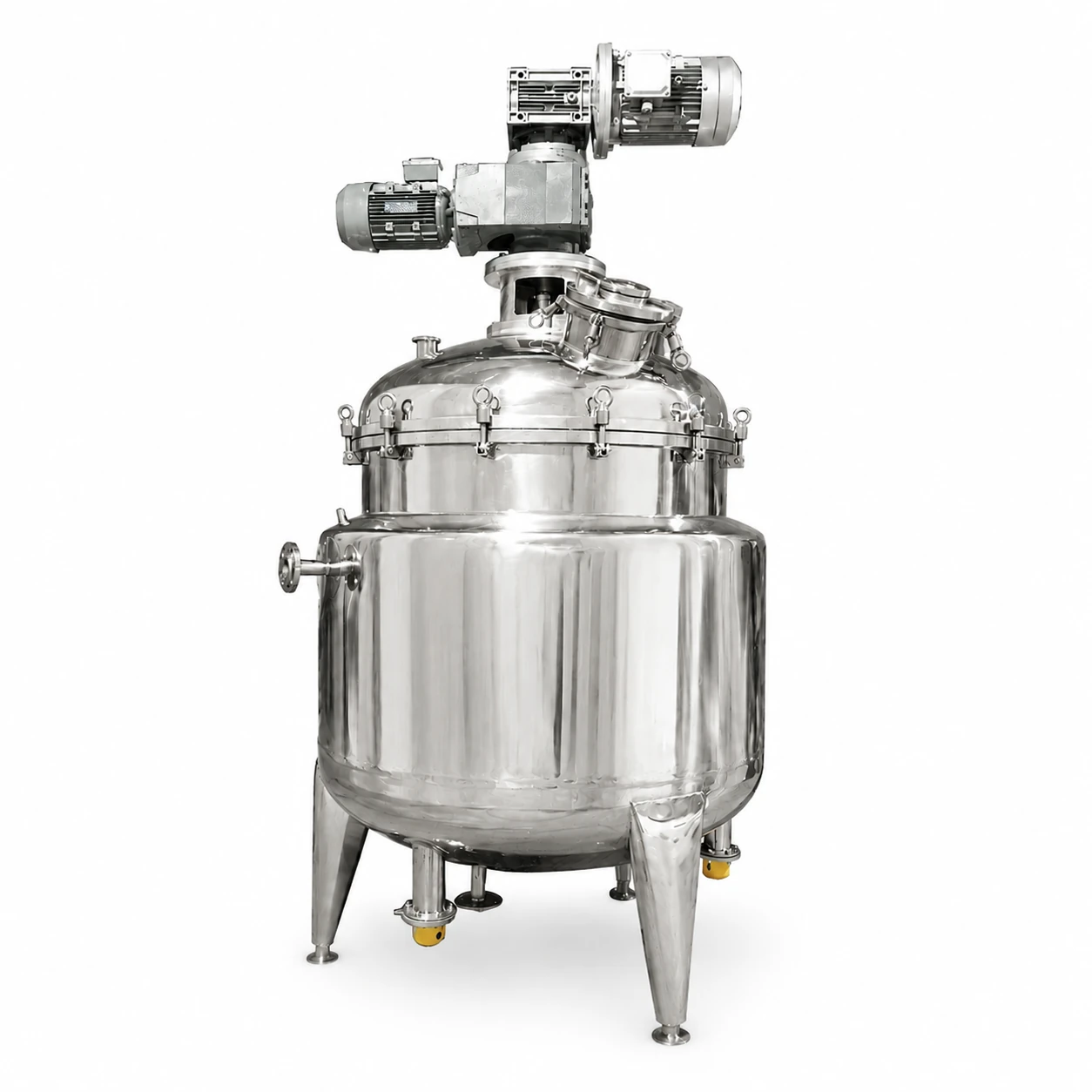

Multi-Drive Mixing Tank
Multiple drive units support flexible mixing for demanding process requirements.

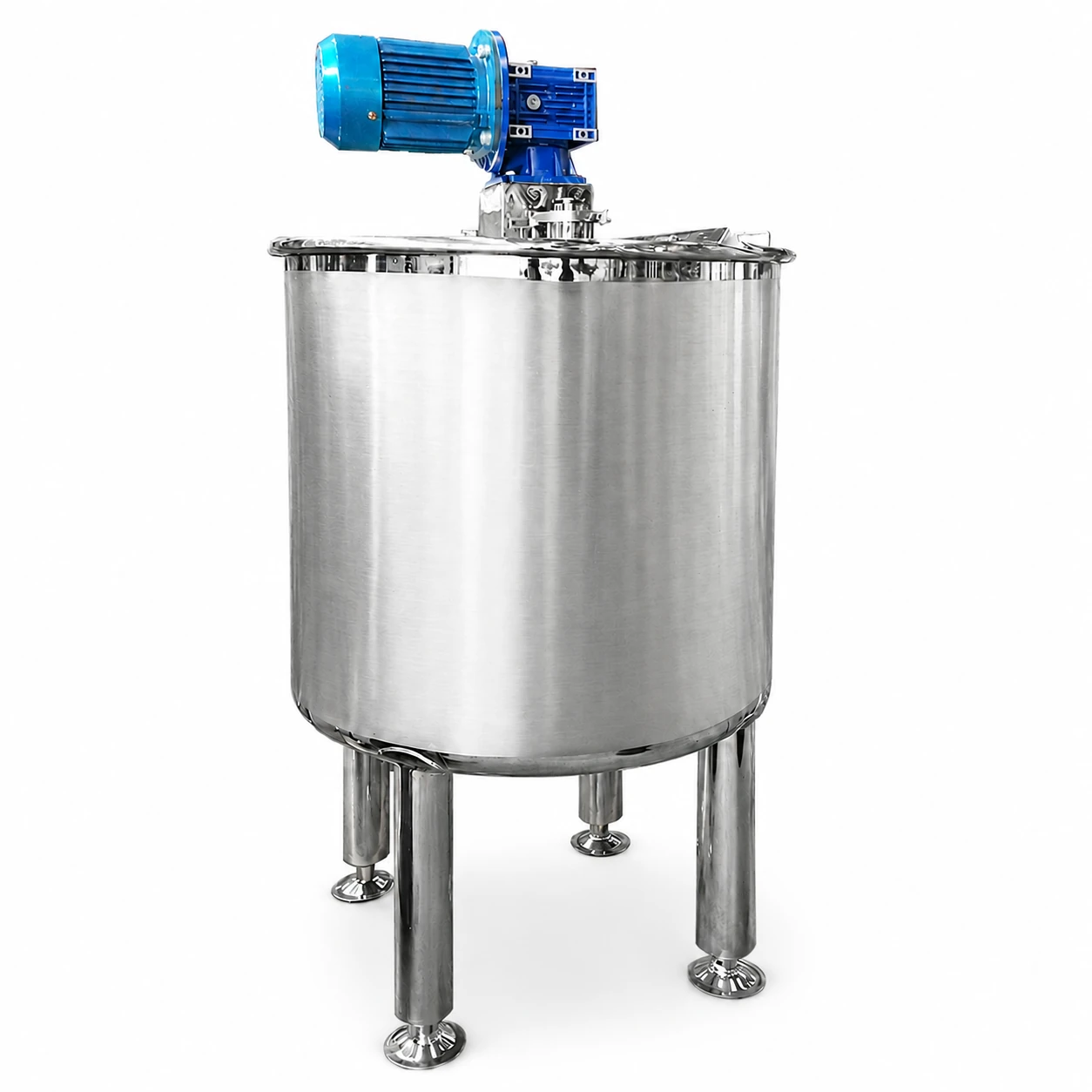

Open-Top Mixing Tank
Open-top design allows convenient feeding, observation and routine cleaning.

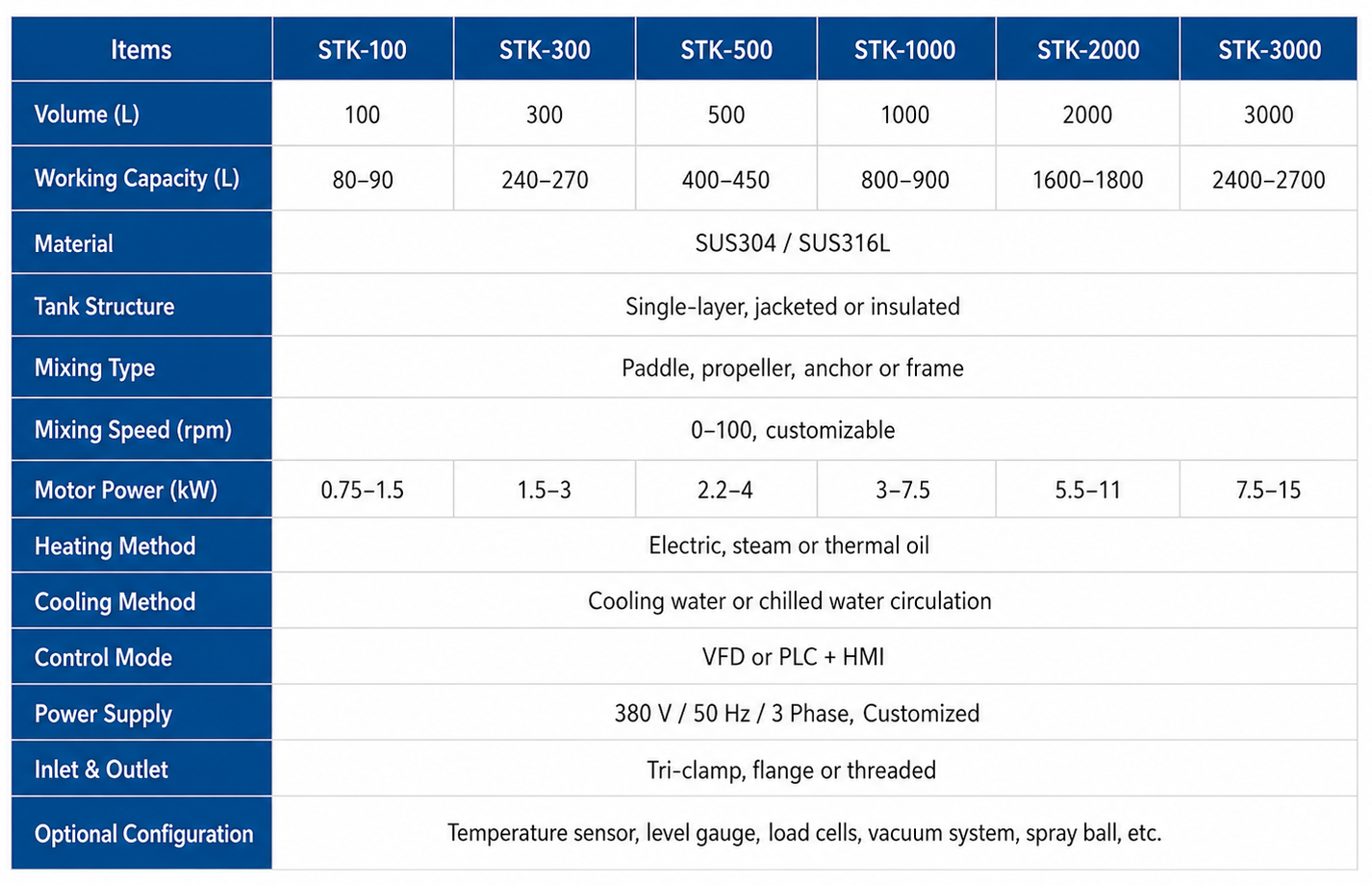

Technical Specifications
Selected standard configurations are shown below. Mixing, heating, cooling and control options can be customized based on different process requirements.
| Items | STK-100 | STK-300 | STK-500 | STK-1000 | STK-2000 | STK-3000 |
|---|---|---|---|---|---|---|
| Volume (L) | 100 | 300 | 500 | 1000 | 2000 | 3000 |
| Working Capacity (L) | 80–90 | 240–270 | 400–450 | 800–900 | 1600–1800 | 2400–2700 |
| Material | SUS304 / SUS316L | |||||
| Tank Structure | Single-layer, jacketed or insulated | |||||
| Mixing Type | Paddle, propeller, anchor or frame | |||||
| Mixing Speed (rpm) | 0–100, customizable | |||||
| Motor Power (kW) | 0.75–1.5 | 1.5–3 | 2.2–4 | 3–7.5 | 5.5–11 | 7.5–15 |
| Heating Method | Electric, steam or thermal oil | |||||
| Cooling Method | Cooling water or chilled water circulation | |||||
| Control Mode | VFD or PLC + HMI | |||||
| Power Supply | 380 V / 50 Hz / 3 Phase, Customized | |||||
| Inlet & Outlet | Tri-clamp, flange or threaded | |||||
| Optional Configuration | Temperature sensor, level gauge, load cells, vacuum system, spray ball, etc. | |||||
Typical Applications
Suitable for a wide range of liquid and low-to-medium viscosity processing applications.
Food Processing
For mixing, dissolving and blending liquid and semi-fluid food products.
Beverage Production
Suitable for beverage preparation, ingredient blending and uniform mixing.
Dairy Processing
For mixing and temperature-controlled processing of dairy-based products.
Pharmaceutical Processing
Suitable for controlled mixing and preparation of pharmaceutical liquids.
Cosmetics & Personal Care
For blending creams, lotions and other low-to-medium viscosity products.
Chemical Processing
For mixing, dissolving and blending a wide range of process liquids.
Optional Configurations
Optional accessories and control configurations can be selected to match different mixing and process requirements.

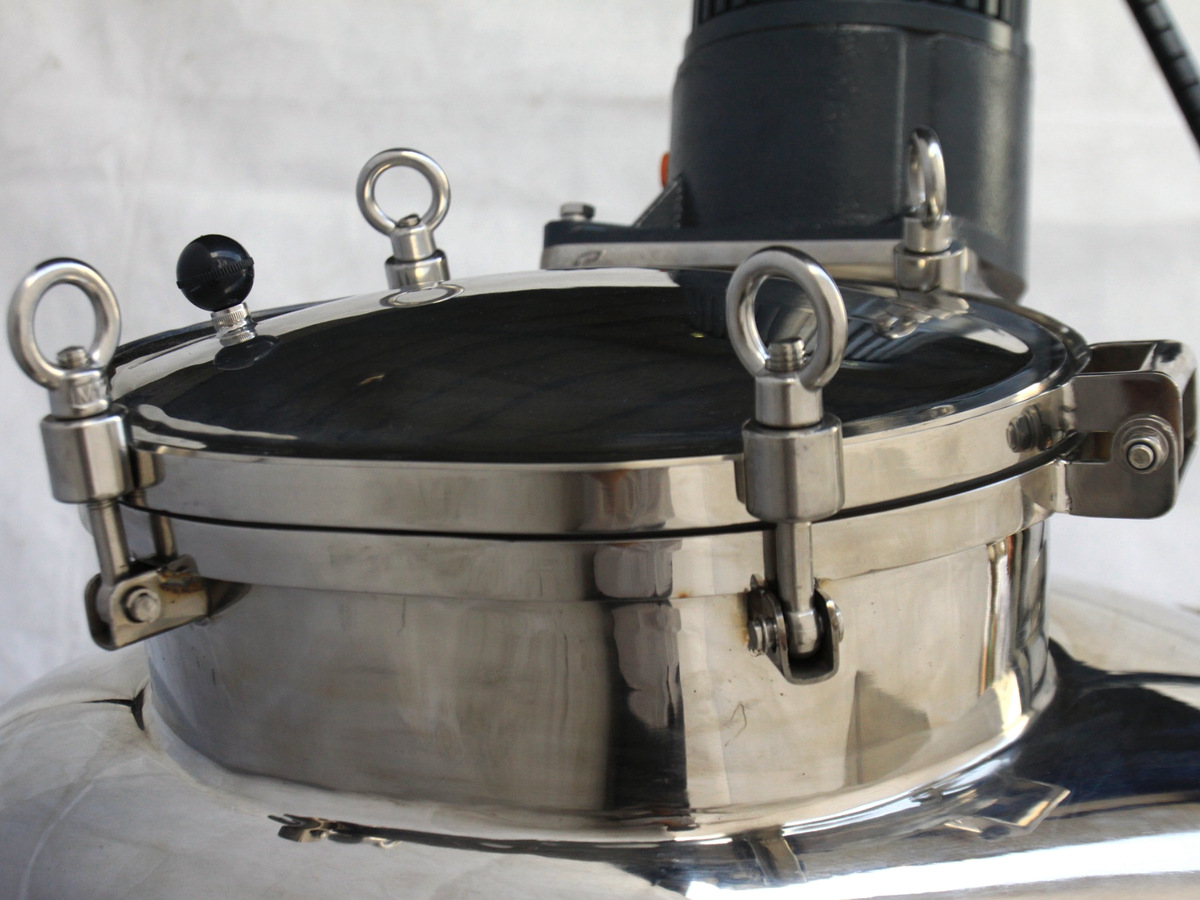

Manway & Cover
Quick-opening manway design supports convenient inspection, feeding and cleaning.

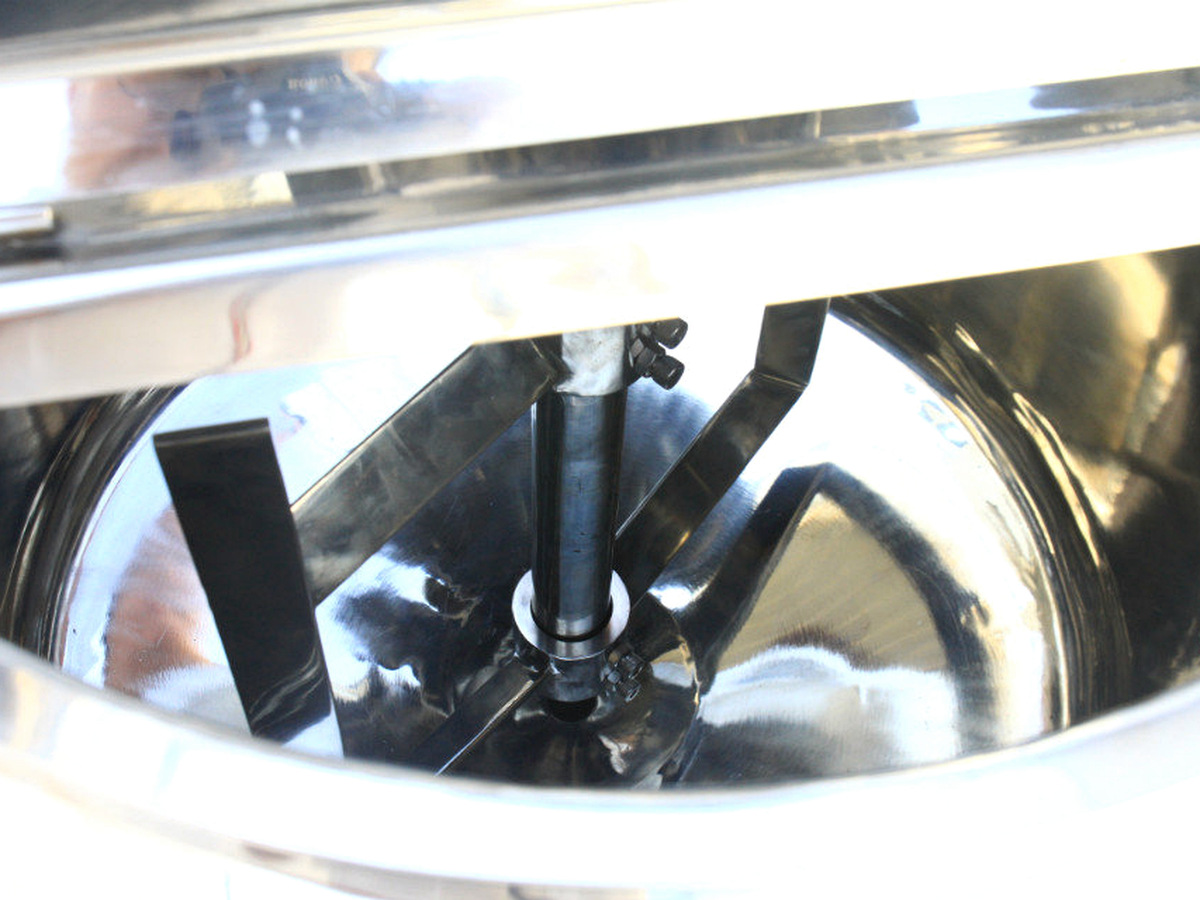

Agitator Structure
Different agitator types can be configured to suit specific mixing requirements.

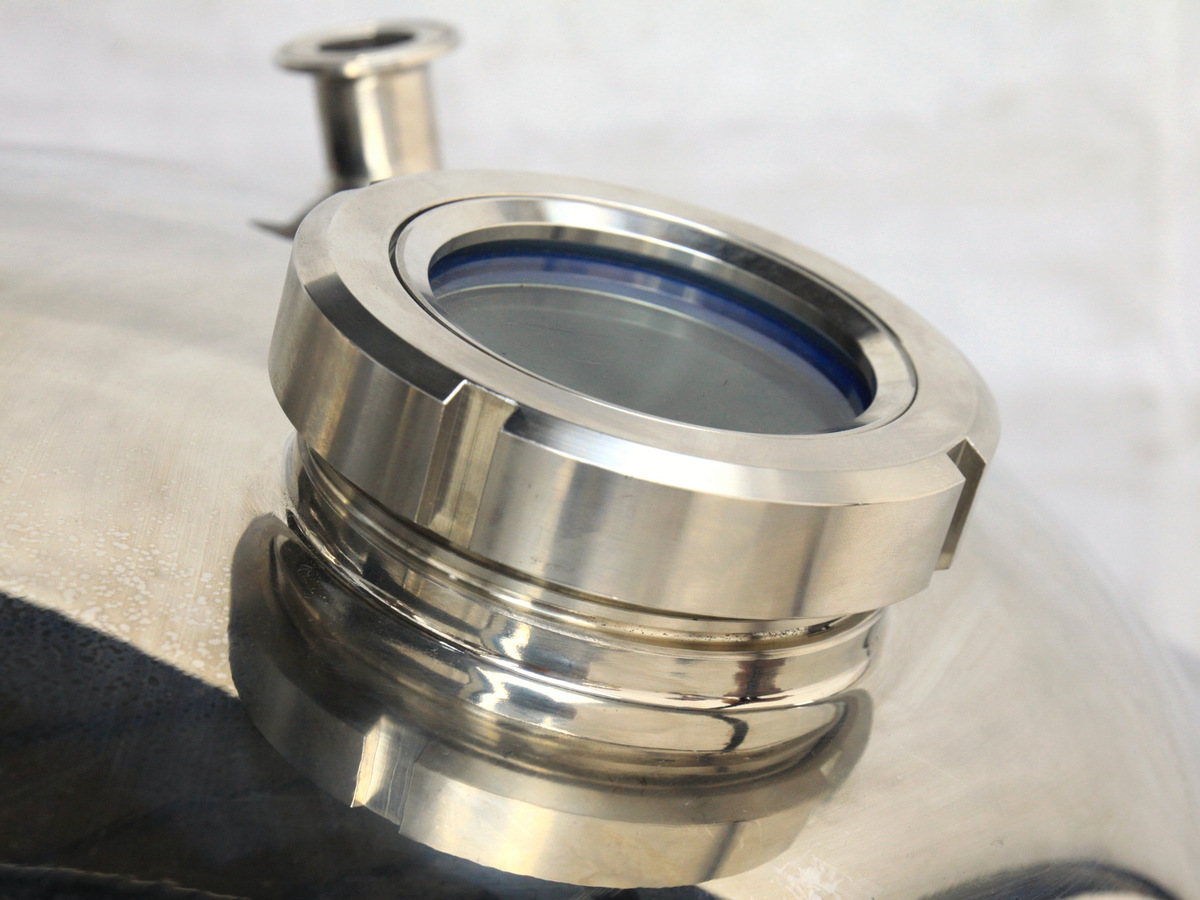

Sight Glass
Optional sight glass allows convenient visual observation during operation.

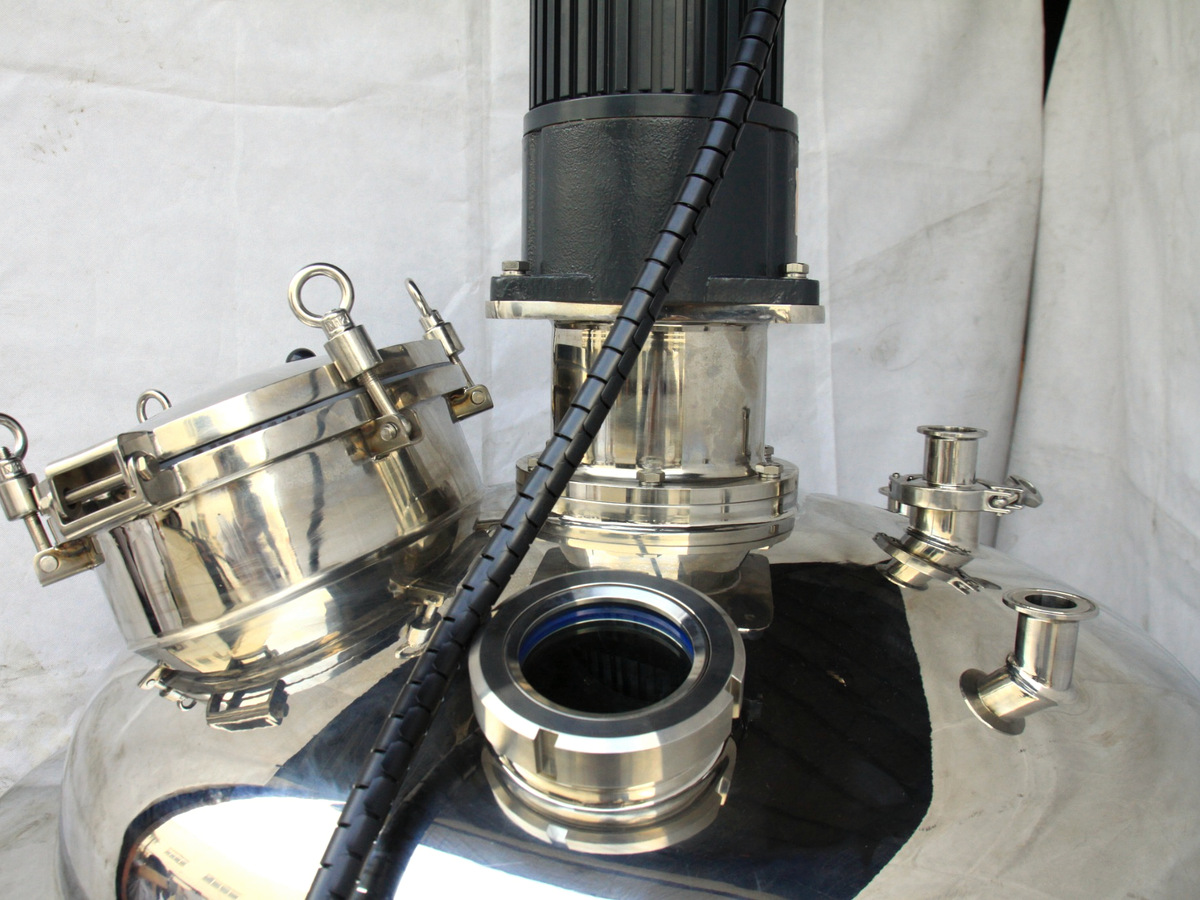

Sanitary Connections
Sanitary connections can be customized for different inlet, outlet and process needs.

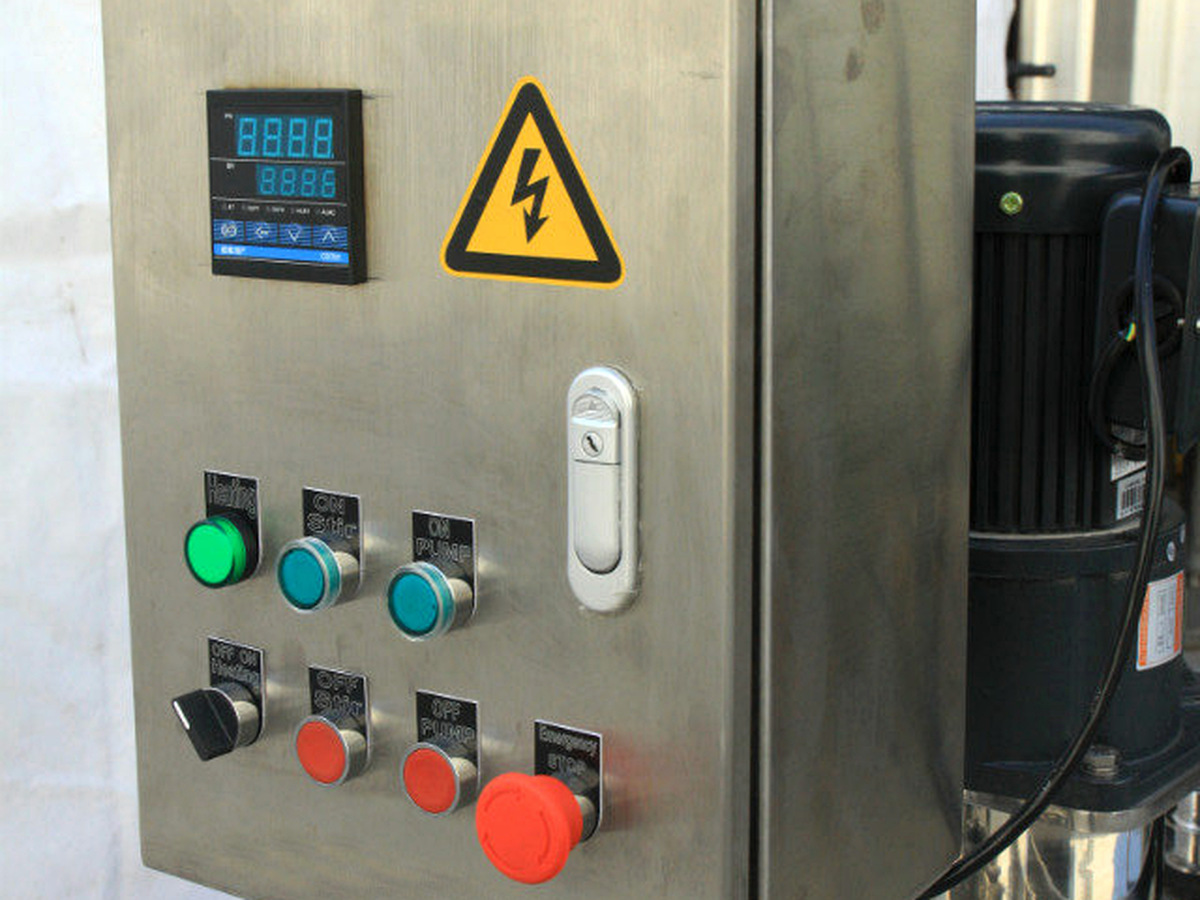

Control System
Control options can be configured for mixing, heating and other process requirements.

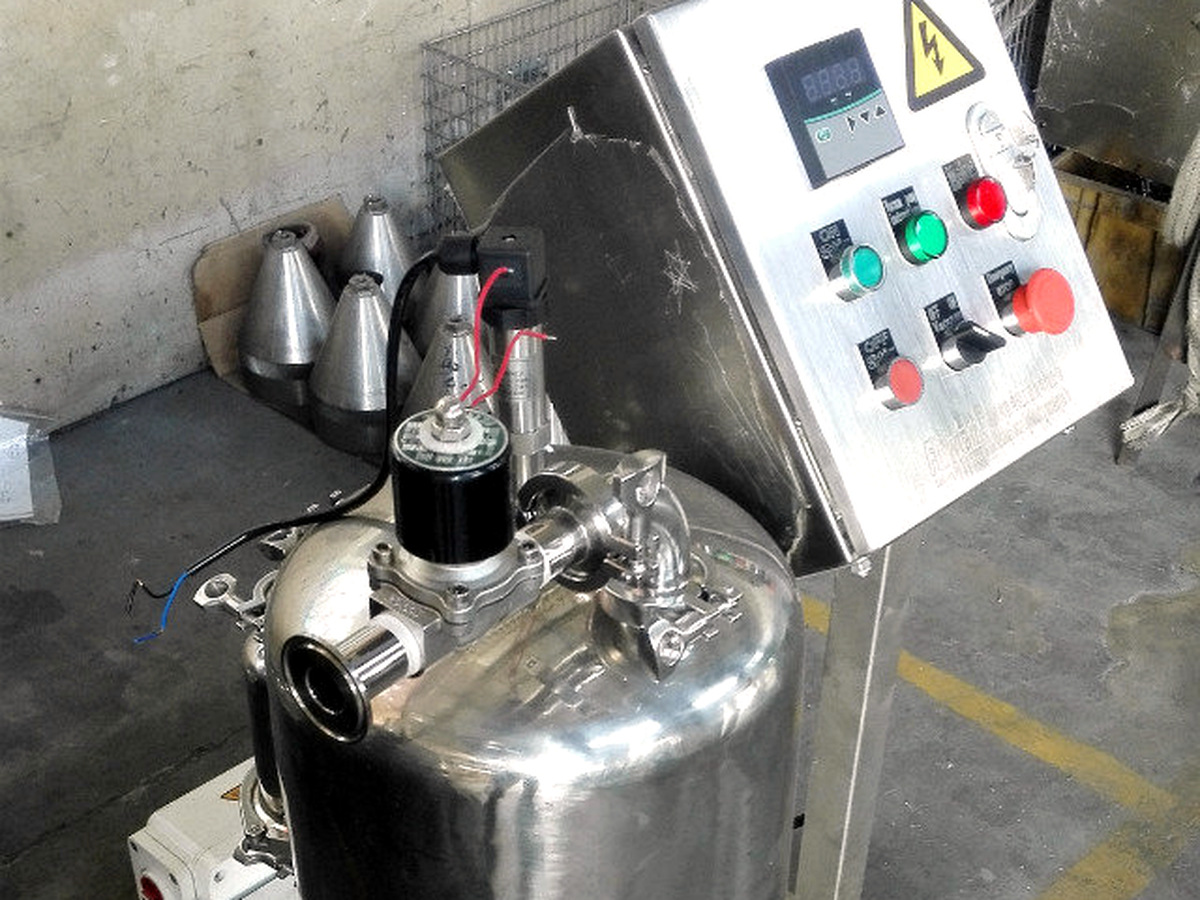

Vacuum System
Optional vacuum configuration supports processes requiring reduced-pressure operation.
Need Help Choosing the Right Stainless Steel Mixing Tank?
Tell us your required capacity, product viscosity, mixing purpose, heating or cooling needs, and control requirements. Our team will help you select a suitable stainless steel mixing tank configuration.
