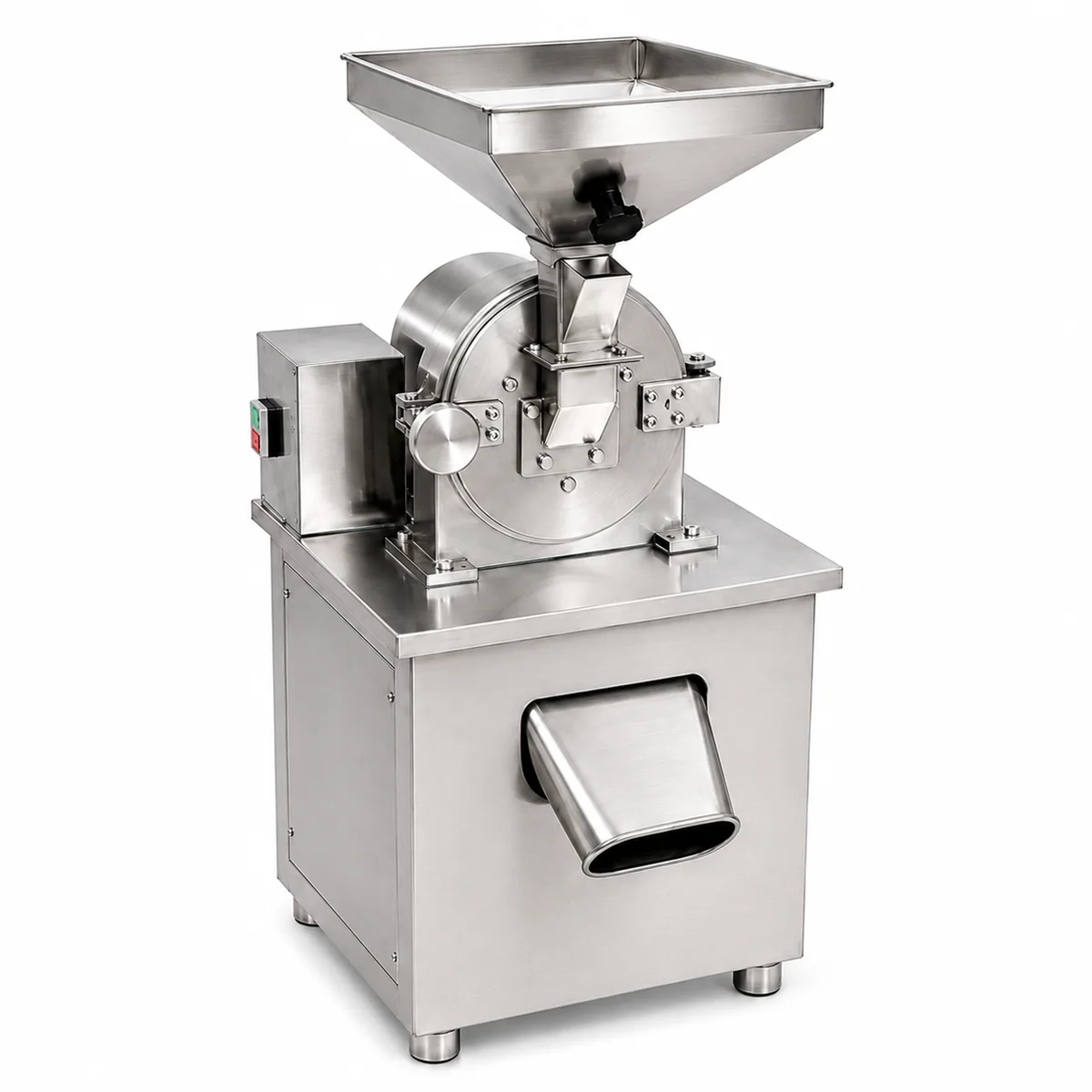

Stainless Steel Pulverizer
High-speed pulverizing equipment designed for efficient grinding of dry materials into fine powder. Suitable for food, pharmaceutical, chemical and related processing applications, with interchangeable screens for different particle sizes.
Configuration Overview
Select the right configuration to match your material, capacity and grinding fineness requirements.
10–700 kg/h
Capacity
10–120 Mesh
Grinding Fineness
SUS304 / SUS316L
Material
4200 r/min
Grinding Speed
Available Pulverizer Configurations

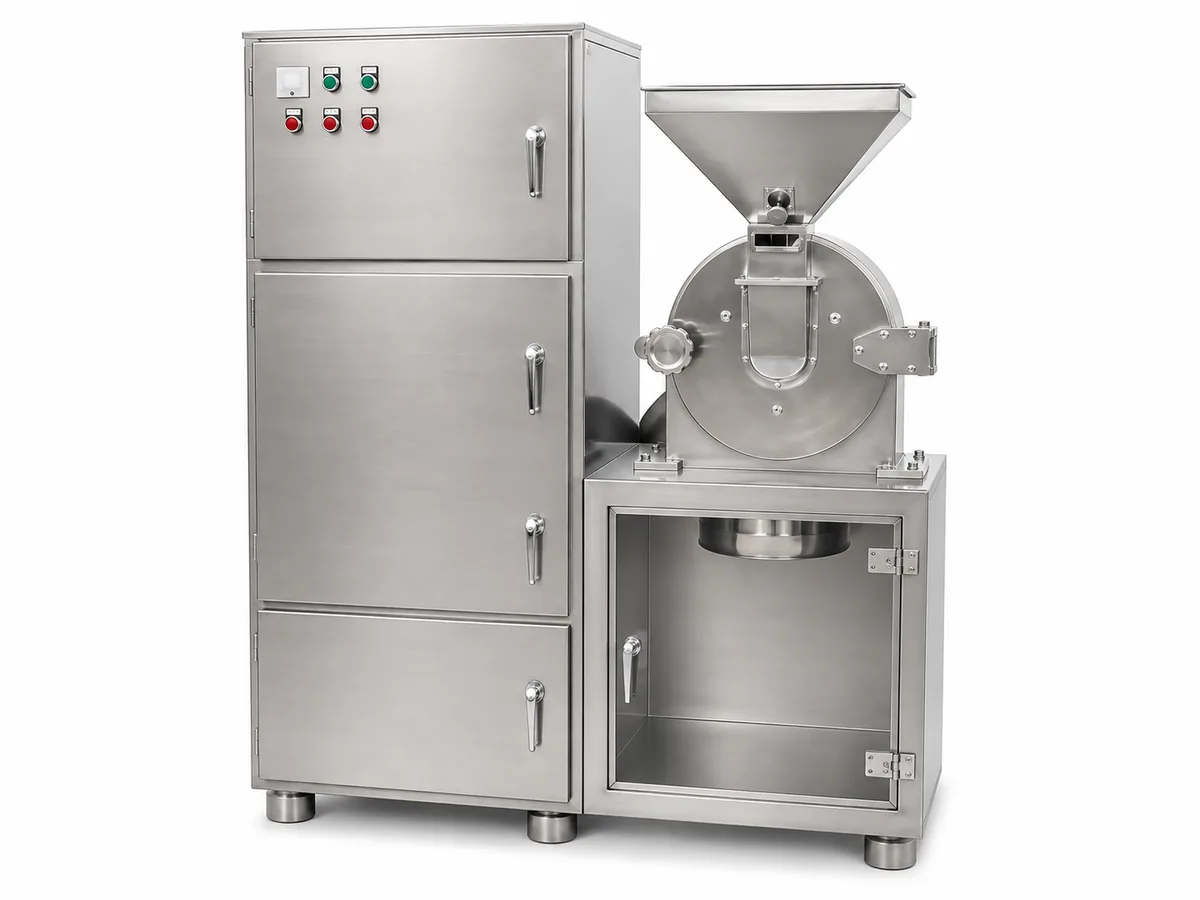

Dust-Collecting Pulverizer
Separate dust collection for cleaner powder processing.

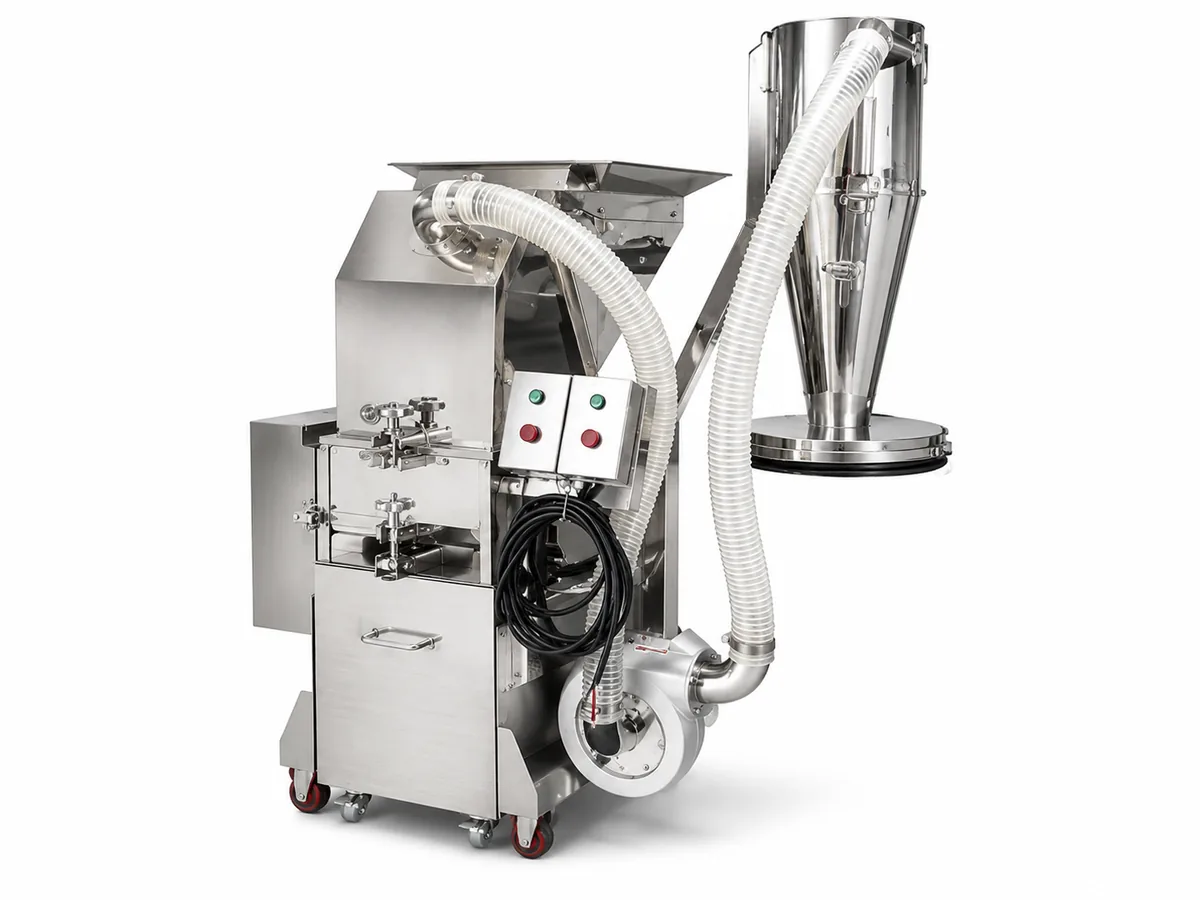

Cyclone Pulverizing System
Cyclone collection for efficient powder separation.

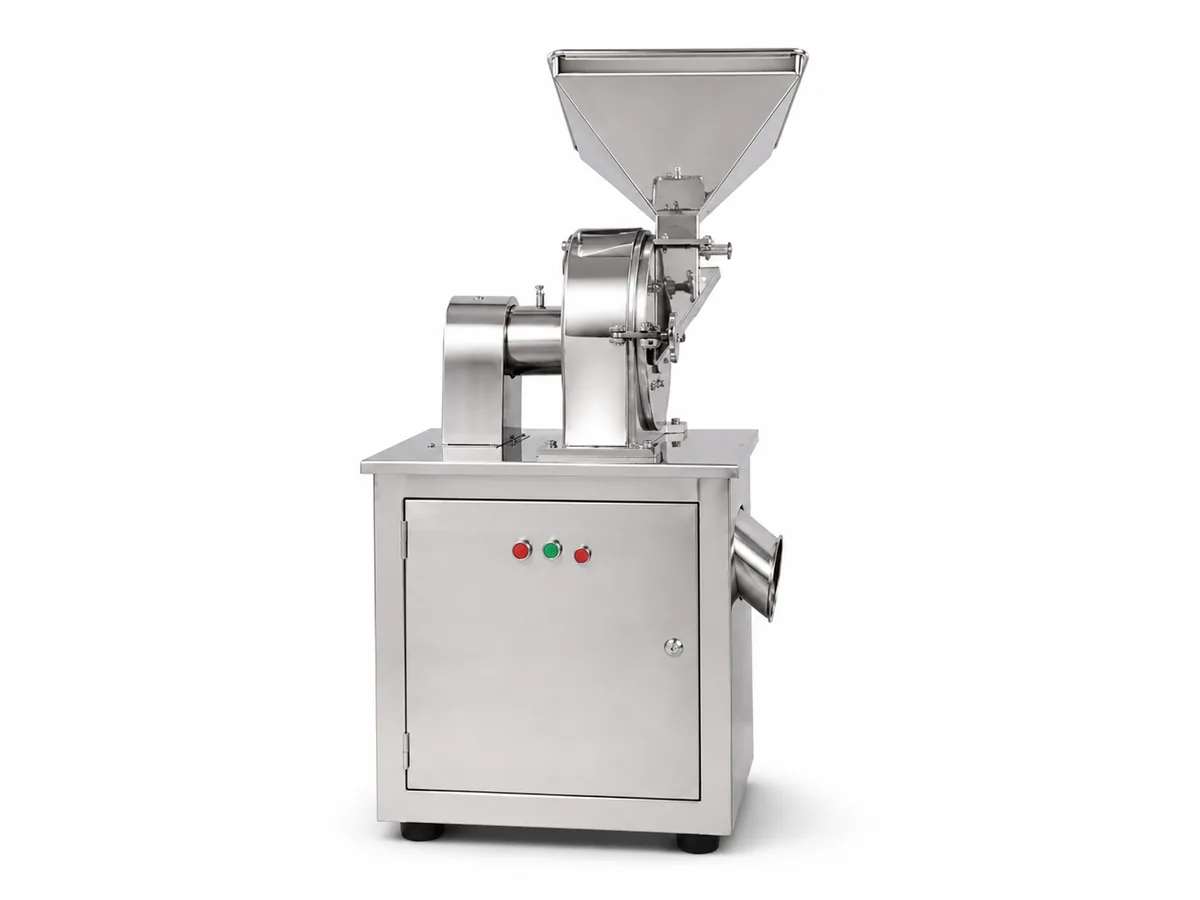

Compact Universal Pulverizer
Compact design for general dry material grinding.

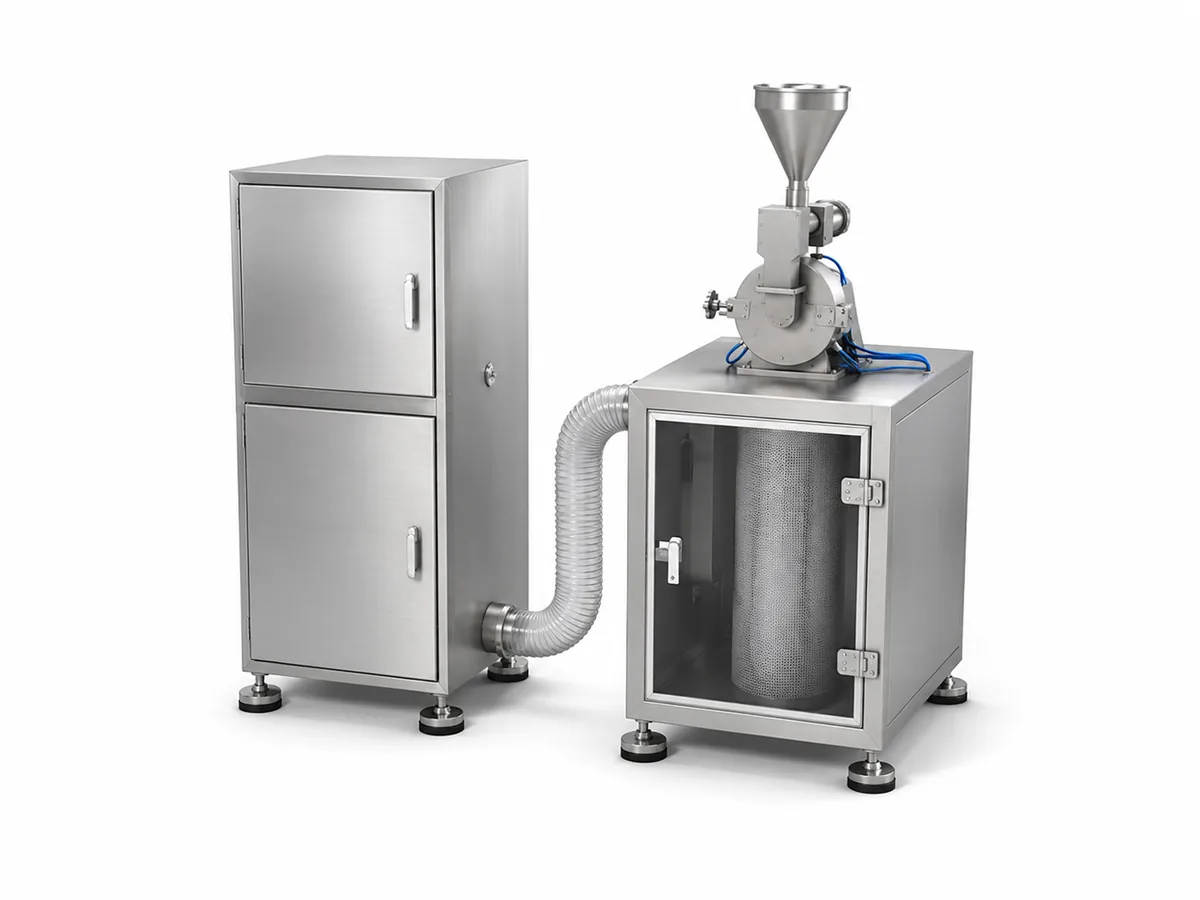

Enclosed Pulverizer System
Enclosed design for cleaner, controlled processing.

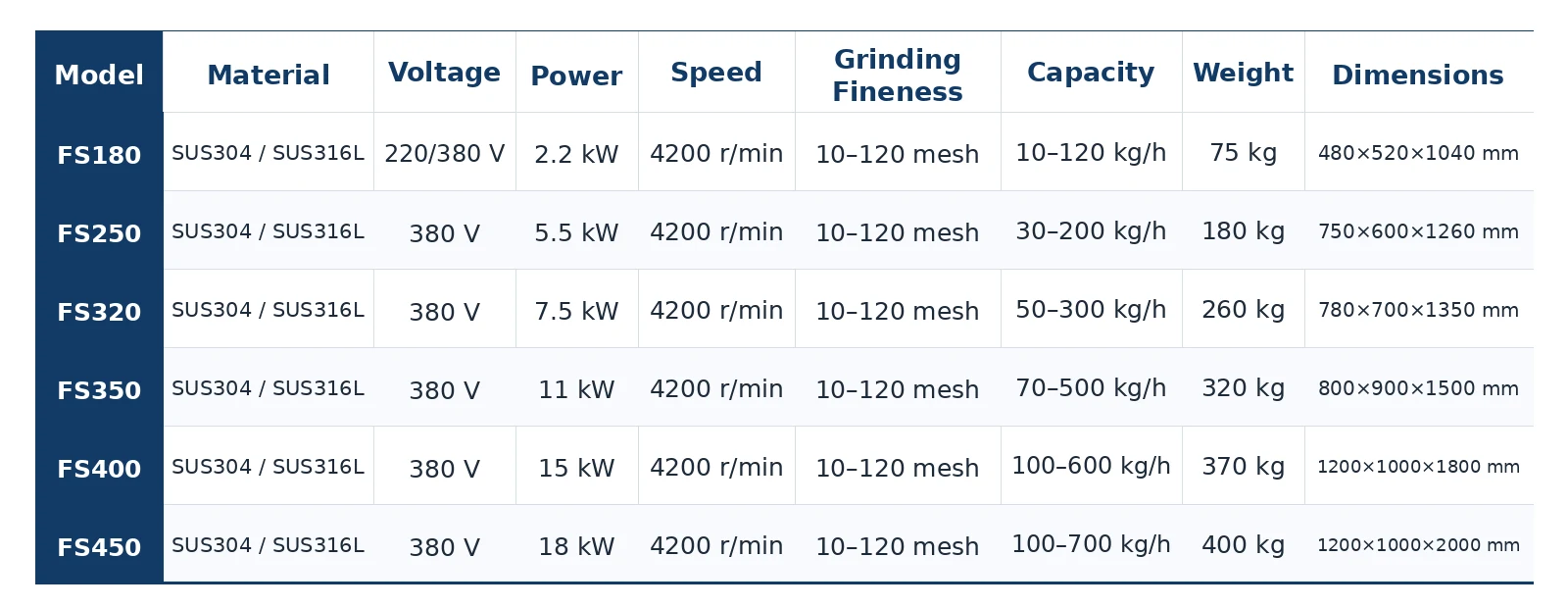

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Model | Material | Voltage | Power | Speed | Grinding Fineness |
Capacity | Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|
| FS180 | SUS304 / SUS316L | 220/380 V | 2.2 kW | 4200 r/min | 10–120 mesh | 10–120 kg/h | 75 kg | 480×520×1040 mm |
| FS250 | SUS304 / SUS316L | 380 V | 5.5 kW | 4200 r/min | 10–120 mesh | 30–200 kg/h | 180 kg | 750×600×1260 mm |
| FS320 | SUS304 / SUS316L | 380 V | 7.5 kW | 4200 r/min | 10–120 mesh | 50–300 kg/h | 260 kg | 780×700×1350 mm |
| FS350 | SUS304 / SUS316L | 380 V | 11 kW | 4200 r/min | 10–120 mesh | 70–500 kg/h | 320 kg | 800×900×1500 mm |
| FS400 | SUS304 / SUS316L | 380 V | 15 kW | 4200 r/min | 10–120 mesh | 100–600 kg/h | 370 kg | 1200×1000×1800 mm |
| FS450 | SUS304 / SUS316L | 380 V | 18 kW | 4200 r/min | 10–120 mesh | 100–700 kg/h | 400 kg | 1200×1000×2000 mm |
Typical Applications
Suitable for grinding dry materials across food, pharmaceutical, chemical and agricultural processing industries.
Food & Spice Processing
Grinding spices, grains and dry food ingredients.
Pharmaceutical Materials
Fine grinding of suitable dry pharmaceutical materials.
Chemical Powders
Pulverizing dry, non-sticky chemical materials.
Agricultural Products
Grinding herbs, grains and other dry agricultural materials.
Optional Configurations
Optional components can be selected to suit different grinding, feeding and powder collection requirements.

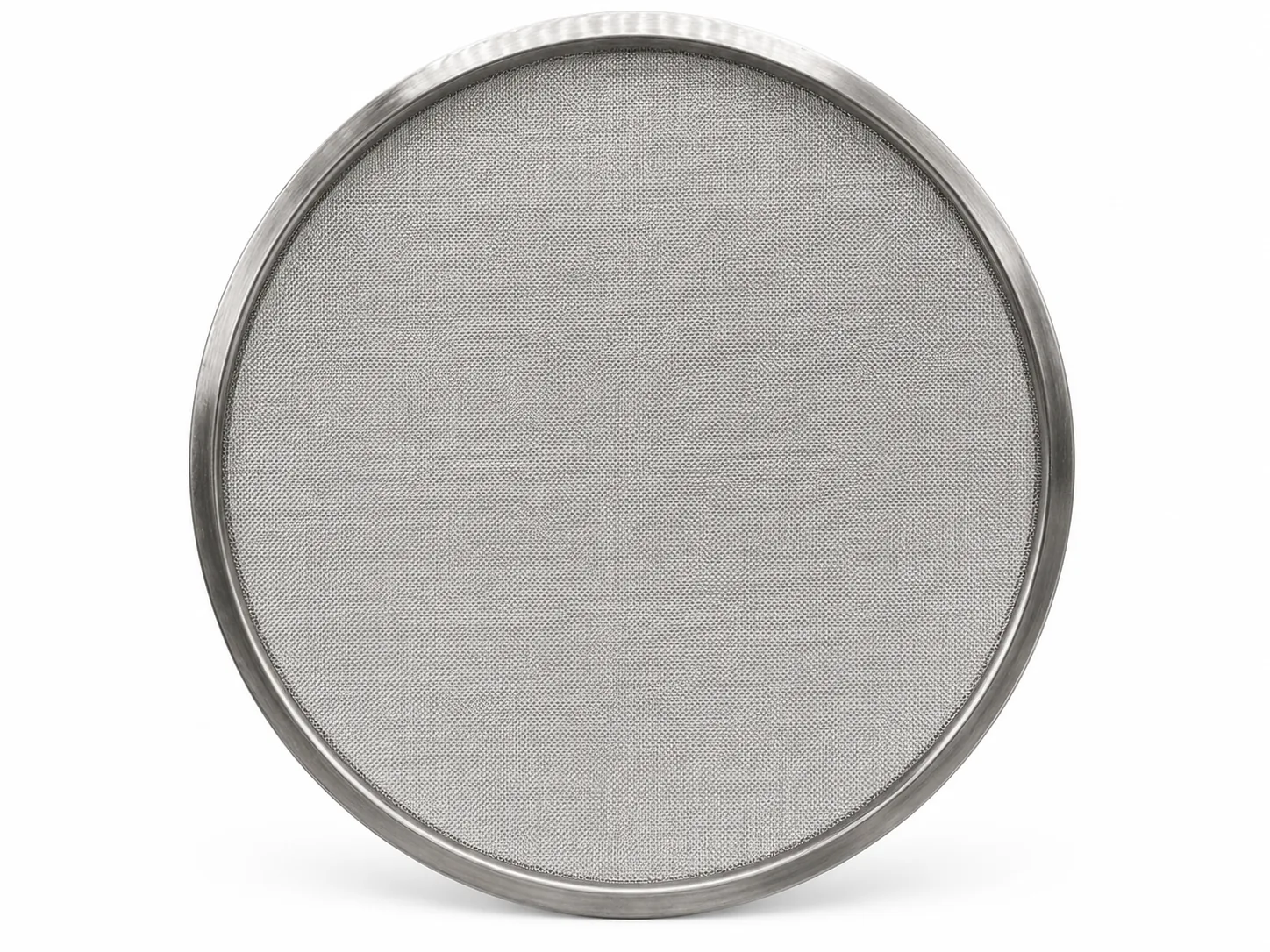

Grinding Screens
Replaceable screens for different grinding fineness requirements.

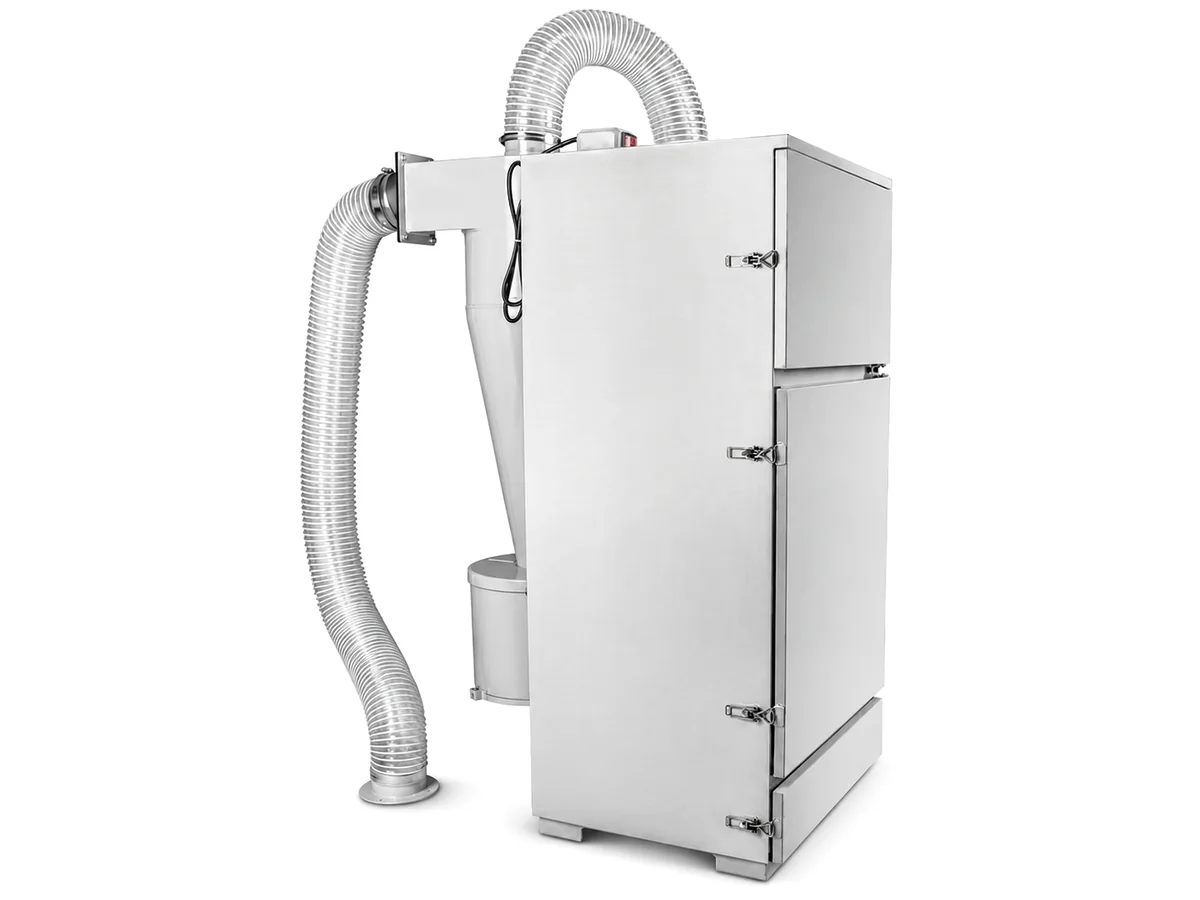

Dust Collection Unit
Optional dust collection for cleaner powder processing.

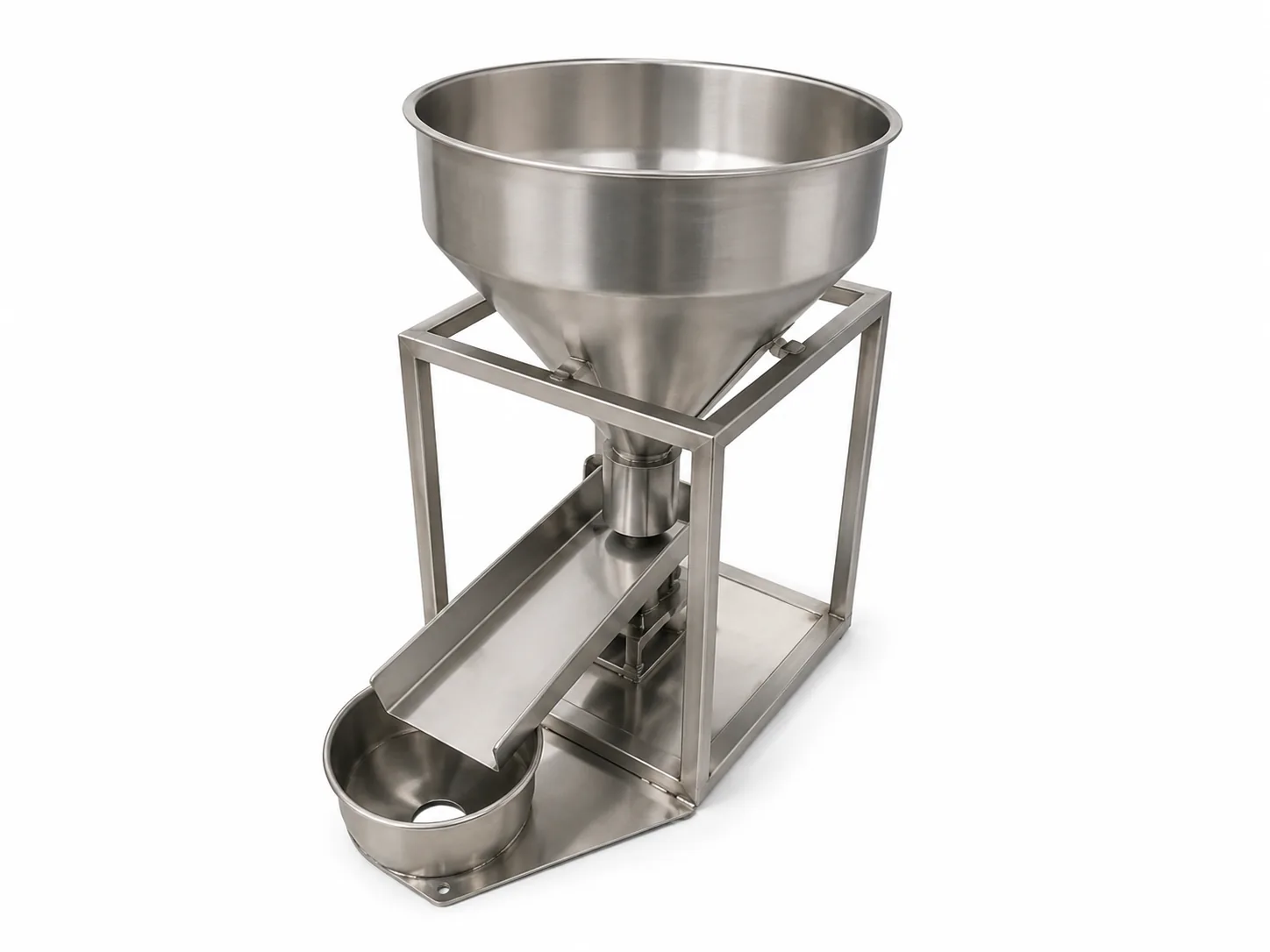

Feed Hopper Assembly
Different hopper configurations for convenient material feeding.

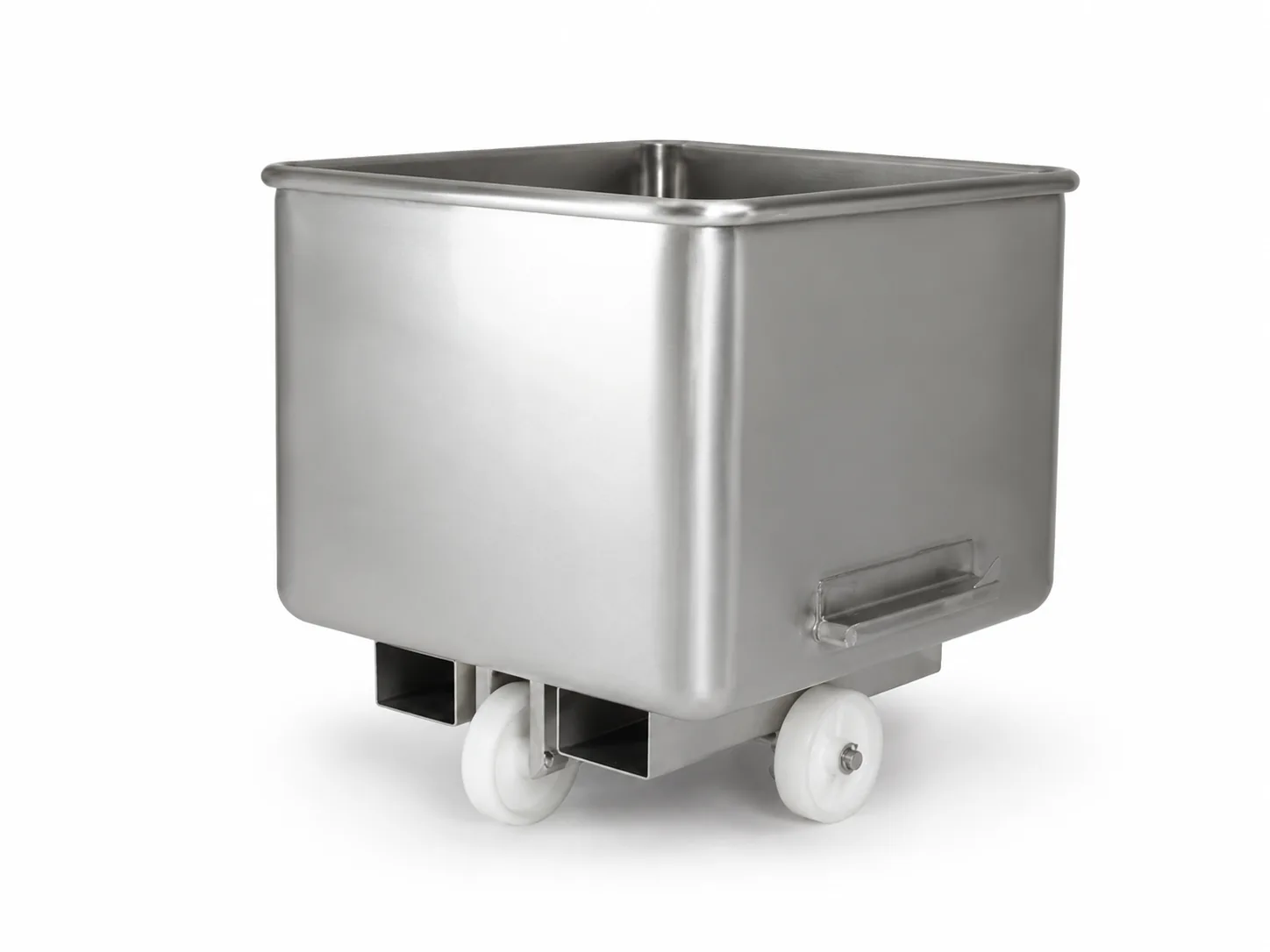

Powder Collection Bin
Stainless steel bin for convenient powder collection and handling.
Need a Stainless Steel Pulverizer for Your Process?
Tell us your material, required capacity, grinding fineness and operating conditions. Our team will help you select a suitable Stainless Steel Pulverizer configuration.
