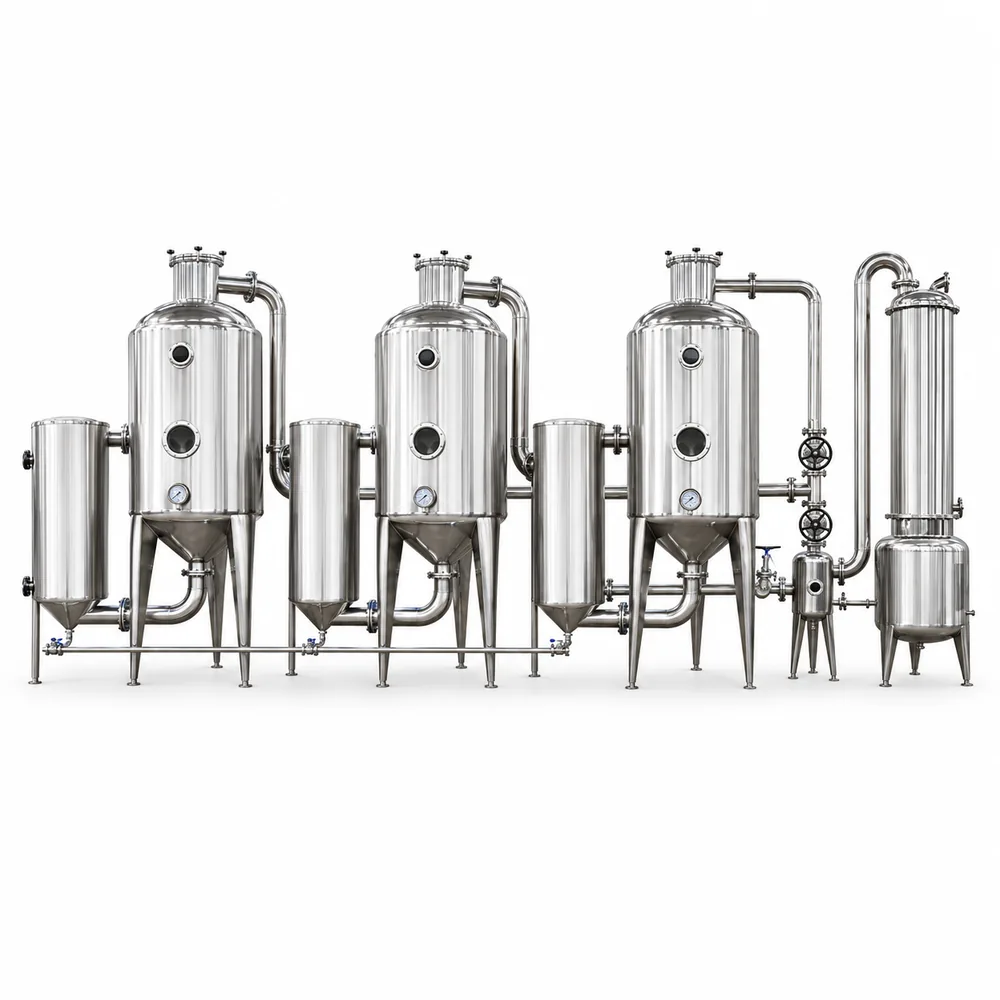

Three-Effect Concentrator
Energy-efficient three-effect evaporation system designed for high-capacity liquid concentration under vacuum. Secondary vapor is reused across multiple effects to reduce steam consumption while maintaining stable and efficient evaporation.
Configuration Overview
Three-effect vacuum evaporation system designed for efficient concentration with reduced steam consumption.
500–8,000 kg/h
Evaporation Capacity
Three-Effect
Vacuum Evaporation
55–65°C
Third-Effect Temperature
1.2–1.3
Concentration Ratio
Available Configurations

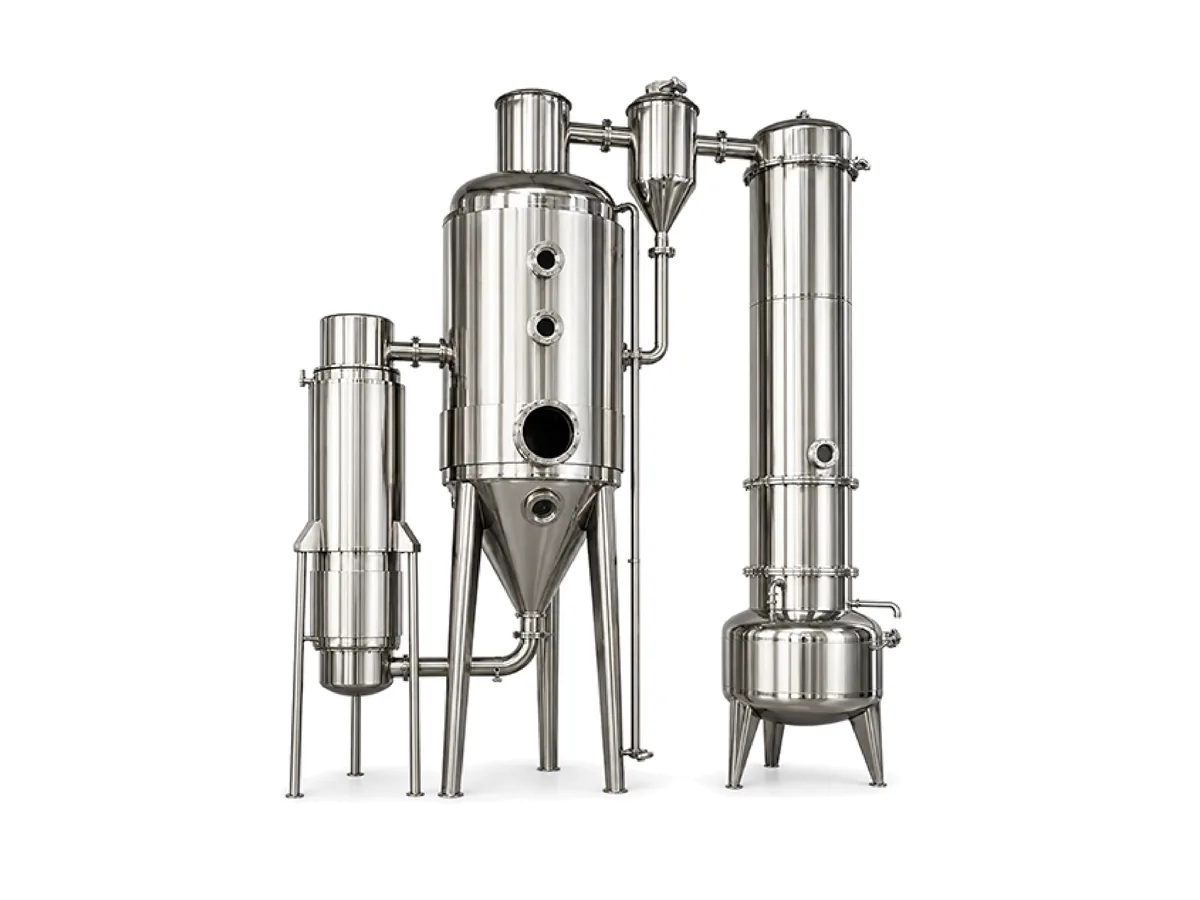

Single-Effect Concentrator
Simple vacuum evaporation system for small to medium concentration duties.

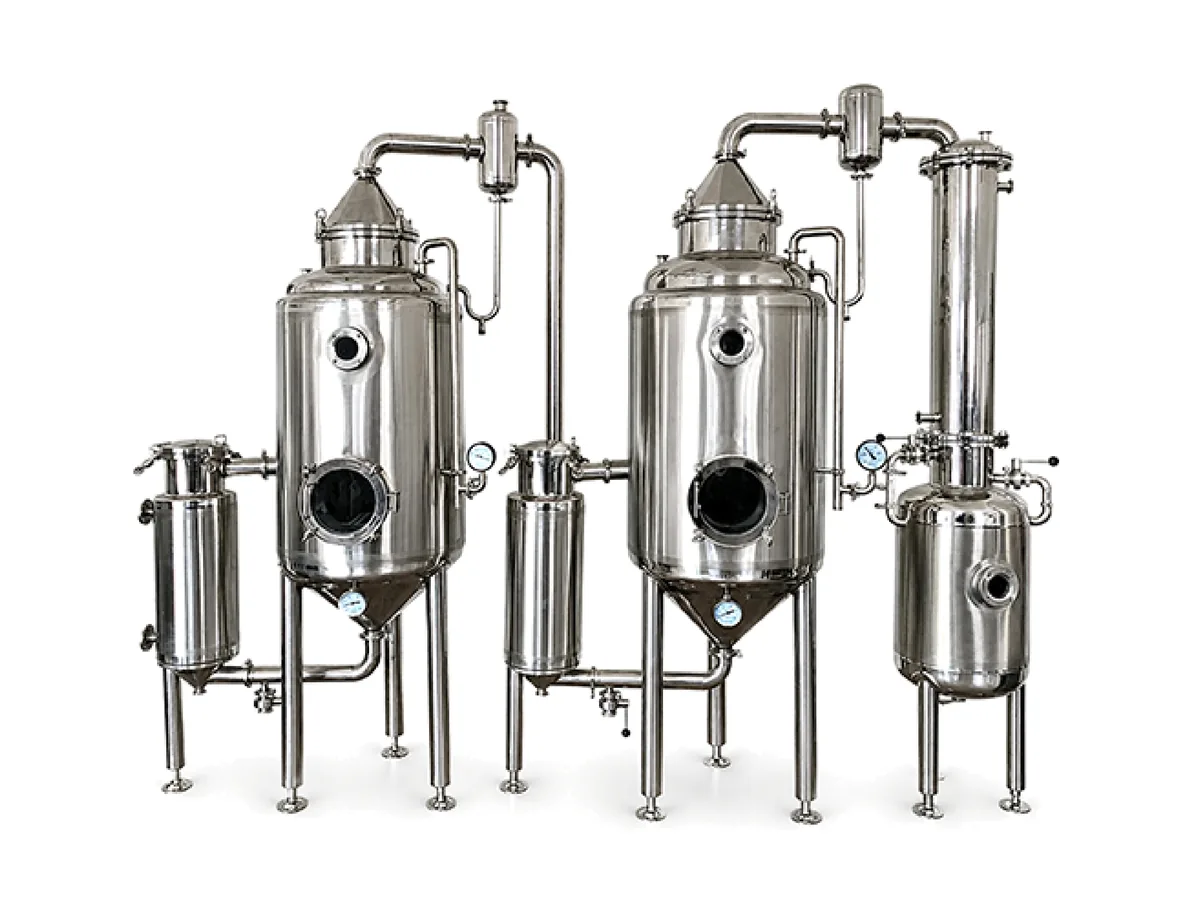

Double-Effect Concentrator
Energy-saving two-stage evaporation system with reduced steam consumption.

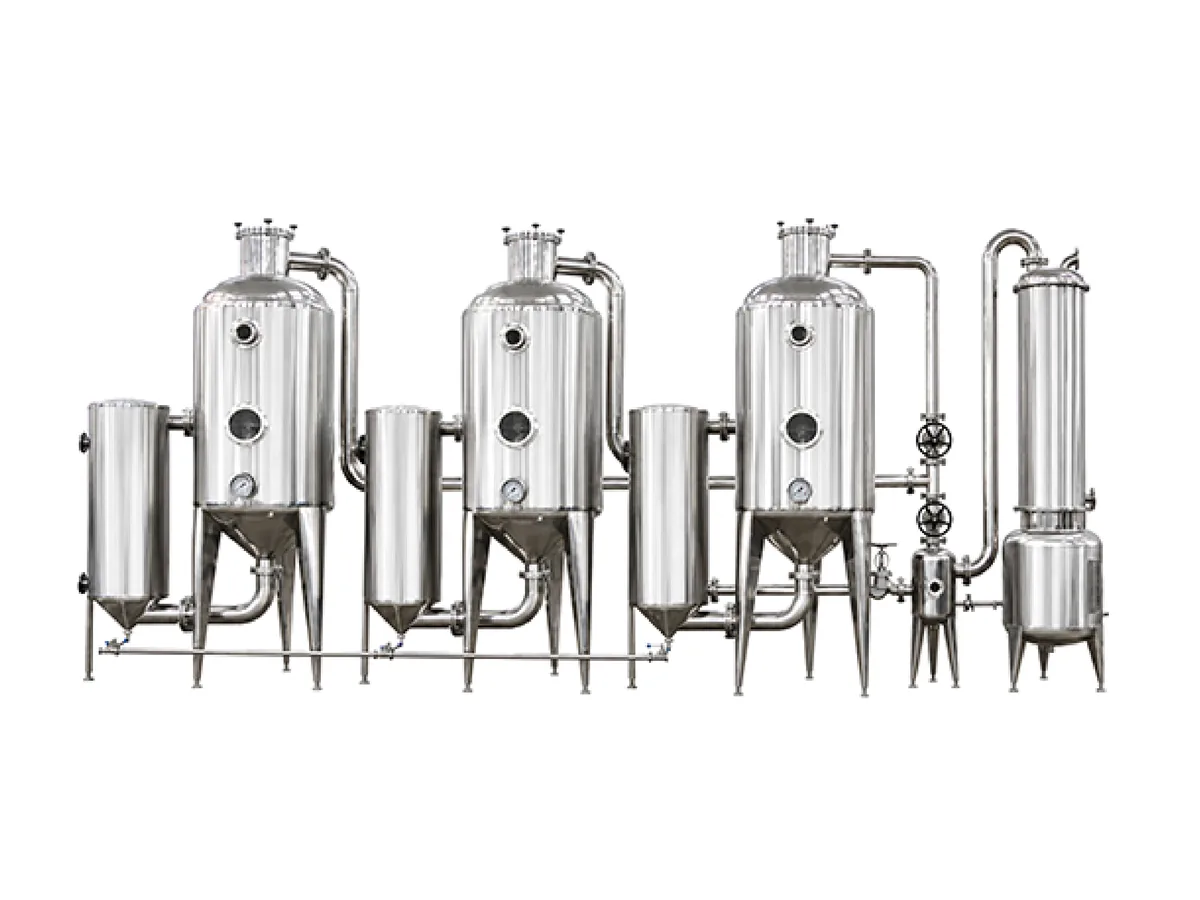

Three-Effect Concentrator
High-efficiency three-stage evaporation system for larger processing capacities.

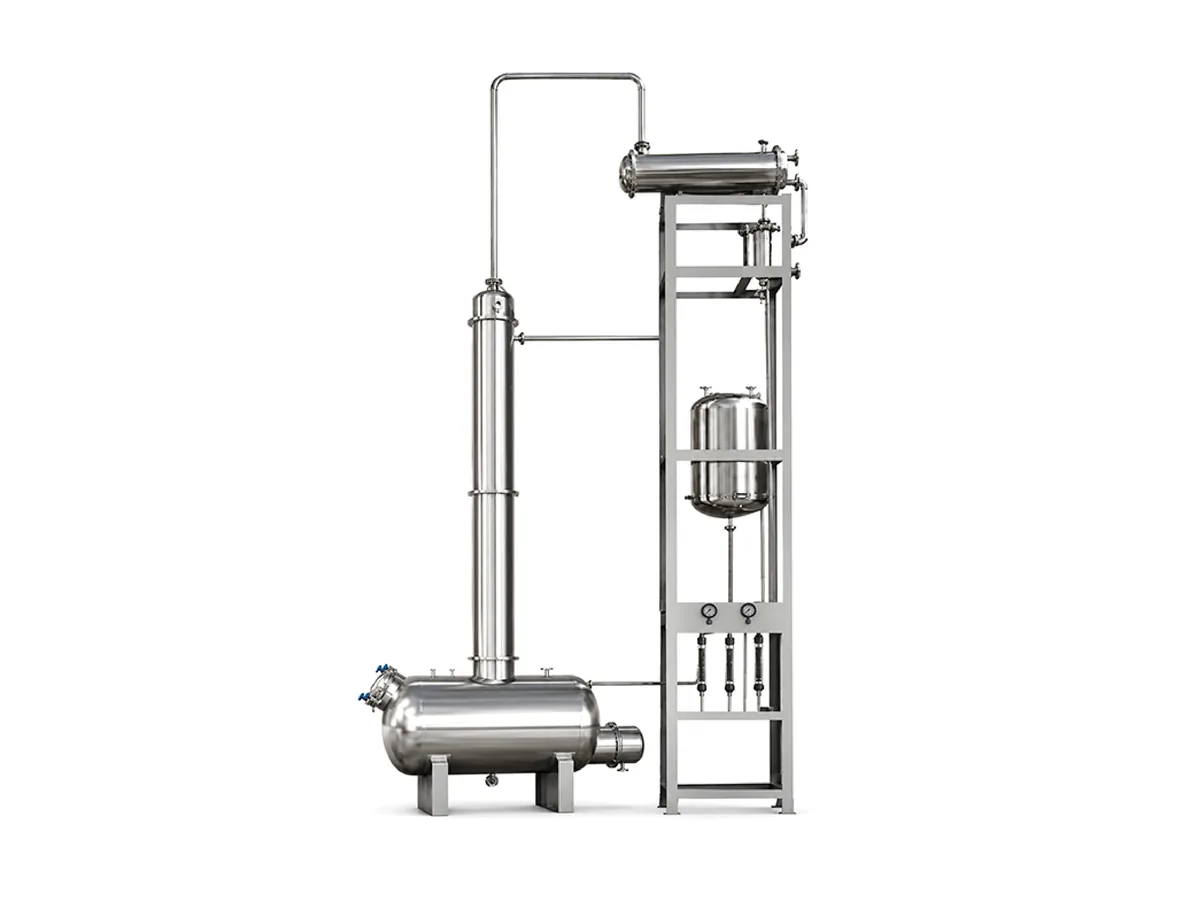

Alcohol Recovery Tower
Distillation and recovery system designed for efficient alcohol and solvent separation.
Technical Specifications
Specifications can be customized according to evaporation capacity, process conditions and installation requirements.

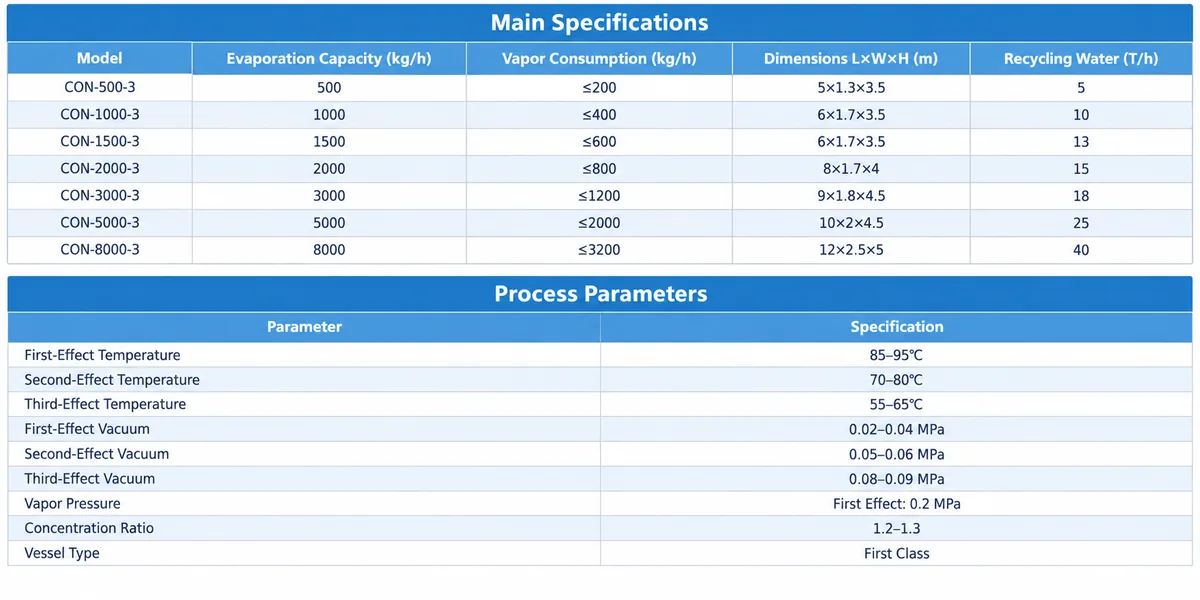

| Main Specifications | ||||
|---|---|---|---|---|
| Model | Evaporation Capacity (kg/h) | Vapor Consumption (kg/h) | Dimensions L×W×H (m) | Recycling Water (T/h) |
| CON-500-3 | 500 | ≤200 | 5×1.3×3.5 | 5 |
| CON-1000-3 | 1000 | ≤400 | 6×1.7×3.5 | 10 |
| CON-1500-3 | 1500 | ≤600 | 6×1.7×3.5 | 13 |
| CON-2000-3 | 2000 | ≤800 | 8×1.7×4 | 15 |
| CON-3000-3 | 3000 | ≤1200 | 9×1.8×4.5 | 18 |
| CON-5000-3 | 5000 | ≤2000 | 10×2×4.5 | 25 |
| CON-8000-3 | 8000 | ≤3200 | 12×2.5×5 | 40 |
| Process Parameters | |
|---|---|
| Parameter | Specification |
| First-Effect Temperature | 85–95°C |
| Second-Effect Temperature | 70–80°C |
| Third-Effect Temperature | 55–65°C |
| First-Effect Vacuum | 0.02–0.04 MPa |
| Second-Effect Vacuum | 0.05–0.06 MPa |
| Third-Effect Vacuum | 0.08–0.09 MPa |
| Vapor Pressure | First Effect: 0.2 MPa |
| Concentration Ratio | 1.2–1.3 |
| Vessel Type | First Class |
Typical Applications
Suitable for low-temperature vacuum concentration of heat-sensitive liquids across pharmaceutical, food, dairy and chemical industries.
Pharmaceutical & Herbal
Vacuum concentration of herbal extracts, pharmaceutical liquids and heat-sensitive materials.
Food & Beverage
Concentration of juices, syrups, extracts and other liquid food products.
Dairy & Ingredients
Processing of dairy liquids, glucose, starch solutions and food ingredients.
Chemical Processing
Efficient concentration of chemical solutions under controlled vacuum conditions.
Optional Configurations
Optional components can be configured to meet different vacuum, cleaning, piping and control requirements.

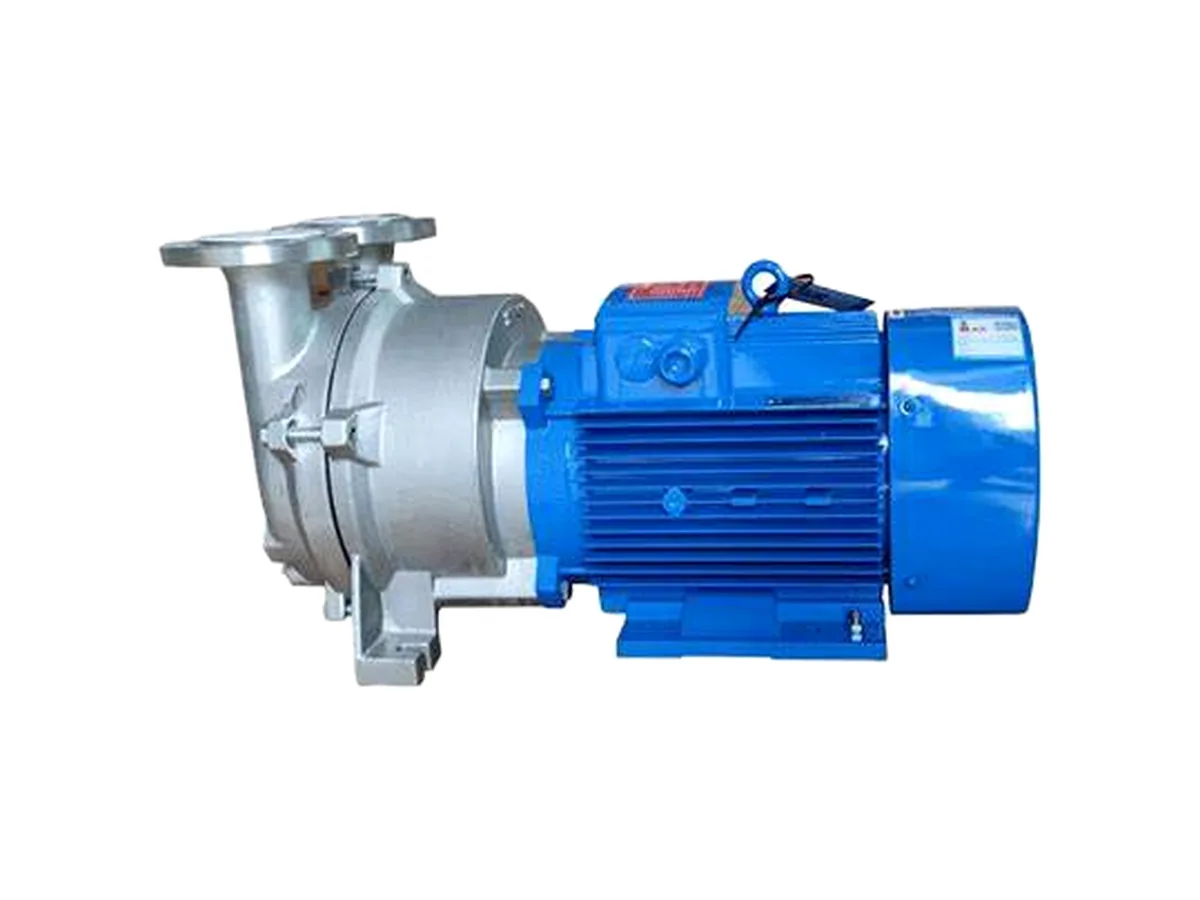

Industrial Vacuum Pump
Vacuum pump for providing stable negative pressure during evaporation and concentration.

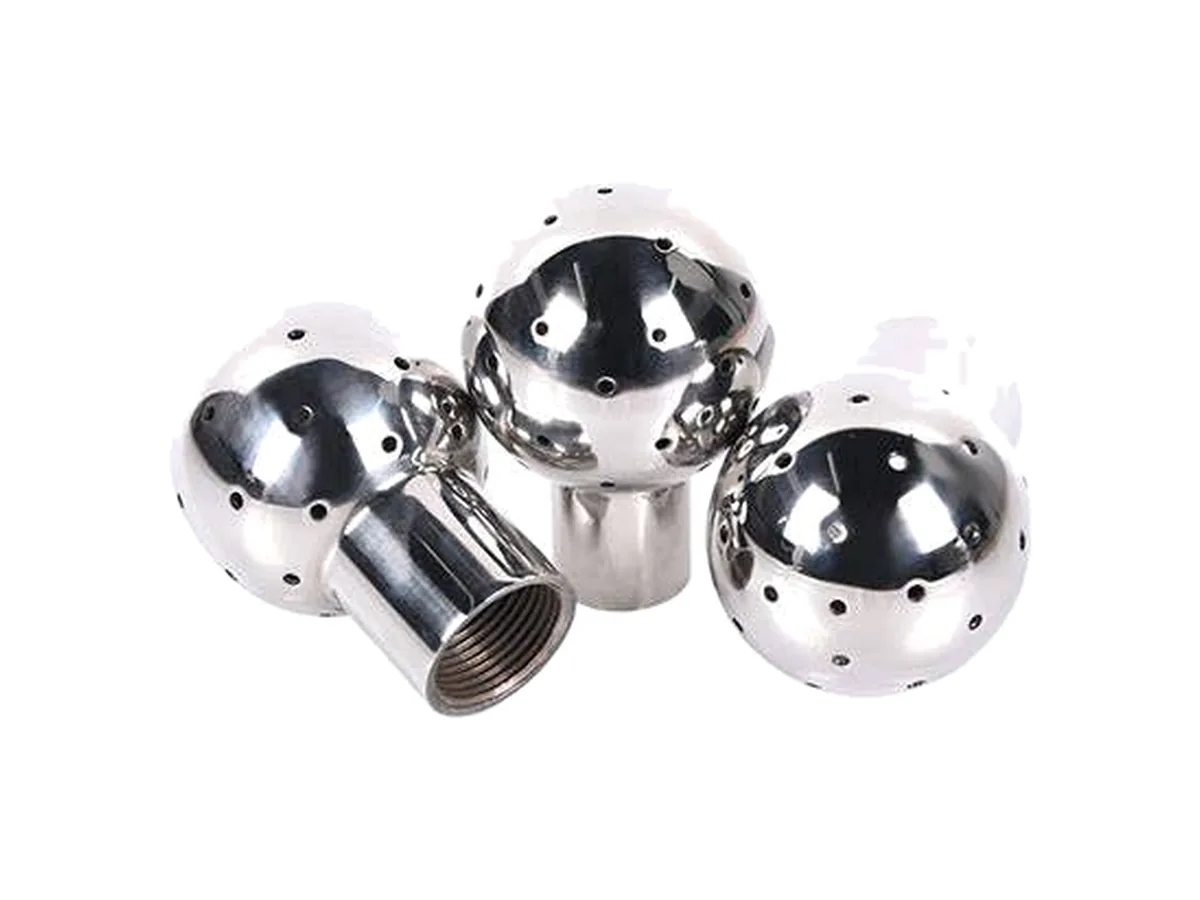

CIP Spray Balls
Stainless steel spray ball for efficient internal cleaning of process vessels.

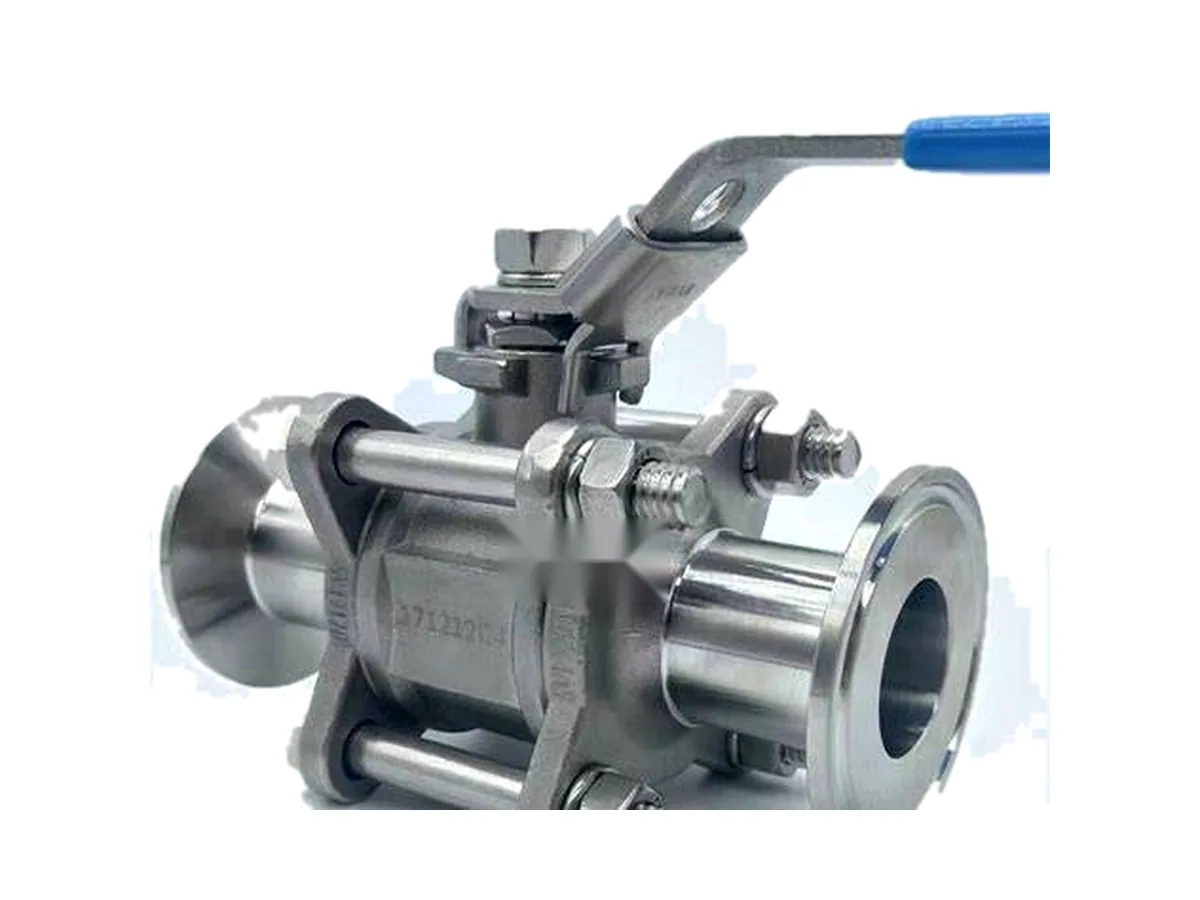

Sanitary Ball Valve
Sanitary valve for reliable flow control in hygienic process piping systems.

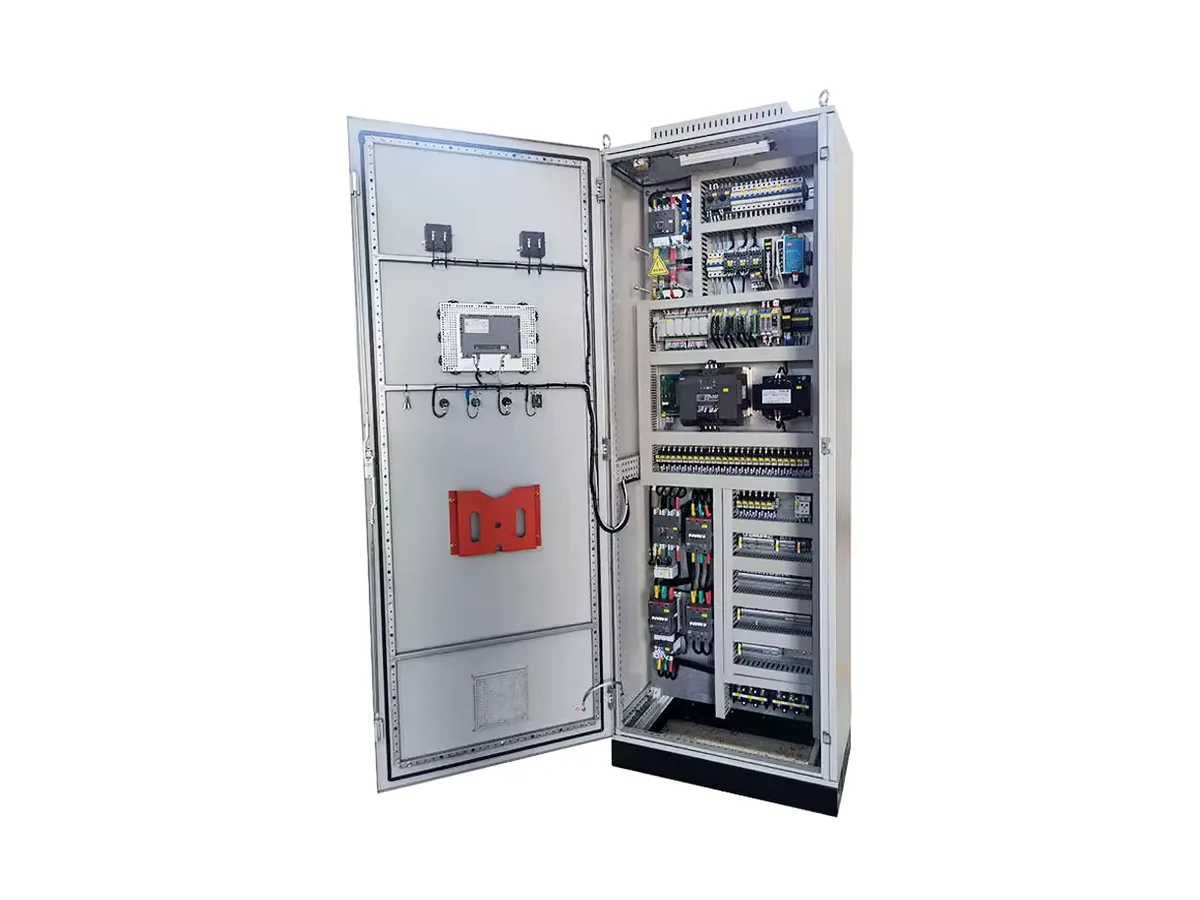

PLC Control Cabinet
Electrical control cabinet for process monitoring and automated equipment operation.
Need a Three-Effect Concentrator for Your Process?
Tell us your material type, required evaporation capacity, feed concentration, target concentration and process conditions. Our team will help you select a suitable Three-Effect Concentrator configuration.
Request a Quote
