V-Type Blender
Uniform blending for dry powders, granules and other solid materials. The rotating V-shaped vessel provides gentle, efficient mixing with low residue and easy cleaning.
Configuration Overview
Configure the blender to match your batch size, material and mixing requirements.
50–1,000 L
Capacity
40–50%
Loading Ratio
SUS304 / SUS316L
Material
10–15 r/min
Vessel Speed
Available Configurations

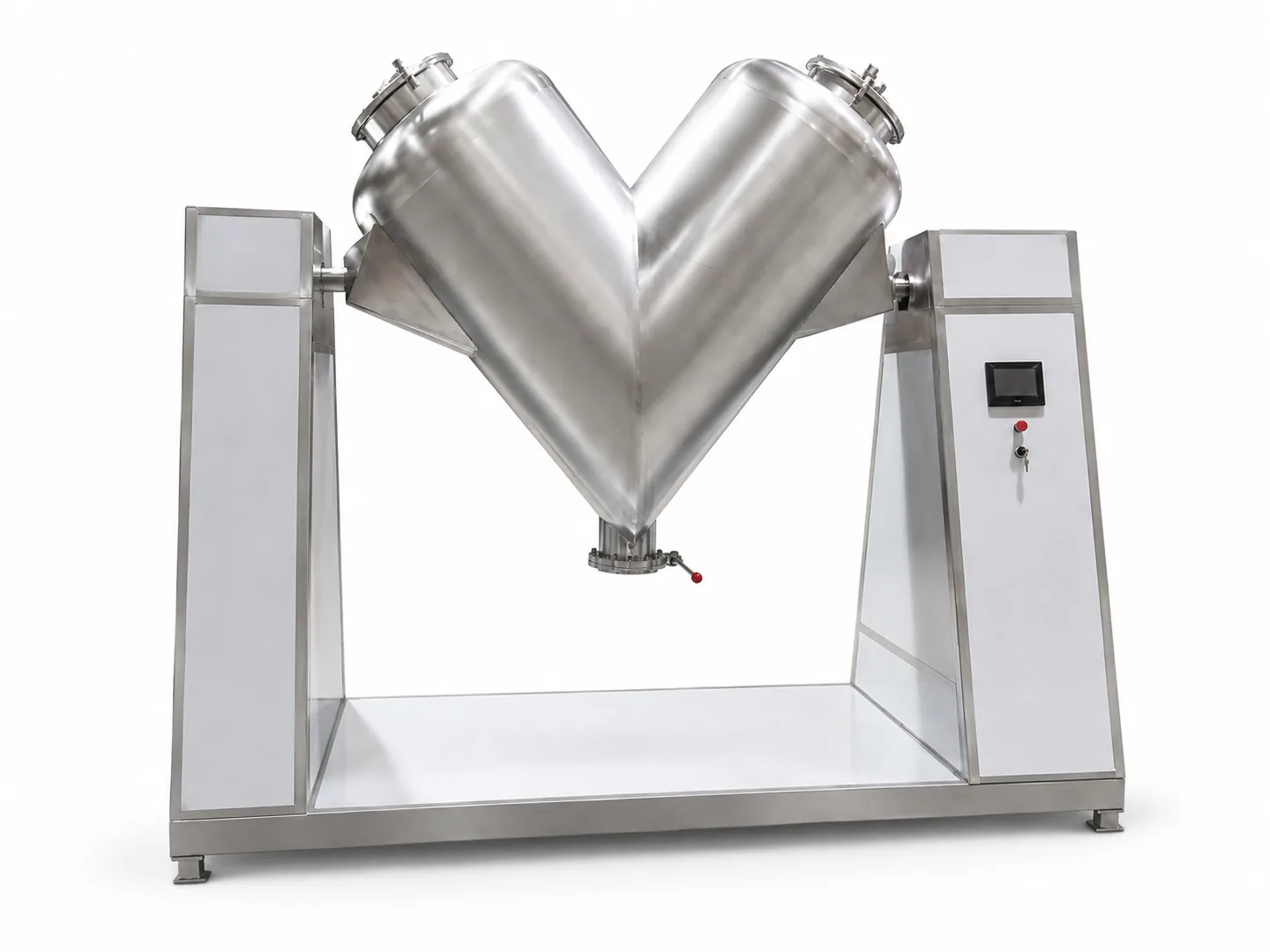

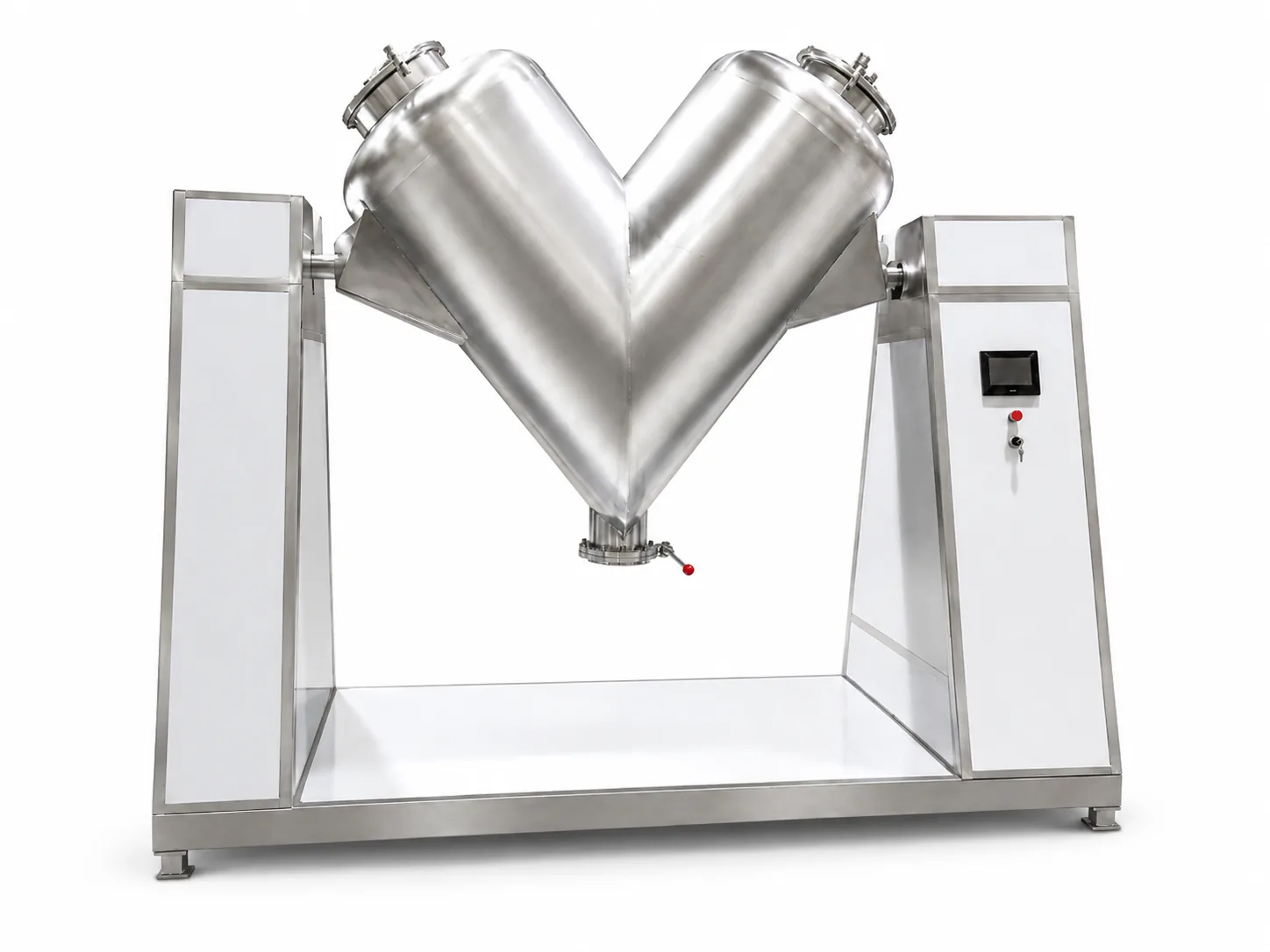

Standard V-Type Blender
Standard design for uniform blending of powders and granules.

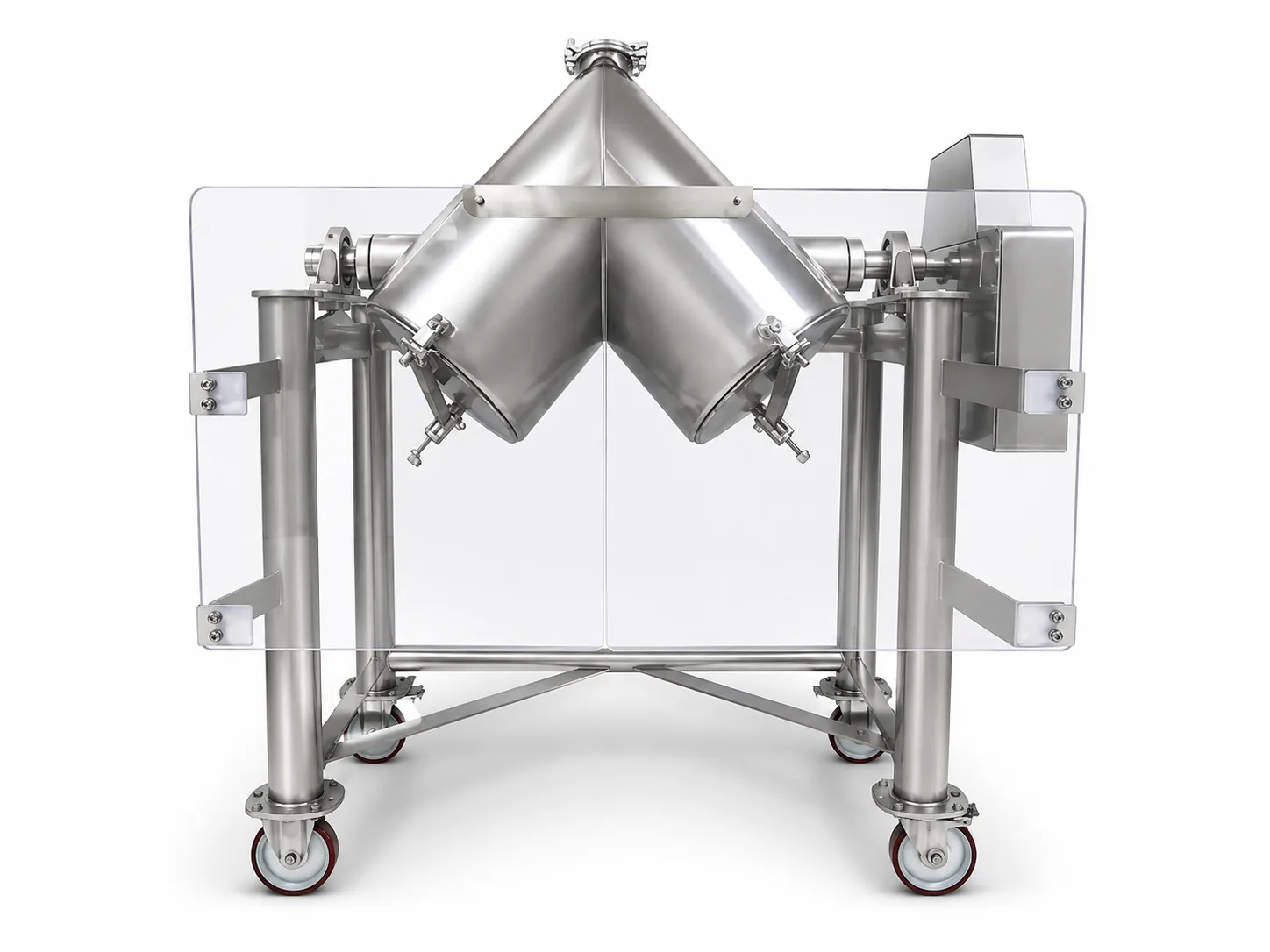

Mobile V-Type Blender
Mobile design with safety guarding for flexible production use.

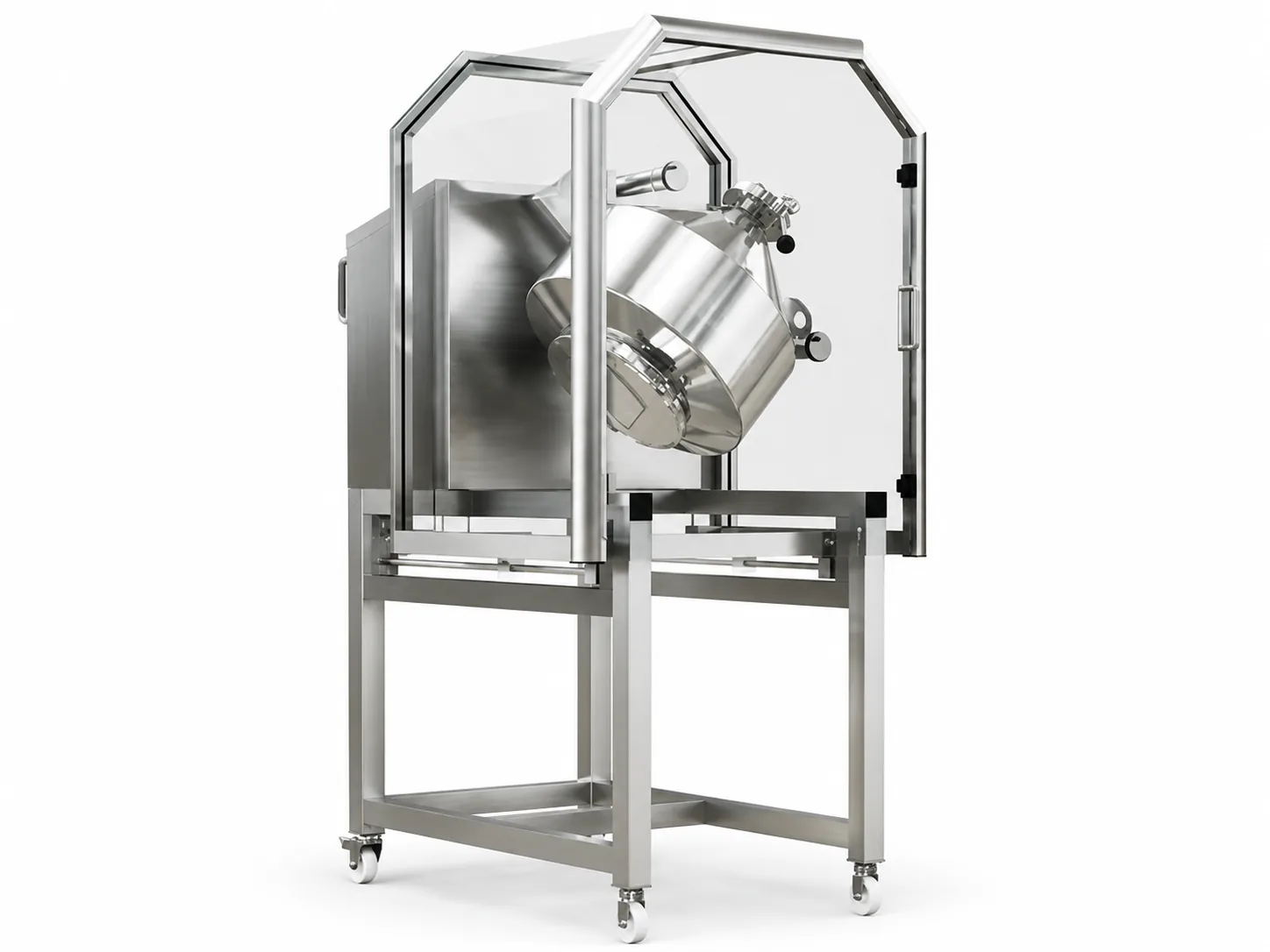

Enclosed V-Type Blender
Enclosed design for safer and more controlled blending operations.

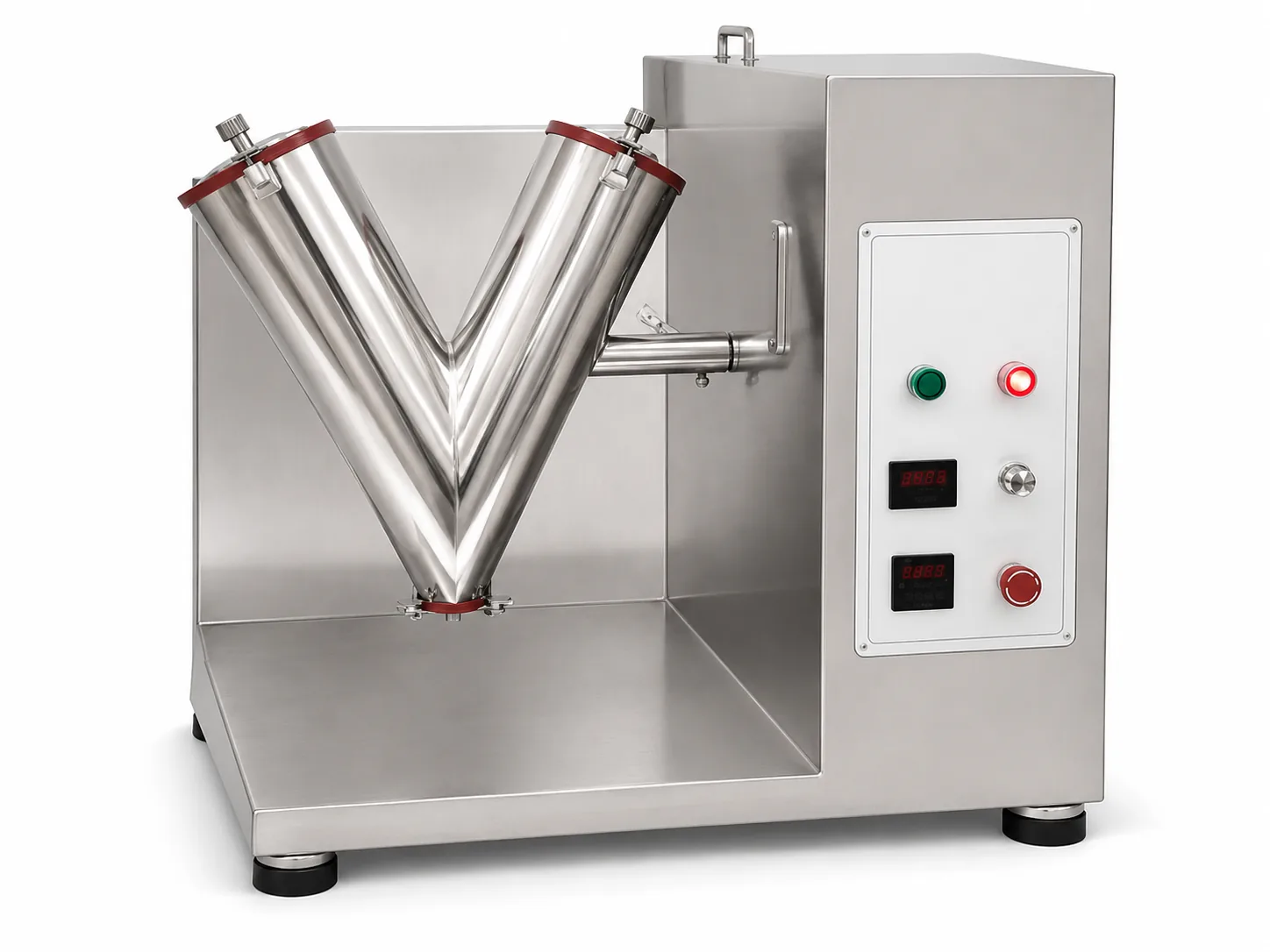

Compact V-Type Blender
Compact design for laboratory and small-batch blending.

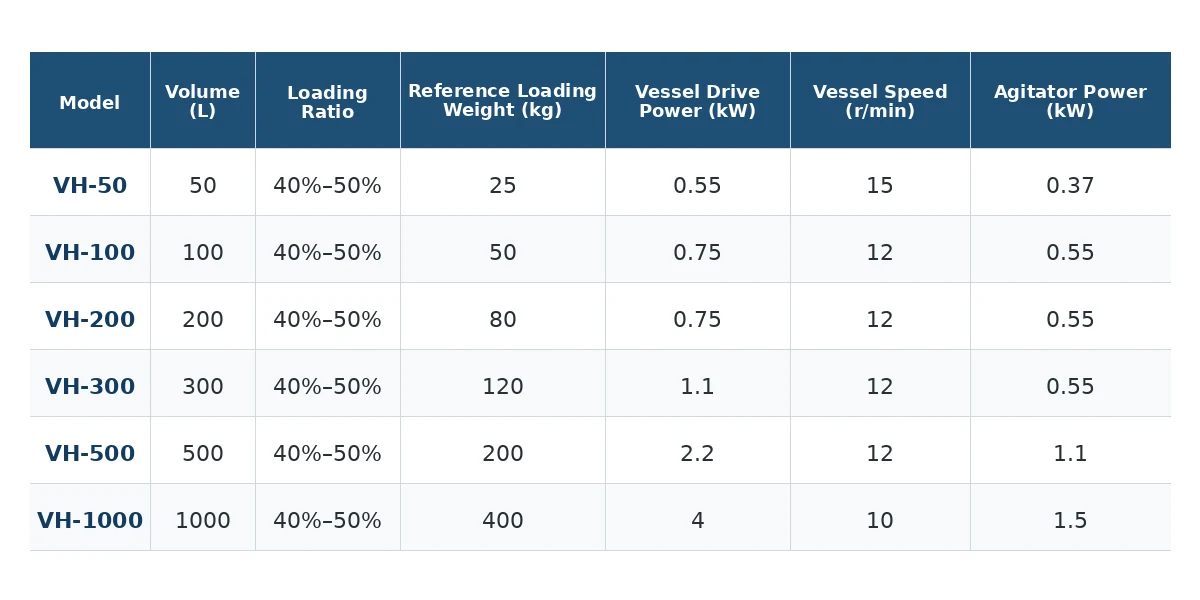

Technical Specifications
Available models range from 50 to 1,000 L. Final configuration should be selected according to material and process requirements.
| Model | Volume (L) |
Loading Ratio |
Reference Loading Weight (kg) |
Vessel Drive Power (kW) |
Vessel Speed (r/min) |
Agitator Power (kW) |
|---|---|---|---|---|---|---|
| VH-50 | 50 | 40%–50% | 25 | 0.55 | 15 | 0.37 |
| VH-100 | 100 | 40%–50% | 50 | 0.75 | 12 | 0.55 |
| VH-200 | 200 | 40%–50% | 80 | 0.75 | 12 | 0.55 |
| VH-300 | 300 | 40%–50% | 120 | 1.1 | 12 | 0.55 |
| VH-500 | 500 | 40%–50% | 200 | 2.2 | 12 | 1.1 |
| VH-1000 | 1000 | 40%–50% | 400 | 4 | 10 | 1.5 |
Typical Applications
Ideal for uniform blending of dry powders, granules and other solid materials across multiple industries.
Food & Beverage
Uniform blending of food powders, ingredients and dry mixes.
Pharmaceuticals
Gentle blending of pharmaceutical powders and granulated materials.
Chemical Processing
Uniform blending of dry chemical powders and solid materials.
Feed & Nutraceuticals
Consistent blending of feed, supplements and nutritional powders.
Optional Configurations
Optional features can be selected to match material characteristics, batch size and operating requirements.

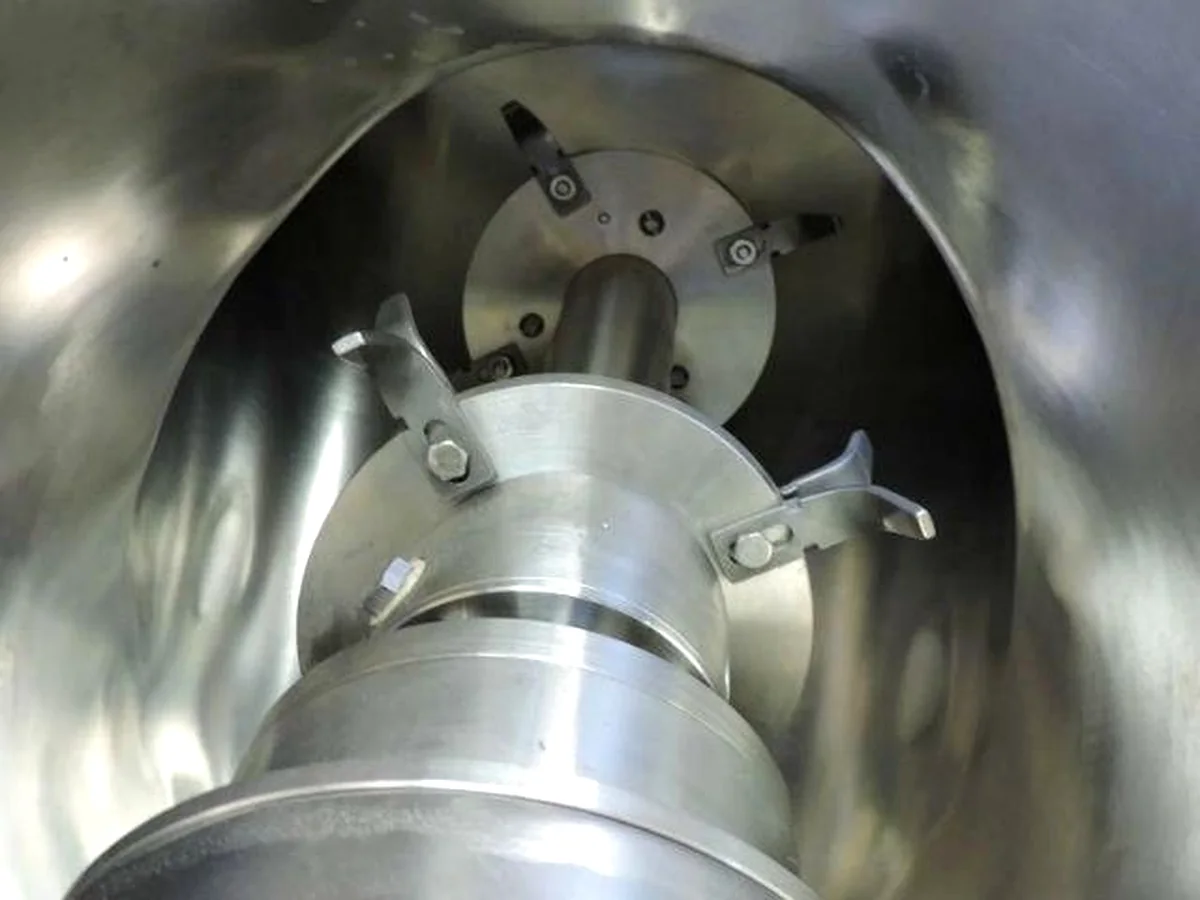

Intensifier Bar
Optional intensifier bar supports additional material breakup during blending.

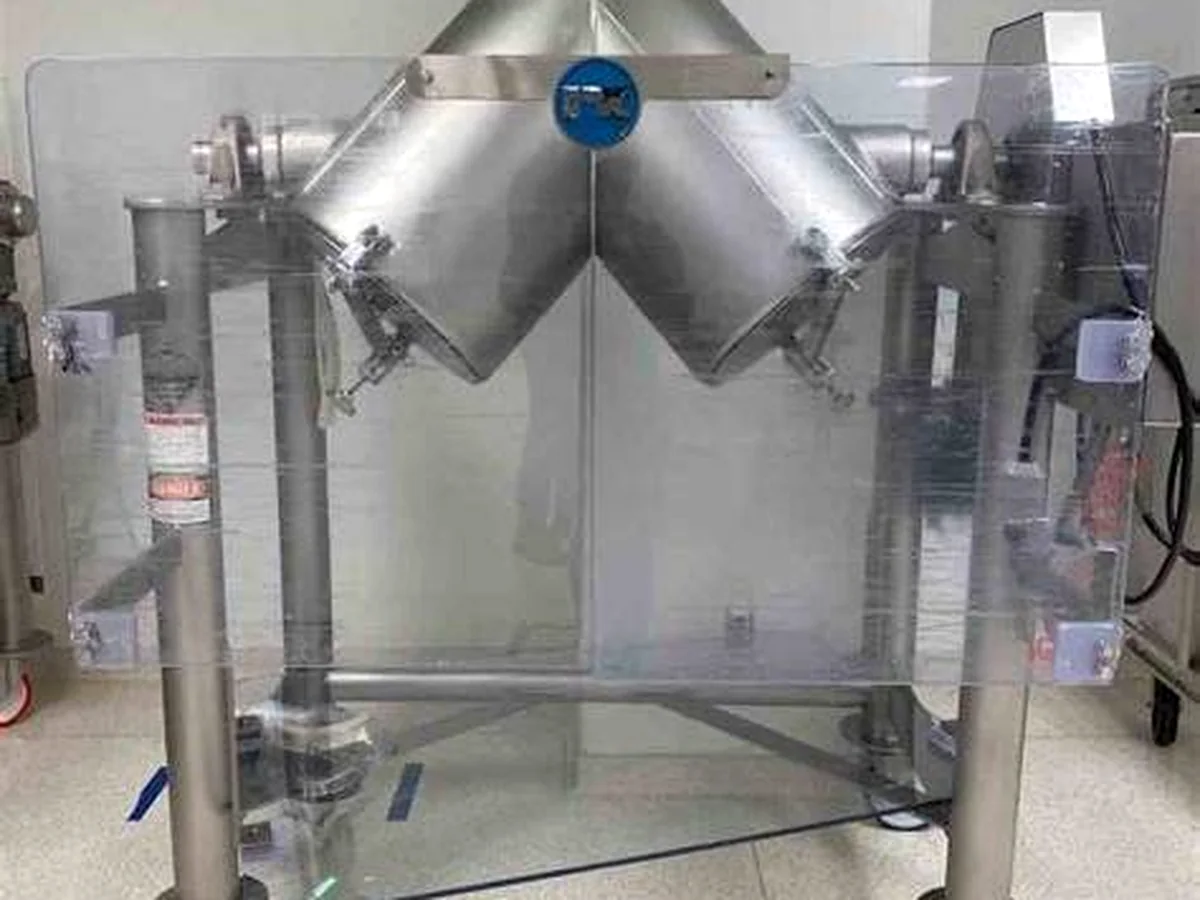

Safety Guard
Protective guarding provides a physical barrier around the rotating vessel.

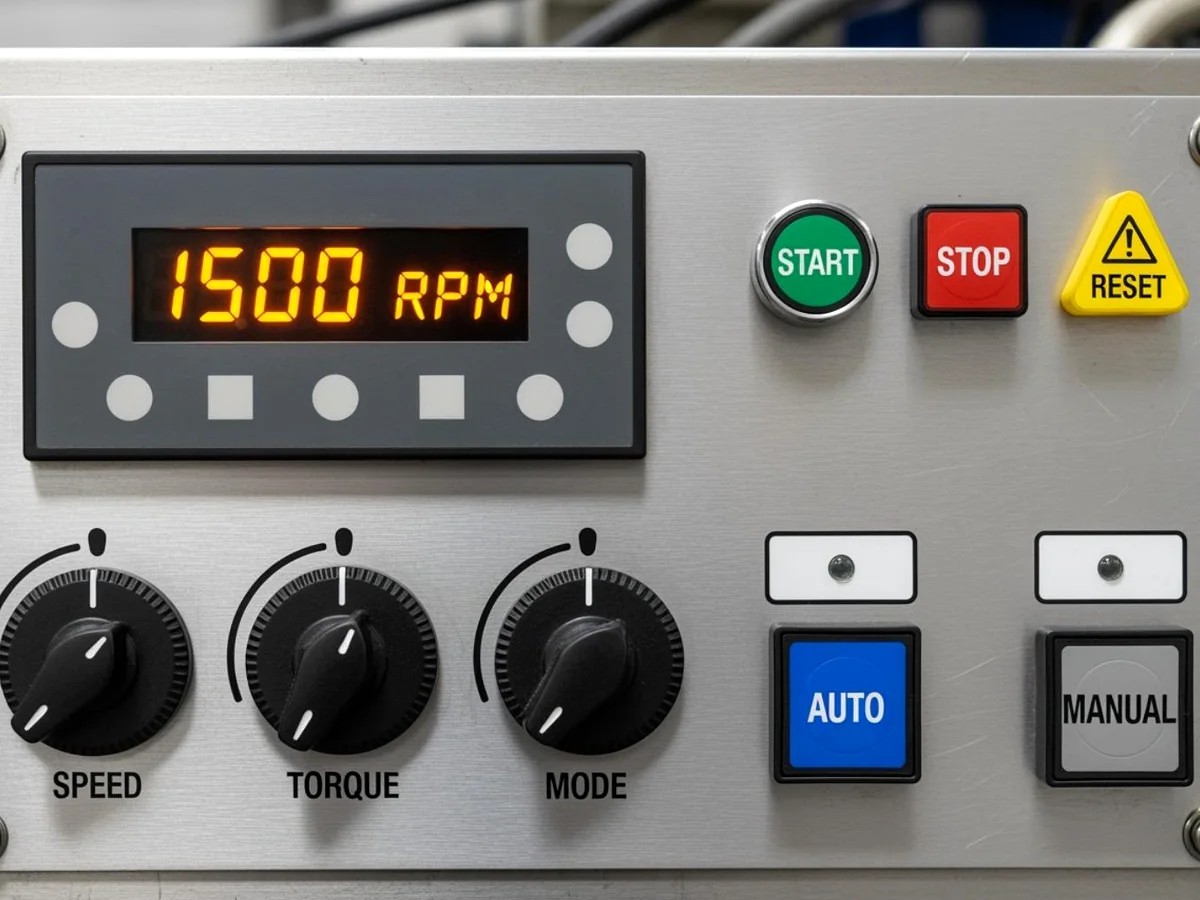

Variable Speed Control
Adjustable speed control allows vessel speed to be set according to material and batch requirements.

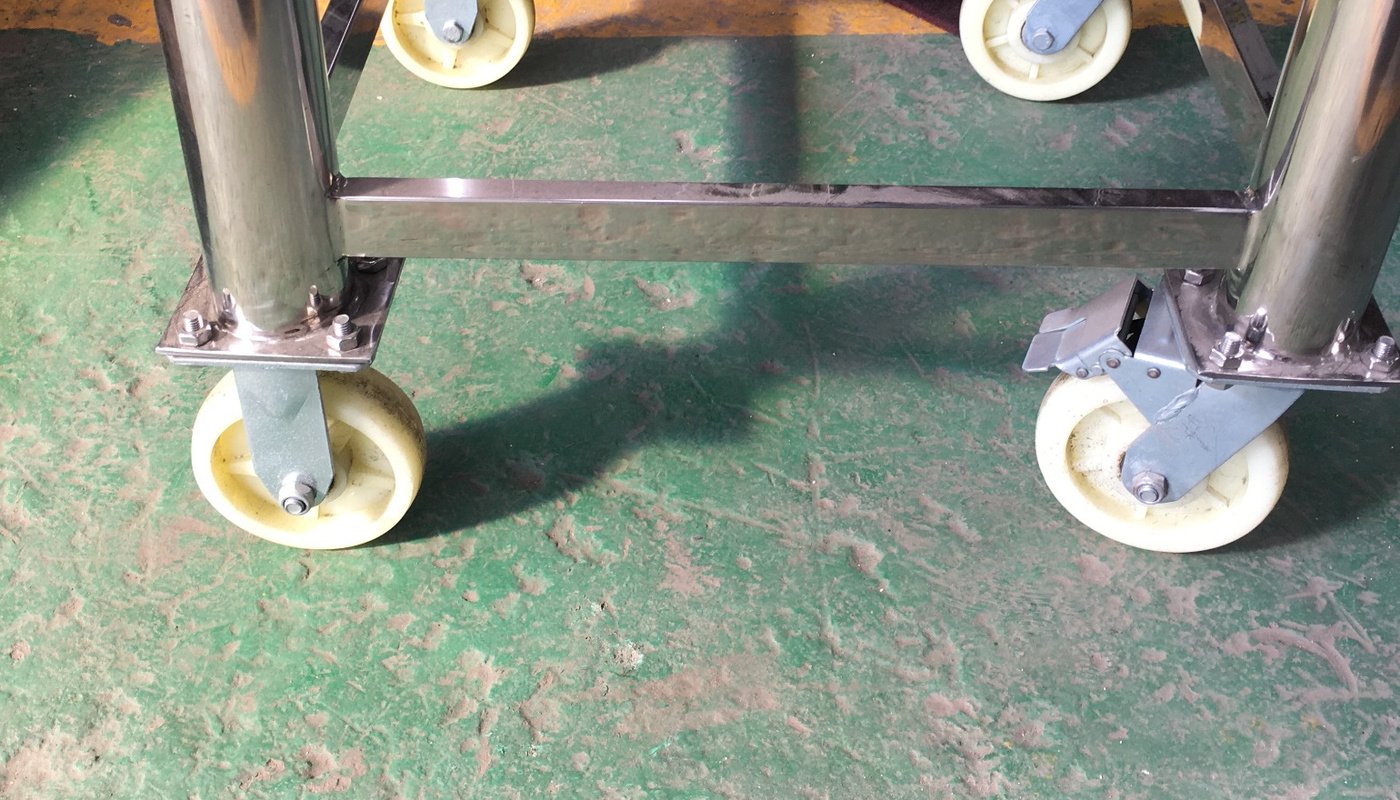

Mobile Caster Base
Caster-mounted base allows easier movement and flexible positioning.
Need a V-Type Blender for Your Process?
Tell us your required batch capacity, material characteristics, blending requirements and operating conditions. Our team will help you select a suitable V-Type Blender configuration.
Request a Quote
