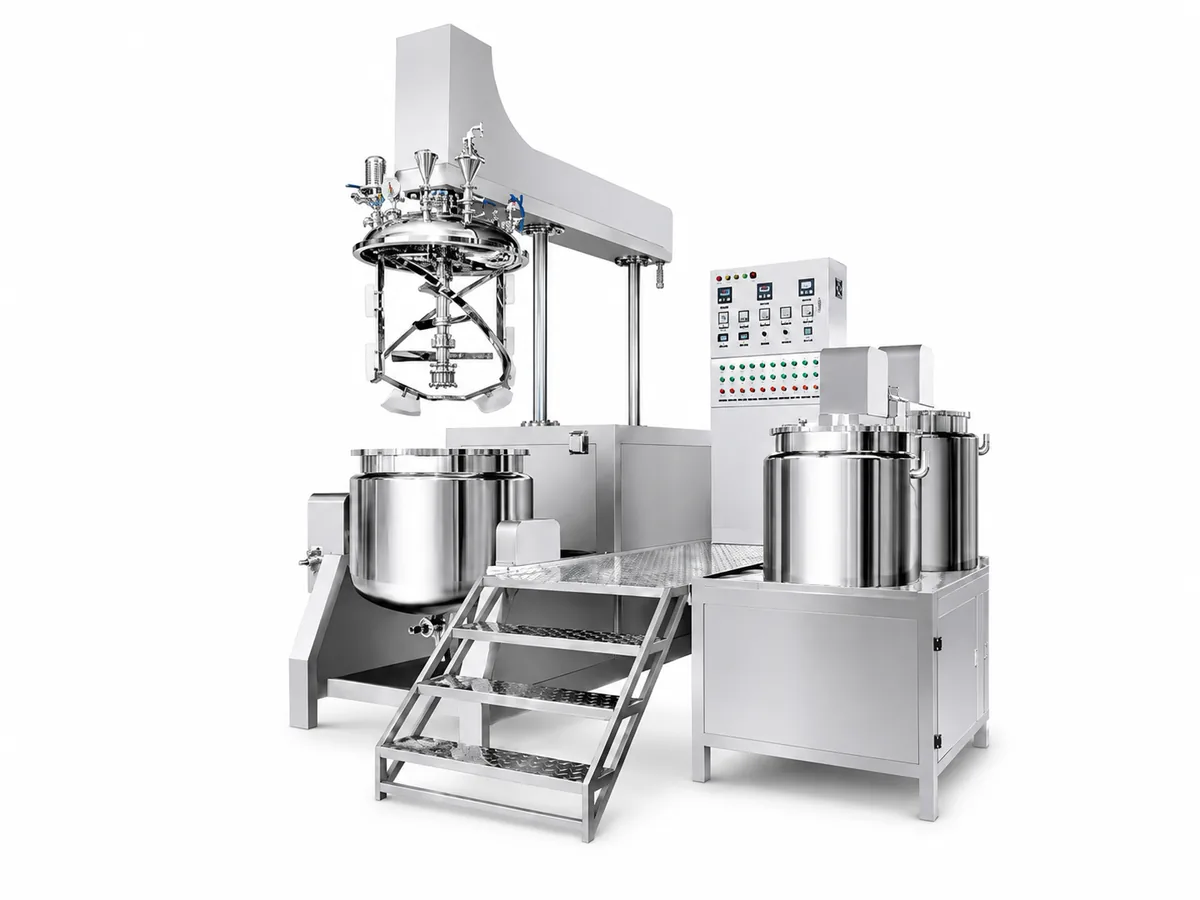

Vacuum Emulsifying Tank
Designed for vacuum mixing, homogenizing and emulsifying processes, this system combines high-shear processing with controlled heating and cooling. Multiple capacities and configurations are available to meet different production requirements.
Configuration Overview
Configure the system to match your capacity and process requirements.
50–2,000 L
Capacity
Vacuum Emulsifying
Process Type
High-Shear Mixing
Homogenizing System
Heating & Cooling
Temperature Control
Available Configurations

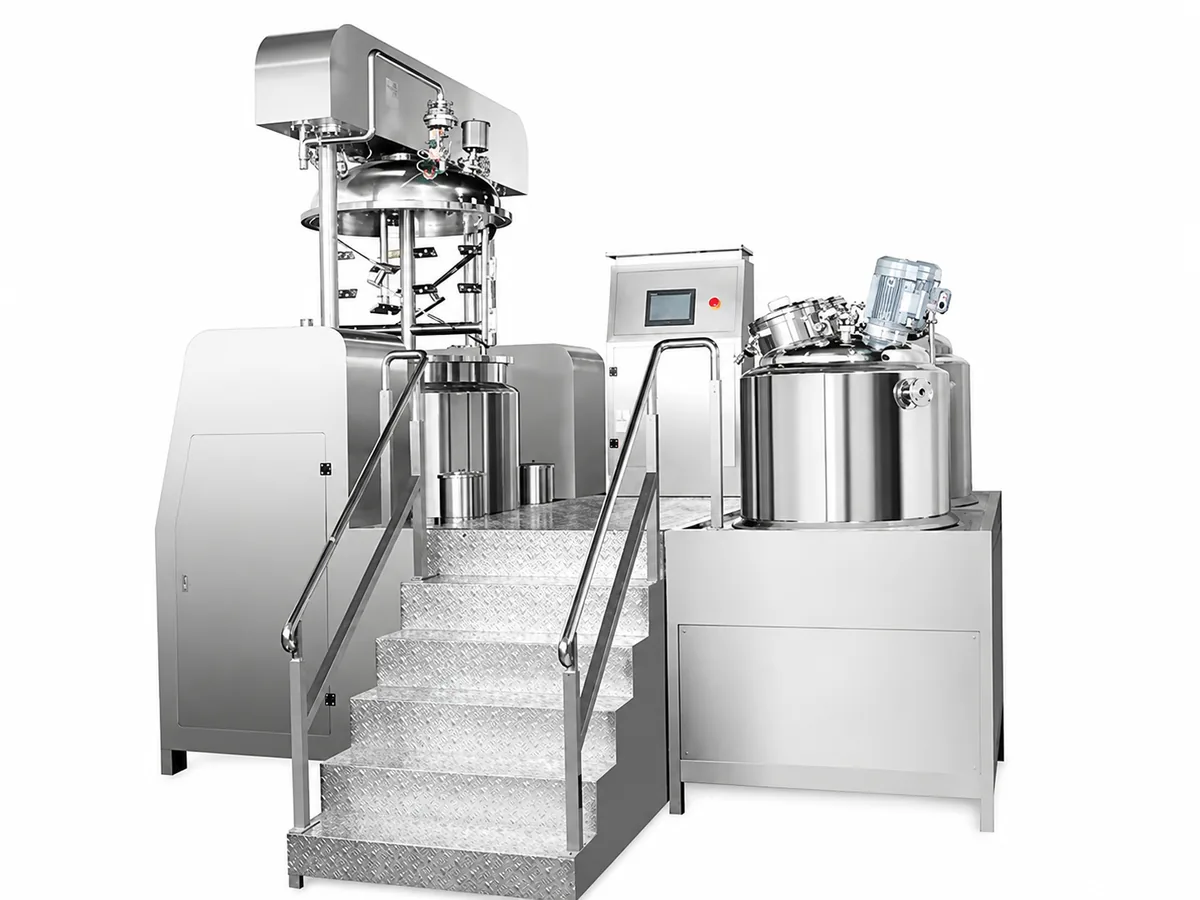

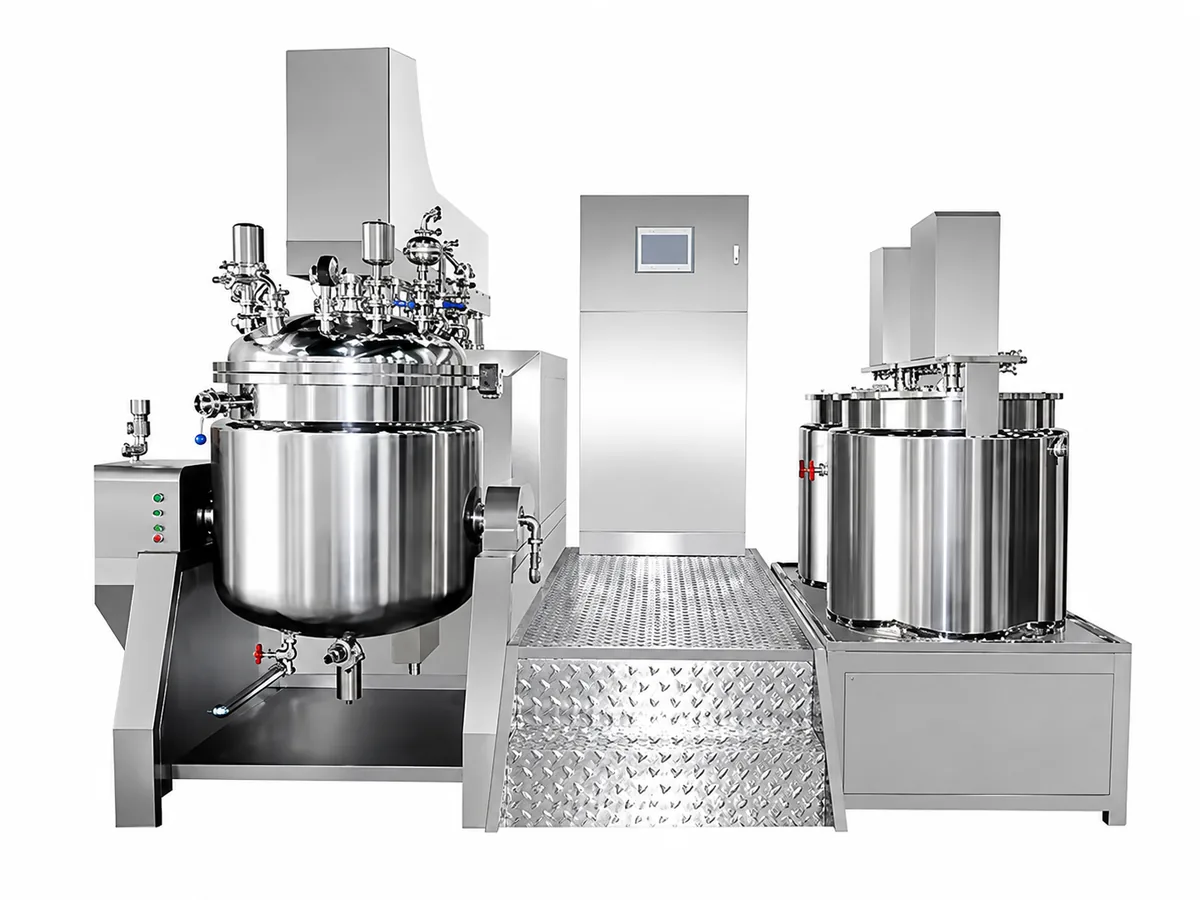

Platform Type
Platform design for convenient operation and easy access.

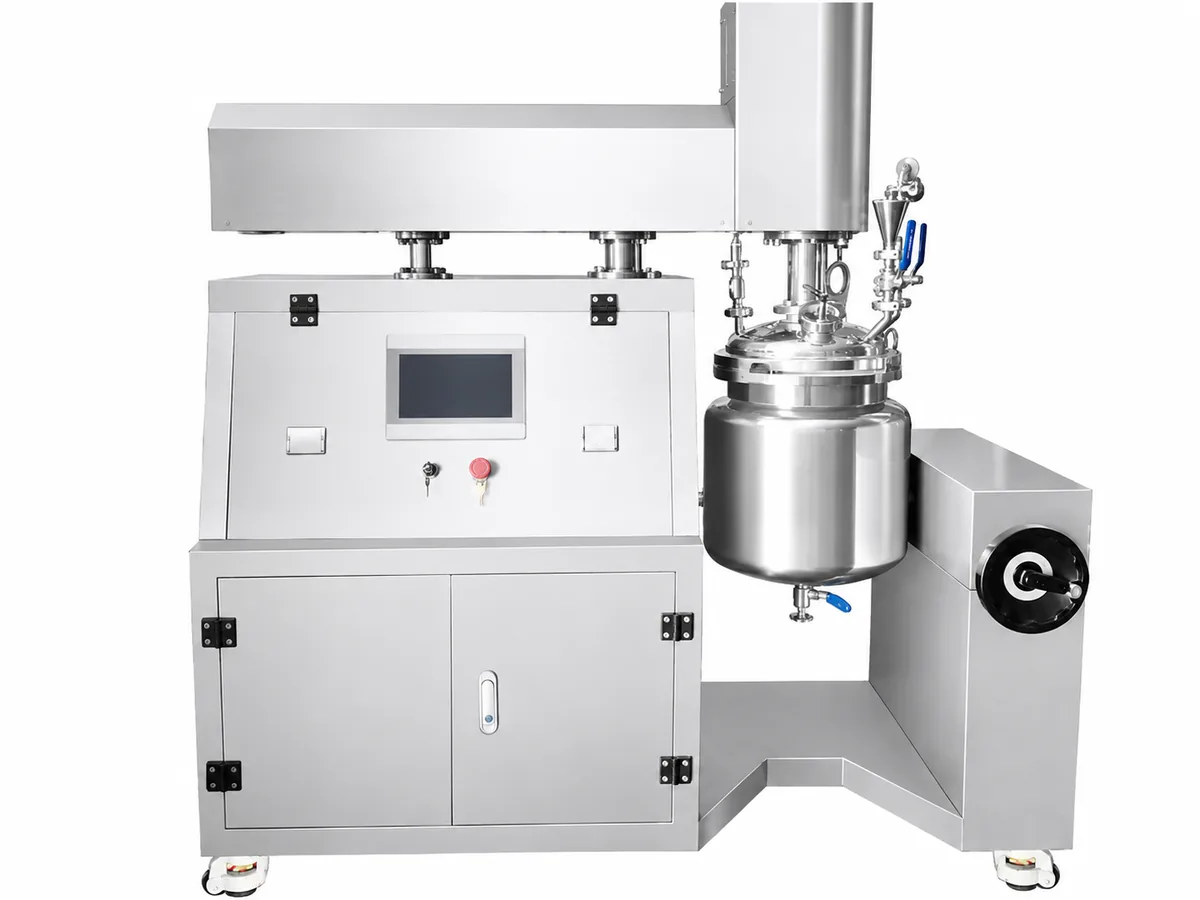

Compact Type
Compact design for flexible production and easy installation.

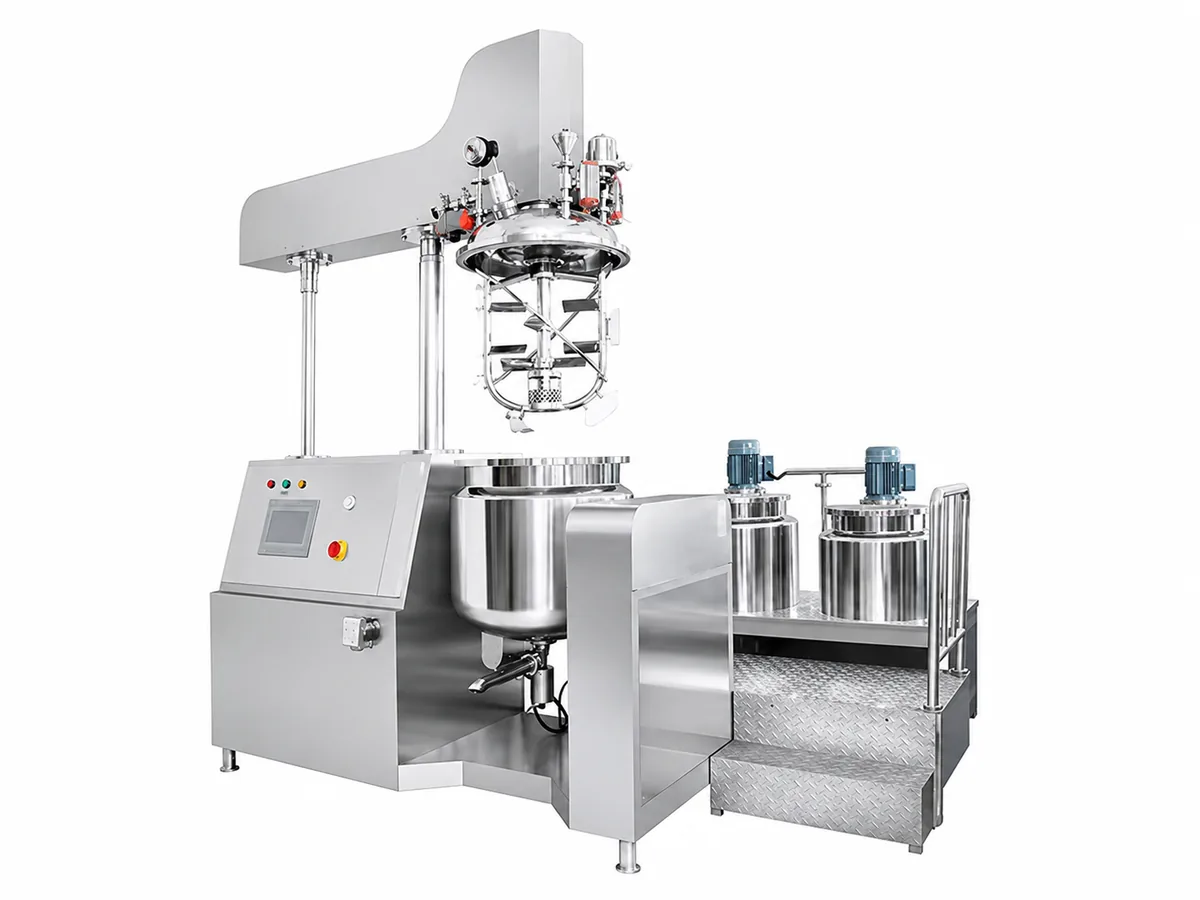

Standard Type
Standard system for vacuum mixing and homogenizing processes.
Hydraulic Lifting Type
Lifting design for easier operation, access and cleaning.

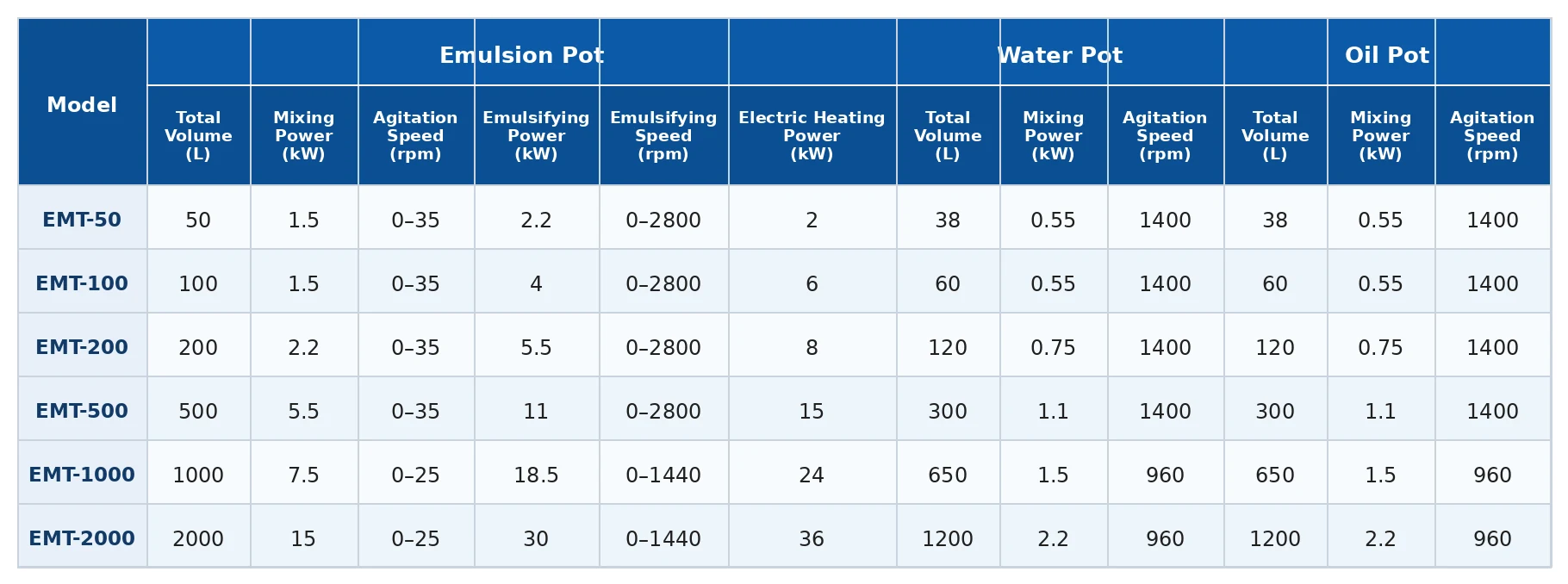

Technical Specifications
Specifications can be customized according to capacity, process and installation requirements.
| Model | Emulsion Pot | Water Pot | Oil Pot | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Total Volume (L) |
Mixing Power (kW) |
Agitation Speed (rpm) |
Emulsifying Power (kW) |
Emulsifying Speed (rpm) |
Electric Heating Power (kW) |
Total Volume (L) |
Mixing Power (kW) |
Agitation Speed (rpm) |
Total Volume (L) |
Mixing Power (kW) |
Agitation Speed (rpm) |
|
| EMT-50 | 50 | 1.5 | 0–35 | 2.2 | 0–2800 | 2 | 38 | 0.55 | 1400 | 38 | 0.55 | 1400 |
| EMT-100 | 100 | 1.5 | 0–35 | 4 | 0–2800 | 6 | 60 | 0.55 | 1400 | 60 | 0.55 | 1400 |
| EMT-200 | 200 | 2.2 | 0–35 | 5.5 | 0–2800 | 8 | 120 | 0.75 | 1400 | 120 | 0.75 | 1400 |
| EMT-500 | 500 | 5.5 | 0–35 | 11 | 0–2800 | 15 | 300 | 1.1 | 1400 | 300 | 1.1 | 1400 |
| EMT-1000 | 1000 | 7.5 | 0–25 | 18.5 | 0–1440 | 24 | 650 | 1.5 | 960 | 650 | 1.5 | 960 |
| EMT-2000 | 2000 | 15 | 0–25 | 30 | 0–1440 | 36 | 1200 | 2.2 | 960 | 1200 | 2.2 | 960 |
Typical Applications
Ideal for emulsifying, homogenizing and vacuum mixing applications across cosmetic, pharmaceutical, food and chemical industries.
Cosmetics & Skincare
Creams, lotions, gels and other emulsified products.
Pharmaceuticals
Ointments, creams and other emulsified formulations.
Food Processing
Sauces, dressings and other emulsified food products.
Fine Chemicals
Emulsions and formulated products for controlled mixing.
Optional Accessories
A range of accessories can be supplied to match different process, cleaning and operating requirements.

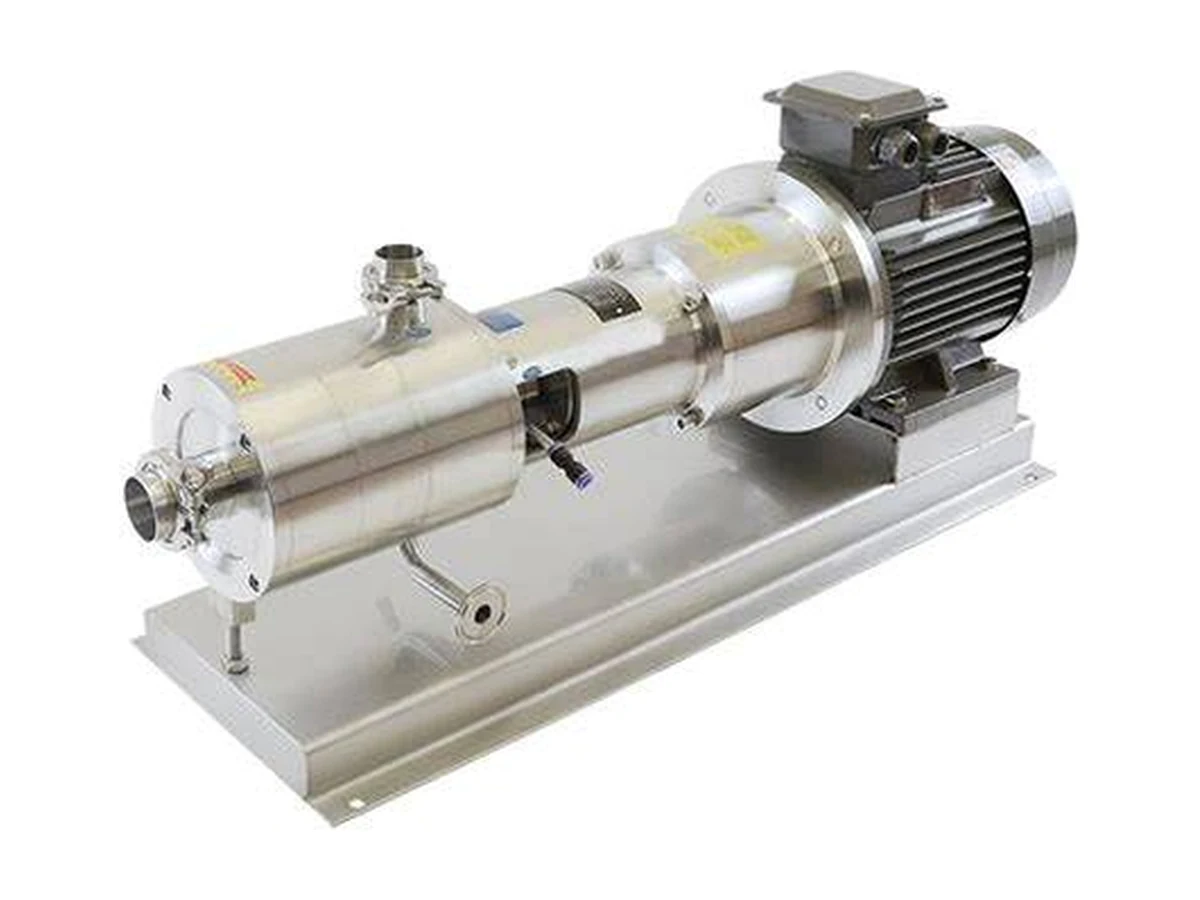

High-Shear Homogenizer
High-shear mixing for efficient homogenizing and emulsification.

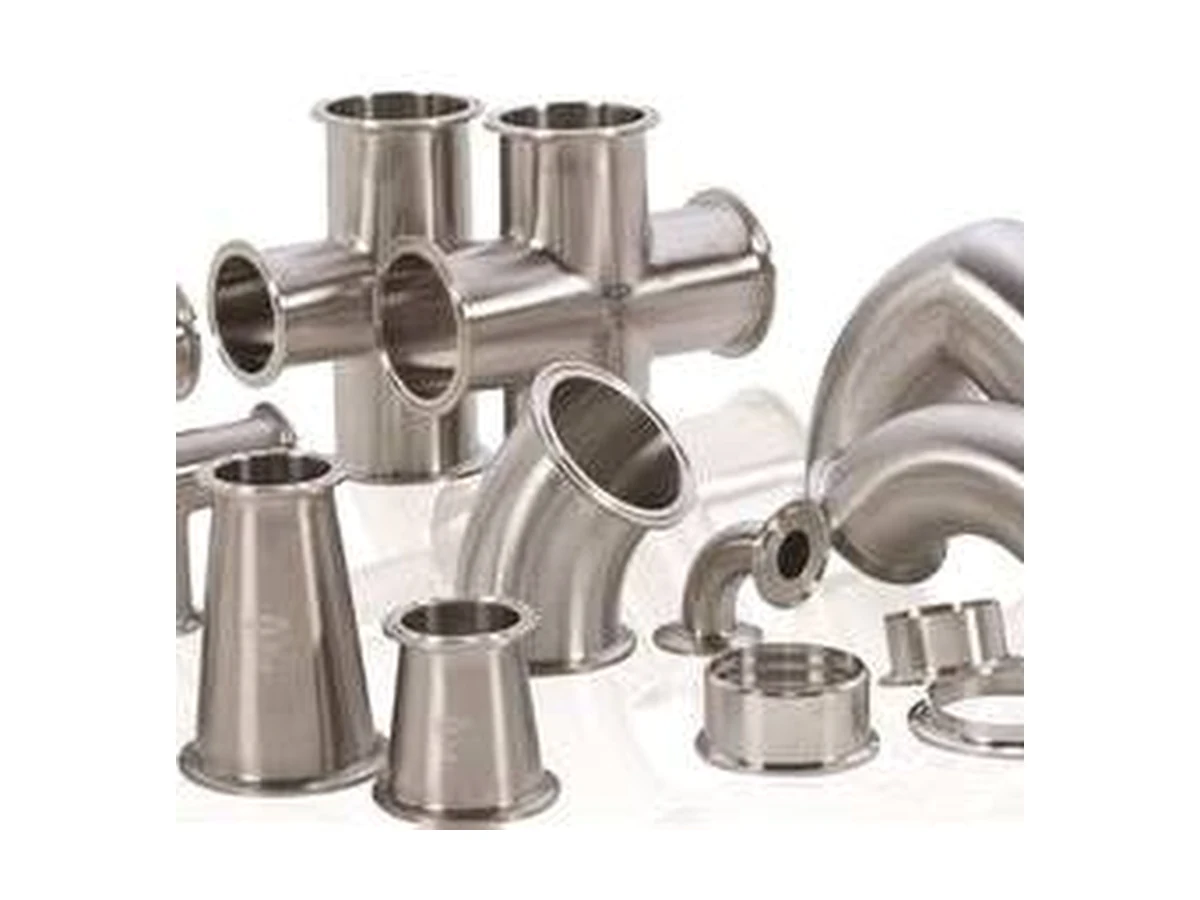

Sanitary Pipe Fittings
Sanitary fittings for process piping and connections.

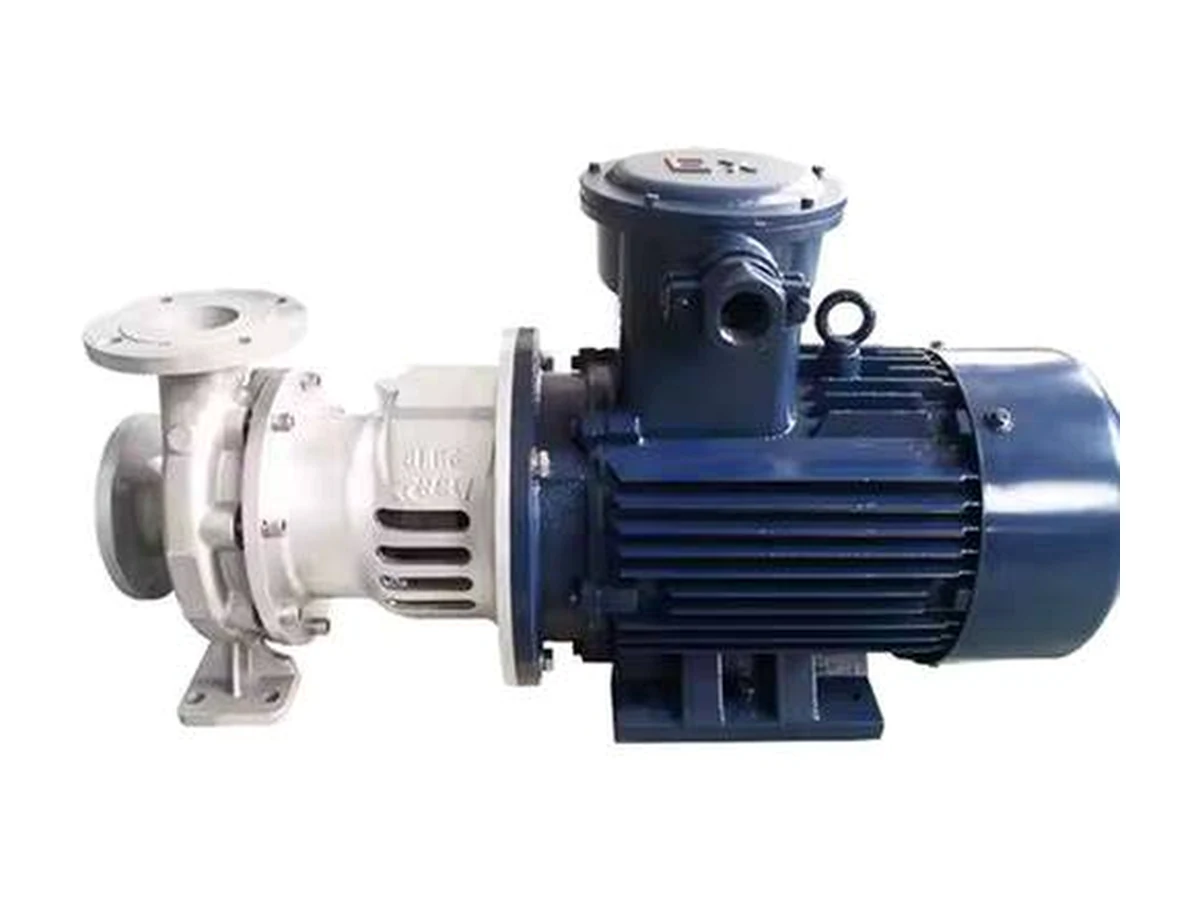

Vacuum Pump
Vacuum support for deaeration and emulsifying processes.

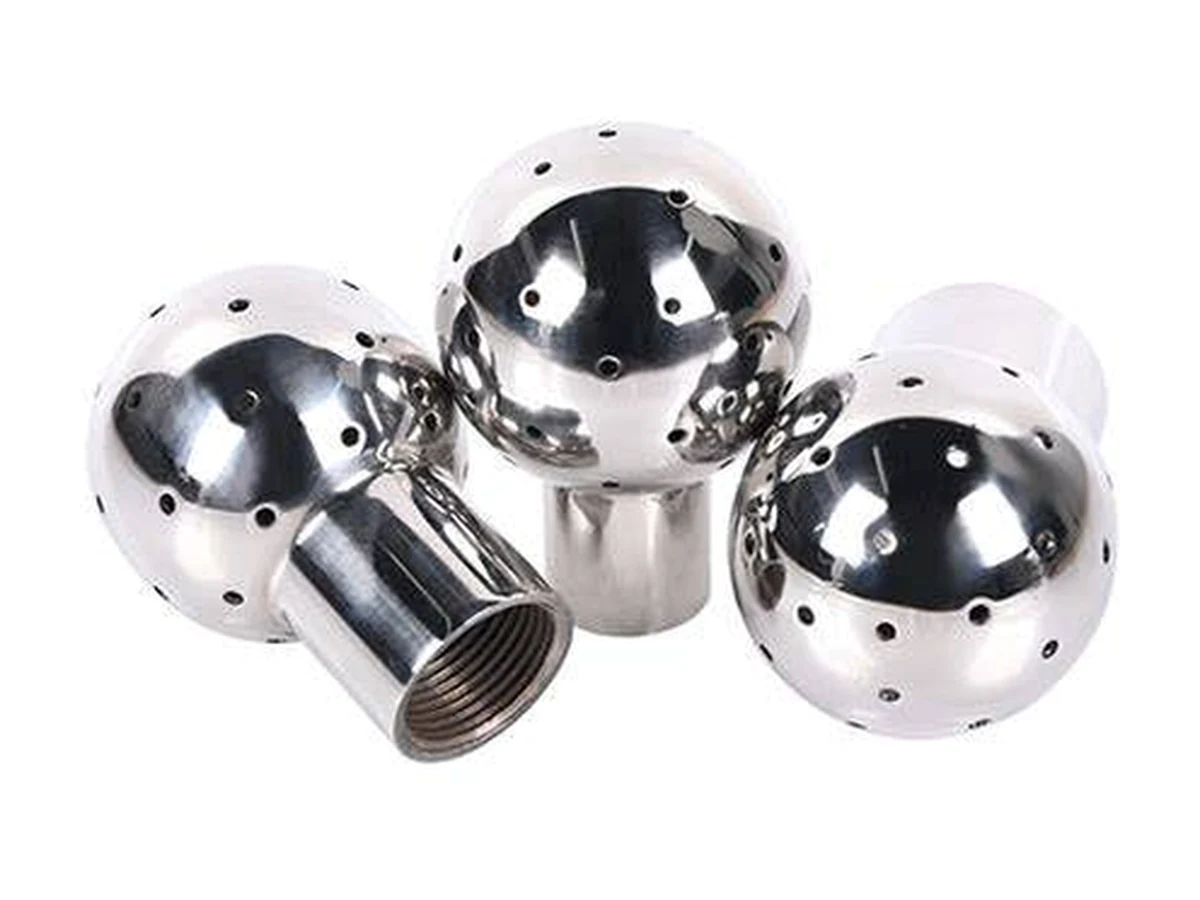

CIP Spray Ball
Efficient internal cleaning for tanks and process vessels.
Need a Vacuum Emulsifying Tank for Your Process?
Tell us your required capacity, product viscosity, mixing and emulsifying requirements, heating and cooling method, vacuum requirements and installation conditions. Our team will help you select a suitable vacuum emulsifying tank configuration.
